P-1A AND P-1B WATER CLOSET

Limited Warranty
Zurn goods sold hereunder are warranted to be free from defects in material and factory
workmanship for the period of time from the date of purchase: AquaVantage® Flush
Valves, AquaFlush® Flush Valves, Commercial Fixtures, Faucets, Showers, and
Tubular Brass three years; Chemical Drainage, Linear Drainage, Light Commercial,
Specification Drainage, Zurn Wilkins, and Flush Valve and Tubular Brass decorative
finishes one year, PHIX® Cartridge ten years, FOG-ceptor™ thirty years. Where
permitted by law, THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO
THE ABOVE IDENTIFIED PERIOD OF TIME AND SHALL BE LIMITED SOLELY TO
THE REPLACEMENT OF THE DEFECTIVE GOODS. A damaged/broken test cock or
ball valve is not considered defective. Please contact Zurn Customer Care for
assistance.
Zurn will replace goods at no cost that prove defective provided Zurn is notified in
writing of such defect and the goods are returned prepaid at the specified Zurn location
with evidence that they have been properly maintained and used in accordance with
instructions. ZURN SHALL NOT BE RESPONSIBLE FOR ANY LABOR CHARGES OR
ANY LOSS, INJURY, OR DAMAGES WHATSOEVER, INCLUDING, BUT NOT
LIMITED TO, INCIDENTAL OR CONSEQUENTIAL DAMAGES. The sole and exclusive
remedy shall be limited to the replacement of the defective goods. Before installation
and use, the purchaser shall determine the suitability of the product for his intended use
and the purchaser assumes all risk and liability whatever in the connection therewith. All
weights stated in Zurn catalogs and lists are approximate and are not guaranteed.

Page 1
Aquaflush®
Z6000 Series
Aquaflush Exposed Flushometer
Installat on, Operat on,
Ma ntenance, and Parts Manual
Patented and Patents Pend ng
LIMITED WARRANTY
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of
purchase. Decorative finishes warranted for one year. We will replace at no cost goods that prove defective provided we are notified in writing of such
defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accor dance with
instruc tions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or conse quen tial
damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall
determine the suitability of the product for his intended use and the purchaser assumes all risk and liability whatever in connection therewith. Where
permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are “consumer products,” the implied
warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights
stated in our catalogs and lists are approximate and are not guaranteed.
Aquaflush®Exposed
Closet/Ur nal Systems
Z6000
Z6000PL-HET
Z6001
Z6003
Z6003PL-ULF
Z6010
Z6014
Z6017
Z6096
Z6099
Z6000
Z6003

ADA

ADA

Page 2

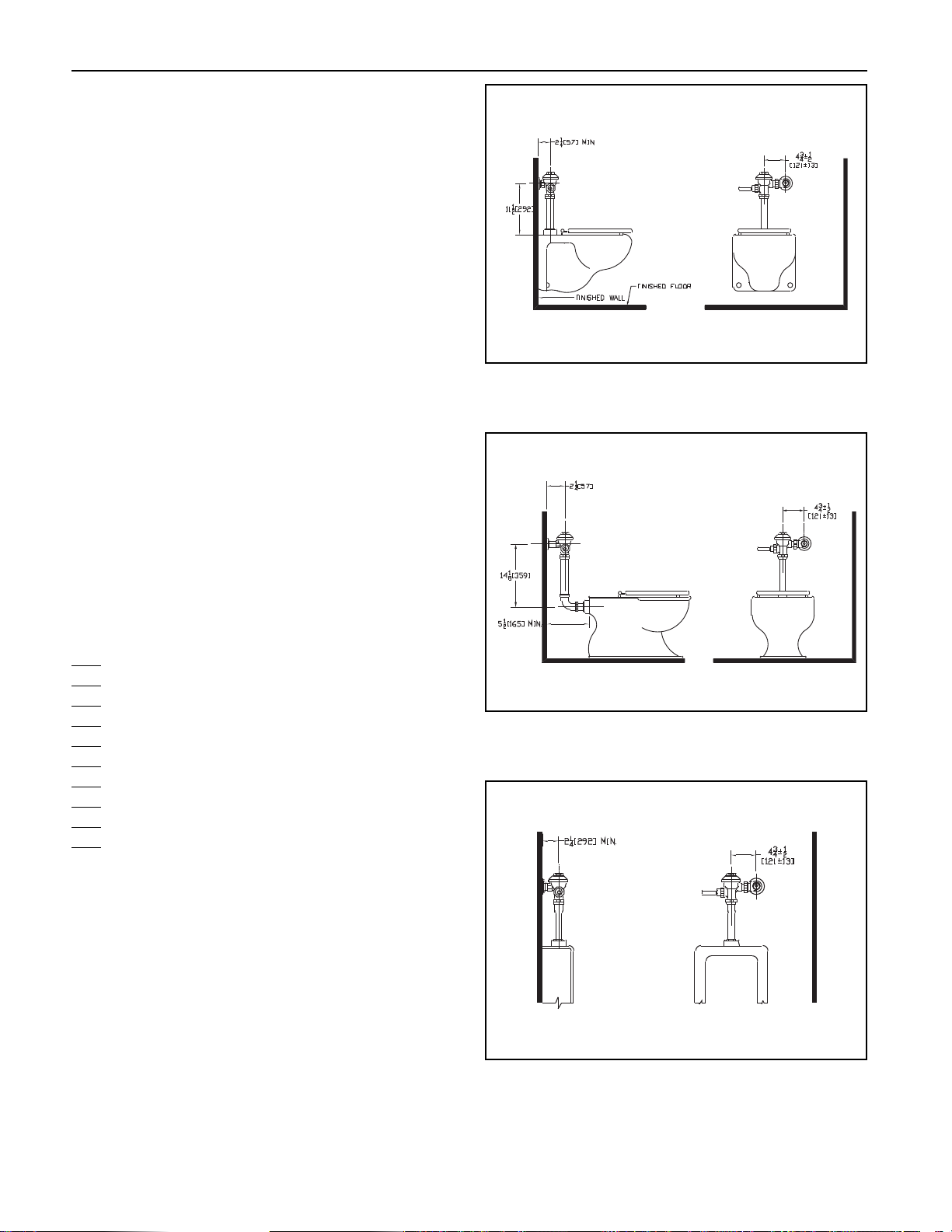

Models: Z6000, Z6000-1, Z6000-2, Z6000-3,
-HET (High Efficiency) 1.28 Gal.
-WS1 (Water Saver) 1.6 Gal. Low Consumption
Models: Z6010, Z6010-1, Z6010-2,
-HET (High Efficiency) 1.28 Gal.
-WS1 (Water Saver) 1.6 Gal. Low Consumption
Models: Z6001 (1-1/4" urinal flush valve)
Z6003 (3/4" urinal flush valve)
-WS1 (Water Saver) 1.0 Gal. Low Consumption
-ULF (Ultra Low Flow) 0.125 Gal.

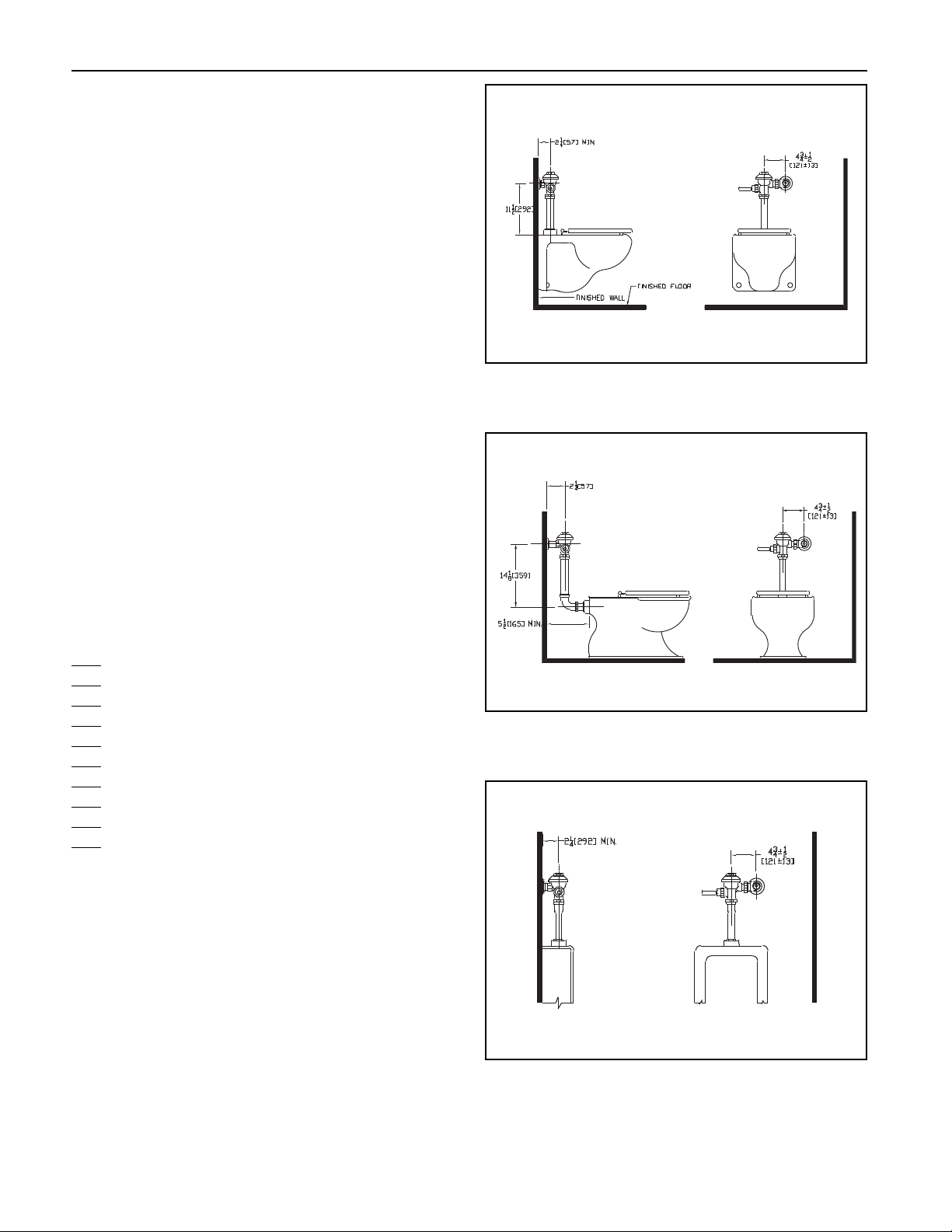

Aquaflush®Rough-In, Product Specification, Models and Options
ENGINEERING SPECIFICATION: Z RN Aquaflush Ex posed Closet
Flush Valve – Exposed, quiet diaphragm-type, chrome-plated
flushometer valve with a polished exterior. Complete with a
chloramine resistant, dual seal diaphragm with a clog
resistant
by-pass. The valve is ADA compliant with a non-hold open and no
leak handle feature, high back pressure vacuum breaker, one-piece
hex cou pling nut, adjust
able tailpiece, spud coupling, and flange
for top spud connec tion. Control stop has internal siphon-guard
pro tec tion. Internal seals are made of chloramine resistant materials.
Z6000PL Aquaflush Plus is furnished as specified above and
includes sweat solder kit, vandal-resistant stop cap, and cast
wall flange with setscrew.
MODELS
Z6000 – 1-1/2" Water Closet Valve with top spud connection.
Z6010 – 1-1/2" Water Closet Valve with back spud connection.
Z6001 – 1-1/4" Urinal Valve with top spud connection.
Z6003 – 3/4" Urinal Valve with top spud connection.
FLOWS
-FF Full Flow
3.0 Gal. for Urinal, 4.5 Gal. for Water Closet
-HET High Efficiency Toilet (PL Only)
1.28 Gal. for Water Closet
-WS1 Low Consumption
1.0 Gal. for Urinal, 1.6 Gal. for Water Closet
-WS 1.5 Gal. for Urinal, 3.5 Gal. for Water Closet
-ULF 0.125 Gal. for Urinal (PL Only)
OPTIONS
-BG BioCare Handle
-H Handle on Front of Flush Valve
-L 1" [25] Metal Push Button
-L3 3" [76] Metal Push Button
-VC Vandal-Resistant Stop Cover
-YB Sweat Solder Kit
-YC Cast Wall Flange
-YJ Split Ring Pipe Support
-YK Solid Ring Pipe Support
-YO Bumper on Stop Angle

Page 3

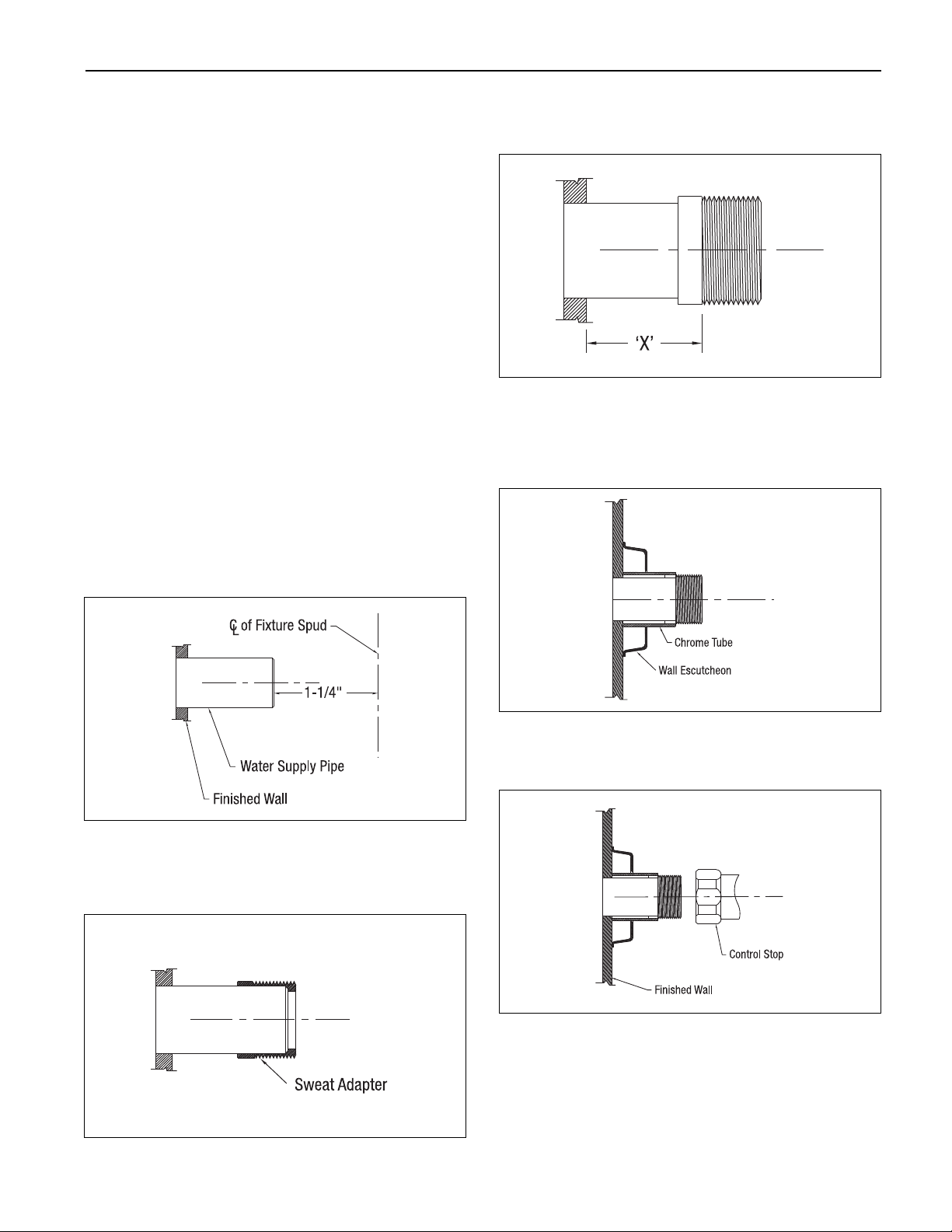

STEP NO. 1
Measure distance from finished wall to center line of fixture spud;
cut water supply pipe 1-1/4" shorter than this mea sure ment.
Chamfer O.D. and I.D.
STEP NO. 3
Measure from finished wall to first thread of adapter for length of
chrome tube. Cut chrome tube this length ‘x’.
STEP NO. 4
Slide wall escutcheon over chrome tube and slide both chrome
tube and wall escutcheon over supply pipe pushing the wall
escutcheon all the way to the wall.
STEP NO. 2
Slide threaded adapter onto supply pipe until shoulder stops on
end of pipe. Then sweat-solder the adapter to water supply pipe.
S eat Solder Adaptor Installation Instructions
Important:
• All plumbing is to be installed according to state and local
codes and regulations.
• Water supply lines need to allow proper water flow for each
fixture.
• Flush all lines of any debris before making connections.
• Do not use pipe sealant or plumbing grease on any fitting
other then the control stop inlet.
The Aquaflush valve is designed to operate under various water
pressures with a recommended range between 10 and 100 psi
(69 to 689 kPa). Each Zurn valve is tested for proper performance
at the factory before being shipped. Consult the product pages of
the catalog for available flow options.
Most low consumption fixtures (1.28 and 1.6 gallon) require
a minimum of 25 psi running pressure through the valve to
obtain proper evacuation. Please be sure to consult fixture
manufacturer on minimum running water supply requirements
for proper evacuation.
When installing your quality Zurn valve it is rec om mend ed that to
protect the polished finish you do not use a toothed wrench. This
will cause gouges and scratches on your valve.
STEP NO. 5
Screw control stop onto water supply water adaptor.

Page 4
5Typical Flush Tube Assemblies
Aquaflush®Installation Instructions
4. Determine the length of vacuum breaker tube required to join
the flush valve and fixture spud. Cut the vacuum breaker tube,
if re quired, to this length (see 4a). Assemble the vacuum
breaker tube assembly and spud nut assembly to the flush
valve and fixture spud (see 4b).
4a
1
2
1. Install stop valve assembly using proper size supply escutcheon
and sweat solder adapter kit if applicable (see 1). Thread sealing
compounds should be used on male NPT threads only.
2. Prior to inserting the flush valve tailpiece into stop valve, be
certain that the O-ring seal is located in O-ring seal groove at
the end of the tailpiece and the locking nut and locking snap
ring are located as shown below (see 2). Care should be taken
not to damage the O-ring when inserting the tailpiece into the
stop valve. If lubrication is needed, wetting the O-ring with
water will be sufficient.
5. Hand tighten spud nut and vacuum breaker tube nut to fixture and flush valve. Adjust the valve assembly for plumb. Tighten fixture
spud nut, vacuum breaker tube nut and lock nut with a wrench.
3
3. Insert the flush valve tailpiece into the stop valve and hand
tighten the lock nut to the stop valve. Plumb the entire unit
(see 3).
4b

Page 5
6. When all flush valves are connected to the fixtures and water
pressure is available, it is recommended that the supply piping
be flushed to remove dirt, pipe chips, etc. from system. Before
the water is turned on, be sure all stop valves to the flush
valves are closed off tight. The stop valves can be opened and
closed by using the adjusting screw located at the center of
the stop valve cap, behind the stop snap cap screw cover if
already installed (see 6a). Stop valve adjustments can only be
made by using the adjusting screw. It is not neces sary to
remove the stop valve cap when making adjustments. If
for any reason it becomes necessary to remove the stop
valve cap, be certain the water is shut off at the main
supply valve.
Aquaflush®Installation Instructions
6a
This procedure should also be followed when the system
has been drained for some time, as occurs in athletic fields,
recreation parks, etc.
7. The Aquaflush flush valves are preset for fixture volume as
marked on the valve cartons. The valve does not require
regulation for vari a tion in water pressure within its operating
range. To set the flush valve for proper operation, gradually
adjust the stop valve open, using the adjusting screw, while
actuating the valve until the rate of water flow into the fixture
is not excessive, yet is sufficient enough to adequately evacuate
the waste. The final setting for urinals should be such that the
fixture will not overflow when the valve is actuated in succession.
The stop snap cap screw cov er should be secured after final
adjustments have been made.
7
6b
Working
Parts
Use the following procedure to flush out the supply piping:
A. Remove the main valve body cover.
B. Remove the working parts from the flush valve
(shown in 6b).
C. Replace the main valve body cover and plastic cover
without reinstalling the working parts.
D. Open the stop valve by using the stop adjusting screw,
and flush out all debris from pipe and connections.
E. Shut stop, open cover, replace the working parts, replace
plastic cover and main valve body cover and tighten.

Page 6

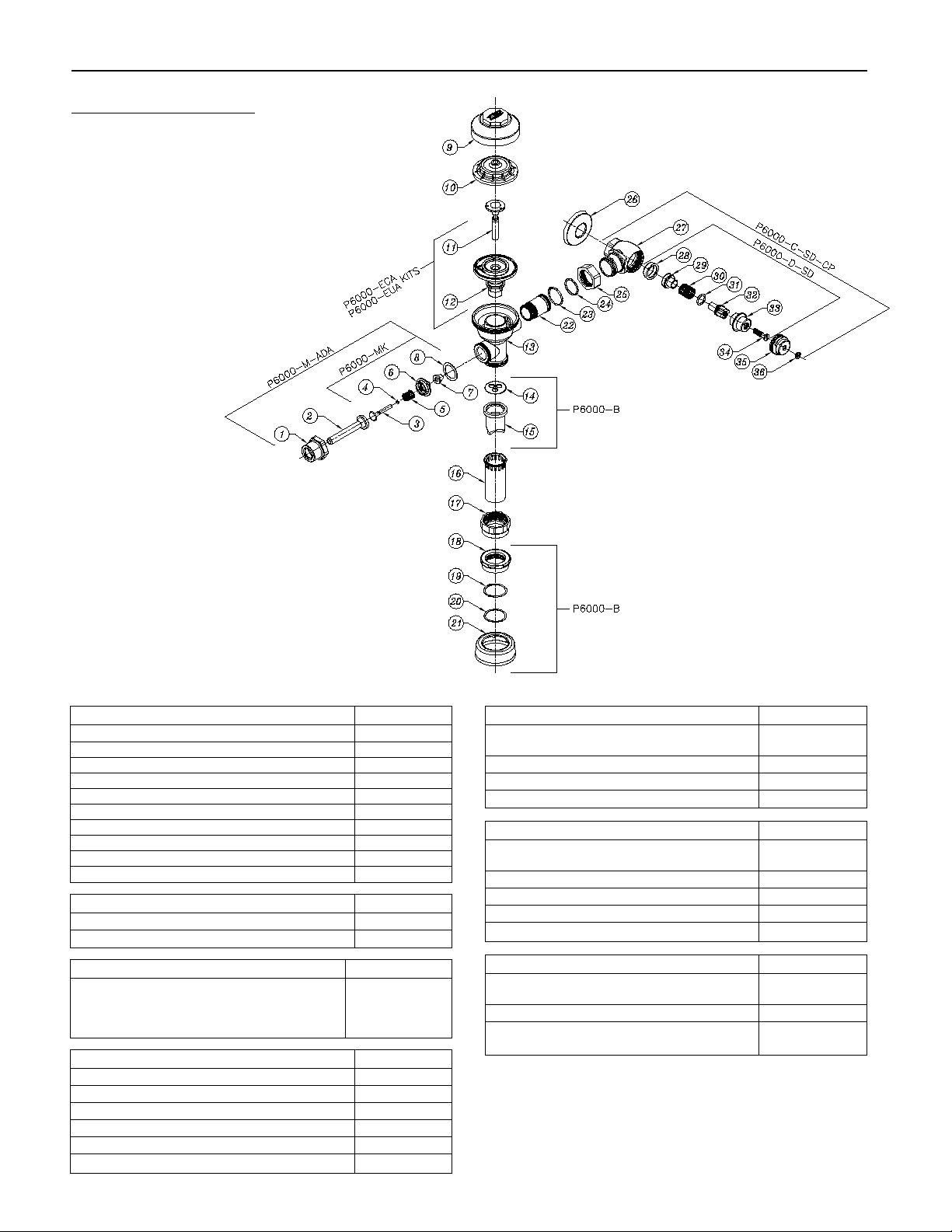

Parts Identification
1. Handle Nut
2. Handle
3. Actuator Rod
4. Handle O-Ring
5. Handle Spring
6. Handle Seal Retainer
7. Handle Seal
8. Handle Gasket
9. Valve Body Cover
10. Plastic Wrap
11. Trip Mechanism
12. Diaphragm Assembly
13. Valve Body
14. Vacuum Breaker Insert
15. Vacuum Breaker Duckbill
16. Vacuum Breaker Tube
17. Vacuum Breaker Tube Nut
18. Spud Nut
19. Spud Friction Washer
20. Spud Sleeve
21. Spud Escutcheon
22. Tailpiece
23. Snap Ring
24. Tailpiece O-Ring
25. Locking Nut
26. Wall Flange
27. Stop Body
28. Piston Seal
29. Piston Seal
30. Stop Spring
31. Guide O-Ring
32. Piston Guide
33. Guide Holder
34. Adjusting Screw
35. Stop Cap
36. Snap Cap Screw Cover
Covers and Repair Kits Product No.
Outside Cover - CP – Item 9 P6000-LL-CP
Inside Cover – Item 10 P6000-L
HET Water Closet Kit – 1.28 gal. flush (PL Only) P6000-ECA-HET
ULF Urinal Kit – 0.125 gal. flush (PL Only) P6000-EUA-ULF
Low Consumption Closet Kit – 1.6 gal. flush P6000-ECR-WS1
Water Saving Closet Kit – 3.5 gal. flush P6000-ECR-WS
Full Flow Closet Kit – 4.5 gal. flush P6000-ECR-FF
Low Consumption Urinal Kit – 1.0 gal. flush P6000-EUR-WS1
Water Saving Urinal Kit – 1.5 gal. flush P6000-EUR-WS
Full Flow Urinal Kit – 3.0 gal. flush P6000-EUR-FF
Control Stop Repair Kit and Parts Product No.
Control Stop Repair Kit for 1" and 3⁄4"
Includes Items 28-34 P6000-D-SD
Seal Seat for 1" and 3⁄4", Includes Item 24 P6000-D42
VP Control Stop Repair Kit for 1" and 3⁄4" P6000-D-VP
Sweat Solder Connection with Cast Wall Flange P6000-YB
Adjustable Tailpieces Product No.
Adjustable Tailpiece for Standard Flush Valve
Includes Items 22-25 P6000- 1
Tailpiece Coupling Assembly Includes Items 23-25 P6000-K
Tailpiece Locking Ring Includes Item 23 P6000-C30
Tailpiece O-Ring Includes Item 24 P6000-C31
Coupling Nut Includes Item 25 P6000-C32
Flush Connections and Spud Coupling Kits Product No.
Flush Tube Assembly for Flush Valves Includes
Items 14-17. Specify diameter and length. P6000-A
Vacuum Breaker Repair Kit Includes Items 14-15 P6000-B-HP
Spud Coupling Assembly Includes Items 18-21.
Specify size. P6000-H-CP
Repair Parts – Inside Parts Product No.
Urinal Relief Valve – Item 11 P6000-EU13
Closet Relief Valve – Item 11 P6000-EC13
Aquaflush Rebuild Kits Product No.
Closet and Urinal Rebuild Kits Include P6000-ECR-WS-RK
Items 3-8, 11, 12, 24, 28-34 P6000-ECR-WS1-RK
P6000-EUR-WS-RK
P6000-EUR-WS1-RK
Aquaflush®Exposed Repair Kits
Handle Assembly and Repair Kits Product No.
ADA Handle Assembly (Side) Includes Items 1-8 P6000-M-ADA
Handle Repair Kit (Side) Includes Items 4-8 P6000-MK
Handle Seal Includes Item 8 P6000-M9
Handle Gasket Includes Item 9 P6000-M10
Repair Kit for Front Operation - Exposed Includes Items 4-9 P6000-MHK
Handle Assembly (Front) Includes Items 2-9 P6000-MH

Page 7
Care of Chrome Plated Surfaces
The suggested cleaning of chrome plated surfaces is simply to clean them with mild soap and water, then dry. Commercial cleaning
compounds are never recommended.
Seasonal se
Valves used in installations subject to shut down because of cold and freezing conditions should be maintained in the following manner.
After the main supply has been shut off and the water drained from the system, remove the stop valve cap and stop valve internals to
allow the water to drain from the flush valve itself.
*See previous page for numerical references.
Problem Cause* Corrective Action*
Valve will not operate. 1.) Stop valve is closed. 1.) Open stop valve.
2.) Supply valve is closed. 2.) Open supply valve.
Insufficient volume of water 1.) Stop valve is not open enough. 1.) Open stop valve for desired volume of water.
to adequately siphon fixture. 2.) Urinal trip mechanism installed in wrong kit, 2.) Replace urinal part with proper closet valve part.
urinal for closet.
3.) Insufficient volume or pressure at supply. 3.) If gauges are not available to measure supply pressure or volume
of water at the valve, completely remove the working parts and
open the stop valve to allow water to pass through the empty
valve. If the supply is adequate to siphon the fixture, the guide
ring (#16) may be removed from the guide assembly to provide
additional flow (see page 5). Should this prove unsatisfactory,
steps should be taken to increase the pressure and/or supply.
Flush valve shuts off too quickly. 1.) Damaged or punctured diaphragm. 1.) Install new P6000-EUR or P6000-ECR replacement kit to remedy
the problem. (#12 thru #17)
2.) Enlarged by-pass orifice. 2.) Install new P6000-EUR or P6000-ECR replacement kit to remedy
the problem. (#12 thru #17)
Valve is short flushing. 1.) Diaphragm kit is not matched to the fixture. 1.) Install the proper P6000-EUR or P6000-ECR replacement kit to
remedy the problem. (#12 thru #17)
2.) Urinal trip mechanism (black #12) is in the closet 2.) Install closet trip mechanism (white #12).
flush valve.
Valve is flushing too long or 1.) Trip mechanism not seating properly due to foreign 1.) Disassemble parts and rinse thoroughly.
not shutting off. material between trip mechanism and retainer disc.
2.) By-pass orifice is plugged or partially plugged. 2.) Examine by-pass orifice and clean if necessary being certain
not to enlarge orifice opening.
3.) Line pressure is not adequate to force 3.) Pressure is inadequate or has dropped below minimum operating
trip mechanism to seal. range. Steps should be taken to increase the line pressure.
4.) Cracked cover. (#11) 4.) Replace cover with new one.
Water splashes out of fixture. 1.) Supply volume is more than is necessary. 1.) Adjust downward on control stop.
2.) Lime accumulation on vortex or spreader holes 2.) Remove the lime build up.
of fixture.
Flush is not considered quiet. 1.) Control stop may not be adjusted for quiet 1.) Adjust the control stop for quiet operation keeping in mind the
operation. fixture evacuation requirements.
2.) Fixture may be contributing to noise. 2.) Check noise created by fixture by placing a cover over the bowl
opening to separate valve noise from bowl noise. If it is deter-
mined the fixture is too noisy consult with fixture manufacturer.
3.) Piping system may be source of noise. 3.) High pressure in the system can sometimes be controlled by the
stop valve. Other sources of noise may be the absence of air
chambers and shock arrestors, loose pipes, improper size pipes,
etc. In these cases the building engineer should be consulted.
Handle assembly leaking. 1.) Handle assembly is not tight. 1.) Tighten handle assembly.
Aquaflush®Trouble Shooting Guide

© 2014 Zurn Industries, LLC Printed in the U.S.A. Form No. FV250, Rev. 4/14
ZURN INDUSTRIES, LLC COMMERCIAL BRASS O ERATION, 5900 ELWIN BUCHANAN DRIVE, SANFORD, NC, U.S.A. 27330
HONE: 1-800-997-3876 FAX: [phone] www.zurn.com
ZURN INDUSTRIES LIMITED 3544 NASHUA DRIVE, MISSISSAUGA, ONTARIO L4V 1L2 HONE: 905/405-8272 FAX: [phone]

AquaSense Battery
Powered Flush
Valves/Retrofit Kits
INSTALLATION
INSTRUCTIONS
Automatic Sensor Retrofit Kit
For Urinals and Toilets
ZERK-CP Chrome-Plated Cover
ZERK-CPM Chrome-Plated Metal Cover
FV2001 Page 1

AquaSense Battery
Powered Flush
Valves/Retrofit Kits
2E-Z FLUSH COMPONENTS
E-Z FLUSH
BATTERY
COMPARTMENT WRENCH GASKET
4 “C” ALKALINE
BATTERIES
WRENCH
1
The E-Z Flush™sends out a continuous infrared beam that is reflected back by the presence of a person in front of the urinal or toilet.
The technology differentiates between someone walking past the unit or actually using the fixture. E-Z Flush models ZERK-CP and
ZERK-CPM retrofit Zurn and Sloan valves. For Delaney valves, order model ZERK-CP-LY or ZERK-CPM-LY.
DESCRIPTION
User Approaches
E-Z Flush
Senses User
E-Z Flush Flushes
When User Leaves
3
Collar Nut
Collar Gasket
Shut off water supply at stop.
A–Using the supplied wrench, loosen
handle nut.
B–Remove handle from flush valve.
Note: A small amount of water may
drip from the port.
C–Place gasket into nut and attach
the E-Z Flush unit where the handle
was removed.
D–Tighten nut with supplied wrench.
Note: Save handle in the event
you wish to reuse for service of
E-Z Flush.
INSTALLATION STEP A STEP B
STEP C STEP D
Page 2 FV2001

AquaSense Battery
Powered Flush
Valves/Retrofit Kits

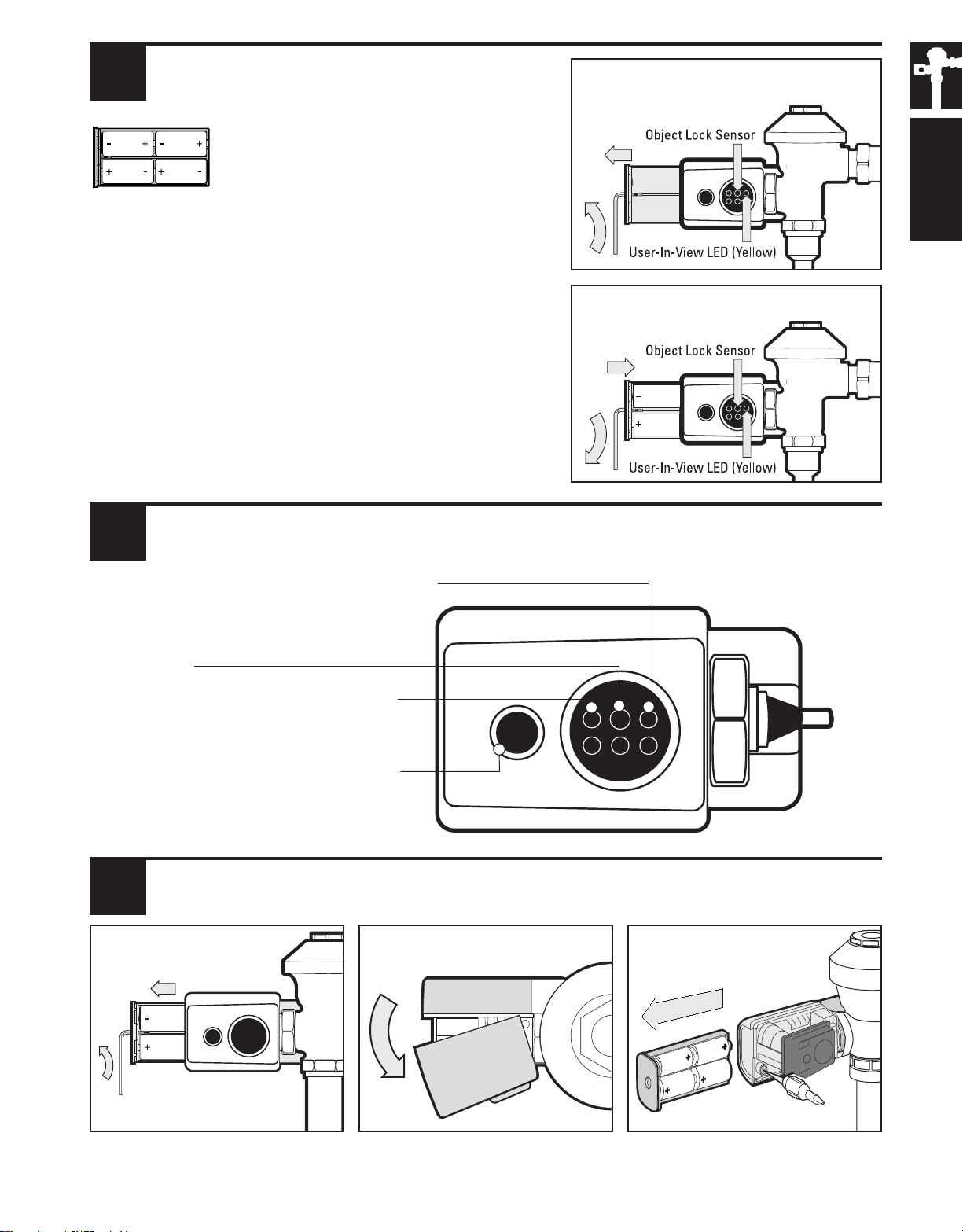

Using supplied battery compartment wrench,
remove battery compartment from the
E-Z Flush™unit.
Load batteries into compartment tray (note position of batteries in tray), and
reinstall battery tray into the E-Z Flush unit.
Secure tray with battery compartment wrench. The last three turns of the
wrench will activate the E-Z Flush unit. The E-Z Flush System is now
operational.
Your E-Z Flush unit comes preset from the factory. If special circumstances
require adjustment of the activation distance, see Step 7 – “To Change Sensor
Activation Distance.”
The E-Z Flush unit has a 10-minute start-up sequence in which the sensor
will flash the User-In-View yellow L.E.D. continuously as long as a user is in
view. After the start-up sequence is completed and when the sensor has a
user in view, the User-In-View yellow L.E.D. will flash only 3 times after a
5-second delay. This delay prevents needless flushes when someone walks by.
ACTIVATION Remove Battery Compartment
Install Battery Compartment
4
5VISUAL INDICATOR GUIDE
USER-IN-VIEW L.E.D. Yellow light flashes 3 times –
after 5-second delay – when a user is in view. The
yellow light flashes constantly when a user is in view
during the 10-minute start-up sequence.
SENSOR
BATTERY L.E.D. Red light flashes indicating it is
time to replace batteries with 4 new “C” batteries.
COURTESY MANUAL FLUSH BUTTON Allows
manual activation of flush when needed.
6
Use battery compartment wrench to remove
battery compartment tray.
Pull cover off by rotating battery side forward
and out.
Sensor Adjustor Tool comes in a built-in storage
pocket. Replace after use.
ADJUSTING YOUR E-Z FLUSH
STEP A STEP B STEP C
FV2001 Page 3

AquaSense Battery
Powered Flush
Valves/Retrofit Kits

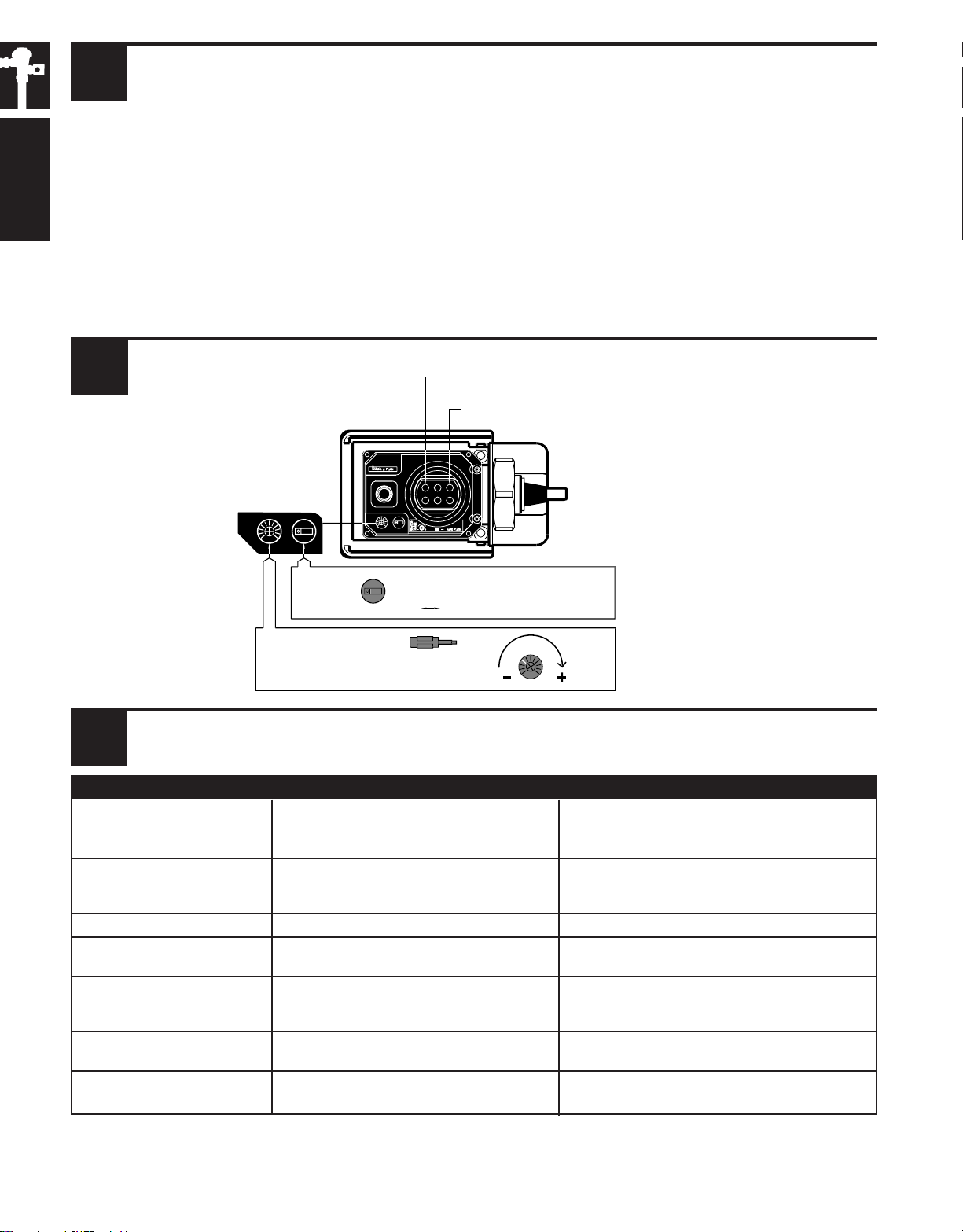

7
1. Remove battery compartment tray as shown in Step 6.
2. Remove cover and sensor adjustor tool as shown in Step 6.
3. Replace battery compartment in E-Z Flush to activate unit (the yellow L.E.D. will flash continuously when it has an object in view for
the 10-minute reset period). See Step 4 – “Activation.”
4. Have an individual stand at desired activation distance.
5. Use sensor adjustor tool and turn the Sensor Range Adjustment Screw all the way down and then turn slowly up until yellow L.E.D.
begins to flash.
6. Ensure sensor is not detecting stall door or wall by closing door, stepping out of sensor path and making sure yellow L.E.D. is not
flashing. If sensor locks onto door or wall, unit will not flush properly. Shorten activation distance.
7. Remove battery compartment, replace sensor adjustor tool and cover. Replace battery compartment tray to reactivate E-Z Flush unit.
8. After 10-minute start-up sequence, the yellow L.E.D. will flash only 3 times when a user is in view (after a 5-second delay).
TO CHANGE SENSOR ACTIVATION DISTANCE
9TROUBLESHOOTING GUIDE
8
Delay Flush = User must leave the
sensor range for 3 seconds before
a flush is generated.
24 Hour Flush = Unit will automatically
flush 24 hours after the last use.
Low Battery LED (Red)
Flashing LED = Change Batteries
User In View LED (Yellow)
Flashes 3 Times = User is recognized
and ready to operate once user leaves
M
odes
of
O
p
eratio
n
Switch
Ob
j
ect Detection Ran
ge
(
Distance Ad
j
ustment Screw
)
Dela
y
Flush an
d
24 H
ou
r Fl
ush
Use
S
enso
r
Ad
j
ustment Too
l
Pr
o
vi
ded
N
ear
Far
OFF = Normal Operation
O
N = Delay before flushing and
unit flushes every 24 hours
after last user.
Di
s
t
a
n
ce
Ad
j
ustmen
t
O
F
F
ON
PROBLEM CAUSE SOLUTION TO PROBLEM
WIRING DIAGRAM
Yellow L.E.D. light flashes 3 times Front of sensor is covered or sensor is set too far Remove item covering sensor or adjust sensor
when there are no users. out, registering the opposite wall or door as a user. activation distance. (See Step 7 – “To Change
Sensor Activation Distance.”)
Yellow L.E.D. light flashes E-Z Flush unit is in 10-minute start-up mode Yellow L.E.D. light will flash only 3 times,
continuously when sensor (when first activated). acknowledging a user is in view after the
is activated by a user. 10-minute start-up mode.
Red L.E.D. light flashes. Batteries need replacing. Replace batteries.
Not enough water to fixture or Diaphragm damaged or valve control stop Replace diaphragm and/or adjust valve control stop.
too much water to fixture. improperly adjusted.
Valve will not operate. Sensor range set too close to E-Z Flush, batteries Adjust sensor, replace batteries, or turn water on.
are dead, or water supply is turned off. If the E-Z Flush does not begin to function, call
Customer Service at 1-800-997-3876.
Valve does not shut off. Dirt or debris preventing diaphragm from Remove dirt or debris, consult valve manufacturer’s
functioning properly. directions.
Valve does not flush even after Batteries are dead. Replace batteries. If the E-Z Flush does not begin to
sensor has been adjusted. function, call Customer Service at 1-800-997-3876.
ZURN INDUSTRIES, INC. COMMERCIAL BRASS OPERATION
5900 ELWIN BUCHANAN DRIVE, SANFORD, NC, U.S.A. 27330 PHONE: [phone] FAX: [phone] WEBSITE: www.zurn.com
ZURN INDUSTRIES LIMITED 3544 NASHUA DRIVE, MISSISSAUGA, ONTARIO L4V 1L2 PHONE: [phone] FAX: [phone]
© 2004 Zurn Industries, Inc. Printed in the U.S.A. Form No. FV2001, Rev. 2/03

P-2 AND P-2B URINAL

Limited Warranty
Zurn goods sold hereunder are warranted to be free from defects in material and factory
workmanship for the period of time from the date of purchase: AquaVantage® Flush
Valves, AquaFlush® Flush Valves, Commercial Fixtures, Faucets, Showers, and
Tubular Brass three years; Chemical Drainage, Linear Drainage, Light Commercial,
Specification Drainage, Zurn Wilkins, and Flush Valve and Tubular Brass decorative
finishes one year, PHIX® Cartridge ten years, FOG-ceptor™ thirty years. Where
permitted by law, THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO
THE ABOVE IDENTIFIED PERIOD OF TIME AND SHALL BE LIMITED SOLELY TO
THE REPLACEMENT OF THE DEFECTIVE GOODS. A damaged/broken test cock or
ball valve is not considered defective. Please contact Zurn Customer Care for
assistance.
Zurn will replace goods at no cost that prove defective provided Zurn is notified in
writing of such defect and the goods are returned prepaid at the specified Zurn location
with evidence that they have been properly maintained and used in accordance with
instructions. ZURN SHALL NOT BE RESPONSIBLE FOR ANY LABOR CHARGES OR
ANY LOSS, INJURY, OR DAMAGES WHATSOEVER, INCLUDING, BUT NOT
LIMITED TO, INCIDENTAL OR CONSEQUENTIAL DAMAGES. The sole and exclusive
remedy shall be limited to the replacement of the defective goods. Before installation
and use, the purchaser shall determine the suitability of the product for his intended use
and the purchaser assumes all risk and liability whatever in the connection therewith. All
weights stated in Zurn catalogs and lists are approximate and are not guaranteed.

Page 1
Aquaflush®
Z6000 Series
Aquaflush Exposed Flushometer
Installat on, Operat on,
Ma ntenance, and Parts Manual
Patented and Patents Pend ng
LIMITED WARRANTY
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of
purchase. Decorative finishes warranted for one year. We will replace at no cost goods that prove defective provided we are notified in writing of such
defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accor dance with
instruc tions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or conse quen tial
damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall
determine the suitability of the product for his intended use and the purchaser assumes all risk and liability whatever in connection therewith. Where
permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are “consumer products,” the implied
warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights
stated in our catalogs and lists are approximate and are not guaranteed.
Aquaflush®Exposed
Closet/Ur nal Systems
Z6000
Z6000PL-HET
Z6001
Z6003
Z6003PL-ULF
Z6010
Z6014
Z6017
Z6096
Z6099
Z6000
Z6003

ADA

ADA

Page 2
Models: Z6000, Z6000-1, Z6000-2, Z6000-3,
-HET (High Efficiency) 1.28 Gal.
-WS1 (Water Saver) 1.6 Gal. Low Consumption
Models: Z6010, Z6010-1, Z6010-2,
-HET (High Efficiency) 1.28 Gal.
-WS1 (Water Saver) 1.6 Gal. Low Consumption
Models: Z6001 (1-1/4" urinal flush valve)
Z6003 (3/4" urinal flush valve)
-WS1 (Water Saver) 1.0 Gal. Low Consumption
-ULF (Ultra Low Flow) 0.125 Gal.
Aquaflush®Rough-In, Product Specification, Models and Options
ENGINEERING SPECIFICATION: Z RN Aquaflush Ex posed Closet
Flush Valve – Exposed, quiet diaphragm-type, chrome-plated
flushometer valve with a polished exterior. Complete with a
chloramine resistant, dual seal diaphragm with a clog
resistant
by-pass. The valve is ADA compliant with a non-hold open and no
leak handle feature, high back pressure vacuum breaker, one-piece
hex cou pling nut, adjust
able tailpiece, spud coupling, and flange
for top spud connec tion. Control stop has internal siphon-guard
pro tec tion. Internal seals are made of chloramine resistant materials.
Z6000PL Aquaflush Plus is furnished as specified above and
includes sweat solder kit, vandal-resistant stop cap, and cast
wall flange with setscrew.
MODELS
Z6000 – 1-1/2" Water Closet Valve with top spud connection.
Z6010 – 1-1/2" Water Closet Valve with back spud connection.
Z6001 – 1-1/4" Urinal Valve with top spud connection.
Z6003 – 3/4" Urinal Valve with top spud connection.
FLOWS
-FF Full Flow
3.0 Gal. for Urinal, 4.5 Gal. for Water Closet
-HET High Efficiency Toilet (PL Only)
1.28 Gal. for Water Closet
-WS1 Low Consumption
1.0 Gal. for Urinal, 1.6 Gal. for Water Closet
-WS 1.5 Gal. for Urinal, 3.5 Gal. for Water Closet
-ULF 0.125 Gal. for Urinal (PL Only)
OPTIONS
-BG BioCare Handle
-H Handle on Front of Flush Valve
-L 1" [25] Metal Push Button
-L3 3" [76] Metal Push Button
-VC Vandal-Resistant Stop Cover
-YB Sweat Solder Kit
-YC Cast Wall Flange
-YJ Split Ring Pipe Support
-YK Solid Ring Pipe Support
-YO Bumper on Stop Angle
