3One data PD101G Series User manual

PD101G Series
Gigabit Unmanaged POE
Splitters
User manual
Shenzhen 3onedata Technology Co.,Ltd
Tel:[phone] Fax: [phone]
www.3onedata.com
【Introduction】
PD101G Series are Cost-efficient single-port IEEE 802.3af/at
compliant PoE splitter, High-reliability performanc,Work with
IEEE 802.3af/at compliant PoE switch or PSE Injector,Can get
separated data and power output from standard PoE cable and
supply data and power separately for devices that not support PoE
power.
PD101G Series Provides three different DC output: 5V/9V/12V,
which enables it works with different kinds of end
devices,Improves network flexibility and expansibility by solving
the connection problem between PoE power supply and
PoE-unsupported devices,Can be widely used in wireless city
projects and Security Surveillance Industry.
【Packing List】
Please check the packaging and accessories by your first using.
POE Splitters ×1
DC Power Cord x1
User’s Guide ×1
Certificate of quality ⅹ 1
Warranty card ⅹ 1
【Features】
Compatible with IEEE802.3at(30W) or IEEE802.3af(15.4W),
can supply power to PDs under the two standards
The “ PoE data in” port supports a voltage range of 36-57V,
can auto-response to the power supply from PSE power
module
Supports 3 different DC output modes: 5V/9V/12V, can easily
get devices that not support PoE power connected with PoE
network devices
Comes with 4 different types of DC plugs, can easily handle
with different connections
Supports Circuit Isolation Protection, provides good
protection for the PDs
【Panel Layout】
Front panel
Back panel
1. Ethernet Data port
2. Power Indicator
3. DC power input socket
4.POE port
【Dimension】
【Power Input】
PD101G Series provide DC power input, voltage input is,
DC power adapter specification is internal size 2.1mm, external
size 5.5mm.

【Communication Connector】
PD101G Series provide 1*10/100/1000M POE ports,
1*10/100/1000M ports.
10/100/1000BaseT(X) Ethernet port
10Base-T/100Base-TX/1000 Base-TX

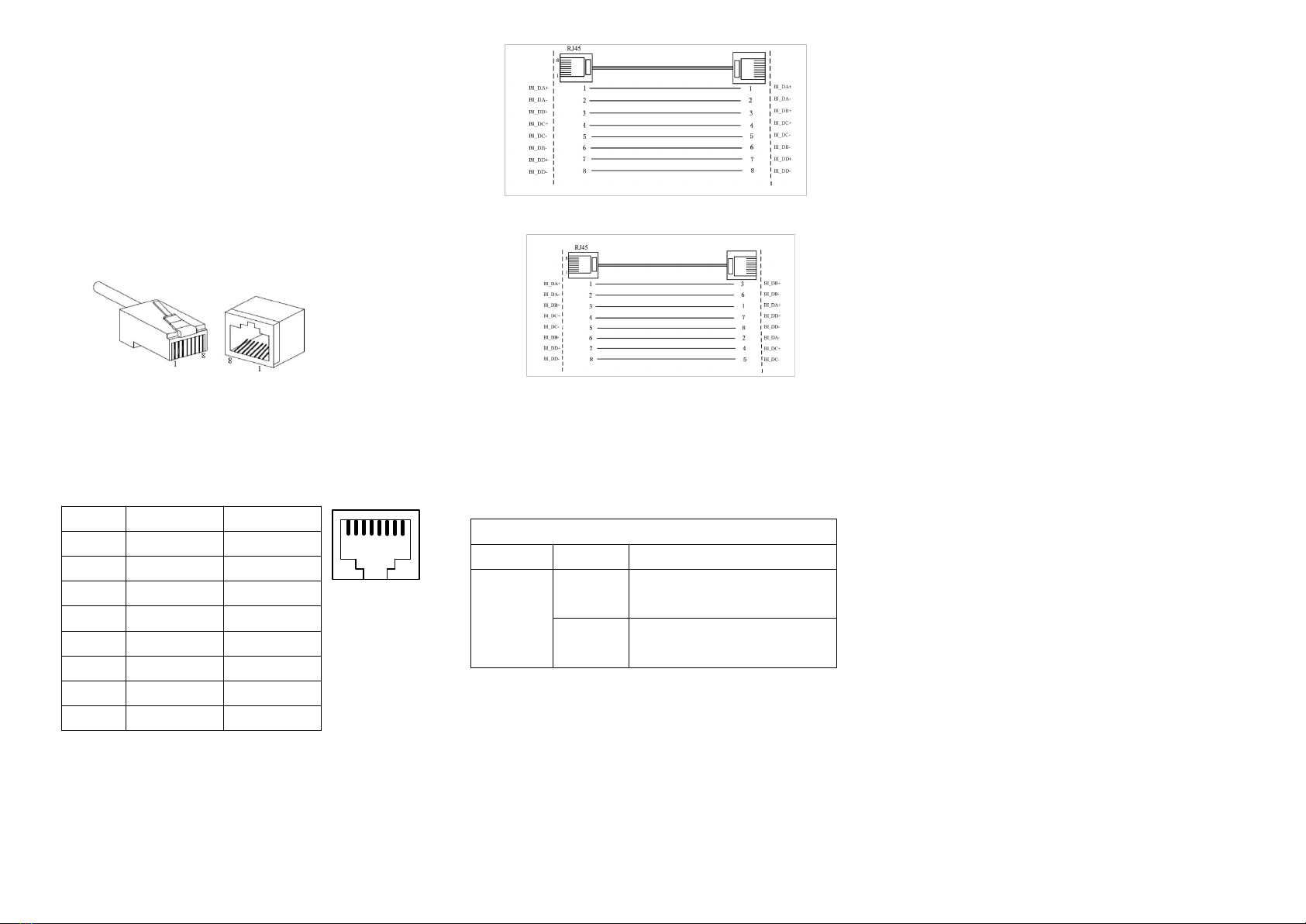

Ethernet port use in front panel, It is RJ45 port, the PIN
define of RJ45 is as follows: connection adopt UTP or
STP, the distance is no more than 100m, 1000Mbps use
cat5e, 100Mbps use cat5, 10Mbps use cat3,4, 5.
RJ45 port support MDI/MDI-X self-adaption. In
(MDI), PIN1, 2, 3, 4, 5, 6, 7, 8 connect corresponding, in
(MDI-X) PIN1→3, 2→6, 3→1, 6→2, 4→7, 5→8, 7→4,
8→5. In MDI/MDI-X, 1000 Base-TX PIN define is as
follows:
Note：“TX±”Transmit Data±，“RX±”Receive Data±，“—”Not Use。
MDI (straight-through cable):
MDI-X (Cross over cable)
MDI/MDI-X auto connection makes PD101G series easy to
use for customers without considering the type of network cable.
【LED Indicator】
PD101G Series indictor light on the front panel. the function
of each LED is described in the table as below.
System Indication LED
LED State Description
PWR ON
Power is being supplied to
power input PWR input
OFF
Power is not being supplied
to power input PWR input
【Installation】
Operation Cautions
1) Don’t stock the device in damp environment or near
water, to avoid water or moisture penetrating into the
inner device.
2) Don’t put the device on a unstable box or desk, the
device will get damaged from falling.
3) Please check and make sure the operation voltage is
meet the voltage standard marked on the device surface
before the next steps.
4) Please use a grounded three-hole power socket in the
rack or desk mounting, to mitigate damage caused by
electro-static discharge or lightning stoke.
5) Keep the device far from heat sources, strong power
radio transmitters and radar transmitters.
6) Similar with other electrical products, the semiconductor
chip in device will get damaged when open and shut off
the power frequently. Please restart the device 3~5
seconds(or longer) after the power is shut off.
7) Please pull out the power plug before cleaning the
device. Don’t wipe the device with wet cloth or clean the
device with liquid.
8) To guarantee a long operation life, the device can only
be used in indoor and in ventilated & dry environment.
And to get a good heat dissipation, please reserve a
space over 10CM around the device.
POESplitter Operation Instruction
1) Connect “ Power+Data”port on POE splitter with a
RJ45 cable, which connected with far-end POE switch
or POE injector on the other end. When one of the three
voltage LED indicator(5V/9V/12V) is on, the
connection is successful.
2) Please choose right voltage state according to your POE
PDs, the default voltage state is 5V, you can slide the
switch to change to 9V or 12V.
3) Connect the provided DC power cord to the“Power
OUT” port on the POE splitter, and connect the other
end to the POE PDs with right plugs( 4 types universal
plugs for your option).
4) Please connect one end of provided RJ 45 cable to the
“Data OUT” port of POE splitter, and connect the other
end to the data in port of POE PDs.
PIN MDI
MDI-X
1 BI_DA+/TX+ BI_DB+/RX+
2 BI_DA-/TX- BI_DB-/RX-
3 BI_DB+/RX+ BI_DA+/TX+
4 BI_DC+/—BI_DD+/—
5 BI_DC-/—BI_DD-/—
6 BI_DB-/RX- BI_DA-/TX-
7 BI_DD+/—BI_DC+/—
8 BI_DD-/—BI_DC-/—
1 8

Note：Please choose correct Splitter voltage output state
according to the voltage requirement of your PDs, or the PDs
will get damaged. The default voltage output is 5V.
【Specification】
Technology:
POE Standard: IEEE802.3af/at
Ports:
Fixed ports: 2*10/100/1000M Base-T Ports(including one POE
ports）
POE Pin-out: 1/2(+)，3/6(-); Customized 4/5(+),7/8(-)
Exchange Properties:
Physic Medium:
10/100Base-TX：UTP category 3/4/5 cables( Maximum 100m)
1000Base-T：UTP Category 5 cable( Maximum 100m)
Network Cable Deployment: Support Auto-MDIX function ，can
automatically identify straight forward cable and cross-over cable
Negotiation Pattern: Support port auto-negotiation
function( automatically negotiate transmission rate and Duplex
modes)
Indicator light:
LED Indicator: Power indicator( green light)
Power:
Max Output Power(single port): 15.4W or 30W
Input Power Supply: DC 48V/0.3A
Output Voltage:
PD101G-12V-15W:5V/2A;9V/1.1A;12V/1A
PD101G-12V-30W:5V/4.5A;9V/2.3A;12V/2A
DC Plugs: 5.5*2.1mm (outer diameter*inner diam
eter)
Working Environment:
Operation Temperature: -20~50°C
Storage Temperature: -40~70°C
Operation Humidity:10%～90%(non-condensing)
Storage Humidity:5%～90%(non-condensing)
Mechanical Properties:
Weight: 145g
Dimensions（L×W×H）:80*55*31mm
Warranty:
Warranty time: 3 years
