3One data IPMC101 Series User manual

IPMC101 Series
Industrial Media Converter
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District,
Shenzhen
Website:
www.3onedata.com
Tel:
[phone]
Fax:
[phone]
【Package Checklist】
Please check whether the package and accessories are intact
while using the media converter for the first time.
1.
Media Converter (equipped
with terminal blocks)
2.
Certification
3.
Quick installation guide
4.
Warranty card
5.
DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The product is industrial media converter. Its models are as
follows:
Model I IPMC101-F-POE (1 100M PoE copper port + 1 100M
fiber port)
Model II IPMC101-1S-POE (1 100M PoE copper port + 1
100M SFP fiber port)
【Panel Design】
Rear view, bottom view and top view
Front view
Model I Model II
1. DIN-Rail mounting kit
2. Grounding screw
3. Power supply input
4. DIP switch
5. Alarm indicator
6. PoE port power supply status indicator
7. Running status indicator
8. Power supply indicator
9. 100M PoE copper port
10. Copper port connection status indicator
11. Fiber port connection status indicator
12. 100Base-FX fiber port
13. 100Base-FX SFP fiber port
【Mounting Dimension】
Unit: mm
Note before mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:

Step 1 Check if the DIN-Rail mounting kit is installed firmly.
Step 2 Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert
the top into DIN-Rail.
Tips:
Insert a little to the bottom, lift upward and then insert
to the top.
Step 3 Check and confirm the product is firmly installed on
DIN-Rail, then mounting ends.

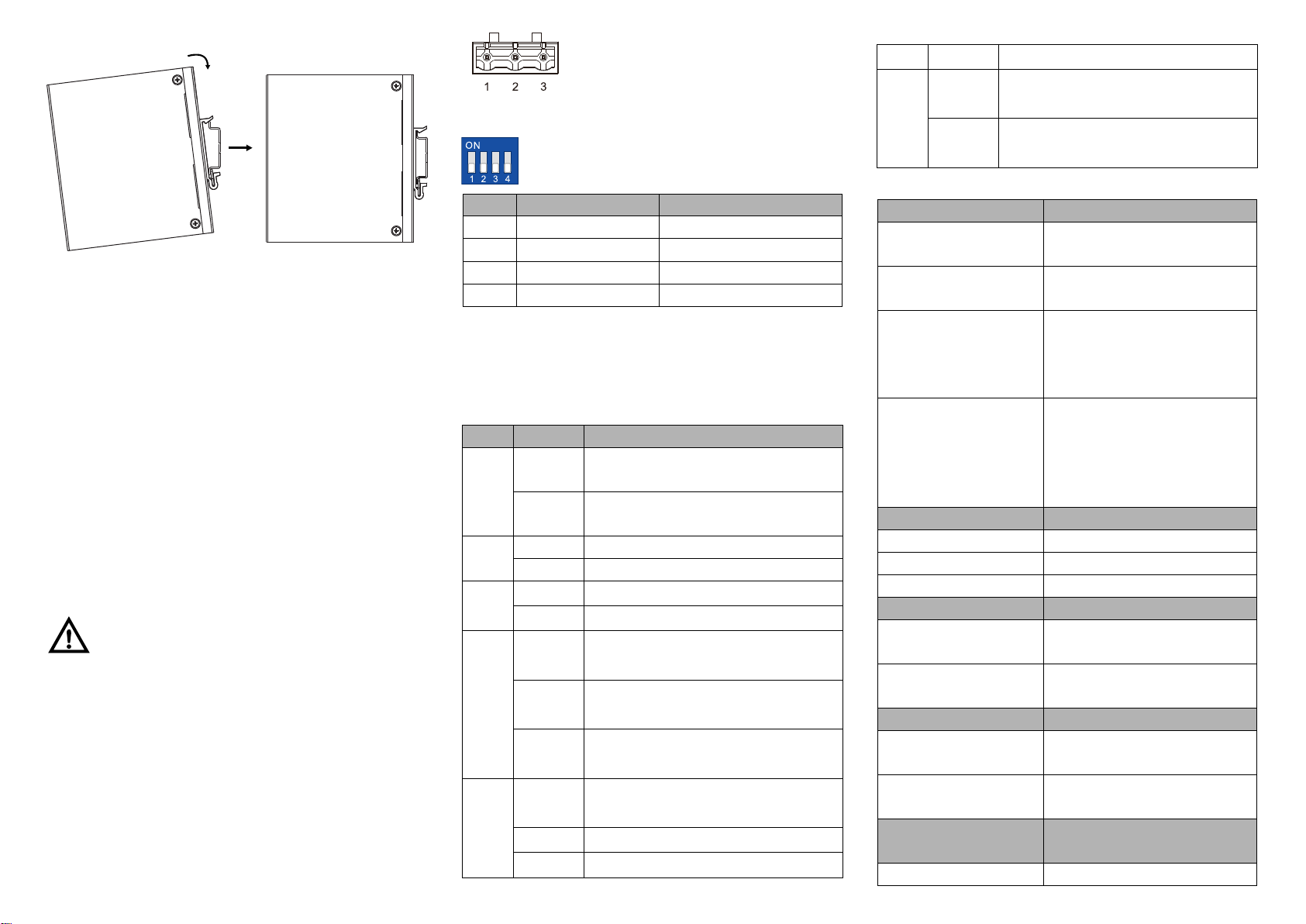

【Disassembling DIN-Rail】
Step 1 Device power off.
Step 2 After lift the device upward slightly, first shift out the
top of DIN-Rail mounting kit, then shift out the
bottom of DIN-Rail, disassembling ends.
Note before powering on:
Power ON operation: first connect power line to the
connection terminal of device power supply, then power
on.
Power OFF operation: first unpin the power plug, then
remove the power line, please note the operation order
above.
【Power Supply Connection】
DC power supply
This device provides 3-pin 7.62mm pitch terminal blocks. This
power supply supports anti-reverse connection.
Power supply range: 48VDC (44~55VDC).
【DIP Switch Setting】
Provide 4-bits DIP switch for function setting,
where "ON" is enable valid terminal.
The definitions of DIP switch are as follows:
No.
Definition
Operation
1
Flow control
Set the switch to ON
2
Jumbo frame
Set the switch to ON
3
LFP alarm
Set the switch to ON
4
Reserved
-
【Checking LED Indicator】
The device provides LED indicators to monitor its operating
status, which has simplified the overall troubleshooting
process. The function of each LED is described in the table as
below:
LED
Status
Description
PWR
ON
PWR is connected and running
normally
OFF
PWR is disconnected and running
abnormally
RUN
ON/OFF
Device runs abnormally
Blinking
Device runs normally
PoE
ON
POE port is powering other devices
OFF
POE port is not powering other devices
1
ON
Copper port has established valid
connection
Blinking
Copper port is in an active network
status
OFF
Copper port hasn’t established valid
connection
2
ON
Fiber port has established valid
connection
Blinking
Fiber port is in an active network status
OFF
Fiber port hasn’t established valid
connection
LFP
ON
Fiber/copper port is not connected or
connected abnormally
OFF
Fiber/copper port is connected
normally
【Specification】
Panel
100M copper port
10Base-T/100Base-TX
self-adaption
100M fiber port
100Base-FX, optional SFP or
SC/ST/FC interface
PoE
Maximum power of PoE port:
30W
PoE power supply pin: V+, V+,
V-, V- correspond to 1, 2, 3, 6
Indicator
Power supply indicator, remote
alarm indicator, fiber port
connection status indicator,
copper port connection status
indicator, running indicator
Switch property
100M forwarding speed
148810pps
Buffer size
1K
MAC address
2K
Power supply
Input power supply
DC power supply 48VDC
Support anti-reverse protection
Access terminal
3-pin 7.62mm pitch terminal
blocks
Power consumption
Model I
No-load: 1.63W@48VDC
Full-load: 18.39W@48VDC
Model Il
No-load: 1.97W@48VDC
Full-load: 18.62W@48VDC
Operating
environment
Operating temperature
-40~75℃

Storage temperature
-40~75℃
Operating humidity
5%~95% (no condensation)
Protection grade
IP40
