1.1 Package contents
Check your industrial motherboard package for the following items.
1 x Industrial Motherboard
1 x SATA cable
1 x SATA power cable
1 x I/O shield
1 x Support DVD
NOTE: If any of the above items are damaged or missing, contact your
distributor or sales representative immediately.
1.2 Features
• Integrated Intel®Apollo Lake Processor N4200 / N3350 / E3930
• Two DDR3L 1333/1600/1867MTS SO-DIMM up to 8GB
• Realtek®ALC3236-CG6-ChannelHighDenitionAudioCODEC
• 3 independent display: HDMI, LVDS(or eDP), and VGA
• Dual Ethernet LAN: Realtek®8111G PCIe Gb LAN x 2
• SATA 6.0 Gb/s x 2 (One colay with M.2 M Key), USB2.0 x 5, USB3.0 x 2,
COM x 6
• 1 x PCIe 2.0 [x1], 1 x M.2 M key (22 x 42mm) for SATA, and 1 x M.2 E Key (22
x 30mm) for PCIe
Chapter 1
Product overview
1-1
Chapter 1: General information

1.3 Specications
SYSTEM
CPU N4200, (4C @ 2.50GHz CPU [Burst Mode], 750MHz GFX [Turbo], ~6W
TDP)
N3350, (2C @ 2.40GHz CPU [Burst Mode], 650MHz GFX [Turbo], ~6W
TDP)
E3930, (2C @ 1.80GHz CPU [Burst Mode], 550MHz GFX [Turbo], ~6.5W
TDP)
Memory 2 x SO-DIMM, max. 8GB, DDR3L 1333/1600/1867MTS, non-ECC, un-
buffered memory,
Graphics Intel®HD Graphics
I/O Chipset NCT6116D
LAN 2 x Realtek®8111G PCIe Gb LAN
Audio Realtek®ALC3236-CG
TPM Nuvoton NPCT652ABCYX TPM2.0 onboard (optional)
Expansion slots 1 x PCIe 2.0 [x1]
1 x M.2 M key (22 x 42mm) for SATA
1 x M.2 E Key (22 x 30mm) for PCIe
BIOS 128Mb Flash ROM, AMI BIOS
H/W Status Monitor Monitors CPU/system temperature
Monitors Vcore, 3.3V/5V/12V voltages
Monitors chassis fan speed
Watchdog Timer 1~255 steps by software program
Smart Fan Control Chassis fan (fanless)
Wake On LAN / PXE Yes ( WOL, PXE)
Power States S3, S4, S5
Graphics
Graphics Chipset Intel®HD Graphics
Graphics Multi
Display 3 independent display
VGA Up to 1920 x 1200 @ 60 Hz
HDMI Up to 3840 x 2160 @ 30Hz
eDP Up to 4096 x 2160 @60Hz
LVDS Up to 1920 x 1200 @60Hz, Daul Channel 18/24 bit (via PS8625)
Backlight Control Voltage / PWM, use HW control
Environment, Power, and ME
Battery Lithium battery
Power requirement 12V~24V wide-range voltage input, DC jack (5.5/2.5mm) at the back panel
4-pin internal power connector
Operating
temperature 32oF~140oF (0oC~60oC)
Operating humidity 0%~90% relative humidity, non-condensing
Certicate CE & FCC Class A
Form factor Mini-ITX form factor:
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Weight 1.1 lb (0.5 Kg)
(continued on the next page)
EMB-APL1
1-2

I/O
Storage 2 x SATA 6Gb/s (1 colay with M.2) (default: 1 x SATA + M.2)
1 x SATA power connector (5V / 12V @1A)
USB 2 x USB 3.0 ports (at the back panel)
5 x USB 2.0 ports (2 at the back panel, 3 at the mid-board)
Display I/O 1 x VGA, 1 x HDMI, 1 x eDP (colay with LVDS)
Audio I/O Mic-In, Line-Out
LAN I/O 2 x RJ-45 ports on rear I/O
Serial ports 5 x RS-232
1 x RS-232/422/485 supports 5V/12V/RI option (COM1)
DIO 8-bit Digital I/O interface (4-in / 4-out)
Fan 1 x Chassis fan connector (4-pin)
I/O Placement

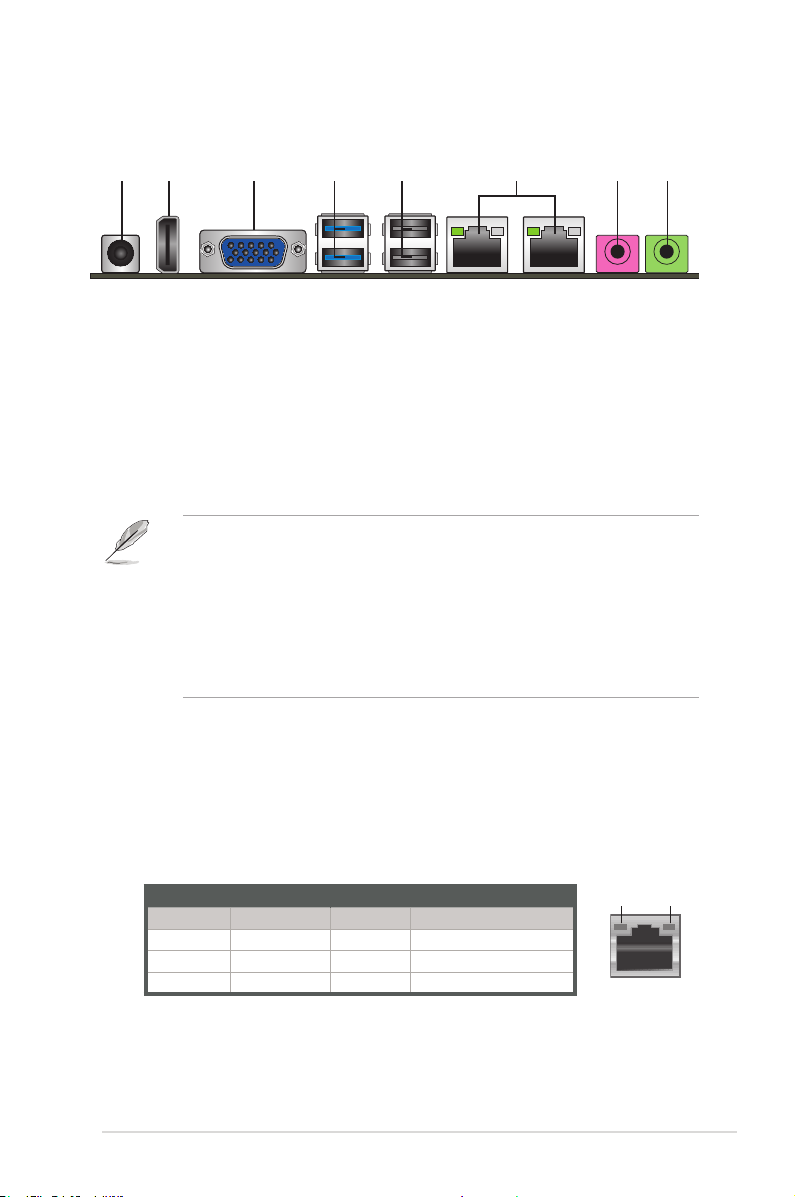

Back panel I/O ports
(Lowprole)
1 x 12V~24V wide-range voltage input DC jack (5.5/2.5mm)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x HDMI port (vertical type)
1 x VGA port
2 x LAN (RJ-45) ports
1 x Audio jack (Line-Out), green
1 x Audio jack (Mic-in), pink
Internal I/O
connectors
1 x M.2 M key (22 x 42mm) for SATA
1 x M.2 E key (22 x 30mm) for PCIe
1 x P/S2 header
2 x SATA 6.0 Gb/s connectors (1 colay with M.2)
1 x SATA power connector
1 x USB 2.0 header supports additional 2 USB ports (2 x 5PIN, p=2.00mm)
1 x USB 2.0 header supports additional 1 USB port (2 x 5PIN, p=2.00mm)
1 x Chassis fan connector
1 x Chassis intrusion jumper
5 x boxer headers for COM (RS-232)
1 x boxer header for COM (RS-232 / 422 / 485)
1 x Digital I/O connector (4-in / 4-out)

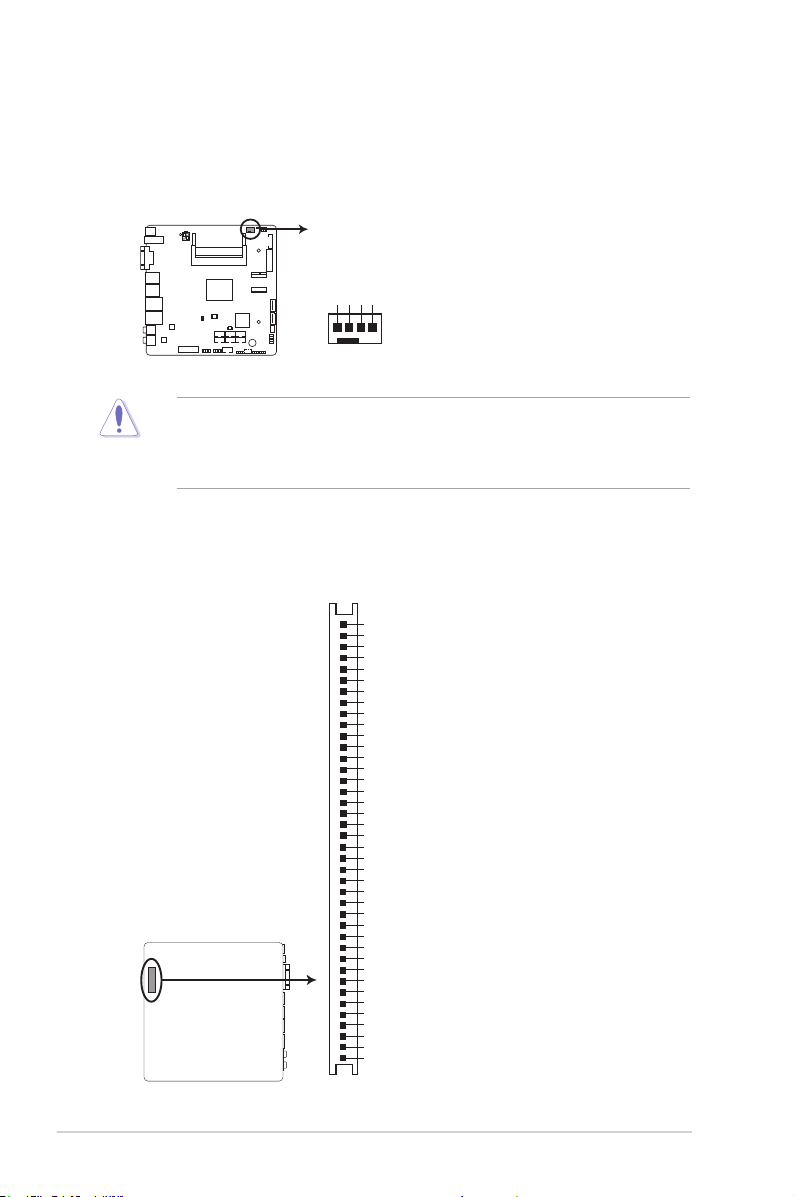

1 x 40-pin LVDS / eDP connector (colay; default eDP) (LVDS via PS8625)

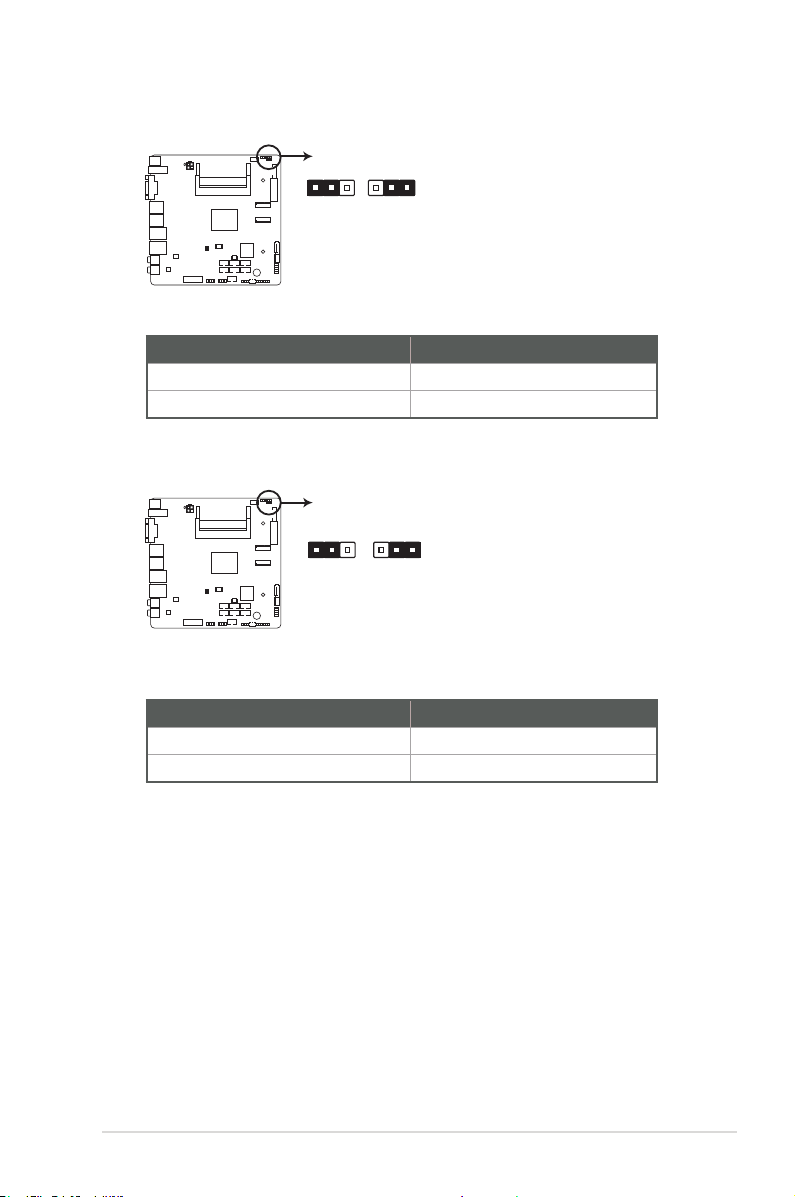

1 x LVDS 3V / 5V selection jumper

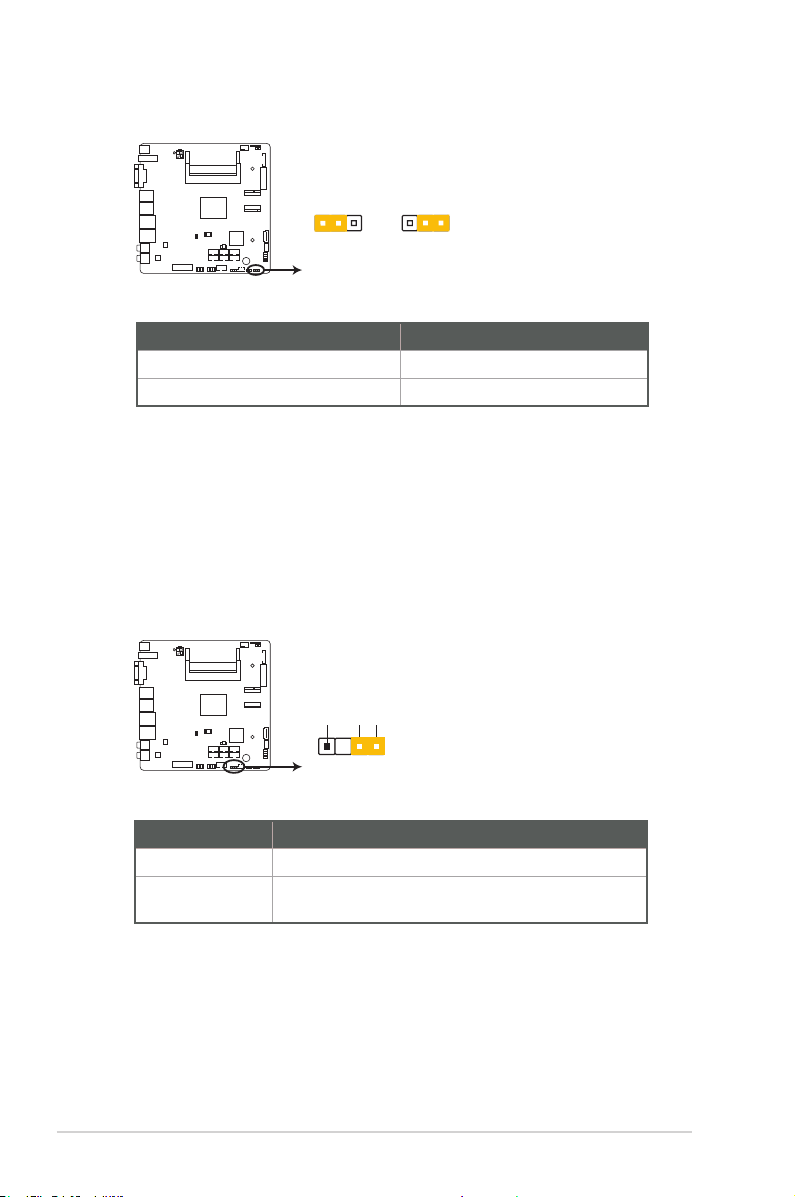

1 x LCD DC / PWM mode selection jumper
1 x LCD backlight connector (inverter)
1 x LCD backlight 12V / 5V jumper
1 x Battery horizontal socket
1 x 2*2 PIN DCIN AUX power connector
1 x System panel connector
1 x AT/ATX mode selection jumper

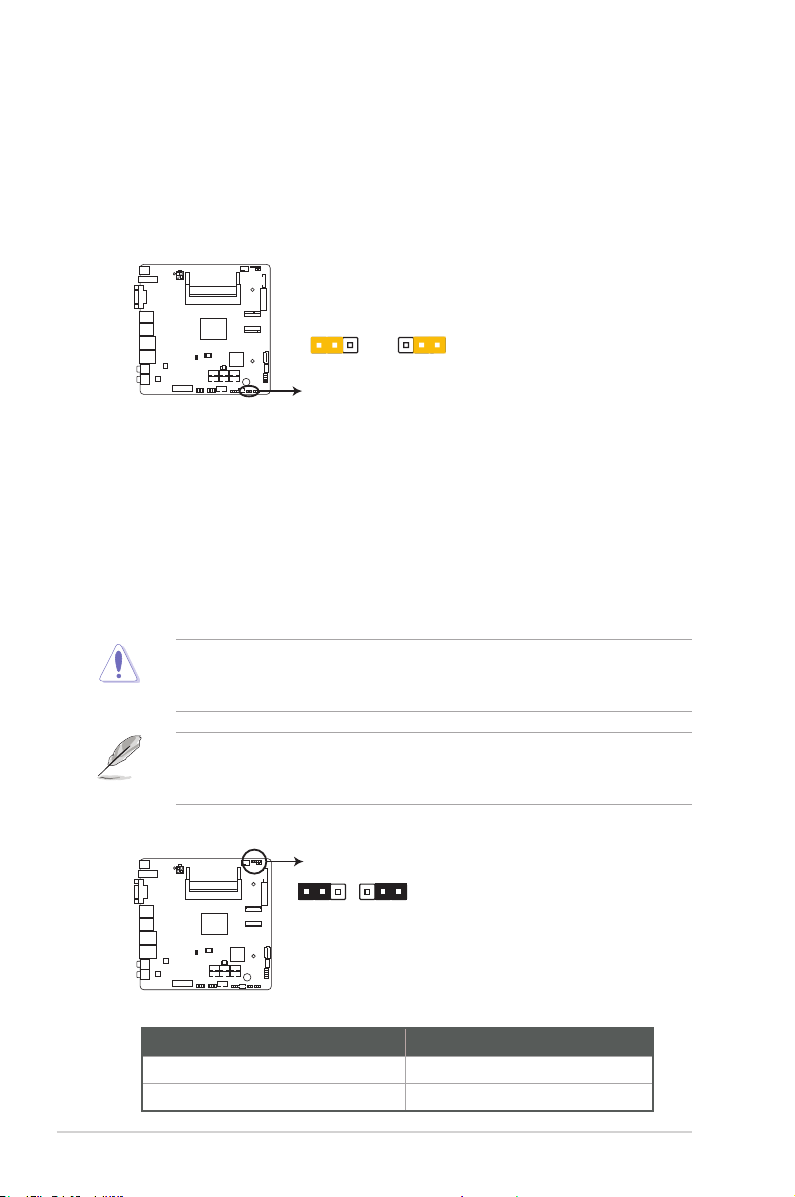

1 x CMOS jumper
1 x PCIe 2.0 [x1] slot
(continued on the next page)
1-3
Chapter 1: General information

Others
Supported OS Windows
®
10 64-bit
Ubuntu16.04.02 / Kernel4.8.0
Accessories 1 x SATA cable
1 x SATA power cable
1 x I/O shield
1 x Support DVD
NOTE: Specicationsaresubjecttochangewithoutnotice.
EMB-APL1
1-4

Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplugthepowercordfromthewallsocketbeforetouchingany
component.
• Beforehandlingcomponents,useagroundedwriststraportouchasafely
groundedobjectorametalobject,suchasthepowersupplycase,toavoid
damaging them due to static electricity.
• HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
• Wheneveryouuninstallanycomponent,placeitonagroundedantistatic
pad or in the bag that came with the component.
• Beforeyouinstallorremoveanycomponent,ensurethatthepowersupply
is switched off or the power cord is detached from the power supply. Failure
todosomaycauseseveredamagetothemotherboard,peripherals,or
components.
2-1
Chapter 2: Motherboard information

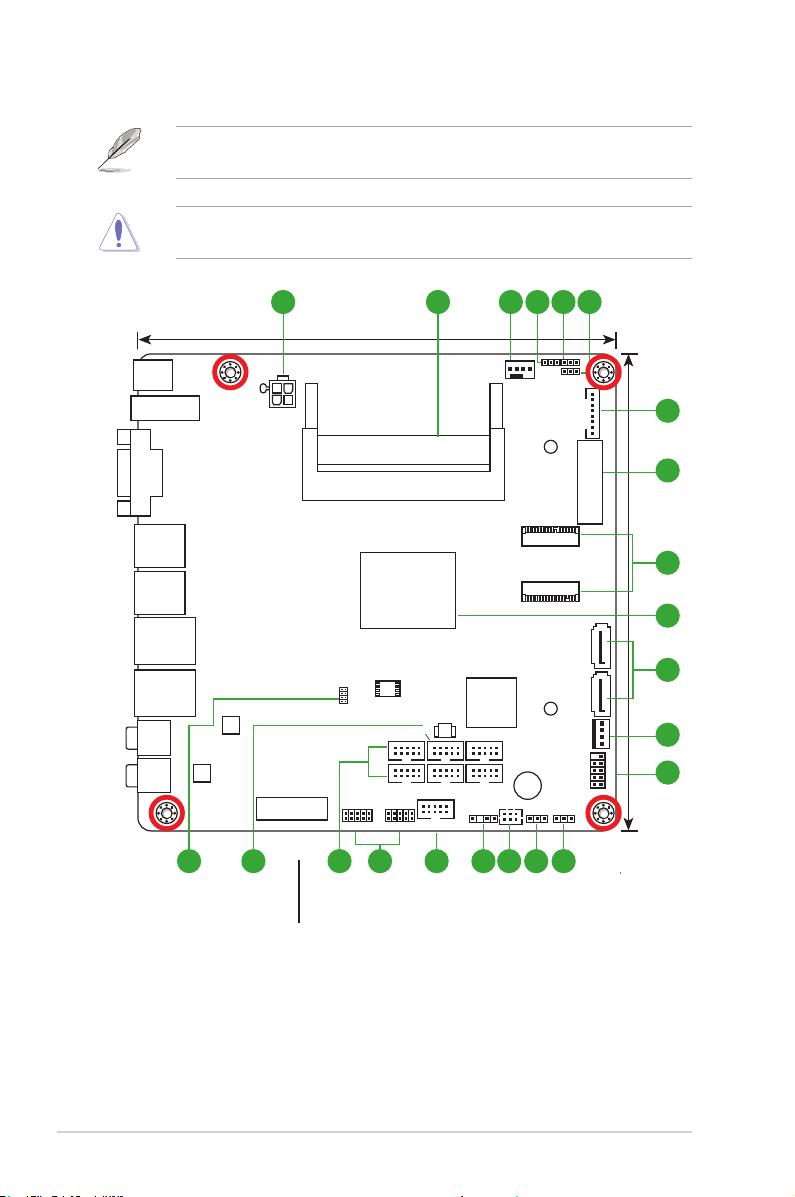

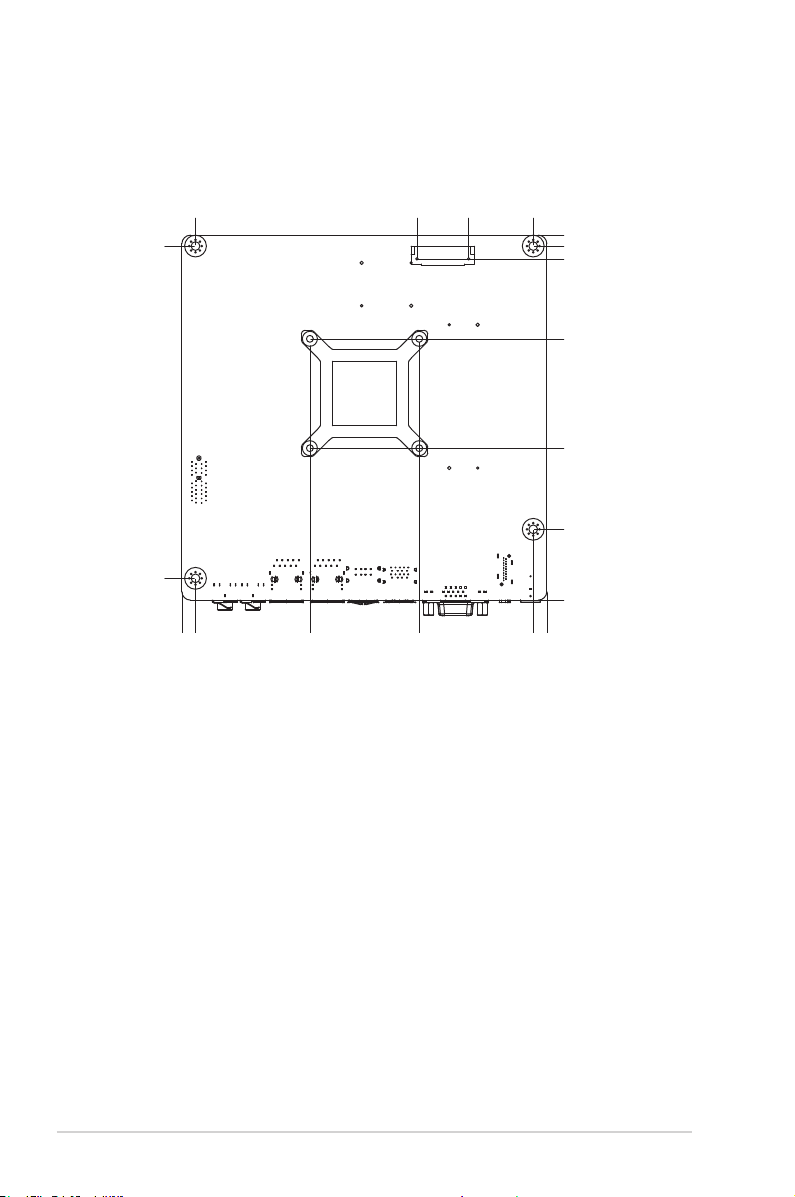

2.2 Motherboard layout
Place this side towards the rear of
the chassis
NOTE: Place four screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION!Donotovertightenthescrews!Doingsocandamagethe
motherboard.
EMB-APL1
DC_PWR2
DC_PWR1
HDMI1
VGA1
USB2
USB1
LAN1_CON1
LAN2_CON1
LINE-OUT1
MIC-IN1
CLRTC1CHASSIS1 ATX_AT1
17.0cm(6.7in)
17.0cm(6.7in)
F_PANEL1
SATA6G_2 SATA6G_1
PCIEX1
SYS_FAN1
COM1 COM2 COM3
COM4 COM5 COM6

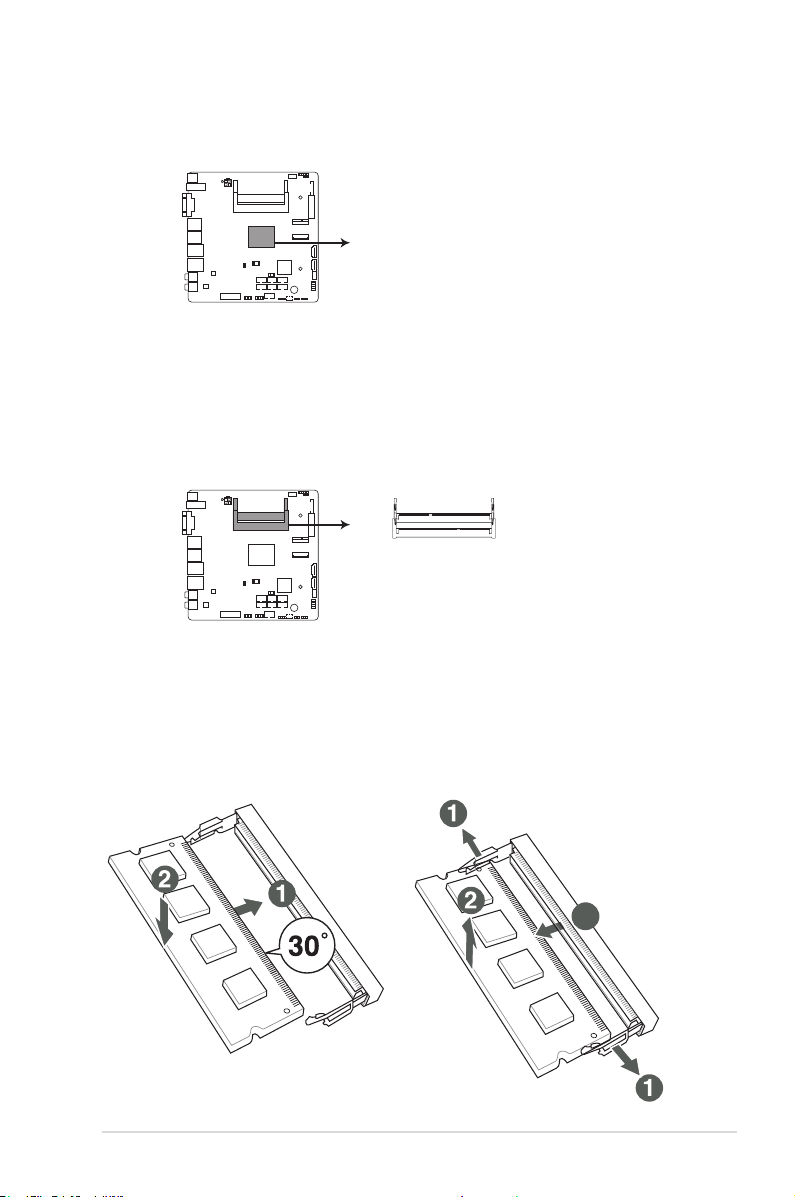

DDR3 SO-DIMM_B1 (64bit, 204-pin module)
DDR3 SO-DIMM_A1 (64bit, 204-pin module)
J3
LVDS_PWR
BKL_PWR
DIO1
USB2_P2USB2_P1
LVDS1
EDP1(BOTTOM)
INV1
SATA_PWR1
KBMS1
ALC
3236
TPS
51220ARTVR
SPI1
Intel®
Apollo Lake
Super
I/O
BZ1
128Mb
BIOS
M2E1
M2M1
BATTERY1
64 52 31
12
13
8
7
9
10
202122 15161718 1419
11
EMB-APL1
