Industrial Motherboard
EMB-KB1

ii
E8620
First Edition
October 2013
Copyright Notice
This document is copyrighted, 2013. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described
in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted
in any form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use,
or for any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to
change without notice. While reasonable efforts have been made in the preparation
of this document to assure its accuracy, the original manufacturer assumes no
liabilities resulting from errors or omissions in this document, or from the use of the
information contained herein.
The original manufacturer reserves the right to make changes in the product
design without notice to its users.
Acknowledgments
All other products’ name or trademarks are properties of their respective owners.
AMI is a trademark of American Megatrends Inc.
Intel®, Core™ are trademarks of Intel® Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
The original manufacturer reserves the right to make changes in the product
design without notice to its users.
All other product names or trademarks are properties of their respective owners.
•
•
•
•

iii
Contents
Chapter 1 Product overview
1.1 Package contents......................................................................... 1-1
1.2 Features ........................................................................................ 1-1
1.3 Specications............................................................................... 1-2
Chapter 2 Motherboard information
2.1 Before you proceed ..................................................................... 2-1
2.2 Motherboard layout...................................................................... 2-2
2.3 Screw size..................................................................................... 2-4
2.4 AMD Accelerated Processing Unit ............................................. 2-6
2.5 System memory ........................................................................... 2-6
2.6 Jumpers ........................................................................................ 2-8
2.7 Onboard LEDs ............................................................................ 2-11
2.8 Connectors ................................................................................. 2-12
Chapter 3 BIOS setup
3.1 BIOS setup.................................................................................... 3-1
3.2 Main menu .................................................................................... 3-2
3.3 Advanced menu ........................................................................... 3-3
3.4 Chipset menu ............................................................................... 3-8
3.5 Boot menu .................................................................................... 3-9
3.6 Security menu ............................................................................ 3-10
3.7 Save & Exit menu....................................................................... 3-11
Appendix
Notices.......................................................................................................A-1

iv

1-1
Chapter 1: General information
1.1 Package contents
Check your industrial motherboard package for the following items.
1 x Industrial Motherboard
1 x SATA Cable
1 x I/O Shield
1 x Support CD
If any of the above items is damaged or missing, contact your distributor or
sales representative immediately.
1.2 Features
AMD®1st Generation APU SoC (FT3 BGA package), Quad-core GX-420CA,
Dual-core GX-217GA (optional)
Two DDR3 / DDR3L 1600 / 1333 MHz SO-DIMMs up to 16GB
SATA 6.0 Gb/s x 2, USB3.0 x 2, USB2.0 x 8
PCI-Express x 4, Full-size Mini Card (PCIe + USB + mSATA) + SIM card
(mSATA BOM optional) x 1, Half-size Mini Card (PCIe + USB) x 1
VGA, DVI, 18/24-bit Dual Channel LVDS support
•
•
•
•
•
Chapter 1
Product overview

EMB-KB1
1-2
1.3 Specications
SYSTEM
Form factor
Mini-ITX
CPU
AMD®1st generation APU SoC (FT3 BGA package) Quad core GX-
420CA, Dual-core GX-217GA (optional)
Memory
2 x SO-DIMM (8GB per DIMM), max. 16GB, unbuffered, non-ECC
DDR3 / DD3L 1600 / 1333 MHz
Single channel memory architecture
I/O Chipset
Fintek F81866D-I
Ethernet
2 x Realtek PCIe Gb LAN 8111F
BIOS
64Mbit Flash AMI BIOS ROM
Wake on LAN
Yes (WOL/PXE)
Watchdog Timer
1~255 steps by software program
H/W Status Monitor
Monitors CPU/Chassis temperature
Monitors Vcore/5V/3.3V/12V voltages
Monitors CPU/Chassis fan speed
Smart Fan Control
CPU Fan/Chassis Fan
Power State
S3, S4, S5
Expansion slot
4 x PCI Express
1 x Mini Card (PCIe + USB + mSATA) + SIM card (mSATA optional)
Full-size
1 x Mini Card (PCIe + USB) Half size
Battery
Lithium battery
Power requirement
1 x ATX connector
Board size
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Gross weight
1.1 lb (0.5 Kg)
Operating
temperature
32oF~140oF (0oC~60oC)
Storage temperature
-40oF~185oF (-40oC~85oC)
Operating humidity
0%~90% relative humidity, non-condensing
Power compliance
Compliant with Eup/ErP
Certicate
CE/FCC
(continued on the next page)

1-3
Chapter 1: General information
DISPLAY
Chipset
Quad-core GX-420CA / Dual-core GX-217GA (Integrated)
Resolution
Up to 1920x1200@60Hz for VGA
Up to 1920x1200@60Hz for DVI
Up to 1920x1080@60Hz, Dual Channel 18/24-bit
Output interface
1 x LVDS
1 x VGA
1 x DVI
I/O
Storage
2 x SATA 6.0Gb/s ports
1 x SATA power connector
Serial port
1 x RS-232/422/485 supports 5V/12V/RI option (COM1 on rear I/O)
5 x RS-232 (COM2 on rear I/O, COM3-COM6 for box header)
USB
2 x USB3.0 (2 ports at rear panel)
8 x USB2.0 (2 ports at rear panel, 4 ports at mid-board, 2 ports at
Mini Card interface)
Fan
1 x CPU Fan connector (4-pin)
1 x Chassis Fan connector (4-pin)
RTC
Internal RTC
Keyboard/Mouse
2 x PS/2 Keyboard / mouse port on rear I/O
Audio
Mic-in
Line-out
Internal audio for 2W speakers
Ethernet
2 x RJ-45 ports on rear I/O
Display
1 x VGA port on rear I/O
1 x DVI-D port on rear I/O
Others
1 x 8-bit Programmable Digital I/O
1 x Front panel connector
1 x AT/ATX mode select jumper

EMB-KB1
1-4

2-1
Chapter 2: Motherboard information
Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplug the power cord from the wall socket before touching any
component.
• Before handling components, use a grounded wrist strap or touch a safely
grounded object or a metal object, such as the power supply case, to avoid
damaging them due to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
• Before you install or remove any component, ensure that the ATX power
supply is switched off or the power cord is detached from the power
supply. Failure to do so may cause severe damage to the motherboard,
peripherals, or components.

EMB-KB1
2-2
EATX_PWR2
EATX_PWR1
ALC
887
AAFP1
LVDS1
Super
I/O
MINI_CARD1
MINI_CARD2
CLRTC
J4
17.0cm(6.7in)
17.0cm(6.7in)
DDR3_DIMM_A1 (64bit, 204-pin module)
DDR3_DIMM_A2 (64bit, 204-pin module)
KBMS
AUDIO1
LAN1_USB3_89
LAN2_USB23
F_PANEL
J1
J2
J3
MAIN_PWR_LED1
SB_PWR_LED1
BZ1
USB45
USB67
CHA_FAN
SIM1
CPU_FAN
SATA_PWR1
SATA6G_2
SATA6G_1
COM3
COM4
COM5COM6
DIO1
SPI1
64Mb
BIOS
APU
PCIEX4_1
BATTERY
INV1
CHRONTEL
CH7511B
ASM
1442
RTL
8111F
RTL
8111F
DVI_D1 VGA
COM2 COM1
AMP_CON1
51 2 3
3
10
9
8
6
6
7
18 17 1619 11
12
20
4
13
15 14
21
2.2 Motherboard layout
Place this side
towards the rear
of the chassis
NOTE: Place four screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION! Do not overtighten the screws! Doing so can damage the
motherboard.

2-3
Chapter 2: Motherboard information
Connectors/Jumpers/Slots Page
1. LVDS connector (30-pin LVDS1) 2-19
2. COM1 Ring/+5V/+12V selection (6-pin J4) 2-10
3. ATX power connectors (24-pin EATXPWR1, 4-pin EATX_PWR2) 2-14
4. SO-DIMM memory slots 2-6
5. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 2-15
6. Minicard connector (MINI_CARD1, MINI_CARD2) 2-20
7. BIOS programmable connector (8-pin SPI1) 2-21
8. Standby Power LED (Main_PWR_LED1, SB_PWR_LED1) 2-11
9. Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1, SATA6G_2) 2-18
10. SATA power connector (SATA_PWR1) 2-18
11. System panel connector (10-1 pin F_Panel) 2-17
12. Clear RTC RAM (CLRTC) 2-8
13. Serial port connectors (10-1 pin COM3~6) 2-21
14. USB 2.0 connector (10-1 pin USB67, USB45) 2-20
15. Digital I/O connector (DIO1) 2-22
16. LVDS panel voltage selection (3-pin J1) 2-9
17. Inverter voltage selection (3-pin J2) 2-9
18. Inverter backlight control of inverter selector (3-pin J3) 2-10
19. Speaker out connector (AMP_CON1) 2-21
20. Front panel audio connector (10-1 pin AAFP1) 2-16
21. Backlight inverter power connector (5-pin INV1) 2-19

EMB-KB1
2-4

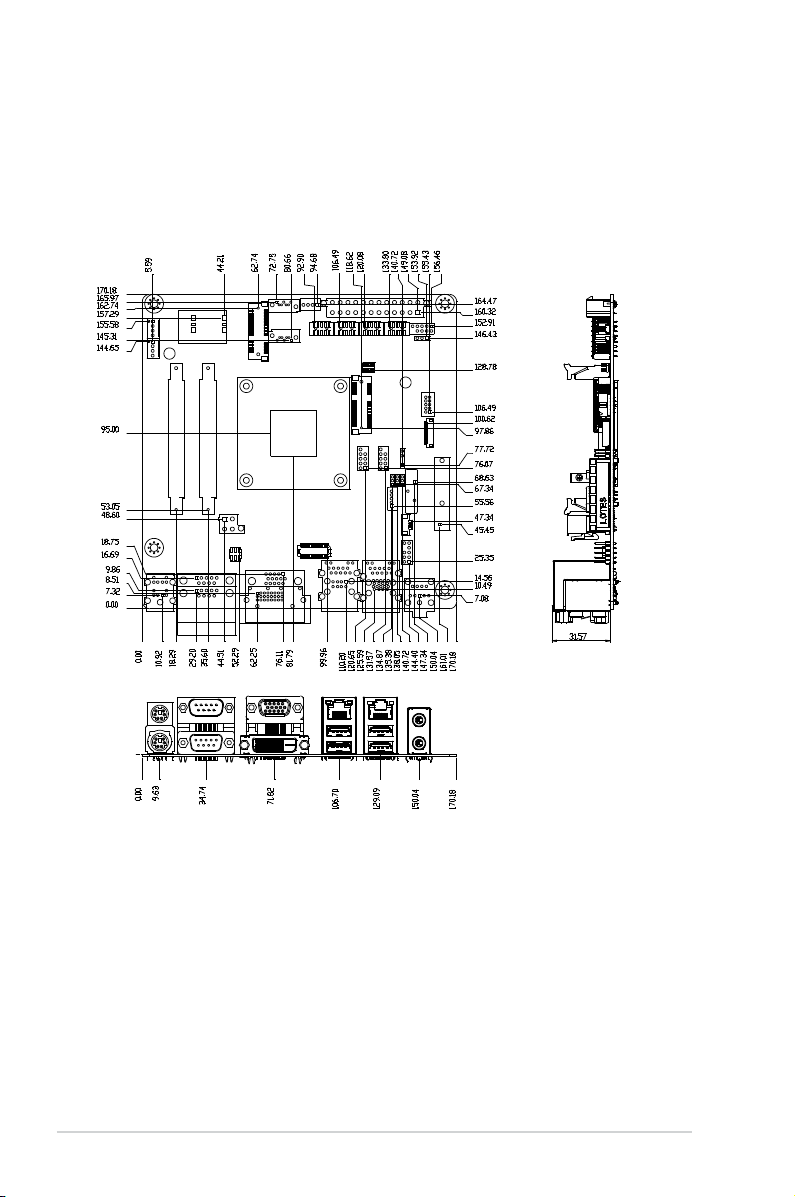

2.3 Screw size
2.3.1 Component side

2-5
Chapter 2: Motherboard information
2.3.2 Solder side

EMB-KB1
2-6
2.4 AMD Accelerated Processing Unit
The motherboard comes with an AMD®1st Generation APU SoC Quad Core GX-
420CA, Dual-core GX-217GA (optional).
EMB-KB1 APU
APU
2.5 System memory
EMB-KB1 204-pin DDR3 / DD3L SO-DIMM sockets
DIMM_A1
DIMM_A2
This motherboard comes with two Double Data Rate 3 / Double Data Rate 3 Low
Voltage (DDR3/DD3L) Small Outline Dual Inline Memory Modules (SO-DIMM)
socket. The gure illustrates the location of the DDR3 / DDR3L DIMM socket:
NOTE: Use the SO-DIMM_A2 slot when inserting only one SO-DIMM.

2-7
Chapter 2: Motherboard information
To remove a DIMM
A
B
2.5.1 Installing a DIMM
1
2
3

EMB-KB1
2-8
2.6 Jumpers
1. Clear RTC RAM (CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS.
You can clear the CMOS memory of system setup parameters by erasing
the CMOS RTC RAM data. The onboard button cell battery powers the RAM
data in CMOS, which include system setup information such as system
passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on
pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup
to reenter data.
CAUTION! Except when clearing the RTC RAM, never remove the cap on
CLRTC jumper default position. Removing the cap will cause system boot
failure!
NOTES:
• If the steps above do not help, remove the onboard battery and move the
jumper again to clear the CMOS RTC RAM data. After clearing the CMOS,
reinstall the battery.
• You do not need to clear the RTC when the system hangs due to
overclocking. For system failure due to overclocking, use the CPU
Parameter Recall (C.P.R) feature. Shut down and reboot the system so the
BIOS can automatically reset parameter settings to default values.
EMB-KB1 Clear RTC RAM
1 2
2 3
Normal
(Default)
Clear RTC1
CLRTC

2-9
Chapter 2: Motherboard information
EMB-KB1 LVDS Panel Voltage Selection
1 2 2 3
+3V
(Default)
+5V
J1
EMB-KB1 Inverter Voltage Selection
1 2 2 3
+5V
(Default)
+12V
J2
2. LVDS panel voltage selection (3-pin J1)
3. Inverter voltage selection (3-pin J2)
Setting Pins
+5V 1-2
+3.3V 2-3
Setting Pins
+12V 1-2
+5V (Default) 2-3

EMB-KB1
2-10
EMB-KB1 COM1 Ring/+5V/+12V Selection
1 2 3 4 5 6
Ring +5V +12V
(Default)
J4
Setting Pins
+12V (Default) 5-6
+5V 3-4
Ring 1-2
5. COM1 Ring/+5V/+12V selector (COM1)
EMB-KB1 Mode Selection for Backlight Control of Inverter
PWM CTLDC CTL
(Default)
1 2 2 3
J3
4. Inverter Backlight Control of Inverter selector (3-pin J3)
Setting Pins
DC Voltage Control 1-2
PWM Control (Default) 2-3

2-11
Chapter 2: Motherboard information
SB_PWR_LED1
ON
Standby Power Powered Off
OFF
ON
Main Power Main Power Off
OFF
EMB-KB1 Onboard LEDs
MAIN_PWR_LED1
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate
that the system is ON, in sleep mode, or in soft-off mode. This is a reminder
that you should shut down the system and unplug the power cable before
removing or plugging in any motherboard component. The illustration below
shows the location of the onboard LED.
2.7 Onboard LEDs

EMB-KB1
2-12
2.8 Connectors
2.8.1 Rear panel connectors
2 3 5
8
4
91011 6 7
1
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. Serial port (COM1). This port connects a modem, or other devices that
conform with serial specication. This serial port also supports RS-232 / RS-
422 / RS-485 connections.
3. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor
or other VGA-compatible devices.
NOTE: Disable LVDS support when using only the VGA port. Refer to the
section on System Agent (SA) Conguration in Chapter 3 for details.
Pin Signal Pin Signal
1 DCD (422TXD-/485DATA-) 2 RXD (422RXD+)
3 TXD (422TXD+/485DATA+) 4 DTR (422RXD-)
5 GND 6 DSR
7 RTS 8 CTS
9 RI/+12V/+5V 10 N.C.
