Aaeon AOP-9150 User manual

Operator Panel
A O P - 9150
AOP-9150
Intel®Atom N270 Processor
15” XGA 250 nits color TFT LCD
10/100/1000Base-TX Ethernet
4 COM/ 4 USB2.0/ 1 Parallel
1 VGA/ 1 DVI
AOP-9150 Manual 2nd Ed
February 2014

Operator Panel
A O P - 9150
i
Copyright Notice
This document is copyrighted, 2014. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties, which may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON, assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Operator Panel
A O P - 9150
ii
Acknowledgments
Award is a trademark of Award Software International, Inc.
VIA is a trademark of VIATechnologies, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International
Business Machines Corporation.
Intel®and AtomTM are trademarks of Intel Corporation.
Microsoft Windows®is a registered trademark of Microsoft
Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
ESS is a trademark of ESS Technology, Inc.
UMC is a trademark of United Microelectronics Corporation.
SMI is a trademark of Silicon Motion, Inc.
Creative is a trademark of Creative Technology LTD.
All other product names or trademarks are properties of their
respective owners.

Operator Panel
A O P - 9150
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
1 AOP-9150 Operator Panel PC
10 Mount brackets and screws
1 Power cord (Optional)
1 Transfer Board for CD-ROM
1 CD-ROM for manual (in PDF format) and drivers
If any of these items are missing or damaged, you should contact your
distributor or sales representative immediately.
1. Use a 3 V @ 200 mA lithium battery
2. Packing: please carry the unit with both hands,
handle with care
3. Maintenance: to properly maintain and clean the
surfaces, use only approved products or clean
with a dry applicator
4. Do not remove CompactFlash storage card
while reading from or writing into the storage
card.

Operator Panel
A O P - 9150
iv
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from anyAC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
4. For plug-in equipment, the power outlet must be installed near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation.
Dropping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over voltage.
12. Never pour any liquid into an opening. This may cause fire or
electrical shock.
13. Never open the equipment. For safety reasons, the equipment
should be opened only by qualified service personnel.

Operator Panel
A O P - 9150
v
14. If one of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to
work according to the users manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20°C (-4°F) OR ABOVE 60°C (140°F). IT MAY
DAMAGE THE EQUIPMENT.
16. Caution:
There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions and your local government’s recycling
or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon
incorrecte. Ne la remplacer qu’avec le même modèle ou
équivalent recommandé par le constructeur. Recycler les
batteries usées en accord avec les instructions du fabricant et les
directives gouvernementales de recyclage.
DISCLAIMER: This set of instructions is given according to IEC
704-1. AAEON disclaims all responsibility for the accuracy of any
statements contained herein.

Operator Panel
A O P - 9150
vi
Below Table for China RoHS Requirements
产品中有毒有害物质或元素名称及含量
AAEON Panel PC/ Workstation
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件
×
○
○
○
○
○
外部信号
连接器及线材
×
○
○
○
○
○
外壳
×
○
○
○
○
○
中央处理器
与内存
×
○
○
○
○
○
硬盘
×
○
○
○
○
○
液晶模块
×
○
○
○
○
○
光驱
×
○
○
○
○
○
触控模块
×
○
○
○
○
○
电源
×
○
○
○
○
○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、光驱、触控模块为选购品。

Operator Panel
A O P - 9150
vii
Contents
Chapter 1 General Information
1.1 Introduction................................................................ 1-2
1.2 Feature......................................................................1-3
1.3 Specification..............................................................1-4
1.4 Dimension ................................................................. 1-7
Chapter 2 Hardware Installation
2.1 2.5”Hard Disk Drive (HDD) Installation ....................2-2
2.2 Panel Mounting ......................................................... 2-5
2.3 RS-232 PORT: COM1/COM3/COM4/COM5;
RS-232/422/485 PORT: COM2 (MALE) .........................2-7
2.4 VGA PORT (FEMALE)..............................................2-7
2.5 LAN0 & LAN1 PORT (FEMALE)............................... 2-7
2.6 USB2.0 PORT-USB0/1/2 (FEMALE) ........................ 2-8
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization . .................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation ................................................................. 4-3
Appendix A FAQ
A.1 FAQ........................................................................A-2

Operator Panel
A O P - 9150
Chapter 1 General Information 1-1
General
Information
Chapter
1

Operator Panel
A O P - 9150
Chapter 1 General Information 1-2
1.1 Introduction
AOP-9150 operator panel PC is a high performance solution
features all-in-one SBC with Intel®AtomTM N270 1.6 GHz processor.
That is designed to serve as a human machine interface (HMI) and
as a multimedia computer. It is a PC-based system with true-color
and wide-view-angle TFT LCD display. Onboard Ethernet controller,
multi-COM port interfaces, and DVI. In addition, its "fit anywhere"
design makes it very flexible and able to be used in many different
kinds of installations. It can be wall mounted, panel mounted or
stood upright on a desktop.
For system integrators, this simple, complete, compact and highly
integrated multimedia system let you easily build a panel PC into
your applications. Common industrial applications include factory
automation systems, precision machinery, and production process
control. It is also suitable for many non-industrial applications,
including interactive kiosk systems, entertainment management,
and car park automation. Our panel PC is a reliable, cost-effective
solution to your application's processing requirements.

Operator Panel
A O P - 9150
Chapter 1 General Information 1-3
1.2 Feature
15" TFT XGA TFT-LCD
Onboard Intel®AtomTM N270 Processor
Anti-Vibration Disk Drive Bay
COM x 4, USB2.0 x 4, 10/100/1000Base-TX Ethernet
TouchScreen
Windows®XP Embedded, Windows®XP Pro For Embedded,
and Windows®7 support
Slim Type Panel PC With Fanless Solution

Operator Panel
A O P - 9150
Chapter 1 General Information 1-4
1.3 Specification
System
Display
15”XGA (1024 x 768) color TFT LCD
Processor
Intel®AtomTM N270 1.6 GHz
processor
Memory
DDR2 DIMM x 1, Max. 2 GB (DDR2
400/533)
LCD/CRT Controller
Intel®945GSE integrated
Ethernet
Realtek 8111C for
10/100/1000Base-TX, RJ-45 x 2
I/O Port
RS-232 x 3, RS-232/422/485 x 1
USB2.0 x 4
Parallel x 1
VGA x 1
DVI x 1
PS/2 keyboard x 1, PS/2 mouse x 1
MIC-in, Line-out
Storage Disk Drive
Slim CD-ROM/ Combo/ DVD
Anti-vibration 2.5”Hard Disk Drive Bay
OS Support
Windows®XP Embedded, Windows®
XP Pro for Embedded, Windows®7

Operator Panel
A O P - 9150
Chapter 1 General Information 1-5
Mechanical
Construction
Plastic panel with metal back cover
Color
Black
Mounting
Panel mount/ VESA 75/100mm
Dimension
16”(W) x 12.2”(H) x 2.6”(D) (407mm
x 310.5mm x 67.2mm)
Carton Dimension
20.67”(W) x 18.31”(H) x 9.1”(D)
(525mm x 465mm x 230mm)
Gross Weight
14.3 lb (6.5 kg)
Net Weight
12.1 lb (5.5 kg)
Environmental
Operating
Temperature
32℉~104℉(0℃~40℃)
Storage Temperature
-4℉~122℉(-20℃~50℃)
Operating Humidity
10% to 90% @ 35℃, non-condensing
Vibration
Random operation 1G, 5~500 Hz
Shock
15G peak acceleration (11 msec.
duration)
EMC
CE/FCC Class A

Operator Panel
A O P - 9150
Chapter 1 General Information 1-6
Power Supply
AC-DC Input
AC 100~230V
DC-DC Input
DC 12/24V
Output Connector
Load
12Vdc rating:12Vdc/0.5A
5Vdc rating:12Vdc/1A
LCD
Display Type
15”
Max. Resolution
1024 x 768
Max. Color
16.7 million
Dot Size
0.297 x 0.297
Luminance (Typical)
250 nits
View Angle
150o(H) x 140o (V)
Back Light MTBF
(hours)
50,000
Touch Screen
Type
5-wire, analog resistive
Resolution
2048 x 2048
Light Transmission
80%
Lifetime
35 million activations

Operator Panel
A O P - 9150
Chapter 1 General Information 1-7

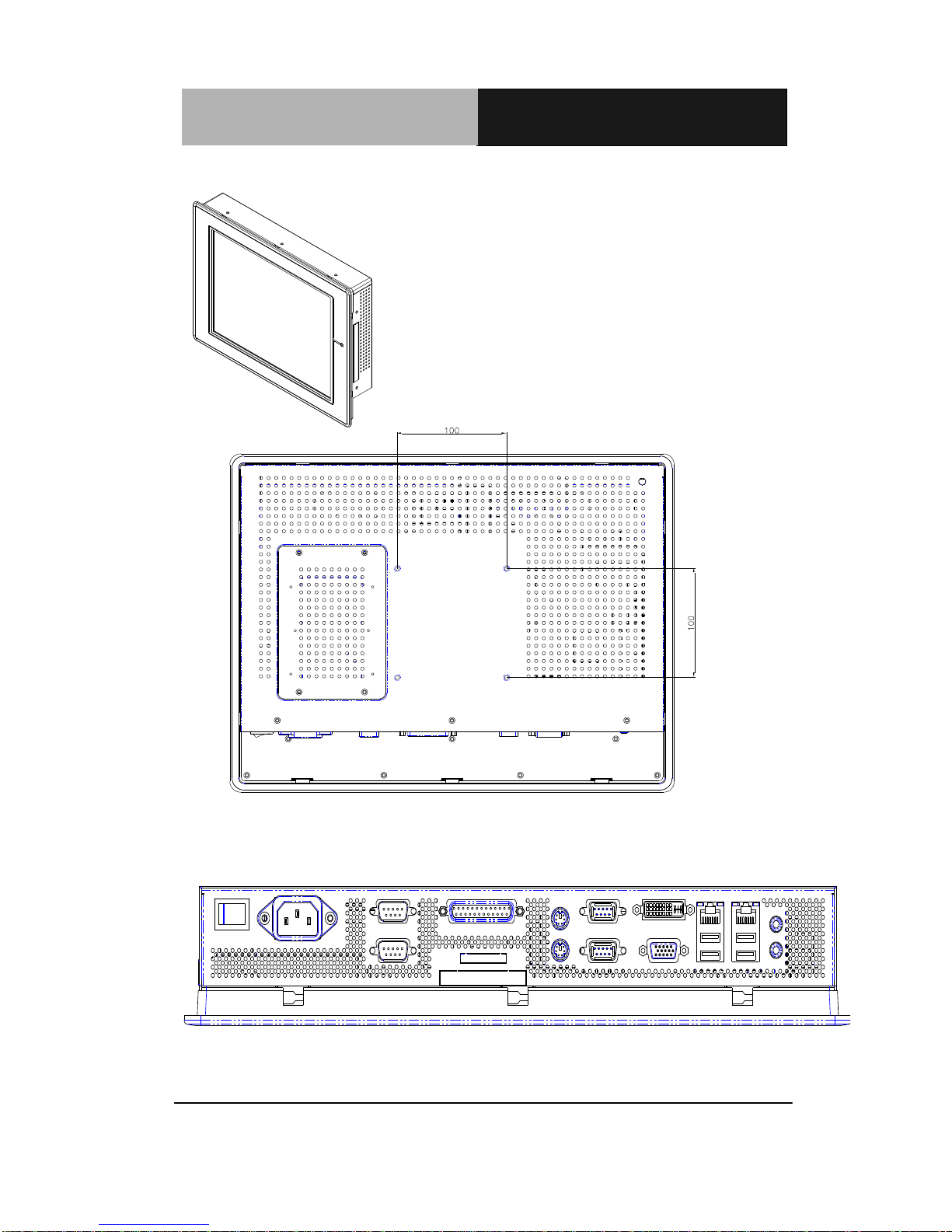

1.4 Dimension
AUDIO
MIC
LAN / USBLAN / USB
DVI
VGA
COM 2
COM 1
MS / KB
LPT
COM 4
COM 3
POWER
CARD
READER
AOP - 9150
UNIT : mm
Cutout Size : 394 x 297.5 mm

Operator Panel
A O P - 9150
Chapter 1 General Information 1-8
AUDIO
MIC
LAN / USBLAN / USB
DVI
VGA
COM 2
COM 1
MS / KB
LPT
COM 4
COM 3
POWER
CARD
READER
AOP - 9150
UNIT : mm
Cutout Size : 394 x 297.5 mm
AUDIO
MIC
LAN / USBLAN / USB
DVI
VGA
COM 2
COM 1
MS / KB
LPT
COM 4
COM 3
POWER
CARD
READER
AOP - 9150
UNIT : mm
Cutout Size : 394 x 297.5 mm

Operator Panel AOP-9150
Chapter2HardwareInstallation2-1
Chapter
Hardware
2
Installation

Operator Panel AOP-9150
Chapter 2 Hardware Installation 2-2
2.1 2.5" Hard Disk Drive Installation
Pls follow instruction below to install the Hard Disk Drive into the
Panel PC after preparing all required materials and components.
1. Remove four screws on the back cover as below and
disassemble HDD cover (that is HDD drive bay of the unit).
2. Get the 2.5” HDD ready and fasten the four screws on HDD
and put the rubbers on screws

Operator Panel AOP-9150
Chapter2HardwareInstallation2-3
3. Place HDD with rubber into HDD Cover
4. Fasten the two HDD brackets on the HDD cover with four
screws
5. Connect the HDD cable

Operator Panel AOP-9150
Chapter 2 Hardware Installation 2-4
6. Fasten the four screws on back cover of the AOP-9150 to lock
the HDD Cover with brackets
