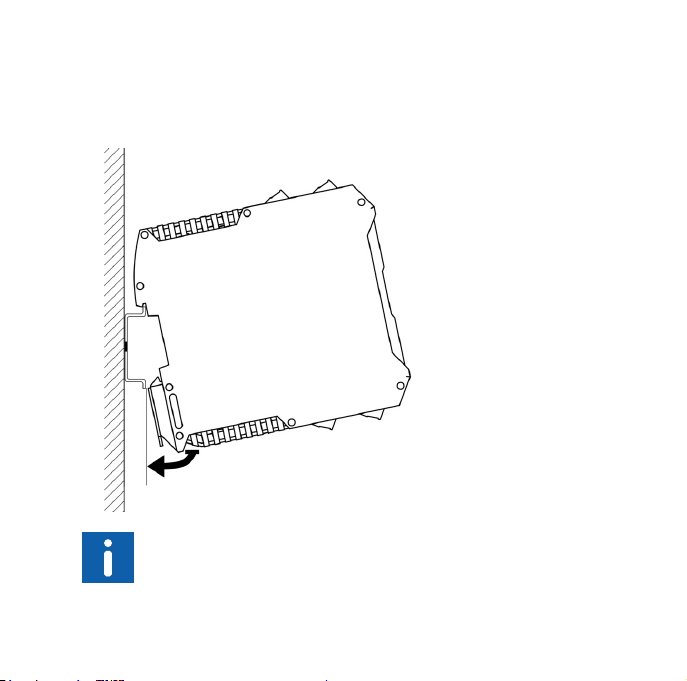

Mounting and Dismounting.................................................................................. 13
Connection Diagram............................................................................................ 15
Connecting the Power Supply ............................................................................. 16
Ethernet Ports..................................................................................................... 17
Redundancy Link Interface .................................................................................. 18
FF-H1 Interfaces ................................................................................................. 20
Conguring LD 810HSE Ex.................................................................................. 22
Section 3 Status Indicators - LEDs ..................................................................... 23
LED Indicators in Stand-Alone Mode (RUN and ERR)........................................... 24
LED Indicators in Redundant Mode (RUN, ERR, and RDL) ................................... 25
Status Indications of the 4 H1 Channels .............................................................. 29
Section 4 Specications ...................................................................................... 30
Section 5 Manufacturer‘s Declaration................................................................. 33
Table of Contents

2PAA118721 | Quick Installation Guide LD 810HSE Ex 5
Section 1 Introduction
This Quick Installation Guide describes the electrical installation of
FOUNDATION™ Fieldbus Linking Device LD 810HSE Ex in non-hazardous or
hazardous areas.
The Linking Device LD 810HSE Ex is an electrical equipment with degree of pro-
tection Ex nA, approved for use in hazardous areas of Zone 2 or in the safe area.
The 4 FF-H1 interfaces are designed according to the protection method Ex ic.
Only certied circuits with an according protection method shall be connected to
these FF-H1 interfaces.
Before setting the LD 810HSE Ex into operation, the corresponding marking eld
has to be signed (e. g. if the device is used in ic environment, the upper marking
eld on the type label has to be signed).
– Use an appropriate permanent pen for signing, e.g. an etching pen.
– More than one marking is not allowed. If you need a second marking, you
must replace the existing equipment with a new one.
– An equipment, which has been operated under non-intrinsical safe conditions.
The following communication ports of the Linking Device are in open/ltered
state and therefore need to be protected at all time:
– Port s0/UDP
– Port 1027/UDP
– Port 1028/UDP
The LD 810HSE Ex is only approved for intended and appropriate
use. In case of noncompliance, the warranty and manufacturer’s
liability do no longer apply.

6 Quick Installation Guide LD 810HSE Ex | 2PAA118721
Intended use
For proper installation of LD 810HSE Ex, read this manual before installing
LD 810HSE Ex.
For commissioning of LD 810HSE Ex, refer to the User Instructions
(LD 810HSE Ex User Manual 2PAA114135-610), which is available
in the MyABB portal (https://myportal.abb.com/home).
Before commissioning of LD 810HSE Ex make sure to use the
latest and recommended Linking Device rmware released for your
system environment.

2PAA118721 | Quick Installation Guide LD 810HSE Ex 7
Section 2 Installation
Installation in Hazardous Locations
The LD 810HSE Ex is suitable for use and installation in areas with potentially
explosive atmosphere in accordance to the Division model (North America) and
the Zone model (Europe and IEC countries) of hazardous locations.
Danger of explosion!
If energized conductors are plugged to or unplugged from the
LD 810HSE Ex in potentially explosive atmosphere, this may result
in an explosion. Thus, do not connect or disconnect energized
conductors!
Danger of explosion!
Do not use the LD 810HSE in hazardous areas, only the
LD 810HSE Ex is suitable to be used in areas with potentially
explosive atmospheres. Check the device label for device type and
marking for explosion protection.
This manual does not supersede the applicable national regula-
tions, standards or directives. Thus, follow these regulations,
standards or directives.

8 Quick Installation Guide LD 810HSE Ex | 2PAA118721
General Requirements
If the notes stated in this document are not observed or in case of
inappropriate handling of the device, our liability is waived. In
addition, the warranty on devices and spare parts does no longer
apply.
The following general requirements must be observed when installing
LD 810HSE Ex in hazardous locations:
– The details of this document must be observed along with the conditions
for use and the applicable details stated on the marking and type labels of
each LD 810HSE Ex.
– Any selection and operation of the device must be done as per the
technical rules.
– Adequate precautions must be taken to prevent unintended actuation or
impairment of I/O device.
– Connectors must not be connected or disconnected when the area
is known to be hazardous. This can be life threatening in a potentially
explosive atmosphere. Open or not securely closed sockets shall not be
energized in the Ex atmosphere.
– Ensure that the installed equipment comply with the types of protection
applicable to the corresponding zones.
– All connected electrical equipment must be suitable for the respective
intended use.
– The operator must ensure protection against lightning in compliance with
the locally applicable regulations.

2PAA118721 | Quick Installation Guide LD 810HSE Ex 9
– Electrostatic aspects must be considered when mounting the Linking
Devices. Electrostatic charges have to be prevented.
– In explosion group IIC and Zone 2 no protected plastic surfaces > 20 cm2
are allowed; in IIB or dust-Ex, 100 cm2may be reached.
– The hazard of any objects falling onto a Linking Device must be
prevented.
– The Linking Device does not meet the requirements of impact protection
and IP54 (according to IEC 60529). It must be installed in a protective
enclosure which meets the requirements for resistance to impact and IP
as stated in section 26.4 of IEC/EN 60079-0. This enclosure must be fully
mounted and intact. If the enclosure is damaged, the operation is not
permitted.
– The Linking Device is defined as instruments and apparatus of low energy
according to clause 23 of IEC/EN 60079-15; thus the requirement stated
in sub-clause C limiting the transient characteristic to 40 % above the
rated voltage has to be adhered to when mounting the equipment.
– When removing the packaging ensure that no dirt can enter the enclosure
or the plugs.
– If any vibration during the operation may cause parts of the plugs to
loosen, the plugs have to be provided with a light firm varnish used for
securing screws. An extraction force of 0.5 Nm has to be achieved at an
equivalent thread.
– To circuits of Zone 2 only such equipment may be connected that is
suitable for operation in this zone and has been certified accordingly.
– Components may only be replaced by original spare parts that are also
approved for the use in Ex -atmospheres. Spare parts are ordered as

10 Quick Installation Guide LD 810HSE Ex | 2PAA118721
complete units giving the material number stated on the device (marking,
type label).
– Only such auxiliary components may be used in potentially explosive
atmospheres that meet all requirements of European and national
directives and legislation.
– The environmental conditions specified in the manuals have to be followed
strictly.
– The Linking Device is not to be used in systems where cathodic systems
for corrosion protection are in place. Although special precautions such
as additional earthing bridges may allow the use in such systems, the
manufacturer has to be consulted in each case.
– The operator has to provide measures for protection against lightning.
– According to the local conditions and in compliance with the
environmental rules, the operator is responsible to visually inspect the
system and to remove dust settlements every 6 months.
– The company installing the device has to ensure that the transient
characteristic is limited to 40 % above the service voltage.
– Additional precautions have to be taken, if the presence of hydrosulphide,
ethylene oxide and/or carbon monoxide is to be expected. Those
substances are of a vary low ignition energy.
– Icing is not permitted.
Make sure that the sum of power supply voltage and eldbus
supply voltage does not exceed 60 V DC.
