ABB 6X1ED User manual

- 1 -
Health and Safety
To ensure that our products are safe and without risk to health, the following points must be noted:
1. The relevant sections of these instructions must be read carefully before proceeding.
2. Warning labels on containers and packages must be observed.
3. Installation, operation, maintenance and servicing must only be carried out by suitably trained personnel and in accordance with the
information given. Any deviation from these instructions, will transfer the complete liability, to the user.
4. Normal safety precautions must be taken to avoid the possibility of an accident occurring when operating in conditions of high
pressure and/or temperature.
5. Chemicals must be stored away from heat, protected from temperature extremes and powders kept dry. Normal safe handling
procedures must be used.
6. When disposing of chemicals ensure that no two chemicals are mixed.
Safetyadviceconcerningtheuseoftheequipmentdescribedinthismanualoranyrelevanthazarddatasheets(whereapplicable) may
be obtained from the Company address on the back cover, together with servicing and spares information.
UseofInstructions
Warning.
An instruction that draws attention to the risk of injury or
death.
Caution.
An instruction that draws attention to the risk of damage
to the product, process or surroundings.
Although Warning hazards are related to personal injury, and Caution hazards are associated with equipment or property
damage, it must be understood that operation of damaged equipment could, under certain operational conditions, result in
degraded process system performance leading to personal injury or death. Therefore, comply fully with all Warning and
Caution notices.
Informationinthismanualisintendedonlytoassistourcustomersintheefficientoperationofourequipment.Useofthismanual
for any other purpose is specifically prohibited and its contents are not to be reproduced in full or part without prior approval
of Technical Communications Department, ABB Automation.
✶
Note.
Clarification of an instruction or additional information.
Information.
Further reference for more detailed information or
technical details.
SAFETY INSTRUCTIONS FOR PRESSURE TRANSMITTERS
MODELS 6X1ED - EE - EH - EG - EA, 622ED, 6X1ES
R
E
G
I
S
T
E
R
E
D
F
I
R
M
BS EN ISO 9001
St Neots, U.K. – Cert. No. Q5907
Stonehouse, U.K. – Cert. No. FM 21106
Stonehouse, U.K. – Cert. No. 0255
UNI EN ISO 9001
Lenno, Italy – Cert. No. 9/90A
DIFFERENTIAL PRESSURE TRANSMITTERS
ENGLISH

- 2 -
Important - The instrument serial number must always be quoted when making enquiries.
PRODUCT IDENTIFICATION
The instrument is identified by the data plates shown in
Figure 1.
The Nameplate (ref.A) provides information concerning the
code number, maximum process working pressure (PS) and
temperature (TS), range and span limits , power supply and
output signal. See also the "Operative Limits" section in the
following.Thisplatealsoshows thetransmitterserialnumber.
Please refer to this number when making enquiries.
Adedicatedlabel(ref.B) isweldedasstandardtotheprimary
unit, carrying specific details of the transducer (diaphragms
material, fill fluid, range limit and identification number).
Fig. 1 - Product identification
Ref. B
Primary Unit
Ref. A
Ref. C
Ref. D
Ref. D
Ref. A
DIN TYPE
HOUSING
BARREL TYPE
HOUSING
SERIAL
NUMBER
URL
DIAPHRAGM
MATERIAL
FILL
FLUID
ASafety Marking plate ( ref. C) isfittedwhen the transmitter is
requiredtocomplywithhazardousarearegulations,e.g.flame-
proof or intrinsic safety protection. Additionally Tag plate (ref.
D)providesthecustomertagnumberandcalibratedrange;this
is screwed on the housing and can be removed to be wired-on
by the supplied stainless steel wire.
The instrument may be used as a safety accessory (category
IV)asdefinedbythePressureEquipment Directive 97/23/EC.
In this case, near the CE mark, there is the number of the
notified body (1130) that verified the compliance.

- 3 -
INSTALLATION
Fig. 6 - Mounting on 2" horizontal pipe
CAUTION - Proper location of the transmitter
with respect to the process pipe will depend upon the
serviceforwhichtheinstrumentisused.Careshouldbe
exercised to identify correct process connections.
The secondary unit of the transmitter may be rotated through
360°approx. with respect to the primary unit without
degrading performance or damaging the internal wiring. Do
not force the primary unit to rotate; use the 2 mm Allen key
supplied to unlock and lock the tang grub screw (see Fig. 7).
This feature, obtained by unscrewing (one turn is sufficient)
the Allen screw, is particularly useful for reaching optimum
accesstotheelectricalconnectionsandvisibilityoftheoutput
indicator.
Fig. 4 - Process Connections
(Diff. Press. Transmitter)
WARNING
In order to ensure operator safety and plant safety it is
essential that installation is carried out by suitably
trained personnel according to the technical data
provided in the "Operative Limits" section in the
following of the document.
The transmitter may bemountedonaverticalorhorizontal 2-
inch pipe (figg. 5 and 6) by means of the same mounting
bracket.
Note: for other installation details see the relevant
Addendum.
Fig. 5 - Mounting on 2" vertical pipe
Note: High side may be marked H or +
Low side may be marked L or -
WARNING - For installation in Hazardous Areas,
i.e.areaswith dangerousconcentrationsofe.g.gasesor
dusts that may explode if ignited, the installation must be
carried out in accordance with relative standards either
EN 60079-14 or IEC 79-14 and/or with local authority
regulations, for the relevant type of protection adopted.
Togetherwith safety information hereandafter enclosed
see also the Addendum for "Ex Safety" aspects which is
part of this instruction manual.
WARNING: The transmitter when installed in
accordance with this instruction manual will not be
subjected to mechanical stresses.
WARNING:thetransmitter shouldnotbeinstalled
where it may be subjected to mechanical and thermal
stresses or where it may be attached by existing or
foreseable aggressive substances.
ABB cannot guarantee that a construction material is
suited to a particular process fluid under all possible
process conditions. See also the paragraph on "Operati-
ve limits".
+

- 4 -
OPERATIVE LIMITS
Thetransmitteroperatesonaminimumvoltageof10.5Vdcto
a maximum of 55 Vdc and is protected against polarity
inversion.
Note - The transmitter operates from 10.5 to 42
Vdc with no load (a load up to 620 Ωallows operation
up to 55 Vdc). For EEx ia and intrinsically safe (FM,
CSA and SAA) approval power supply must not
exceed 30 Vdc.In some countries the maximum
power supply voltage is limited to a lower value.
Installing optional devices the minimum voltage increases to:
- 10.5 Vdc with no option or with integral digital display
- 10.7 Vdc with output analog indicator
- 12.5 Vdc with output LCD indicator
- 12.1 Vdc with surge protection
- 14.1 Vdc with LCD indicator and surge protection
- 13.1 Vdc with LCD CoMeter
The total loop resistance is indicated in the figure and
expression below.
The total loop resistance is the sum of the resistance of all
elements of the loop, including wiring, conditioning resistor,
safety barriers and additional indicators (excluding the
equivalent resistance of the transmitter).
Where a configuration device (HART), such as the Hand Held
Communicatoror aModemis likelytobe used,aresistance of
250 ohm minimum should be present between the power
supply and the point of insertion of these devices, to allow
communication.
Severaltypesofsafetybarriers,eitherpassiveoractive,canbe
satisfactorily used in conjunction with the Smart 600T EN
transmitter. Nevertheless, in case of use of active barriers,
check with the supplier if the model is suitable for use with
smarttransmittersallowingtheconnectionoftheconfiguration
devices in the "safe" or non-hazardous area.
WARNING - The transmitter may be used as a
safety accessory (as defined by the Pressure Equipment
Directive 97/23/EC) i.e. as part of a shutdown system.
Inthiscaseitisrecommendedtoselectthecorrectfailsafe
mode for the 4-20 mA signal (as per Namur NE43
recommendation).
Seealsotheinstructionsrelevanttofailsafeselection(Up/
Down scale mode) in the addendum to the instruction
manual on "Use of hardware links on the secondary
electronics" .
R (kΩ) = Supply voltage - min. operating voltage (Vdc)
22
Supply voltage
Total loop resistance
250
(ohms)
2020
25 (ref.)10.5 55 (volts)
42
4 to 20 mA and
HART digital communication
620
4 to 20 mA only
600
Temperature limits °C (°F) :
• Ambient (is the operating temperature)
All models and sensors can withstand without damages or
leakages temperatures from -40 to +85 °C, -40 to +185 °F.
-20 °C, -4 °F for Viton gaskets.
See the instrument data sheets for temperature effect on
response time and accuracy.
Note:ForHazardousAtmosphereapplicationseethe
temperature range specified on the certificate/approval
relevant to the aimed type of protection.
• Process (1)
Lower limit
- refer to lower ambient limits
- -20°C (-4°F) for Viton gaskets
Upper limit
- Silicone oil and KTFILL-1 filling : 120°C (248°F) (2)
- Inert fluid filling : 100°C (212°F) (3)
(1) Process temperature above 85°C (185 °F) requires derating the
ambient limits by 1.5 : 1 ratio.
(2) 100°C (212°F) for application below atmospheric pressure
(3) 65°C (150°F) for application below atmospheric pressure
Pressure Limits
For model number see the first five characters of Product
Code on label Ref. A.
The sensor code is the sixth character.
• Lower : 0.067 kPa abs, 0,67 mbar abs, 0.01 psia
(0.13 kPa abs, 1.33 mbar abs, 0.02 psia for sensor code A).
Double the lower limit with inert filling
• Upper
- model 6X1ED, EG, EA
sensor codes B to W : 14 MPa, 140 bar, 2030 psi
sensor code A : 8 MPa, 80 bar, 1160 psi
sensor code U : 25 MPa, 250 bar, 3620 psi
- model 6X1EE :
all sensor codes : 25 MPa, 250 bar, 3620 psi
- model 6X1EH :
all sensor codes :1 MPa, 10 bar, 145 psi
- model 622ED :
sensor codes R, E, F : 42 MPa, 420 bar, 6090 psi
sensor code L : 32 MPa, 320 bar, 4640 psi
- model 6X1ES
10 MPa, 100 bar, 1450 psi or the following flange/fitting
rating of the seal, whichever is less.
• flanged seals (S6E/S6F)
ANSI CL 150 : 2 MPa, 20 bar, 290 psi
ANSI CL 300 : 5 MPa, 50 bar, 725 psi
ANSI CL 600 : 10 MPa, 100 bar, 1450 psi
ANSI CL 900 : 16 MPa, 160 bar, 2320 psi
DIN ND 16 : 1.6 MPa, 16 bar, 230 psi
DIN ND 40 : 4 MPa, 40 bar, 580 psi
DIN ND 64 : 6.4 MPa, 64 bar, 930 psi
DIN ND 100 : 10 MPa, 100 bar, 1450 psi
DIN ND 160 : 16 MPa, 160 bar, 2320 psi
• sanitary seals (S6S)
2in Triclamp : 3.8 MPa, 38 bar, 550 psi
3in Triclamp : 2.4 MPa, 24 bar, 350 psi
4in Triclamp : 1.7 MPa, 17 bar, 250 psi
F50/F80 Union nut : 2.5 MPa, 25 bar, 360 psi

- 5 -
Proof pressure
The transmitter meets SAMA PMC 27.1 requirements and can
be exposed without leaking to line pressure of up to:
- 48 MPa, 480 bar, 6960 psi for 6X1ED-EE-EH;
- 28 MPa, 280 bar, 4060 psi for 6X1EG, 6X1EA;
- 77 MPa, 770 bar, 11160 psi for 622ED;
-20MPa,200bar,2900psi ortwotimestheflange/fittingrating
of the seal, whichever is less for 6X1ES.
Environmental limits
Wet and dust-laden atmospheres
The transmitter is dust and sand tight and protected against
immersioneffectsasdefinedbyIEC529 (1989) to IP 67 (IP 68
on request) or by NEMA to 4X or by JIS to C0920.
Electromagnetic compatibility (EMC)
Comply with EN 50081–1 for emission and EN 50082–2 for
immunity requirements and test; CE mark.
Fill fluid warning
Be sure that the fill fluid can mix safely with the process fluid in
case of rupture of the sensor membrane.

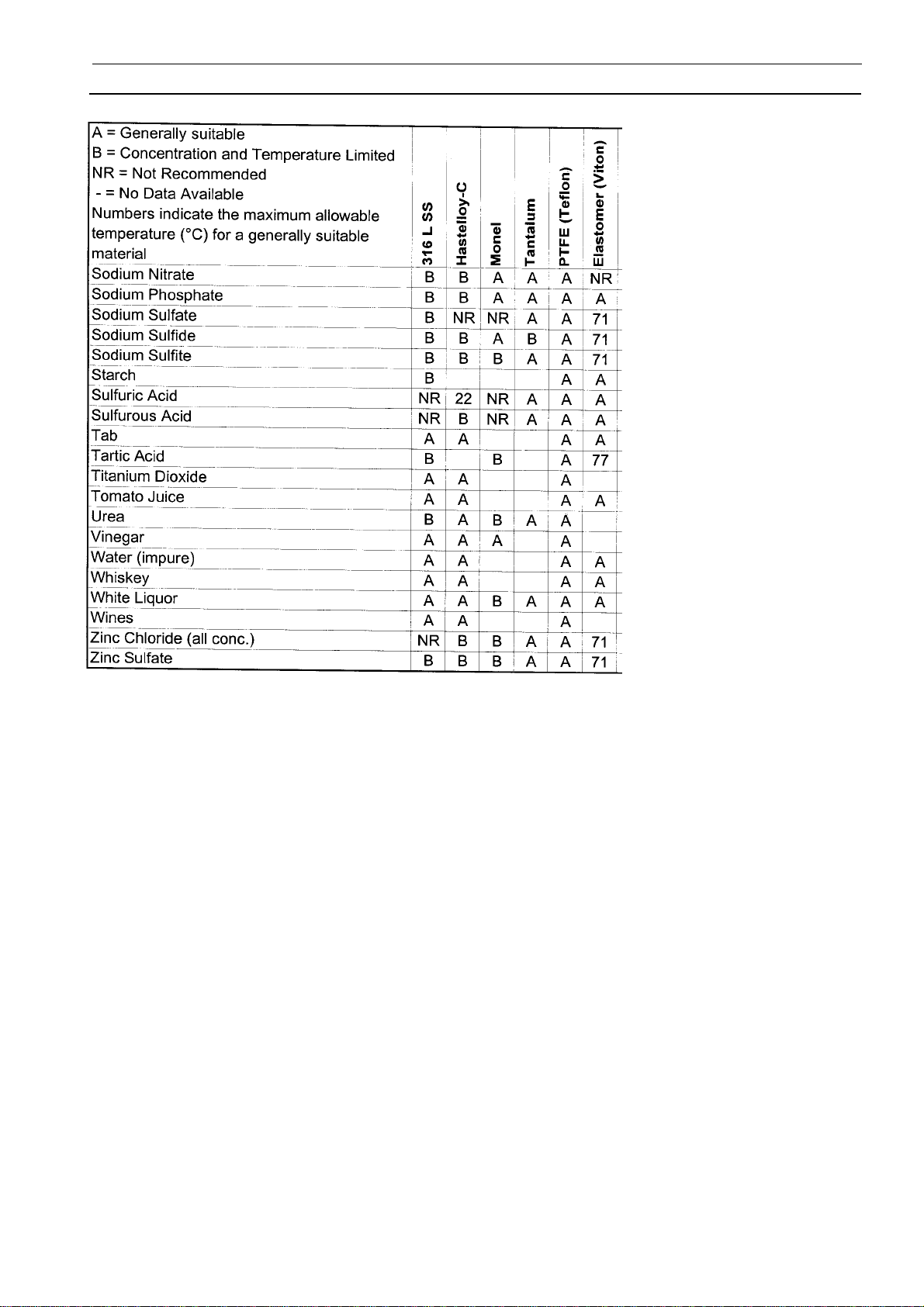

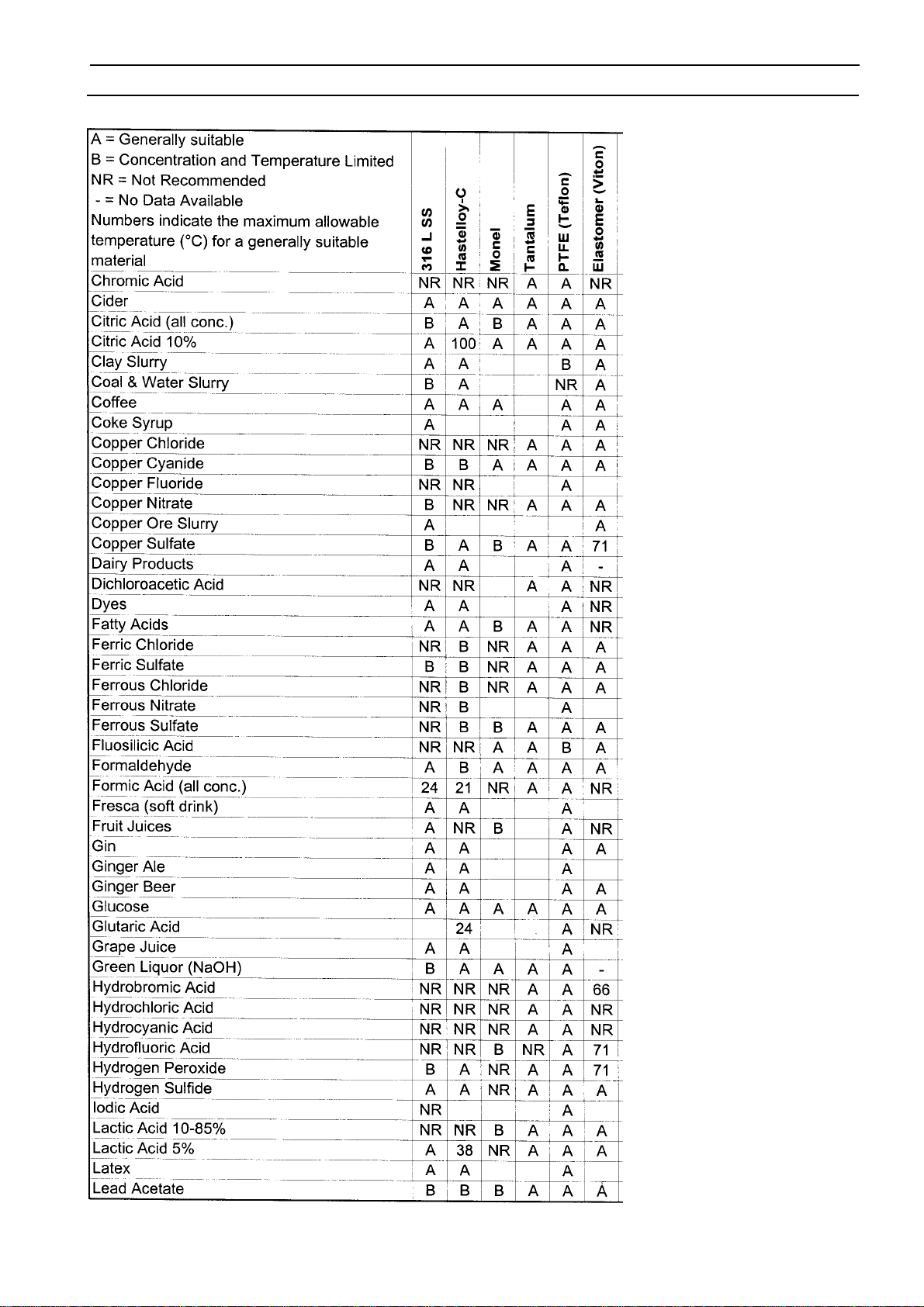

CORROSION
In the attached table the following abbreviations apply:
A= Generally suitable Corrosion rate < 0.12 mm, 0.005 in
per year.
B= Concentration and Temperature Limited
NR = Not Recommended
- = No Data Available
Numbersindicatethemaximumallowabletemperature(°C)for
a generally suitable material.
NOTE
Data of the following table are based on information from
manufacturers.
All data is based on a temperature of 20 °C, 70 °F unless
noted otherwise.
Since corrosion involves many more variables than this
table considers, such as trace contaminants, aeration or
temperature-concentrationprofile,stresscorrosioncracking
and pitting, the table should be used only as a reference in
narrowing the choice of materials that merit further
investigation. Suitability of a particular material is best
determined by field test.
At this purpose, please contact our local ABB
representatives.
WARNING
For safety purpose the design corrosion allowance of
differential pressure instrument flanges is of about 1.5 mm
0.04in.Thereforefromtheviewpointofsafecontainmentof
liquids compatible with a specific material according to the
following table, the expected instrument lifetime is more
than 10 years, but the previous note apply.
. . . OPERATIVE LIMITS

- 6 -
CORROSION TABLE

- 7 -
CORROSION TABLE

- 8 -
CORROSION TABLE

- 9 -
CORROSION TABLE

- 10 -
DISMANTLING AND REASSEMBLY
WARNING - Process fluids and/or pressure
retained in the transmitter primary unit can cause
severe injury and death or damage to the equipment.
It is the user responsibility to make sure that the
instrumentisnotunderpressurebeforeremoving the
instrument from service or when draining or venting.
Dangerous fluids
Incase of toxic or otherwisedangerousprocess fluid,
takeanyprecautionsasrecommendedintherelevant
Material Safety Data Sheet.
CAUTION - Dismantling and reassembly should
not be carried out on site because of the risk of
damagetocomponentsandprintedcircuitsasaresult
of adverse environmental conditions such as
humidity,dust,etc. The dismantling and reassembly
procedures given below should be carried out in the
listed order to avoid instrument damage.
Required tools
2 mm Allen key
3 mm Allen key
Small Phillips screwdriver
Small flat-bladed screwdriver
17 mm spanner (22 mm for mod. 622ED)
17 mm torque wrench (22 mm for mod. 622ED)
- (Range > 52 Nm - 39 foot lbs)
Dismantling
a) Screwdowncompletelythecoverlockingscrew,electronics
side, using the 3 mm Allen key
b) Unscrew and remove the covers
c) Unscrew the two fixing screws and remove the
secondary electronic assembly
d) Unplug the sensor cable
e) Remove the tang grub screw using the 2 mm Allen key
f) Unscrew the housing taking care not to damage the
sensor cable or the connector
g) Loosen and remove the four flange fixing bolts using a
17 mm. spanner (22 mm for mod. 622ED).
Reassembly
Check that the "O" rings are not damaged : if in replace.
WARNING - Assembling flanges with incorrect
fixingboltsandnutsandimproper"Orings"cancause
fracture or overstressing of bolts and release of
pressurized process material. Use only official spare
parts(*)anddonotexceedthespecifiedtorquelimits.
DO NOT REMOVE the "O ring" fitted in the sensor
neck: it provides the housing a degree of protection.
a) Refittheflangefixingboltswithatorqueof20Nm(15ftlbs)
using a 17 mm. torque wrench (52 Nm - 39 ft lbs for mod.
622, using a 22 mm torque wrench).
1 Nm is equivalent to 0.738 ft lbs (8.85 in lbs)
b) Insert the sensor cable in its recess at the bottom of the
housing.
c) Screw the housing down completely until the nesting of
housing/sensor assy is reached, then unscrew by one
complete turn maximum. Rotate the topwork in the
desired position and lock it with the tang grub screw
previously removed.
d) Plug the sensor cable to the secondary electronics. Fix
the electronic circuit by its screws.
e) Refit the covers and tighten securely.
WARNING-ForHazardousLocationinstallations,
atleasteight(8)threadsonthecovermustbeengaged
in order to meet the flameproof (explosion-proof)
requirements.
f) Unscrew the cover locking screw to secure the covers.
This is mandatory to meet "Flameproof requirements"
for Hazardous Areas installation.
PRESSURE TEST WARNING
Oncereassembledtheprocessflangesandthetransducer,
a pressure test is required. At this purpose, apply a
hydrostaticpressureofthemaximumoverrangepressure
rating to both process connections simultaneously. Wait
for one minute, then verify that no leakages occurred,
otherwiserepeattheassemblyprocedureandthepressure
test.
(*) The spare parts list is available at:
http://138.221.224.36 or from local ABB representatives.

- 11 -
Fig. 13 - Transmitter Sectional View
Secondary electronics
Electronics
screw
Blind cover
Flange bolts
Analog or digital
output indicator
or CoMeter
Extended
windowed cover
Blind cover
Windowed
cover
Microprocessor driven
integral display
Tang
screw
Terminal blocks
assembly
Sensor assembly
Calibration
screws
Nameplate
. . . DISMANTLING AND REASSEMBLY

- 12 -
ADDENDUM FOR "EX SAFETY" ASPECTS AND "IP" PROTECTION
(EUROPE)
According to ATEX Directive (European Directive 94/9/EC of 23 March 1994) and relative European Standards which can
assurecompliance withEssential SafetyRequirements,i.e., EN50014 (Generalrequirements) EN50018(Flameproof enclosures
“d”)EN 50020 (Intrinsic safety “i”) EN50284(Equipments, group II, category 1G) EN50281(Apparatus for use with combustible
dusts), the pressure transmitters of the 600T EN SERIES have been certified for the following group, categories, media of
dangerous atmosphere, temperature classes, types of protection. Examples of application are also shown below by simple
sketches.
a) Certificate ATEX II1G DT50°C, EEx ia IIC T5 (-40°C ≤Ta ≤+40°C)
DT95°C, EEx ia IIC T4 (-40°C ≤Ta ≤+85°C)
BASEEFA certificate number BAS 99ATEX 1180
The meaning of ATEX code is as follows:
II : Group for surface areas (not mines)
1 : Category
G : Gas (dangerous media)
D : Dust (dangerous media)
T50°C:Maximum surface temperature of the transmitter enclosure with a Ta (ambient temperature)
+40°C for Dust (not Gas) with a dust layer up to 50 mm depth.
T95°C: As before for Dust for a Ta +85°C
(Note: the number close to the CE marking of the transmitter safety label identifies the Notified Body which
carries out the surveillance for the production of the transmitter)
The other marking refers to the protection type used according to relevant EN standards:
EEx ia : Intrinsic safety, protection level “a”
IIC : Gas group
T5 : Temperature class of the transmitter (which corresponds to 100°C max)
with a Ta (ambient temperature) +40°C
T4 : Temperature class of the transmitter (which corresponds to 135°C max)
with a Ta (ambient temperature) +85°C
About the applications, this transmitter can be used in “Zone 0” (Gas) and "Zone 20" (Dust) classified areas (continuous
hazard) as it is shown on the following sketch:
+
Zone "0"
600T EN Tx
category 1G
(EEx ia)
dangerous
medium
(process)
Tank Zone "20"
600T EN Tx
category 1D
(EEx ia)
(IP6x)
dangerous
medium
(process)
Silo
Application with Gas Application with Dust
+

- 13 -
ADDENDUM FOR "EX SAFETY" ASPECTS AND "IP" PROTECTION (EUROPE)
b) Certificate ATEX II1/2 G DT80°C, EEx d IIC T6 (-40°C ≤Ta ≤+70°C)
DT95°C, EEx d IIC T5 (-40°C ≤Ta ≤+85°C)
CESI Certificate number CESI 00ATEX 035
The meaning of ATEX code is as follows:
II : Group for surface areas (not mines)
1/2 : Category - It means that only a part of the transmitter complies with category 1 and a
second part complies with category 2 (see next application sketch)
G : Gas (dangerous media)
D : Dust (dangerous media)
T80°C: Maximum surface temperature of the transmitter enclosure with a Ta (ambient temperature) +70°C
for Dust (not Gas) with a dust layer up to 50 mm depth.
T95°C: As before for Dust for a Ta +85°C
Note: the number close to the CE marking of the transmitter safety label identifies the Notified Body which carries
out the Surveillance for the production of the transmitter.
The other marking refers to the protection type used according to relevant EN Standards:
EEx d: Flameproof
IIC : Gas group
T6 : Temperature class of the transmitter (which corresponds to 85°C max) with a Ta (ambient temperature) +70°C
T5 : Temperature class of the transmitter (which corresponds to 100°C max) with a Ta (ambient temperature) +85°C
About the applications, this transmitter can be used in Zone “0” (Gas) classified areas (continuous hazard) with its “process
part” only, whereas the remaining part of the transmitter, i.e. its enclosure, can be used in Zone 1 (Gas), only (see sketch
below). Reason of this is the process part of the transmitter (normally called primary transducer) that provides inside separation
elements to seal off the electrical sensor from the continuously hazardous process, according to the EN50284 and EN50018.
About Dust application, the transmitter is suitable for "Zone 21" according to the EN 50281 as it is shown on the relevant part of
the sketch:
+
Zone "0"
dangerous
medium
(process)
Tank
IP code
About the degree of protection provided by the enclosure of the pressure transmitter, the 600TEN SERIES has been certified IP67
according to EN 60529 standard (this is equivalent to IEC 529).
The first characteristic numeral indicates the protection of the inside electronics against ingress of solid forein objects including
dusts. The assigned “6” means an enclosure dust-tight (no ingress of dust).
The second characteristic numeral indicates the protection of the inside electronics against ingress of water. The assigned “7”
means an enclosure water-protected against a temporary immersion in water under standardized conditions of pressure and time.
600T EN Tx
category
1/2G (EEx d)
Zone 0 / Zone 1
Separation
elements
Zone "1"
primary
transducer
Zone "20"
dangerous
medium
(process)
Silo
600T EN Tx
category
1/2D (EEx d)
(IP6x)
Zone "21"
Application with Gas Application with Dust
+

- 14 -

- 15 -
EC DECLARATION OF CONFORMITY
We: ABB Instrumentation Spa
Via Statale, 113
22016 Lenno (Como)
Italy
declares under our sole responsibility that the products:
600T EN Series (Transmitters, Hand Held Terminal, Field
Indicator) in all the communication configurations (4 ÷ 20 mA +
HART
®
, Profibus, FOUNDATION Fieldbus, Safety)
are in conformity with the following standards:
EN 50 081-1 (1992) Electromagnetic compatibility - Generic
emission standard - Residential, commercial
and light industry
according to: EN55022 (1995)
EN 50 082-2 (1995) Electromagnetic compatibility - Generic
immunity standard - Industrial environment
according to: EN61000-4-2(1998)
EN61000-4-3(1998)
EN61000-4-4(1995)
EN61000-4-5(1995)
ENV50141 (1993)
following the provisions of the EMC Directives 89/336/EEC and
93/68/EEC.
Lenno, October 10, 2001 ABB Instrumentation Spa
Technical Manager
A. Moroni

- 16 -
PED600TEN Rev. 1
