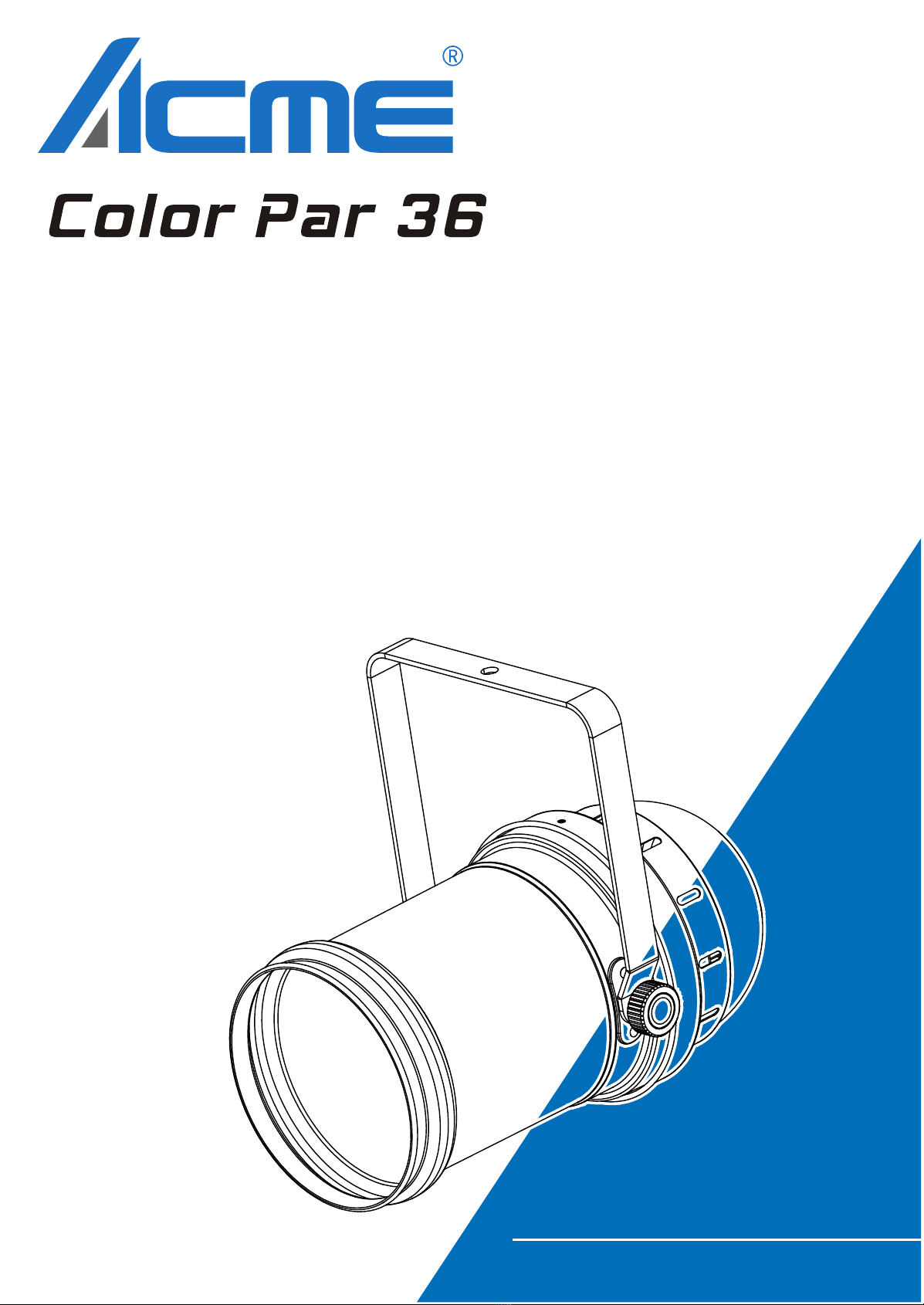

ACME Color Par 36 User manual

User Manual
Please read the instrucon carefully before use
CP-36S

Contents
1. Safety Instructions ................................................................................. 2
2. Technical Specifications ......................................................................... 3
3. How To Set The Unit............................................................................... 4
3.1 Control Panel ................................................................................... 4
3.2 Main Function.................................................................................. 5
4. How To Control The Unit...................................................................... 11
4.1 Master/Slave Built In Preprogrammed Function ............................ 11
4.2 DMX Controller .............................................................................. 11
5. DMX512 Configuration ........................................................................ 12
6. DMX Connection.................................................................................. 14
7. Troubleshooting ................................................................................... 15
8. Fixture Cleaning ................................................................................... 16
1B

1. Safety Instructions
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cables when fixing this unit. DO NOT handle the unit by its head only, always carry by
its base.
Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature
is higher than this.
Unit surface temperature may reach up to 75 degrees C. DO NOT touch the housing with
bare-hands during its operation. Turn off the power and allow about 15 minutes for the unit to
cool down before replacing or serving.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any wire during operation as high voltage may cause electric shock.
Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
Please read the instruction carefully which includes important
information about the installation, usage and maintenance.
2B

moisture.
The housing and lenses must be replaced if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. Do not open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating and make sure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the fixtures weight. Always use a safety cable that can hold 12 times of the weight of
the fixture when installing.
The equipment must be installed by professionals. It must be installed in a place where is out of
the reach of people and no one can pass by or under it.
2. Technical Specifications
DMX Channels: 3/5/6 channels mode
3 operation modes: DMX, Master/Slave, and Sound Activation
Great built-in programs under master/slave operation triggered by music.
Optional easy controller CA-8 for instant lighting show
0 ~ 100% Smooth dimming and various strobe effects
Perfect for stage, theatre, TV studio, rental and discotheques
Input Voltage
：
AC 100~240V, 50/60Hz
Power Consumption
：
112W
LED Source
：
36 x 3W Tri-color LEDs
Beam Angle
：
24°
3B

Weight
：
2.6kgs
Dimension
：
477 x 224 x 268mm
3. How To Set The Unit

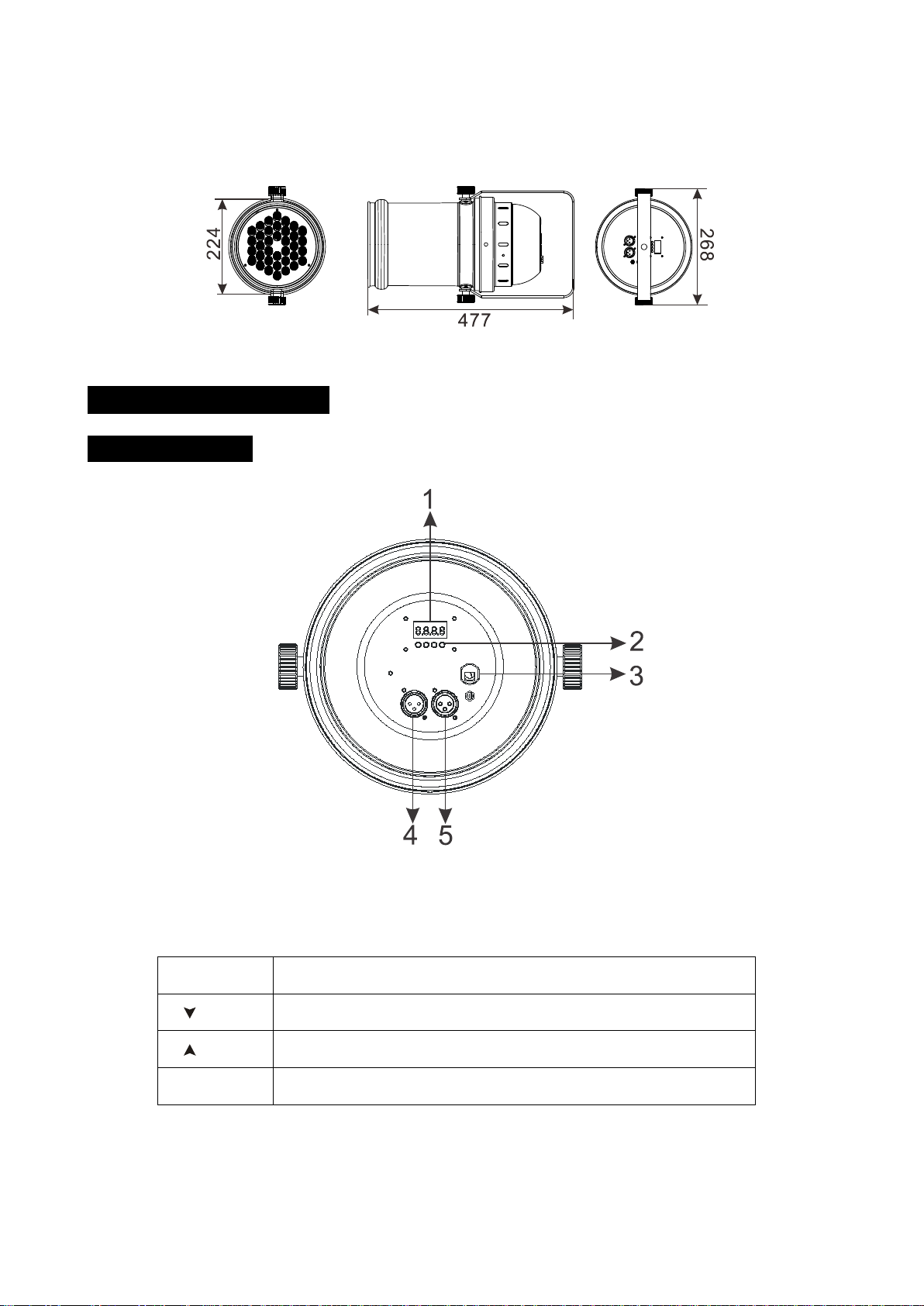

3.1 Control Panel
1. Display: Shows the various menus and the selected functions.
2. Button:
6. MENU To select the programming functions
7. DOWN To go backward in the selected functions
8. UP To go forward in the selected functions
9. ENTER To confirm the selected functions
3. Mains input: Connects to power supply.
4. DMX output: DMX512 link, use 3-pin XLR cable to link the next unit.
4B

5. DMX input: DMX512 link, use 3-pin XLR cable to link the unit and DMX controller.

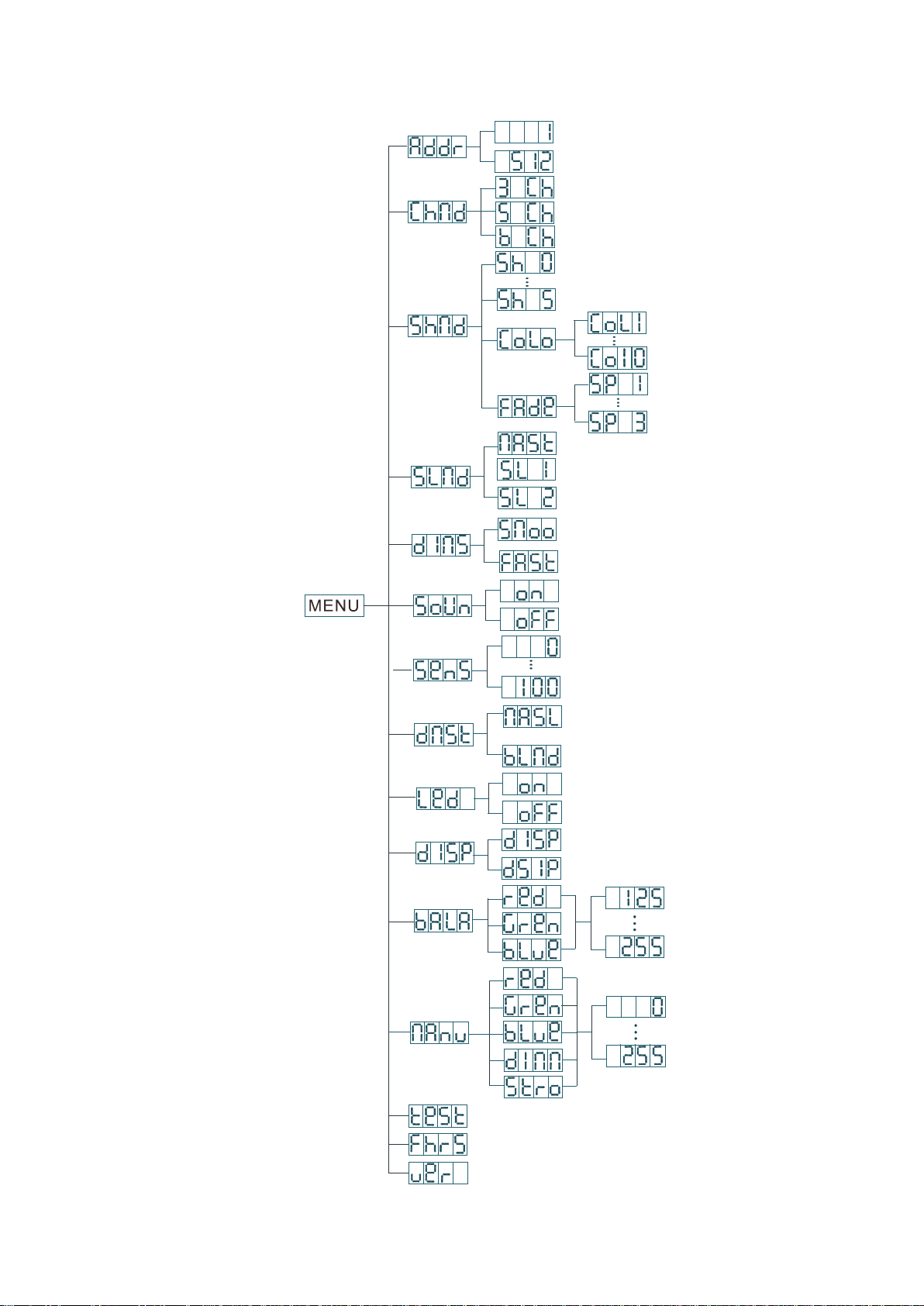

3.2 Main Function
To select any of the given functions, press the MENU button up to when the required selection as
shown on the display. Select the function by the ENTER button and the display will blink. Use the
DOWN/UP button to change the mode. Once the required mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the MENU button
again. Press and hold the MENU button for about one second or wait for one minute to exit the
menu mode.
The main functions are shown below:
5B

6B

（DMX 512 Address）
To select the , press the ENTER button to show the DMX ADDRESS on the display. Use the
DOWN/UP button to adjust the address from 1to 512. Once the address has been selected, press
the ENTER button to setup, to go back to the functions without any changes press the MENU
button again. Hold and press the MENU button for one second or wait for one minute to exit the
menu mode.
（
DMX Channel Mode）
To select the , press the ENTER button to show the DMX CHANNEL MODE on the display.
Use the DOWN/UP button to select the 3 CH, 5 CH or 6 CH mode. Once the mode has been
selected, press the ENTER button to setup, to go back to the functions without any changes press
the MENU button again. Hold and press the MENU button for one second or wait for one minute
to exit the menu mode.
（Show Mode）
To select the , press the ENTER button to show the SHOW MODE on the display. Use the
DOWN/UP button to select the (Show 1), (Show 2), (Show 3) ,
(Show 4) （show 5）， (color) or (fade) mode，when you select color or fade
mode, press ENTER to confirm, use UP/DOWN button to select 1-10 or adjust fade speed (speed 1:
slow, speed 2: medium, speed 3: fast). Once the mode has been selected, press the ENTER button
to setup, to go back to the functions without any changes press the MENU button again. Hold and
press the MENU button for one second or wait for one minute to exit the menu mode.
（Slave Mode ）
To select the , press the ENTER button to show the SLAVE MODE on the display. Use the
DOWN/UP button to select the （master）, (normal) or (2 light show) mode.
7B

Once the mode has been selected, press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for one
second or wait for one minute to exit the menu mode.

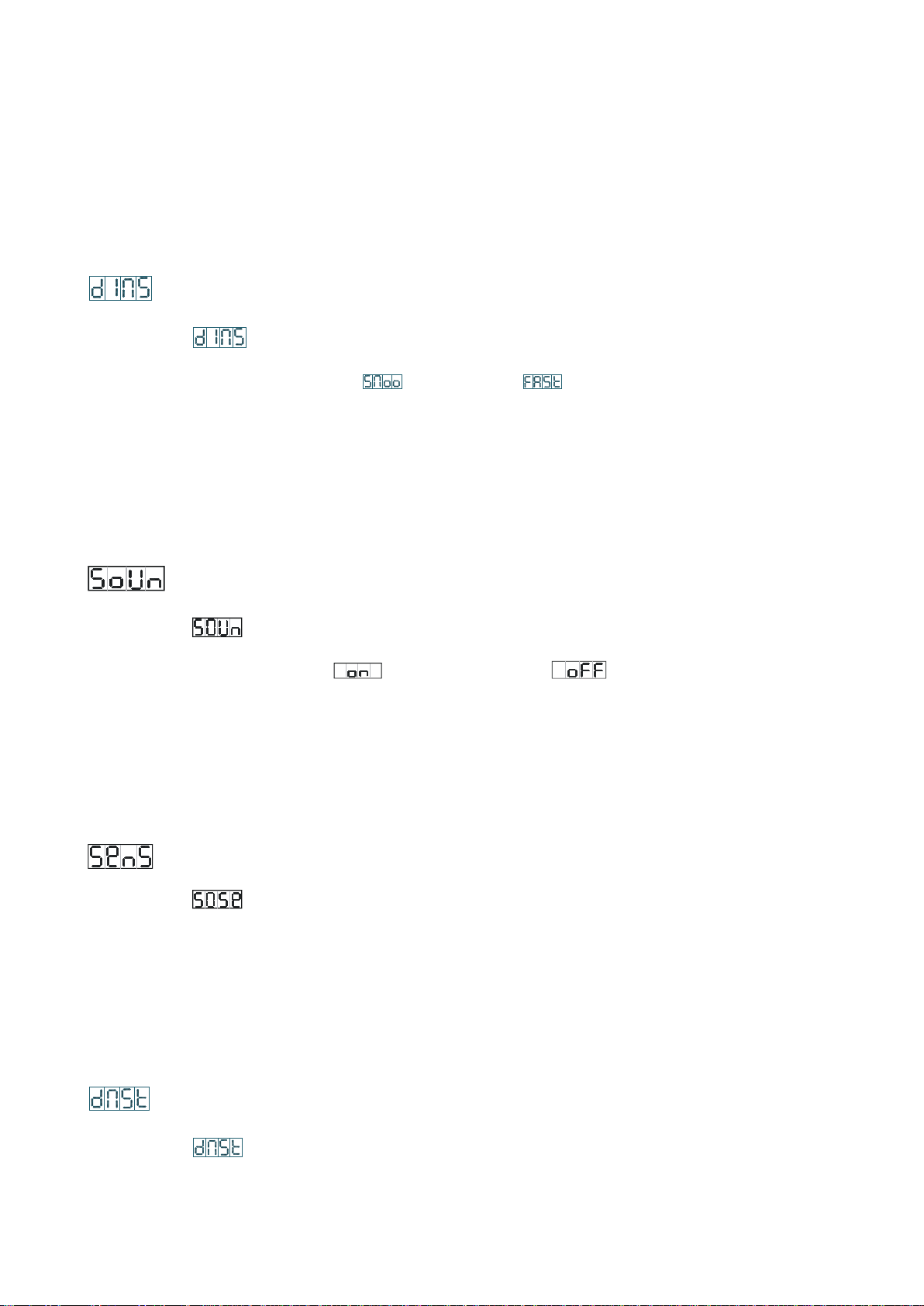

（Dimmer Speed）
To select the , press the ENTER button to show the DIMMER SPEED on the display. Use
the DOWN/UP button to select the （smooth）or (fast) mode.Once the mode has
been selected, press the ENTER button to setup, to go back to the functions without any changes
press the MENU button again. Hold and press the MENU button for one second or wait for one
minute to exit the menu mode.
（Sound Mode）
To select the , press the ENTER button to show the SOUND MODE on the display. Use the
DOWN/UP button to select the (sound mode on) or (sound mode off). Once the
mode has been selected, press the ENTER button to setup, to go back to the functions without any
changes press the MENU button again. Hold and press the MENU button for one second or wait
for one minute to exit the menu mode.
（Sound Sense）
To select the , press the ENTER button to show the SOUND SENSE on the display. Use the
DOWN/UP button to adjust the sound sensitivity from 0to 100. Once selected, press the ENTER
button to setup, to go back to the functions without any changes press the MENU button again.
Hold and press the MENU button for one second or wait for one minute to exit the menu mode.
（DMX State）
To select the , press the ENTER button to show the DMX STATE on the display. Use the
8B

DOWN/UP button to select the (master slave mode) or (blackout mode). Once the
mode has been selected, press the ENTER button to setup, to go back to the functions without any
changes press the MENU button again. Hold and press the MENU button for one second or wait
for one minute to exit the menu mode.

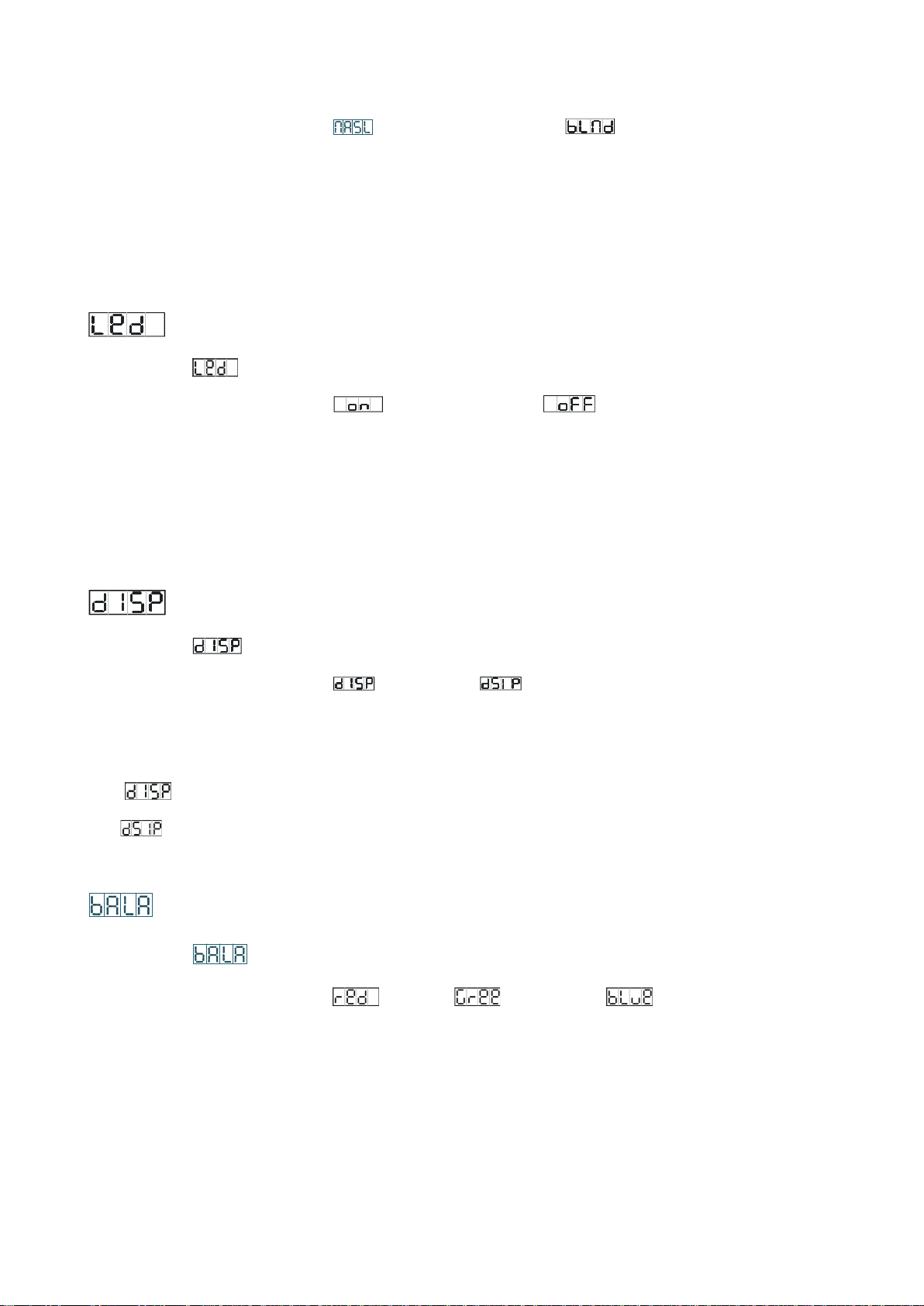

（LED Display）
To select the , press the ENTER button to show the LED DISPLAY on the display. Use the
DOWN/UP button to select the (LED display on) or (LED display off) mode. Once
the mode has been selected, press the ENTER button to setup, to go back to the functions without
any changes press the MENU button again. Hold and press the MENU button for one second or
wait for one minute to exit the menu mode.
（Display）
To select the , press the ENTER button to show the DISPLAY on the display. Use the
DOWN/UP button to select the (normal) or (display inversion). To go back to the
functions without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode:
Display normal mode for the fixture putting on the floor;
Display inversion mode for the fixture fixing under ceiling.
（White Balance）
To select the , press the ENTER button to show the DIMMER SPEED on the display. Use the
DOWN/UP button to select the （red）, （green）or (blue) mode.Once the
mode has been selected, press the ENTER button to setup, use UP/DOWN button to adjust the
value 125-255, to go back to the functions without any changes press the MENU button again.
Hold and press the MENU button for one second or wait for one minute to exit the menu mode.
9B

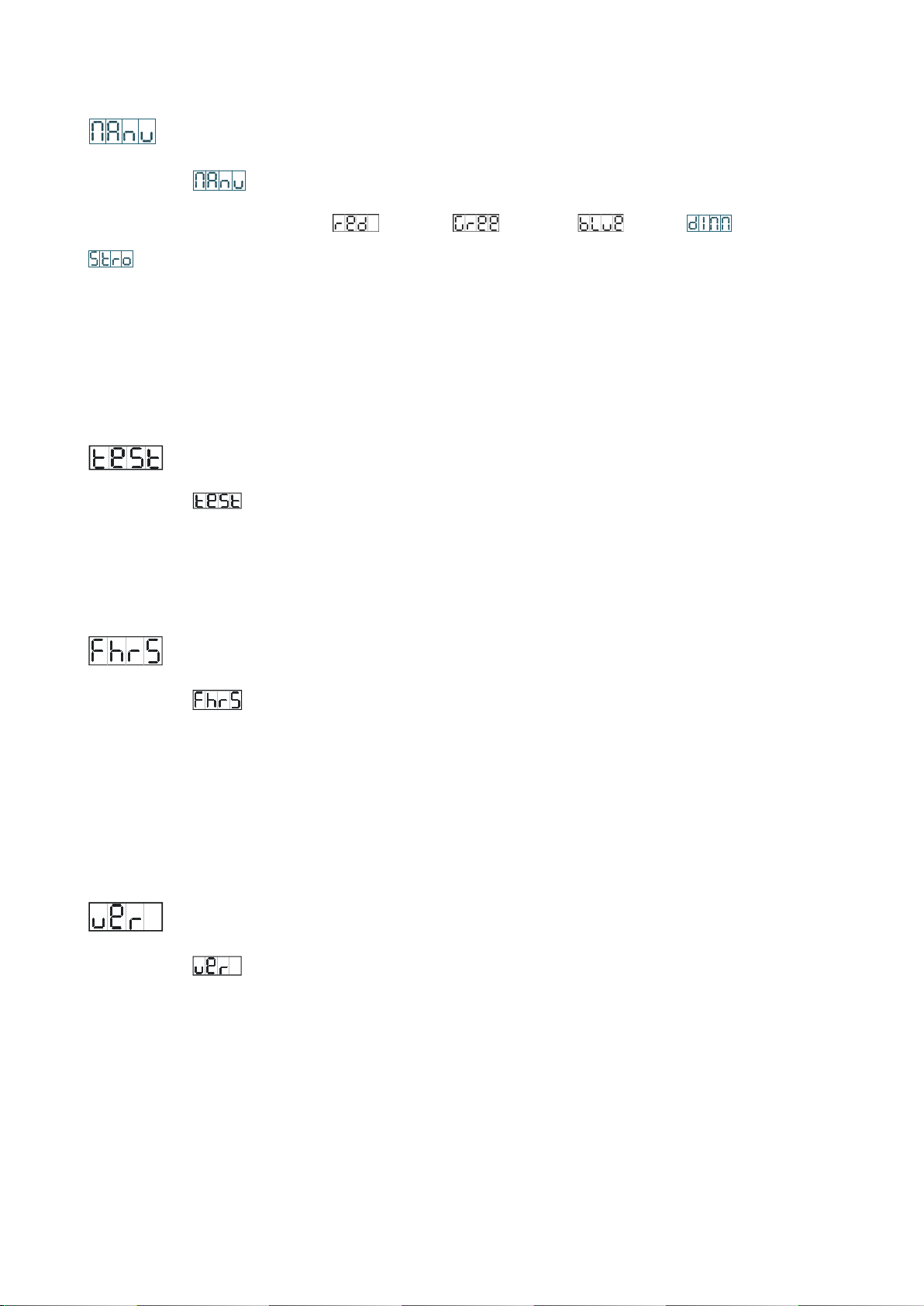

（Manual Setting）
To select the , press the ENTER button to show the DIMMER SPEED on the display. Use the
DOWN/UP button to select the （red）, （green）(blue) (dimmer) or
(strobe) mode. Once the mode has been selected, press the ENTER button to setup, use
UP/DOWN button to adjust the value 0-255, to go back to the functions without any changes press
the MENU button again. Hold and press the MENU button for one second or wait for one minute
to exit the menu mode.
（
Test
）
To select the , press the ENTER button to show the TEST on the display and the unit will run
a self-test . To go back to the functions without any changes press the MENU button again. Hold
and press the MENU button for one second or wait for one minute to exit the menu mode.
（Fixture Hours）
To select the , press the ENTER button to show the FIXTURE HOURS on the display and the
display will show the number of working hours of the unit . To go back to the functions without
any changes press the MENU button again. Hold and press the MENU button for one second or
wait for one minute to exit the menu mode.
（Software Version）
To select the , press the ENTER button to show the SOFTWARE VERSION on the display and
the display will show the version of software of the unit . To go back to the functions without any
changes press the MENU button again. Hold and press the MENU button for one second or wait
for one minute to exit the menu mode.
10B

4. How To Control The Unit
You can operate the unit in three ways:
1. Master/slave built-in preprogram function
2. Universal DMX controller
You do not need to turn the unit off when you change the DMX address, the new DMX address
setting will take effect immediately. Power the unit on, move all the motors to their ‘home’
position and you may hear some noises for about 20 seconds. After that the unit will be ready to
receive DMX signal or run the built in programs.
4.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to give an
automatic, sound activated, synchronized light show. This function is good when you want an
instant show. You have to set the first unit in master mode and select (show 1),
(Show 2), (Show 3), (show 4) or （show 5）mode. Its DMX input jack
will have nothing plugged into it, and its master LED will be constantly on and sound LED will flash
to the music. The other units will have to set in slave mode and select (normal) or
(2 light show) mode. Their DMX cables plugged into the DMX input jacks (daisy chain) and the
slave LED lights will be constantly on.
2-light show
In slave mode, means the unit works normally and means 2-light show. In order to
create a great light show, you can set on the second unit to get contrast movement to each
other, even if you have two units only.
4.2 DMX Controller
Using a universal DMX controller to control the units, you have to set DMX address from 1 to 512
channel so that the units can receive DMX signal.
11B

Press the MENU button up to when the is showing on the display. Press the ENTER button
and the display will blink. Use the DOWN and UP button to change the DMX512 address. Once the
address has been selected, press and keep the ENTER button pressed up to when the display stops
blinking or storing automatically 7 seconds later. To go back to the functions without any change
press the MENU button again.

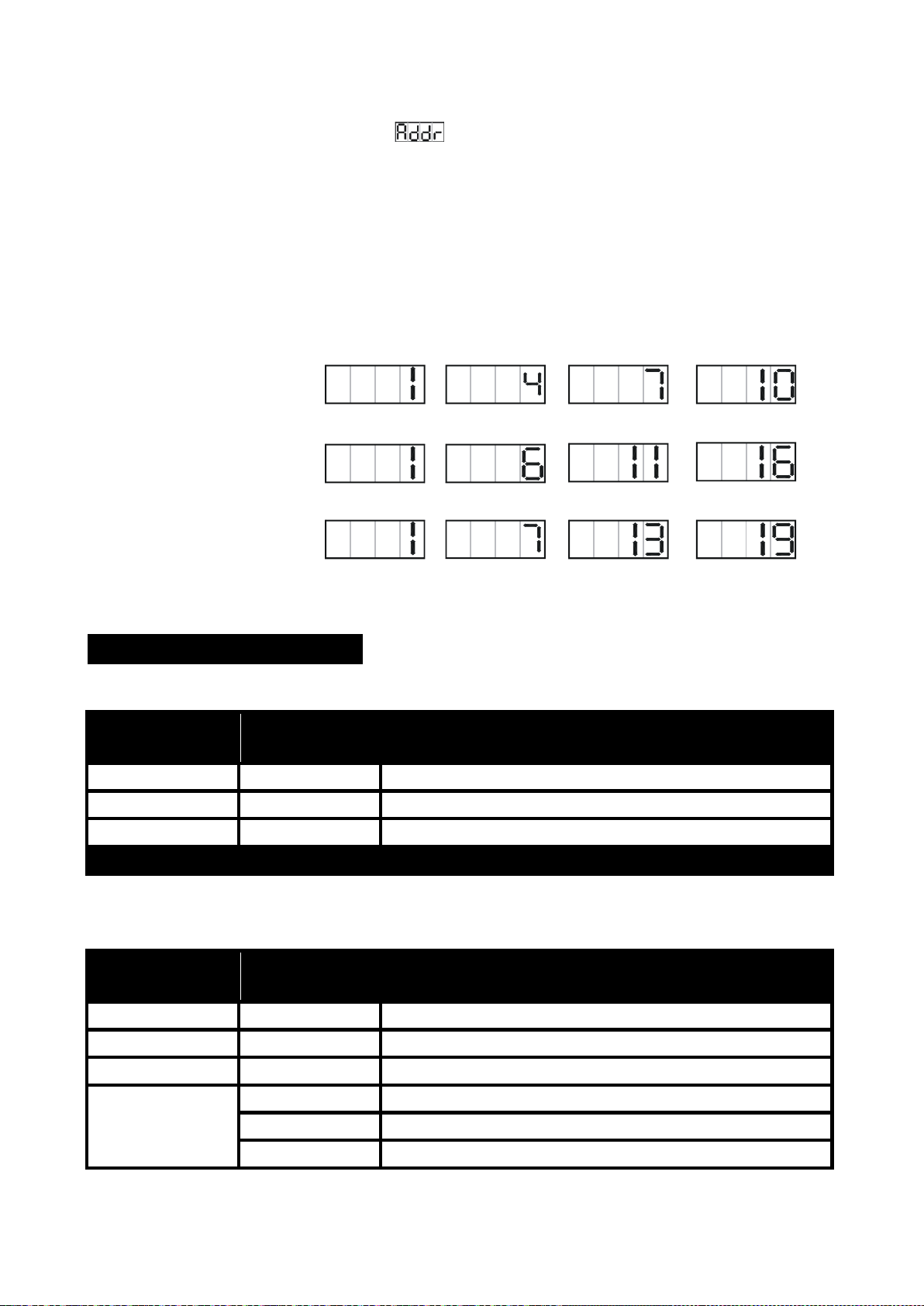

Please refer to the following diagram to address your DMX512 channel for the first 4 units.
3 CH MODE:
5 CH MODE:
6 CH MODE:
5. DMX512 Configuration
3 Channel Mode（MODE 1）
Channel Value Function
1 000 – 255 Red
：
0% - 100%
2
000 – 255
Green
：
0% - 100%
3
000 – 255
Blue：0% - 100%
5 Channel Mode（MODE 2）
Channel Value Function
1 000 – 255 Red
：
0% - 100%
2
000 – 255
Green
：
0% - 100%
3
000 – 255
Blue：0% - 100%
4
Strobe：
000 – 007 Closed
008 – 015 Open
12B

016 – 131
Strobe
：
Slow →Fast
132 – 139
Open
140 – 181 Slow Open Fast Close
182 – 189 Open
190 – 231 Slow Close Fast Open
232 – 239
Open
240 – 247
Random Strobe
248 - 255
Open
5
000 – 255
Dimmer：0% - 100%
6 Channel Mode（MODE 3）
Channel Value Function
1 000 – 255 Red - 100%
2 000 – 255 Green100%
3
000 – 255
Blue- 100%
4
Color
000 - 007
Closed
008 – 015
Color 1
016 – 023 Color 2
024 – 030 Color 3
031 – 038 Color 4
039 - 046
Color 5
047 – 054
Color 6
055 – 061
Color 7
062 – 069
Color 8
070 – 077 Color 9
078 – 085 Color 10
086 – 092 Color 11
093 – 100
Color 12
101 – 108
Color 13
109 – 116
Color 14
117 - 123
Color 15
124 – 131 Color 16
132 – 139 Color 17
140 - 147
Color 18
148 - 154
Color 19
155 - 162
Color 20
13B

163 – 170
Color 21
171 - 178
Color 22
179 – 185 Color 23
186 - 193 Color 24
194 – 201 Color 25
202 – 209
Color 26
210 – 216
Color 27
217 - 224
Color 28
225 – 232
Color 29
233 - 240 Color 30
241 - 247 Color 31
248 - 255 Color 32
5
Strobe
：
000 – 007
Closed
008 – 015
Open
016 – 131 Strobe：Slow
→
Fast
132 – 139 Open
140 – 181 Slow Open Fast Close
182 – 189
Open
190 – 231
Slow Close Fast Open
232 – 239
Open
240 – 247
Random Strobe
248 - 255 Open
6 0 – 255 Dimmer: 100%

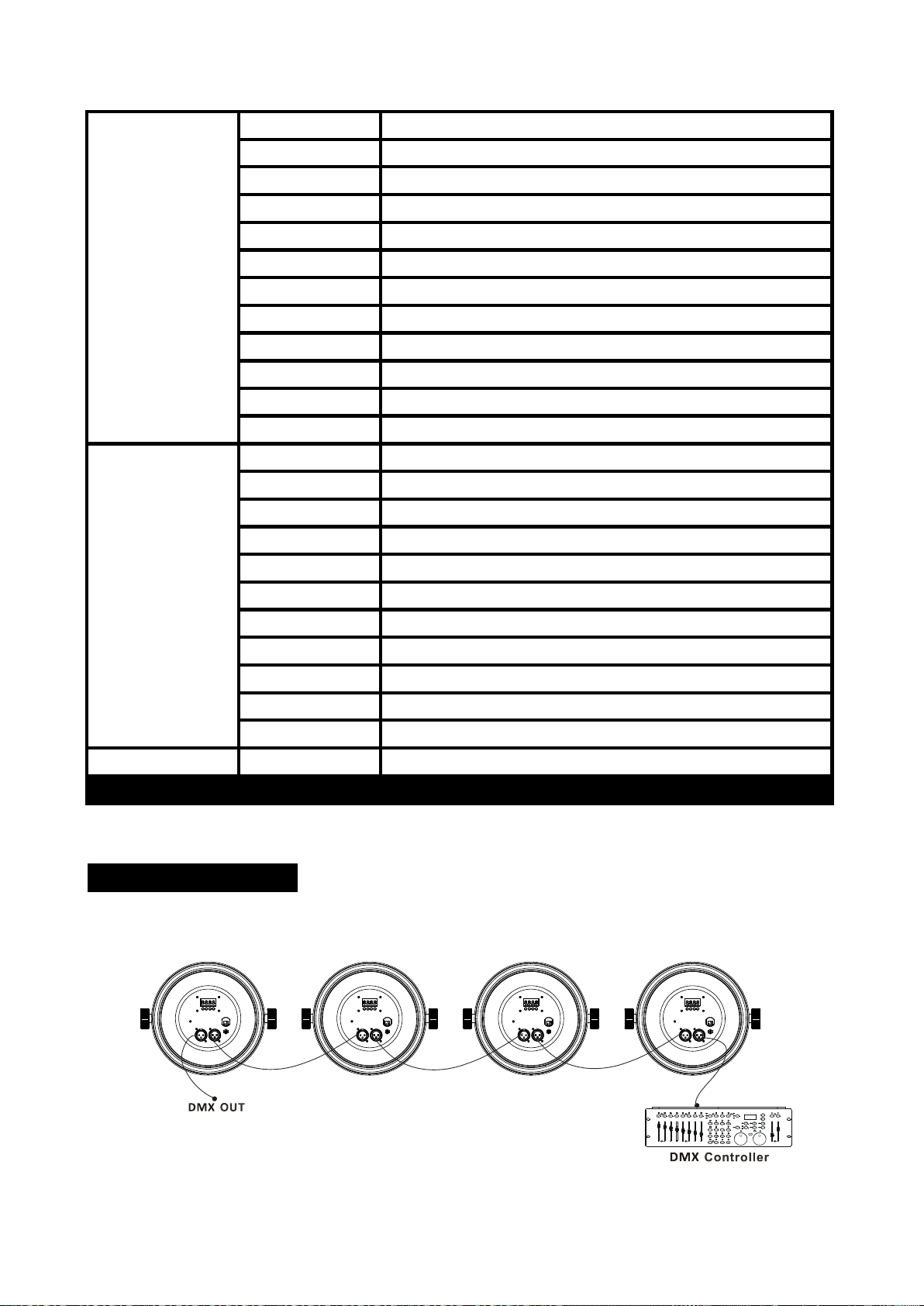

6. DMX Connection
Unit 1 Unit 2 Unit 3 Unit 4
14B

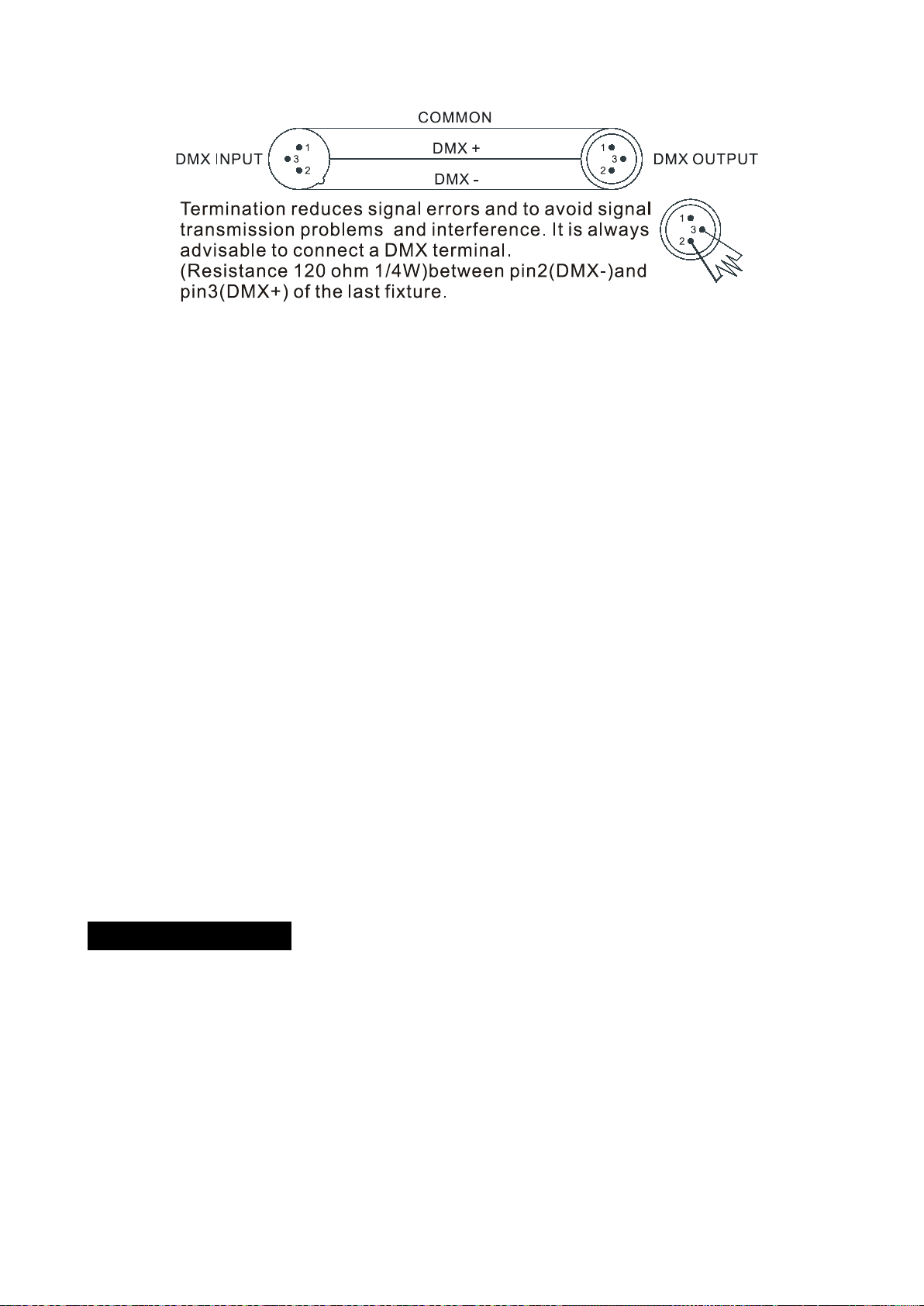

1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the
input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
power is disconnected to the unit.
4. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
Pin 4/5: Not used.
7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
15B

B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling.
2. Check the LED for the response of the master/ slave mode signal.
D. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
8. Fixture Cleaning
The cleaning must be carried out periodically to optimize light output. Cleaning frequency
depends on the environment in which the fixture operates: moist, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the fixture.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
16B

17B

Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the provision
of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009+A1:2012; EN55103-2: 2009;
EN61000-3-2: 2014; EN61000-3-3: 2013.
&
Harmonized Standard
EN 60598-1:2015; EN 60598-2-17:1989 + A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
18B

Innovation, Quality, Performance
