ACME LED-MS50A User manual

GENESIS MOVE
LED-MS50A
UserGuide
Professional Entertainment Technology

1E
TABLE OF CONTENTS
1. Safety Instruction
2. Technical Specification
3. How To Set The Unit
4. How To Control The Unit
5. Troubleshooting
6. Fixture Cleaning

2E
1. Safety Instruction
WARNING
yPlease keep this User Guide for future consultation. If you sell the unit to another user, be sure that they
also receive this instruction booklet.
yUnpack and check carefully there is no transportation damage before using the unit.
yBefore operating, ensure that the voltage and frequency of power supply match the power requirements
of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
yThe unit is for indoor use only. Use only in a dry location.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces.
Be sure that no ventilation slots are blocked.
yDisconnect main power before replacement or servicing.
yMake sure there is no flammable materials close to the unit while operating as it is fire hazard.
yUse safety cable when fixes this unit. Don’t handle the unit by taking its head only, but always by taking
its base.
yMaximum ambient temperature is ta: 40℃. Don’t operate it where the temperature is higher than this.
yUnit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand during its operation.
Turn off the power and allow about 15 minutes for the unit to cool down before replacing or serving.
yIn the event of serious operating problem, stop using the unit immediately. Never try to repair the unit by
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the
nearest authorized technical assistance center. Always use the same type spare parts.
yDo not touch any wire during operation as high voltage might be causing electric shock.
Warning
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
yDo not open the unit within five minutes after switching off.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs
yourself. In the unlikely event your unit may require service, please contact your nearest dealer.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed
to avoid vibration and slipping while operating. And make sure that the structure to which you are
attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always
use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of
people and has no one pass by or under it.
2. Technical Specification
yGenesis Move 50 is the combination of the latest high powered LED technology, excellent optics and
great features.
yDMX control: 15/16 channels.
Please read carefully the instruction, which includes important information
about the installation, usage and maintenance.

3E
y3 operation modes: DMX, Master/Slave, SoundActivation.
yGreat built-in lighting programs under master/slave mode triggered by music.
yOptional CA-8 easy controller or CA-9 RTX (wireless easy control kit) for instant lighting shows.
yRotating gobo wheel with 7 gobos plus white, fixed gobo wheel with 8 gobos plus open.
yColor wheel with 7 colors plus white.
yPan 540°; Tilt 270°.
yAutomatic Pan/Tilt position correction.
ySmooth 0~100% dimming and variable strobe speeds.
yIndexable, replaceable 3-facet rotating prism.
yAuto focus.
yBeam angle: 17°.
yLCD display for easy navigation and addressing.
yPerfect for disco, club, bar, parties and Mobile DJs.
Voltage: 100V~240V, 50/60Hz
Power consumption: 130W
Light source: 1×50W White LED
Dimension: 299X247X437 mm
ΦRotating gobo =22 mm
ΦFixed gobo =24 mm
Weight: 10.2 kg
287
437
236
103361
259 299
247
216
Photometric diagram:

4E
3. How To Set The Unit
3.1 Control panel
Display
To show the various menus and the selected functions
LED
DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
SOUND Flashing Sound activation
Button
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Only for remote control
Connecting with CA-8/CA-9/CA-9RTX to control the unit for Stand by, Function and Mode function.
Mains input
Connect to power supply.
DMX input/output
For DMX512 link, use 3/5-pin XLR cable to link the unit together.
3.2 Main Function
To select any of the given functions, press the MENU button up to when the required one is showing on the
display. Select the function by ENTER button and the display will blink. Use DOWN and UP button to
change the mode. Once the required mode has been selected, press the ENTER button to setup, to go
back to the functions without any change press the MENU button again. Hold and press the MENU button
about one second or wait for one minute to exit the menu mode.
The main functions are showing below:

5E

6E
DMX Address
Select DMX Address, press ENTER button to confirm, the present address will blink on the display. Use
UP and DOWN button to adjust the address from 1to 512. Once the address has been selected, press the
ENTER button to setup, to go back to the functions without any change press the MENU button again. Hold
and press the MENU button about one second or wait for one minute to exit the menu mode.
Channel Mode
Select Channel Mode, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the 15 Chan (15 Channel Mode) or 16 Chan (16 Channel Mode) mode. Once the
mode has been selected, press the ENTER button to setup, to go back to the functions without any change
press the MENU button again. Hold and press the MENU button about one second or wait for one minute to
exit the menu mode.
Show Mode
Select Show Mode, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the Show 1 or Show 2 or Show 3 or Show 4 mode. Once the mode has been
selected, press the ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the
menu mode.
Split Color Mode
Select Split Color Mode, press ENTER button to confirm, present mode will blink on the display. Use
DOWN and UP button to select the Yes (Split Color mode) or No (normal) mode. Once the mode has been
selected, press the ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the
menu mode.
Slave Mode
Select Slave Mode, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the Slave 1 (normal) or Slave 2 (2 light show) mode. Once the mode has been
selected, press the ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the
menu mode.
Black Out
Select Slave Mode, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the Yes (yes blackout) or No (no blackout) mode. Once the mode has been
selected, press the ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the
menu mode.
Sound State
Select Sound State, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the On (sound on) or Off (sound off) mode. Once the mode has been selected,
press the ENTER button to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute to exit the menu mode.

7E
Sound Sense
Select Sound Sense, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the 0…100 mode. Once the mode has been selected, press the ENTER button to
setup, to go back to the functions without any change press the MENU button again. Hold and press the
MENU button about one second or wait for one minute to exit the menu mode.
Pan Inverse
Select Pan Inverse, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the Yes (pan inversion) or No (normal) mode. Once the mode has been selected,
press the ENTER button to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute to exit the menu mode.
Tilt Inverse
Select Pan Inverse, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the Yes (tilt inversion) or No(normal) mode. Once the mode has been selected,
press the ENTER button to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute to exit the menu mode.
Back Light
Select Back Light, press ENTER button to confirm, present mode will blink on the display. Use DOWN and
UP button to select the On (Led on) or Off (Led off) mode. Once the mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the MENU button again. Hold
and press the MENU button about one second or wait for one minute to exit the menu mode.
Gobo1 Focus
Select Gobo1 Focus, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the 0…255 mode. Once the mode has been selected, press the ENTER button to
setup, to go back to the functions without any change press the MENU button again. Hold and press the
MENU button about one second or wait for one minute to exit the menu mode.
Gobo2 Focus
Select Gobo2 Focus, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the 0…255 mode. Once the mode has been selected, press the ENTER button to
setup, to go back to the functions without any change press the MENU button again. Hold and press the
MENU button about one second or wait for one minute to exit the menu mode.
Function Delay
Select Function Delay, press ENTER button to confirm, present mode will blink on the display. Use DOWN
and UP button to select the No Delay or 1S/2S/3S Delay (Wait for 1/2/3 seconds before these Functions of
15/16 CH are activated/deactivated) mode. Once the mode has been selected, press the ENTER button to
setup, to go back to the functions without any change press the MENU button again. Hold and press the
MENU button about one second or wait for one minute to exit the menu mode.
Dimmer Calibrate
Press the MENU button to show Dimmer Calibrate on the display. Press the ENTER button and the
display will blink. Use the DOWN and UP button to calibrate the dimmer for a maximum output from 50
(limited to 50% of the really max. output) to 100 (maximum output is not limited). Once the mode has been
selected, press the ENTER button to setup, to go back to the functions without any change press the

8E
MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the
menu mode.
Auto-Test
Press the MENU button up to when the Auto-Test is blinking on the display. Pressing ENTER button and
the unit will run self-test by built-in program. To go back to the functions press the MENU button again. Hold
and press the MENU button about one second or wait for one minute to exit the menu mode.
Temperature
Press the MENU button up to when the Temperature Test is blinking on the display. Pressing ENTER
button and the display will show the temperature of the unit. To go back to the functions press the MENU
button again. Hold and press the MENU button about one second or wait for one minute to exit the menu
mode.
When the temperature of the fixture is up to 50°, the display will show
When the temperature of the fixture is higher than 60°, the LED will be off and the display will show
Fixture Time
Press the MENU button up to when the Fixture Time is blinking on the display. Pressing ENTER button
and the display will show the number of working hours of the unit. To go back to the functions press the
MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the
menu mode.
Firmware Version
Press the MENU button up to when the Firmware version is blinking on the display. Pressing ENTER
button and the display will show the version of software of the unit. To go back to the functions press the
MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the
menu mode.
Defaults Setting
Press the MENU button to show Defaults on the display. Press the ENTER button and the display will blink.
Use the DOWN and UP button to select the Confirm? YES or Confirm? No.Once the Confirm? Yes has
been selected, press the ENTER button and use the UP and Down button to select the PRO Def or AUTO
Def.
PRO Defaults: For professional users, detailed explanation as followings:
)Channel Mode Æ16 Chan
)Split Color Mode ÆYes
)Slave Mode ÆSlave 1
)Black Out ÆYes
)Sound State ÆOff
)Sound Sense Æ90
HIGH LED
50°
LED OFF
OVER TEMP

9E
)Pan Inverse ÆNo
)Tilt Inverse ÆNo
)Back Light ÆOff
)Function Delay Æ3S Delay
AUTO Defaults: Mostly automatic mode, for non professional users, detailed explanation as
followings:
)Channel Mode Æ15 Chan
)Split Color Mode ÆNo
)Slave Mode ÆSlave 1
)Black Out ÆNo
)Sound State ÆOn
)Sound Sense Æ90
)Pan Inverse ÆNo
)Tilt Inverse ÆNo
)Back Light ÆOn
)Function Delay Æ3S Delay
(Notice: Other settings are NOT changed while choosing Defaults Setting!)
Press the ENTER and the corresponding functions will set to defaults setting, to go back to the functions
without any change press the MENU button again. Hold and press the MENU button about one second or
wait for one minute to exit the menu mode.
Reset
Press the MENU button up to when the Reset is blinking on the display. Pressing ENTER button and all
channels of the unit will return to their standard position.
3.3 Home Position Adjust
In the main functions, hold Enter button for at least 3 seconds into offset mode, use DOWN and UP button
up to chose Pan Offset, Tilt Offset ,Color Offset, Gobo1 Offset, R-Gobo Offset, Gobo2 Offset, Prism
Offset, R-Prism Offset or Focus Offset, pressing ENTER Pressing ENTER button and the display will

10E
blink. Use DOWN and UP button to adjust the home position of the Pan, Tilt, color, Gobo1, R-Gobo, Gobo2,
Prism, R-Prism, or Focus. Once the position has been selected, press the ENTER button to setup, to go
back to the functions without any change press the MENU button again. Hold and press the MENU button
about one second or wait for one minute to exit the menu mode.
4. How To Control The Unit
You can operate the unit in three ways:
1. Master/slave built-in preprogram function
2. Easy controller
3. Universal DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address setting will be effect
at once. Every time you turn the unit on, it will show “LED-MS50” on the display and move all the motors to
their ‘home’ position and you may hear some noises for about 20 seconds. After that the unit will be ready
to receive DMX signal or run the built in programs.
4.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to give an automatic,
sound activated, synchronized light show. This function is good when you want an instant show. You have
to set the first unit in master mode Show Mode and select show 1 or show 2 or show 3 or show 4 mode.
Its DMX input jack will have nothing plugged into it, and Its master LED will be constantly on and sound
LED will flash to the music. The other units will have to set in slave mode and select Slave 1 (normal) or
Slave 2 (2 light show) mode, Their DMX cables plugged into the DMX input jacks (daisy chain) and the
slave led lights will constantly on.
2-light show
In slave mode, Slave 1 means the unit works normally and Slave 2 means 2-light show. In order to create
a great light show, you can set Slave 2 on the second unit to get contrast movement to each other, even if
you have two units only.
4.2 Easy Controller
The easy remote control is used only in master/slave mode. By connecting to the 1/4” microphone jack of
the first unit, you will find that the remote controller on the first unit will control all the other units in Stand by,
and Mode selection.
Stand By Blackout the unit
Function 1. Sync. Strobe
2. Async strobe
3. Sound Strobe
Show
1-4
1. Press to select color
2. Hold to select gobo
Mode Sound (LED OFF) Show (LED
Slow Blinking)
LED ON
4.3 DMX Controller
By using a universal DMX controller to control the units, you will need to set DMX address from 1 to 512 so
that the units can receive DMX signal.
Press the MENU button up to when the DMX Address is showing on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to change the DMX512 address. Once the address
has been selected, press the ENTER button to setup, to go back to the functions without any change press

11E
the MENU button again. Hold and press the MENU button about one second or wait for one minute to exit
the menu mode. Please refer to the following diagram to address your DMX512 channel for the first 4
units：
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
15channels 1 16 31 46
16channels 1 17 33 49
4.4 DMX 512 Configuration

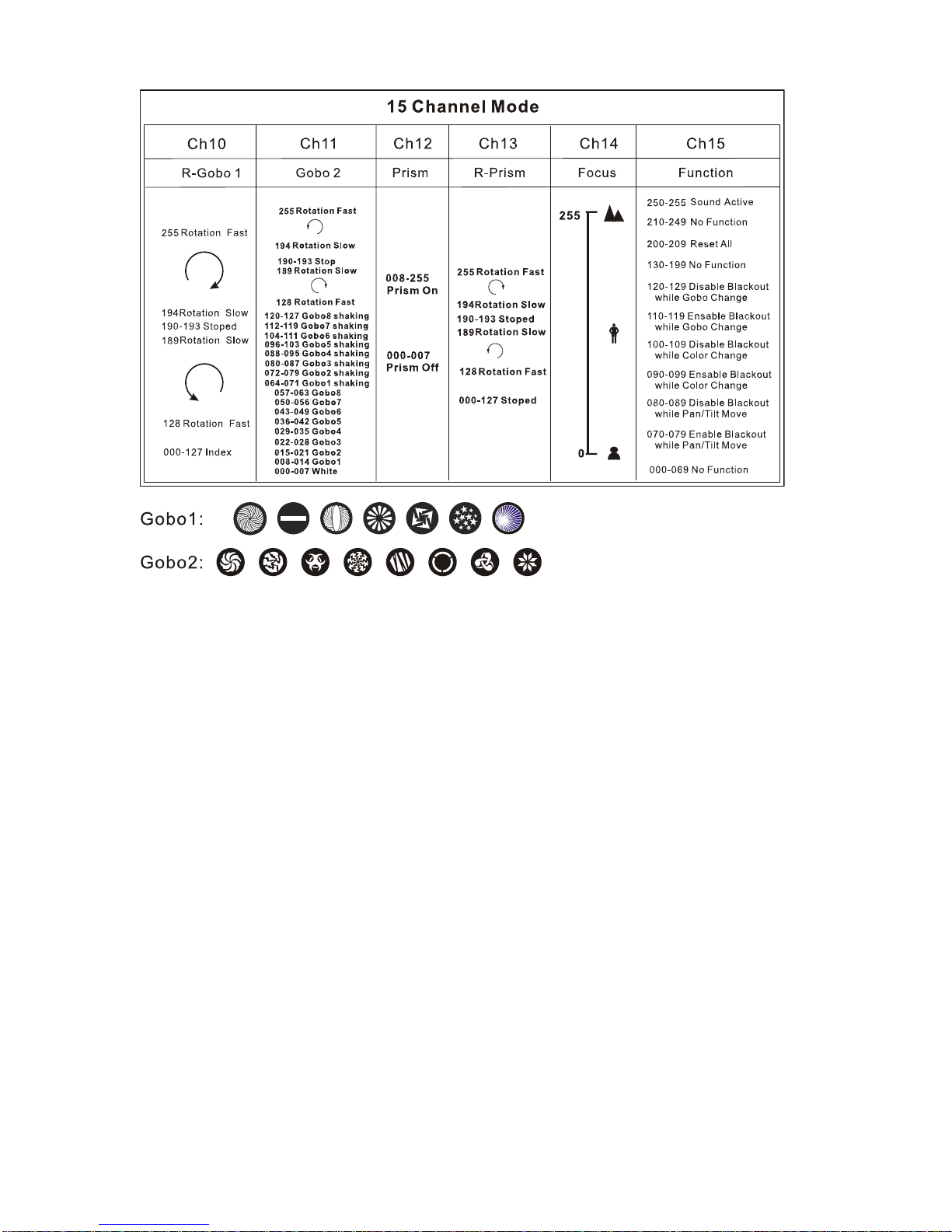

15 channel modes：

12E

13E

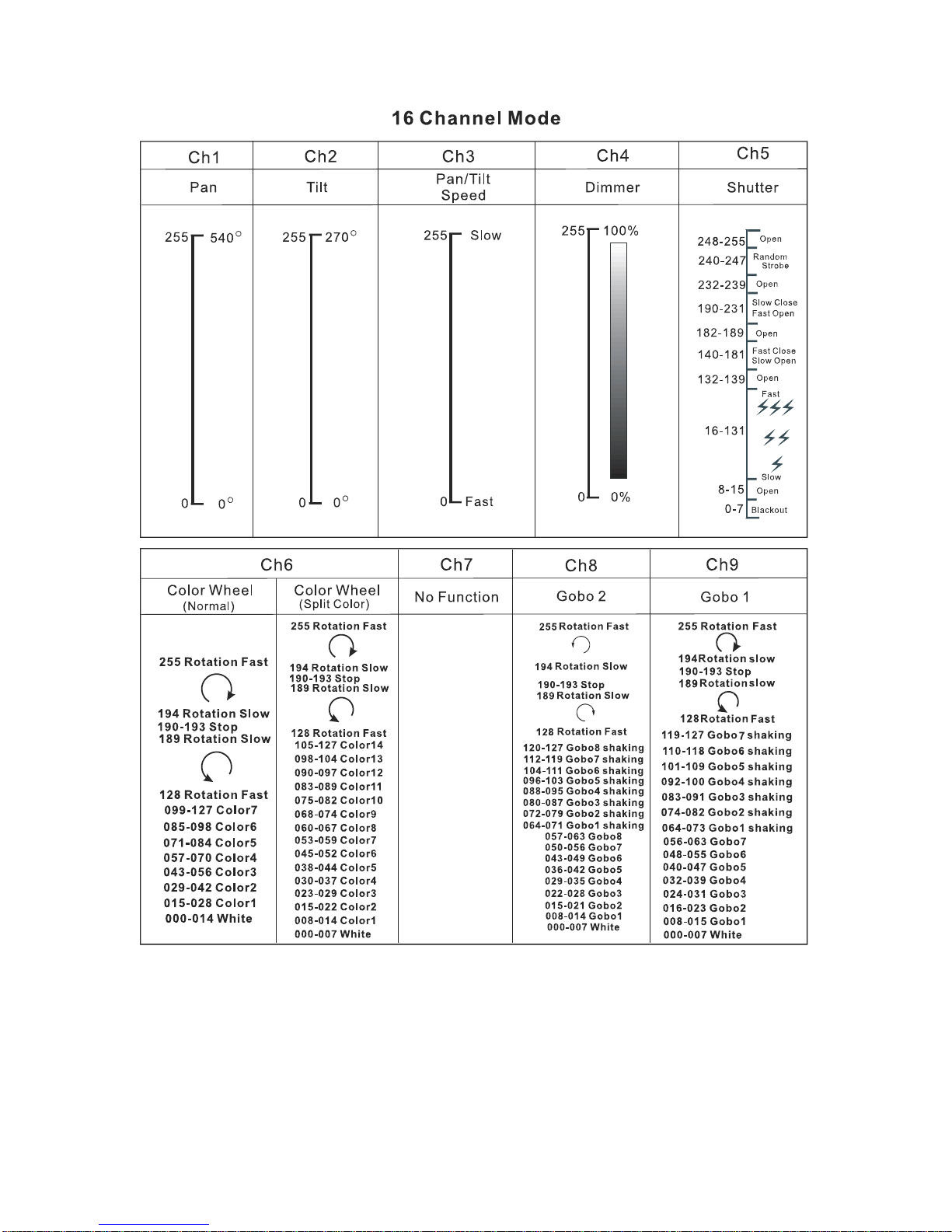

16 channel modes：

14E
4.5 DMX512 Connection
3
2
DMX -
1
COMMON
DMX +
31
2
DMX INPUT DMX OUTPUT
23
1
Termination reduces signal error and avoids signal
transmission problems and interference. It is always
advisable to connect a DMX terminal.
(Resistance 120 ohm 1/4W)between pin2(DMX-)and
pin3(DMX+) of the last fixture.
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor
between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last
unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of the
next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very high-speed signal.

15E
Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal
and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the
units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used.
5. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or
the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or
interference to DMX interface circuit.
C. Some units don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the master/ slave mode
signal.
2. Wrong DMX address in the unit. Set the proper address.
D. No response to the sound
1. Make sure the unit does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition

16E
6. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN55014-2: 1997A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN60598-1: 2000+ALL: 2000+A12: 2002
Safety of household and similar electrical appliances
Part 1: General requirements
Innovation, Quality, Performance
