ACME PAGEANT 300ZR II User manual

TABLE OF CONTENTS
1. Safety Instructions ................................................................................................. 2
2. Technical Specifications.......................................................................................... 3
3. How To Set The Unit............................................................................................... 5
3.1 Control Panel.................................................................................................... 5
3.2 Main Function .................................................................................................. 6
3.3 Home Position Adjustment............................................................................. 14
4. Control By Universal DMX Controller.................................................................... 15
4.1 DMX 512 Connection ..................................................................................... 15
4.2 Address Setting .............................................................................................. 16
4.3 DMX 512 Configuration.................................................................................. 17
5. Troubleshooting ................................................................................................... 26
6. Fixture Cleaning ................................................................................................... 26
1G

1. Safety Instructions
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cables when fixing this unit. DO NOT handle the unit by its head only, always carry by
its base.
Maximum ambient temperature is Ta: 40 degrees. DO NOT operate it where the temperature is
higher than this.
Unit surface temperature may reach up to 75 degrees. DO NOT touch the housing with
bare-hands during its operation. Turn off the power and allow about 15 minutes for the unit to
cool down before replacing or serving.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any wire during operation as high voltage may cause electric shock.
The housing and lenses must be replaced if they are visibly damaged.
There are no user serviceable parts inside the unit. Do not open the housing.
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.
2G

The unit use non-users to replace an LED light source, and the light source should be replaced by
a manufacturer or a service agent or someone with similar qualifications.
Installation:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating and make sure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the fixtures weight. Always use a safety cable that can hold 12 times of the weight of
the fixture when installing.
The equipment must be installed by professionals. It must be installed in a place where is out of
the reach of people and no one can pass by or under it.
2. Technical Specifications
Power Voltage
AC 100~240V, 50/60Hz
Power Consumption
270W
Light Source
19x15W RGBW LED
Zoom Range
10°~60°
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16bit
Dimmer/Shutter
0~100% smooth dimming, various strobe speeds
3G

Control
DMX Channel: 14/26/30 channels
Control Mode: DMX512
Firmware Upgrade: Update via DMX link
Construction
Display: LCD display
Data In/Out: 3-pin & 5-pin XLR
Power In/Out: Power Connector in/out
Protection Rating: IP20
Features
Motorized linear zoom system
Ring control, outstanding color macro effect
Fast and mute operating, flicker free
Dimensions/Weight
310x183x393mm, 9kgs
12.2"x7.2"x15.4"in, 19.8lbs

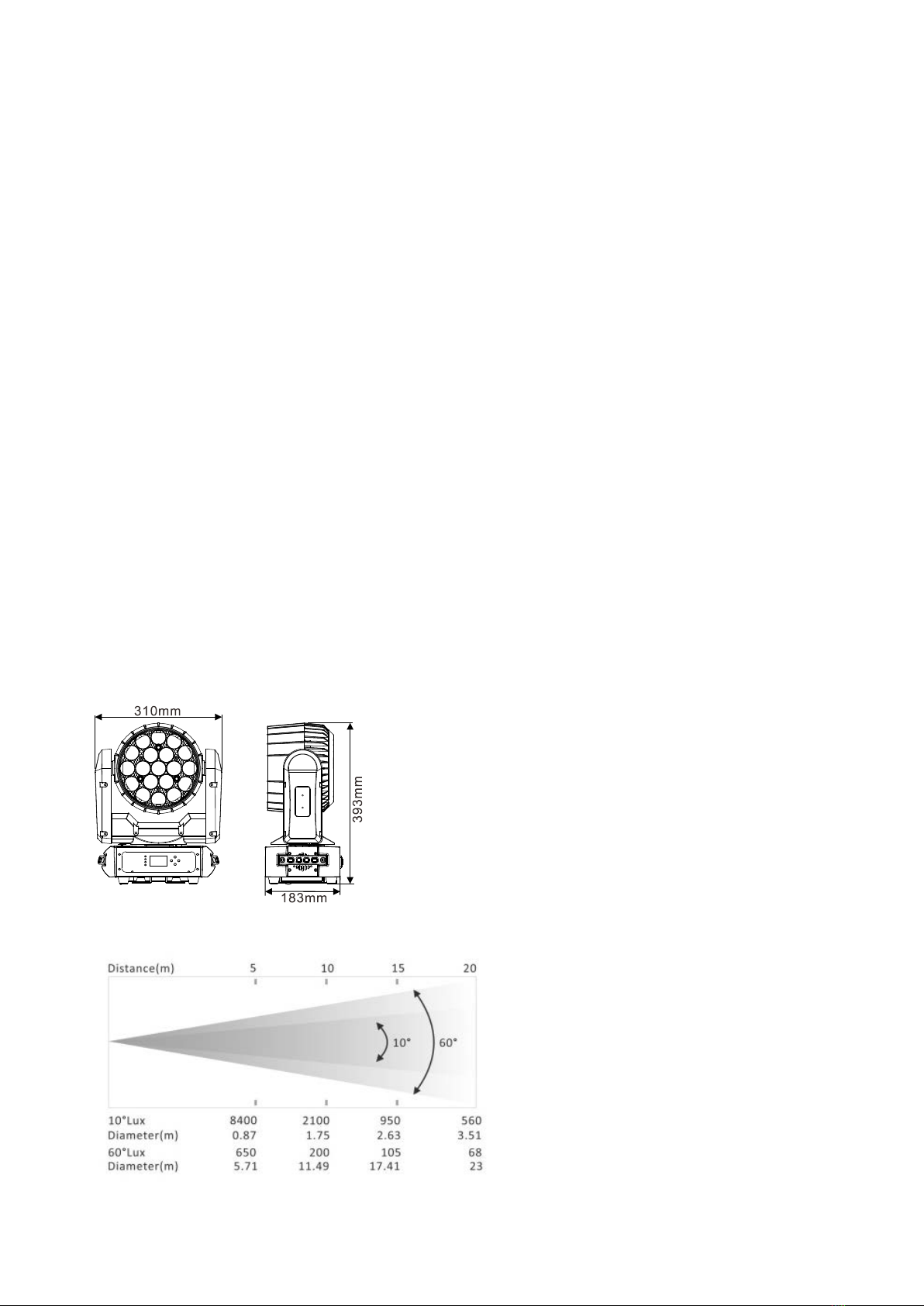

Photometric Diagram
4G

3. How To Set The Unit

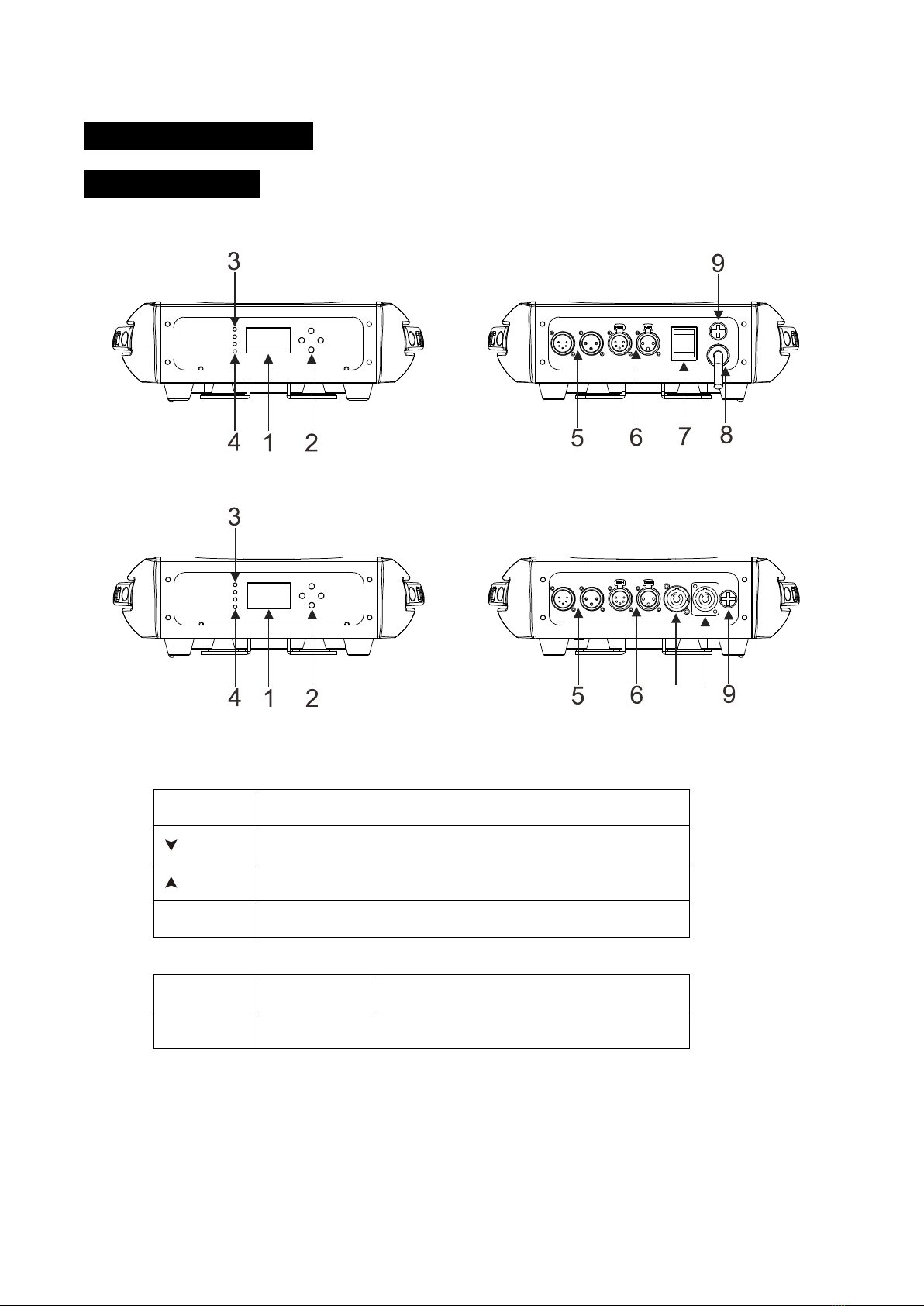

3.1 Control Panel
Wire Version
：
POWERCON Version
：
10 11
1. Display: To show the various menus and the selected functions
2. Button:
MENU To select the programming functions
DOWN To go forward in the selected functions
UP To go backward in the selected functions
ENTER To confirm the selected functions
LED:
3. POWER ON Power On
4. DMX ON DMX input present
5. DMX IN:
DMX512 link, use 3-pin/5-pin XLR cable to link the unit and DMX controller
6. DMX OUT:
DMX512 link, use 3-pin/5-pin XLR cable to link the next unit
5G

7. Power Switch (Wire Version):
Turn on/off the power
8. Power Cable (Wire Version):
Used to connect to supply power
9. Fuse (T 6.3A):
To protect the unit from over-voltage or short circuit
10. MAINS IN (POWERCON Version):
Used to connect to the main power supply
11. MAINS OUT (POWERCON Version):
Used to connect to the next unit
3.2 Main Function
To select any of the given functions, press the MENU button until the required function is showing
on the display. Select the function by pressing the ENTER button and the display will blink. Use the
DOWN/UP buttons to change the mode. Once the required mode has been selected, press the
ENTER button to setup. To go back to the functions without any change, press the MENU button
again or wait for one minute to exit the menu mode.

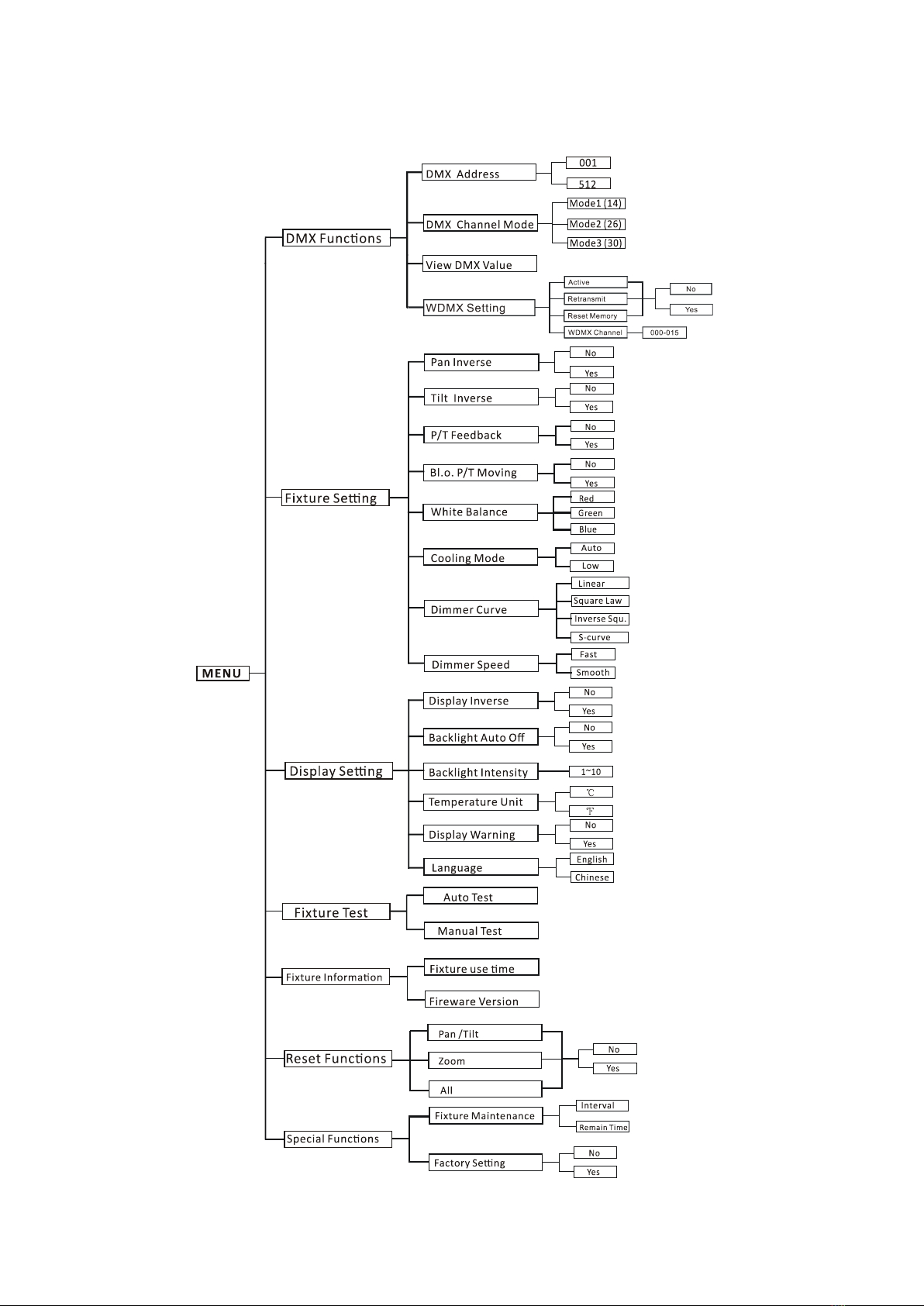

The main functions are shown overleaf:
6G

7G

Wireless Version:
8G

DMX Functions
Enter MENU mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN
button to select DMX Address, DMX Channel Mode or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to
adjust the address from 001to 512, press the ENTER button to setup. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
DMX Channel Mode
To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button
to select Mode1 (14), Mode2 (26) or Mode (30), and press the ENTER button to setup. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to
view the DMX channel values. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
WDMX Setting (Wireless Version)
To select WDMX Setting, press the ENTER button to confirm. Use the UP/DOWN button to
select Active, Retransmit, Reset Memory or WDMX Channel, and press the ENTER button to
setup. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Fixture Setting
Enter MENU mode, select Fixture Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Pan Inverse, Tile Inverse, P/T Feedback,BL.O. P/T Moving, White Balance,
Cooling Mode,Dimmer Curve or Dimmer Speed.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (pan inverse), press the ENTER button to setup. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
9G

Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (tilt inverse), press the ENTER button to setup. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to
select No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt
out of step), press the ENTER button to setup. Press the MENU button back to the last menu or let
the unit idle one minute to exit menu mode.
BL.O. P/T Moving
To select BL.O. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while pan/tilt moving) or Yes (blackout while pan/tilt moving), press the ENTER
button to setup. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
White Balance
To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to select
Red, Green or Blue. Once selected, press the ENTER button to confirm, and use the UP/DOWN
button to adjust the value from 125 to 255, press the ENTER button to setup. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Cooling Mode
To select Cooling Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Auto (Normal) or Low (Low speed). Once selected, press the ENTER button to setup. Press
the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to confirm. Use the UP/DOWN button to
select Linear, Square Law, Inverse Squ. or S-curve. Once selected, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
10G

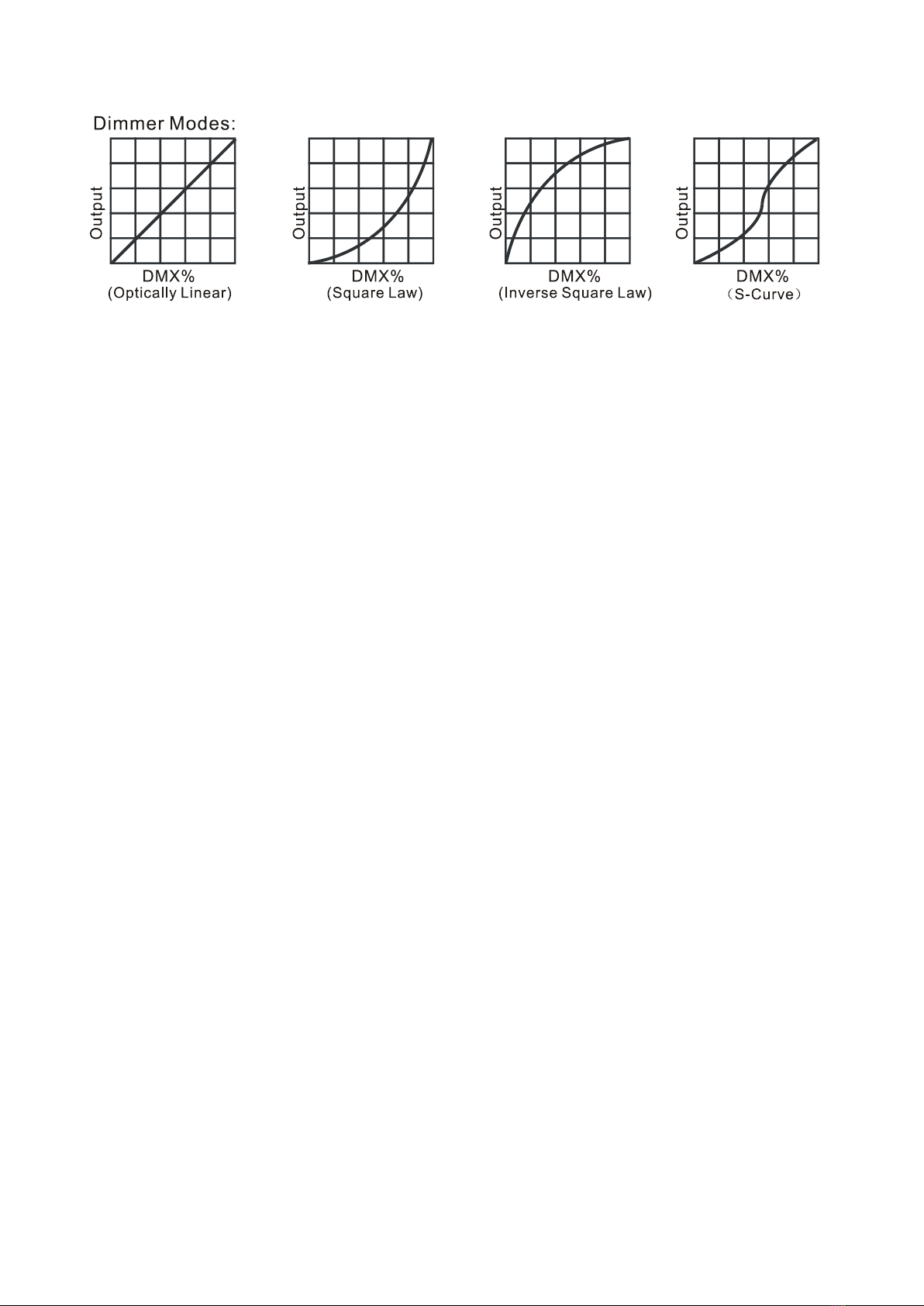

Linear: The increase in light intensity appears to be linear as DMX value is increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Dimmer Speed
To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to
select Fast or Smooth. Once selected, press the ENTER button to setup. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Display Setting
Enter MENU mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Display Inverse, Backlight Auto Off, Backlight Intensity ,Temperature unit,
Display Warning or Language.
Display Inverse
To select Display Inverse, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal) or Yes (display inverse). Once selected, press the ENTER button to store. Press
the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Backlight Auto Off
To select Backlight Auto Off, press the ENTER button to confirm. Use the UP/DOWN button
to select No (display always on) or Yes (display goes off one minute after exiting menu mode).
Once selected, press the ENTER button to confirm and store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
11G

Backlight Intensity
To select Backlight Intensity, press the ENTER button to confirm. Use the UP/DOWN button
to adjust the intensity from 1 (dark) to 10 (bright). Once selected, press the ENTER button to setup
and store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Temperature Unit
To Select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select
℃
or
℉
, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
Display Warning
To select Display Warning, press the ENTER button to confirm. Use the UP/DOWN button to
select No (Normal) or Yes (display will show the error warning when the unit went wrong), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Language
To select Language, press the ENTER button to confirm. Use the UP/DOWN button to select
English or Chinese, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
F ixture Test
Enter MENU mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test.
Auto Test
To select Auto Test, press the ENTER button, the unit will run built-in programs to
automatically test pan, tilt and zoom. Press the MENU button back to the last menu or exit menu
mode after auto test.
12G

Manual Test
To select Manual Test, press the ENTER button, and then use the UP/DOWN button to select
channel, and adjust the channel value. Once selected, press the ENTER button to setup, the fixture
will run as the channel value indicates. Press the MENU button back to the last menu or exit menu
mode let the unit idle one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter MENU mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture use time or Firmware Version.
Fixture Use Time
To select Fixture Use Time, press the ENTER button, the fixture working hours will show on
the display. Press the MENU button to exit.
Firmware Version
To select Firmware Version, press the ENTER button and the fixture software version will
show on the display. Press the MENU button to exit.
Reset Functions
Enter MENU mode, select Reset Functions, press the ENTER button to confirm, use the UP/DOWN
button to select Pan/Tilt, Zoom or All.
Pan/Tilt
To Select Pan/Tilt, press the ENTER button to confirm. Use the UP/DOWN button to select
No or Yes (the unit will run built-in program to reset pan and tilt to their home positions), press
the ENTER button to store. Press the MENU button to exit menu mode.
Zoom
To select Zoom, press the ENTER button to confirm. Use the UP/DOWN button to select No
or Yes (the unit will run built-in program to reset zoom to its home positions), press the ENTER
button to store. Press the MENU button to exit menu mode.
13G

All
To select All, press the ENTER button to confirm. Use the UP/DOWN button to select No or
Yes (the unit will run built-in program to reset all motors to their home positions), press ENTER
button to store. Press MENU button to exit menu mode.
Special Functions
Enter MENU mode, select Special Functions, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture Maintenance or Factory Setting.
Fixture Maintenance
To select Fixture Maintenance, press the ENTER button to confirm. Use the UP/DOWN
button to select Interval or Remain Time.
Interval
To select Interval, press the ENTER button to confirm, the interval time will be shown on the
display. Press the MENU button to exit.
Remain Time
To select Remain Time, press the ENTER button to confirm, the remaining time will be shown
on the display. Press the MENU button to exit.
Factory Setting
To select Factory Setting, press the ENTER button to confirm. Press the ENTER button to
confirm, use the UP/DOWN button to select No or Yes (the fixture will reset to factory settings and
exit menu mode).
3.3 Home Position Adjustment
14G

In the main functions, hold the ENTER button for at least 3 seconds into offset mode, use the
DOWN/UP button up to select Pan, Tilt or Zoom, and press the ENTER button to confirm. Use the
DOWN/UP button to adjust the home position of the Pan, Tilt or Zoom, Once the position has
been selected, press the ENTER button to setup, to go back to the functions without any change
press the MENU button again. Press and hold the MENU button about one second or wait for
about one minute to exit the menu mode.
4. Control By Universal DMX Controller
4.1 DMX 512 Connection
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
15G

3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the
input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used.
4.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press MENU button to enter menu mode, select DMX Functions, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm,
the present address will blink on the display, use the UP/DOWN button to adjust the address from
001 to 512, and press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 7 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units:
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
14 channels 1 15 29 43
26 channels 1 27 53 79
30 channels 1 31 61 91
16G

4.3 DMX 512 Configuration
14 Channels Mode(Mode 1):
CHANNEL VALUE FUNCTION
1 000-255 PAN
2 000-255 PAN FINE
3 000-255 TILT
4 000-255 TILT FINE
5
000-255
PAN/TILT SPEED
fast

slow
6
000-009
010-014
015-255
SPECIAL FUNCTIONS
No function
Reset
No function
7
000-255
DIMMER
0%~100%
8
000-019
020-024
025-064
065-069
070-084
085-089
090-104
105-109
110-124
125-129
130-144
145-149
150-164
165-169
170-184
185-189
190-204
205-209
210-224
225-229
230-244
245-255
SHUTTER
No function
Open
Strobe 1: fast slow
Open
Strobe 2: slow open fast close, fast slow
Open
Strobe 3: fast open slow close, fast slow
Open
Strobe 4: random strobe, fast slow
Open
Strobe 5: random slow open fast close, fast slow
Open
Strobe 6: random fast open slow close, fast slow
Open
Strobe 7: burst pulse, fast slow
Open
Strobe 8: random burst pulse, fast slow
Open
Strobe 9: sine wave, fast slow
Open
Strobe 10: burst, fast slow
Open
9 000-255 RED (0% 100%)
17G

10 000-255 GREEN (0% 100%)
11 000-255 BLUE (0% 100%)
12 000-255 WHITE (0% 100%)
13
000-009
010-014
015-019
020-024
025-029
030-034
035-039
040-044
045-049
050-054
055-059
060-064
065-069
070-074
075-079
080-084
085-089
090-094
095-099
100-104
105-109
110-114
115-119
120-124
125-129
130-134
135-139
140-144
145-149
150-154
155-159
160-164
165-169
170-174
175-179
180-201
202-207
208-229
230-234
COLOR PRESET
Open
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
Color 15
Color 16
Color 17
Color 18
Color 19
Color 20
Color 21
Color 22
Color 23
Color 24
Color 25
Color 26
Color 27
Color 28
Color 29
Color 30
Color 31
Color 32
Color 33
Open
Color change, fast slow
Stop
Color change, slow fast
Open
18G

235-239
240-244
245-249
250-255
Color change: fast
Color change: standard
Color change: slow
Open
14
000-255
ZOOM
60°

10°
26 Channels Mode(mode 2):
CHANNEL VALUE FUNCTION
1 000-255 PAN
2 000-255 PAN FINE
3 000-255 TILT
4 000-255 TILT FINE
5
000-255
PAN/TILT SPEED
fast

slow
6
000-255
ZOOM
60°

10°
7
000-009
010-014
015-255
SPECIAL FUNCTIONS
No function
Reset
No function
8
000-255
DIMMER
0% ~ 100%
9
000-019
020-024
025-064
065-069
070-084
085-089
090-104
105-109
110-124
125-129
130-144
145-149
150-164
165-169
170-184
185-189
SHUTTER
No function
Open
Strobe 1: fast slow
Open
Strobe 2: slow open fast close, fast slow
Open
Strobe 3: fast open slow close, fast slow
Open
Strobe 4: random strobe, fast slow
Open
Strobe 5: random slow open fast close, fast slow
Open
Strobe 6: random fast open slow close, fast slow
Open
Strobe 7: burst pulse, fast slow
Open
19G
