LED‐747‐1W
(RGBW/RGBA)


UserManual
Pleasereadtheinstructioncarefullybeforeuse

1B
CONTENTS
1.SafetyInstructions....................................................................................................2
2.TechnicalSpecifications ............................................................................................3
3.HowToSetTheUnit .................................................................................................4
3.1ControlPanel ......................................................................................................4
3.2MainFunction ....................................................................................................5
4.HowToControlTheUnit ..........................................................................................9
4.1Master/SlaveBuiltInPreprogrammedFunction ................................................9
4.2EasyController....................................................................................................9
4.3DMXController.................................................................................................10
5.DMX512Configuration ..........................................................................................10
6.DMX512Connection ..............................................................................................11
7.Troubleshooting......................................................................................................12
8.FixtureCleaning......................................................................................................13

2B
1.SafetyInstructions
WARNING
PleasekeepthisUserGuideforfutureconsultation.Ifyouselltheunittoanotheruser,besure
thattheyalsoreceivethisinstructionbooklet.
yUnpackandcheckcarefullythereisnotransportationdamagebeforeusingtheunit.
yBeforeoperating,ensurethatthevoltageandfrequencyofpowersupplymatchthepower
requirementsoftheunit.
yIt’simportanttogroundtheyellow/greenconductortoearthinordertoavoidelectricshock.
yTheunitisforindooruseonly.Useonlyinadrylocation.
yTheunitmustbeinstalledinalocationwithadequateventilation,atleast50cmfromadjacent
surfaces.Besurethatnoventilationslotsareblocked.
yDisconnectmainpowerbeforereplacementorservicing.
yMakesuretherearenoflammablematerialsclosetotheunitwhileoperatingasitisfirehazard.
yUsesafetycableswhenfixingthisunit.
yMaximumambienttemperatureisTa:40degreesC.DONOToperateitwherethetemperature
ishigherthanthis.
yTurnoffthepowerandallowabout15minutesfortheunittocooldownbeforeservicing.
yIntheeventofaseriousoperatingproblem,stopusingtheunitimmediately.Nevertrytorepair
theunitbyyourself.Repairscarriedoutbyunskilledpeoplecanleadtodamageormalfunction.
Pleasecontactthenearestauthorizedtechnicalassistancecenter.Alwaysusethesametype
spareparts.
yDONOTtouchanycablesduringoperationashighvoltagemaycauseelectricshock.
Warning:
yTopreventorreducetheriskofelectricalshockorfire,donotexposetheunittorainor
moisture.
yThehousingandlensesmustbereplacediftheyarevisiblydamaged.
Pleasereadtheinstructioncarefullywhichincludesimportantinformation
abouttheinstallation,usageandmaintenance.

3B
Caution:
Therearenouserserviceablepartsinsidetheunit.Donotopenthehousingorattemptany
repairsyourself.Intheunlikelyeventyourunitmayrequireservice,pleasecontactyournearest
dealer.
Installation:
Theunitshouldbemountedviaitsscrewholesonthebracket.Alwaysensurethattheunitis
firmlyfixedtoavoidvibrationandslippingwhileoperating.Makesurethatthestructuretowhich
youareattachingtheunitissecureandisabletosupportaweightof10timesoftheunit’s
weight.Alsoalwaysuseasafetycablethatcanhold12timesoftheweightoftheunitwhen
installingthefixture.
Theequipmentmustbeinstalledbyprofessionals.Itmustbefixedataplacewhereisoutofthe
reachofpeopleandnoonepassbyorunderit.
2.TechnicalSpecifications
Featuringhigh‐poweredLEDs,4outputs,theVoguedeliversoutstanding,multi‐beameffects
1DMXchannelmodeformarvelousbuilt‐inlightingshows
3operationmodes:DMX,Master/Slave,SoundActive
Greatbuilt‐inprogramsinMaster/Slavemodetriggeredbymusic
OptionalCA‐8controllerforinstantlightingshows
Idealforclubs,bars,discos,partiesandmobileDJs
◇PowerVoltage:AC100V~240V,50/60Hz
◇PowerConsumption:67W
◇PowerCableDaisyChains: 10FixturesMax.(230V,50Hz)
6FixturesMax.(120V,60Hz)
◇LEDSources:36pcs×1WRGBWLEDs(LED‐747‐1W)
(R:8pcs;G:8pcs;B:8pcs;W:12pcs)
36pcs×1WRGBALEDs(LED‐747‐1WRGBA)
(R:8pcs;G:8pcs;B:8pcs;A:12pcs)

4B
◇BeamAngle:5°
◇Weight:5Kgs

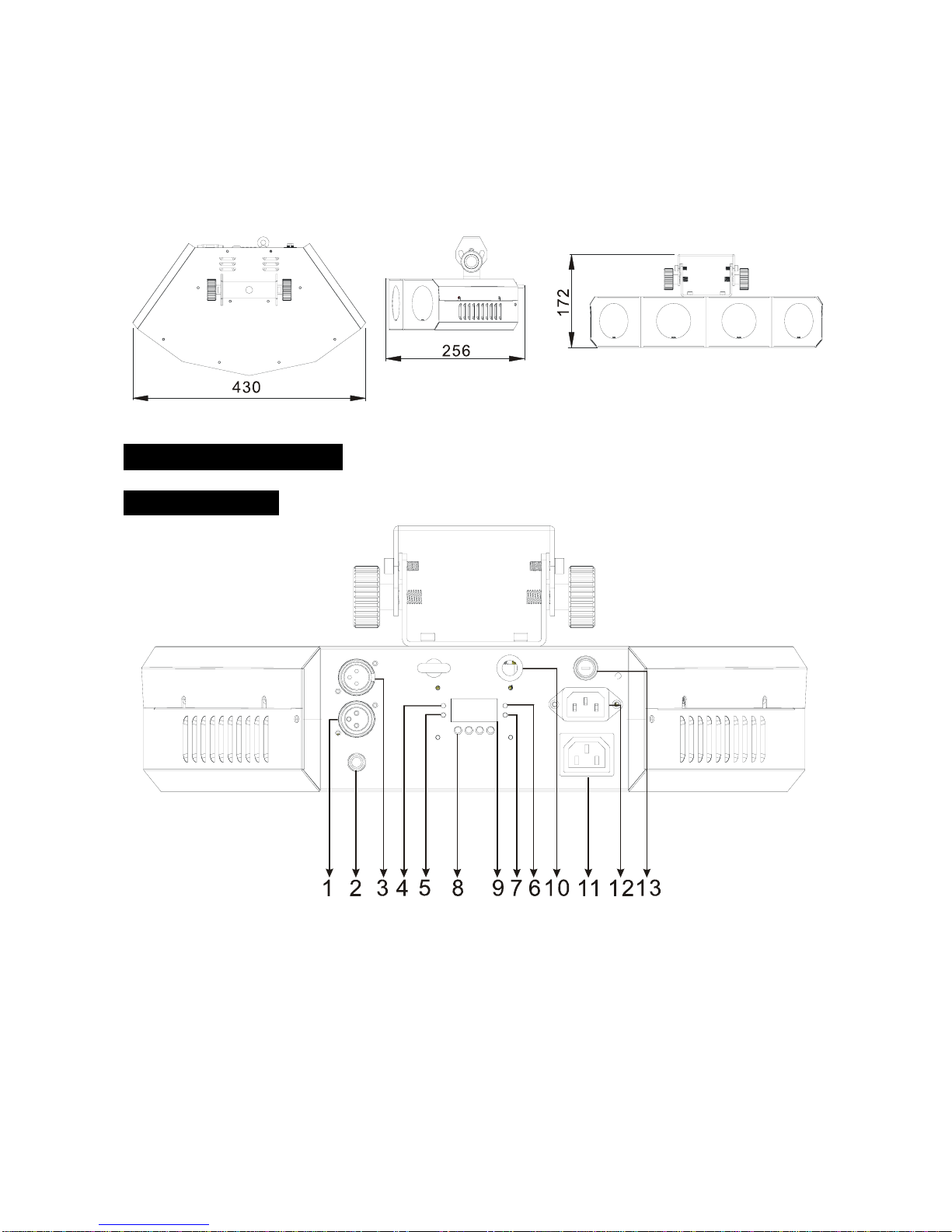

◇Dimension:430×256×172mm
3.HowToSetTheUnit
3.1ControlPanel
1.DMXOUT:
DMX512link,use3‐pinXLRcabletolinkthenextunitandoutputtheDMXsignal
2.ONLYFORREMOTECONTROL:
ConnectswiththeoptionalCA‐8tocontroltheunit
3.DMXIN:
DMX512link,use3‐pinXLRcabletolinktheunitandtheDMXcontroller

5B
LED:
4.DMXOnDMXinputpresent
5.MASTEROnMasterMode
6.SLAVEOnSlaveMode
7.SOUNDFlashingSoundactivation
8.BUTTON:
MENUToselecttheprogrammingfunctions
  DOWNTogobackwardintheselectedfunctions
  UPTogoforwardintheselectedfunctions
ENTERToconfirmtheselectedfunctions
9.DISPLAY:
Showsthevariousmenusandtheselectedfunctions
10.MICROPHONE:
Receivesmusicsignalsforsoundactivemode
11.POWEROUT:
Connectstopowersupply
12.POWERIN:
Connectstopowersupply
13.FUSE(T6.3A):
Protectstheunitfromover‐voltageorshortcircuit

3.2MainFunction
Toselectanyofthegivenfunctions,presstheMENUbuttonuptotherequiredselectionasshown
onthedisplay.SelectthefunctionbytheENTERbuttonandthedisplaywillblink.Usethe
DOWN/UPbuttontochangethemode.Oncetherequiredmodehasbeenselected,pressthe
ENTERbuttontoconfirm,togobacktothemainfunctionwithoutanychangepresstheMENU
buttonagain.PressandholdtheMENUbuttonaboutonesecondorwaitfor7secondstoexitthe
currentmode.

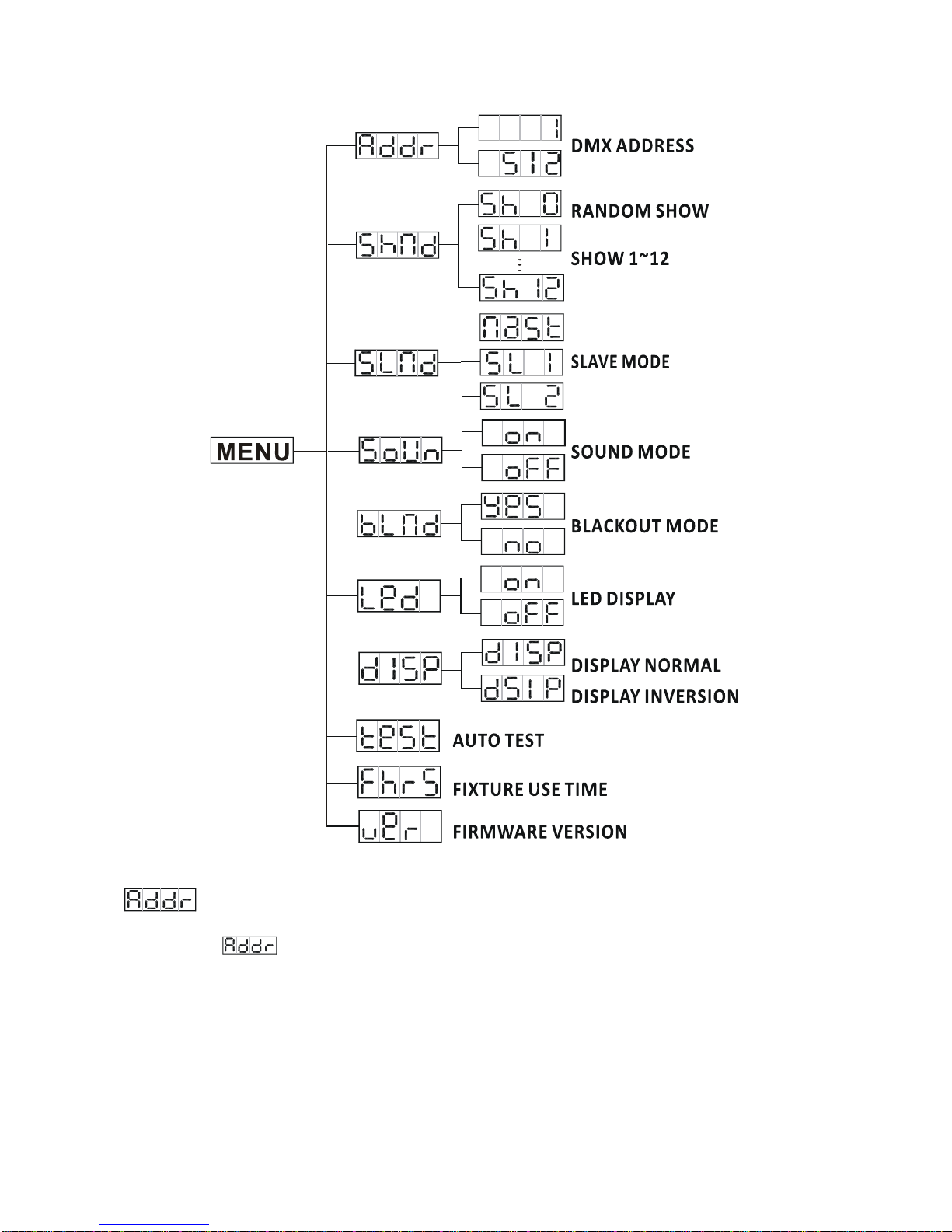

Themainfunctionsareshownbelow:

6B
DMX512ADDRESS
Toselectthe,presstheENTERbuttontoshowtheDMXADDRESSonthedisplay.Usethe
DOWN/UPbuttontoadjusttheaddressfrom1to512.Oncetheaddresshasbeenselected,press
theENTERbuttontoselect,togobacktothefunctionswithoutanychangespresstheMENU
buttonagain.PressandholdtheMENUbuttonforaboutonesecondorwaitfor7secondstoexit
thecurrentmode.

7B
SHOWMODE
Toselect,presstheENTERbuttontoshowtheSHOWMODEonthedisplay.Usethe
DOWN/UPbuttontoselect  (Randomshow),  (Show1)upto(Show12)
mode.Oncethemodehasbeenselected,presstheENTERbuttontosetup,togobacktothe
functionswithoutanychangespresstheMENUbuttonagain.PressandholdtheMENUbuttonfor
aboutonesecondorwaitfor7secondstoexitthecurrentmode.
SLAVEMODE
Toselect,presstheENTERbuttontoshowtheSLAVEMODEonthedisplay.Usethe
DOWN/UPbuttontoselect(master),  (Slave1),  (Slave2)mode.Oncethe
modehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany
changespresstheMENUbuttonagain.PressandholdtheMENUbuttonforaboutonesecondor
waitfor7secondstoexitthecurrentmode.
SOUNDMODE
Toselect,presstheENTERbuttontoshowSOUNDMODEonthedisplay.Usethe
DOWN/UPbuttontoselect  (soundon)or  (soundoff)mode.Oncethemodehas
beenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutanychanges
presstheMENUbuttonagain.PressandholdtheMENUbuttonforaboutonesecondorwaitfor7
secondstoexitthecurrentmode.
BLACKOUTMODE
Toselect,presstheENTERbuttontoshowBLACKOUTMODEonthedisplay.Usethe
DOWN/UPbuttontoselect  (blackout)or  (normal)mode.Oncethemodehas
beenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutanychanges
presstheMENUbuttonagain.PressandholdtheMENUbuttonforaboutonesecondorwaitfor7
secondstoexitthecurrentmode.
LEDDISPLAY
Toselect,presstheENTERbuttontoshowLEDDISPLAYonthedisplay.Usethe

8B
DOWN/UPbuttontoselect  (LEDon)or(LEDoff)mode.Oncethemodehasbeen
selected,presstheENTERbuttontosetup,togobacktothefunctionswithoutanychangespress
theMENUbuttonagain.PressandholdtheMENUbuttonforaboutonesecondorwaitfor7
secondstoexitthecurrentmode.
DISPLAYINVERSE
Toselect,presstheENTERbuttontoshowDISPLAYonthedisplay,andpresstheENTER
buttonagain,itwillshowthe  (inversion).Togobacktothefunctionswithoutanychange
presstheMENUbutton.
AUTOTEST
Toselect,presstheENTERbuttontoshowTESTonthedisplayandtheunitwillruna
self‐test.TogobacktothefunctionswithoutanychangespresstheMENUbuttonagain.Press
andholdtheMENUbuttonforaboutonesecondorwaitfor7secondstoexitthecurrentmode.
FIXTUREHOURS
Toselect,presstheENTERbuttontoshowFIXTUREHOURSonthedisplayandthedisplay
willshowthenumberofworkinghoursoftheunit.Togobacktothefunctionswithoutany
changespresstheMENUbuttonagain.PressandholdtheMENUbuttonforaboutonesecondor
waitfor7secondstoexitthecurrentmode.
SOFTWAREVERSION
Toselect,presstheENTERbuttontoshowSOFTWAREVERSIONonthedisplayandthe
displaywillshowtheversionofsoftwareoftheunit.Togobacktothefunctionswithoutany
changespresstheMENUbuttonagain.PressandholdtheMENUbuttonforaboutonesecondor
waitfor7secondstoexitthecurrentmode.




9B
4.HowToControlTheUnit
Youcanoperatetheunitinthreeways:
1.Master/slavebuilt‐inpreprogramfunction
2.Easycontroller(optionalCA‐8)
3.UniversalDMXcontroller
YoudonotneedtoturntheunitoffwhenyouchangetheDMXaddress,thenewDMXaddress
settingwilltakeeffectimmediately.
4.1Master/SlaveBuiltInPreprogrammedFunction
Bylinkingtheunitsinmaster/slaveconnection,thefirstunitwillcontroltheotherunitstogivean
automatic,soundactivated,synchronizedlightshow.Thisfunctionisgoodwhenyouwantan
instantshow.Youhavetosetthefirstunitinmastermodeandselect  (randomshow)or
(show1)or…or  (show12)mode.Anyotherunitswillhavetobesetinslavemode
andselect  (normal)or  (2‐lightshow)mode.
2‐lightshow
In  (slavemode),  meanstheunitworksnormallyand  means2‐lightshow.
Inordertocreateagreatlightshow,youcanset  onthesecondunittogetcontrast
movementtoeachother.
4.2EasyController
TheeasyCA‐8remotecontrolisusedonlyinmaster/slavemode.Byconnectingtothe
1/4 ” jacksocketofthefirstunit.Youwillfindthattheremotecontrolinthefirstunit
willcontrolalltheotherunitsforStandby,FunctionandModeselection.
BlackoutBlackouttheunit
Function
Strobe
1.Synchronousstrobe
2.twolightstrobe
3.Soundstrobe
SelectShow
Show1~12

ModeSound
(LEDOFF)
Show
(LEDON)

10B
4.3DMXController
ByusingauniversalDMXcontrollertocontroltheunits,youmustsetaDMXaddressfrom1to
512.
PresstheMENUbuttonuptowhen  isshowingonthedisplay.PresstheENTERbuttonand
thedisplaywillblink.UsetheDOWN/UPbuttontochangetheDMX512address.Oncetheaddress
hasbeenselected,pressandholdtheENTERbuttonuntilthedisplaystopsblinkingoritwillstore
automaticallyafter7seconds.TogobacktothefunctionswithoutanychangespresstheMENU
buttonagain.
PleaserefertothefollowingdiagramtoaddressyourDMX512channelforthefirst4units：
5.DMX512Configuration
1ChannelsMode:

11B
6.DMX512Connection
1. Ifyouusingacontrollerwith5pinsDMXoutput,youneedtousea5to3pinadapter‐cable.
2. ThelastunitsDMXcablehastobeterminatedwitha120ohm1/4 W resistorbetweenpin
2(DMX‐)andpin3(DMX+)ofa3‐pinXLR‐plugandplugitintheDMX‐outputofthelastunit.
3. Connecttheunittogetherina`daisychain`byXLRplugfromtheoutputoftheunittothe
inputofthenextunit.Thecablecannotbranchedorsplittoa`Y`cable.DMX512isavery
high‐speedsignal.Inadequateordamagedcables,solderedjointsorcorrodedconnectorscan
easilydistortthesignal.
4. TheDMXoutputandinputconnectorsarepass‐throughtomaintaintheDMXcircuit,when
oneoftheunits’powerisdisconnected.
5. Eachfixtureunitneedstohaveanaddresssettoreceivethedatasentbythecontroller.The
addressnumberisbetween0‐511(usually0&1areequalto1).
6. TheendoftheDMX512systemshouldbeterminatedtoreducesignalerrors.
7. 3pinXLRconnectorsaremorepopularthan5pinXLR.
3pinXLR:Pin1:GND,Pin2:Negativesignal(‐),Pin3:Positivesignal(+)
5pinXLR:Pin1:GND,Pin2:Negativesignal(‐),Pin3:Positivesignal(+)
Pin4/ P i n 5:Notused.

12B
7.Troubleshooting
Followingareafewcommonproblemsthatmayoccurduringoperation.Herearesome
suggestionsforeasytroubleshooting:
A.Theunitdoesnotwork,nolightandthefandoesnotwork
1. Checktheconnectionofpowerandmainfuse.
2. CheckthepoweronLED.
B.NotrespondingtoDMXcontroller
1. DMXLEDshouldbeon.Ifnot,checkDMXconnectorsandcablestoseeiflinkproperly.
2. IftheDMXLEDisonbutnoresponsechecktheaddresssettingsandDMXpolarity.
3. IfyouhaveintermittentDMXsignalproblemscheckthecablesonconnectors.
4. TrytoanotherDMXcontroller.
5. CheckiftheDMXcablesrunnearorrunalongsidehighvoltagecablesthatmaycause
interferencetoDMXcircuits.
C.Someunitsdon’trespondtotheeasycontroller
1. YoumayhaveabreakintheDMXcabling.ChecktheLEDfortheresponseofthemaster/
slavemodesignal.
2. WrongDMXaddressintheunit.Settheproperaddress.
D.Noresponsetothesound
1. Makesuretheunitissetintothecorrectmode.
2. Checkthemicrophonetoseeifitisgoodbytappingit.
3. MakesurethefixtureisnotsetintoBlackoutmode

13B
8.FixtureCleaning
Thecleaningmustbecarriedoutperiodicallytooptimizelightoutput.Cleaningfrequency
dependsontheenvironmentinwhichthefixtureoperates:damp,smokyorparticularlydirty
surroundingcancausegreateraccumulationofdirtontheunit’soptics.
yCleanwithsoftclothusingnormalglasscleaningfluid.
yAlwaysdrythepartscarefully.
yCleantheexternalopticsatleastevery30days.






































DeclarationofConformity

Wedeclarethatourproducts(lightingequipments)complywiththe
followingspecificationandbearsCEmarkinaccordancewiththe
provisionoftheElectromagneticCompatibility(EMC)Directive
89/336/EEC.

EN55103‐1:2009;EN55103‐2:2009;EN62471:2008;
EN61000‐3‐2:2006+A1:2009+A2:2009;EN61000‐3‐3:2008.

&
HarmonizedStandard

EN60598‐1:2008+All:2009;EN60598‐2‐17:1989+A2:1991;
EN62471:2008;EN62493:2010
Safetyofhouseholdandsimilarelectricalappliances
Part1:Generalrequirements



Innovation,Quality,Performance
