ACME LS-608 RGB User manual

Laser Bar RGB
LS-608 RGB
User Manual
Please read the instructions carefully before use

1B
MENU
1. Safety Instructions............................................................................................................................2
2. Technical Specifications....................................................................................................................3
3. Installation ........................................................................................................................................3
4. How to set the fixture.......................................................................................................................4
4.1 Control Panel ..................................................................................................................................4
4.2 Main Functions...............................................................................................................................4
5. How To Control The Fixture..............................................................................................................8
6. DMX512 Configuration .....................................................................................................................8
7. Troubleshooting..............................................................................................................................10
8. Fixture Cleaning..............................................................................................................................11

2B
1. Safety Instructions
WARNING
Laser radiation avoids body exposure, especially for eye, it’s easy to cause blindness. Please keep the
safe distance at 30 meters from clothing or skin.
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Disconnect main power before replacement or servicing.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature is
higher than this.
Unit surface temperature may reach up to 85 degrees C. DO NOT touch the housing with bare-hands
during its operation.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair the
unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
DO NOT connect any dimmer.
DO NOT touch any cables during operation as high voltage may cause electric shock.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
The housing and lenses must be replaced if they are visibly damaged.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3B
2. Technical Specifications
DMX Control;
Input Voltage: AC100V~240V，50/60Hz
Power Consumption of Laser: 800 mW x 6
Power Consumption 105W
IP Rate IP X4
Dimension: 915 x 225.5 x 249mm
Weight: 13.8Kgs
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed
to avoid vibration and slipping while operating and make sure that the structure to which you are
attaching the unit is secure and is able to support a weight of 10 times of the fixtures weight. Always use
a safety cable that can hold 12 times of the weight of the fixture when installing.
The equipment must be installed by professionals and it must be installed in a place where is out of the
reach of people and no one can pass by or under it. The unit must be installed 0 ~ 30 meters from
adjacent surfaces.

4B
4. How to set the fixture

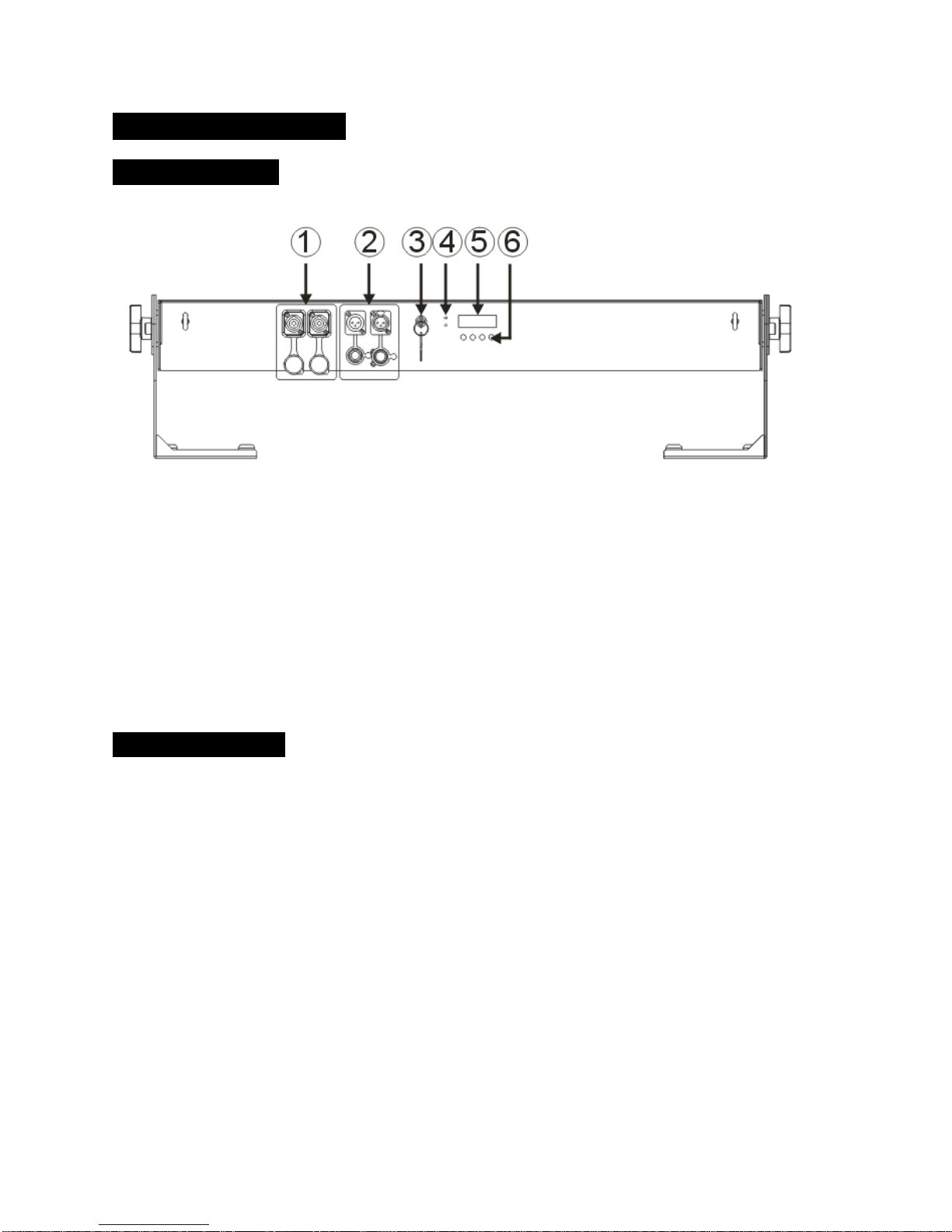

4.1 Control Panel
○
1 Power Input /Output ○ 2DMX IN/OUT
○
3 Key switch ○ 4 LED Indicator
○
5 Display ○ 6Menu
4.2 Main Functions

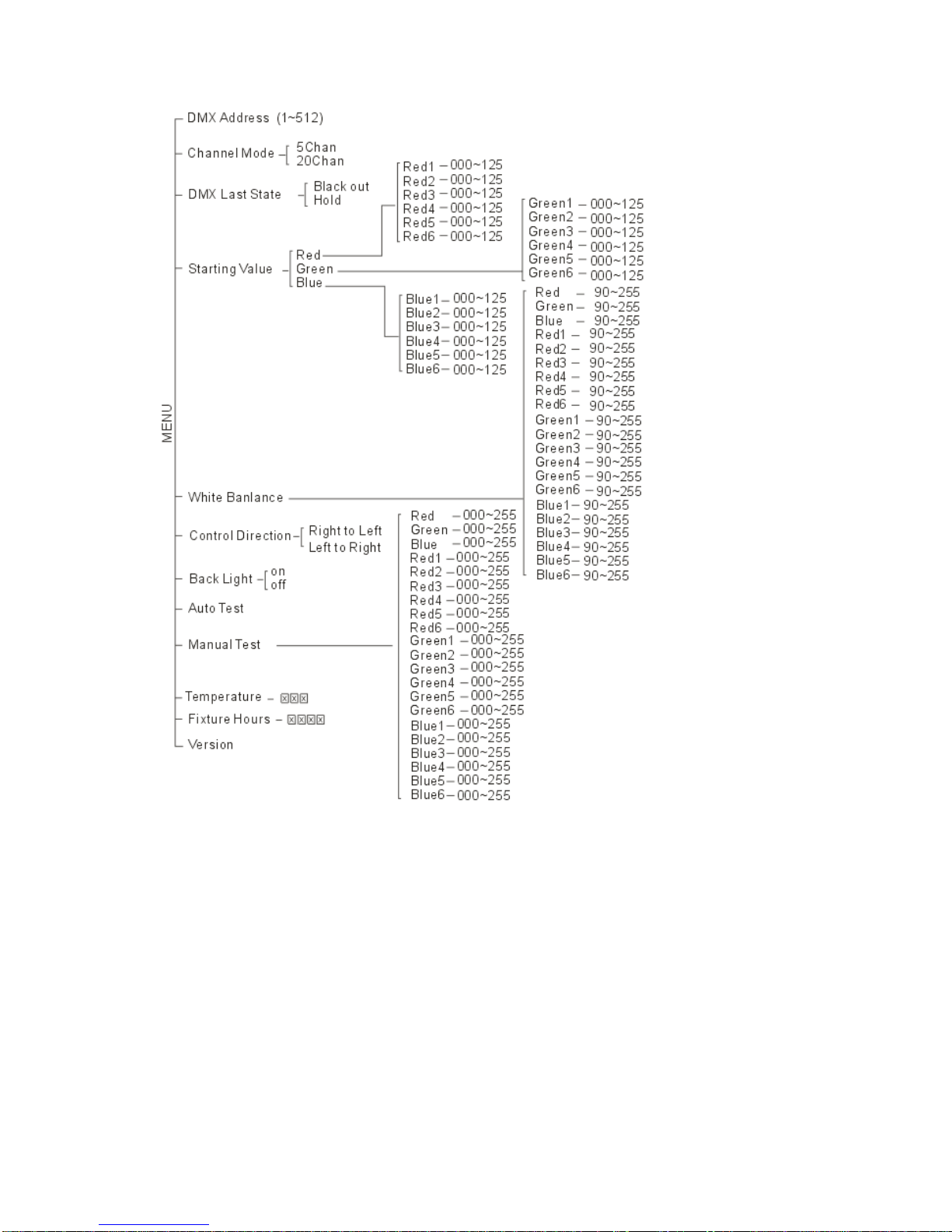

To select any functions, press the MENU button until the required one is shown on the display. Select the
function by the ENTER button and the display will blink. Use the DOWN/UP button to change the mode.
Once the required mode has been selected, press the ENTER button to setup or it will automatically
return to the main functions without any change after idling one minute. Back to the functions without
any change press the MENU button.

5B
DMX Address
Select the DMX Address, press the ENTER button and the display will blink. Use the DOWN/UP button to
change the DMX 512 address. Once the address has been selected, press the ENTER button to save or
automatically exit menu mode without any change after one minute. Back to the previous functions
without any change press the MENU button.
Channel mode
Select the Channel Mode, press the ENTER button and the display will blink. Use the DOWN/UP button

6B
to select the 5CH/20CH. Once select the required mode, press the ENTER button to save or automatically
exit menu mode without any change after one minute. To go back to the functions without any change
press the MENU button.
DMX Last State
Select the DMX Last State (The state when the fixture out of signal), press the ENTER button and the
display will blink. Use the DOWN/UP button to select Blackout (Blackout the output) or Hold (Hold the
last state). Once select the required mode, press the ENTER button to save or automatically exit menu
mode without any change after one minute. To go back to the functions without any change press the
MENU button.
Starting Value
Select the Starting Value, press the ENTER button and the display will blink. Use the DOWN/UP button to
select Red/Green/Blue and set the value of six lasers for Red1-Red6/Green1- Green6/Blue1- Blue from
000 to 125. Once select the required mode, press the ENTER button to save or automatically exit menu
mode without any change after one minute. To go back to the functions without any change press the
MENU button.
White Balance
Select the White Balance, press the ENTER button and the display will blink. Use the DOWN/UP button
to select Red /Green/ Blue/ Red1-Red6/Green1- Green6/Blue1- Blue6 and set the value from 90 to 255.
Once select the required mode, press the ENTER button to save or automatically exit menu mode
without any change after one minute. To go back to the functions without any change press the MENU
button.
Control Direction
Select the Control Direction press the ENTER button and the display will blink. Use the DOWN/UP button
to select Right to Left or Left to Right. Once select the required mode, press the ENTER button to save or

7B
automatically exit menu mode without any change after one minute. To go back to the functions without
any change press the MENU button.
Auto Test
Select the Back Light, press the ENTER button. The fixture will test by itself automatically. Back to the
functions without any change press MENU button again.
Manual Test
Select the Manual Test, press the ENTER button and the display will blink. Use the DOWN/UP button to
select Red /Green/ Blue/ /Dimmer/Effect Red1-Red6/Green1- G r e e n 6/ Blue1- Blue6 and set the value
from 000 to 255. Once select the required mode, press the ENTER button to save or automatically exit
menu mode without any change after one minute. To go back to the functions without any change press
the MENU button.
Temperature
Select the Temperature, press the ENTER button and the display will show the current running
temperature of the fixture. To go back to the functions press the MENU button again.
Fixture Hours
Select the Fixture Hours, press the ENTER button and the display will show the running time of the
fixture. To go back to the functions press the MENU button.
Software Version
Select the Software Version, press the ENTER button and the display will show the version of software of
the fixture. To go back to the functions press the MENU button again.

8B
5. How To Control The Fixture
1. Control by DMX Console；
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel so
that the units can receive DMX signal.

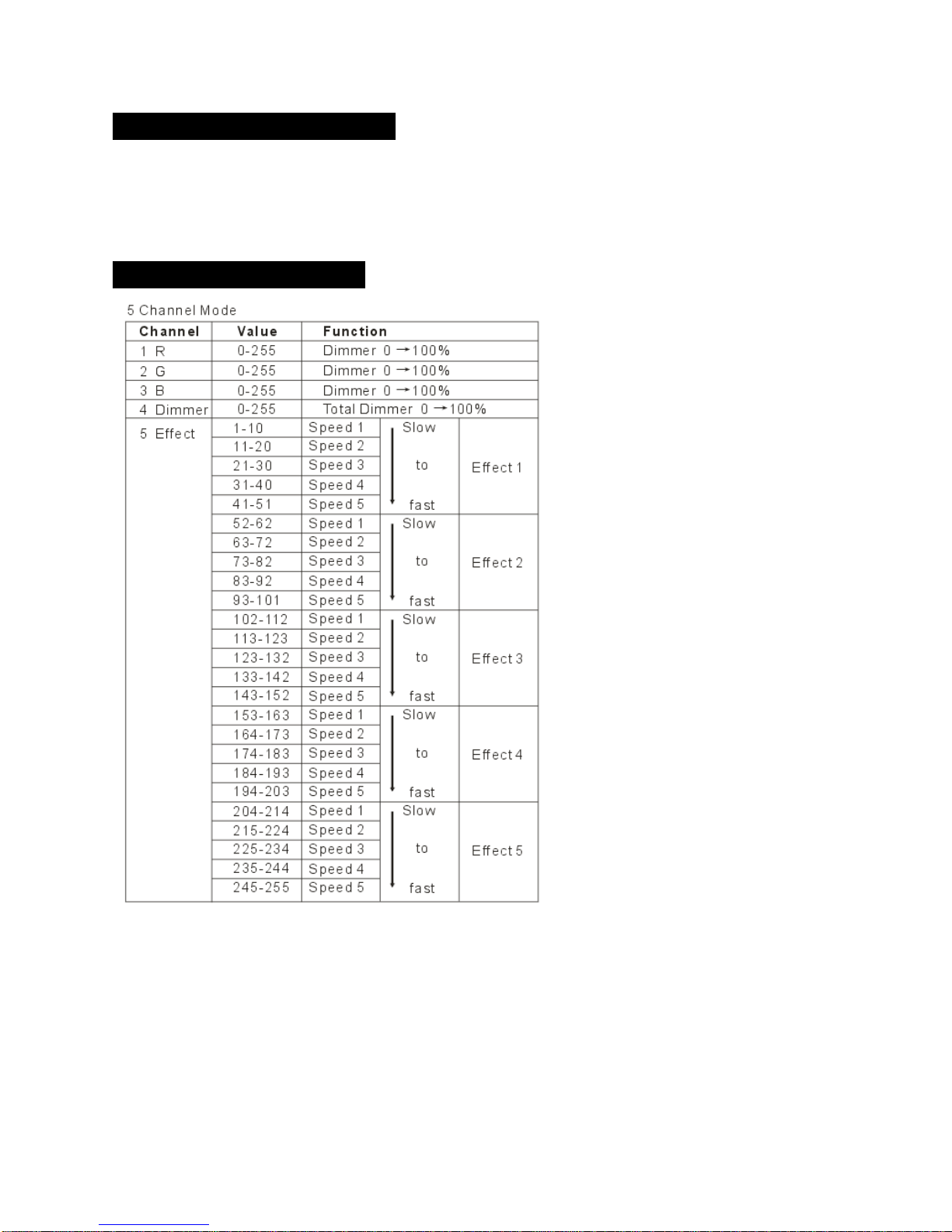

6. DMX512 Configuration

9B

10B
7. DMX 512 Connections
Connection mode:
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to
the input of the next fixture. The cable cannot be branched or split to a “Y” cable.
2. The DMX output and input connectors are pass-through to maintain the DMX circuit when one of
the units’ power is disconnected.
3. The last units DMX cable has to be terminated with a 120 ohm 1/4W resistor between pin 2 (DMX-)
and pin 3 (DMX+) of a 3-pin XLR-plug and plug it in the DMX-output of the last unit.
4. Each fixture unit needs to have an address set to receive the data sent by the controller. The address
number is between 0 - 511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
Pin 4/Pin 5: Not used.
7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some suggestions for
easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX cables to see if linked properly.
2. If the DMX LED is on and no response to the controller, check the address settings and DMX polarity.

11B
3. If you have intermittent DMX signal problems, check the cables of the fixture or the previous one.
4. Try another DMX controller.
8. Fixture Cleaning
The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause
greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
