Acorp 7KM400MN User manual

0-1
Contents Motherboard 7KM400MN
Motherboard 7KM400MN
Chapter 1 Specifications.......................3
1.1. Introduction ................................................................3
1.2. Package Contents ...................................................... 3
1.3. Specifications and Features ......................................4
CPU Processor ........................................................................... 4
Chipset ........................................................................................4
PCI ..............................................................................................4
DDR SDRAMMemory ...............................................................4
Universal Serial Bus (USB) ........................................................4
AGP .............................................................................................4
VGAintegratedonboard .............................................................4
AwardBIOS ................................................................................5
ATA133On Board ......................................................................5
SATARAIDInterfaceintegrated ................................................5
WOL(WakeOnLAN) ................................................................5
CNR(CommunicationNetworking Riser)slot........................... 5
1.4. 7KM400MN Layout Diagram ................................. 6
1.5. CPU Installation ......................................................... 8
1.6. DDR SDRAM Installation.........................................8
1.7. Connectors & Jumpers Setting............................... 9
1.7.1. Back Panel I/O Connectors ..............................................9
1.7.1.1. PS/2 Mouse / Keyboard CONN:............................................... 9
1.7.1.2. USB ports ....................................................................................... 9
1.7.1.3. Serial Interface Port: COM1 ................................................... 9
1.7.1.4. Parallel Interface Port ............................................................. 10
1.7.1.5. Audio Ports .................................................................................. 10
1.7.1.6. VGA connector integrated on board ................................... 10
1.7.1.7. RJ45 connector optional on board ...................................... 10
1.7.2.ATXMainPowerConnectors:ATXPWR .......................10
1.7.3.Floppy Disk Connector:FDD.......................................... 11
1.7.4.Hard DiskConnectors:IDE1/IDE2 ................................ 11
1.7.5.FanConnectors:FAN1(CPU)/2/3 .................................. 11
1.7.6.CDAudio-InConnectors:CDIN1.................................... 11
1.7.7. IRinfraredmodule: IR1Connector ...............................12
1.7.8. SPDIFConnector:SPDIF1 ............................................12
1.7.9. FrontAudioConnector:J8 ............................................12
1.7.10.Audio/LAN Riser Slot: CNR1 .......................................13
1.7.11. Wake On LAN Connector:WOL1 ...............................13

0-2
Contents Motherboard7KM400MN

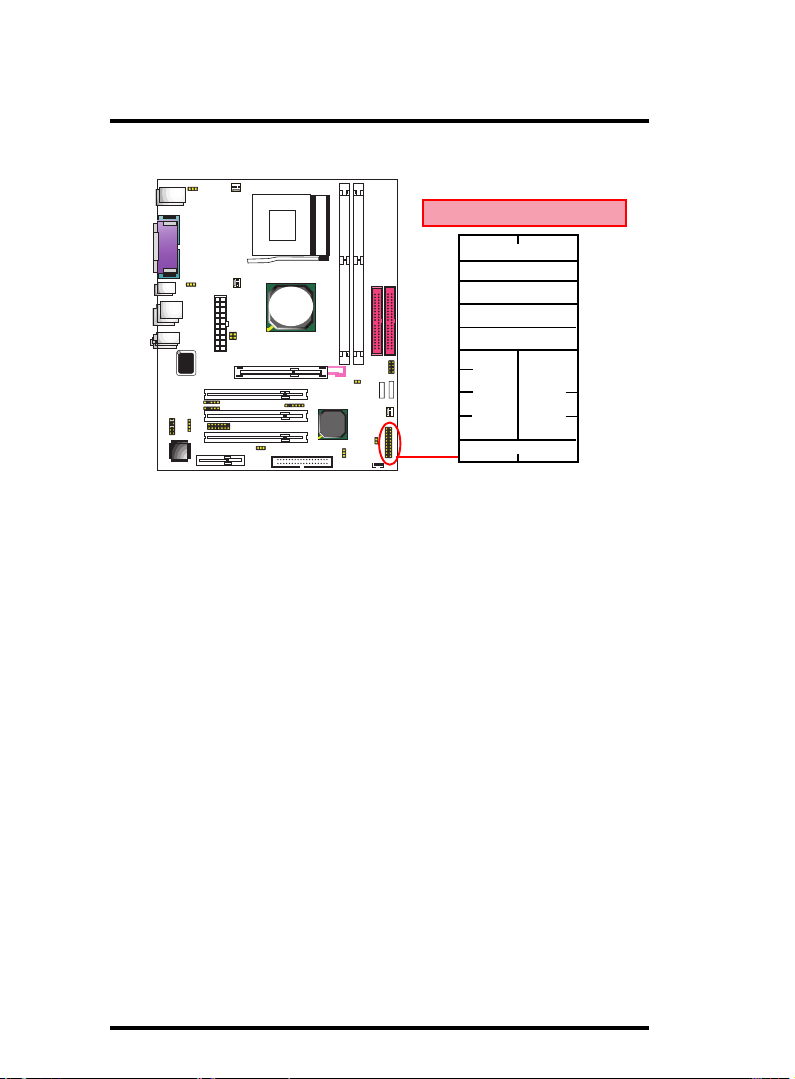

1.7.12. Front PanelConnectors:PANEL1 ................................14
1.7.13.ModemPin-header:J9(optional)..................................15

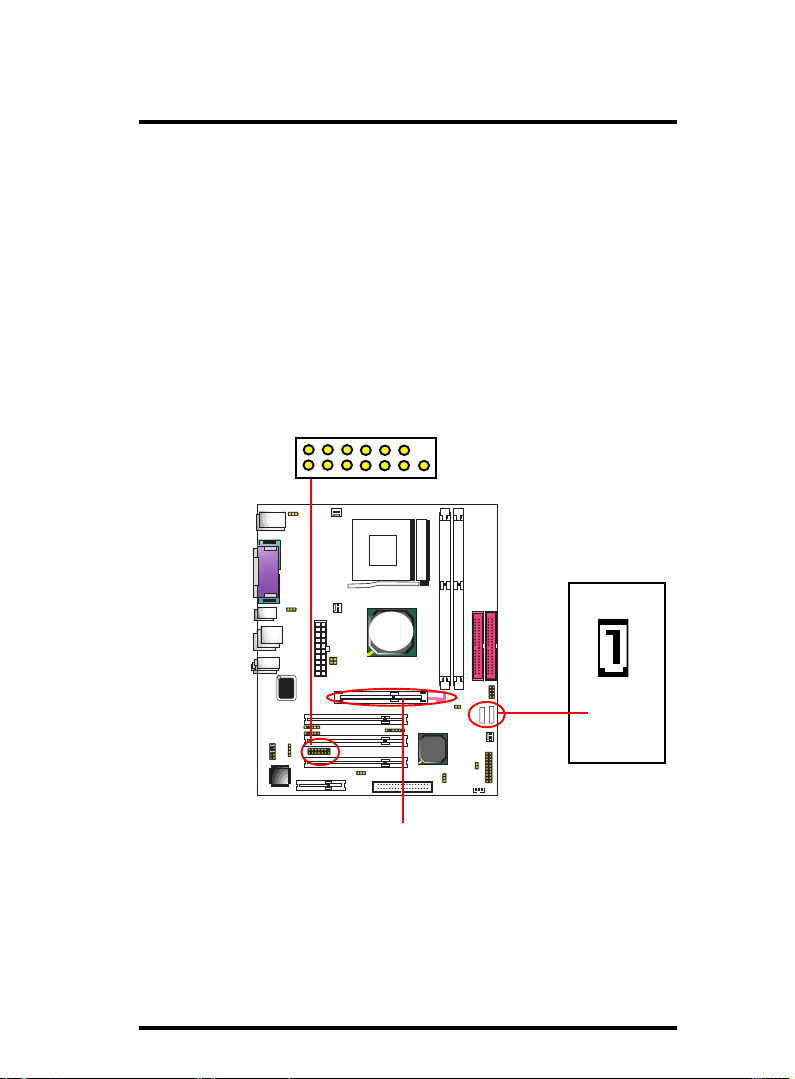

1.7.14. SerialATAConnectors: CN2/3 ....................................15
1.7.15.AGP8X/4X Slot ............................................................15
1.7.16. CMOS Function Selector: JBAT1 ...............................16
1.7.17. PS2 / USB Keyboard Power Selector: J6 .....................16

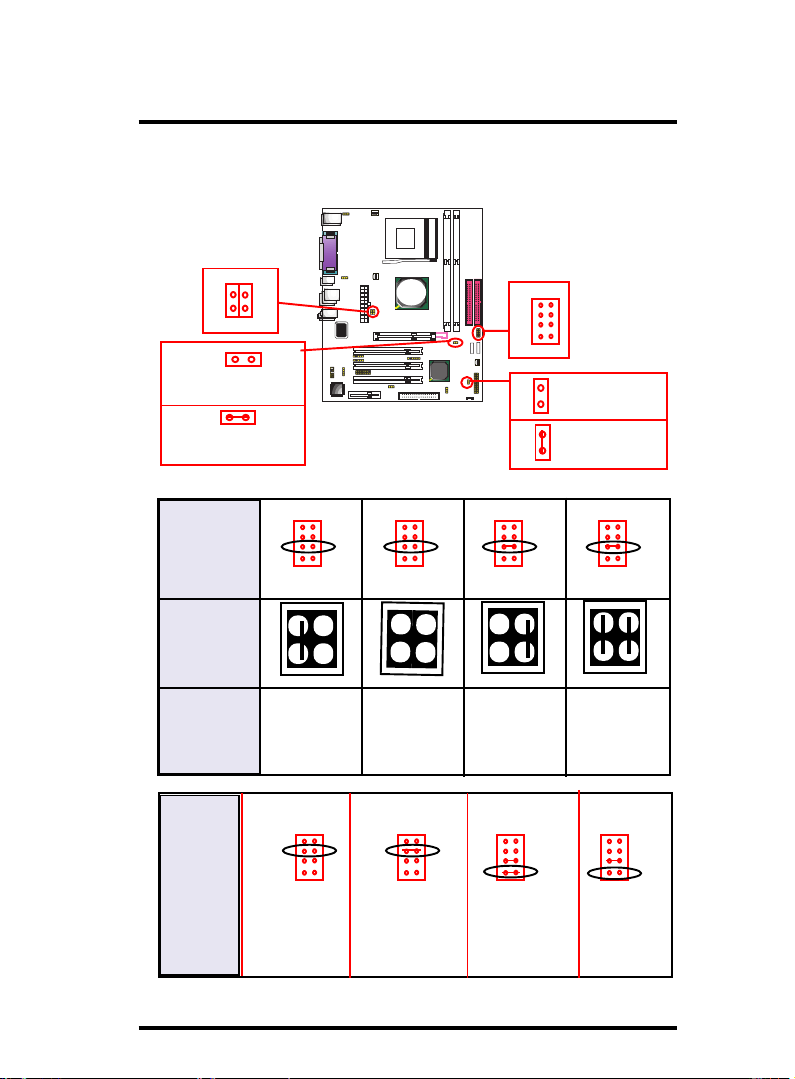

1.7.18. J1&J2, J3, J4, J5 Jumpers Setup ...............................17
Chapter 2Drivers & Utilities .............. 18
2.1. Auto-run Menu.........................................................18

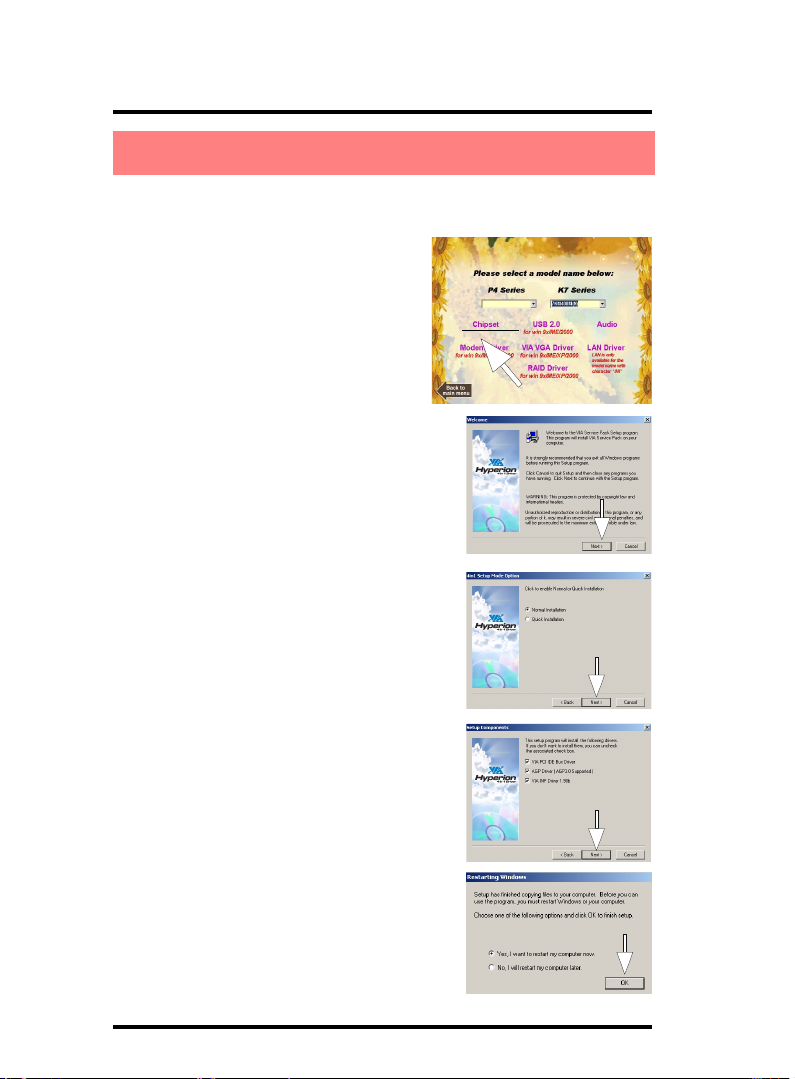

2.2. Installing VIA 4-in-1 Service Pack ........................20
2.3. Installing Audio Driver............................................21
2.4. Installing VGADrivers ............................................22
2.5. Installing USB 2.0 Driver .......................................23
2.6. LAN Drivers (optional) ...........................................24
2.7. Installing Modem Driver (optional) ......................25
2.8. Installing RAIDDriver (optional)..........................26
Chapter3. CompatibilityTest............. 27
(1)CPUCompatibilityTest .......................................................27
(2)MemoryCompatibilityTest .................................................27
(3)AGPDisplayCardCompatibilityTest..................................28
Chapter 4. BIOS Setup....................... 30
(Chapter4willbepresentedinCD version only.) ....................30
4.1 BIOS Support ............................................................30
4.2 Main Menu.................................................................33
4.3 Standard CMOS Features........................................36
4.4 Advanced BIOS Features ........................................40
4.5 Advanced Chipset Features.....................................44
4.6 Integrated Peripherals .............................................51
4.7 Power Management Setup.......................................58
4.8 PnP/PCI Configurations ...........................................64
4.9 PC Health Status .......................................................67
4.10 Frequency/Voltage Control ...................................68
4.11 Load Fail-Safe Defaults...........................................69
4.12 Load Optimized Defaults........................................70
4.13 Set Supervisor / User Password ...........................71
4.14 Save & Exit Setup...................................................72
4.15 Exit Without Saving ................................................73

1-3
Chapter 1 Motherboard 7KM400MN
The 7KM400MN motherboard is an integration of AMD
Athlon/Duron CPU in Socket 462 packaging and the North
BridgeVIAKM400A supporting 100/133/166/200MHzFront
Side Bus.
North Bridge KM400Aon board also supportsDDR 200/
266/333/400 SDRAMs, while the South Bridge VT8237 pro-
vides stable supports of ULTRA ATA 133, SATA RAID
interface, 6-channel Audio playback and USB 2.0/1.1
interface.
Chapter 1
Specifications
HDD UDMA66/100 Cable x1.
FDDCable.
Flash Memory with BIOS.
I/O Shielding
Fully SetupDriver CD with built in utilities.
UserManual.
1.1.Introduction
1.2. Package Contents
Chapter 1 Specifications
This manual is a general reference of the first release of this
motherboardwhichissubjecttoupdatewithoutnotice.Ifanydiffer-
ence is found between this manual and the motherboard you are
using, please visit ourWeb Site for update information.

1-4
Chapter 1 Motherboard 7KM400MN
CPU Processor
| Support 100/133/166 MHz System Interface speed
| Single Socket 462 forAMDTM Athlon CPUs 700MHz~3200+
or higher*, and Duron CPUs 600 ~ 1400 MHz or higher*
Chipset
| VIAKM400ANorth Bridge
| VIA VT8237 SouthBridge
PCI
| Supports 3 x PCI slots, 32-bit 33MHz PCI Bus speed.
DDR SDRAM Memory
| Supporting 64/128/256/512/1G....MB DDR module in 2 slots
| Supporting Synchronous 400/333/266/200MHz DDR SDRAM
| Supporting a maximum memory size of 2GB of DDR
SDRAM
Universal Serial Bus (USB)
| Supporting 4 on-board Universal Serial Bus(USB) Ports
| Supporting USB 2.0/1.1
AGP
| Supporting 1 xAGP8X/4X slot, V3.0 compliant.
1.3. Specifications and Features
* The higher frequency CPU should be compatible with AMD CPU
specificiation and the motherboard latest BIOS version which will
be released in our Web Site (url printed on the cover page).
VGAintegrated onboard
| KM400Asupporting VGAinterface for VGAdisplay
| Supporting 1x VGAconnector for CRT display

1-5
Chapter 1 Motherboard 7KM400MN
Award BIOS
| Supporting Plug & Play specification which detects the
peripheral devices and expansion cards automatically
| Supporting CD-ROM, SCSI, LAN BOOT, Temperature sen-
sor, LAN, Alarm Bus CLK setup
| Supporting Desktop Management Interface (DMI) func-
tion for recording mainboard specification
ATA133 On Board
| Supporting PIO Mode 5, Master Mode, high performance
hard disk drives.
| Supporting Ultra DMA 33/66/100/133 Bus Master Mode.
|Supporting4xIDEdevices,includingCD-ROM,CD-R,CD-RW,
LS-120 and high capacity hard disk drives with LBA mode
6-channelAC 97 Audio Codec
|AC 97 2.2 compatible Codec, 6-channelAudio interface.
SATARAIDInterface integrated
| South Bridge VT8237 supporting SATARAID interface for
RAID system configuration
| Supporting 2 x SATAconnectors for 2 RAIDHardDisks con-
figuration
WOL(Wake On LAN)
| Supporting system power-on by LAN Ring-up signal
CNR (CommunicationNetworking Riser) slot
| Supporting optionalAudio/LAN Riser card

1-6
Chapter 1 Motherboard 7KM400MN
1.4. 7KM400MN Layout Diagram
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS
15
16
1
13
14
11
19
12
4
3
18
17
24 2023
5
21
2
22
25
28
87 96 10
PCI 1
26
27
29
PCI 2
PCI 3
AGP4X/8X
30

1-7
Chapter 1 Motherboard 7KM400MN
7. CNR1: Communication Networking Riser Slot
8. JP1: Jumper for Audio Selection
9. FDD: Floppy Drive Connector
10. JBAT1: Jumper for clearing CMOS
11. J4: Jumper for VLink Clock Select
12. WOL1: Wake-on LAN connector
13. PANEL1: Front Panel connectors
14. FAN1: Cooling Fan connector
15. CN2/3: Serial ATA connector
16. J5: Jumper for CPU Clock Select/Booting Select
17. IDE2: IDE connector
18. IDE1: IDE Connector
19. 2 x DDR DIMM slots
20. CPU Socket 462
21. FAN2: Cooling Fan connector
22. FAN3: Cooling Fan connctor
23. CN1: ATX Power connector
24. J10: Jumper for Keyboard / Mouse Power Select
25. J6: Jumper for USB Keyboard/Mouse Power Select
26. J2: Jumper for FSB Frequency Select
27. J1: Jumper for FSB Frequency Select
28. J3: Jumper for SATA Mode Select
29. DEBUG1: GPIO Error connector
30. J9: Modem Card Connector
1. Back Panel: Back Panel I/O Connectors ( Mouse, Keyboard, COM1,
VGA, Printer, USB0/1/2/3, LAN, Mic in, Line in, Speaker-out)
2. IR1: Connector for Infrared signal Receive/Transmit
3. SPDIF1: Sony/Philip Digital Interface Format) Audio Connector
4. J8: Front Audio Connector
5. CD-IN1: CD Audio In Connector
6. Rtl 8101L: LAN Controller
7KM400MN Component Layout :

1-8
Chapter 1 Motherboard 7KM400MN
The motherboard supports a maximized 3GB memory. It pro-
vides three 184-pin unbuffered DDR sockets and each supports
64MBto1GBDDRmemorymodule.
1.6.DDR SDRAM Installation
The motherboard operates with Socket 462 for AMD AthlonTM
and DuronTM processor. The CPU should always have a Heat Sink
and cooling fan attached to prevent overheating.
CPU Installation Procedures for Socket 462
1. Pull the lever sideways away from the socket then raise the
lever to a 90-degree angle.
2. Locate Pin 1 in the socket and look for the white dot or cut edge
in the CPU. Match Pin 1 with the white dot/cut edge then
insert the CPU.
3. Press the lever down to complete the installation.
Notch
1.5. CPU Installation
184-pin DDR Module
DDR Module Notch
DDR Module Rib
Tabs
Note: Push the tabs out. Insert the DDR memory modules into
the socket at a 90-degree angle then push down vertically to fit
onto place. When you plug or unplug DDR module, you must
check your power supply is OFF.
VIA
VT8237
Socket 462
VIA
KM400A
RTL 8101L
BIOS

1-9
Chapter 1 Motherboard 7KM400MN
1.7.1. Back Panel I/O Connectors
This motherboard provides the following back panel
connectors:
1.7. Connectors & Jumpers Setting
PS/2 Mouse
Parallel(Printer) Port
25-pin female
PS/2
Keyboard
USB0
Speaker
Line-in
Mic
USB1
USB Pin Signal
1 5V Power
2 USBDT-
3 USBDT+
4 GND
1.7.1.1. PS/2 Mouse / Keyboard CONN:
The motherboard provides a standard PS/2 mouse / Keyboard
miniDIN connector for attaching a PS/2 mouse. You can plug a
PS/2 mouse / Keyboard directly into this connector.
1.7.1.2. USB ports
The motherboard provides a OHCI(Universal Host Controller
Interface)&EHCI(EnhanceHostController Interface)Universal
Serial Bus Roots for connecting USB devices such as a
keyboard, mouse and other USB devices.
USB2/3
COM1 VGA
RJ45
(optional)
1.7.1.3. Serial Interface Port: COM1
The serial interface port is sometimes
referred to as an RS-232 port or an
asynchronous communication port. Mice,
printers, modems and other peripheral
devices are connected to COM1.
COM1
1234

1-10
Chapter 1 Motherboard 7KM400MN
Important:
To switch on your power supply, please make sure:
1. Memory Module is properly installed.
2. Power supply setup is OK.
Pin Signal Pin Signal
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 PS-ON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW-OK 18 -5V
9 5V_SB 19 5V
10 12V 20 5V
1.7.2.ATX Main Power Connectors:ATXPWR
This power connector supports instant power-on functionality,
which means that the system will boot up instantly when the
power connector is inserted on the board.
1
10
11
20
1.7.1.4. Parallel Interface Port
Sometimes called a Centronics port, the parallel port is almost
exclusively used with printers. The parallel port on your
system is a 25-pin,DB 25 connector.
1.7.1.5. Audio Ports
Speaker out is a connector for Speakers or Headphones.
Line in is used for external CD player, Tape player, or other
audio devices. Mic is a connector for the microphones.
1.7.1.6. VGA connector integrated on board
VGA connector integrated on board supporting VGA display.
1.7.1.7. RJ45 connector optional on board
RJ45 connector is optionally integrated on board for support of
100/10 Ethernet LAN interface.

1-11
Chapter 1 Motherboard 7KM400MN
VIA
VT8237
Socket 462
VIA
KM400A
RTL 8101L
BIOS
VIA
VT8237
Socket 462
VIA
KM400A
RTL 8101L
BIOS
1.7.3. Floppy Disk Connector: FDD
This connector supports the provided floppy drive ribbon
cable. After connecting the single end to the board, connect
the two plugs on the other end to the floppy drives.
1.7.4. Hard Disk Connectors: IDE1/IDE2
These connectors are provided with IDE hard disk ribbon
cable into the package . After connecting the end of cable
with single connector to the mainboard, connect the other
two connectors at the other end to your hard disk. If you
install two hard disks, you must configure the second drive
to Slave mode by setting its jumper settings. BIOS now
supports SCSI device or IDE CD-ROM boot up (see "HDD
Sequence SCSI/IDE First" & "Boot Sequence" in the BIOS
Features Setup of the BIOS SOFTWARE).
FAN 2/3 Pin Definition
1 N/C
2 +12VDC
3 CPU/Sys
1
3
2
FAN3 FAN 1
FAN2
1.7.6. CDAudio-In Connectors: CDIN1
CDIN1is the connectors for CD-Audio Input signal. Connect it
to CD-ROM CD-Audio output connector for CD audio output.
Pin CDIN1 Definition
1 CD-L
2 GND
3 GND
4 CD-R
FAN 1 Pin Definition
1 GND
2 +12VDC
3NC
1
3
2
1.7.5. Fan Connectors: FAN1 (CPU)/2/3

1-12
Chapter 1 Motherboard 7KM400MN
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS
1.7.7. IR infrared module: IR1 Connector
This connector supports the optional wireless transmission
and reception infrared module. You must configure the setting
through the BIOS setup to use the IR function.
IR1 Pin Assignment
1 +5V
2 CIRRX
3 IRRX
4 GND
5 IRTX
1
5
IR1
15SPDIF1
SPDIF Assignment
1 +5V
2 Key
3 SPDIFOUT
4 GND
5 SPDIFIN
1.7.9. FrontAudio Connector: J8
J8 provides connection to the Front Audio connectors of the
Front Audio Panel.
To use this Front Audio Connector, please remove the jumper
caps on it and connect it to the Front Audio Panel.
Pin 1 Mic In
Pin 3 VREFOUT
Pin 5 FR-IN
Pin 7 (NC)
Pin 9 FL-IN
Pin 2 Aud GND
Pin 4 Aud Vdd
Pin 6 FR-OUT
Pin 8 (Key)
Pin 10 FL-OUT
Remove the jumper caps to connect
this connector to the FrontAudio Panel
1
10
2
9
1.7.8. SPDIF Connector: SPDIF1
SPDIF1 is designed on board forDigitalAudio in/out.

1-13
Chapter 1 Motherboard 7KM400MN
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS

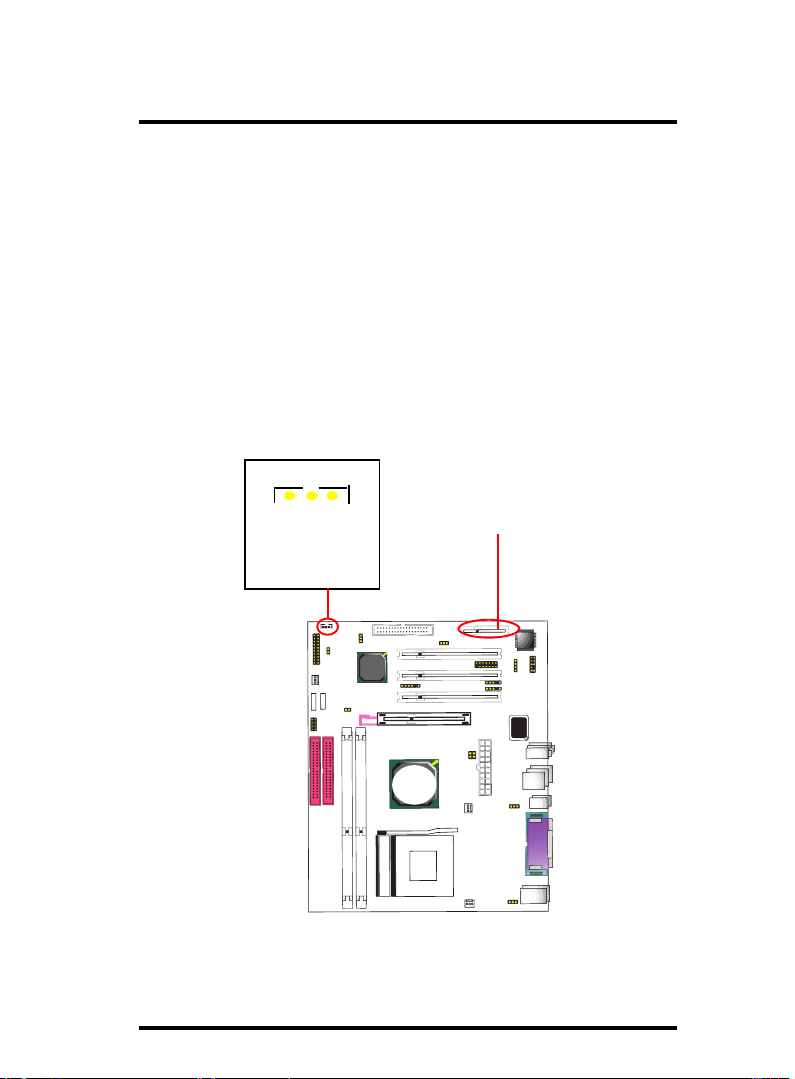

WOL1: Wake On LAN
1.7.11. Wake On LAN Connector: WOL1
WOL1 is a Wake On LAN (WOL) connector for transmitting the
Ring signal from a PCI LAN card to wake up system. If you use
a PCI LAN card for system networking, you can connect this
Wake On LAN connector to the PCI LAN card on board for
Wake On LAN function.
Pin1 5VSB
Pin3 LWake
Pin2 GND
1
1.7.10. Audio/LAN Riser Slot: CNR1
CNR1is a Communication/Networking Riser Slot forinstallation
of an optional Audio/LAN Riser Card.
CNR Slot

1-14
Chapter 1 Motherboard 7KM400MN
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS
1.7.12. Front Panel Connectors: PANEL1
PSSW
The system power is controlled by a momentary switch
connected to this lead. Pushing the button once will switch
the system ON.
PowerLEDLead(PW_LED)
The system power LED lights when the system power is on.
SpeakerConnector (SPEAKER)
The speaker (onboard or offboard) provides error beep code
information during the Power Self-Test when the computer
cannot use the video interface. The speaker is not connected
to the audio subsystem and does not receive output from the
audio subsystem.
HardDriveLEDConnector (HD_LED)
This connector supplies power to the cabinet IDE activity LED.
Read and write activity by devices connected to the Primary or
Secondary IDE connectors will cause the LED to light up.
The connector can be connected to a reset switch. Press this
reset switch to restart system.
ResetSwitchLead(RST)
Front Panel Connectors
PS SW
11
13
15
17
19
1
3
5
7
9
12
14
16
18
20
2
4
6
8
10
RST
HD LED
SPEAKER
PW LED
(+)
(+) (+)
(+)

1-15
Chapter 1 Motherboard 7KM400MN
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS
1.7.14. SerialATAConnectors: CN2/3
2x SATA Ports
Two SATA Connectors are built on board for high speed data
transfer rate up to 150MB/s. HardDiskDrive with SerialATA
Interface is supported by these two SATA Connector.
SATA Port
1.7.15. AGP 8X/4X Slot
AGP8X/4X Slot on board supportingAGP 8X/4X digital display
.
1.7.13. Modem Pin-header: J9 (optional)
J9 is a Modem Pin-header designed on board for a Modem card
setup.
CN2/3
214
13
1J9: Modem Header
AGP 8X/4 Slot supporting AGP 8X/4X Card

1-16
Chapter 1 Motherboard 7KM400MN
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS
1.7.16. CMOS Function Selector: JBAT1
When you have problem with booting system, you may clear
CMOS to restore the optimum default BIOS data.
1. Remove the Jumper cap of JBAT1 from 1-2.
2.After 1 or two seconds, set JBAT1 to 2-3 closed with the jumper
cap.
3. After 1 or two seconds, restore the JP3 to 1-2 closed.
Now, the CMOS RAM has restored to the optimum default
setting.
JBAT1 Function
1-2 Normal
closed (Default)
2-3
closed
1
1Clear CMOS
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS
1.7.17. PS2 / USB Keyboard Power Selector: J6
J6: PS2/USB3 Power Select
1-2 closed
1
1
(Default)
2-3 closed 5VSB select
J6is designed toselectthePS2 / USB3Keyboard Power function.
+5V select
J6

1-17
Chapter 1 Motherboard 7KM400MN
VIA
VT8237
Socket 462
VIA
KM400A
RTL
8101L
BIOS
1
CPU(MHz) 166 MHz
100 MHz
(default)
22
133 MHz
J1&J2 1
11
22
11
2
1.7.18. J1&J2, J3, J4, J5 Jumpers Setup
200 MHz
2
11
2
11
22
J2
J1
J3 12
J4 1
2
12
78
J5
2
J5
5-6 open 5-6 open 5-6 closed 5-6 closed
12 12 12 12
J3 12
SATADisabled
SATAEnabled J4
100MHz VLink
Disabled
100MHz VLink
Enabled
J5 3-4 open 3-4 closed 7-8 closed 7-8 open
12 12 12 12
From Boot
ROM From Hardware
strapping
(Default)
EEPROM
for vt8237
disabled
EEPROM
for vt8237
enabled

2-18
Chapter 2 7KM400MNDrivers & Utilities
There are motherboard drivers and utilities included in
the disc attached in this motherboard package. You don't
have to install all of them for booting your system. But after
you have finished the hardware installation, you have to in-
stall an operation system (such as windows XP) before you
are able to install any drivers or utilities.
You can use the auto-run menu in the driver CD attached in
the motherboard package. Then choose the utility or driver and
select model name. The autorun starting screen looks like below:
Chapter 2 Drivers & Utilities
Note: Please be aware of the different Procedures for installing
driversfor Windows 98/ME/XP/2000.
2.1.Auto-run Menu
(1)
Select"Driver".

2-19
Chapter 2 7KM400MNDrivers & Utilities
(2)
Select ModelName.
(3)
Clickonthe ModelNametoreveal
theMainDriverMenu.

2-20
Chapter 2 7KM400MNDrivers & Utilities
(1)
Click"Chipset"Itemon
theMainMenu.
(2)
Click"Next" to continue.
(3)
Click "Yes" to continue
Enter the item "Chipset" of the Autorun program and install
the VIA Service Pack. Follow the illustrations below :
2.2. Installing VIA4-in-1 Service Pack
(4)
Click"Next" to install VIA
ATAPIVenderSupport
Driver,AGPDriverandVIA
INFDriver.
(5)
TicktheRestartbuttonand
click "OK" to restart
system andcompletethe
Chipsetdriversetup.
