ACTi NVR 3.0 User manual

NVR 3.0
User’s Manual
2013/05/21
For V3.0.03 Version

www.acti.com
NVR 3.0 User’s Manual
2
About This Manual
Target Audience
This manual is intended for End Users who actually execute security tasks such as monitoring
activities, patrolling secured zones, searching video data and managing alarms with use of
NVR surveillance system. The reader is expected to own not only the basic operation skills but
permissions to access major functionalities, as the access rights are based upon different user
roles defined by the System Administrators.
You may also check video management system section on ACTi corporate website:
http://www.acti.com/nvr3 or updates or release information about this software and this
document.
Content Overview
This manual provides information needed for monitoring the whole system and playback
recordings. Its content consists of the following sections:
Login provides instructions on how to log in to NVR server system as different clients.
NVR User Interface Overview gives you a glance of the user interface components and
module functions.
Live View introduces the methods to add your desired channels and arrange your
customized live view layout on live view screen.
Monitoring provides guidance on how to read the system alerts and status, do live view
PTZ operations, take a snapshot and execute manual recording.
Playback gives instructions on how to perform synchronized playback and export files
from NVR server system.

www.acti.com
NVR 3.0 User’s Manual
3
Related Documentation
Since this manual focuses on operation instructions for live view operations, playback, search
video and export files from NVR server, there is very limited information about system
installation and configurations for System Administrator.System Administrators and End
Users who would like to obtain the instructions on NVR system setup, please acquire the
latest ACTi NVR 3.0 Administrator’s Manual from ACTi Corporation website via
http://www.acti.com/nvr3
Technical Support
For technical support or feedback, please contact our engineers via our Customer Help Desk
platform http://www.acti.com/CHD

www.acti.com
NVR 3.0 User’s Manual
4
Conventions Used in This Manual
The following are typographic conventions used in this manual:
Bold:Bold typeface is used for a keyword, major functions of NVR, or a title of a
section/column.
Italic:Italic typeface is used for a filename or location path.
Underlined: Underlined typeface is used for a document name or hyperlink.
“Bold”: Bold interface enclosed in double quotation marks indicates the name of a button or
a choice item.
Some notices are placed within the following boxes; each type of the box indicates different
purposes or levels of importance for system:
Important Notice
Tip
The content within this box is a tip. A tip gives you an alternative method to easily or quickly
achieve an objective, usually for specific conditions.
The content within this box is an important notice. This notice is important for you to get
certain function to work properly, or to prevent from certain potential problems that may damage
your system.Make sure you read this notice and follow the instructions.
Note
The content within this box is a note. A note is some necessary information you need to know
about the action you are currently taking, like what will happen after you follow or don’t follow
certain procedure.

www.acti.com
NVR 3.0 User’s Manual
5
Legal Notice
Disclaimer
The information contained in this document is intended for general information purposes.
ACTi Corporation shall not be liable for errors contained herein or for incidental or
consequential damages arising from the furnishing, performance, or use of this manual.
The information contained herein is subject to change without notice.
The English version of this document is the official one for all purpose. All the translated
versions are provided as a convenience. Any discrepancies or differences created in the
translations of any other languages are not legally binding.
Copyright
Copyright © 2003-2012 ACTi Corporation All Rights Reserved.
Trademarks
ACTi Connecting Vision and its logo are registered trademarks of ACTi
Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
All other product or company names mentioned in this document may be trademarks or
registered trademarks of their respective owners.

www.acti.com
NVR 3.0 User’s Manual
6
Table of Contents
1About This Manual 2
Target Audience .................................................................................... 2
Content Overview ................................................................................. 2
Related Documentation ........................................................................ 3
Technical Support .................................................................................. 3
Conventions Used in This Manual ......................................................... 4
2Legal Notice 5
Disclaimer ……………………………………………………………………….5
Copyright ……………………………………………………………………….5
Trademarks ............................................................................................ 5
3Table of Contents 6
4Overview 9
ACTi NVR Server / Client Architecture ................................................... 9
5Log In to the System 10
Access NVR 3.0 Server via Internet Explorer Browser .......................... 10
From Server Computer ................................................................10
From Another Computer ..............................................................10
Login............................................................................................11
Enter Account & Password 11
Change UI language 11
Remember Login Information 11
Set Auto Login 11
Access NVR 3.0 Server via NVR3 Workstation...................................... 12
Login............................................................................................12
Server IP & Server Port 12

www.acti.com
NVR 3.0 User’s Manual
7
Choose the Initial Screen 12
6NVR User Interface Overview 13
NVR Resident Toolbars ........................................................................ 13
NVR Main Module Screens .................................................................. 15
Live View......................................................................................15
Playback.......................................................................................15
Setup............................................................................................15
7Live View 16
Watch Live View .................................................................................. 17
Select a View ...............................................................................17
Select a Camera ..........................................................................18
Device List 18
Remove a Channel ......................................................................19
Remove All Channels...................................................................19
Enable View Patrol.......................................................................20
8Monitor the System 21
Acknowledge System Alerts and Channel Status ................................ 21
Channel Status ............................................................................21
Event Panel..................................................................................22
Instant Event Playback.................................................................23
Pop-up Event Playback................................................................24
Hot-Spot Window.........................................................................24
Live View Operations........................................................................... 25
Show Mini Live View Windows on a Map .....................................25
Adjust Audio-in Volume ................................................................26
Send Audio Signal........................................................................26
Trigger Digital-out Device.............................................................27
Watch Instant Playback of a Channel...........................................28
Manual Recording........................................................................28
Take a Snapshot of Live View Image............................................29
Digital PTZ...................................................................................29
Optical PTZ (Pan/Tilt/Zoom) Operations via PTZ Panel...............30

www.acti.com
NVR 3.0 User’s Manual
8
Optical PTZ (Pan/Tilt/Zoom) Navigation on Channel ...................31
9Playback 32
Playback UI Introduction ..................................................................... 32
How to Do Playback ............................................................................ 33
Add Video Source ........................................................................33
Remove Unwanted Channels.......................................................33
Search on Time Bar.............................................................................. 34
Display Event Types.....................................................................35
Event Type Highlight Colors 35
Playback Controls........................................................................35
Turn On Daylight Saving Time Function.......................................35
Digital Zoom on Playback.................................................................... 36
Search by Filter .................................................................................... 37
View Search Results....................................................................38
Take a Snapshot of the Playback View................................................ 39
Export the Recordings ......................................................................... 40
Define the Section of Exported Video on Time Bar......................40
Set the Export Video Settings......................................................41

www.acti.com
NVR 3.0 User’s Manual
9
Overview
ACTi NVR 3.0 is a Windows-based software that provides distributed network video
surveillance solution with full functionality. This software supports centralized management,
real-time monitoring and recording of up to 100 ACTi video streaming devices from local or
remote network, with rule-based services to trigger multiple schedules and events.
ACTi NVR Server / Client Architecture
ACTi NVR 3.0 is a typical web-based server/client system. In a video surveillance system
architecture, the Server serves as a video management service provider, aimed to run 24/7
offering non-stop services for clients. A Client makes requests of monitoring video streams or
playback recordings to Server, which can reside on the same computer with server program
(as from local) or on another computer (as from remote). Server starts automatically as soon
as the Server computer (where it is installed) boots up, and operates in the background
without requiring login by administrator. It would provide services over the TCP/IP network to
multiple Clients upon request through HTTP Protocol.
There are two types of Clients in NVR 3.0 system: Web Client and Workstation Client. A
user, connecting from whether web browser or workstation, will enjoy the same user interface
and NVR functions.
Web Client:the web version of interface to access NVR server without need of installing any
client program to become a client. Logging in the NVR server is as simple as visiting a website
through IE browser.
Workstation Client: the client application making accessing NVR server free from the use
of browser .The workstation includes a set of programs that provide interface between users
and the NVR server.

www.acti.com
NVR 3.0 User’s Manual
10
Log In to the System
There are two types of clients in NVR 3.0 system: Web Client and Workstation Client.
Both clients will enjoy the same user interface and functions.A web client can access NVR 3.0
system via the Windows default browser: Internet Explorer; while a workstation client
requires the NVR3Worksation pre-installed on the computer. This section will include the said
methods to access your NVR 3.0 system.
Access via Internet Explorer Browser
The computer where NVR server is installed is called Server Computer. You may access the
server directly via Internet Explorer or NVR3Workstation on any computer within the same
network with the server computer.
From Server Computer
If you are connecting to NVR server on the server computer (where NVR server program is

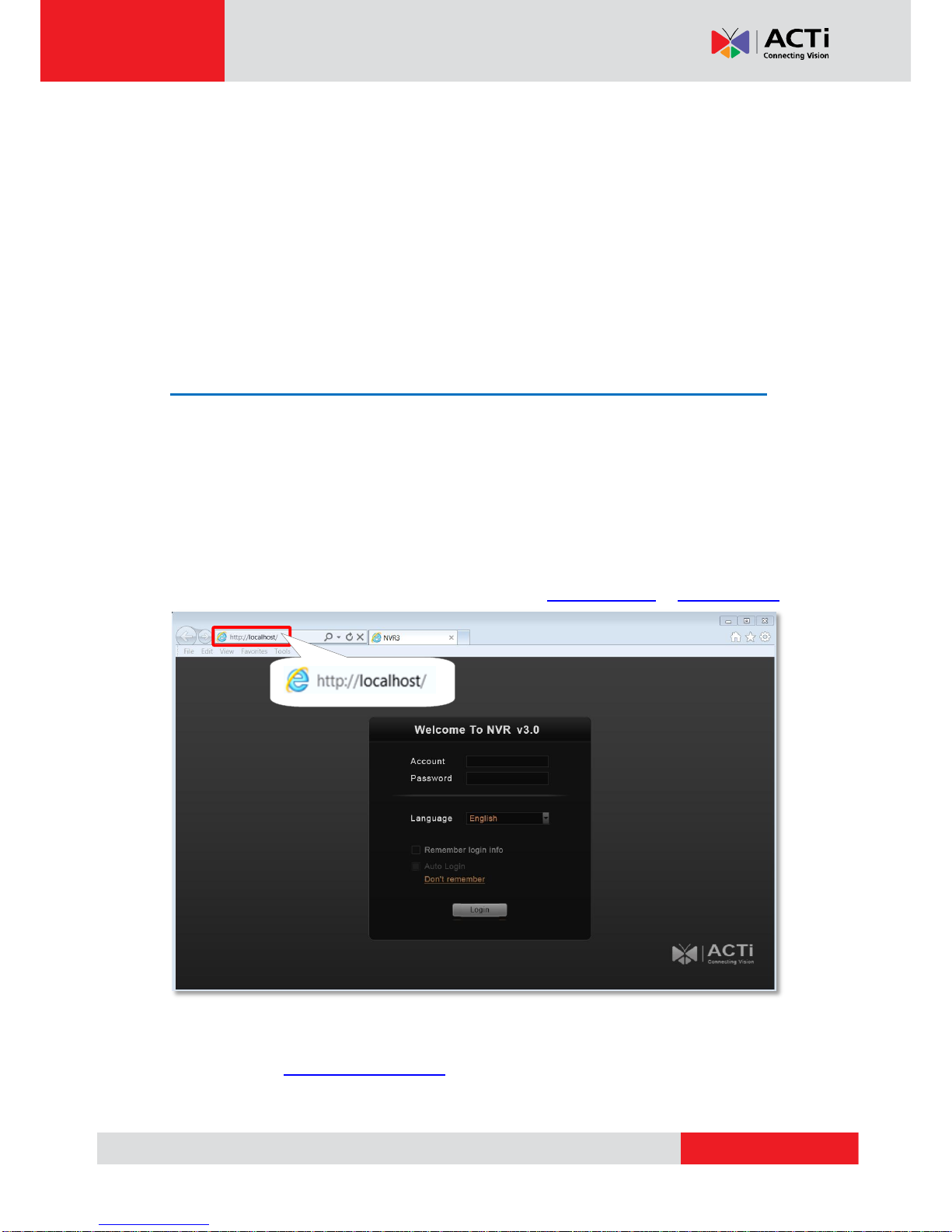

un-installed). Please open your browser, in URL box, type http://localhost/ or http://127.0.0.1
From Another Computer
If you are connecting to NVR server on another computer, please open your IE browser, in
URL box, type in http://server ip address.
