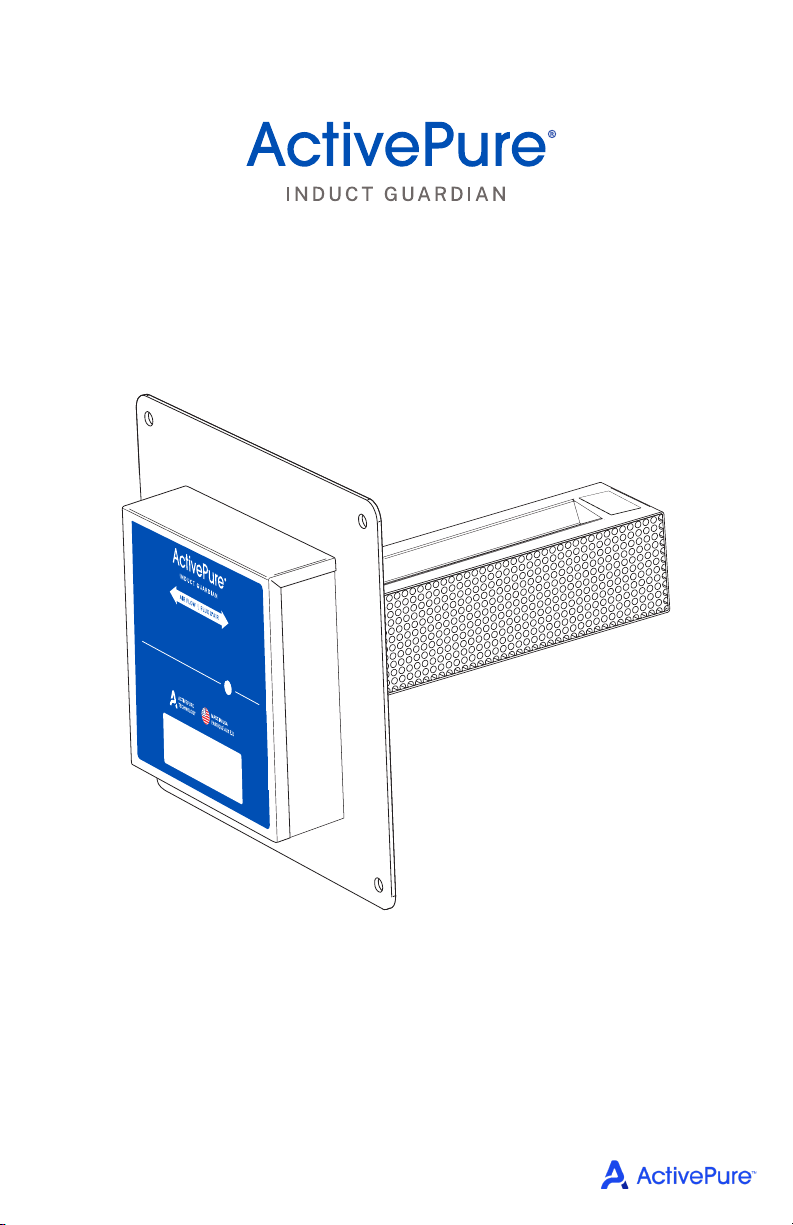

ActivePure Induct Guardian User manual

Lampe UV en march e lorsque le voyant est allumé.
UV Lamp in operation when lit.
HVAC ENVIRONMENTAL CONDITIONING SYSTEM
SYSTÈME DE CONDITIONNEMENT D’AIR CVC
READ MANUAL CAREFULLY FOR PROPER USE AND OPTIMAL OPERATION.

2
GENERAL INFORMATION
If you have any questions concerning this, or any ActivePure product,
contact ActivePure Customer Service at 800.572.1446 or email
[e-mail].
CONTENTS
Product Overview . . . . . . . . . . 2
Specifications. . . . . . . . . . . . 2
Storage and Disposal . . . . . . . . . 2
Important Safety Instructions. . . . . . 3
For Canadian Customers Only . . . . . 4
Product Features . . . . . . . . . . 5
Installation Hardware (Supplied). . . . . 5
Recommended Installation Tools . . . . 5
Installation Requirements . . . . . . . 6
Electrical Requirements . . . . . . . . 6
Installing the Unit . . . . . . . . . . 7
Wiring the Unit . . . . . . . . . . . 9
Maintenance/UV Bulb Indicator . . . . . 9
Changing the ActivePure®Cell . . . . . 10
Replacing the Ballast . . . . . . . . . 11
Replacement Parts & Service. . . . . . 13
Warranty Information . . . . . . . . . 13
FCC Declaration & Responsible Party . . 14
PRODUCT OVERVIEW
Congratulations on your purchase of the ActivePure®Induct Guardian! The unit is easily mounted into the
supply side of air conditioning and heating system air ducts by an electrician or HVAC professional, where
it will provide 24/7 surface and air disinfection. Please read and follow all service procedures outlined in
this manual before installing or performing maintenance.
STORAGE AND DISPOSAL
Do not dispose of this product as household waste.
Electrical waste and electronic products should be
appropriately recycled as required by practices
established by your local authority.
LR1096
SPECIFICATIONS
ActivePure Induct Guardian
• Model Number: A1023E
• Sales Number: 00774
Technology:
• ActivePure®
Electrical:
• Input Voltage: 120/240 VAC, 50/60Hz
• Current: 0.17 A
• Power: 19 Was
• Complies to UL 1598
Mechanical:
• Distribution via Air Handler
Safety Switch Installed
Weight & Dimensions:
• 3 lbs (1.2 kg)
• 8.5” H x 8.5” W x 11” D
(21.59 cm x 21.59 cm x 27.94 cm)
Operating Temperature:
• 34 ºF to 200 ºF (1 ºC – 93 ºC)
Recommended Maximum Coverage in a
Contiguous Space1:
• Every facility is unique and proper configuration
is an important as the technology. To validate
coverage in your facility, speak to your sales
representative or call customer service at
800-572-1446.
Warranty:
• Limited Five (5) Year Warranty
ActivePure Manufacturing, LLC reserves the right to
change or modify any specification without notice.

3
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
• UV Light in operation; do not operate unless the unit is completely
and correctly assembled; failure to follow warnings may result in
severe eye damage and electrical shock
• To prevent damage to the unit, operating environment temperature
must never exceed 200 oF (93 oC)
• To reduce the risk of electric shock, this equipment may have a
grounding type plug that has a third (grounding) pin; this plug will only
fit into a grounding type power outlet; if the plug does not fit into the
outlet, contact qualified personnel to install the proper outlet; DO
NOT alter the plug in any way
• This unit is equipped with a universal ballast that operates at nominal
voltages between 120 and 240 VAC, 50/60 Hz
• To Reduce the Risk of Electric Shock – DO NOT use in wet or damp
locations; this equipment emits UV-C radiation; DO NOT locate
equipment in any location allowing direct line-of-sight to vents,
returns, or other duct openings
• DO NOT use this unit with an extension cord
WARNING
Location for Protective Earth Line.
CAUTION
• Wiring and installation of this unit must be done by a licensed HVAC
contractor or electrician; failure to do so will void warranty of the
product
• When the unit is installed in a roof mounted HVAC system, the unit
must be protected from the elements
Read this manual in its entirety before using your ActivePure®Induct Guardian.
Keep out of the reach of children.
• Live voltage may be present
• Disconnect power at the breaker or fuse panel before servicing unit; always follow OSHA lockout
procedures to prevent accidental exposure to electrical energy
• If installed near a furnace or where emergency heat coils could raise the temperature inside the
plenum, cycle the AC unit through three full heating cycles assuring that the temperature never
exceeds 200 °F (93 °C); the ActivePure®Cell must not exceed 200 °F (93 °C)
• If the unit is hard wired, be sure the power to the unit is o; always follow OHSA electrical lockout
safety requirements to prevent accidental release of energy during service or maintenance
activities
• Never aempt to check operation of the ActivePure®Cell(s) by direct observation; severe eye
damage can result; use the indicator lamps on the boom of the ballast only

4
FOR CANADIAN CUSTOMERS ONLY
ACTIVEPURE®INDUCT GUARDIAN
Sales No. : 00774
This UV device helps reduce the spread of viruses in the air.
Keep out of the reach of children.
Please read the label and owner's manual before using: www.activepure.com/manuals
PRECAUTIONS:
WARNING: UV radiation emied from this device. Unintended use of the device, or damage to the housing,
may result in exposure to ultraviolet radiation. Ultraviolet radiation may cause eye and skin irritation. Avoid
exposing eyes and skin to ultraviolet radiation.
FIRST AID INSTRUCTIONS: Please contact your healthcare provider in the event of injury caused by this
device.
DIRECTIONS FOR USE:
Unit should be installed aer the air handler in the HVAC system by a licensed HVAC contractor or
electrician. Please see owner's manual for detailed instructions on using, handling, storing and disposing of
the device, and procedures to mitigate any associated risks.
The use of this device is a supplement to and not a substitute for standard infection control practices; users
must continue to follow all current infection control practices, including those related to the cleaning and
disinfection of environmental surfaces.
FOR INQUIRIES CONTACT:
AERUS CANADA, INC.
Laird Business Park
3480 Laird Road, Units 2–5
Mississauga, Ontario, Canada, L5L 5Y4
W. Parrell, Manager
[phone]
[email protected]
Aerus Canada, Inc. is ailiated with ActivePure Manufacturing, LLC
1300 Valley Drive, Bristol, VA 24201

5
It is important to be familiar with the parts of the ActivePure®Induct Guardian. If any parts are missing,
contact your sales representative or ActivePure Customer Service.
PRODUCT FEATURES
LampeU Ven mar che lorsque le voyant est allumé.
UVLa mp in operation when lit.
HVACENVIRONMENTAL CONDITIONING SYSTEM
SYSTÈME DE CONDITIONNEMENTD’AIR CVC
Mounting PlateSafety Switch
UV Bulb
Indicator
Replaceable ActivePure Cell
(Includes UV Bulb)
INSTALLATION HARDWARE SUPPLIED
(8) #8 — .75 1/4" Self-tapping screws
Item # US7067
(2) Thumb screws
Item # 36-00213
(4) Thumb nuts
Item # 36-00214
(4) #6 — 32 x 2 inch Threaded bolts
Item # US70680 (4) #6 — 32 Toggle
bolt wall anchors
Item # US70682
RECOMMENDED INSTALLATION TOOLS
3 1/2" Hole Saw
for wood or metal
(recommended)
Utility Knife
1/4" Nut
Driver Bit
Drill / Power
Driver
Tin Snips
(for metal ductwork)
Phillips
Screwdriver
Dust Mask
3/8" Drill Bit
(if installing into fiberglass
ducting with toggle bolts)
1/4
YOU MAY ALSO NEED:
When the unit is installed in a roof mounted HVAC system, the unit
must be protected from elements.
CAUTION

6
INSTALLATION REQUIREMENTS
• This unit must be installed by a licensed HVAC contractor or
electrician; failure to do so will void warranty of the product
• When the unit is installed in a roof mounted HVAC system, the unit
must be protected from the elements
If installed near a furnace or where emergency heat coils could raise
the temperature inside the plenum, cycle the AC unit through three full
heating cycles assuring that the temperature never exceeds 200 °F
(93 °C). The ActivePure®Cell must not exceed 200 °F (93 °C).
WARNING
For 120V Domestic Units: Black = L1, White = Neutral, Green = Ground
For 220V Commercial Units: Black = L1, White = L2, Green = Ground
For 230V International Units: Brown = L1, Blue = L2, Green w/yellow stripe = Ground
ELECTRICAL REQUIREMENTS
• Wiring of the unit into your HVAC system should be done by a
licensed HVAC installer or electrical contractor only
• This unit is equipped with a universal ballast that operates at
nominal voltages between 100 and 240 VAC, 50/60 Hz
CAUTION
To Reduce the Risk of Electric Shock – DO NOT use in wet or damp
locations. This equipment emits UV-C radiation. DO NOT locate
equipment in any location allowing direct line-of-sight to vents,
returns, or other duct openings. Disconnect from supply before
servicing or replacing.
WARNING
1. The ActivePure®Induct Guardian unit should be installed
aer the air handler in the HVAC system.
2. The ductwork around the installation area should be clean
and dry to ensure proper adhesion of the gasket materials
and any tape used.
3. When installing near a furnace or heating coils, run the
heating system through three (3) full heating cycles to
ensure the temperature of the INDUCT unit does not
exceed 200 ˚F (93 °C).
4. An approximate 3.5” (8.89 cm) opening will need to be cut
into the existing ductwork to install the unit properly.
5. Aer a few minutes, adjust the control to the desired speed.
Min. 8” x 8”
Air Handler
Max.
6 .
NOTE: Unit requires power 24/7. Do not install where power to the unit will be cycled on and o.
Installation Clearance
CAUTION

7
INSTALLING THE UNIT
1. Locate suitable
area of duct for
installation.
2. Cut away insulation to
expose metal duct (if
needed).
3. Mark location for
3.5" opening using the
mounting plate.
To Reduce the Risk of Electric Shock – DO NOT use in wet or damp
locations; this equipment emits UV-C radiation. DO NOT locate
equipment in any location allowing direct line-of-sight to vents, returns,
or other duct openings. Disconnect from supply before servicing or
replacing.
WARNING
• Hard wiring unit into HVAC system must be done by a licensed HVAC
installer or electrical contractor only
• When the unit is installed in a roof mounted HVAC system, the unit
must be protected from elements
• Unit requires power 24/7; DO NOT install where power to the unit will
be cycled on and o
Find the optimal position downstream from the air handler. Ensure location in duct has enough room for the
mounting plate. It is recommended for maximum eectiveness that the unit be placed as close to the air
handler as possible.
CAUTION
a. Using the mounting plate,
mark four cuing method
holes on duct.
b. Drill four holes where
marked.
c. Cut between holes
using tin snips.
ALTERNATE CUTTING METHOD:

8
5. Remove backing from
mounting plate adhesive
gasket.
6. Center openings and press
mounting plate onto duct.
The adhesive gasket will hold
the mounting plate in place.
1/4
7. Secure the mounting plate
using (8) #8 self-tapping screws.
8. Insert unit into opening.
Be sure the air will pass
though the ActivePure®Cell
honeycomb matrix.
9. Secure the unit to the
mounting plate with (4)
thumb nuts.
10. Plug unit into working
power receptacle.
NOTE: Unit requires power 24/7. Do not install where power to the unit will be cycled on and o.
INSTALLING THE UNIT CONT.
4. Cut hole in duct
using 3.5" hole saw.

9
2. Connect the unit to the load side of the proper fan relay.
4. Check indicator light for proper operation with fan on.
1. Connect wires coming from the ActivePure®Induct Guardian unit as follows:
NOTE: All units come standard with a blunt cord.
120 Volt Unit:
Black Wire L1
White Wire Neutral
Green Wire Ground
220 Volt Unit:
Black Wire L1
White Wire L2
Green Wire Ground
International Unit:
Brown Wire L1
Blue Wire L2
Green with
Yellow Stripe Ground
Disconnect power at the breaker or fuse panel before servicing unit.
Always follow OSHA lockout procedures to prevent accidental exposure
to electrical energy.
WARNING
3. Be sure to ground the ballast by securing the unit to the metal surface
of the AC unit or power box.
Hard wiring unit into HVAC system should be done by a licensed HVAC
installer or qualified electrical contractor only.
CAUTION
WIRING THE UNIT
Your ActivePure®Induct Guardian unit requires no periodic maintenance
beyond normal replacement of the ActivePure®Cell every one (1) year.
The UV Bulb Indicator operation indicator on the face of the unit will glow
when the UV bulb is in use. If the indicator does not glow and the unit has
power, the ActivePure®Cell should be replaced.
NOTE: For optimal performance and to maintain the Limited 5 year warranty,
it is required to replace the ActivePure®Cell once every year, even if
the UV bulb appears to be operating normally.
LampeU Ven marche lorsque le voyantest allumé.
UV Lamp in operationwhen lit.
HVAC ENVIRONMENTAL CONDITIONING SYSTEM
SYSTÈME DE CONDIT IONNEMENTD’AIR CVC
MAINTENANCE / UV BULB INDICATOR
UV Bulb
Indicator

10
CHANGING THE ACTIVEPURE®CELL
1. Disconnect (unplug)
power cord from unit.
2. Remove the (4) thumb nuts. 3. Remove the unit from the
mounting plate.
Power Cord
5. Remove the used
ActivePure Cell from the base
unit and dispose of the bulb
properly.
4. Remove the two thumb
screws holding the
ActivePure Cell.
6. Plug the new ActivePure Cell
into the base unit. Be sure
Air Flow / Honeycomb Cell
direction is correct.
WARNING
• UV Light in operation; disconnect unit from power cord before
servicing; failure to follow warnings may result in severe eye damage
• If the unit is hard wired, be sure the power to the unit is o; always
follow OHSA electrical lockout safety requirements to prevent
accidental release of energy during service or maintenance activities
7. Secure with (2)
thumb screws.
8. Insert the unit into the
mounting plate.

11
9. Secure unit with (4)
thumb nuts.
10. Reconnect power
supply.
Power Cord
NOTE: Always follow OHSA electrical lockout safety requirements to prevent accidental release of energy
during service or maintenance activities.
Visit www.lamprecycle.org for proper bulb disposal regulations
REPLACING THE BALLAST
2. Open the ballast housing by
removing the four (4) screws, then
remove the cover.
Lampe UVe n marche lorsque le voyant est allu mé.
UV Lamp in operation when lit.
HVACENVIRO NMENTAL CONDITIONING SYSTEM
SYSTÈME DE CONDITIONNEMENT D’AIRCVC
1. Disconnect (unplug) power cord from
unit.
Power Cord
• Never aempt to check operation of the ActivePure®Cell(s) by direct
observation; severe eye damage can result; use the indicator lamps
on the boom of the ballast only
• Disconnect power at the breaker or fuse panel before servicing
unit; always follow OSHA lockout procedures to prevent accidental
exposure to electrical energy; release of energy during service or
maintenance activities
WARNING
CHANGING THE ACTIVEPURE®CELL CONT.

12
REPLACING THE BALLAST CONT.
LampeU Ven m arche lorsque le voyant est allumé .
UVL amp in operation when lit.
HVACENVIRONMENTAL CONDITIONING SYSTEM
SYSTÈME DE CONDITIONNEMENTD ’AIRCVC
7. Replace cover and secure with
the original four (4) screws.
8. Re-install unit if removed from duct.
Reconnect power and check for
proper operation.
LampeUV en march e lorsque le voyant est allumé.
UVLamp in op eration when lit.
HVACENVIRONMENTAL CONDITIONING SYSTEM
SYSTÈMEDE C ONDITIONNEMENTD’AIR CVC
UV Bulb
Indicator
6. To reconnect wiring, (A) press each tab on the ballast and insert wire.
(B) Release tab and gently pull wire to ensure it is properly locked into place.
LED+ LED- RED RED BLUE BLUE
BLACK WHITE GREEN
A
B
UPPER (6 terminals)
• Black LED wire in LED+
• White LED wire in LED-
• 2 Blue wires in BLUE
• 2 Red wires in RED
LOWER (3 terminals)
• Black power wire in BLACK
• White power wire in WHITE
• GREEN is not used
NOTE: UV Bulb Indicator should be
lit when in operation.
4. Remove the two (2) nuts
securing ballast to the case.
Remove the ballast.
5. Place new ballast into
the original location and
secure using the two nuts
removed in step 4.
3. Disconnect all ballast
wiring by pressing down on
connector tabs and pulling
wire straight out.

13
ActivePure®Cell
REPLACEMENT PARTS QTY PART NUMBER
Ozone Free ActivePure®Cell US71088
Ballast 9950255
To order replacement parts, contact your sales representative or ActivePure
Customer Service for further assistance at 800.572.1446 or email
[e-mail].
REPLACEMENT PARTS  SERVICE
Limited Five (5) Year Warranty
To register your ActivePure®Induct Guardian unit, visit www.activepure.com/warranty.
To view full details on warranty coverage, visit www.activepure.com/manuals.
WARRANTY INFORMATION
If you have any questions concerning this, or any ActivePure product,
contact ActivePure Customer Service at 800.572.1446 or email
[e-mail].
Ballast

14
This equipment has been tested and
found to comply with the limits for
a Class B digital device, pursuant of
part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy, and if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or
television, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
• Consult the Independent Contractor
for help.
FCC Declaration of Conformity
Name: ActivePure®Induct Guardian
Model: A1023E
Produced by: ActivePure Manufacturing, LLC
This device complies with Part 15 of the
FCC Rules.
Responsible Party
ActivePure Manufacturing, LLC
1300 Valley Drive
Bristol, VA 24201
Ph: 800.572.1446
Signature:
Printed Name: Andrew Eide
Title: Vice President of Product Development
and Manufacturing
Date: 01/11/22
FCC DECLARATION  RESPONSIBLE PARTY

15

16
For information regarding the use of this product, please call Customer Service.
1.800.572.1446 or email at customerser[email protected]
www.activepure.com
™
ActivePure Manufacturing, LLC | 1300 Valley Drive | Bristol, VA 24201 | 800.572.1446
Assembled in U.S.A. | © ActivePure Manufacturing, LLC. All Rights Reserved
AIG_OM_65-00857_VA-01710C

17
Lampe UV en march e lorsque le voyant est allumé.
UV Lamp in operation when lit.
HVAC ENVIRONMENTAL CONDITIONING SYSTEM
SYSTÈME DE CONDITIONNEMENT D’AIR CVC
LIRE ATTENTIVEMENT LE MANUEL AFIN D’UTILISER CORRECTEMENT
L’APPAREIL ET D’ASSURER SON FONCTIONNEMENT OPTIMAL.

18
INFORMATIONS GÉNÉRALES
Si vous avez des questions concernant cet appareil ou un autre produit
ActivePure®, contactez le service à la clientèle ActivePure®au 1.800.572.1446
ou par courriel à l’adresse [e-mail].
TABLE DES MATIÈRES
Description du produit . . . . . . . . 18
Spécifications. . . . . . . . . . . . 18
Stockage et mise au rebut . . . . . . . 18
Consignes de sécurité importantes . . . 19
Pour les clients au Canada seulement . .20
Caractéristiques du produit . . . . . . 21
Matériel d’installation (fourni) . . . . . . 21
Outils d’installation recommandés . . . . 21
Exigences d’installation . . . . . . . .22
Installation électrique . . . . . . . . .22
Installation de l’appareil . . . . . . . .23
Branchement de l’appareil . . . . . . .25
Entretien/Indicateur de lampe UV . . . .25
Remplacement de la cellule ActivePure®. .26
Changer le ballast . . . . . . . . . .27
Pièces de rechange et service . . . . .29
Informations relatives à la garantie . . . .29
Déclaration FCC et partie responsable . 30
DESCRIPTION DU PRODUIT
Félicitations pour votre achat de l’ActivePure®Induct Guardian! L’unité se monte facilement sur le côté
alimentation des conduits d’air d’un système de climatisation et de chauage, par un électricien ou un
professionnel du CVC, afin d’assurer une désinfection des surfaces et de l’air 24 h/24 et 7 j/7. Veuillez lire et
suivre toutes les procédures d’entretien décrites dans le présent manuel avant de l’installer ou de le réparer.
STOCKAGE ET MISE AU REBUT
Ne pas jeter ce produit comme déchet ménager.
Les déchets électriques et les produits
électroniques doivent être recyclés
convenablement, conformément aux pratiques
établies par votre administration locale.
LR1096
SPÉCIFICATIONS
ActivePure Induct Guardian
• Numéro de modèle: A1023E
• Numéro de série: 00774
Technologie:
• ActivePure®
Électrique:
• Tension d’alimentation : 120/240 VCA, 50/60 Hz
• Courant : 0,17 A
• Puissance : 19 W
• Conforme à la norme UL 1598
Mécanique:
• Distribution par une unité de traitement
de l’air avec interrupteur de sécurité
Poids et dimensions:
• 3 lb (1,2 kg)
• 8, 5 po H x 8,5 po L x 11 po P
(21,59 cm x 21,59 cm x 27,94 cm)
Température de fonctionnement:
• 34 °F à 200 °F (1 °C — 93 °C)
Couverture maximale recommandée pour un
espace étroit1:
• Chaque lieu est unique et une bonne
configuration est aussi importante que la
technologie. Pour approuver la couverture dans
votre bâtiment, consultez votre représentant
commercial ou contactez le service à la clientèle
au 1.800.572.1446.
Garantie:
• Garantie limitée de cinq (5) ans
ActivePure®Manufacturing, LLC se réserve le droit de
modifier des spécifications sans préavis.

19
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVER CES CONSIGNES
• Lampe UV en marche; ne pas faire fonctionner l’appareil avant qu’il
ne soit complètement et correctement monté; le non-respect de
cet avertissement peut entraîner de graves lésions oculaires et une
décharge électrique
• Pour éviter d’endommager l’appareil, la température de
l’environnement de marche ne doit pas dépasser 200 oF (93 oC).
• Afin de réduire les risques de décharge électrique, cee unité peut
posséder une fiche de courant avec mise à la terre avec une troisième
broche (de mise à la terre); Cee fiche ne s’insère que dans une
prise de courant avec mise à la terre; si la fiche ne s’insère pas dans
la prise, demandez à un professionnel qualifié d’installer une prise
adéquate; NE PAS modifier la fiche de quelque manière que ce soit
• Cet appareil est équipé d’un ballast universel fonctionnant avec une
tension nominale comprise entre 120 et 240 VCA, 50/60 Hz
• Afin de réduire les risques de décharge électrique, NE PAS
utiliser dans des lieux mouillés ou humides; cet appareil émet un
rayonnement UVC; NE PAS placer l’unité dans des lieux permeant
une exposition directe aux ventilations, retours ou autres bouches
d’aération
• NE PAS utiliser cet appareil avec une rallonge
MISE EN
GARDE
Emplacement de la mise à la terre.
ATTENTION
• Le branchement et l’installation de cet appareil doivent être eectués
par un fournisseur ou un électricien agréé en CVC, sinon la garantie
du produit sera annulée
• Si l’appareil est installé dans un système CVC fixé sur un toit, il doit
être protégé des éléments
Veuillez lire entièrement ce manuel avant d’utiliser votre ActivePure®Induct Guardian.
Garder hors de la portée des enfants.
• Possibilité de haute tension
• Débranchez l’alimentation dans le tableau des disjoncteurs ou des fusibles avant de faire l’entretien;
suivez toujours les procédures de verrouillage OSHA afin de prévenir une exposition accidentelle à
l’énergie électrique
• En cas d’installation près d’un appareil de chauage central ou à un endroit où des serpentins
chauants pourraient augmenter la température de la chambre de distribution, faites fonctionner
l’unité d’air conditionné pendant trois cycles de chauage complets en vous assurant que la
température ne dépasse jamais 200 °F (93 °C); la cellule ActivePure®ne doit pas dépasser 200 °F (93 °C).
• Si l’appareil est branché par un câble, assurez-vous que l’alimentation de l’appareil est coupée; suivez
toujours les procédures de verrouillage OHSA afin de prévenir une fuite accidentelle d’énergie durant
l’entretien
• N’essayez jamais de vérifier le fonctionnement des cellules ActivePure®par observation directe, cela
peut provoquer des dommages oculaires graves; utilisez uniquement les indicateurs de lampe UV en
bas du ballast

20
POUR LES CLIENTS AU CANADA SEULEMENT
ACTIVEPURE®INDUCT GUARDIAN
Numéro de série: 00774
Ce modèle à rayons UV permet de réduire la propagation.
des virus dans l’air. Garder hors de la portée des enfants.
Veuillez lire l’étiquee et le guide du propriétaire avant l’utilisation: www.activepure.com/manuals
PRÉCAUTIONS:
MISE EN GARDE: Cet appareil émet des rayonnements UV. L’utilisation involontaire de cet appareil ou un
boîtier endommagé peut entraîner l’exposition à des rayons ultraviolets. Les rayonnements ultraviolets
peuvent irriter les yeux et la peau. Évitez d’exposer vos yeux et votre peau aux rayons ultraviolets.
INSTRUCTIONS POUR LES PREMIERS SOINS: Veuillez contacter votre professionnel de la santé en cas
de blessure causée par cet appareil.
MODE D’EMPLOI:
L’appareil doit être installé sur l’unité de traitement de l’air dans le système CVC par un fournisseur ou
électricien agréé en CVC. Veuillez consulter le manuel d’utilisation pour des instructions détaillées sur
l’utilisation, la manipulation, le stockage et la mise au rebut de l’appareil, ainsi que les procédures pour
réduire tout risque connexe.
L’utilisation de cet appareil agit en complément des pratiques standards de contrôle des infections et ne
représente donc pas un moyen de substitution à celles-ci. Les utilisateurs doivent continuer à suivre toutes
les pratiques standards actuelles en matière de contrôle des infections, y compris celles concernant le
neoyage et la désinfection des surfaces environnantes.
POUR TOUTE QUESTION, VEUILLEZ CONTACTER:
AERUS CANADA, INC.
Laird Business Park
3480 Laird Road, Unités 2–5
Mississauga (Ontario) L5L 5Y4 Canada
W. Parrell, Responsable
[phone]
[email protected]
Aerus Canada, inc. est ailiée à ActivePure Manufacturing, LLC,
1300 Valley Drive, Bristol, VA 24201
