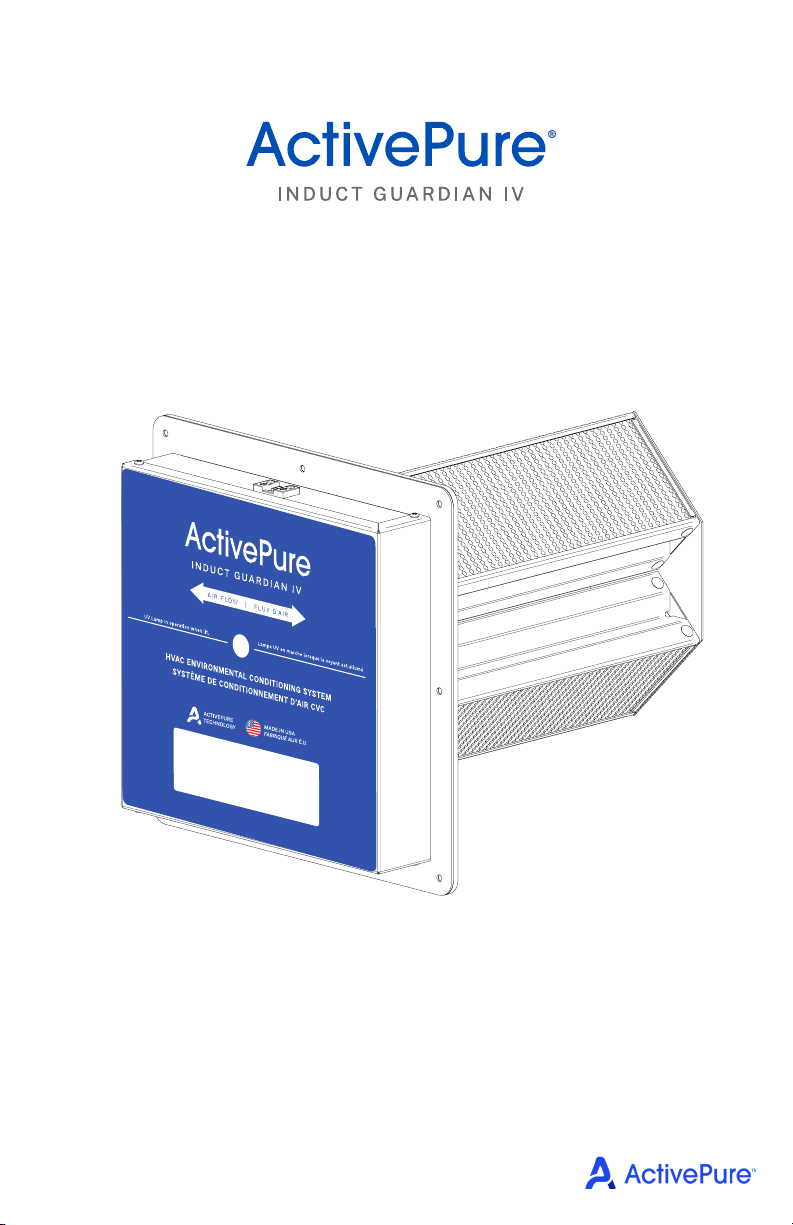

ActivePure INDUCT GUARDIAN IV User manual

READ MANUAL CAREFULLY FOR PROPER USE AND OPTIMAL OPERATION.

2
GENERAL INFORMATION
If you have any questions concerning this, or any ActivePure product,
contact ActivePure Customer Service at 800.572.1446 or email
[e-mail].
CONTENTS
Product Overview . . . . . . . . . . 2
Specifications. . . . . . . . . . . . 2
Storage and Disposal . . . . . . . . . 2
Important Safety Instructions. . . . . . 3
For Canadian Customers Only . . . . . 4
Product Features . . . . . . . . . . 5
Installation Hardware (Supplied). . . . . 5
Recommended Installation Tools . . . . 5
Installation Requirements . . . . . . . 6
Electrical Requirements . . . . . . . . 7
Communication Connection . . . . . . 7
Installing the Unit . . . . . . . . . . 8
Wiring the Unit . . . . . . . . . . . 9
Maintenance/UV Bulb Indicator . . . . . 10
Changing the ActivePure®Cell . . . . . 10
Replacing the Ballast . . . . . . . . . 12
Replacement Parts & Service. . . . . . 14
Warranty Information . . . . . . . . . 14
FCC Declaration & Responsible Party . . 15
PRODUCT OVERVIEW
Congratulations on your purchase of the ActivePure®Induct Guardian IV! The unit is easily mounted into the
supply side of air conditioning and heating system air ducts by an electrician or HVAC professional, where it
will provide 24/7 surface and air disinfection. Please read and follow all service procedures outlined in this
manual before installing or performing maintenance.
STORAGE AND DISPOSAL
Do not dispose of this product as household
waste. Electrical waste and electronic
products should be appropriately recycled as
required by practices established by your
local authority.
SPECIFICATIONS
ActivePure Induct Guardian IV
• Model Number: A1033B
• Sales Number: 00768
Technology:
ActivePure®
Electrical:
• Input Voltage: 100V - 277V; 50/60 Hz
• Current: 1.05 Amp Max @ 120V 126W
• Power: .57 Amp Max @ 220V 125W
• Complies to UL 1995
Mechanical:
• Distribution via Air Handler
Safety Switch Installed
Weight & Dimensions:
• 8 lbs (3.6 kg)
• 11” H x 11” W x 17” D
(27.94 cm x 27.94 cm x 43.18 cm)
Operating Temperature:
• 34 ºF to 200 ºF (1 ºC – 93 ºC)
Recommended Maximum Coverage in a
Contiguous Space1:
• Every facility is unique and proper configuration
is an important as the technology. To validate
coverage in your facility, speak to your sales
representative or call customer service at
800-572-1446.
Warranty:
• Limited 5 Year Warranty
ActivePure Manufacturing, LLC reserves the right to
change or modify any specification without notice.
Duct-Mounted
Air Purifier
E518921

3
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Read this manual in its entirety before using your ActivePure®Induct Guardian IV.
Keep out of the reach of children.
• Live voltage may be present
• Disconnect power at the breaker or fuse panel before servicing unit; always follow OSHA lockout
procedures to prevent accidental exposure to electrical energy
• If installed near a furnace or where emergency heat coils could raise the temperature inside the
plenum, cycle the AC unit through three full heating cycles assuring that the temperature never
exceeds 200 °F (93 °C); the ActivePure®Cell must not exceed 200 °F (93 °C)
• If the unit is hard wired, be sure the power to the unit is o; always follow OHSA electrical lockout
safety requirements to prevent accidental release of energy during service or maintenance
activities
• Never aempt to check operation of the ActivePure®Cell(s) by direct observation; severe eye
damage can result; use the indicator lamps on the boom of the ballast only
Location for Protective Earth Line.
CAUTION
• Wiring and installation of this unit must be done by a licensed HVAC
contractor or electrician; failure to do so will void warranty of the
product
• When the unit is installed in a roof mounted HVAC system, the unit
must be protected from the elements
WARNING
• UV Light in operation; DO NOT operate unless the unit is completely
and correctly assembled; failure to follow warnings may result in severe
eye damage and electrical shock
• To prevent damage to the unit, operating environment temperature
must never exceed 200 oF (93 oC)
• To reduce the risk of electric shock, this equipment may have a
grounding type plug that has a third (grounding) pin; this plug will only
fit into a grounding type power outlet; if the plug does not fit into the
outlet, contact qualified personnel to install the proper outlet;
DO NOT alter the plug in any way
 DO NOT connect this unit to any voltage source above 32
volts; doing so will cause damage to the unit
• This unit is equipped with a universal ballast that operates at nominal
voltages between 100 and 277 VAC, 50/60 Hz
• To Reduce the Risk of Electric Shock – DO NOT use in wet or damp
locations; this equipment emits UV-C radiation; DO NOT locate
equipment in any location allowing direct line-of-sight to vents,
returns, or other duct openings
• DO NOT use this unit with an extension cord

4
FOR CANADIAN CUSTOMERS ONLY
ACTIVEPURE®INDUCT GUARDIAN IV
Sales No. : 00768
This UV device helps reduce the spread of viruses in the air.
Keep out of the reach of children.
Please read the label and owner's manual before using: www.activepure.com/manuals
PRECAUTIONS:
WARNING: UV radiation emied from this device. Unintended use of the device, or damage to the housing,
may result in exposure to ultraviolet radiation. Ultraviolet radiation may cause eye and skin irritation. Avoid
exposing eyes and skin to ultraviolet radiation.
FIRST AID INSTRUCTIONS: Please contact your healthcare provider in the event of injury caused by this
device.
DIRECTIONS FOR USE:
Unit should be installed aer the air handler in the HVAC system by a licensed HVAC contractor or
electrician. Please see owner's manual for detailed instructions on using, handling, storing and disposing of
the device, and procedures to mitigate any associated risks.
The use of this device is a supplement to and not a substitute for standard infection control practices; users
must continue to follow all current infection control practices, including those related to the cleaning and
disinfection of environmental surfaces.
FOR INQUIRIES CONTACT:
AERUS CANADA, INC.
Laird Business Park
3480 Laird Road, Units 2–5
Mississauga, Ontario, Canada, L5L 5Y4
W. Parrell, Manager
[phone]
[email protected]
Aerus Canada, Inc. is ailiated with ActivePure Manufacturing, LLC
1300 Valley Drive, Bristol, VA 24201

5
It is important to be familiar with the parts of the ActivePure®Induct Guardian IV. If any parts are missing,
contact your sales representative or ActivePure Customer Service.
PRODUCT FEATURES
INSTALLATION HARDWARE SUPPLIED
(8) #8 — .75 1/4" Self-tapping screws
Item # US7067
(2) Thumb screws
Item # 36-00213
(8) Thumb nuts
Item # 36-00214
(4) #6 — 32 x 2 inch Threaded bolts
Item # US70680 (4) #6 — 32 Toggle
bolt wall anchors
Item # US70682
RECOMMENDED INSTALLATION TOOLS
3 1/2" Hole Saw
(for wood or metal)
Utility Knife
1/4" Nut
Driver Bit
Drill / Power
Driver
Tin Snips
(for metal ductwork)
Phillips
Screwdriver
Dust Mask
3/8" Drill Bit
(if installing into fiberglass
ducting with toggle bolts)
1/4
YOU MAY ALSO NEED:
CAUTION
When the unit is installed in a roof mounted HVAC system, the
unit must be protected from elements.
Ballast Plate
ActivePure®Cell
UV Bulb Indicator
Power Cord
Removable Ballast Cover
Relay Port

6
INSTALLATION REQUIREMENTS
If installed near a furnace or where emergency heat coils could
raise the temperature inside the plenum, cycle the AC unit
through three full heating cycles assuring that the temperature
never exceeds 200 °F (93 °C). The ActivePure®Cell must not
exceed 200 °F (93 °C).
WARNING
• This unit must be installed by a licensed HVAC contractor or
electrician; failure to do so will void warranty of the product
• When the unit is installed in a roof mounted HVAC system,
the unit must be protected from the elements
CAUTION
1. The ActivePure®Induct Guardian IV unit should be
installed aer the air handler in the HVAC system.
2. The ductwork around the installation area should be
clean and dry to ensure proper adhesion of the gasket
materials and any tape used.
3. When installing near a furnace or heating coils, run
the heating system through three full heating cycles
to ensure the temperature of the ActivePure Induct
Guardian IV unit does not exceed 200 °F (93 °C).
4. An approximate 10" x 6.5" (25.4 cm x 16.5 cm) opening
will need to be cut into the existing ductwork to install
the unit properly.
5. Aer a few minutes, adjust the control to the desired
speed.
NOTE: Unit requires power 24/7. Do not install where
power to the unit will be cycled on and o.
Min. 16” x 16”
Metal Ductwork
Min. 17” x 17”
Fiberglass
Ductwork
Air Handler
Max.
15 .
Installation Clearance

7
For 120V Domestic Units: Black = L1, White = Neutral, Green = Ground
For 220V Commercial Units: Black = L1, White = L2, Green = Ground
For 230V International Units: Brown = L1, Blue = L2, Green w/yellow stripe = Ground
• Wiring of the unit into your HVAC system should be done by a
licensed HVAC installer or electrical contractor only
• This unit is equipped with a universal ballast that operates at
nominal voltages between 100 and 277 VAC, 50/60 Hz
CAUTION
To Reduce the Risk of Electric Shock – Do not use in wet or damp
locations. This equipment emits UV-C radiation. DO NOT locate
equipment in any location allowing direct line-of-sight to vents,
returns, or other duct openings. Disconnect from supply before
servicing or replacing.
WARNING
The ActivePure®Induct Guardian IV provides a
dry-contact relay port for optional remote monitoring of
cell operation. Contacts are closed during normal operation
and open if there is an interruption in operation. Maximum
contact rating = 250V AC / 8A. (see port location on Page 5)
NOTE: Port is an industry-standard pluggable terminal block type with 2-position, 0.2” (5.08mm) pitch.
Relay Port
ELECTRICAL REQUIREMENTS
COMMUNICATION CONNECTION

8
INSTALLING THE UNIT
• To Reduce the Risk of Electric Shock – DO NOT use in wet or damp
locations; this equipment emits UV-C radiation; DO NOT locate
equipment in any location allowing direct line-of-sight to vents,
returns, or other duct openings; disconnect from supply before
servicing or replacing
• If installed near a furnace or where emergency heat coils could raise
the temperature inside the plenum, cycle the AC unit through three
full heating cycles assuring that the temperature never exceeds
200 °F (93 °C); the ActivePure®Cell must not exceed 200 °F (93 °C)
WARNING
• When the unit is installed in a roof mounted HVAC system, the unit
must be protected from elements
• This unit is equipped with a universal ballast that operates at nominal
voltages between 100 and 277 VAC, 50/60 Hz
• Unit requires power 24/7; DO NOT install where power to the unit will
be cycled on and o
CAUTION
3. Using the mounting plate as a
template, mark the location
for installation.
4. Use a hand saw or tin snips to cut a
10” x 6.5” rectangle.
OR
Find the optimal position downstream from the air handler. Ensure location in duct has enough room for the
mounting plate. It is recommended for maximum eectiveness that the unit be placed as close to the air
handler as possible.
1. Locate suitable area of duct
for installation.
2. Cut away insulation to expose
metal duct (if needed).

9
WIRING THE UNIT
2. Connect the unit to the load side of the proper fan relay.
3. Be sure to ground the ballast by securing the unit to the metal
surface of the AC unit or power box.
UVLampinoperationwhenlit. Lampe UV en mar che lorsqu e le voyant est allumé.
HVACENVIRONMENTAL CON DITIO NING SYST EM
SYSTÈMEDECO NDITIO NNEMEN T D’AIR CVC
1. Connect wires coming from the ActivePure®Induct Guardian IV unit to the fan relay as follows:
NOTE:All units come standard with a blunt cord.
Hard wiring unit into HVAC system should be done by a licensed HVAC
installer or qualified electrical contractor only
CAUTION
Disconnect power at the breaker or fuse panel before servicing unit;
always follow OSHA lockout procedures to prevent accidental exposure
to electrical energy
WARNING
4. Check indicator light for proper operation with fan on.
INSTALLING THE UNIT CONT.
7. Unit may be taped with
aluminum HVAC tape to
provide complete seal if
necessary.
UVLampinoperationwhenlit. LampeUVenmarche lorsque le voyant e st allumé.
HVACENVIRONMENTAL C ONDITI ONING SYS TEM
SYSTÈMEDEC ONDITI ONNEME NT D’AIR CVC
5. Place the mounting plate
squarely into place and
fasten to duct work with
eight (8) sheet metal screws.
6. Move ballast assembly to
location and secure to duct work
with the eight (8) nuts provided.
UVLampinoperation when lit. Lampe UV en ma rche lorsq ue le voyant est all umé.
HVACENVIRON MENTAL CO NDITIO NING SYST EM
SYSTÈMEDE CO NDITIO NNEMEN T D’AIR CVC
120 Volt Unit:
Black Wire L1
White Wire Neutral
Green Wire Ground
220 Volt Unit:
Black Wire L1
White Wire L2
Green Wire Ground
International Unit:
Brown Wire L1
Blue Wire L2
Green with
Yellow Stripe Ground
NOTE: Unit requires power 24/7. Do not install where power to the unit will be cycled on and o.

10
MAINTENANCE / UV BULB INDICATOR
Your ActivePure®Induct Guardian IV unit requires no periodic maintenance
beyond normal replacement of the ActivePure Cell every one (1) year.
The UV Bulb Indicator on the face of the unit will glow when the UV bulb is in
use. If the indicator does not glow and the unit has power, the ActivePure Cell
should be replaced.
NOTE: For optimal performance and to maintain the Limited 5 year warranty,
it is required to replace the ActivePure®Cell every year, even if the
UV bulb appears to be operating normally.
C
UV Bulb
Indicator
CHANGING THE ACTIVPURE®CELL
• UV Light in operation; disconnect unit from power supply before
servicing; failure to follow warnings may result in severe eye damage
• If the unit is hard wired, be sure the power to the unit is o; always
follow OHSA electrical lockout safety requirements to prevent
accidental release of energy during service or maintenance activities
WARNING
1. Disconnect (unplug)
power cord from unit.
UVLampinoperationwhenlit. LampeUVenmarchelors que le voyant est allum é.
HVACENVIRONMENTAL CO NDITI ONING SYS TEM
SYSTÈMEDEC ONDITI ONNEME NT D’AIR CVC
2. Remove the ActivePure®
Induct Guardian IV
assembly by removing
the eight (8) nuts and
sliding the unit out.
UVLampinoperationwhen lit. LampeUV en mar che lorsqu e le voyant est allu mé.
HVACENVIRONMEN TAL CONDI TIONIN G SYSTEM
SYSTÈMEDE CONDI TIONN EMENT D’AI R CVC
3. Remove the six (6) nuts
holding the cell assembly
to remove the cell from the
ballast assembly.

11
CHANGING THE ACTIVPURE®CELL CONT.
NOTE: Always follow OHSA electrical lockout safety requirements to prevent accidental release of energy
during service or maintenance activities.
5. Plug the new ActivePure Cell
into the base unit. Be sure
Air Flow / Honeycomb Cell
direction is correct.
4. Remove the used
ActivePure Cell from the
base unit and dispose of the
bulb properly.
6. Secure with six (6)
thumb screws.
7. Insert the unit into the
mounting plate.
8. Secure unit with (4)
thumb nuts.
9. Reconnect power
supply.
Power Cord
Visit www.lamprecycle.org for proper bulb disposal regulations

12
3. Remove the two (2) nuts on the top
and boom side of the ballast to pull
ballast from assembly.
4. Remove the wires from ballast by
pressing a small screwdriver into
the wire release:
ActivePure®Induct Guardian IV 8 wires
REPLACING THE BALLAST
• Never aempt to check operation of the ActivePure®Cell(s) by direct
observation; severe eye damage can result; use the indicator lamps
on the boom of the ballast only
• Disconnect power at the breaker or fuse panel before servicing
unit; always follow OSHA lockout procedures to prevent accidental
exposure to electrical energy
WARNING
1. Disconnect (unplug) power cord
from unit.
UVLampinoperationwhenlit. LampeUVenmarchelors que le voyant est allum é.
HVACENVIRONMENTAL CO NDITI ONING SYS TEM
SYSTÈMEDEC ONDITI ONNEME NT D’AIR CVC
2. Open the ballast housing by remov-
ing the four (4) screws then remove
the cover.

13
REPLACING THE BALLAST CONT.
UV Bulb
Indicator
8. Re-install unit if removed from duct.
Reconnect power and check for proper
operation.
6. Place new ballast into original
location and secure using the two (2)
nuts removed in step 3.
7. Replace cover and secure with the
original four (4) screws.
5. To reconnect wiring, insert wire into the corresponding color connector. Gently pull back aer inserting
wire to ensure the wire is properly locked into place.
UPPER (3 terminals)
• Black power wire in BLACK
• White power wire in WHITE
• GREEN is not used
LOWER (6 terminals)
• 2 Red wires in RED
• 2 Blue wires in BLUE
• 2 Yellow wires in YELLOW
10
REPLACING THE BALLAST CONTINUED
LAMP INDICATOR
5. Place new ballast into original location and
secure using the two (2) nuts removed in
step 4.
6. Replace cover and secure with the original
four (4) screws.
7. Re-install unit if removed from duct.Reconnect
power and check for proper operation (Lamp
indicator should be lit when in operation).
4. To reconnect wiring, insert wire into the
corresponding color connector.Gently pull
back after inserting wire to ensure the wire
is properly locked into place.
UPPER (3 terminals)
• Black power wire in BLACK
• White power wire in WHITE
• GREEN is not used
LOWER (6 terminals)
• 2 Red wires in RED
• 2 Blue wires in BLUE
• 2 Yellow wires in YELLOW
GREEN WHITE BLACK
RED RED
YELLOW YELLOW
BLUE BLUE
NOTE: UV Bulb Indicator should be
lit when in operation.

14
REPLACEMENT PARTS QTY PART NUMBER
Ozone-Free ActivePure®Cell 9950256
Ballast 9950255
To order replacement parts, contact your sales representative or ActivePure
Customer Service for further assistance at 800.572.1446 or email
[e-mail].
REPLACEMENT PARTS  SERVICE
Limited 5 Year Warranty
To register your ActivePure®Induct Guardian IV unit, visit www.activepure.com/warranty.
To view full details on warranty coverage, visit www.activepure.com/manuals.
WARRANTY INFORMATION
If you have any questions concerning this, or any ActivePure product,
contact ActivePure Customer Service at 800.572.1446 or email
[e-mail].
Ballast
ActivePure®Cell

15
This equipment has been tested and
found to comply with the limits for
a Class B digital device, pursuant of
part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy, and if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or
television, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
• Consult the Independent Contractor
for help.
FCC Declaration of Conformity
Name: ActivePure®Induct Guardian IV
Model: A1033B
Produced by: ActivePure Manufacturing, LLC
This device complies with Part 15 of the
FCC Rules.
Responsible Party
ActivePure, LLC
1300 Valley Drive
Bristol, VA 24201
Ph: 800.572.1446
Signature:
Printed Name: Andrew Eide
Title: Vice President of Product Development
and Manufacturing
Date: 01/12/22
FCC DECLARATION  RESPONSIBLE PARTY

16
For information regarding the use of this product, please call Customer Service.
1.800.572.1446 or email at customerser[email protected]
www.activepure.com
™
ActivePure Manufacturing, LLC | 1300 Valley Drive | Bristol, VA 24201 | 800.572.1446
Assembled in U.S.A. | © ActivePure Manufacturing, LLC. All Rights Reserved
AIG4_OM_65-00843_VA-01671B

17
RVEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AFIN D’UTILISER
CORRECTEMENT L’APPAREIL ET D’ASSURER SON FONCTIONNEMENT OPTIMAL.

18
INFORMATIONS GÉNÉRALES
Si vous avez des questions concernant cet appareil ou un autre produit
ActivePure®, contactez le service à la clientèle ActivePure®au 1.800.572.1446
ou par courriel à l’adresse [e-mail].
TABLE DES MATIÈRES
Description du produit . . . . . . . . 18
Spécifications . . . . . . . . . . . 18
Stockage et mise au rebut . . . . . . . 18
Consignes de sécurité importantes . . . 19
Pour les clients au Canada seulement . .20
Caractéristiques du produit . . . . . . 21
Matériel d’installation (fourni) . . . . . . 21
Outils d’installation recommandés . . . . 21
Exigences d’installation . . . . . . . .22
Installation électrique . . . . . . . . .23
Connexion de communication . . . . .23
Installation de l’appareil . . . . . . . .24
Brancher l’appareil . . . . . . . . . .25
Entretien/Indicateur de lampe UV . . . .26
Changement de la cellule ActivePure®. .26
Changer le ballast . . . . . . . . . .28
Pièces de rechange et service . . . . 30
Informations relatives à la garantie . . . 30
Déclaration FCC et Partie responsable . . 31
DESCRIPTION DU PRODUIT
Félicitations pour votre achat de l’ActivePure®Induct Guardian IV! L’unité se monte facilement sur le côté
alimentation des conduits d’air d’un système de climatisation et de chauage, par un électricien ou un
professionnel du CVC, afin d’assurer une désinfection des surfaces et de l’air 24 h/24 et 7 j/7. Veuillez lire et
suivre toutes les procédures de service décrites dans le présent manuel avant de l’installer ou de le réparer.
STOCKAGE ET MISE AU REBUT
Ne pas jeter ce produit comme appareil
ménager. Les déchets électriques et les
produits électroniques doivent être recyclés
convenablement, conformément aux
pratiques établies par votre administration
locale.
SPÉCIFICATIONS
ActivePure Induct Guardian IV
• Numéro de modèle: A1033B
• Numéro de série: 00768
Technologie:
ActivePure®
Électrique:
• Tension d’alimentation: 100V - 277V; 50/60 Hz
• Courant : 1,05 A maximum @ 120V 126 W
• Puissance : 0,57 A maximum @ 220 V 125 W
• Conforme à la norme UL 1995
Mécanique:
• Distribution par une unité
de traitement de l’air avec interrupteur de
sécurité
Poids et dimensions:
• 8 lb (3,6 kg)
• 11 po H x 11 po L x 17 po P
(27,94 cm x 27,94 cm x 43,18 cm)
Température de fonctionnement:
• 34 ºF à 200 ºF (1 °C — 93 °C)
Couverture maximale recommandée
pour un espace étroit1:
• Chaque lieu est unique et une bonne
configuration est aussi importante que la
technologie. Pour approuver la couverture dans
votre bâtiment, consultez votre représentant
commercial ou contactez le service à la
clientèle au 1.800.572.1446.
Garantie:
• Garantie limitée de 5 ans
ActivePure®Manufacturing, LLC se réserve le droit de
modifier des spécifications sans préavis.
E518921
Purificateur d’air
monté sur
conduit

19
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVER CES CONSIGNES
Veuillez lire entièrement ce manuel avant d’utiliser votre ActivePure®Induct Guardian IV.
Garder hors de la portée des enfants.
• Possibilité de haute tension
• Débranchez l’alimentation dans le tableau des disjoncteurs ou des fusibles avant de faire
l’entretien. Suivez toujours les procédures de verrouillage OSHA afin de prévenir une exposition
accidentelle à l’énergie électrique
• En cas d’installation près d’un appareil de chauage central ou de serpentins chauants pouvant
augmenter la température de la chambre de distribution, activez l’unité de climatisation pour trois
cycles de chauage complets en vous assurant que la température ne dépasse jamais 200 °F
(93 °C); la cellule ActivePure®ne doit pas dépasser 200 °F (93 °C)
• Si l’appareil est branché par un câble, assurez-vous que l’alimentation de l’appareil est coupée.
Suivez toujours les procédures de verrouillage OHSA afin de prévenir une fuite accidentelle
d’énergie durant l’entretien ou la réparation
• N’essayez jamais de vérifier le fonctionnement des cellules ActivePure®par observation directe,
cela peut provoquer des dommages oculaires graves. Utilisez uniquement les indicateurs de lampe
UV en bas du ballast
Emplacement de la mise à la terre.
ATTENTION
• Le branchement et l’installation de cet appareil doivent être eectués
par un fournisseur ou un électricien agréé pour le CVC, sinon la
garantie du produit sera annulée
• Si l’appareil est installé dans un système CVC fixé sur un toit, il doit
être protégé des éléments
MISE EN
GARDE
• Lampe UV en marche; NE PAS faire fonctionner l’appareil avant qu’il
ne soit complètement et correctement monté; le non-respect de
cet avertissement peut entraîner de graves lésions oculaires et une
décharge électrique
• Pour éviter d’endommager l’appareil, la température de
l’environnement de marche ne doit pas dépasser 200 oF (93 oC)
• Afin de réduire les risques de décharge électrique, cee unité peut
posséder une fiche de courant avec mise à la terre avec une troisième
broche (de mise à la terre); cee fiche ne s’insère que dans une prise
de courant avec mise à la terre; si la fiche ne s’insère pas dans la prise,
demandez à un professionnel qualifié d’installer une prise adéquate;
NE JAMAIS modifier la fiche de quelque façon que ce soit
• NE PAS brancher cet appareil à une source d’alimentation supérieure à
32 V; cela pourrait endommager l’appareil
• Cet appareil est équipé d’un ballast universel fonctionnant avec une
tension nominale comprise entre 100 et 277 VCA, 50/60 Hz
• Afin de réduire les risques de décharge électrique, NE PAS utiliser dans
des lieux mouillés ou humides; cet appareil émet un rayonnement UVC;
NE PAS placer l’unité dans des lieux permeant une exposition directe
aux ventilations, retours ou autres bouches d’aération
• NE PAS utiliser cet appareil avec une rallonge

20
POUR LES CLIENTS AU CANADA SEULEMENT
ACTIVEPURE®INDUCT GUARDIAN IV
Numéro de série: 00768
Ce modèle à rayons UV permet de réduire la propagation des virus dans l’air.
Garder hors de la portée des enfants.
Veuillez lire l’étiquee et le guide du propriétaire avant l’utilisation: www.activepure.com/manuals
PRÉCAUTIONS:
MISE EN GARDE: Cet appareil émet des rayonnements UV. L’utilisation involontaire de cet appareil ou un
boîtier endommagé peut entraîner l’exposition à des rayons ultraviolets. Les rayonnements ultraviolets
peuvent irriter les yeux et la peau. Évitez d’exposer vos yeux et votre peau aux rayons ultraviolets.
INSTRUCTIONS POUR LES PREMIERS SOINS: Veuillez contacter votre professionnel de la santé en cas
de blessure causée par cet appareil.
MODE D’EMPLOI:
L’appareil doit être installé sur l’unité de traitement de l’air dans le système CVC par un fournisseur ou un
électricien agréé en CVC. Veuillez consulter le manuel d’utilisation pour des instructions détaillées sur
l’utilisation, la manipulation, le stockage et la mise au rebut de l’appareil, ainsi que les procédures pour
réduire tout risque connexe.
L’utilisation de cet appareil agit en complément des pratiques standards de contrôle des infections et ne
représente donc pas un moyen de substitution à celles-ci. Les utilisateurs doivent continuer à suivre toutes
les pratiques standards actuelles en matière de contrôle des infections, y compris celles concernant le
neoyage et la désinfection des surfaces environnantes.
POUR TOUTE QUESTION, VEUILLEZ CONTACTER:
AERUS CANADA, INC.
Laird Business Park
3480 Laird Road, Unités 2 – 5
Mississauga (Ontario) L5L 5Y4 Canada
W. Parrell, Responsable
[phone]
wparrell@aerusonline .com
Aerus Canada, inc. est ailée à ActivePure Manufacturing, LLC
1300 Valley Drive, Bristol, VA 24201
