Addspace 003 9500 Series User manual

Assembly Instructions -Please keep for future reference
Width - 50cm
1 Drawer Bedside Chest
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08450613967
Please turn to back page for important information when contacting Customer Helpline.
Dimensions
Depth - 35.2cm
Height - 38.4cm
Rev A - 22.02.10
003 xx 9500
PDF processed with CutePDF evaluation edition www.CutePDF.com

Important - Please read these instructions fully before starting assembly
Safety and Care Advice
Check you have all the
components and tools listed on
pages 2 and 4.
Remove all fittings from the
plastic bags and seperate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Parts of the assembly will be
easier with 2 people.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Care and maintenance
Always lift furniture when
moving it (do not drag)
otherwise the joints may be
damaged.
From time to time check that
there are no loose screws on
this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
1
Dust surfaces with a soft, dry,
lint free cloth.
More stubborn marks can be
removed using a damp
(not wet) cloth. Wipe the
surface dry immediately
using a soft lint free cloth.
Do not use detergants, abrasive
cleaning products or cleaning
products that contain ammonia,
solvents or silicone as these
may damage the surface finish.
To protect the furniture,
position the furniture out of
direct sunlight and away from
direct heat sources such as
radiators and fires.
Do not place the furniture in
excessively dry and humid
conditions.
Do not place hot or cold
objects on the surface, always
use protective mats to avoid
marking the furnture.
Clean spills up immediately
Dispose of all packaging
carefully and responsibly
when assembly complete.
Do Not dispose of packaging
until assembly complete.

Please check you have all the panels listed below
Components -Panels
Left side (32.4x32.8cm) Right side (32.4x32.8cm)
Code - Code -
Top (50x35.2cm)
Code -
Drawer front x 1 (49.4x15.7cm)
Code -
Backpanel (35x49.4cm)
Code -
Drawer bottom x 1 (44.6x29.8cm)
Code -
Left drawer side x 1 (30x10cm)
Code -
Drawer back x 1 (43.5x10cm)
Code -
Right drawer side x 1 (30x10cm)
Code -
2
Important - Thick lines indicate finished edges
7072 7073 7074
7274
5928
622xx7002 624xx7002 623xx7002
5846
Bottom (50x35.2cm)
Code - 7075

3
7072
622xx7002
624xx7002
623xx7002
7073
7074
7274
5928
5846

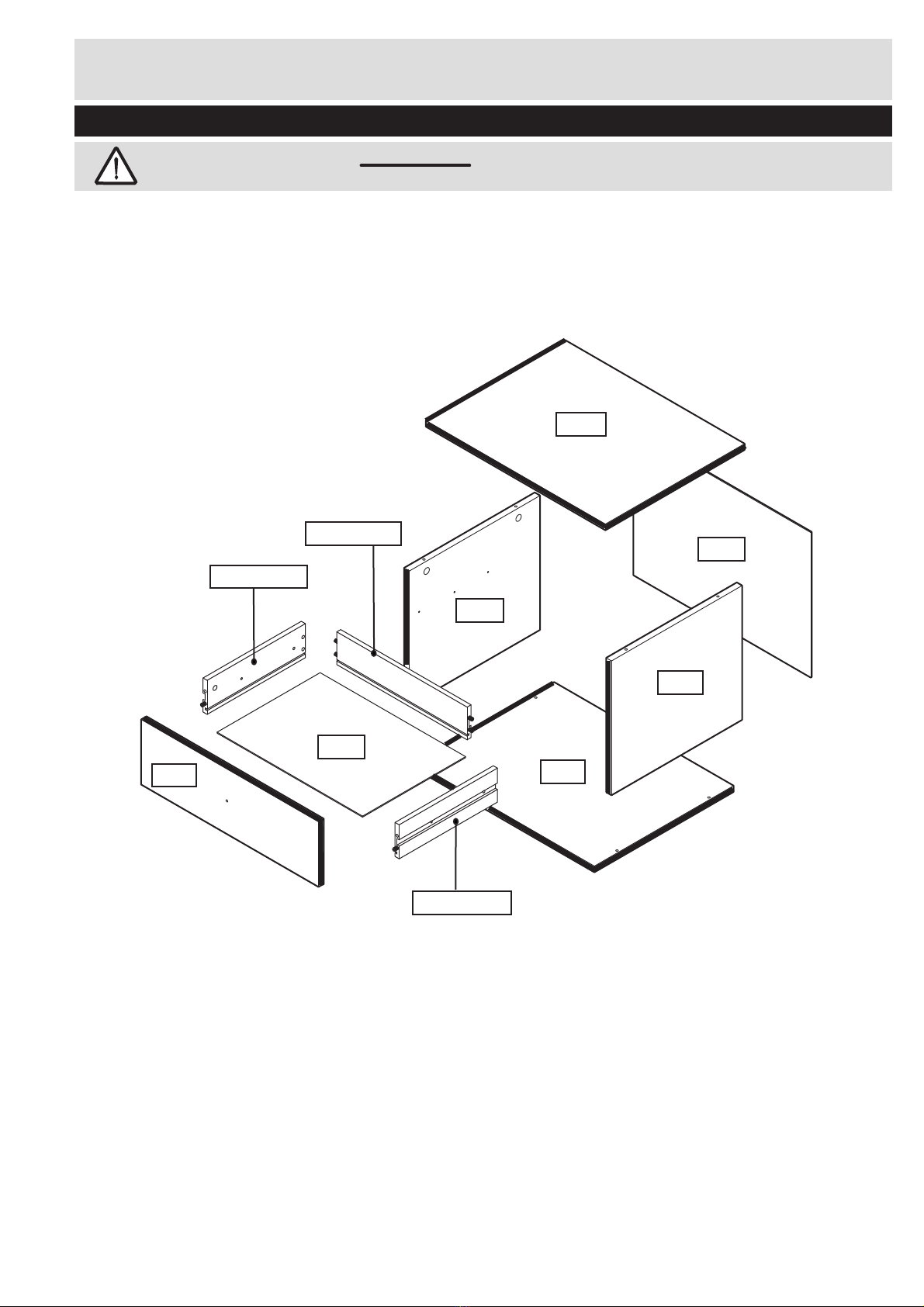

Components -Exploded View
Important - Thick lines indicate finished edges
7075

70 80 90 100 110 120
010 20 30 40 50 60
mm
130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws

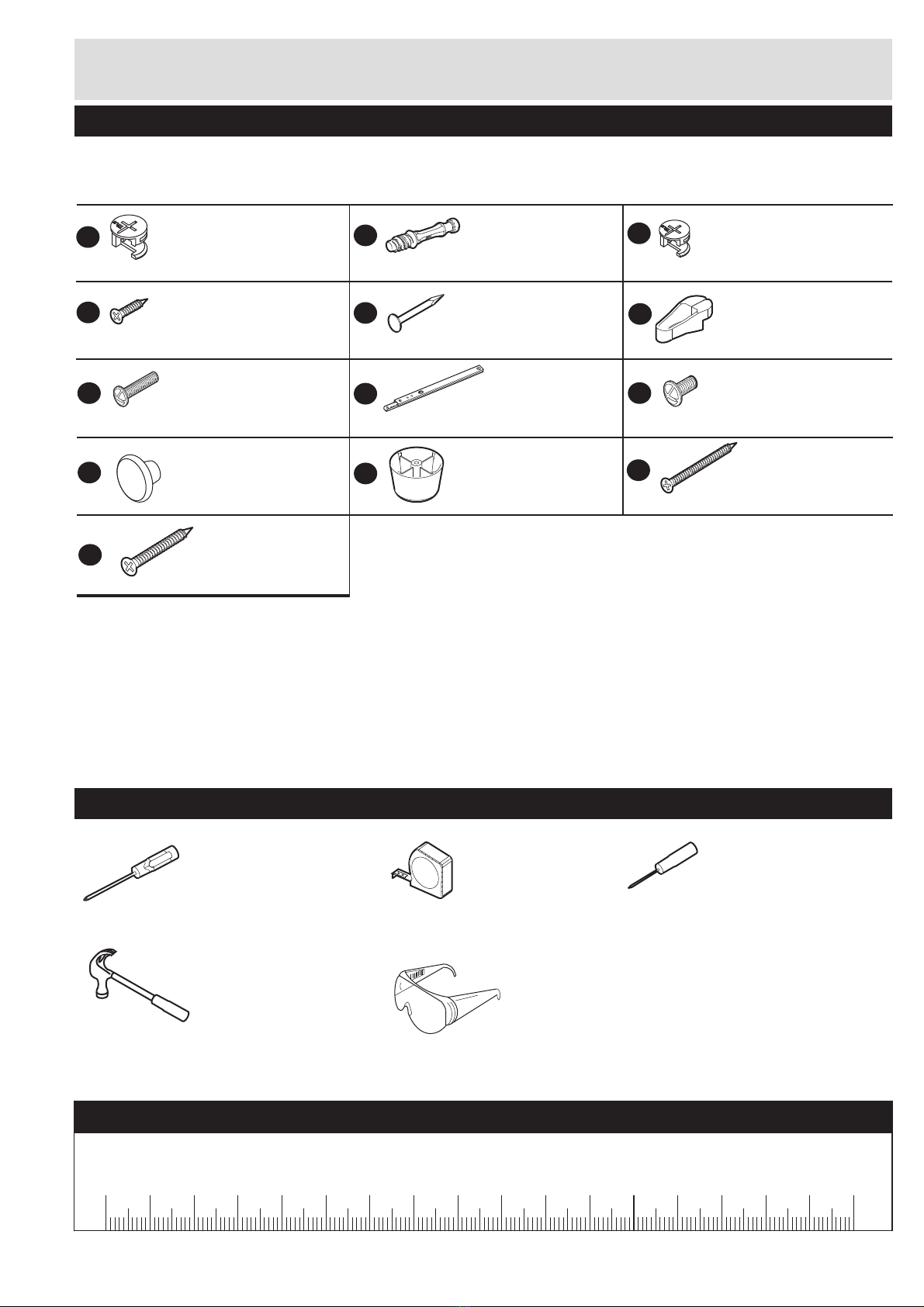

Please check you have all the fittings listed below
Components-Fittings
Note: The quantities below are the correct amount to complete the assembly, In some case more fittings
may be supplied than are required.
Tools required
If you have damaged or missing components, call the
Customer Helpline: 0845 0613967 Please turn to back page
for important information when contacting Customer Helpline.
4
Cross headed screwdriver
(medium & large )
Small Hammer
Tape Measure
Eye protection
(when using a
hammer)
Large cam x 4 - Code 760001103 Metal dowel x 6 - Code 760003004 Small cam x 2 - Code 760003005
12mm screw x 6 - Code 690001008 Panel pin x 20 - Code 760001012
Panel pin guide x 1
Code 684004501
20mm bolt x 1 - Code 700002006 Runner x 2 - Code 760001040 9mm bolt x 2 - Code 690001078
Handle x 1
Code 640006001
ABC
DEF
GHI
JL
45mm screw x 4 - Code 690001075
K
N
22mm screw x 4 - Code 690001018
Glide feet x 4
Code 720365001
Bradawl

Step 1
Assembly Instructions
5
Fittings you will need for this step:
A
B
B
B
B
B
(x4)
Note: Insert metal
dowels as far as
shown by arrows.
Do not over tighten.
B
Fittings you will need for this step:
A
(x2)
Note: Ensure cam
arrow points towards
the edge with hole.
A
Fittings you will need for this step:
A
(x2)
Fitting dowels to top
panel
Fitting cams to left
hand end panel
Step 2
Step 3
Fitting cams to right
hand end panel
Large
Large
7074
B
A
A
A
7072
7073
Note: Ensure cam
arrow points towards
the edge with hole.
A

7073

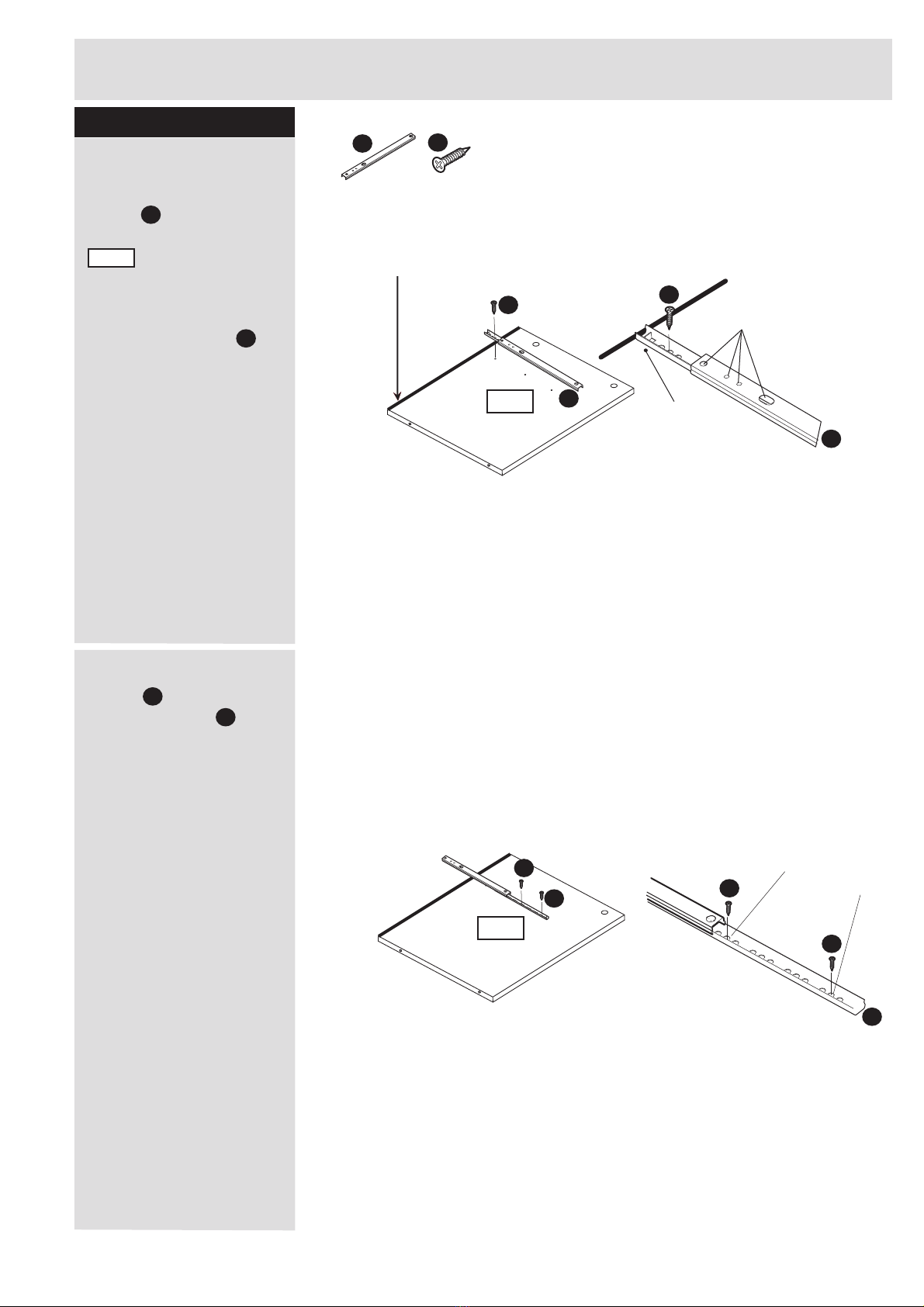

a:Align the drawer
runner with the
finished edge of panel
, the 2nd hole from
the front will then line up
with a pre-drilled hole,
secure the runner to the
panel using screws .
6
2ND
Middle
Fittings you will need for this step:
(x1)
D
Attaching runners
H
b:Slide the drawer
runner forward to
secure 2 screws .
The 2nd to last and
middle hole in the
runner will line up with
the pre-drilled holes in
the panel.
D
H
D
H
(x3)
D
H
D
H
D
H
D
Front finished edge
Assembly Instructions
Step 4
a:
b:
7073
Note:
Please note
runner sits
flush with
finished edge.
Note:
Ensure these
holes are
positioned as shown.
D
H
7073

7072
7072
7
Fittings you will need for this step:
(x1)
D
H
(x3)
Assembly Instructions
Step 5
a:Align the drawer
runner with the
finished edge of panel
, the 2nd hole from
the front will then line up
with a pre-drilled hole,
secure the runner to the
panel using screws .
D
Attaching runners
H
b: Slide the drawer
runner forward to
secure 2 screws .
The 2nd to last and
middle hole in the runner
will line up with the
pre-drilled holes in the
panel.
D
H
2ND
Middle
D
H
D
DD
H
D
Front finished edge
a:
b:
7072 Note:
Ensure these
holes are
positioned as shown.
D
H
Note:
Please note
runner sits
flush with
finished edge.

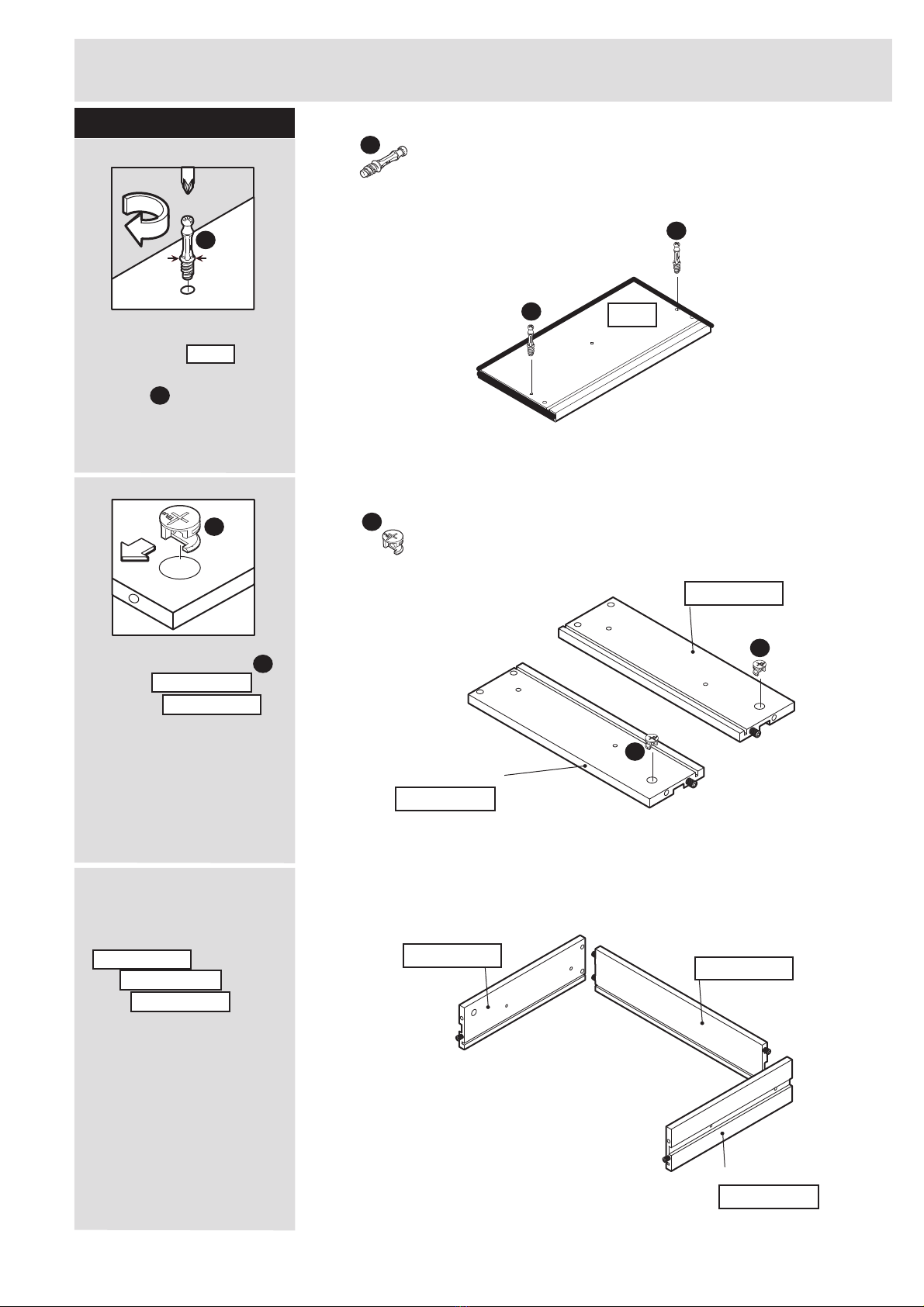

a: Insert dowels into
drawer front
Note: Insert metal
dowels as far as
shown by arrows.
Do not over tighten.
8
Fittings you will need for this step:
(x2)
Step 2
Drawer assembly
B
B
C
(x2)
Step 6
c: Insert wooden dowels
in drawer back
into holes in
left
right hand
drawer sides.
B
b: Insert small cams
into left
and right
drawer sides.
Note: Ensure cam arrow
points towards the edge
with hole.
C
C
B
B
Fittings you will need for this step:
Small
C
C
a:
b:
c:
Left hand side
Right hand side
Left hand side
Right hand side
Drawer Back
Continued on next page.
7274
7274
622xx7002
624xx7002
623xx7002
622xx7002
623xx7002
622xx7002
623xx7002
623xx7002
624xx7002
622xx7002
Assembly Instructions

e:Insert cams already
inserted in left and right
drawer sides onto
dowels in drawer
front .
9
Fittings you will need for this step:
(x1)
Drawer assembly
Continued...
C
J
G
(x1)
Assembly Instructions
Step 6- Continued
d: Slide drawer bottom
into grooves in
left,right drawer sides
and drawer back.
B
Tu r n cam 180 degrees
to lock
f: Secure handle to
drawer front
using bolt .
C
G
J
J
G
d:
e:
f:
5846
5846
7274
7274
7274
7274

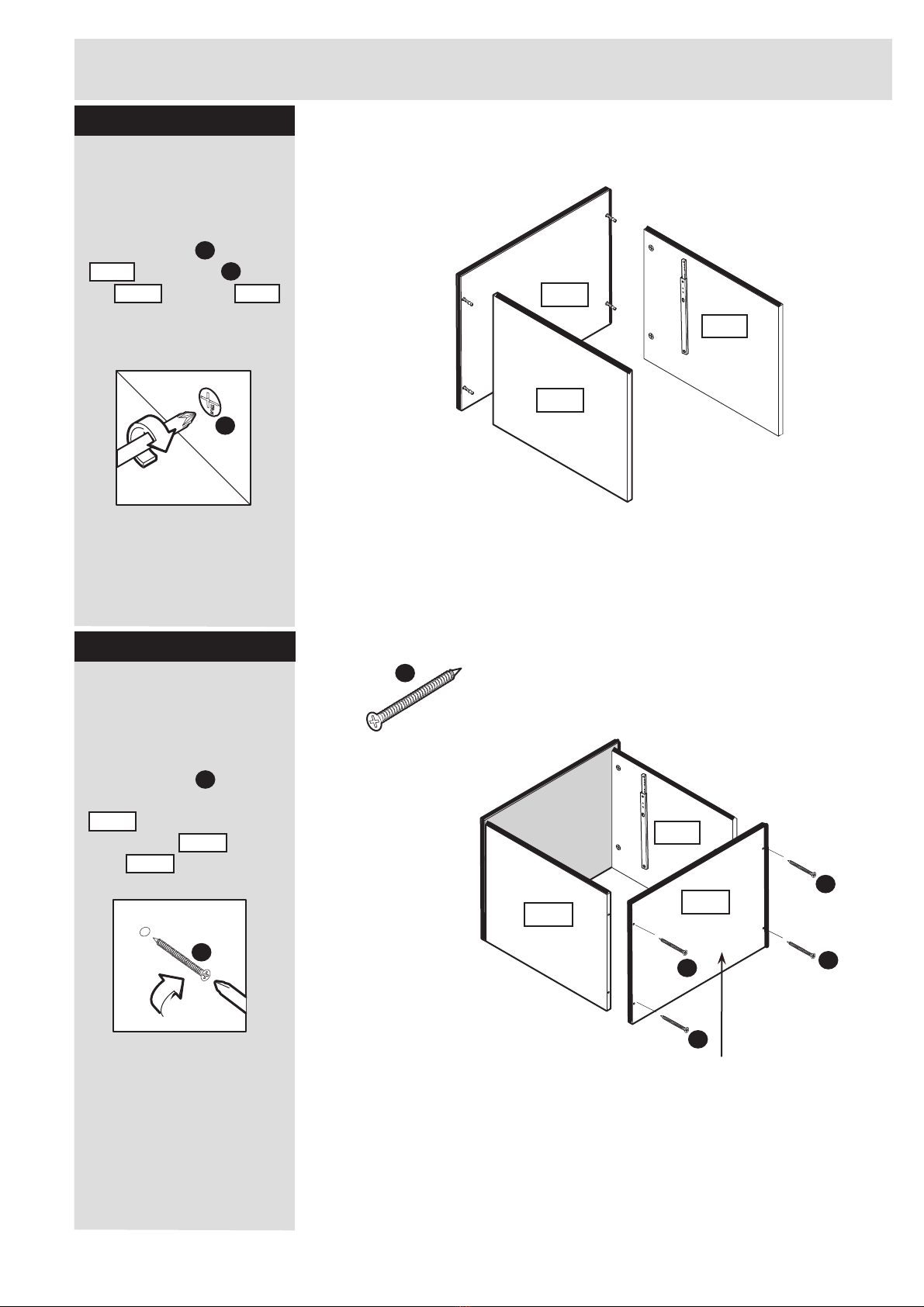

Insert dowels in top
into cams in
left and right
end panels.
Then lock.
B
A
Tu r n cam 180 degrees
to lock
A
10
Attach left hand and
right hand panels to
top panel
Assembly Instructions
Step 7
Attach bottom to
left hand and
right hand panels
Step 8
Raw face
7072
7074
7072 7073
7073
7074
Fittings you will need for this step:
(x4)
L
7072
7073
7075
L
L
L
L
Locate screw through
holes in bottom panel
and screw into
holes in left and
right end panels.
7075
7073
7072
L
L

11
Turn unit over then
square unit up
Assembly Instructions
Step 9
Attach backpanel to
left and right hand
ends, top and bottom
Step 10
STEP 9
DIAG 1
DIAG 2
DIAG 3
XX
XX
YY
YY
XX
XX
YY
YY
XX
XX
YY
YY
Measure to external corners
Ensure a tape measure
is used to square up
unit!
YY YY
XX
XX
Important:
Fittings you will need for this step:
(x1)
E
F
(x20)
E
F
E
Align backpanel
so that there is an equal
gap from the edge of
top , bottom ,
left and right
end panels. Then secure
using panels pins .
Use the panel pin guide
when locating the
panel pins . This will
hold the panel pins
vertical and ensure the
correct distance from the
edge.
E
F
E
Before securing the back
it is necessary to square
up the unit.
Yo u can do this by
measuring between
XX - XX and YY - YY
ensuring these are the
same (DIAG 1).
If they are not (DIAG 2)
Apply slight pressure as
indicated (DIAG 3) until
they are the same.
7073
5928
7072
7074
7074
5928
7073
Finished edges to floor
7075
5928
7073 7075
7075
7072 7073

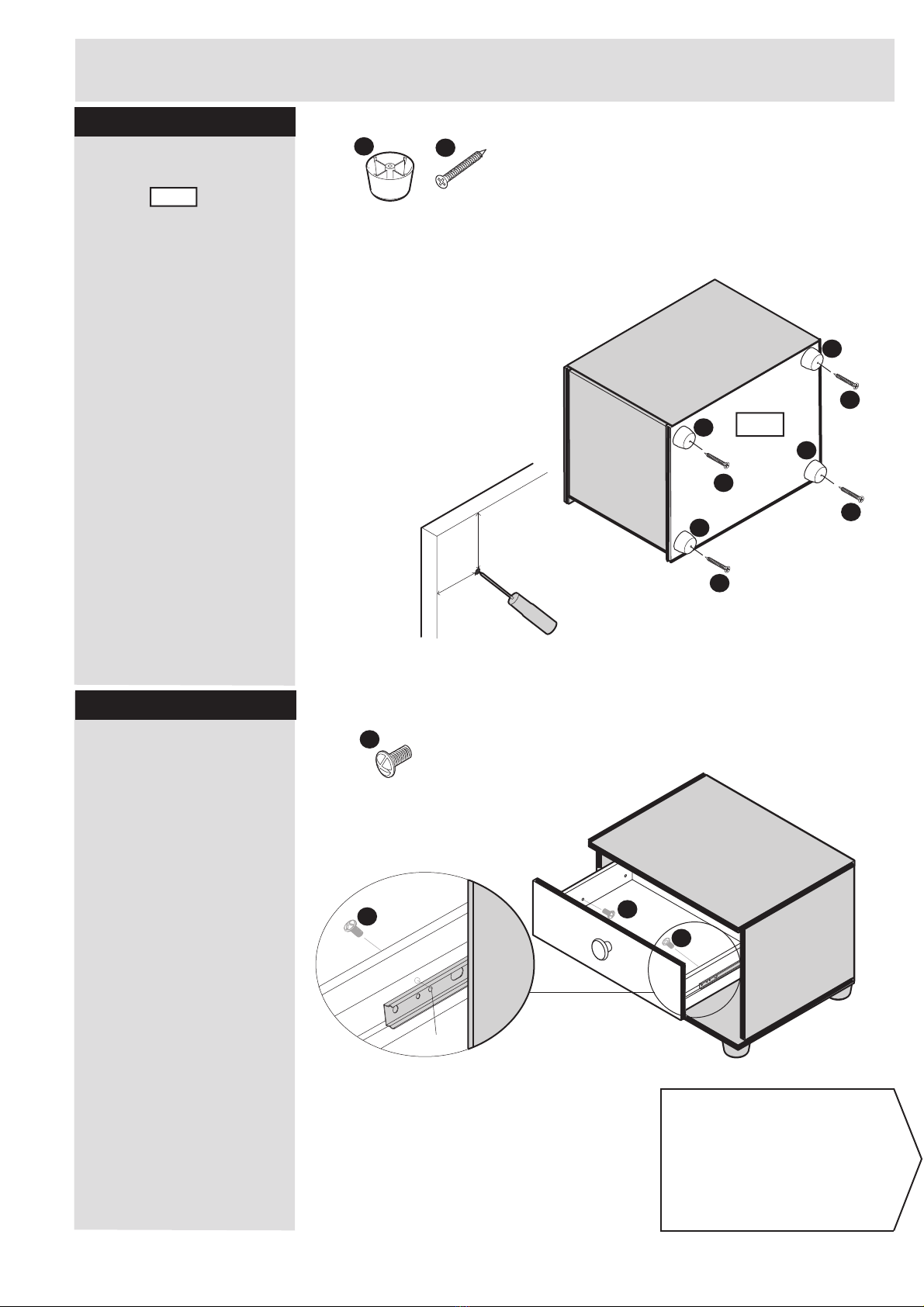

To locate feet to the
bottom you will
need to mark position
with a bradawl 30mm in
as shown, then screw
the foot into place.
Repeat in each corner.
Attach glide feet
Assembly Instructions
Step 11
Locate Drawers
Step 12 Fittings you will need for this step:
(x2)
I
For this step we
recommend you follow
the helpful hints page
on page 13.
Fittings you will need for this step:
12
Note: Please turn over for
helpful hints page on how
to locate drawers.
2nd HOLE
Bradawl
30mm
30mm
7075
7075
K
(x4)
N
(x4)
K
N
K
N
K
N
K
N
II
I

a: Pull sliding part of
drawer runners out
so they are fully
extended.
13
Locate drawers helpful
hints
Assembly Instructions
Step 12 - continued
I
H
b: Locate drawer onto
runners.
c: Locate screwdriver
into second threaded
hole in drawer runner .
H
d: Keeping screwdriver
in place push the drawer
closed.The screwdriver
will push against the end
panel and extend the
drawer runner .
H
e: Pull drawer out slowly
and line the hole in the
drawer side with the 2nd
threaded hole in the
runner . Now insert
screw through the
drawer side and
into threaded hole in
runner .
H
H
a: b:
c: d:
e: f:
l
f: Now insert screw
through the drawer side
and into threaded hole in
runner .
H
l
H
H
H
H
2nd hole
2nd hole

Congratulations! your unit is complete.
14
Note: Please turn over for
important information.

15
If you need help or have damaged or missing parts, call the Customer Helpline: 08450613967
Please have the following information: Unit Description, Product Code, Product Colour,
Place of Purchase, Catalogue Ref. No., Item Code, and have the assembly instructions close
to hand.
You can also e-mail your requests to us at: customer[email protected].uk
Simply contact us on CUSTOMER HELPLINE : 0845 0613967 Between 8am - 4.30pm
Monday to Thursday and 8am - 2.30p.m friday. Your statutory rights are not affected.
Alternatively Write to us at: Customer Service Department, Addspace Furniture Limited,
Braithwell Way, Hellaby Industrial Estate, Hellaby, Rotherham, South Yorkshire, S66 8QY.
We do have an answer machine should you contact us out of office hours, so in addition to
the above information could you leave your name, address, daytime telephone number and
the nature of your call on the answerphone. All calls will be actioned asap.
Important Information
