Addspace 041 5527 Series User manual

Assembly Instructions - Please keep for future reference
Width - 114.6cm
4 Drawer 2 Door Sideboard
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123
Please turn to back page for important information when contacting Customer Helpline.
Dimensions
Depth - 38.8cm
Height - 73.5cm
Rev C - 20/03/2017
041 xx 5527
MADE IN
GREAT BRITAIN

Important - Please read these instructions fully before starting assembly
Safety and Care Advice
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and seperate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Parts of the assembly will be
easier with 2 people.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Care and maintenance
Always lift furniture when
moving it (do not drag)
otherwise the joints may be
damaged.
From time to time check that
there are no loose screws on
this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
1
Dust surfaces with a soft, dry,
lint free cloth.
More stubborn marks can be
removed using a damp
(not wet) cloth. Wipe the
surface dry immediately
using a soft lint free cloth.
Do not use detergents, abrasive
cleaning products or cleaning
products that contain ammonia,
solvents or silicone as these
may damage the surface finish.
To protect the furniture,
position the furniture out of
direct sunlight and away from
direct heat sources such as
radiators and fires.
Do not place the furniture in
excessively dry and humid
conditions.
Do not place hot or cold
objects on the surface, always
use protective mats to avoid
marking the furniture.
Clean spills up immediately
Dispose of all packaging
carefully and responsibly
when assembly complete.
Do Not dispose of packaging
until assembly complete.

Please check you have all the panels listed below
Components -Panels
2
Important - Thick lines indicate finished edges
Top (114.6x38.8cm)
8865
Bottom (111.2x36.9cm)
8866
Left End
(72x38.6cm)
8867
Backpanel
(113.8x65.2cm) - Taped at 32.6cm
8874
Right End
(72x38.6cm)
8868
Left Divider
(62.7x36.9cm)
8869
Right Divider
(62.7x36.9cm)
8870
Shelf x2
(36x36.9cm)
8873
Plinth (111.2x7.6cm)
8825
Door x2
(63.6x36.5cm)
0712
Drawer Front x4
(37.2x15.7cm)
0711
Drawer Bottom x4
(33.8x29.8cm)
2601
Left drawer side x4
(30x10cm)
Drawer back x4
(32.7x10cm)
Right drawer side x4
(30x10cm)
622xx7002
624xx7004
623xx7002

3
70 80 90 100 110 120
010 20 30 40 50 60
mm
130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly, In some case more
fittings may be supplied than are required.
Tools required
If you have damaged or missing components, call the
Customer Helpline: 01709 534123 Please turn to back page
for important information when contacting Customer Helpline.
Cross headed screwdriver
(medium & large )
Small Hammer
Tape Measure
Eye protection
(when using a
hammer)
Large cam x 24
Code 760001103
Metal dowel x 32
Code 760003004
ABC
E
DF
GHI
K
Panel pin x 60
Code 760001012
Panel pin guide x 1
Code 684004501
Hingeplate x 4
Code 653006000
Fully cranked 26mm
hinge x 4
Code 652001120
12mm screw x 8
Code 690001008
J
Small cam x 8
Code 760003005
9mm bolt x 8
Code 690001078
L
45mm screw x 4
Code 690001075
M
Wooden dowel x 4
Code 770001006
N
8mm screw x 16
Code 700003510
P
Runner x 8
Code 760001040
Bradawl
Handle x 6
Code 643005527
20mm bolt x 12
Code 700002006
QR
L Bracket x 1
Code 790001901
12mm screw x 2
Code 690001099

Exploded View
4
8865
8866
8825
0712
0712
8867
8868
8873
8873
8869
8870
8874
622xx7002
4472
623xx7002
0711
2601
624xx7004
Drawers x4

Insert 2 metal dowels
into the drawer front
Secure handles with
bolts .
Repeat on the remaining
drawer fronts.
Step 4
Fitting metal dowels
to the drawer fronts.
B
G
D
0711
B
B
0711
A
Step 1
Assembly Instructions
5
B
x8
B
A
x4
Fitting dowels to top
panel.
Step 2
B
A
B
B
B
B
B
B
B
B
A
Fitting cams to the
plinth panel.
8825
Insert 8 metal dowels
into the top panel 8865
A
Insert 4 cams into the
plinth panel
Note: Tighten metal
dowels up fully against
the panel.
Do not over tighten.
8825
A
x8
Step 3
Fitting cams to the
shelf panel.
A
Insert 4 cams into the
shelf panel
Repeat on the remaining
shelf panel.
8873
A
A
A
A
A
A
8873
8865
B
x8
D
G
D
D
x8
G
x4

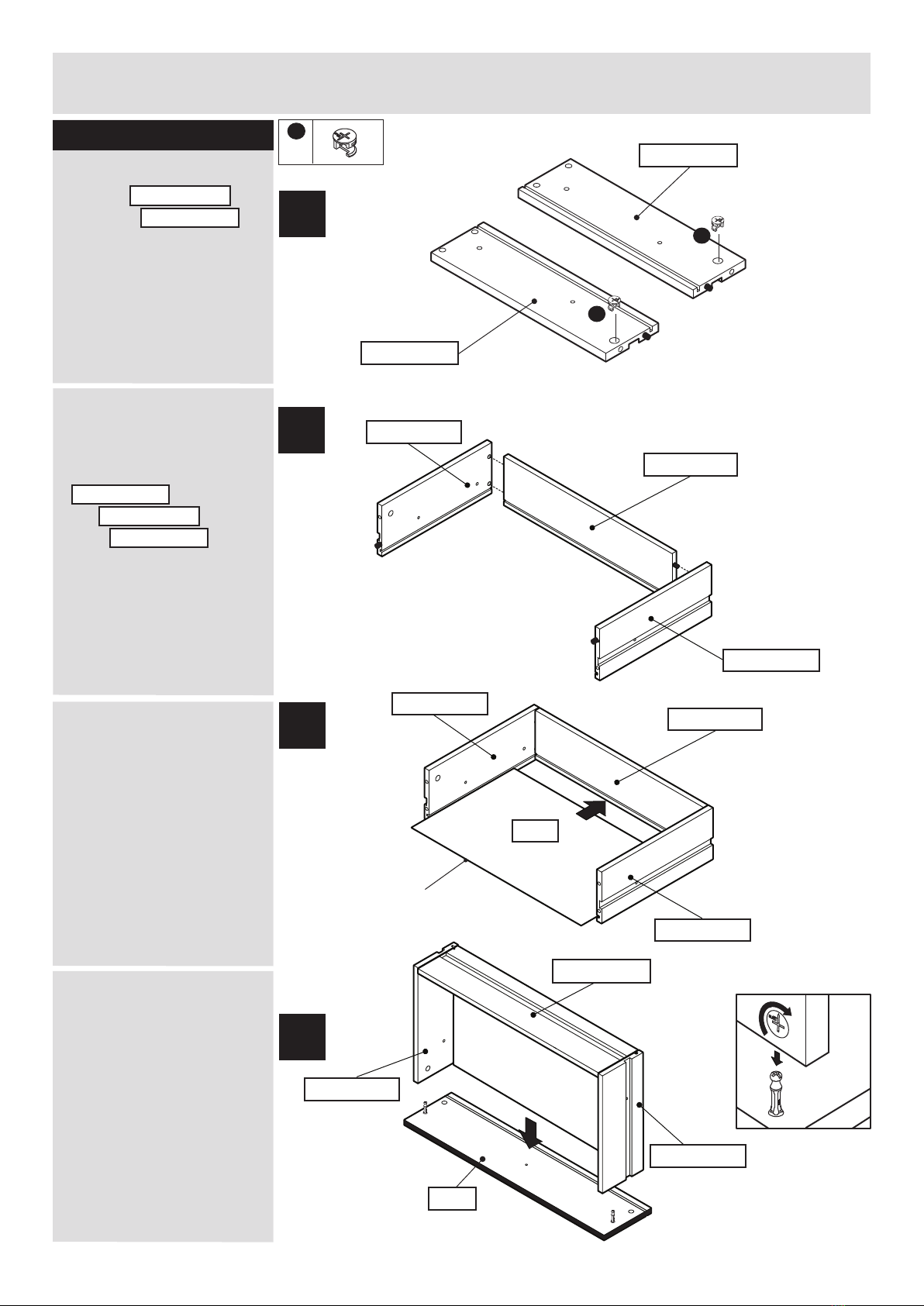

Assembly Instructions
6
x8
A: Insert small cams
into left
and right
drawer sides.
Left hand side
Right hand side
622xx7002
623xx7002
622xx7002
623xx7002 A
C
C
C
Step 5
B: Insert wooden dowels
in drawer back
into holes in
left
right hand
drawer sides.
Left hand side
Drawer Back
624xx7004
622xx7002
623xx7002
624xx7004
622xx7002
B
C: Slide drawer bottom
into grooves in the left
and right drawer sides
and the drawer back.
Drawer assembly cont.
C
D:Locate the metal
dowels (already inserted)
in the drawer front into the
small cams in the left and
right hand drawer sides.
Ensure drawer sides are
pressed against drawer
front.
Repeat on remaining
drawers.
D
Right hand side
623xx7002
SLIDE!
2601
Plain chipboard surface
to underside.
624xx7004
623xx7002
622xx7002
622xx7002
623xx7002
624xx7004
0711
Turn cams 180 degrees to
lock.

Assembly Instructions
7
Step 6
Attach hinges and
handles to 2 doors
a: Insert hinges
into holes, ensure
the hinge is straight
(90 degree angle).
b: Before securing the
hinges , we recommend
you pre - mark the doors
using a bradawl.
I
I
Bradawl
c: Secure hinges to
doors using screws .
I
F
d: Secure handle to
doors using bolts
G
D
I
x4
F
x8
F
F
F
F
A
B
C
D
90
Correct
98
Incorrect
Repeat on the second
door
0712
I
G
D
D
I
0712
0712
0712
0712
D
x8
G
x4

Assembly Instructions
8
A
A
A
x4
Step 7
Fitting cams to the
bottom panel.
A
Insert 4 cams into the
bottom panel 8866
A
A
8866
H
H
H
H
A
A
B
B
B
B
B
B
B
B
B
B
B
B
Step 5

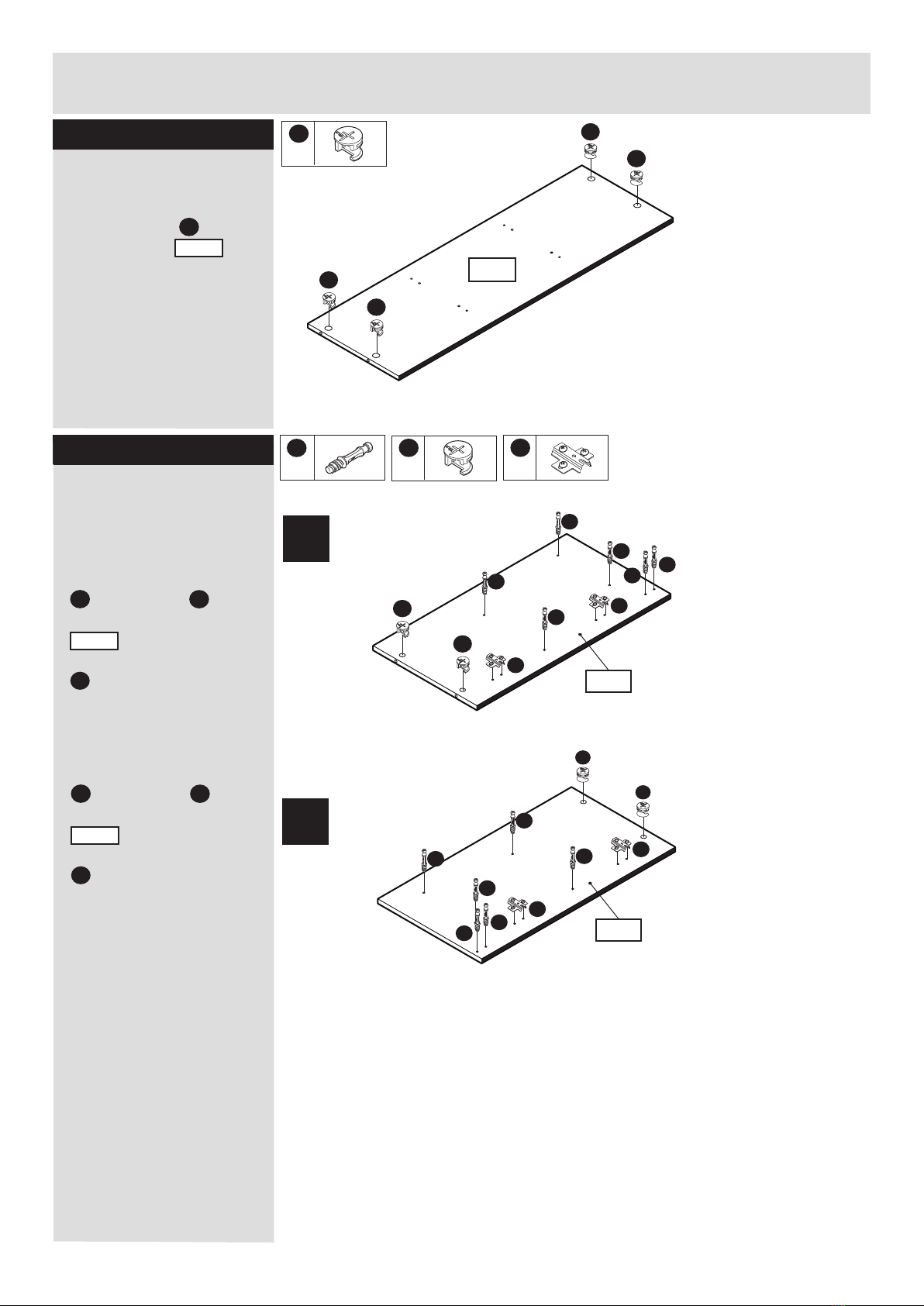

Step 8
Fitting dowels, cams
and hingesplates to the
end panels.
BA
a: Insert 6 metal dowels
and 2 cams into
the left hand end panel
. Continue by
attaching 2 hingeplates
.
8867
H
BA
b: Insert 6 metal dowels
and 2 cams into
the right hand end panel
. Continue by
attaching 2 hingeplates
.
8868
H
B
x12
A
x4
H
x4
A
A
8867
8868
A
B

Assembly Instructions
9
Step 9
Step 1
Step 2
P
P
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
A
A
B
B
B
B
M
M
Attaching fittings to
left division panel.
Attaching fittings to
right division panel.
A
B
a: Insert 2 cams to
the division .
Position the runner so
that the second hole
from the front of the
runner lines up with the
pre-drilled hole nearest
to the grooved edge of
the panel. Use screws
to secure the runner.
Slide the runner forward
revealing the back of the
runner. The second hole
to the back of the runner
will now line up with
the second pre-drilled
hole. Fix with screws .
b: Turn the division panel
over. Insert 2 metal
dowels . Finally, insert
2 wooden dowels into
the central holes in the
division.
8869
8869
N
N
M
A
B
a: Insert 2 cams to
the division and
then insert 2 wooden
dowels into the central
holes in the division.
Secure the runner as
detailed in the previous
step.
b: Turn the division panel
over. Insert 2 metal
dowels .
8870
8870
M
M
M
A
A
x2
B
x8
N
P
x4
A
x2
M
x2
x2
B
x8
E
P
x4
A
x2
M
x2
8869
8869
8870
8870
Step 10
CAUTION: BE CAREFUL NOT TO
DAMAGE FLOOR WHEN ATTACHING
FITTINGS TO THE REVERSE SIDE.
TURN OVER!
TURN OVER!

Assembly Instructions
10
Step 11
Ensure plinth is
not overhanging.
Ensure plinth sits
flush.
Connecting the plinth,
shelf and bottom to
the left end panel.
Connect the cams in the
plinth , the bottom
and the shelf
to the left end
panel .
To lock and secure the
cam and dowels, locate
the metal dowel into the
cam as shown.
Turn cams 180 degrees to
lock.
Do not overtighten.
8825
8866
8873
8867
8867
8873
8866
8873
8825
L
LL
L
x4
L

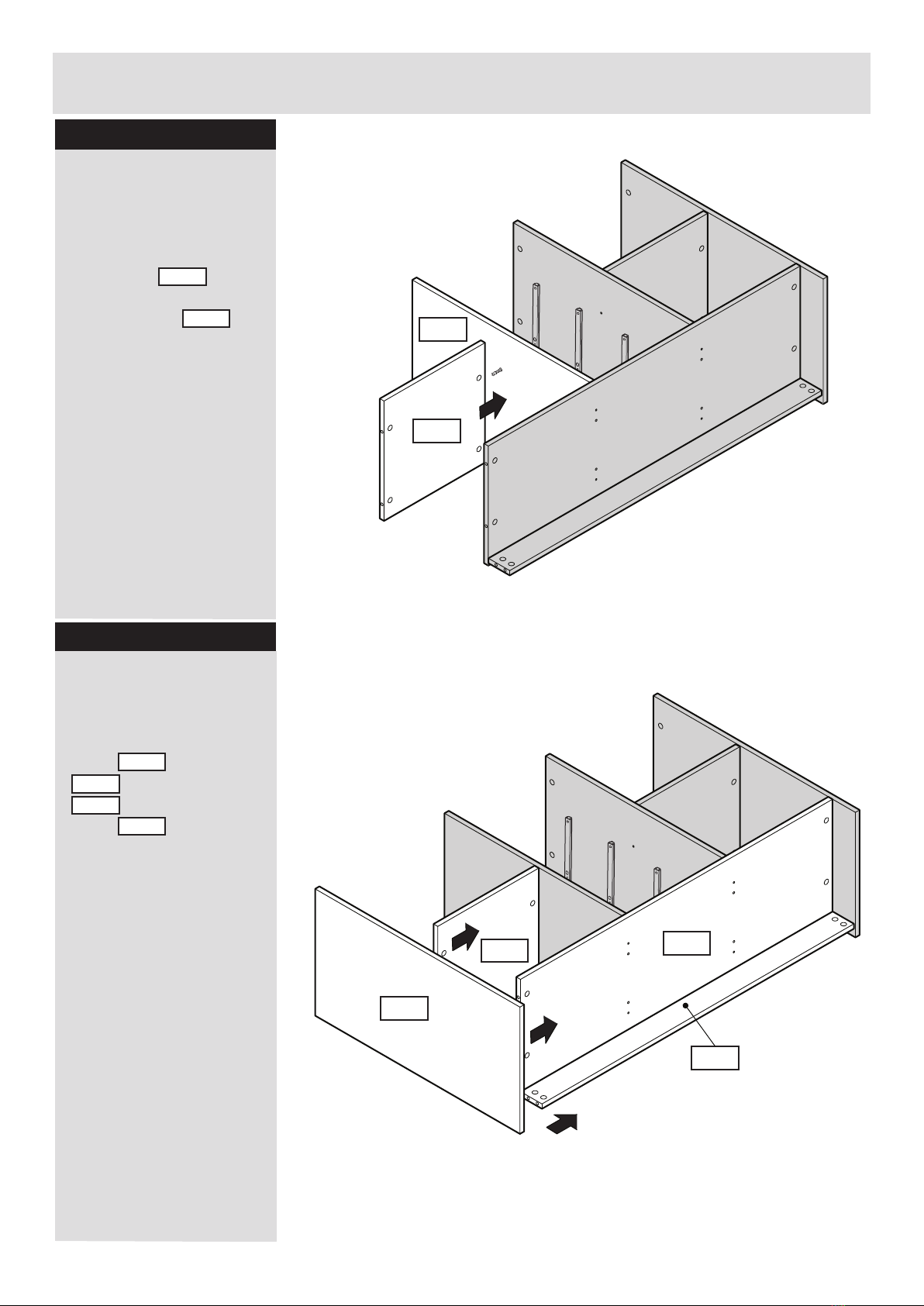

Step 12
Insert the wooden dowels
in the left division
into the pre-drilled holes
in the bottom panel .
Angle to top of the left
division away from
the unit to connect the
dowels in the left division
to the shelf panel .
Secure the left division
panel with 2 screws .
Insert the wooden dowels
in the right division
into the pre-drilled holes
in the bottom panel
Secure the left division
panel with 2 screws .
Connect the bottom to
the division panels.
8869
8866
8866
8870
8869
8873
L
L
8866
8869
8870
Assembly: Finished edges to the floor.

Assembly Instructions
11
Step 13
Insert the cams in the
shelf panel to the
dowels in the right
division panel .
Connect the remaining
shelf panel to the right
division panel.
8873
8873
8870
8825
8866
8868
8870
8873
Step 14
Connecting the plinth,
shelf and bottom to
the right end panel.
Connect the cams in the
plinth , the bottom
and the shelf
to the right end
panel .
8825
8866
8873
8868
Turn cams 180 degrees to
lock.
Turn cams 180 degrees to
lock.

Assembly Instructions
12
Step 15
Step 16
8868
8867
8869
8870
8865
DIAG 1 DIAG 2 DIAG 3
XX
XX
XX
XX
YY
YY
YY
YY
XX
XX
YY
YY
XX
XX
YY
YY

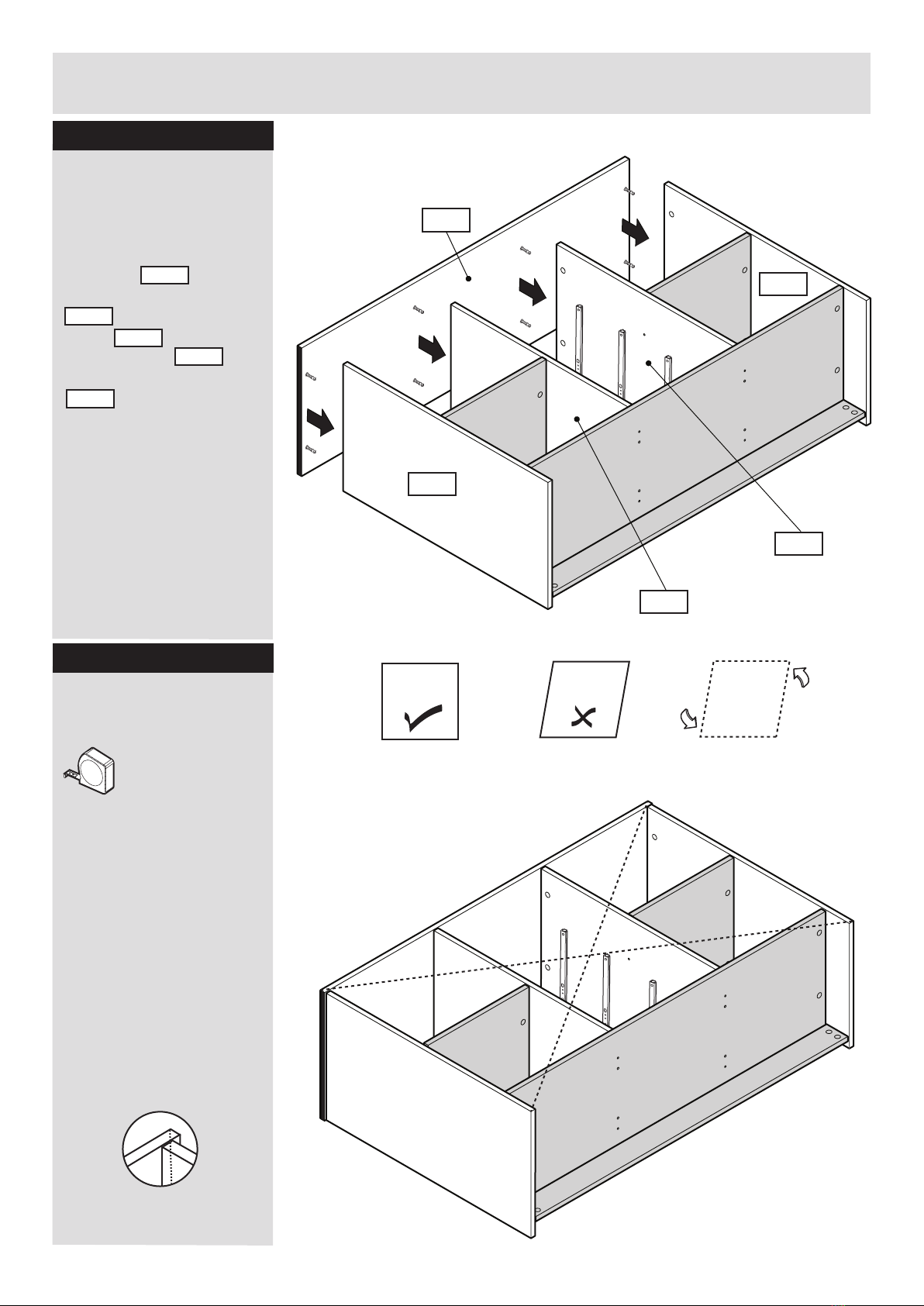

Measure to
external corners
Squaring up the unit.
Ensure a tape
measure is used
to square up unit!
Important:
Before securing the back
it is necessary to square
up the unit.
You can do this by
measuring between
XX - XX and YY - YY
ensuring these are the
same (DIAG 1).
If they are not (DIAG 2)
Apply slight pressure as
indicated (DIAG 3) until
they are the same.
Insert the dowels in the
top panel into the
cams in the left end panel
, the right end
panel , the left
division panel and
the right division panel
.
Connect the top panel
to the end and division
panels.
8867
8868
8870
8869
8865
Turn cams 180 degrees to
lock.

Assembly Instructions
13
Step 17
Attach the backpanel
Use the panel pin guide
when locating the panel
pins. This will hold the
panel pins vertical and
ensure the correct
distance from the edge.
E
E
x60
J
J
x1
E
J
AB
Step 18
a: With help, slot door
hinges onto hinge plates.
Ensure screw on hinge
slides into the slot on
hingeplate.
See Diagrams 1, 2 and 3.
Fitting doors
b: Tighten screw shown
to lock hinges in
position.
See ‘Hinge adjustment’
page if the doors
need adjusting.
Repeat on the
remaining door
0712
8868
8867
8874
Plain chipboard surface

Assembly Instructions
14

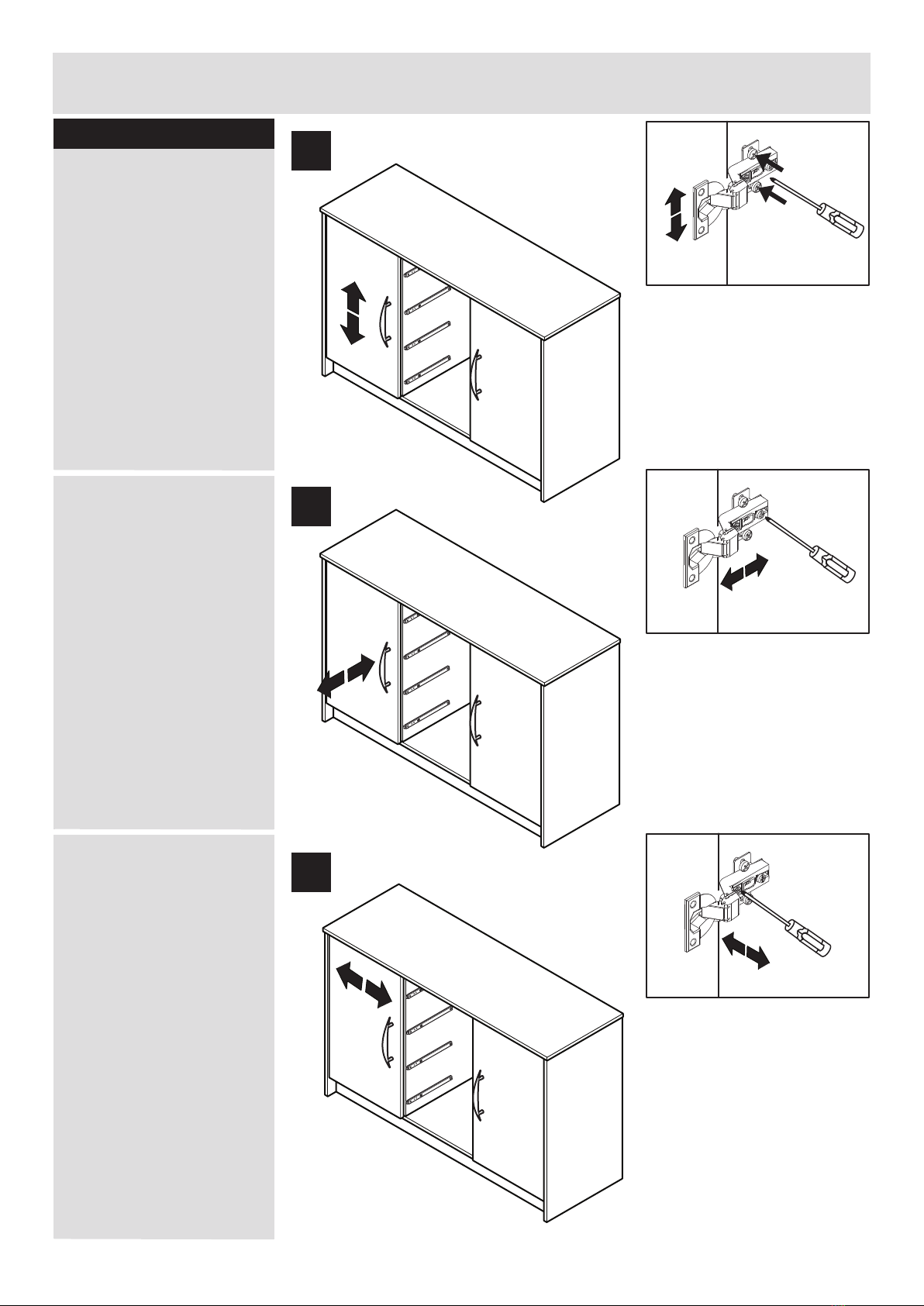

Step 19
a: To move doors up
or down: loosen screws
shown and move doors
to suit.
Re-tighten screws.
Hinge adjustment
b: To move doors in or
out: loosen screw
shown and move doors
to suit.
Re-tighten screws.
c: To move doors left
or right: loosen or
tighten screw as shown.
Be careful not to fully
unscrew.
A
B
C

Assembly Instructions
15

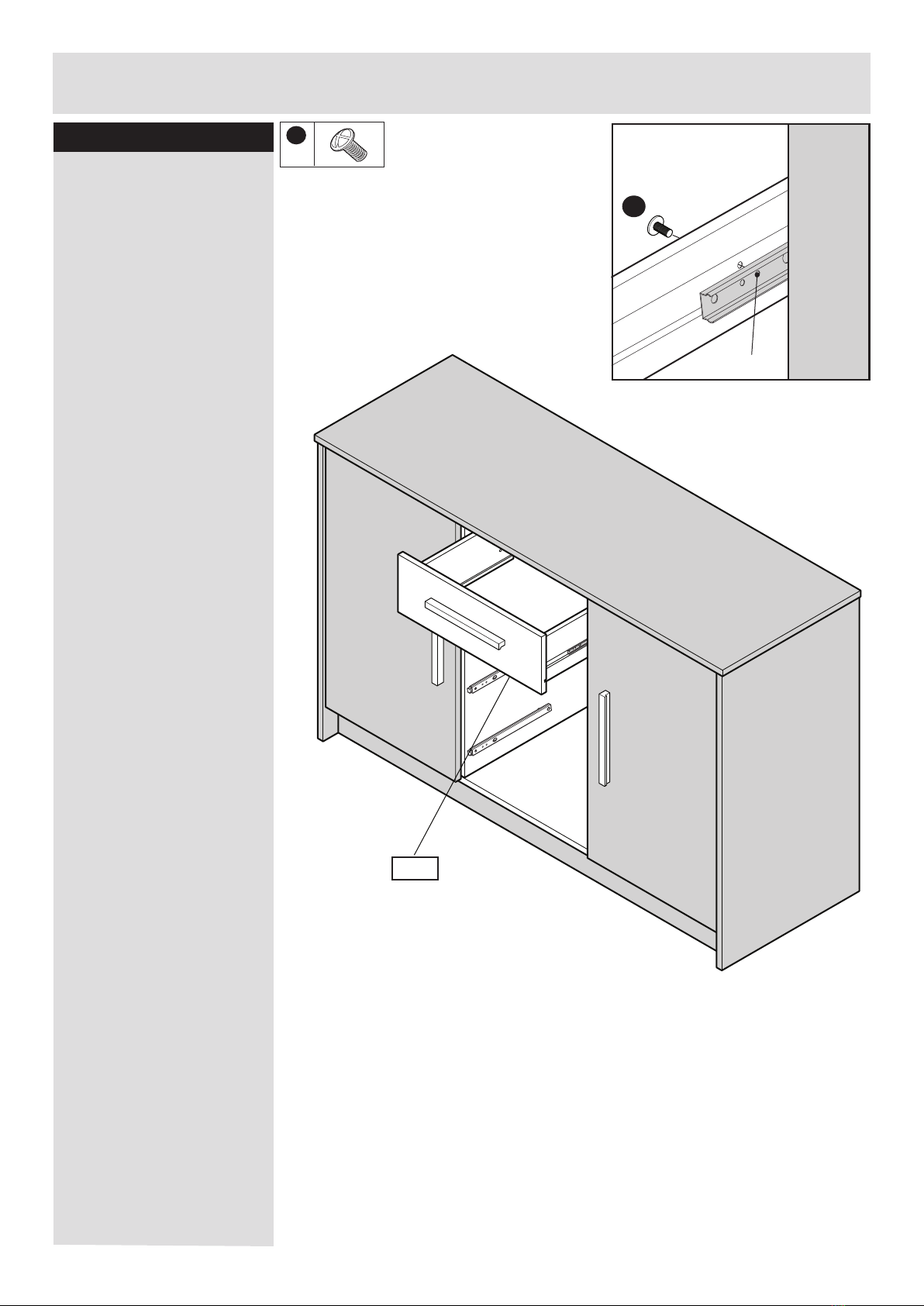

Step 20
Fit the drawers.
For this step we
recommend you follow
the helpful hints on the
next page.
Repeat this process on
all drawers.
x8
K
2nd Hole
K
0711

Assembly Instructions
16
Step 21
P
K
J
D
EF
AB
C
2nd Hole
H
2nd Hole
J
L
L
L
K
P
P
P
P
P
P
a: Pull sliding part of
drawer runners out
so they are fully
extended.
Locate drawers helpful
hints
b: Locate drawer onto
runners.
c: Locate screwdriver
into second threaded
hole in drawer runner .
d: Keeping screwdriver
in place push the drawer
in until the screwdriver
pushes against the
panel.
Remove the screwdriver.
e/f: Pull drawer out slowly
and line the front hole in the
drawer side with the 2nd
threaded hole in runner .
Holding runner and
drawer side together
insert bolts through the
drawer side and
into threaded hole in
runner .
Now repeat these
steps for the other
side of the drawer.

Assembly Instructions
17

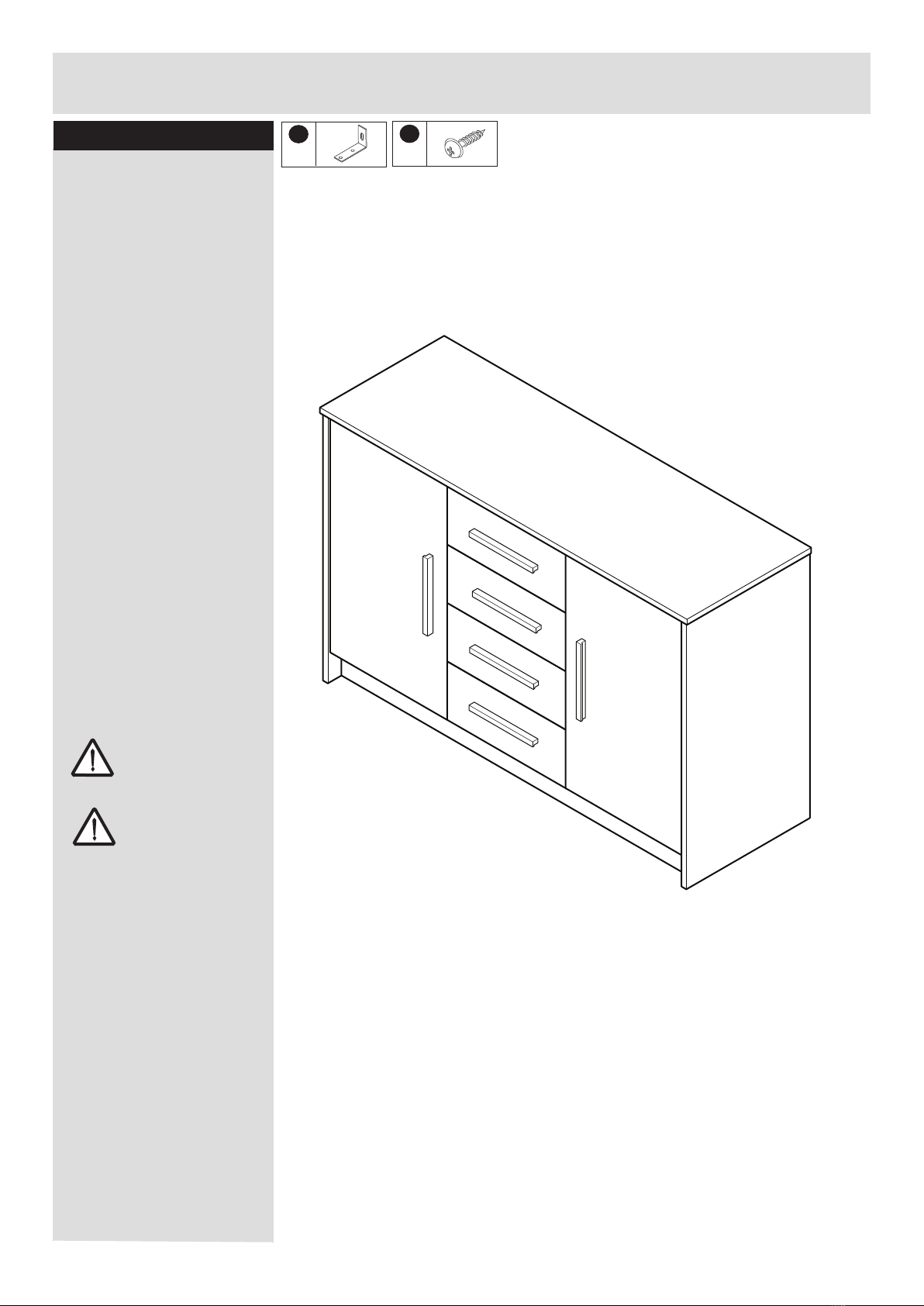

Step 22
We recommend that this
unit is fixed to a suitable
wall to prevent possible
overbalancing. We have
included a fixing bracket
for this. No fixing screws
are provided as they will
need to suit the wall
type, and the length of
screw will depend on
the distance from the
back of the unit to the
wall. Please ensure
fixings used are
appropriate to your wall
type. Locate the bracket
to the top panel or to the
end panel as close to
top as possible. We do
not specify exact
location for the bracket,
this is left to the
customer’s discretion.
Please take care when
drilling into the wall,
avoiding any pipes and
wires. Wear safety
goggles when drilling.
The use of residual
current device (RCD) is
recommended when
working with tools.If in
doubt consult a
qualified person.
With help move the
unit into position.
Warning:
2 people required.
Lift with care.
Warning:
Q
x1
R
x2
Fixing to wall

Assembly Instructions
Congratulations! Your unit is complete.
Important Information
If you need help or have damaged or missing parts, call the Customer Helpline:
01709 534123 8am - 4.30pm (Monday toThursday)
8am - 2.30pm (Fridays)
Please have the following information to hand:
>> Unit Description
>> Product Code
>> Product Colour
>> Place of Purchase
>> Catalogue Ref. No.
>> Item Code
>> Assembly Instructions
You can also e-mail your requests to us at:
[e-mail]
Alternatively, you can write to us at: Customer Service Department, Addspace Furniture Limited,
Braithwell Way, Hellaby Industrial Estate, Hellaby, Rotherham, South Yorkshire, S66 8QY.
We do have an answer machine should you contact us out of office hours, so in addition to
the above information could you leave your name, address, daytime telephone number and
the nature of your call on the answerphone. All calls will be actioned asap.
(by contacting the customer service line your statutory rights are not affected)
