ADF Web HD67659-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 1 of 26
User Manual
Revision 1.
English
PROFINET Slave / Ethernet - Converter
(Order Code: HD67659-A1)
for Website information:
http://www.adfweb.com/?Product=HD67659
for Price information:
http://www.adfweb.com/?Price=HD67659-A1
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
T
emperature range:
-
4 °C/+85°C (
-
4 °F/+185°F)
For others PROFINET slave converters, see also the following links:
PROFINET from/to
www.adfweb.com?Product=HD67 78 (M-Bus)
www.adfweb.com?Product=HD67 9 (M-Bus Wireless)
www.adfweb.com?Product=HD67178 (SNMP Manager)
www.adfweb.com?Product=HD676 (NMEA 2000)
www.adfweb.com?Product=HD676 1 (Serial)
www.adfweb.com?Product=HD676 2 (Modbus Master)
www.adfweb.com?Product=HD676 3 (Modbus Slave)
www.adfweb.com?Product=HD676 4 (PROFIBUS Master)
www.adfweb.com?Product=HD676 5 (PROFIBUS Slave)
www.adfweb.com?Product=HD676 6 (CAN)
www.adfweb.com?Product=HD676 7 (CANopen)
www.adfweb.com?Product=HD676 8 (DeviceNet Master)
www.adfweb.com?Product=HD676 9 (DeviceNet Slave)
www.adfweb.com?Product=HD6761 (J1939)
www.adfweb.com?Product=HD67611 (Modbus TCP Master)
www.adfweb.com?Product=HD67612 (Modbus TCP Slave)
www.adfweb.com?Product=HD67613 (SNMP Agent)
www.adfweb.com?Product=HD67614 (DMX)
www.adfweb.com?Product=HD67615 (NMEA 0183)
www.adfweb.com?Product=HD6766 (EtherNet/IP)
www.adfweb.com?Product=HD67679 (BACnet Slave)
www.adfweb.com?Product=HD67719 (BACnet Master)
www.adfweb.com?Product=HD67752 (IEC 61850 Server)
www.adfweb.com?Product=HD67778 (IEC 61850 Client)
www.adfweb.com?Product=HD67818 (KNX)
www.adfweb.com?Product=HD67848 (DALI)
www.adfweb.com?Product=HD67912 (HART Master)
www.adfweb.com?Product=HD67952 (MQTT)
www.adfweb.com?Product=HD67B22 (OPC UA Client)
www.adfweb.com?Product=HD67B46 (OPC UA Server)
www.adfweb.com?Product=HD67C77 (EnOcean)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 2 of 26
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 1
USE OF COMPOSITOR SW67659 11
NEW PROJECT / OPEN PROJECT 12
SOFTWARE OPTIONS 13
SET COMMUNICATION 14
PROFINET XML 15
UPDATE DEVICE 16
ETHERNET PROTOCOL 18

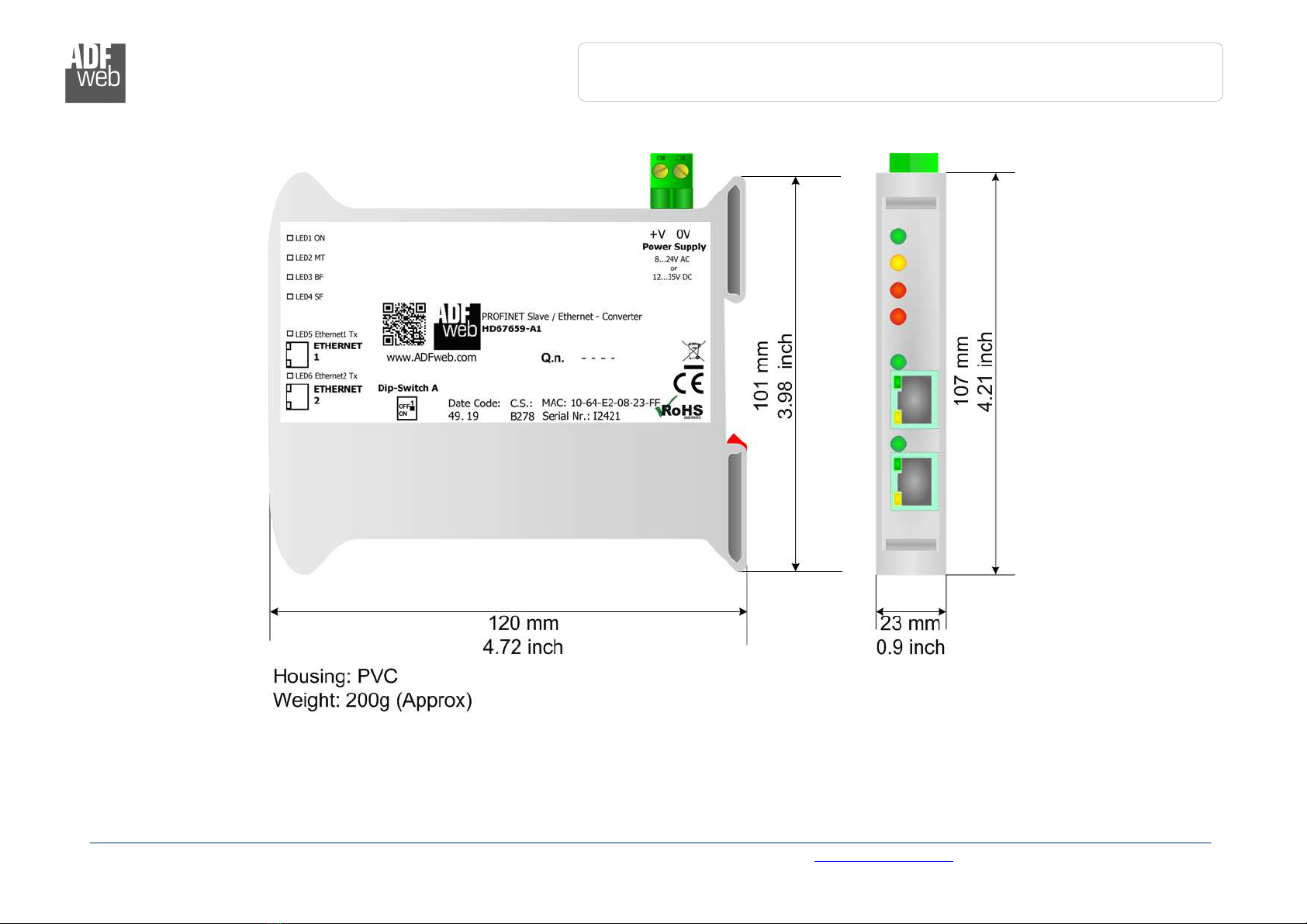

MECHANICAL DIMENSIONS 2
ORDERING INFORMATIONS 21
ACCESSORIES 21
PLC CONFIGURATION 22
DISCLAIMER 25
OTHER REGULATIONS AND STANDARDS 25
WARRANTIES AND TECHNICAL SUPPORT 26
RETURN POLICY 26
Pagina 2 di 26
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that you
need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code” that
appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/ and
search for the corresponding code on the page. Click on the proper “Document
Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1. 13/ 3/2 19 Tf All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about our
product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 3 of 26
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for
each individual application, legal and safety regulation. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent limit
switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who
have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated
by personnel untrained. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the
possibility of damage.
CE CONFORMITY
The declaration is made by us. You can send an email to [e-mail] or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 4 of 26

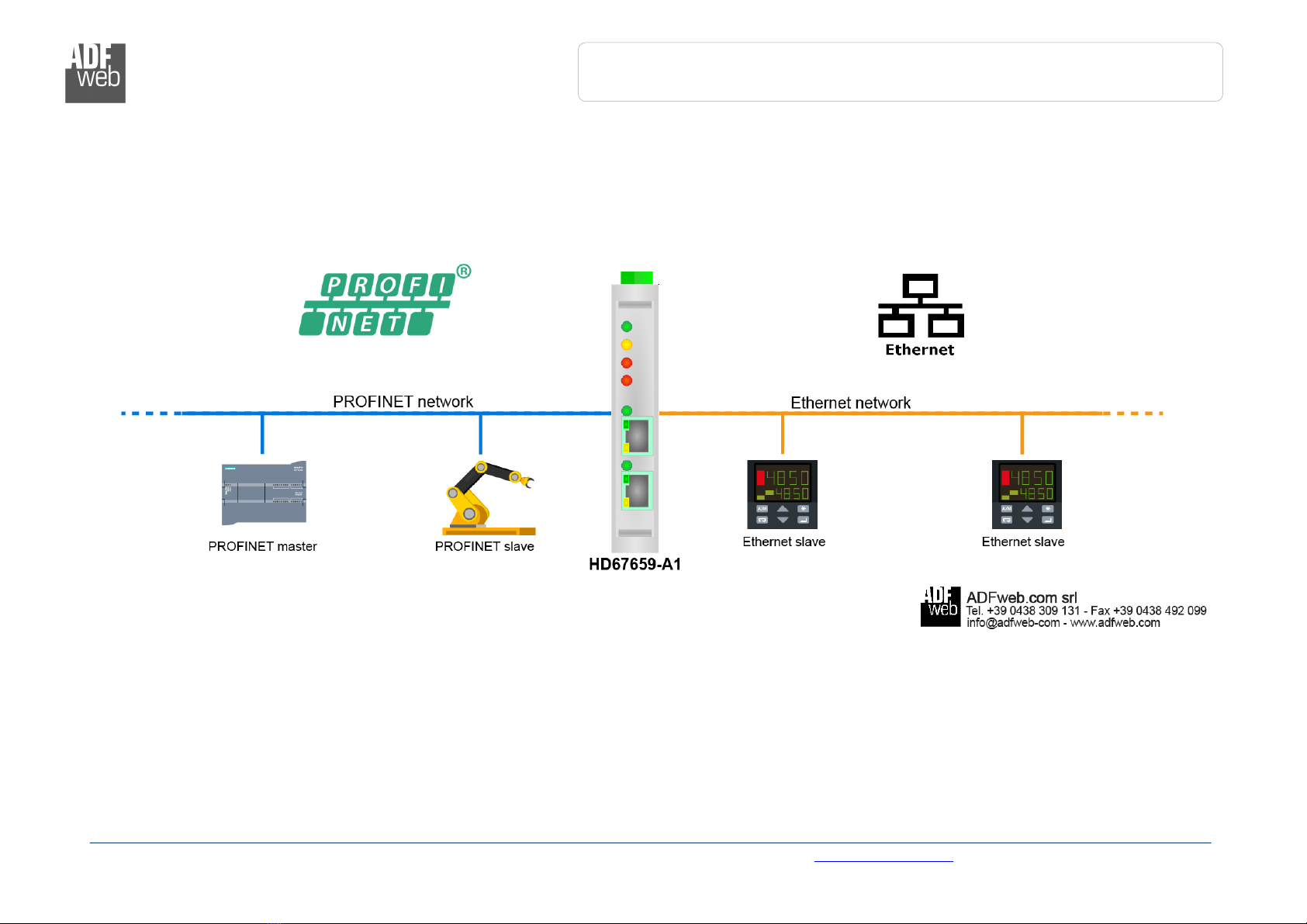

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 5 of 26
CONNECTION SCHEME:
Figure
1
: Connection scheme for HD67
659
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 6 of 26
CHARACTERISTICS:
The HD67659-A1 is a PROFINET Slave / Ethernet Converter.
It allows the following characteristics:
Up to 5 bytes in reading and 5 bytes in writing on Ethernet side;
Two-directional information between Ethernet and PROFINET;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67659 software on your PC in order to perform the following:
Define the parameter of the PROFINET;
Define the parameter of the Ethernet/IP.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 7 of 26
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67659-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67659-A1 4
Caution: Not reverse th
e polarity power
HD67659-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 8 of 26

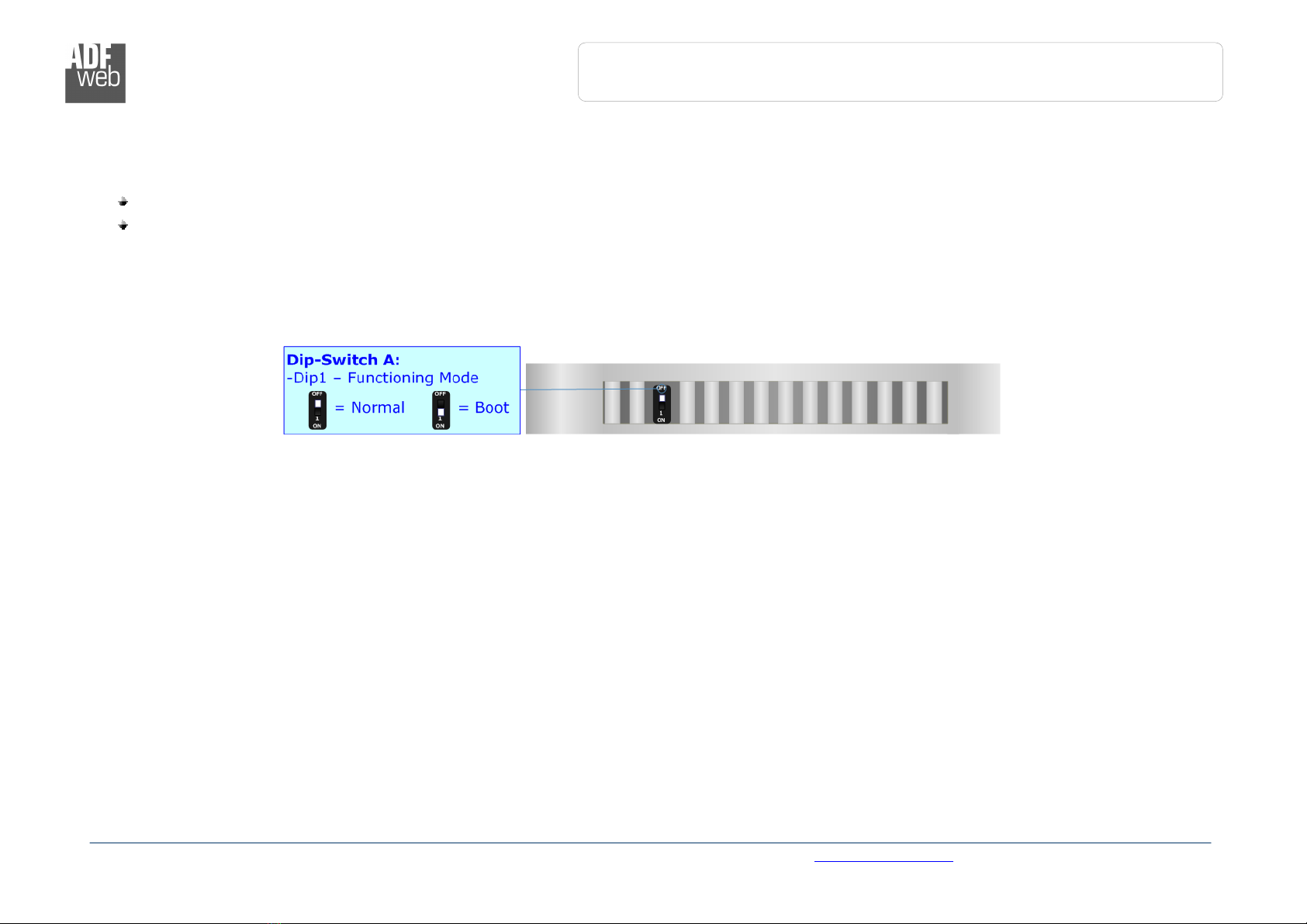

FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch B’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updating (see ‘UPDATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 9 of 26
LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: MT [maintenance display]
(yellow)
ON: Device not able to communicate with the Master
DeviceNet
OFF: No maintenance are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: BF [bus fault] (red)
ON: The Ethernet connection is defective; the IP
address exists several times in the network; the own
NameOfStation exists several times in the network; no
IP address has been set
Flashing: At least one configured AR is no longer in
the data exchange
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: SF [group error] (red) ON: At least one AR is not in the data exchange
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet1 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Ethernet2 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 1 of 26
ETHERNET:
The Ethernet connection must be made using Connector3 or Connector4 of HD67659-A1 with at least a Category 5E cable. The maximum
length of the cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended
the use of a cross cable.
Connector4:
Ethernet2 port
(RJ45 Plug)
Connector3:
Ethernet1 port
(RJ45 Plug)

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 11 of 26
USE OF COMPOSITOR SW67659:
To configure the Converter, use the available software that runs with Windows called SW67659. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).
When launching the SW67659, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67659

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 12 of 26

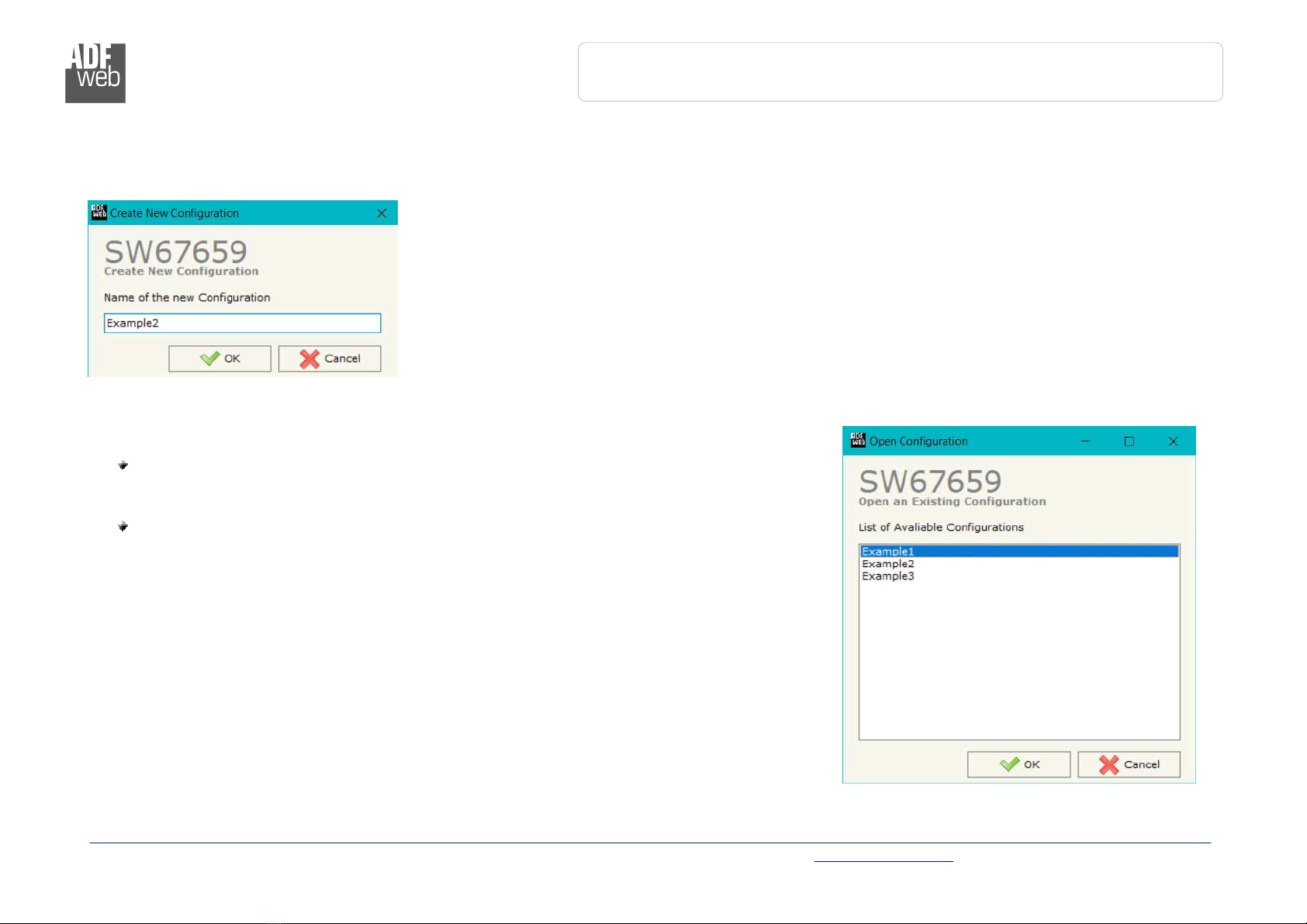

NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “PROFINET Slave / Ethernet -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 13 of 26

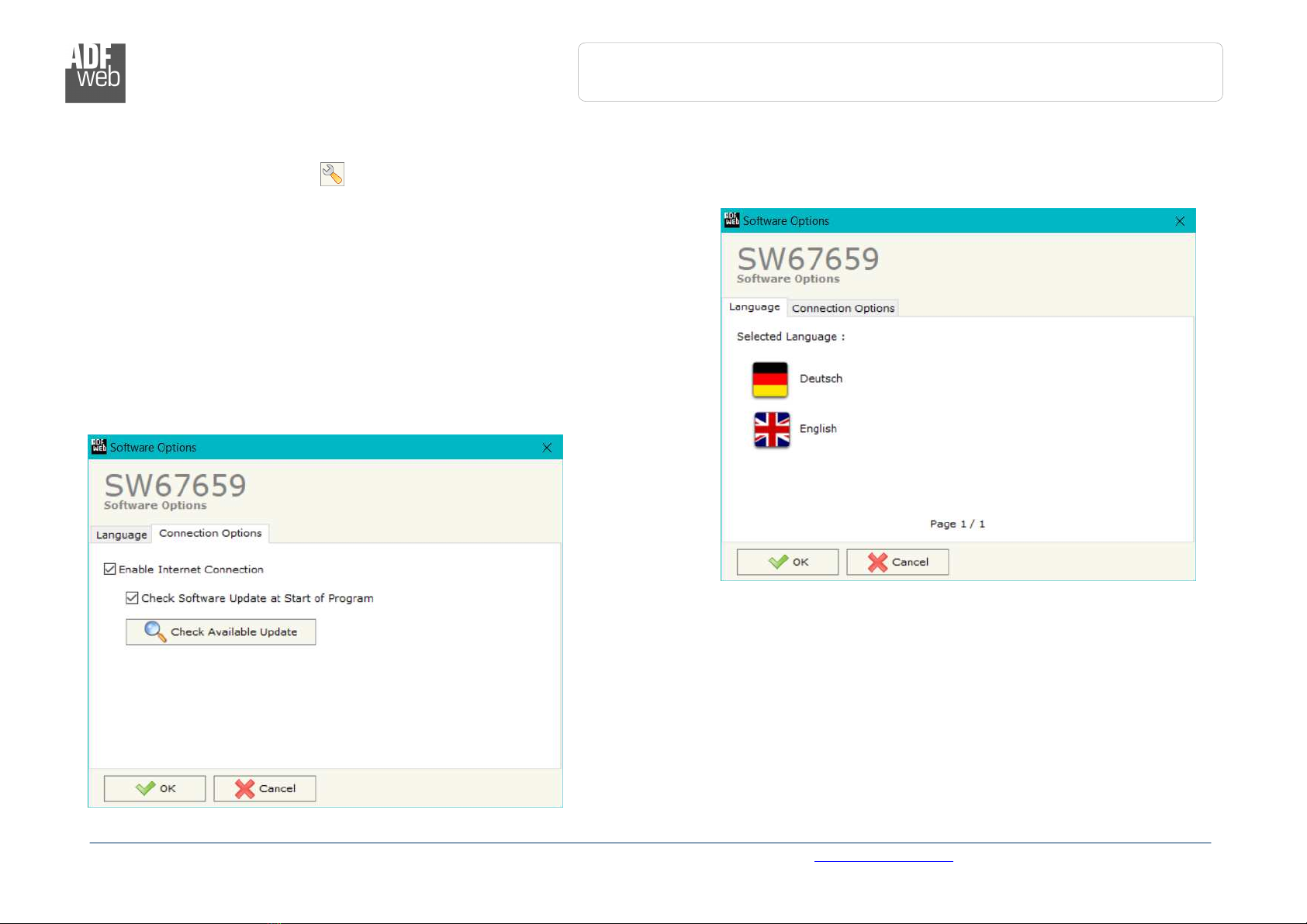

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67659 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 14 of 26
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, PROFINET and Ethernet.
By Pressing the “Set Communication” button from the main window for SW67659 (Fig. 2) the window
“Set Communication” appears (Fig. 3).
The means of the fields for “PROFINET” are:
In the field “IP ADDRESS” the IP address of PROFINET side of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of PROFINET side of the converter is defined;
In the field “GATEWAY” the default gateway of PROFINET network is defined. This feature can
be enabled or disabled pressing the check box. This feature is used for going out of the net;
In the field “Port” the port used for PROFINET communication is defined. The port has a fixed
value of 34964;
In the field "PROFINET Name of Station" the name of PROFINET side of the converter is
defined;
In the fields “PROFINET  Gateway” the number of input byte of the slave station is defined;
In the fields “Gateway  PROFINET” the number of output byte of the slave station is defined.
The means of the fields for “Ethernet” are:
In the field “IP ADDRESS” the IP address of Ethernet side of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of Ethernet side of the converter is defined;
In the field “GATEWAY” the default gateway of Ethernet network is defined. This feature can be
enabled or disabled pressing the check box. This feature is used for going out of the net;
In the field “TCP Port” the TCP port used to receive the Ethernet commands over TCP is
defined;
In the field “UDP Port” the UDP port used to receive the Ethernet commands over UDP is
defined.
Figure 3: “Set Communication”
window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 15 of 26
PROFINET XML:
By pressing the “PROFINET XML” button it is possible to save the xml file for the PROFINET side.
With this feature you can save the configuration of the converter of the PROFINET side.
Note:
When you import the .xml file on your PROFINET you have to add the main module and all the submodules present in it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 16 of 26
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into the
device; and also the Firmware, if necessary.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn off the Device;
Put Dip2 of ‘Dip-Switch A’ in ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Press the “Ping” button, “Device Found! must appear”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
Put Dip2 of ‘Dip-Switch A’ in OFF position;
Turn on the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly update.
Figure 4: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 17 of 26
Note:
When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67659
device.
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67659 device.
Warning:
If Fig. 5 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
Check the Wi-Fi settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 1 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet. For
do this you have to launch the "Command Prompt" and write the command "arp -d".
Pay attention that with Windows Vista, Seven, 8, 1 you have to launch the
"Command Prompt" with Administrator Rights;
Pay attention at Firewall lock.
In the case of HD67659 you have to use the software “SW67659”: www.adfweb.com\download\filefold\SW67659.zip.
Figure 5: Error windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 18 of 26
ETHERNET PROTOCOL:
In order to read and write the data from PROFINET side, it is enough to send some simple commands over TCP or UDP.
Reading data from HD67659 (PROFINET  Ethernet)
Request:
Byte Number Description
1 ‘R’ ( x52)
2 ‘.’ ( x2E)
Response:
Byte Number Description
1 ‘D’ ( x44)
2 ‘:’ ( x3A)
3÷n+2 Input byte of PROFINET (two chars for each byte)
*n=number of Input bytes defined in the Compositor

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 19 of 26
Writing data to HD67659 (Ethernet  PROFINET)
Request:
Byte Number Description
1 ‘W’ ( x57)
2 ‘.’ ( x2E)
3÷5 Starting output byte to write (decimal)
6 ‘ ‘ ( x2 )
7÷9 Number of bytes to write (decimal)
1 ‘ ‘ ( x2 )
1 ÷n+9 Data to write (hex)
*n=number of bytes defined in bytes 3-4-5 of the command
Response:
Byte Number Description
1 ‘D’ ( x44)
2 ‘:’ ( x3A)
3÷n+2 Output byte of PROFINET (two chars for each byte)
*n=number of Input bytes defined in the Compositor
Note:
It is possible to write up to 512 bytes with a single command.
Note:
It is possible to use TCP and UDP for sending the commands. It is necessary to use the ports defined in the section “Set
Communication” of SW67659.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Slave / Ether
net
-
Converter
Document code: MN67659_ENG Revision 1. Page 2 of 26
MECHANICAL DIMENSIONS:
Figure
6
: Mechan
ical dimensions scheme
for H
D676
59
-
A1
