User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 1 di 22
User Manual
Revision 1.000
English
DMX / PROFINET - Converter
(Order Code: HD67614-B2)
for Website information:
www.adfweb.com? roduct=HD67614
for rice information:
www.adfweb.com? rice=HD67614-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others DMX products, see also the following links:
Converter DMX to
www.adfweb.com? roduct=HD67670 (BACnet S ave)
www.adfweb.com? roduct=HD67821 (KNX)
www.adfweb.com? roduct=HD67039 (Ethernet)
www.adfweb.com? roduct=HD67588 (EtherNet/IP)
www.adfweb.com? roduct=HD67509 (Modbus TCP S ave)
www.adfweb.com? roduct=HD67040 (SNMP)
Do you have an your customer protocol?
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 2 di 22
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
RS485 10
ETHERNET 11
USE OF COM OSITOR SW67614 12
NEW ROJECT / O EN ROJECT 13
SOFTWARE O TIONS 14
SET COMMUNICATION 15
DMX DEFAULT VALUE 16
U DATE DEVICE 17
MECHANICAL DIMENSIONS 19
ORDERING INFORMATIONS 20
ACCESSORIES 20
DISCLAIMER 21
OTHER REGULATIONS AND STANDARDS 21
WARRANTIES AND TECHNICAL SU ORT 22
RETURN OLICY 22
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 26/10/2015 Ff All First Release

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 3 di 22
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 4 di 22
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 5 di 22
CONNECTION SCHEME:

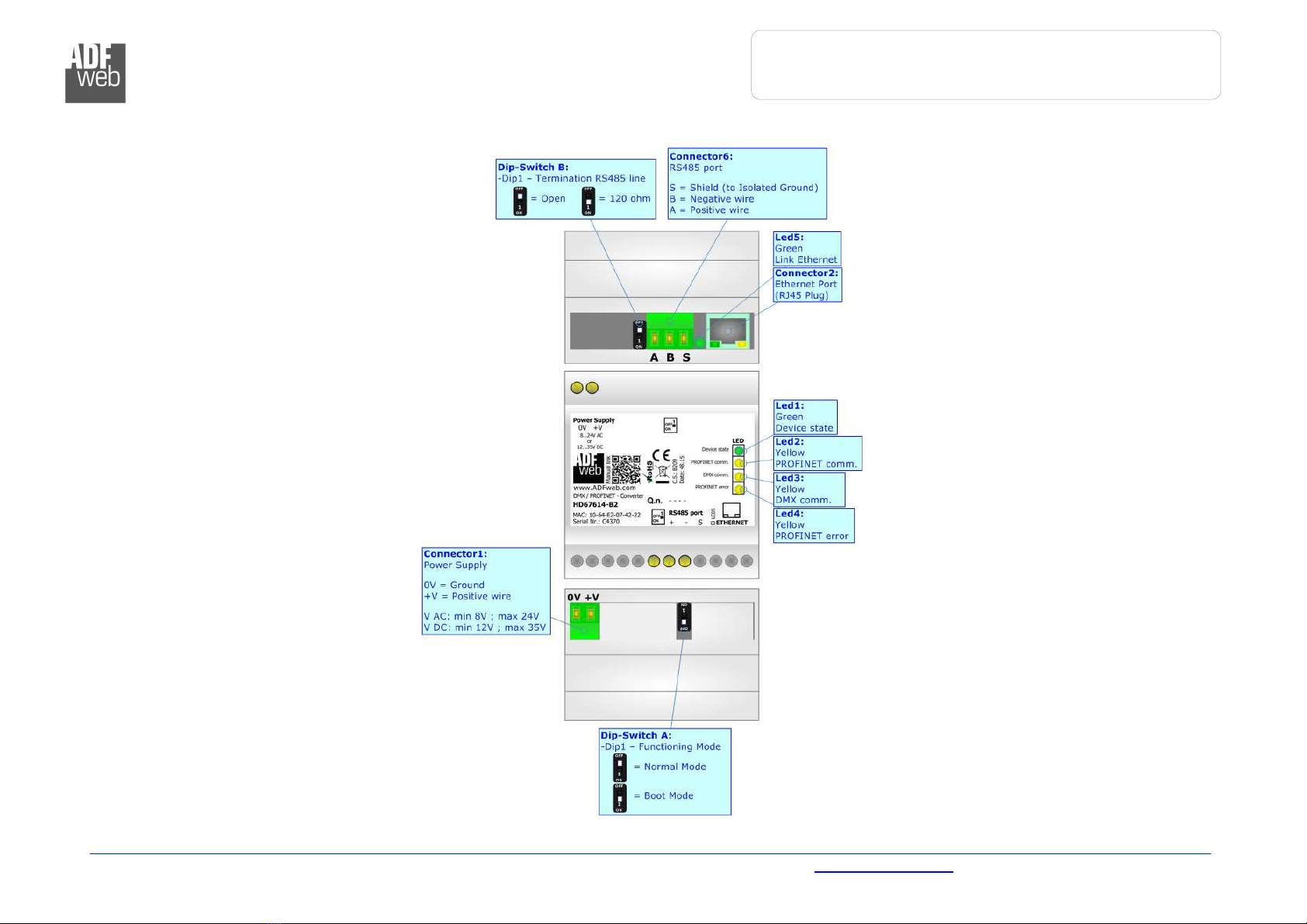

Figure 1: Connection scheme for HD67614-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 6 di 22
CHARACTERISTICS:
The HD67614 is a DMX / ROFINET Converter.
It has the following characteristics:
Up to 512 bytes on DMX side;
Triple isolation between Ethernet - ower Supply, Ethernet – Serial, ower Supply - Serial.
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67614 software on your C in order to perform the following:
Define the parameter of ROFINET line;
Define the parameter of DMX line;
Define the map of ROFINET byte that must be written in DMX side;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 7 di 22
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67614-B2 3.5
HD67614
-
B2
Caution: Not reverse the po arity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 8 di 22
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 9 di 22
LEDS:
The device has got five LEDs that are used to give information of the functioning status.

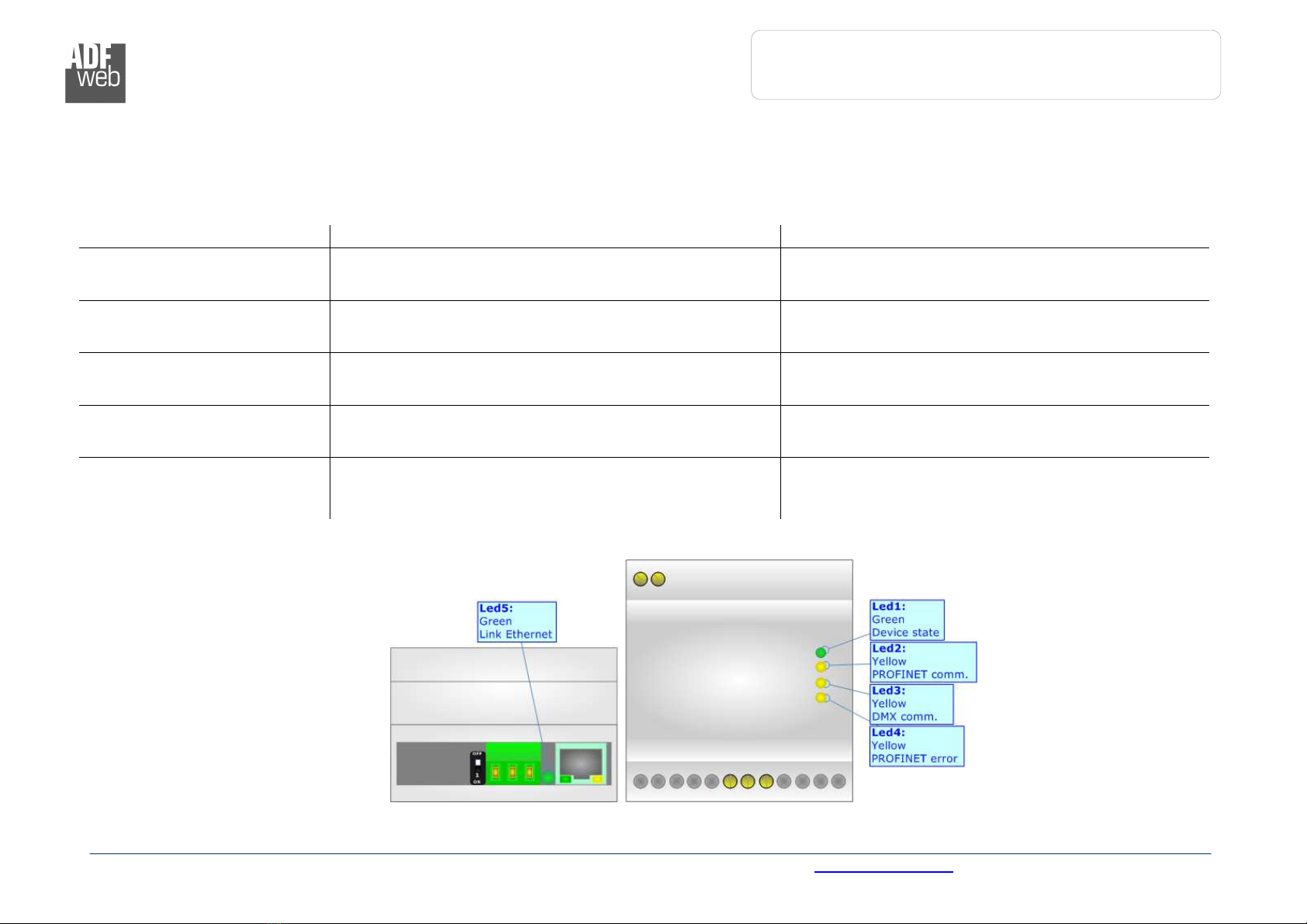

The various meanings of the LEDs are described in the table below.
LED Norma Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) ON: Device powered
OFF: Device not powered
2: ROFINET communication
(yellow)
Blinks when ROFINET communication with the Master
is running
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: DMX communication
(yellow) Blinks when DMX frame is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: ROFINET error (yellow) ON: ROFINET communication is in fault
OFF: No faults are present
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 10 di 22
RS485:
For terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 11 di 22
ETHERNET:

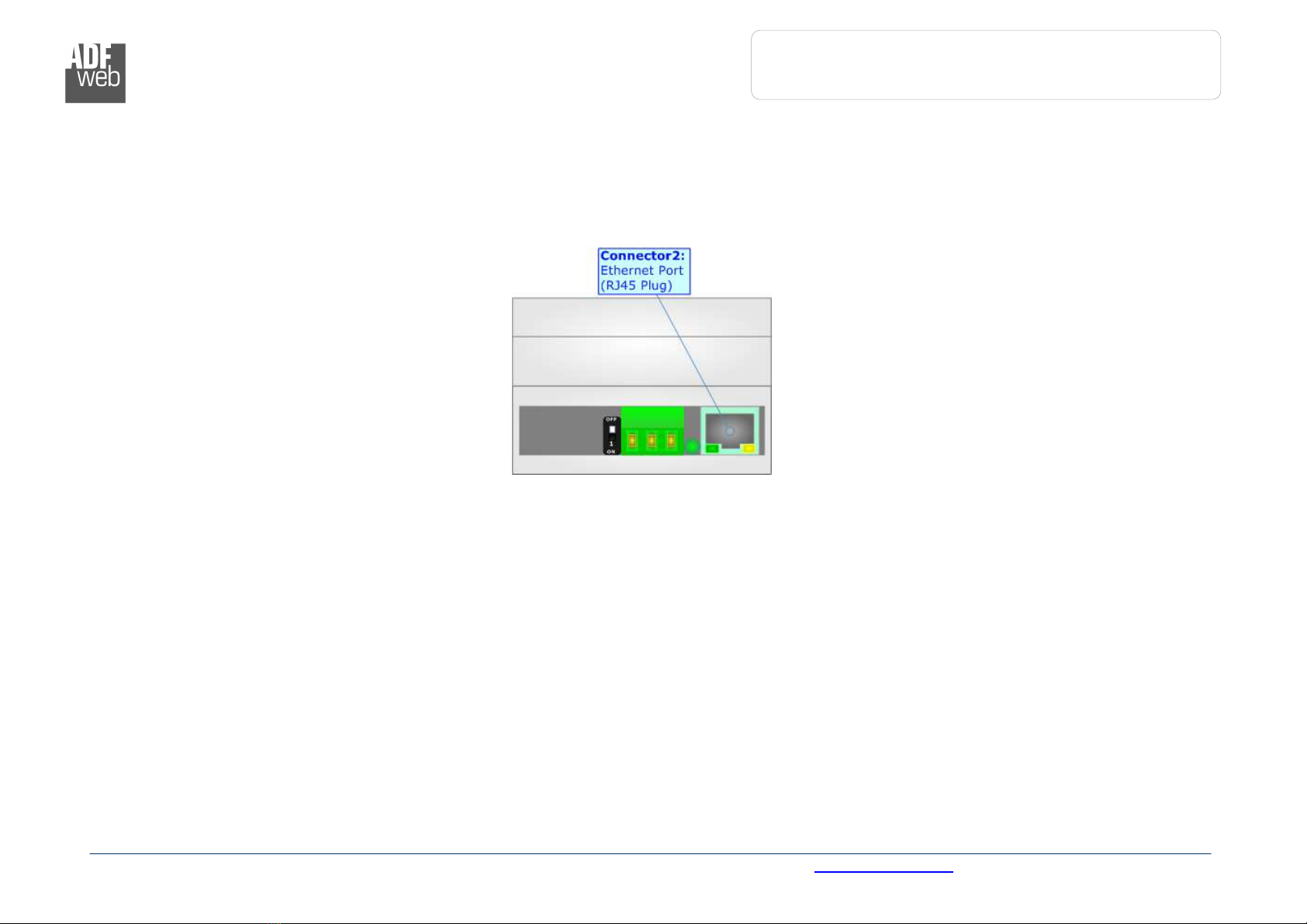

The Ethernet port is used for ROFINET communication and for programming the device.
The Ethernet connection must be made using Connector2 of HD67614-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 12 di 22
USE OF COMPOSITOR SW67614:
To configure the Converter, use the available software that runs with Windows called SW67614. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67614, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2:
Main window for SW67614

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 13 di 22
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “DMX / ROFINET - Converter” in order
to configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 14 di 22
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67614 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 15 di 22
SET COMMUNICATION:
This section define the fundamental communication parameters of the converter.
By ressing the “Set Communication” button from the main window for SW67614 (Fig. 2) the

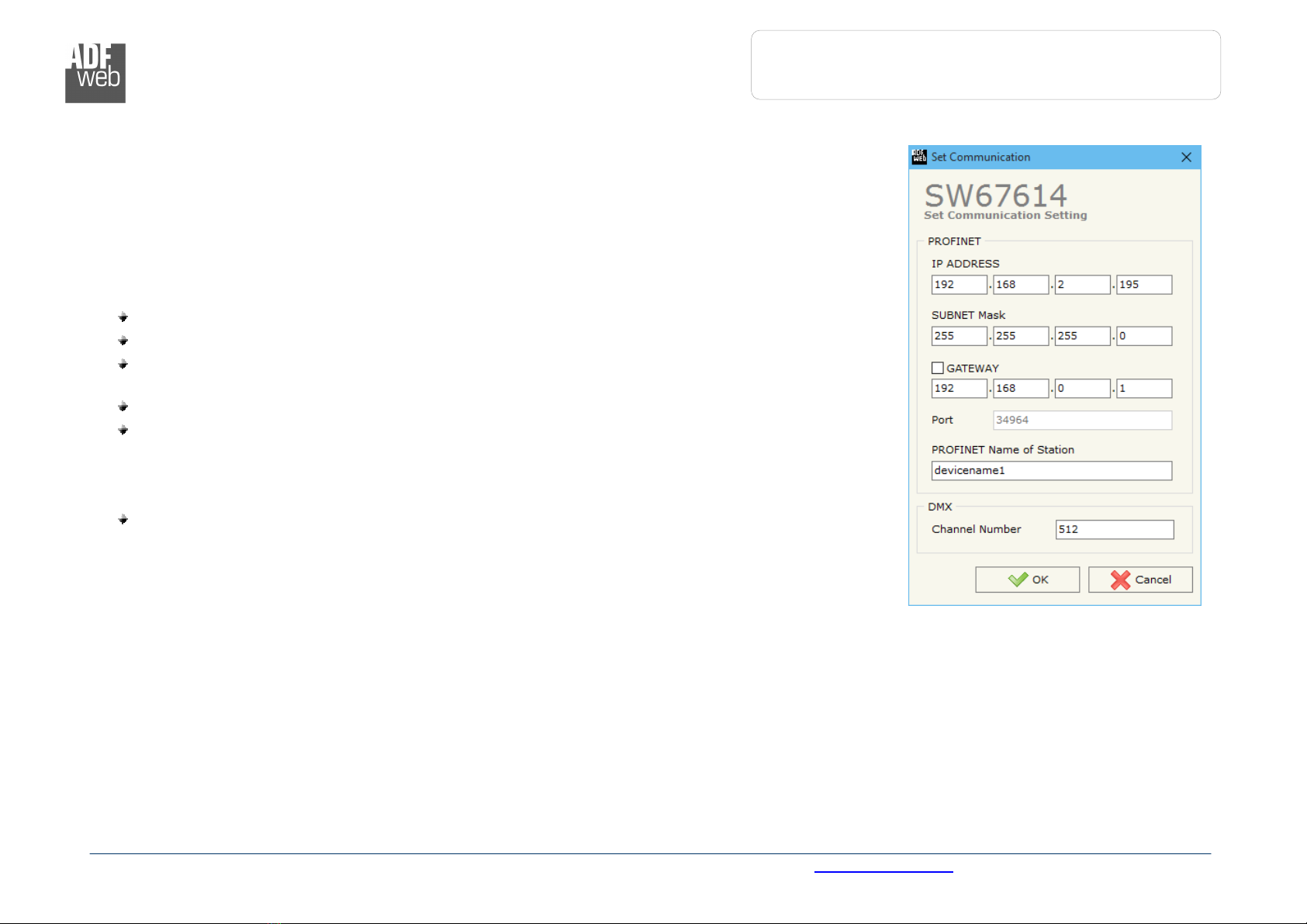

window “Set Communication” appears (Fig. 3).
The window is divided in two sections, one for ROFINET and one for DMX.
The means of the fields for “ ROFINET” are:
In the field “IP ADDRESS” insert the I address that you want to give to the Converter;
In the field “SUBNET Mask” insert the SubNet Mask;
In the field “GATEWAY” insert the default gateway that you want to use. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port for ROFINET communication is defined (fixed to ‘34964’);
In the field "PROFINET Name of Station" is possible to assign a name to the ROFINET
node.
The means of the fields for “DMX” are:
In the field “Channe Number” the number of channels of the DMX side is defined (up to 512
channels).
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 16 di 22
DMX DEFAULT VALUE:
By pressing the “DMX Defau t Va ue” button from the main window for SW67614 (Fig. 2) the “DMX Default Value” window appears (Fig. 4).
In this section it is possible to define the default value for each channel of the DMX array when the converter is turned ON.
Figure
4
:
“DMX Default Value” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 17 di 22
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if
necessary.
If you don’t know the actual I address of the device you have to use this procedure:
Turn off the Device;
ut Dip1 of ‘Dip-Switch A’ in ON position;
Turn on the device
Connect the Ethernet cable;
Insert the I “192.168.2.205”;
ress the “Ping” button, “Device Found!” must appear;
ress the “Next” button;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
ut Dip1 of ‘Dip-Switch A’ at OFF position;
Turn on the device.
At this point the configuration/firmware on the device is correctly updated.

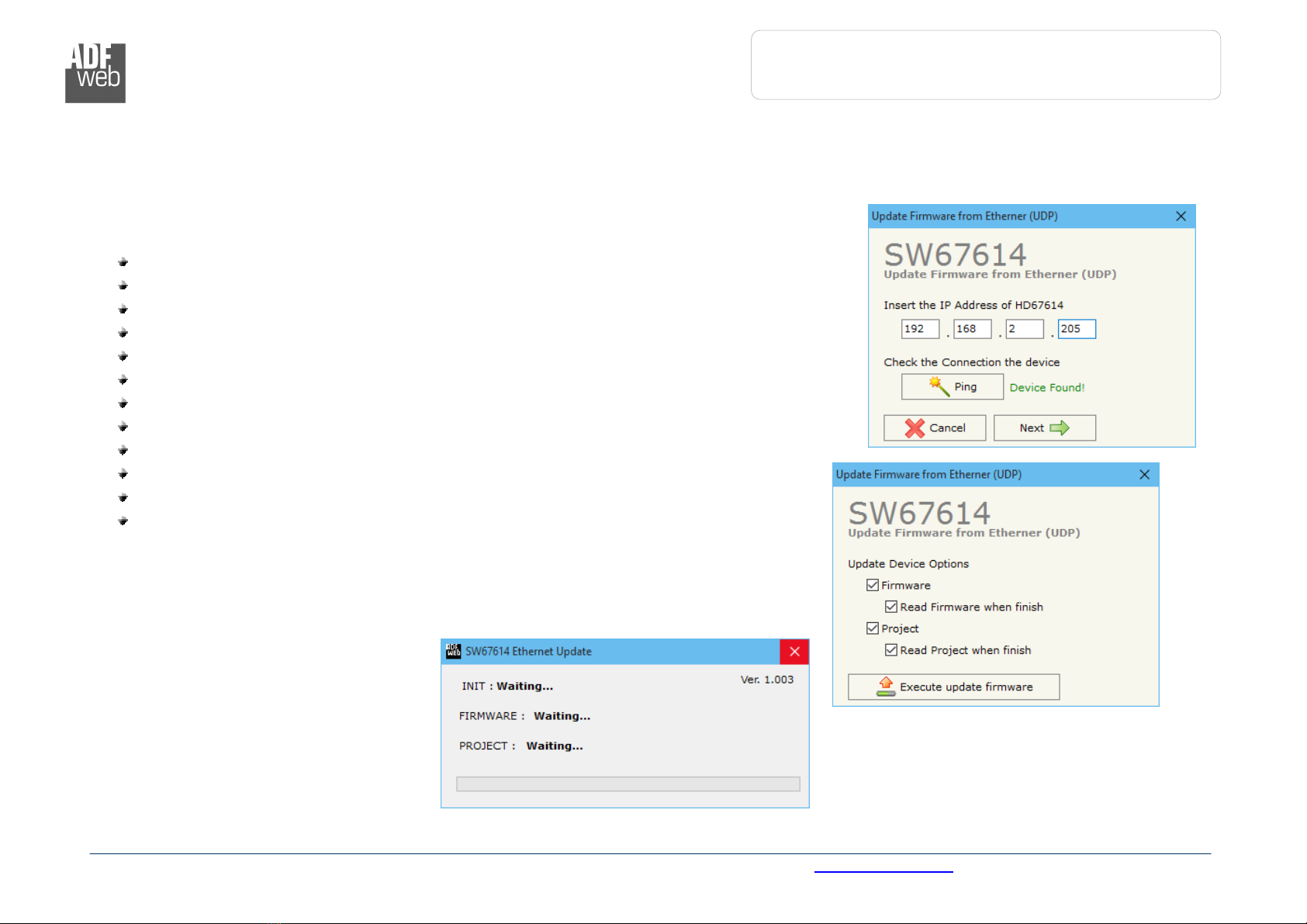

Figure 5: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 18 di 22
If you know the actual I address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual I of the Converter;
ress the “Ping” button, must appear “Device Found!”;
ress the “Next” button;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at
Normal Mode.
At this point the configuration/firmware on the device is correctly update.
Note:
When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67614
device.
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67614 device.
Warning:
If Fig. 6 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another C;
Try to restart the C;
If you are using the program inside a Virtual Machine, try to use in the main Operating
System;
If you are using Windows Seven or Vista or 8 or 10, make sure that you have the
administrator privileges;
Take attention at Firewall lock;
Check the LAN settings.
In the case of HD67614 you have to use the software “SW67614”: www.adfweb.com\download\filefold\SW67614.zip.

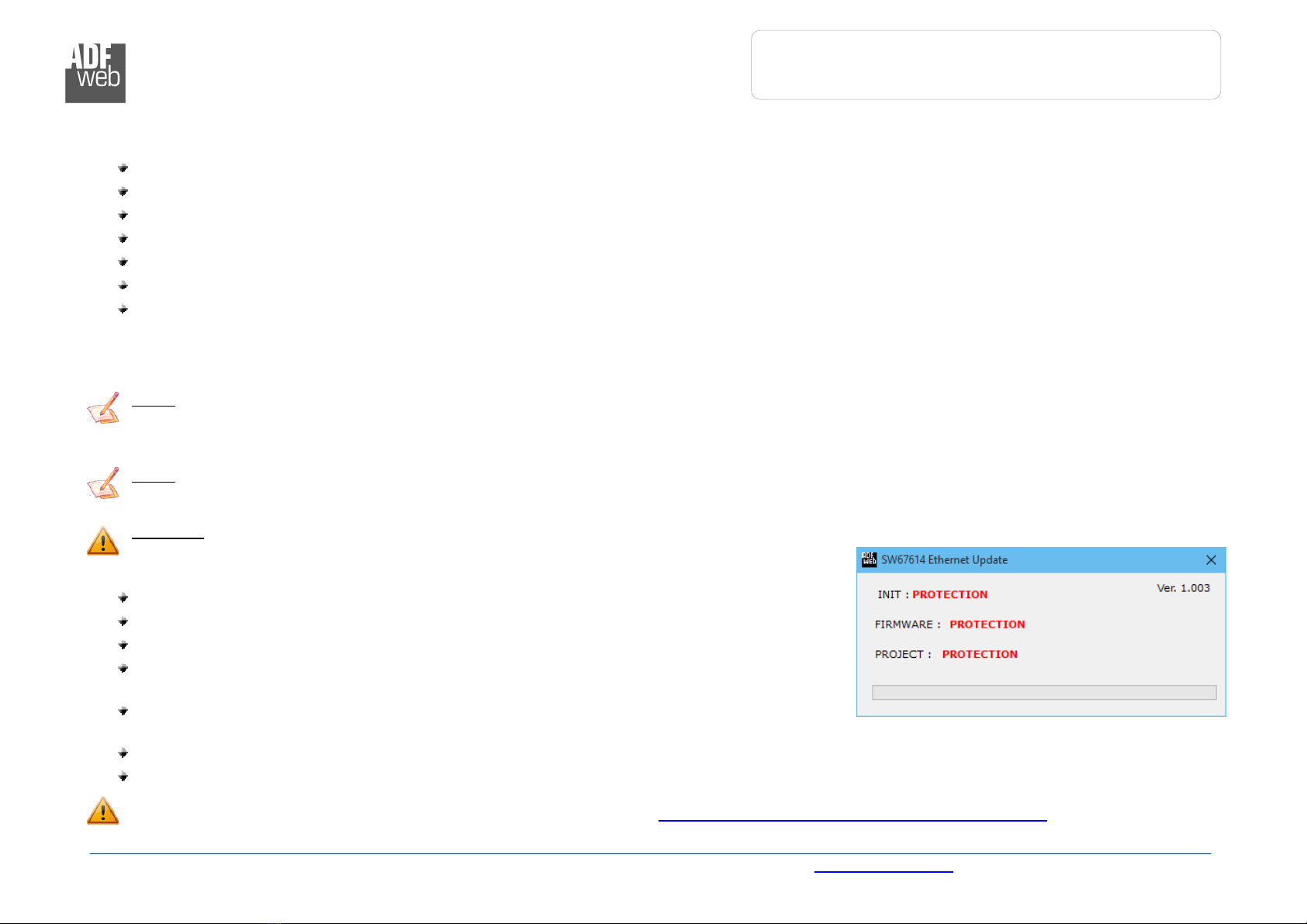

Figure
6
: “ rotection” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 19 di 22
MECHANICAL DIMENSIONS:
Figure 7: Mechanical dimensions scheme for HD67614-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
Document code: MN67614_ENG Revision 1.000 agina 20 di 22
ORDERING INFORMATIONS:
The ordering part number is formed by a valid combination of the following:
HD67614 – B 2
Connectors Type
2: Fixed 5mm Screw Terminal
Enc osure Type
B: 4M, 35mm DIN Rail mounting
Device Fami y
HD67614: DMX / ROFINET - Converter
Order Code: HD67614-B2 - DMX / ROFINET – Converter
ACCESSORIES:
Order Code: AC34001 - 35mm Rail DIN - ower Supply 220/240V AC 50/60Hz – 12 V AC
Order Code: AC34002 - 35mm Rail DIN - ower Supply 110V AC 50/60Hz – 12 V AC
