User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 1 of 29
User Manual
Revision 1.
English
OPC UA Server / Serial - Converter
(Order Code: HD67B26-2-B2, HD67B26-5-B2)
for Website information:
www.adfweb.com/?Product=HD67B26
for Price information:
www.adfweb.com/?Price=HD67B26-2-B2
www.adfweb.com/?Price=HD67B26-5-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others OPC UA Server devices, see also the following links:
OPC UA Server from/to …
www.adfweb.com?Product=HD67B27 (Modbus Master)
www.adfweb.com?Product=HD67B28 (Modbus Slave)
www.adfweb.com?Product=HD67B29 (Modbus TCP Master)
www.adfweb.com?Product=HD67B3 (Modbus TCP Slave)
www.adfweb.com?Product=HD67B31 (Bacnet Master)
www.adfweb.com?Product=HD67B32 (Bacnet Slave)
www.adfweb.com?Product=HD67B33 (CA )
www.adfweb.com?Product=HD67B34 (CA open)
www.adfweb.com?Product=HD67B35 (Device et Master)
www.adfweb.com?Product=HD67B36 (Device et Slave)
www.adfweb.com?Product=HD67B37 (DMX)
www.adfweb.com?Product=HD67B38 (Ether et/IP Master)
www.adfweb.com?Product=HD67B39 (Ether et/IP Slave)
www.adfweb.com?Product=HD67B4 (J1939)
www.adfweb.com?Product=HD67B41 (K X)
www.adfweb.com?Product=HD67B42 (MQTT)
www.adfweb.com?Product=HD67B43 ( MEA0183)
www.adfweb.com?Product=HD67B44 ( MEA2000)
www.adfweb.com?Product=HD67B45 (PROFI ET Master)
www.adfweb.com?Product=HD67B46 (PROFI ET Slave)
www.adfweb.com?Product=HD67B47 (S MP Manager)
www.adfweb.com?Product=HD67B48 (S MP Agent)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 2 of 29
I DEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 1
RS232 11
RS485 12
ETHERNET 13
USE OF COMPOSITOR SW67B26 14
NEW PROJECT / OPEN PROJECT 15
SOFTWARE OPTIONS 16
SET COMMUNICATION 18
OPC UA ACCESS 19
UPDATE DEVICE 2
SERIAL PROTOCOL 22
MECHANICAL DIMENSIONS 26
ORDERING INFORMATIONS 27
ACCESSORIES 27
DISCLAIMER 28
OTHER REGULATIONS AND STANDARDS 28
WARRANTIES AND TECHNICAL SUPPORT 29
RETURN POLICY 29
Pagina 2 di 29
UPDATED DOCUME TATIO :
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISIO LIST:
Revision Date Author Chapter Description
1. 13/ 3/2 19 Ff All First release version
WAR I G:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 3 of 29
SECURITY ALERT:
G E ERAL I FORMATIO
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I TE DED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSO EL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CO FORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 4 of 29
EXAMPLE OF CO ECTIO :

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 5 of 29
CO ECTIO SCHEME:

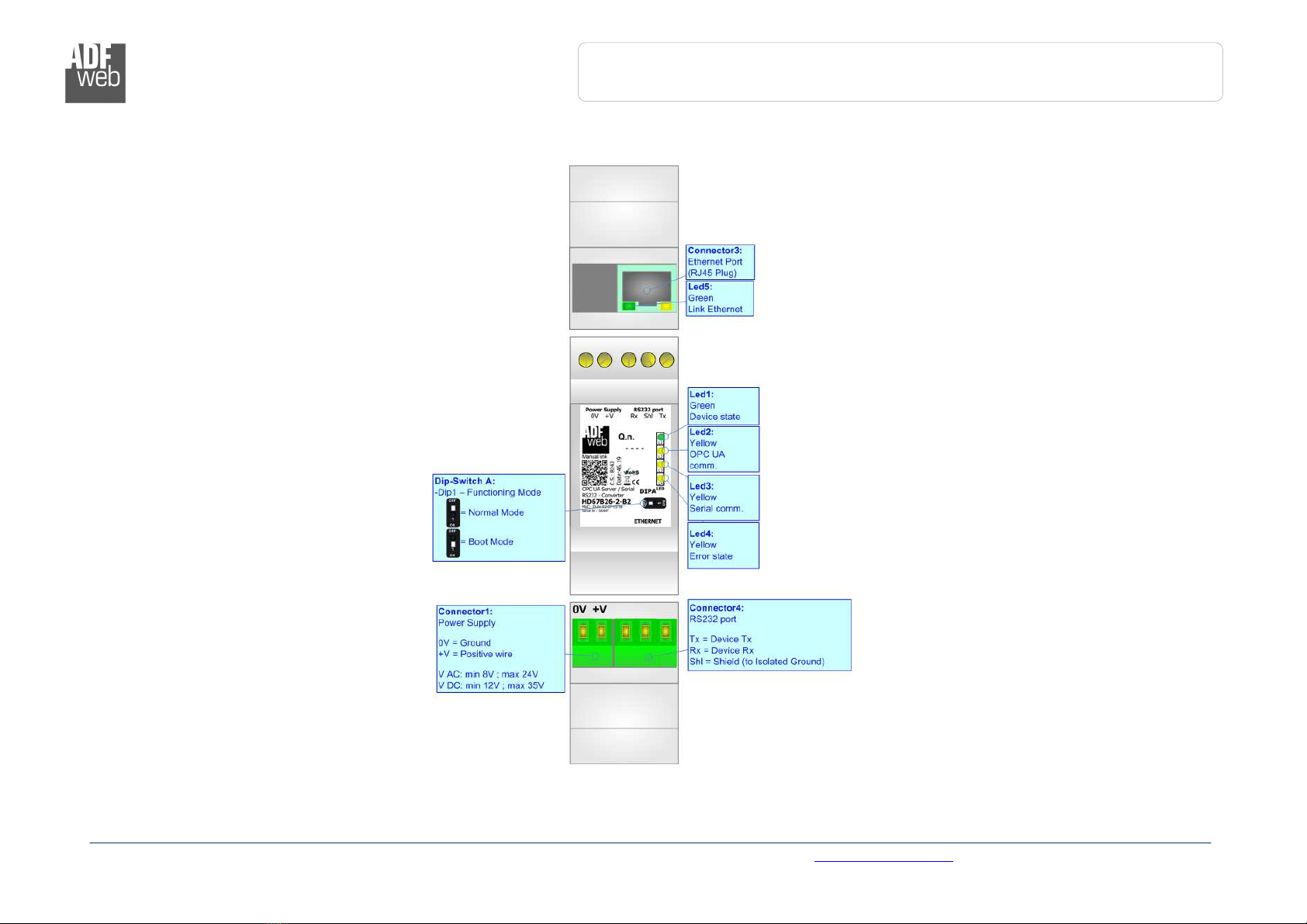

Figure 1a: Connection scheme for HD67B26-2-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 6 of 29

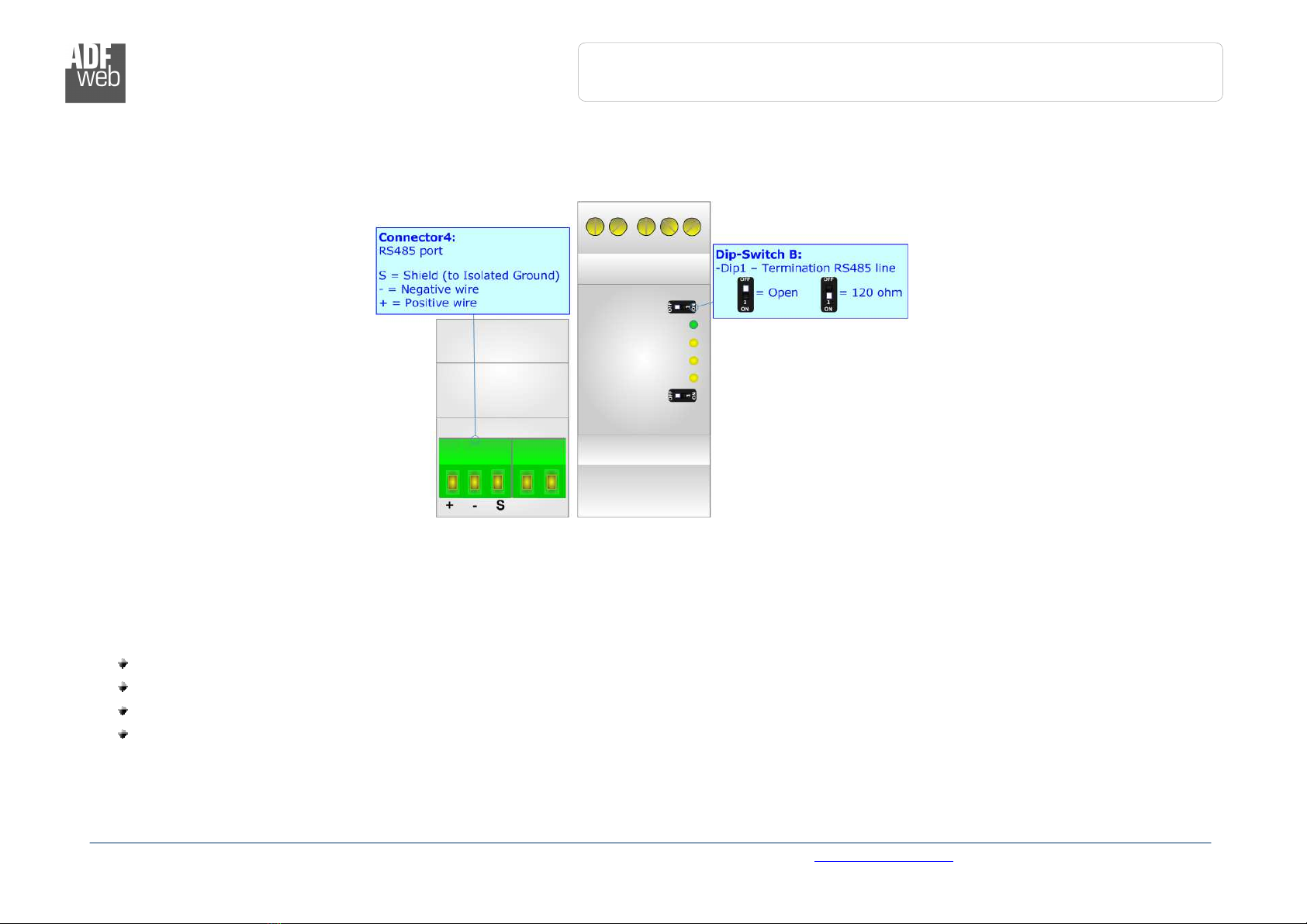

Figure
1
b
: Connection scheme for HD67
B26
-
5
-
B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 7 of 29
CHARACTERISTICS:
The HD67B26-B2 is a OPC UA Server / Serial converter.
It allows the following characteristics:
Up to 15 bytes in reading and 15 bytes in writing;
Two-directional information between Serial and OPC UA;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CO FIGURATIO :
You need Compositor SW67B26 software on your PC in order to perform the following:
Define the parameter of the OPC UA;
Define the parameter of the Serial;
Define the list of OPC UA servers connected to the converter;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 8 of 29
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67B26-B2 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67B26-x-B2 4
Caution: ot reverse the polarity power
HD67B26-x-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 9 of 29
FU CTIO MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updating (see ‘UPDATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 1 of 29

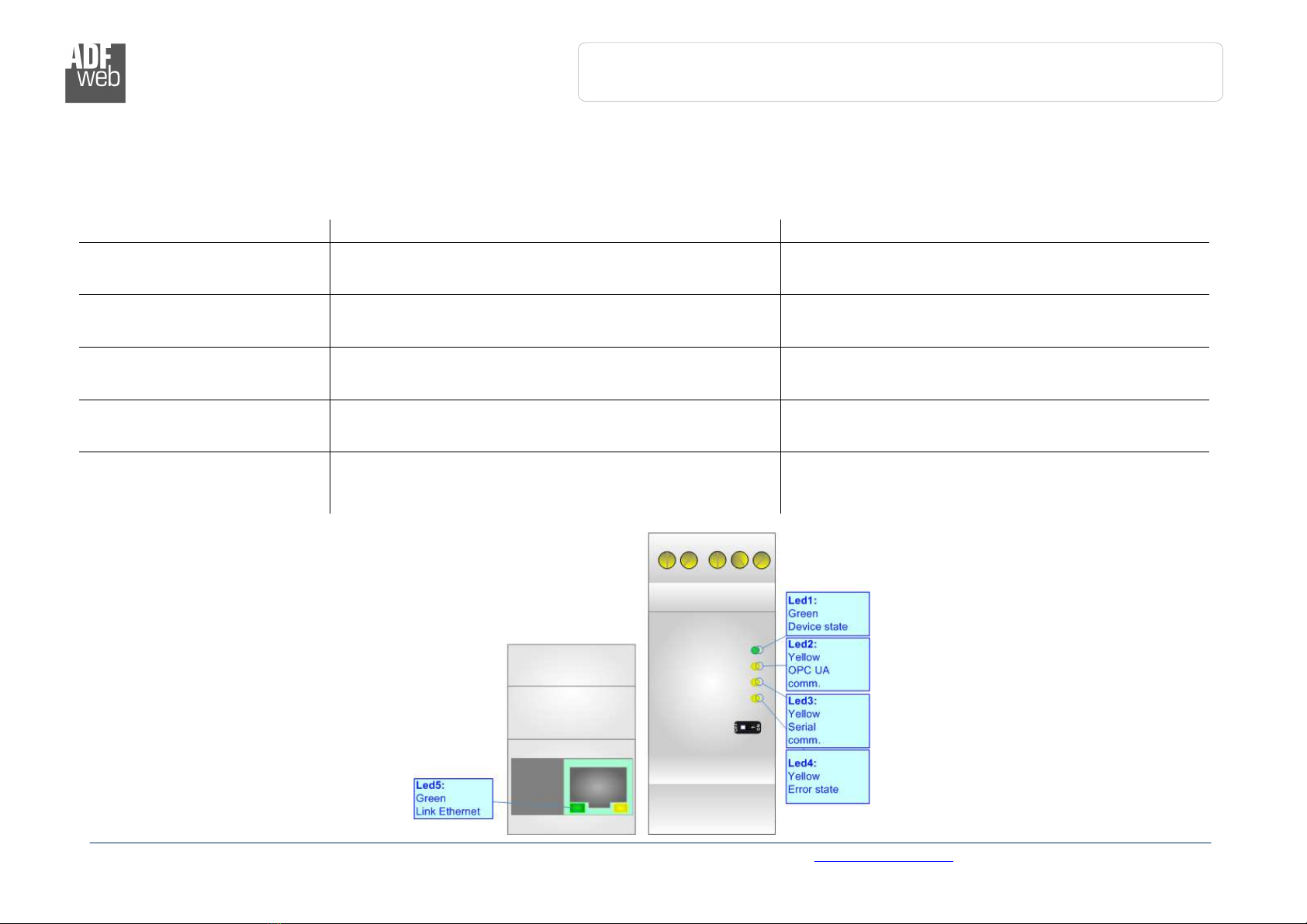

LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED ormal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: OPC UA comm. (yellow) Flashing: OPC UA requests
OFF: No OPC UA requests
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Serial comm. (yellow) Flashing: Serial response
OFF: No Serial response
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) O : An error has occurred
OFF: The device and the system are correctly running
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Link Ethernet (green) O : Ethernet cable connected
OFF: Ethernet cable disconnected
O : Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 11 of 29
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer)
must be made with a Null Modem cable (a serial cable where the pins 2 and 3 are crossed).
It is recommended that the RS232 cable not exceed 15 meters.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 12 of 29
RS485:
For terminate the RS485 line with a 12 Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 12 m (4 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 13 of 29
ETHER ET:
The Ethernet connection must be made using Connector3 of HD67B26-x-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 14 of 29
USE OF COMPOSITOR SW67B26:
To configure the Converter, use the available software that runs with Windows called SW67B26. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).
When launching the SW67B26, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67B26

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 15 of 29
EW CO FIGURATIO / OPE CO FIGURATIO :
The “ ew Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “OPC UA Server / Serial - Converter”
in order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 16 of 29
SOFTWARE OPTIO S:
By pressing the “Settings” ( ) button there is the possibility to change the
language of the software and check the updatings for the compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67B26 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 17 of 29
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 18 of 29
SET COMMU ICATIO :
This section define the fundamental communication parameters of two buses, OPC UA
Server and Serial.
By Pressing the “Set Communication” button from the main window for SW67B26 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “OPC UA Server” are:
In the field “IP Address” the IP address for OPC UA side of the converter is
defined;
In the field “Sub et Mask” the SubNet Mask for OPC UA side of the converter is
defined;
In the field “Gateway” the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out
of the net;
In the field “D S” the IP Address of the DNS server is defined. This feature can be
enabled or disabled pressing the Check Box field;
In the field “Port” the port of OPC UA Server is defined.
The means of the fields for “Serial” are:
In the field “Serial” the serial port to use is defined (RS232 or RS485);
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits of the serial line is defined.
The means of the fields for “NTP (Network Time Protocol)” are:
In the field “Server URL” the URL or the IP Address of the NTP Server is defined;
In the field “Poll Time (seconds)” the polling time for the time synchronization is
defined. Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 19 of 29
Figure 4: “
O C UA Server Access
” window
OPC UA ACCESS:
By Pressing the “OPC UA Access” button from the main window for SW67B26 (Fig. 2) the window “OPC UA Server Access” appears (Fig. 4).
This section is used to define the list of OPC UA variables to read/write.
The means of the checkboxes inside the table are:
In the field “Type” the data format of the OPC UA variable is defined;
In the field “Position” the starting byte of the internal memory arrays where getting the value is defined;
In the field “Length” the byte length of the OPC UA variable is defined;
In the field “ ame” the name of the OPC UA variable is defined;
In the field “R/W” the access type of the OPC UA variable is defined;
In the field “Mnemonic” a description of the OPC UA variable is defined.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Server /
Serial
Document code: MN67B26_ENG Revision 1. Page 2 of 29
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary. This by using the
Ethernet port.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure
5
: “Update device” windows
