CHARACTERISTICS:
The HD67B11-B2 is a O C UA Client / BACnet Slave converter.
It allows the following characteristics:
Up to 1500 bytes in reading and 1500 bytes in writing;
Two-directional information between BACnet and O C UA;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67B11 software on your C in order to perform the following:
Define the parameter of O C UA;
Define the parameter of BACnet line;
Define the list of O C UA servers connected to the converter;
Define the list of BACnet objects accessible on BACnet side;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 8 of 33
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67B11-B2 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67B11-B2 4
Caution: Not reverse the olarity ower
HD67B11-xxx-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 9 of 33
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the roject/Firmware.
For the operations to follow for the updating (see ‘U DATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 10 of 33
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: BACnet comm. (yellow) Flashing: BACnet request
OFF: No BACnet request
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: O C UA comm. (yellow) Flashing: O C UA response
OFF: No O C UA response
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: O C UA error (yellow) ON: At least one O C UA Server is disconnected
OFF: all O C UA Servers are connected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Link Ethernet (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 11 of 33
RS485 (for BACnet MS/TP):
For terminating the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 12 of 33
ETHERNET:
The Ethernet connection must be made using Connector3 of HD67B11-xxx-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/ LC/other is recommended the use of a
cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 13 of 33
USE OF COMPOSITOR SW67B11:
To configure the Converter, use the available software that runs with Windows called SW67B11. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67B11, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figu
re 2: Main window for SW67B11

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 14 of 33
NEW CONFIGURATION / OPEN CONFIGURATION:

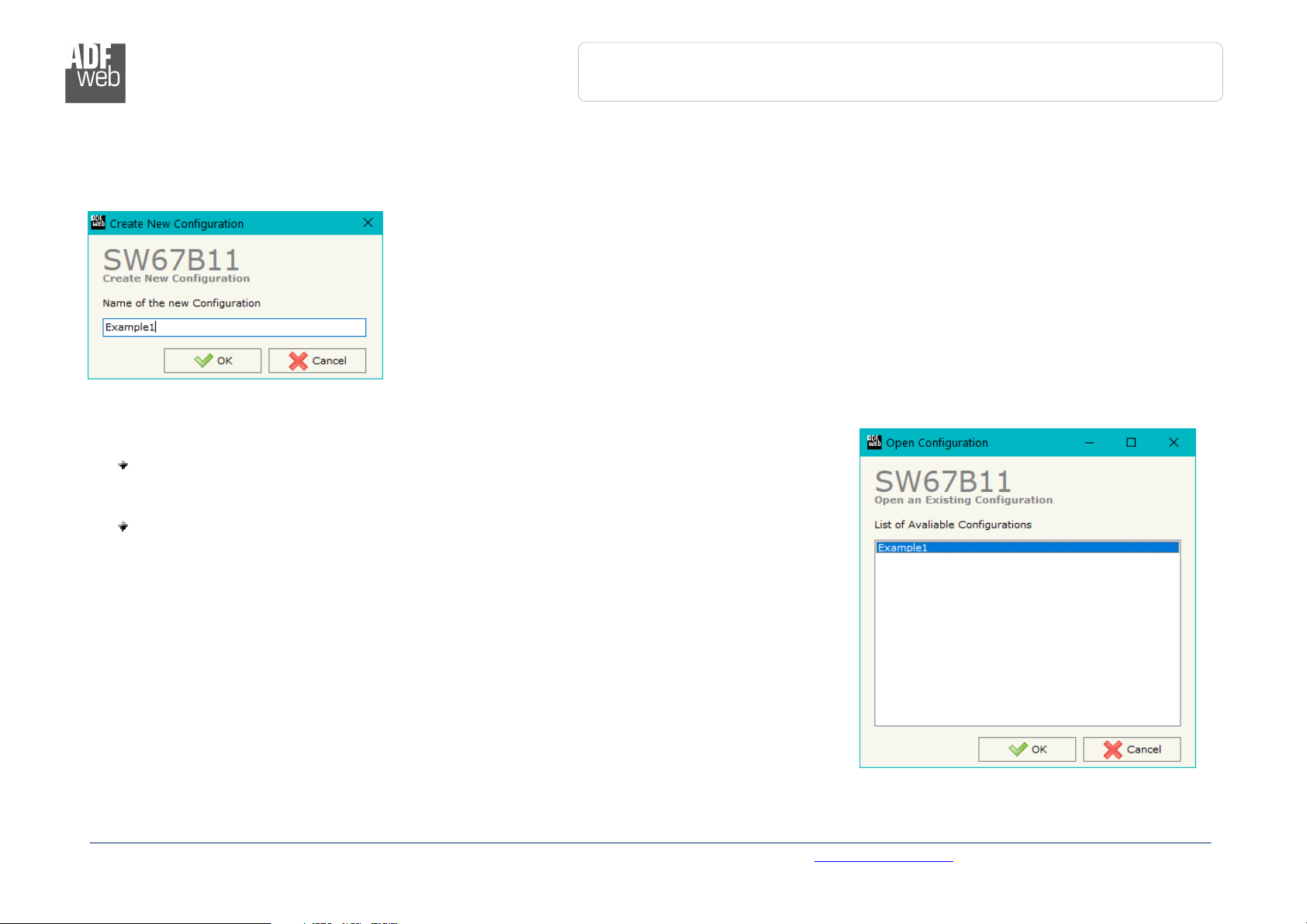

The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “O C UA Client / BACnet Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“O en Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 15 of 33
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the
language of the software and check the updatings for the compositor.
In the section “Language” it is possible to change the language of the software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software U date at Start of Program”, the
SW67B11 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 16 of 33
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in the
different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 17 of 33
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, O C UA
Client and Modbus TC .
By ressing the “Set Communication” button from the main window for SW67B11
(Fig. 2) the window “Set Communication” appears (Fig. 3a).
The window is divided in three sections in order to define the different parameters of
the converter:
O C UA Client
BACnet Slave
NT (Network Time rotocol)
Figure 3a: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 18 of 33
Figure 3c: “Set Communication  BACnet Slave”
window
OPC UA C LIENT :
The means of the fields for “O C UA Client” are:
In the fields “IP Address” the I address for O C UA side of the converter is
defined;
In the fields “SubNet Mask” the SubNet Mask for O C UA side of the
converter is defined;
In the fields “Gateway” the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field “DNS” the I Address of the DNS server is defined. This feature
can be enabled or disabled pressing the Check Box field.
BAC NET S LAVE ( FOR BAC NET /IP):
This section is used to define the main parameters of BACnet/I line. The means of
the fields are:
the fields “IP ADDRESS” the I address of BACnet/I side of the converter
is defined;
In the fields “SUBNET Mask” the SubNet Mask of BACnet/I side of the
converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field “Port” the port used for BACnet communication is defined. The
default port used for BACnet communication is 47808, but is possible to
insert any value;
In the field "BACnet Device Name" the name of BACnet/I side of the
converter is defined;
In the field “Device Identifier” the ID of BACnet/I side of the converter is
defined;
If the field “BACnet descri tion u to 32 chars” is checked, the description of the BACnet objects can be up to 32 chars.
Figure 3b: “Set Communication  O C UA Client”
window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 19 of 33
Figure 3d: “Set Communication  BACnet Slave”
window
Figure 3e: “Set Communication  NT (Network
Time rotocol” window
BAC NET S LAVE ( FOR BAC NET MS/TP):
This section is used to define the main parameters of BACnet MS/T line. The
means of the fields are:
In the field “Baudrate” the data rate of the BACnet line is defined;
In the field “Parity” the parity of the line is defined;
In the field “BACnet Device Name” the name to give to the BACnet node is
defined;
In the field “MAC Address” the MAC of BACnet node (from 0 to 254) is
defined;
The field “Max Master” specifies the highest allowable address for master
nodes. The value shall be less than or equal to 127;
The field “Max Info Frames” specifies the maximum number of information
frames the node may send before it must pass the token;
In the field “Device Instance” the of the BACnet MS/T side of the
converter is defined;
In the field “Network” the BACnet MS/T network number is defined;
If the field “BACnet descri tion u to 32 chars” is checked, the
description of the BACnet objects can be up to 32 chars.
NTP (N ETWORK T IME P ROTOCOL )
This section is used to define the parameters of NT protocol. The means of the
fields are:
In the field “Server URL” the URL or the I Address of the NT Server is
defined;
In the field “Poll Time (seconds)” the polling time for the time
synchronization is defined.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
BACnet Slave
Document code: MN67B11_ENG Revision 1.001 age 20 of 33
Figure 4: “
O C UA Client Access
” window
OPC UA ACCESS:
By ressing the “OPC UA Client Access” button from the main window for SW67B11 (Fig. 2) the window “O C UA Client Access” appears
(Fig. 4).
This section is used to define the list of the O C UA Servers to read/write with the O C UA Client.
