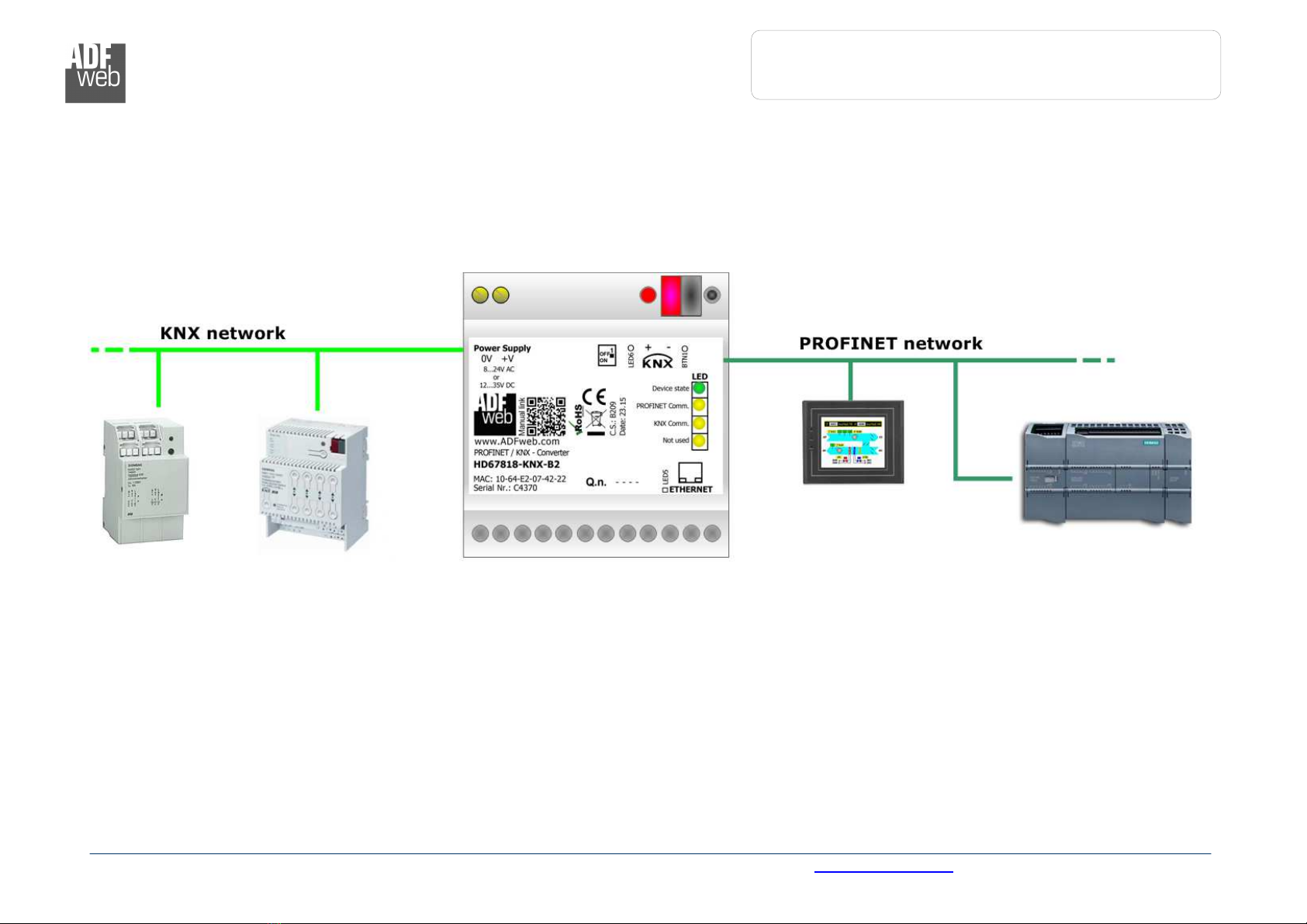

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 5 di 23
CONNECTION CHEME:
Figure 1: Connection scheme for HD67818-KNX-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 6 di 23
CHARACTERI TIC :
The HD67818 is a ROFINET / KNX Converter.
It has the following characteristics:
Up to 1440 bytes in reading and 1440 bytes in writing;
Triple isolation between KNX - ower Supply, KNX – Ethernet, ower Supply - Ethernet.
Two-directional information between KNX bus and ROFINET bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67818 software on your C in order to perform the following:
Define the parameter of ROFINET line;
Define the parameter of KNX line;
Define the KNX messages that the Converter can accept;
Define the KNX frames that the Converter sends trough the KNX line;
Define the map of KNX byte that must be written in the ROFINET side;
Define the map of which ROFINET I/O must be written in KNX messages;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 7 di 23
POWER UPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67818-KNX-B2 3.5
HD67818-KNX-B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 8 di 23
FUNCTION MODE :
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 9 di 23
LED :
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) ON: Device powered
OFF: Device not powered
2: ROFINET communication
(yellow) Blinks when ROFINET communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: KNX communication
(yellow) Blinks when KNX frame is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Not used (yellow) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
6: KNX rogrammation (red) ON: KNX rogrammation activated
OFF: KNX rogrammation not activated
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 10 di 23
KNX:
KNX is the standard that allows the automated and decentralized management of the technologic plans of
a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on.
KNX can be used in all the applications and functions for the building automations: from lighting to control
dampers, to the security, to the heating monitoring, to the conditioning, to the hydric control and alarms,
to energy management and so on.
Characteristics Description TP1-256
Medium Shielded Twisted air
Topology Linear, Star, Tree or mixed
Baudrate 9600 bps
Device supplying Normal: bus powered devices
Optional: remote powered devices
Device power consumption 3 mA- 12 mA
ower Supply Unit ( SU) DC 30 V
Number of SU’s per physical
Segment Max. 2
Number of connectable devices
per physical Segment Max. 256
Number of addressable devices
per physical Segment Max. 255
Total cable length per physical
Segment Max. 1000 m
Distance between two devices Max. 700 m
(*) Taken from KNX specifications

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 11 di 23
ETHERNET:
The Ethernet port is used for the ROFINET communication and for programming the device.
The Ethernet connection must be made using Connector2 of HD67818-KNX-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 12 di 23
U E OF COMPO ITOR W67818:
To configure the Converter, use the available software that runs with Windows called SW67818. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8; 32/64bit).
When launching the SW67818, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67818

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 13 di 23
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “ ROFINET / KNX - Converter” in
order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient
to duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 14 di 23
OFTWARE OPTION :
By pressing the “ ettings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check oftware Update at tart of Program”, the
SW67818 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 15 di 23
ET COMMUNICATION:
This section define the fundamental communication parameters of two buses, KNX and ROFINET.
By ressing the “ et Communication” button from the main window for SW67818 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The window is divided in two sections, one for the KNX and one for the ROFINET.
The means of the fields for “KNX” are:
In the field “Type” the type of KNX is defined (fixd to ‘KNX T ’);
In the field “ID Device” the ID of the KNX side of the converter is defined.
The means of the fields for the “ ROFINET” section are:
In the fields “IP ADDRE ” the I address that you want to give to the Converter is defined;
In the fields “ UBNET Mask” the SubNet Mask is defined;
In the fields “GATEWAY” the default gateway that you want to use is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the field “Port” is possible to define the port to use for the ROFINET communication (fixed
to 34964);
In the field "PROFINET Name of tation" is possible to assign a name to the ROFINET
node;
In the fields “Number Byte IN” insert the number of input byte of the slave station;
In the fields “Number Byte Out” insert the number of output byte of the slave station.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 16 di 23
Figure 4: “KNX Set Access” window
KNX ACCE :
By pressing the “KNX Access”
button from the main window for
SW67818 (Fig. 2) the “KNX Set
Access” window appears (Fig. 4).
The means of the fields are:
If the field “Enable” is
checked, the KNX message is
enabled;
In the field “ ource Address”
the Source Address to assign
to the KNX message is
defined;
In the field “Dest/Group the Group address (2 level structure, 3 level structure or free address structure) or the device address is
defined. In case of Group address, the levels must be separated by ‘/’, in case of Device address, the parts of the address must be
separated by ‘.’;
In the field “APCI” the A CI of the KNX message is defined. You can choose between the following:
oRead: it is used to send a reading request to a KNX device;
oWrite: it is used to send a writing request to a KNX device;
oSpecific value (edited manually).
In the field “Priority” the riority of the KNX message is defined. You can choose between the following:
oSystem (Highest);
oUrgent;
oNormal;
oLow (Lowest).
In the field “Format” the data format of the KNX message is defined;
If the field “Extended” is checked, the extended format of the KNX message is used;
If the field “ReTest” is checked, the KNX message is re-sent in case of not correct response;
If the field “OnCMD” is checked, the KNX request is sent when a ROFINET message is received;
If the field “On Change” is checked, the gateway sends the KNX command when the data on ROFINET change the value;

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 17 di 23
If the field “On Timer” is checked, the gateway sends the KNX command cyclically;
In the field “Poll Time” the delay in ms between two KNX commands is defined (if “On Timer” is checked);
In the field “Position” insert the address of the internal array where placing the information;
In the field “Bit Mode” insert the start bit of the first byte of the field “ osition” where start to insert the data read;
In the field “Lenght” the dimension of the KNX message is defined;
In the field “Mnemonic” the description for the request is defined.
Note:
If the field “On change” is checked and the “ oll Time” is different from 0, the converter sends the KNX command cyclically and also
when the data is changed.
Note:
If the field “OnCMD”, “OnChange” and “OnTimer” are not checked, the converter only sniffs the bus in order to monitor the status of
the KNX message.
XML FILE:
By ressing the “PROFINET XML” button from the main window for
SW67818 (Fig. 2) it is possible to generate the xml file to be imported
into the master ROFINET.
Figure
5
:
“ ROFINET XML File Name” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 18 di 23
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if
necessary.
If you don’t know the actual I address of the device you have to use this procedure:
Turn off the Device;
ut Dip1 of ‘Dip-Switch A’ in ON position;
Turn on the device
Connect the Ethernet cable;
Insert the I “192.168.2.205”;
ress the “Ping” button, “Device Found!” must appear;
ress the “Next” button;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
ut Dip1 of ‘Dip-Switch A’ at OFF position;
Turn on the device.
At this point the configuration/firmware on the device is correctly updated.
Figure 6: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 19 di 23
If you know the actual I address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual I of the Converter;
ress the “Ping” button, must appear “Device Found!”;
ress the “Next” button;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at
Normal Mode.
At this point the configuration/firmware on the device is correctly update.
Note:
When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67818
device.
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67818 device.
Warning:
If Fig. 7 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another C;
Try to restart the C;
If you are using the program inside a Virtual Machine, try to use in the main Operating
System;
If you are using Windows Seven or Vista or 8, make sure that you have the
administrator privileges;
Take attention at Firewall lock;
Check the LAN settings.
In the case of HD67818 you have to use the software “SW67818”: www.adfweb.com\download\filefold\SW67818.zip.
Figure 7: “ rotection” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / KNX
Document code: MN67818_ENG Revision 1.000 agina 20 di 23
MECHANICAL DIMEN ION :

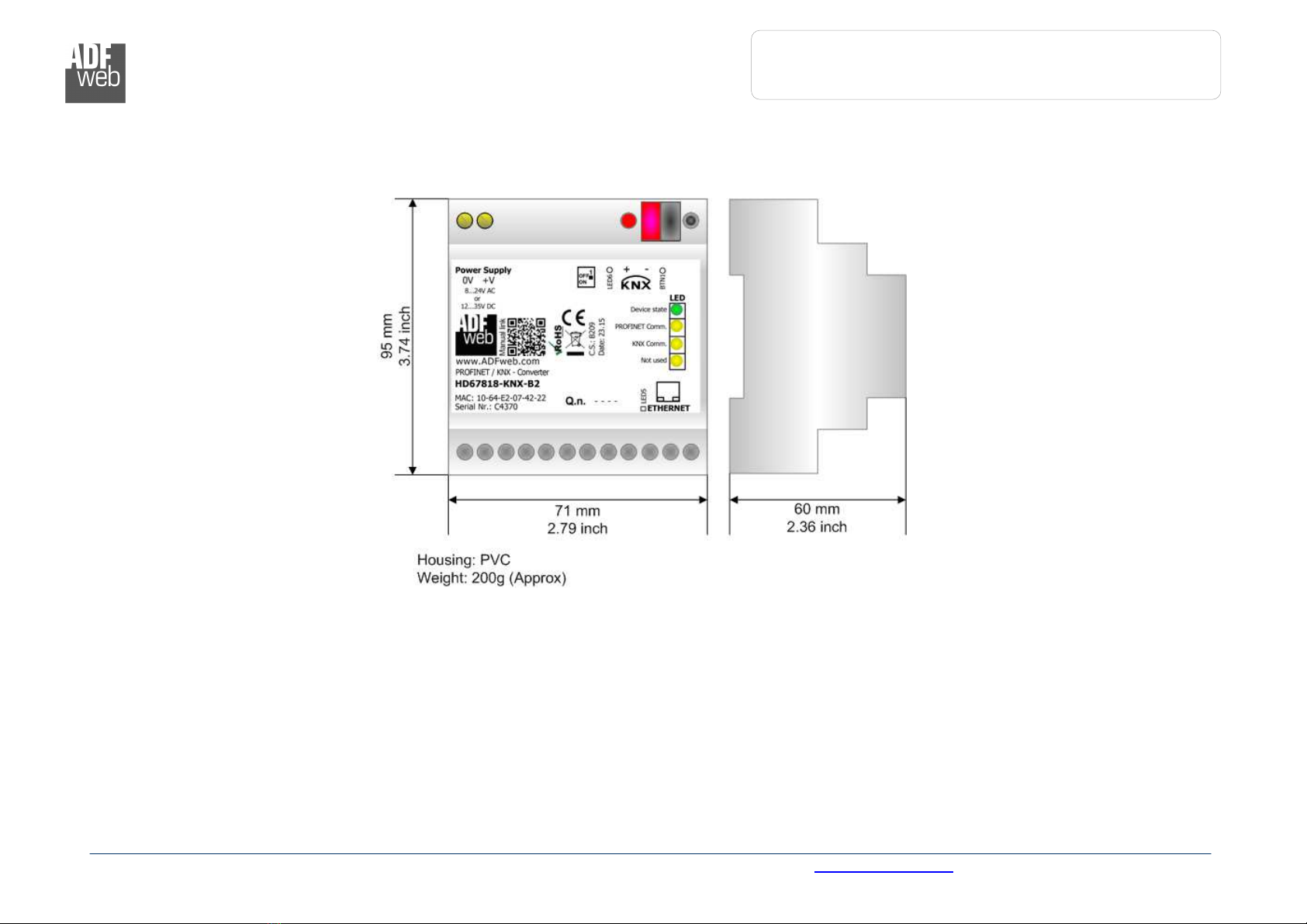

Figure 8: Mechanical dimensions scheme for HD67818-KNX-B2
