User Manual
Revision 1.000
En lish
NMEA 0183 / Modbus Slave - Converter
(Order Code: HD67616-A1, HD67616-422-A1)
for Website information:
www.adfweb.com?Product=HD67616
for Price information:
www.adfweb.com?Price=HD67616-A1
www.adfweb.com?Price=HD67616-422-A1
Benefits and Main eatures:
Very easy to confi ure
32mm Rail DIN mount
Wide supply input ran e
Temperature ran e: -40°C/+85°C (-40°F/+185°F)
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 2 of 30
INDEX:
Pa e
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 10
RS485 11
RS422 12
RS232 13
ETHERNET 14
USE OF COMPOSITOR SW67616 15
NEW PROJECT / OPEN PROJECT 16
SOFTWARE OPTIONS 17
SET COMMUNICATION 19
NMEA 0183 ACCESS 22
UPDATE DEVICE 23
MODBUS MAP 25
MECHANICAL DIMENSIONS 26
ORDER CODES 28
ACCESSORIES 28
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SUPPORT 30
RETURN POLICY 30
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that you
need to check that the followin document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code” that
appears at the top ri ht-hand corner of each pa e of this document.
With this “Document Code” o to web pa e www.adfweb.com/download/ and
search for the correspondin code on the pa e. Click on the proper “Document
Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1.000 15/06/2020 VDB All First release version
WARNING:
ADFweb.com reserves the ri ht to chan e information in this manual about our
product without warnin .
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belon to their respective owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 3 of 30
SECURITY ALERT:
G ENERAL I N ORMATION
To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device are required for each
individual application, le al and safety re ulation. The same applies also when usin accessories.
I NTENDED U SE
Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e. independent limit
switches, mechanical interlocks, etc.).
Q UALI IED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and who have
appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated by
personnel untrained. These instructions refer to residual risks with the followin symbol:
This symbol indicates that non-observance of the safety instructions is dan er for people to serious injury or death and / or the possibility
of dama e.
CE CON ORMITY
The declaration is made by us. You can send an email to [e-mail] or ive us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 4 of 30
EXAMPLE O CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 5 of 30
CONNECTION SCHEME:

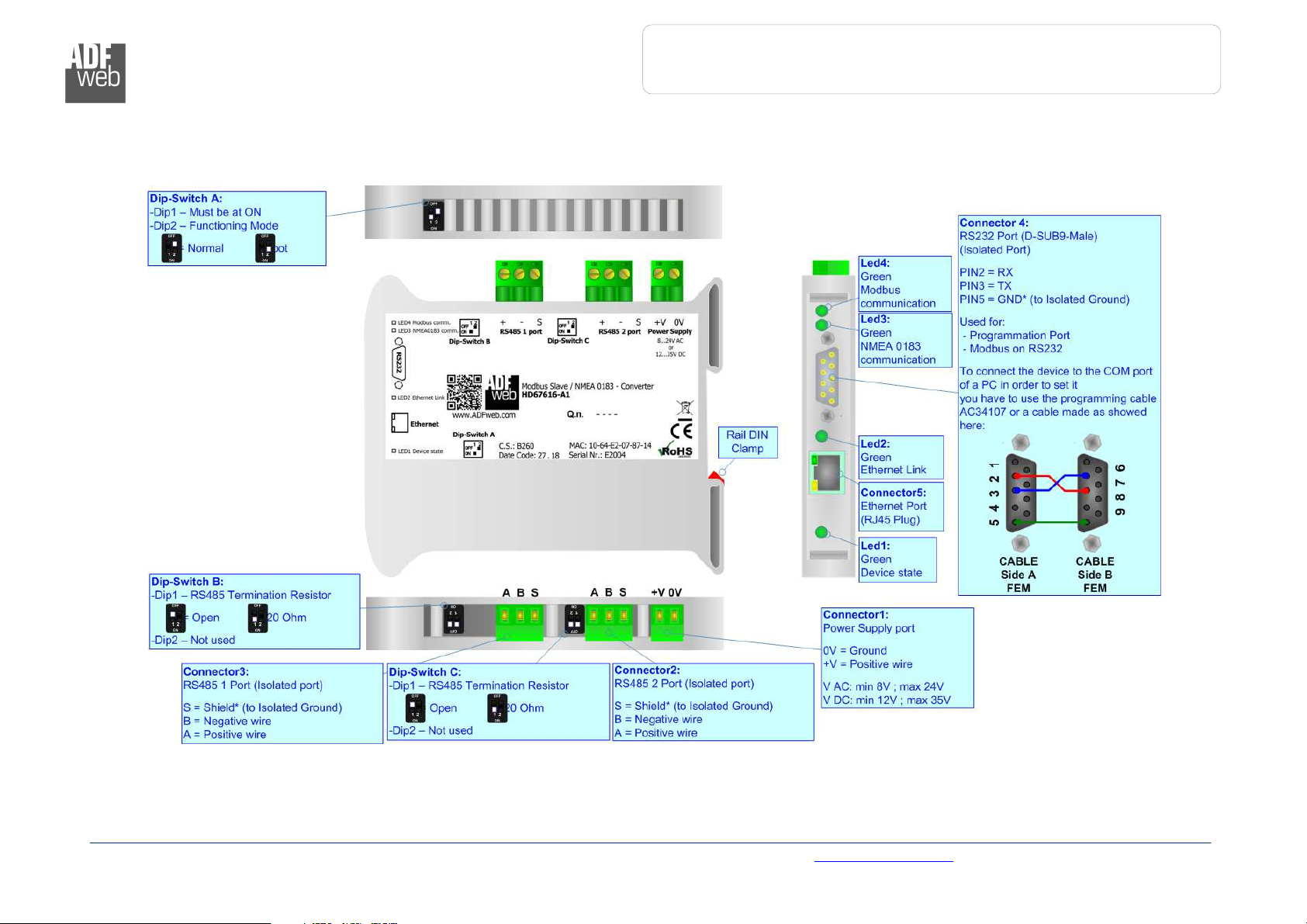

Figure 1a: Connection scheme for HD67616-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 6 of 30
Figure
1b: Connection scheme for HD67
616
-
422
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 7 of 30
CHARACTERISTICS:
The “NMEA 0183 / Modbus Slave – Converter” allows the followin characteristics:
electrical isolation between NMEA 0183 – Modbus, Power Supply – Modbus, Power Supply – NMEA 0183;
Multiple independent NMEA 0183 lines;
Mountable on Rail DIN;
Wide power supply input ran e: 8…24V AC or 12…35V DC;
Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].
CON IGURATION:
You need Compositor SW67616 software on your PC in order to perform the followin :
Define the parameter of NMEA 0183;
Define the parameter of Modbus;
Define the list of NMEA 0183 sentences in reception;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 8 of 30
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. The consumption depends to the code of the device. For more details see the two
tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67616-xxx-A1 3.5
Caution: Not reverse the polarity power
HD67616-xxx-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 9 of 30
UNCTION MODES:
The device has ot two function modes dependin on the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal workin of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploadin the Project and/or Firmware.
For the operations to follow for the updatin , see ‘UPDATE DEVICE’ section.
Accordin to the functionin mode, the LEDs will have specific functions, see ‘LEDS’ section.
Warnin :
Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 10 of 30
LEDS:
The device has ot four LEDs that are used to ive information of the functionin status.
The various meanin s of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
2: Ethernet Link ( reen) ON: Ethernet cable connected
O : Ethernet cable disconnected
ON: Ethernet cable connected
O : Ethernet cable disconnected
3: NMEA 0183
communication ( reen) Blinks when NMEA 0183 frames are received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
4: Modbus communication
(yellow) Blinks when Modbus communication is runnin Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 11 of 30
RS485:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in fi ure.
The maximum len th of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 12 of 30
RS422:
For terminate the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in fi ure.
The maximum len th of the cable should be 1200m (4000 feet).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 13 of 30
RS232:

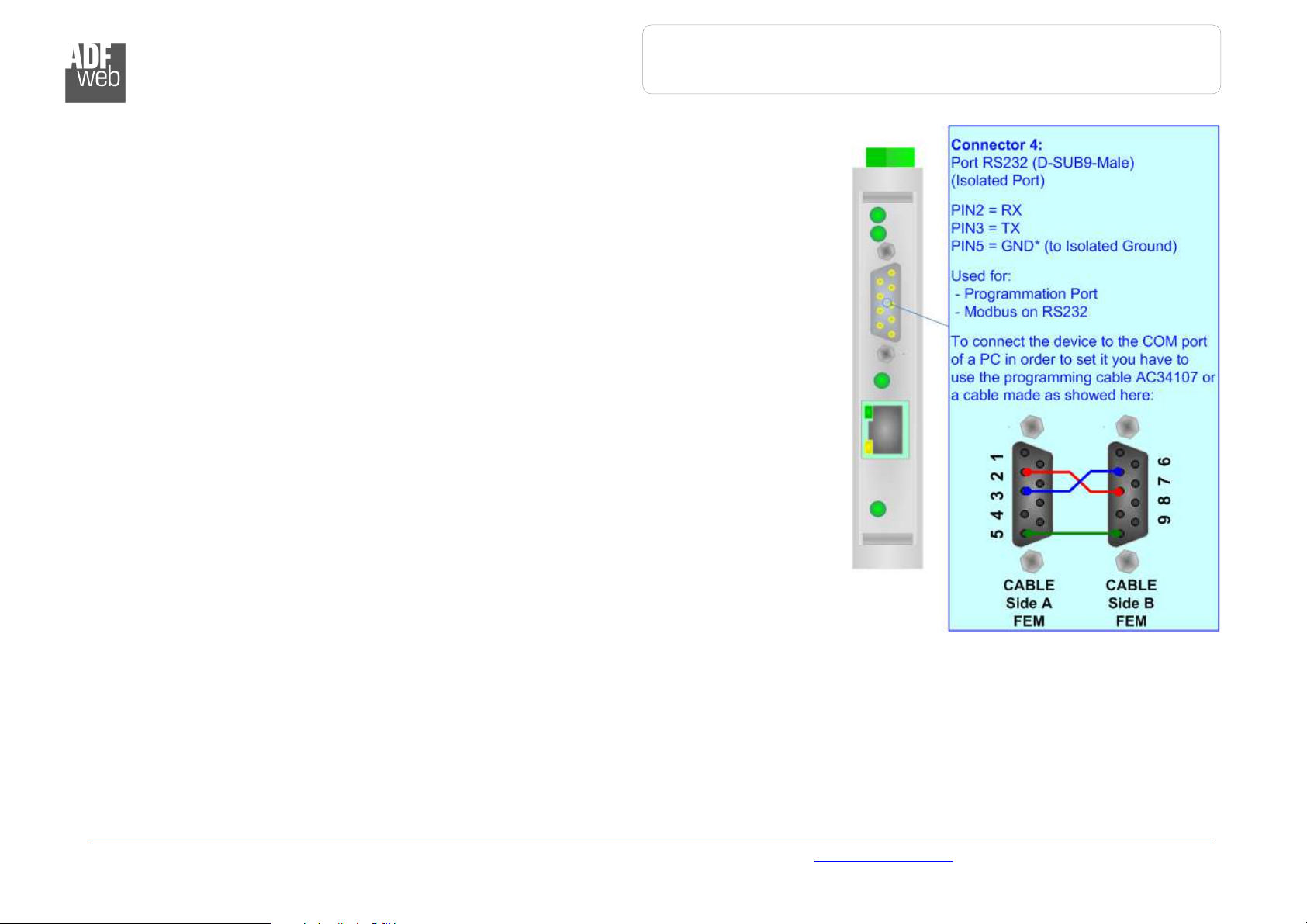

The connection from RS232 socket to a serial port must be made with a Null Modem cable (a
serial cable where the pins 2 and 3 are crossed).
It is recommended that the RS232 cable not exceed 15 meters.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 14 of 30
ETHERNET:

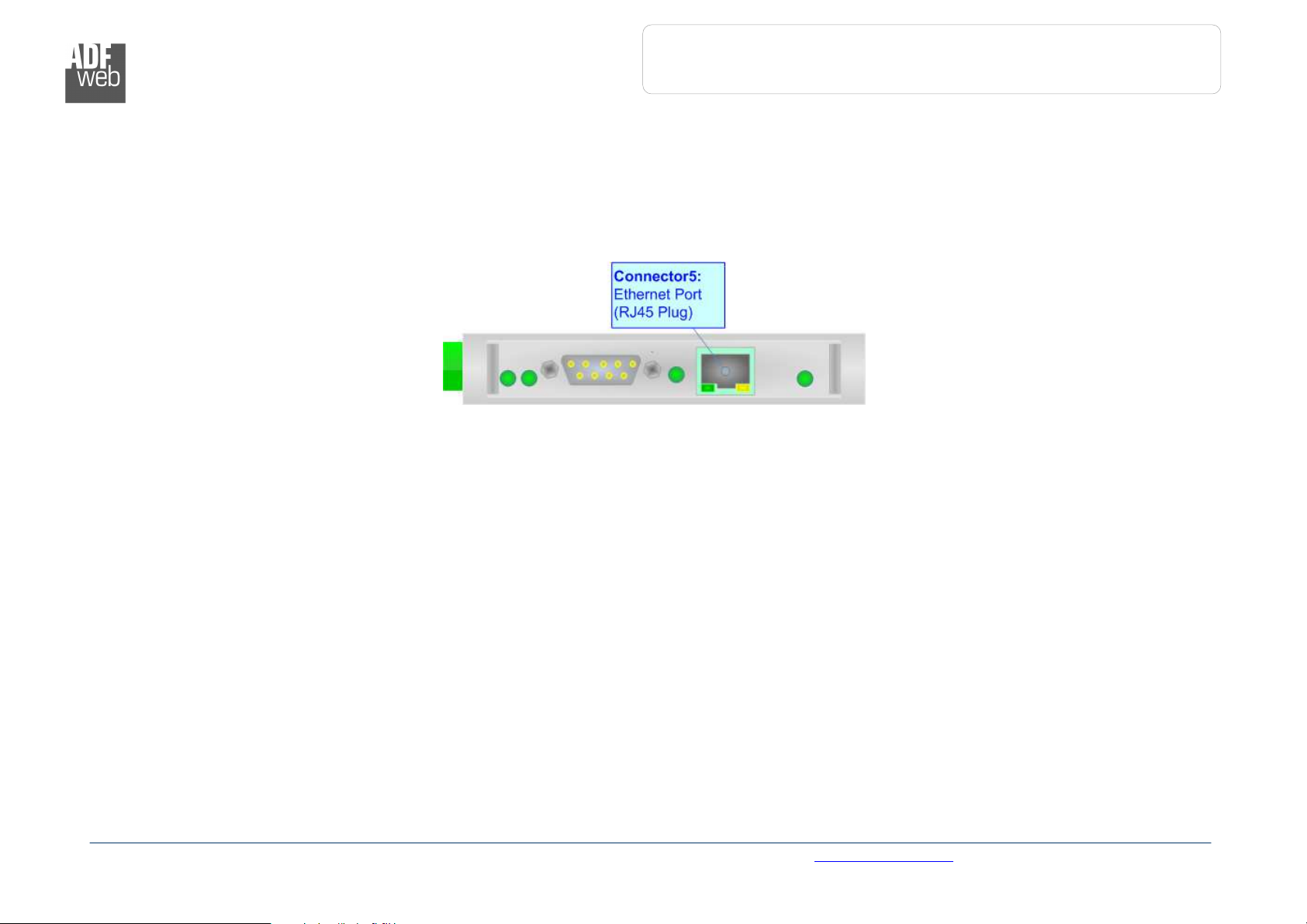

The Ethernet connection must be made usin Connector5 of HD67616 with at least a Cate ory 5E cable. The maximum len th of the cable
should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to
a Hub/Switch the use of a strai ht cable is recommended. To connect the device to a PC/PLC/other the use of a cross cable is recommended.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 15 of 30
F

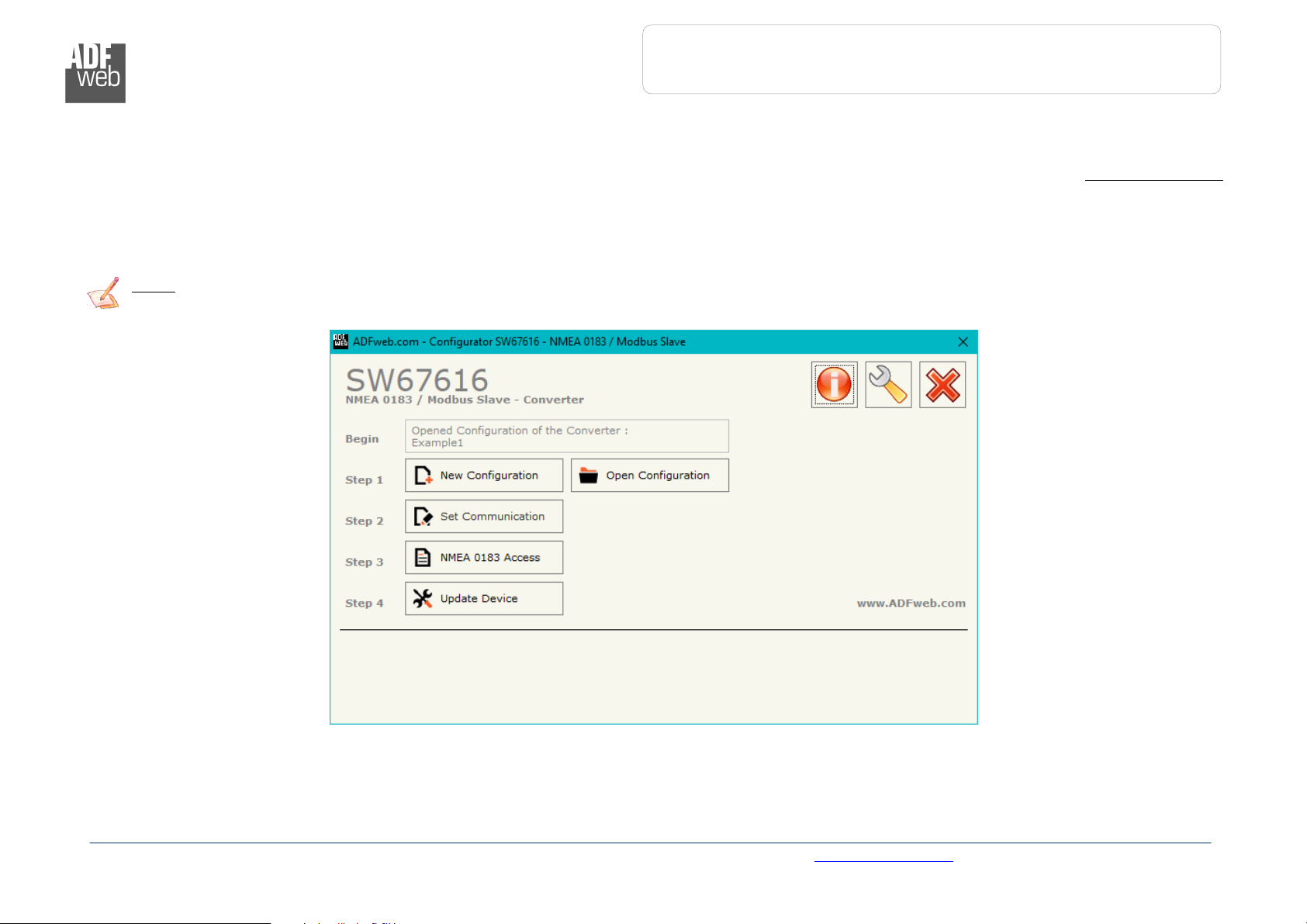

igure 2: Main window for SW6
7616
USE O COMPOSITOR SW67616:
To confi ure the Converter, use the available software that runs with Windows called SW67616. It is downloadable on the site www.adfweb.com
and its operation is described in this document. (This manual is referenced to the last version of the software present on our web site). The
software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit).
When launchin the SW67616, the window below appears (Fi . 2).
Note:
It is necessary to have installed .Net Framework 4.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 16 of 30
NEW CON IGURATION / OPEN CON IGURATION:
The “New Configuration” button creates the folder which contains the entire device’s confi uration.
A device’s confi uration can also be imported or exported:
To clone the confi urations of a pro rammable “NMEA 0183 / Modbus Slave - Converter”
in order to confi ure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 17 of 30
SO TWARE OPTIONS:
By pressin the “Settings” ( ) button there is the possibility to chan e the lan ua e of the software and check the updatin s for the
compositor.
In the section “Lan ua e” it is possible to chan e the lan ua e of the software.
In the section “Connection Options”, it is possible to check if there are some
updatin s of the software compositor in ADFweb.com website.
Checkin the option “Check Software Update at Start of Program”, the
SW67616 check automatically if there are updatin s when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 18 of 30
In the section “Software Settin s”, it is possible to enable/disable some
keyboard’s commands for an easier navi ation inside the tables contained in the
different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 19 of 30
SET COMMUNICATION:
By Pressin the “Set Communication” button from the main window for SW67616
(Fi . 2) the window “Set Communication” appears (Fi . 3).
The window is divided in different sections in order to define the different parameters
of the converter:
Modbus Slave
RS485 / RS422
RS485 2
Ethernet
Figure 3a: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 0183 / Modbus Slave
-
Converter
Document code: MN67616_ENG Revision 1.000 Pa e 20 of 30
Figure 3b: “Set Communication  Modbus Slave”
window
Figure 3c: “Set Communication  RS485/RS422”
window
M ODBUS S LAVE :
This section is used to define the main parameters of Modbus line. The means of the
fields are:
In the field “Serial” the serial port to use is defined (RS232 or RS485);
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits of the serial line is defined;
In the field “ID Device” the ID of Modbus side of the converter is defined;
If the field “Read with Input Register / Status unction” is checked, it is
possible to read the Input bytes of NMEA0183 side with Input Re isters
(Function 04) and write the Output bytes of NMEA0183 side with Holdin
Re isters (Function 06/16). The Output bytes are readable with Function 03.
Otherwise, only Holdin Re isters will be used and the Output bytes of
NMEA0183 side cannot be read back.
RS485 / RS422:
This section is used to define the main parameters of RS485 / RS422 line. The means
of the fields are:
If the field “Enable RS485 / RS422” is checked, the serial port is enabled;
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of stop bits of the serial line is defined.
