ADF Web HD67843-B2-Y User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 1 di 50
User Manual
Revision 1 100
English
DALI / Modbus Slave - Converter
(Order Code: HD67843-B2-Y, HD67843-B2-N)
for Website information:
www adfweb com?Product=HD67843
for Price information:
www adfweb com?Price=HD67843-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others DALI products, see also the following links:
Converter DALI to
www adfweb com?Product=HD67822 (KNX
www adfweb com?Product=HD67831 (RS485
www adfweb com?Product=HD67832 (BACnet/IP Master
www adfweb com?Product=HD67833 (BACnet/IP Slave
www adfweb com?Product=HD67834 (CAN
www adfweb com?Product=HD67835 (CANopen
www adfweb com?Product=HD67836 (DeviceNet Master
www adfweb com?Product=HD67837 (DeviceNet Slave
www adfweb com?Product=HD67838 (DMX
www adfweb com?Product=HD67839 (Ethernet
www adfweb com?Product=HD67840 (EtherNet/IP
www adfweb com?Product=HD67842 (Modbus Master
www adfweb com?Product=HD67844 (Modbus TCP Master
www adfweb com?Product=HD67845 (Modbus TCP Slave
www adfweb com?Product=HD67848 (PROFINET
www adfweb com?Product=HD67849 (SNMP Manager
www adfweb com?Product=HD67850 (SNMP Agent
Do you have an your customer protocol?
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 2 di 50
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
DALI 10
RS485 11
ETHERNET 12
USE OF COMPOSITOR SW67843 13
NEW PROJECT / OPEN PROJECT 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17
DALI ACCESS 18
UPDATE DEVICE 22
USE OF DALI CONSOLE SOFTWARE 24
STRUCTURE OF THE SOFTWARE 25
SETUP 26
SEARCH 27
TEST DALI 2 27
NETWORK SETTING 28
MODBUS MAP 34
MECHANICAL DIMENSIONS 47
ORDERING INFORMATIONS 48
ACCESSORIES 48
DISCLAIMER 49
OTHER REGULATIONS AND STANDARDS 49
WARRANTIES AND TECHNICAL SUPPORT 50
RETURN POLICY 50
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Chapter Description
1 000 05/04/2017 Ff All First Release
1 100 14/02/2020 Ff All Added DALI 2 tables

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 3 di 50
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 4 di 50
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 5 di 50

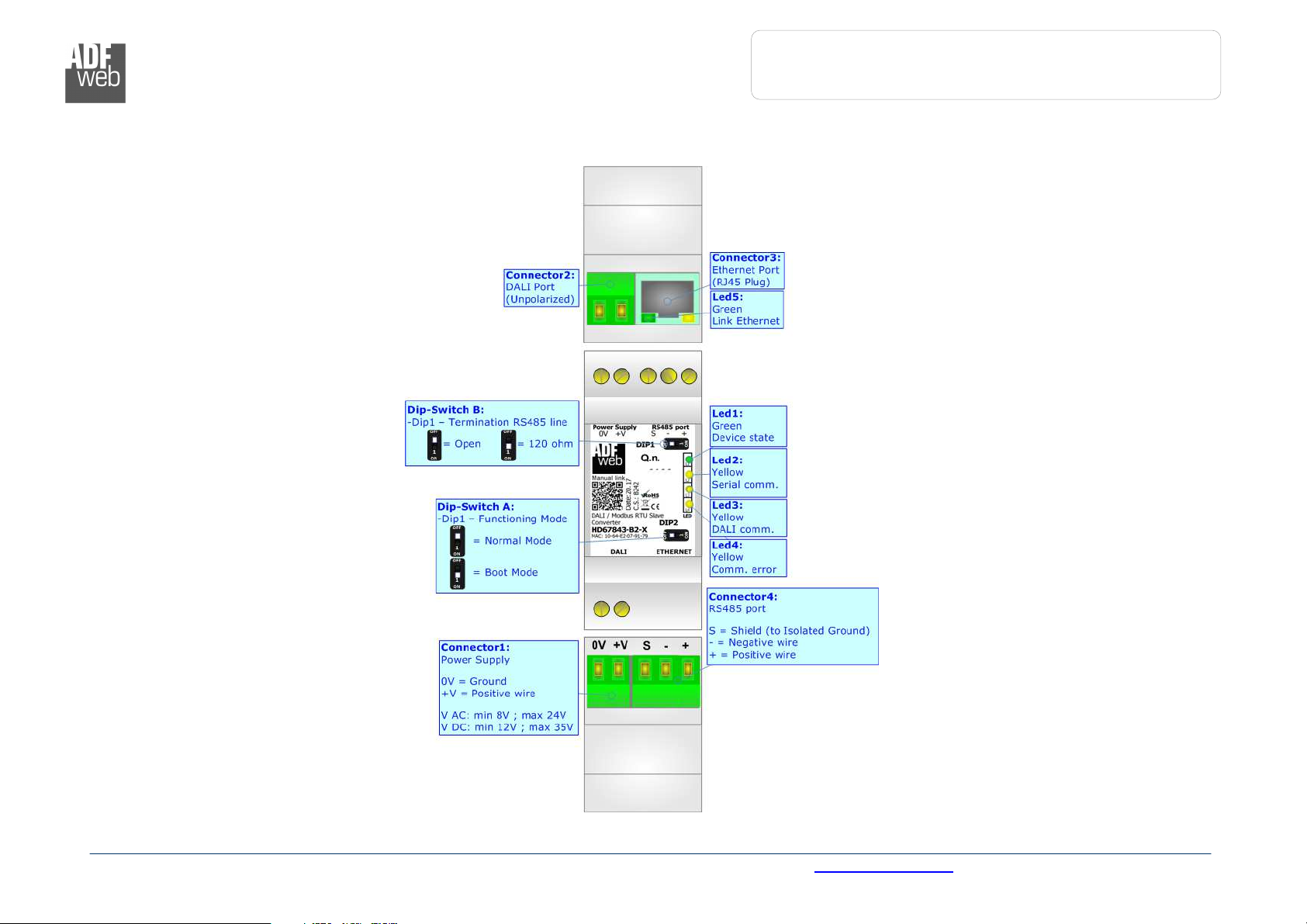

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67843-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 6 di 50
CHARACTERISTICS:
The HD67843 is a DALI / Modbus Slave - Converter
It has the following characteristics:
Up to 64 devices on DALI bus;
Configurator for DALI network/devices;
Isolation between DALI – RS485, Power Supply – RS485 Additional isolation Power Supply – DALI for HD67843-B2-N version;
Two-directional information between DALI bus and Modbus bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURATION:
You need “DALI Console” software on your PC in order to perform the following:
Configure the DALI network;
Setup the DALI devices (groups, scenes, IDs, …);
Test DALI communication
You need Compositor SW67843 software on your PC in order to perform the following:
Define the parameter of Modbus line;
Define the parameter of DALI line;
Update the device

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 7 di 50

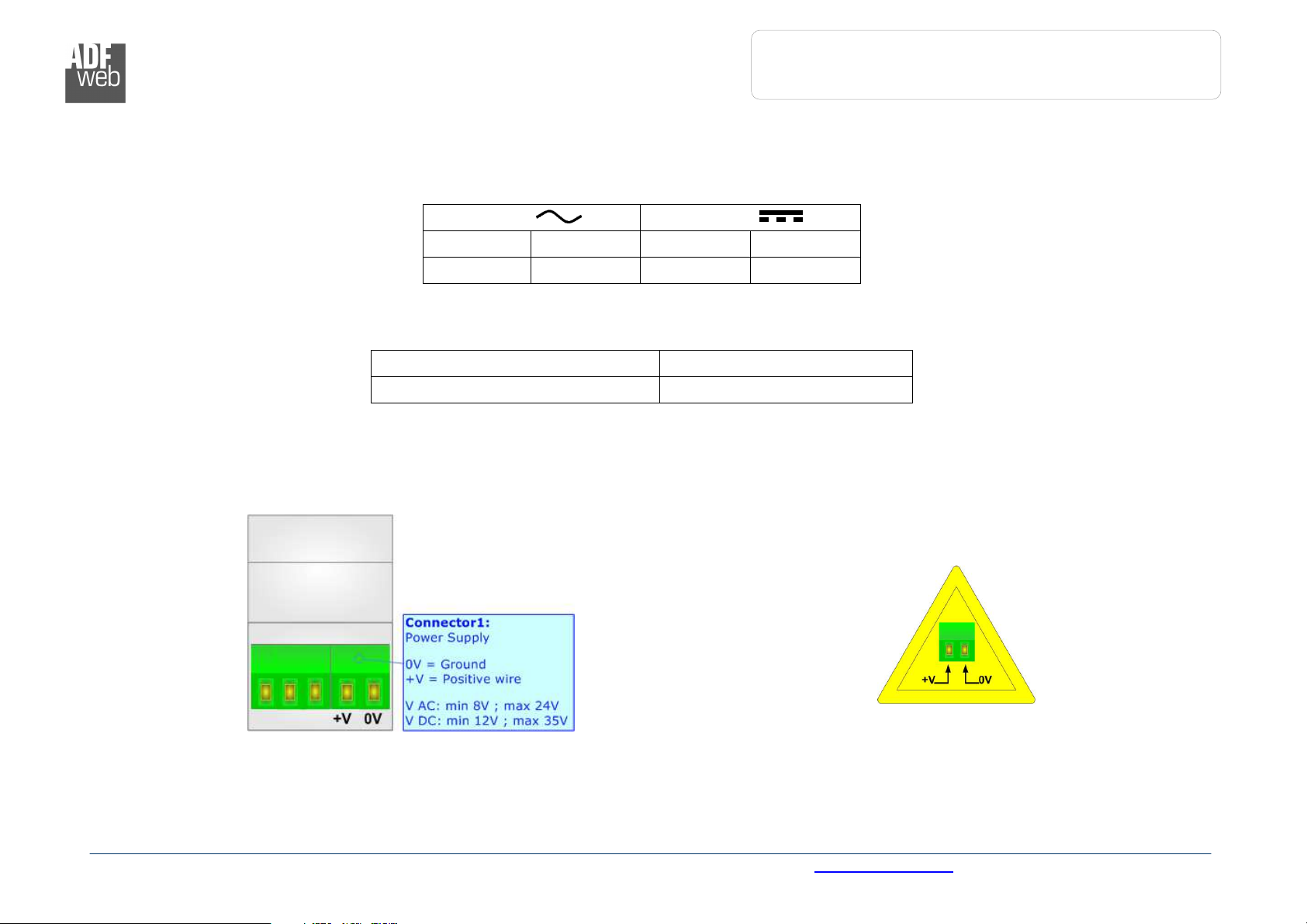

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67843-B2 3 5
HD67843-B2
Caution: Not
reverse the polarity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 8 di 50

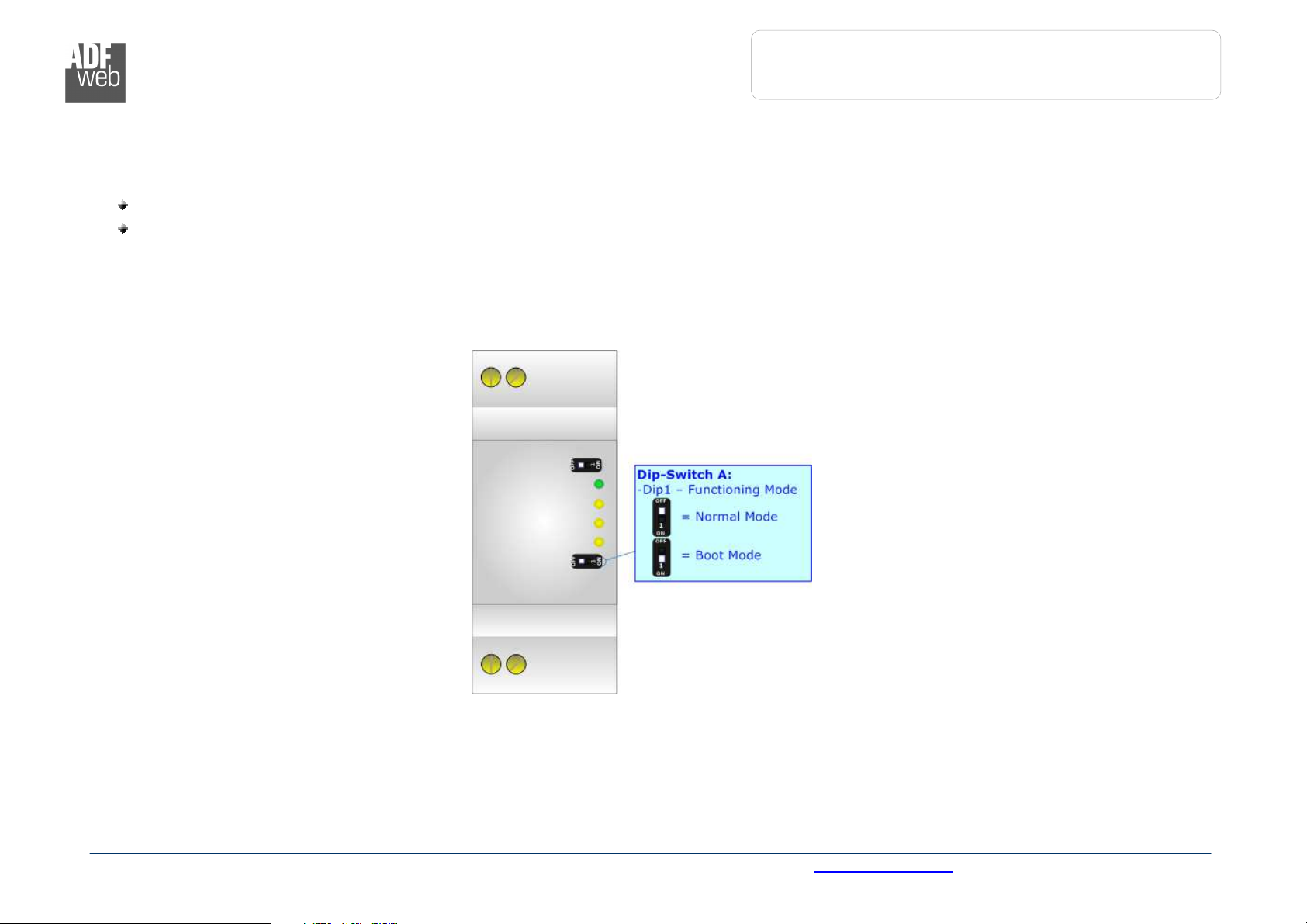

FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 9 di 50

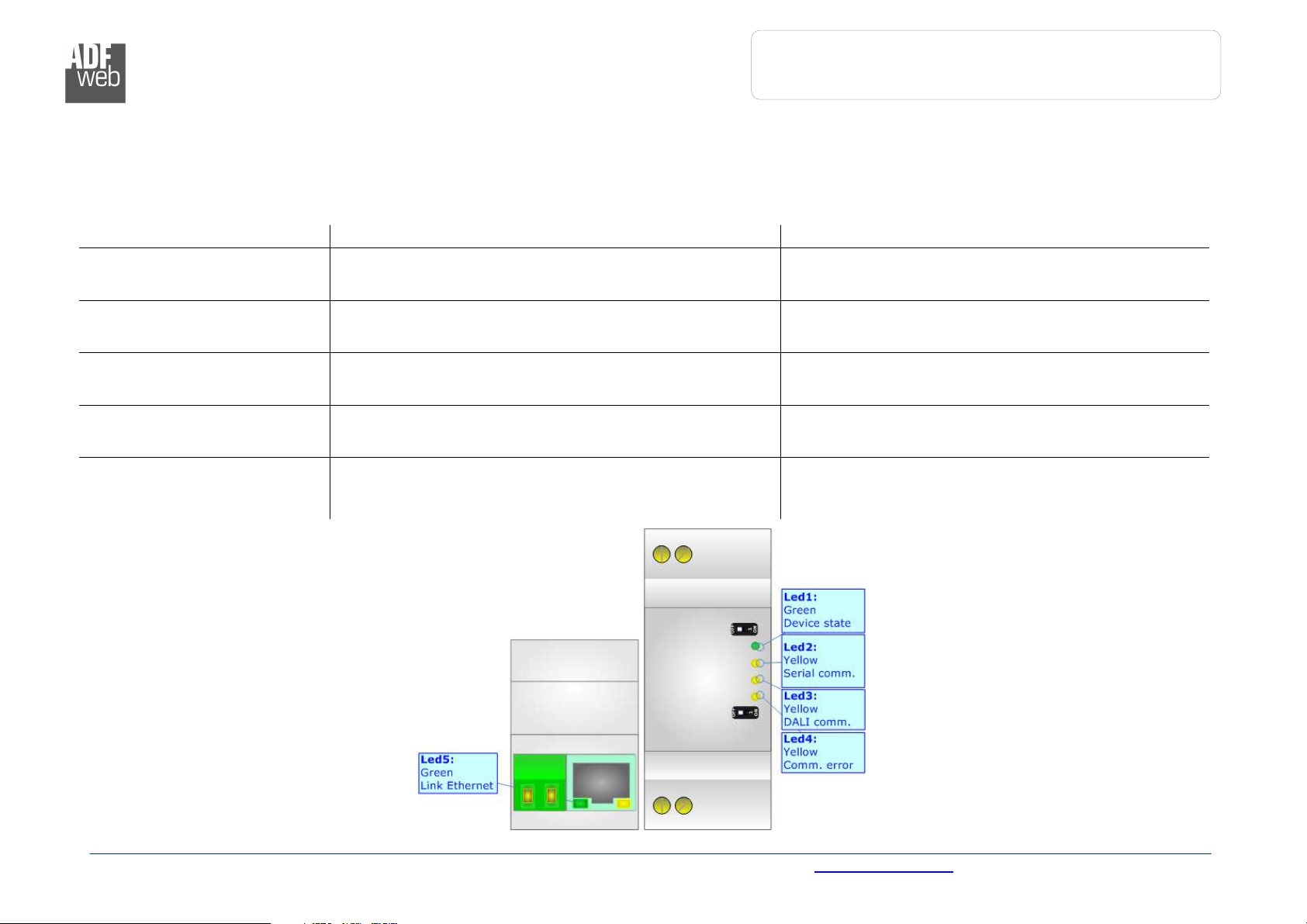

LEDS:
The device has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
2: Serial communication
(yellow) Blinks when Modbus communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
3: DALI communication
(yellow) Blinks when DALI communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
4: Comm error (yellow) Turns ON when DALI or Modbus is in error Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 10 di 50
DALI:
DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital
communication between electronic lighting equipment (electronic ballasts, transformers, etc )
With the right choice of individual DALI components an extremely wide range of requirements can be met,
from operating the lighting system from a simple light switch to lighting management systems for entire
office complexes with thousands of light sources Using ADFweb com’s DALI converters, any light source,
including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be
controlled irrespective of whether they are installed in an office, a restaurant or a street light
Characteristics Description
Medium Shielded Twisted Pair
Topology Linear, Star or mixed
Device power consumption Max 250 mA
DALI voltage 9 5 V – 22 5 V (typical 16 V)
Maximum cable length 300 m (1 5 mm2 wire)
Maximum number of DALI
devices 64
Baud rate 1200 bps
Maximum number of DALI
groups 16
Maximum number of DALI
scenes 16

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 11 di 50
RS485:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 12 di 50

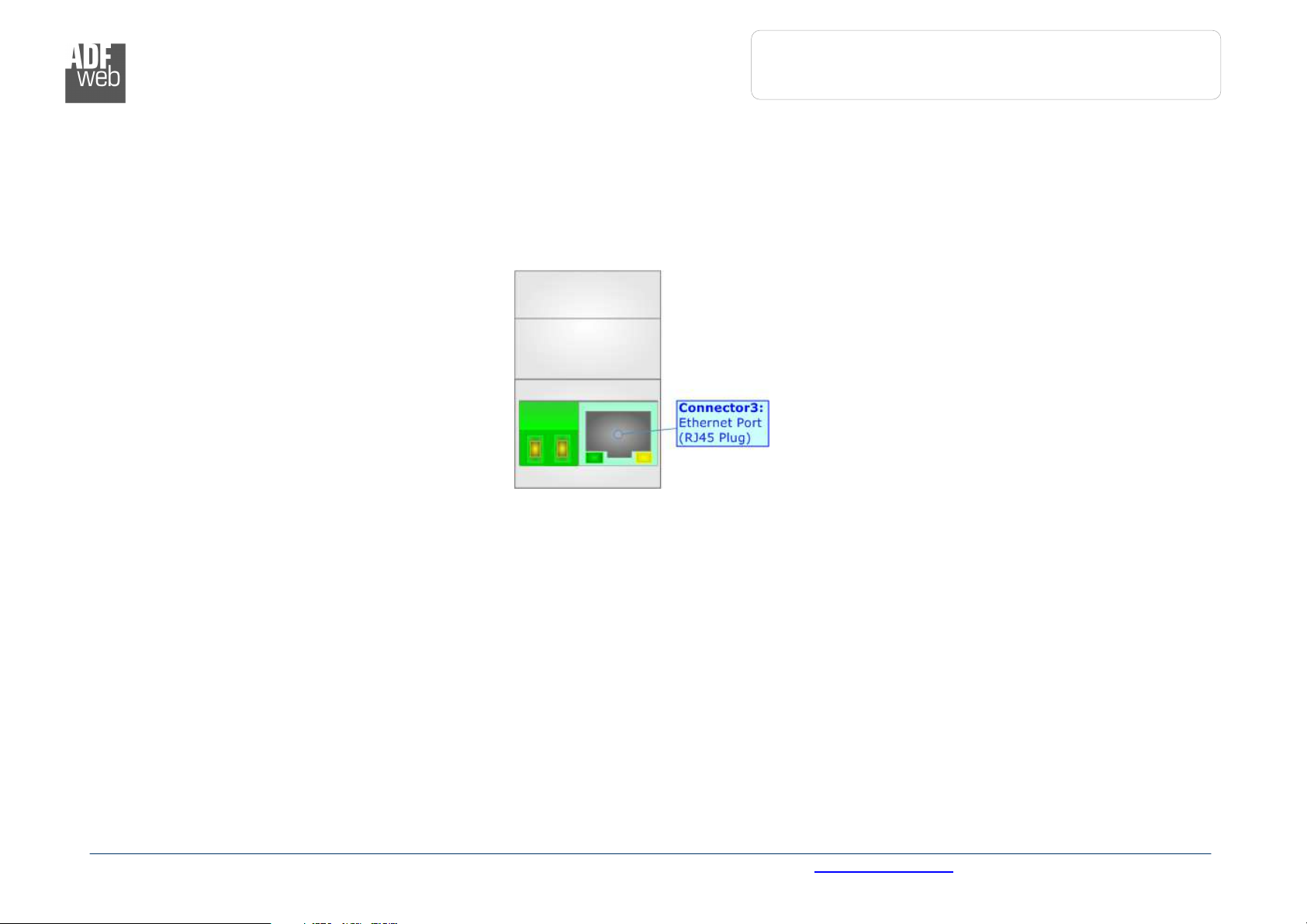

ETHERNET:
The Ethernet port is used for programming DALI network and for programming the device
The Ethernet connection must be made using Connector2 of HD67843-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 13 di 50
USE OF COMPOSITOR SW67843:
To configure the Converter, use the available software that runs with Windows called SW67843 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67843, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67843

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 14 di 50

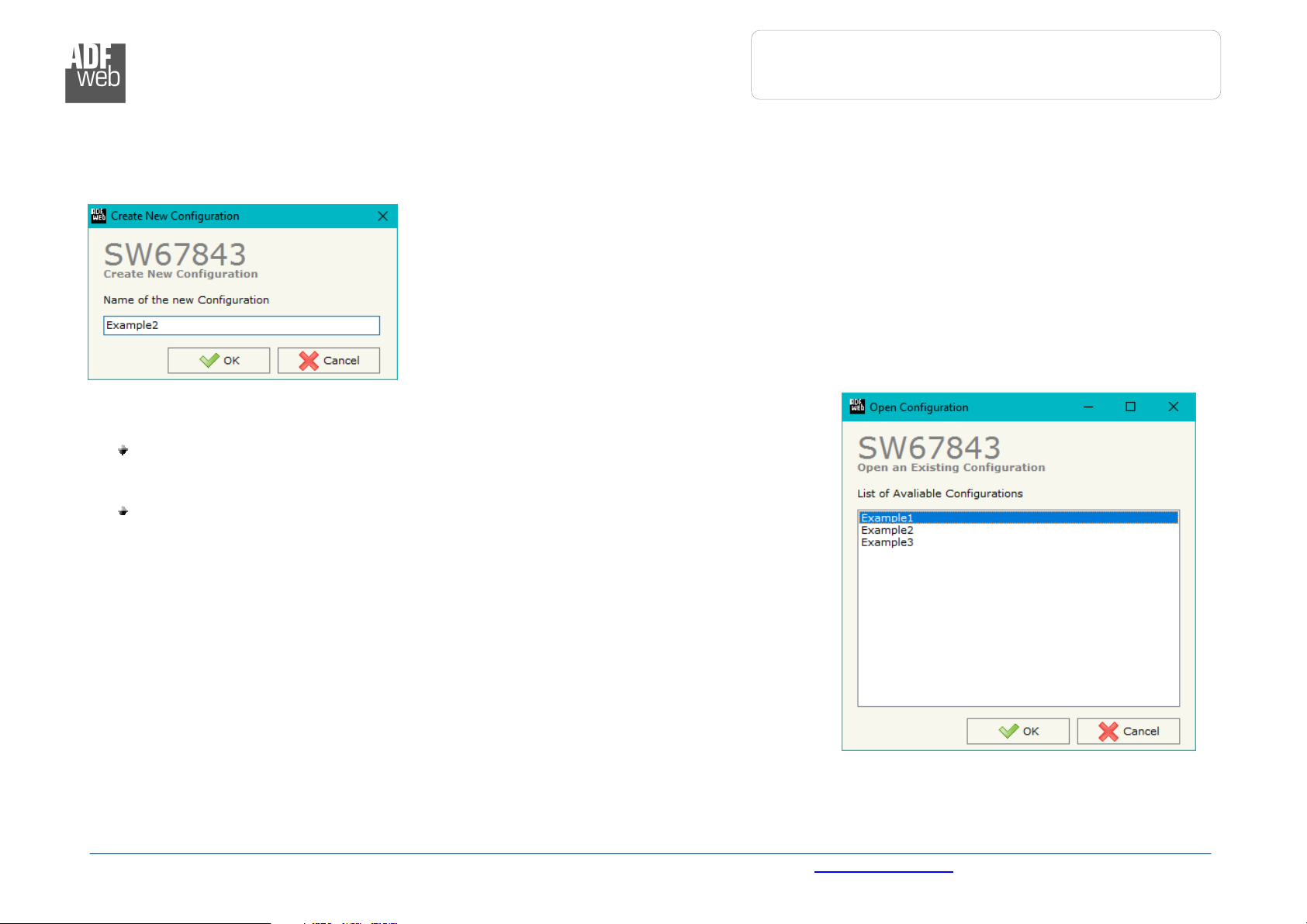

NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “DALI / Modbus Slave - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 15 di 50
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67843 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 16 di 50
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 17 di 50
SET COMMUNICATION:
This section define the fundamental communication parameters of Modbus and DALI bus
By Pressing the “Set Communication” button from the main window for SW67843 (Fig 2) the window
“Set Communication” appears (Fig 3)
The means of the fields for the “Modbus Slave” section are:
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “ID Device” the ID of the Modbus side is defined;
If the field “Map each DALI Device in a Register” is checked, the Modbus map (see page 34)
is doubled and a single information for each Modbus register is mapped
The means of the fields for the “DALI” section are:
In the field “DALI Console Port” the UDP port used for the communication with ‘DALI Console’
software is defined;
If the field “Switch off DALI on Timeout” is checked, the DALI line is switched OFF if there is
no communication with the Modbus Master for the “TimeOut (ms ” defined below;
If the field “Disable DALI Scan” is checked, the automatic scan of DALI network is disabled;
If the field “Enable DALI 2” is checked, DALI 2 protocol is enabled
The means of the fields for the “Ethernet” section are:
In the field “IP ADDRESS” the IP address of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask is defined;
In the field “GATEWAY” the default gateway of the Ethernet network is defined This feature
can be enabled or disabled pressing the Check Box field This feature is used for going out of the
net;
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 18 di 50
DALI ACCESS:
By pressing the “DALI Access” button from the main window for SW67843 (Fig 2) the window “Select the DALI Device Present in the
Network” appears (Fig 4)
This section is composed by three tables used to define the list of DALI devices to control, the DALI sensors to read and the DALI router’s
functions
S ELECT D EVICE
The “Select Device” section (Fig 4a) is used to list the DALI ballast to read/write The means of the fields are:
If the field “Enable” is checked, the DALI ballast is present in the network and connected to the converter;
If the field “Min-Max Value” is checked, the DALI ballast will be dimmed only between the configured minimum and maximum light
levels;
Figure
4
a
:
“
Select Device
” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 19 di 50
In the field “Recall Level” the light level to command when the ballast is toggled (ON/OFF) is defined It is possible to define:
oNone: function not enabled;
oRecall Min-Max Level for Switch: the DALI device is toggled between configured minimum and maximum light levels;
oRecall Old Value Level for Switch: the DALI device is toggled between 0 and last light level
S ET A CCESS
The “Set Access” section (Fig 4b) is used to list the DALI sensors to read and the DALI commands to send to the DALI ballasts The means
of the fields are:
If the field “Enable” is checked, the DALI device/sensor is enabled;
In the field “Dev/Sen” the DALI node is defined;
In the field “Type” the type of DALI node to read/write is defined;
In the field “Ch. Number” the ID of the DALI node is defined;
In the field “Instance” the instance of the DALI node is defined;
In the field “Command” the command code to send is defined If not used, this column can be set to ‘0’;
In the field “Time Send” the delay in ms between the commands is defined If not used, this column can be set to ‘0’;
In the field “Timeout” the timeout in ms for the reception of the response is defined If not used, this column can be set to ‘0’;
In the field “Function” the DALI function to recall is define This feature is used to control DALI ballasts automatically from a DALI 2
device as a DALI router;
Figure
4b
:
“Set Access” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Modbus Slave
-
Converter
Document code: MN67843_ENG Revision 1 100 Pagina 20 di 50
In the field “Position” the byte of the internal memory array where mapping the data is defined;
In the field “Num Bytes” the dimension of the data is defined;
In the field “Mnemonic” a description of the row is defined
Note:
This table is not required if the HD67843-B2 is used to communicate with DALI 1 devices only
Note:
The ‘Position’ field represents a byte of the internal memory array of the converter The array is mapped consecutively from Modbus
register 0, so Position 0-1 compose Modbus register 0, Position 2-3 compose Modbus register 1 and so on
If this table is filled, the fixed Modbus map with the data read from DALI 1 devices is shifted of 2048 registers See chapter “Modbus map”
for the description of the offsets
