EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 5 of 29
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67D03- 2-xxxMHz

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 6 of 29
CHARACTERISTICS:
The HD67D03-B2 is a LoRaWAN / Modbus TC Master Converter.
It allows the following characteristics:
Electrical isolation between Modbus TC and ower Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 12…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67D03 software on your C in order to perform the following:
Define the parameter of Modbus TC line;
Define the parameter of LoRaWAN line;
Define the list of LoRaWAN messages in uplink and downlink to the LoRaWAN gateway;
Define the Modbus registers to read and write from/to the Modbus TC Slaves;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 7 of 29

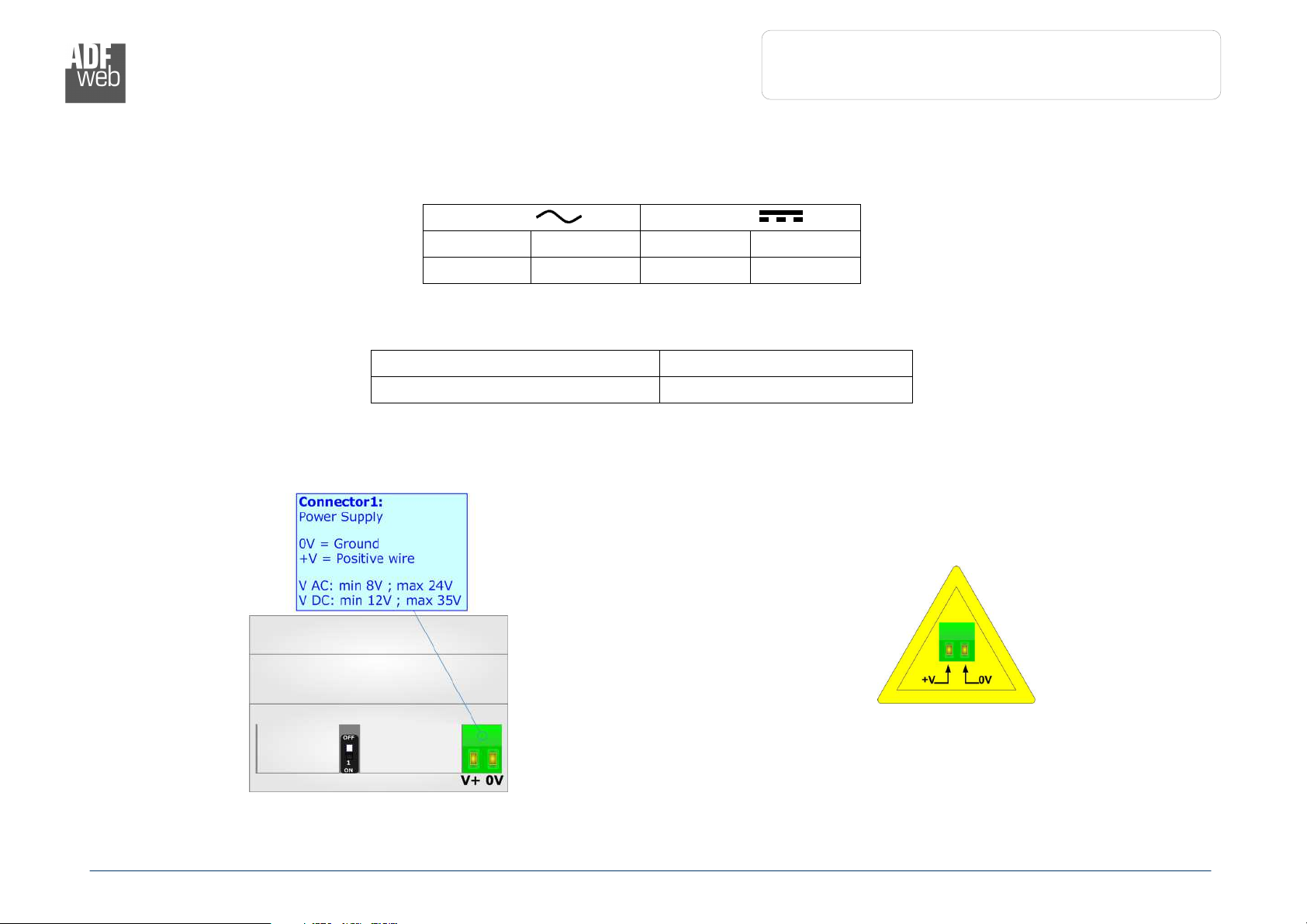

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67D03-B2-xxxMHz 3.5
HD67D0
3
-
B2
-
xxxMHz
Caution: Not reverse the po arity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 8 of 29
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 9 of 29
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Norma Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
2: LoRaWAN communication
(yellow) Blinks when LoRaWAN data is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: Modbus TC
communication (yellow) Blinks when a Modbus TC response is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 10 of 29
LORAWAN:
The LoRaWAN® specification is a Low ower, Wide Area (L WA) networking protocol
designed to wirelessly connect battery operated ‘things’ to the internet in regional, national
or global networks, and targets key Internet of Things (IoT) requirements such as bi-
directional communication, end-to-end security, mobility and localization services.
LoRaWAN® network architecture is deployed in a star-of-stars topology in which gateways
relay messages between end-devices and a central network server.
The wireless communication takes advantage of the Long Range characteristics of the LoRa
physical layer, allowing a single-hop link between the end-device and one or many
gateways. All modes are capable of bi-directional communication, and there is support for
multicast addressing groups to make efficient use of spectrum during tasks such as
Firmware Over-The-Air (FOTA) upgrades or other mass distribution messages.
Converters from HD67D03 serie act as end-devices and they can communicate with one or
more LoRwaWAN Gateways.
The converters support all the standard datarates and they work both on public and private
networks.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 11 of 29

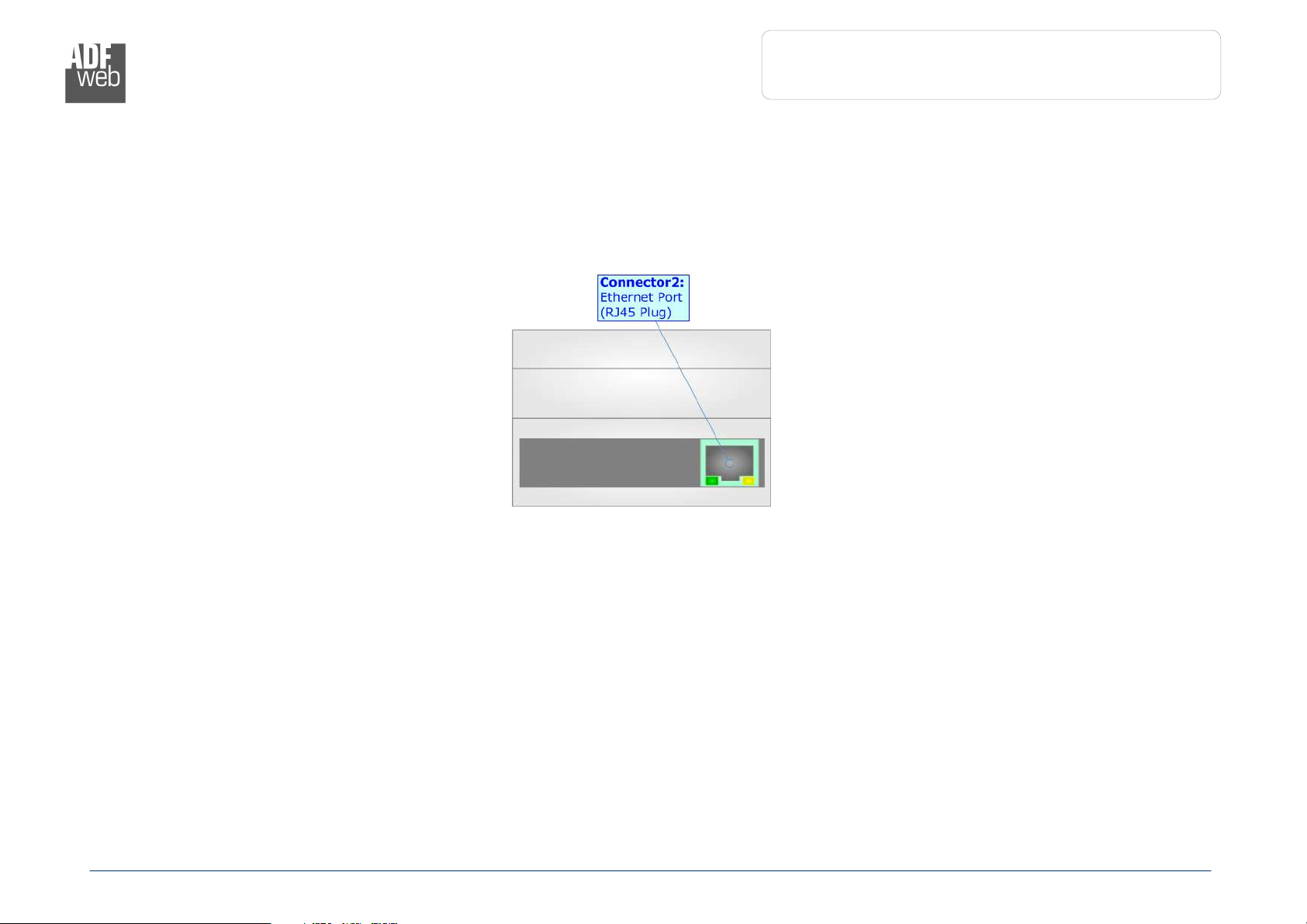

ETHERNET:
The Ethernet port is used for programming the device and for Modbus TC communication.
The Ethernet connection must be made using Connector2 of HD67D03-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 12 of 29
USE OF COMPOSITOR SW67D03:
To configure the Converter, use the available software that runs with Windows called SW67D03. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67D03, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67D0
3

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 13 of 29
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “LoRaWAN / Modbus TC Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 14 of 29
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67D03 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 15 of 29
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 16 of 29
SET COMMUNICATION:
By ressing the “Set Communication” button from the main window for SW67D03 (Fig.
2) the window “Set Communication” appears (Fig. 3).
The means of the fields for the “LoRaWAN” section are:
In the field “RF Band” the wireless band used for LoRaWAN communication is
defined;
In the field “Network Type” the type of LoRaWAN network is defined;
If the field “Adaptive Data Rate” is checked, the converter will enable the ADR
functionalities to select the best data rate to be used in relation to the
environmental conditions;
In the field “Data Rate” the data rate for LoRaWAN communication is defined;
In the field “Transmission Type” the type of LoRaWAN communication is defined;
In the field “Max Pay oad Size” the maximum dimension of the LoRaWAN
messages is defined (fixed in relation to the data rate selected);
In the field “Activation Method” the method used to join into a LoRaWAN network
is defined;
In the field “Device Address” the device identifier (DevEUI) is defined (only for
AB method);
In the field “App ication Identifier” the application identifier (AppEUI) is defined
(only for AB method);
In the field “Network Session Key” the key used for the communication with the
LoRaWAN gateway (NwkSKey) is defined (only for AB method);
In the field “App ication Session Key” the key for encryption and decryption of
the payload (AppSKey) is defined (only for AB method);
If OTAA method is selected, in the field “App ication Key” the secret key for the
dynamic activation of the converter in the LoRAWAN network is defined.

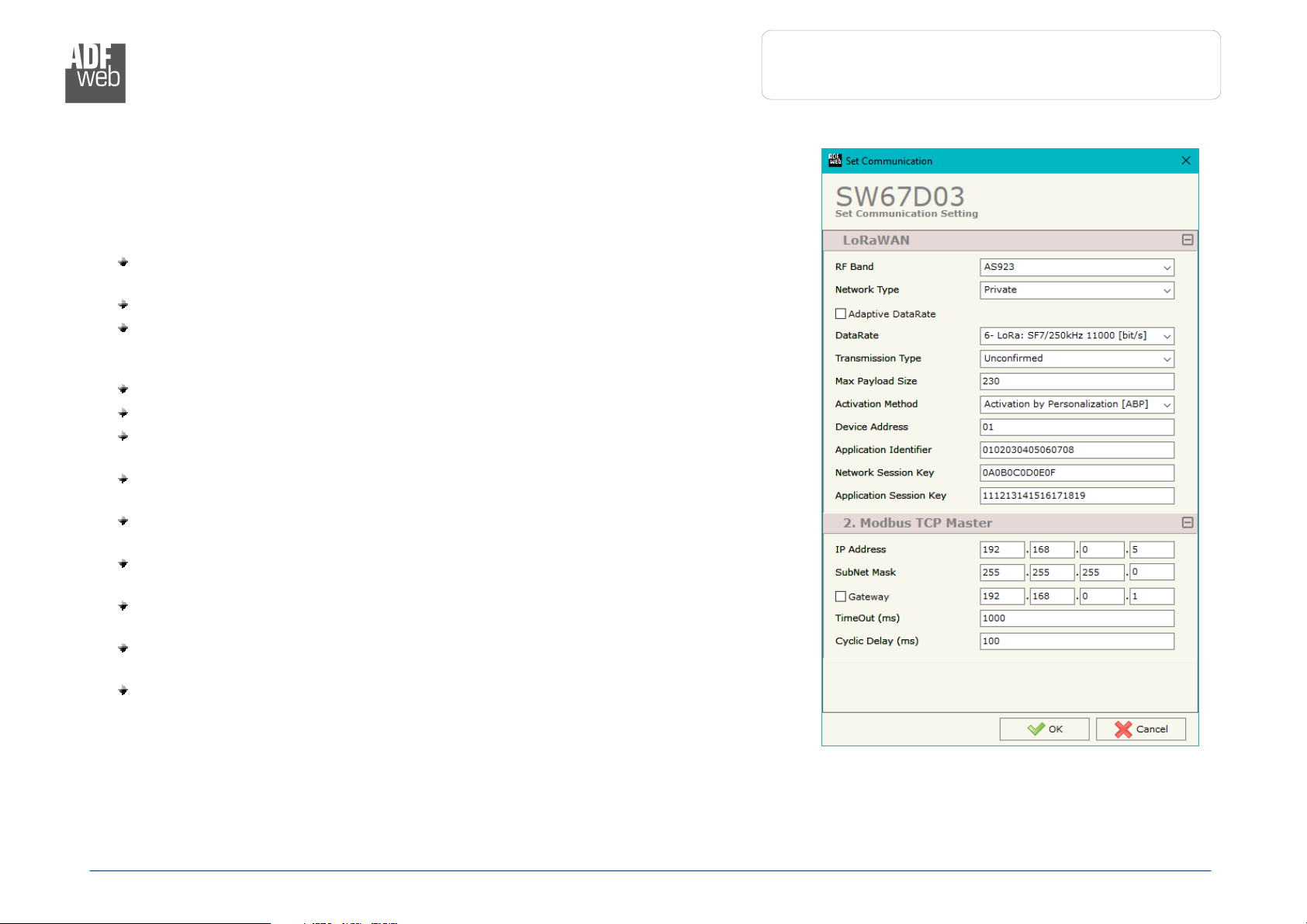

Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 17 of 29
The means of the fields for the “Modbus TC Master” section are:
In the fields “IP ADDRESS” the I address of Modbus TC side of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of Modbus TC side of the converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This feature can be enabled or disabled pressing the Check
Box field. This feature is used for going out of the net;
In the field “TimeOut (ms)” the maximum time that the converter attends for the answer from the slave interrogated is defined;
In the field “Cyc ic De ay (ms)” the delay (idle time) between two Modbus requests is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 18 of 29

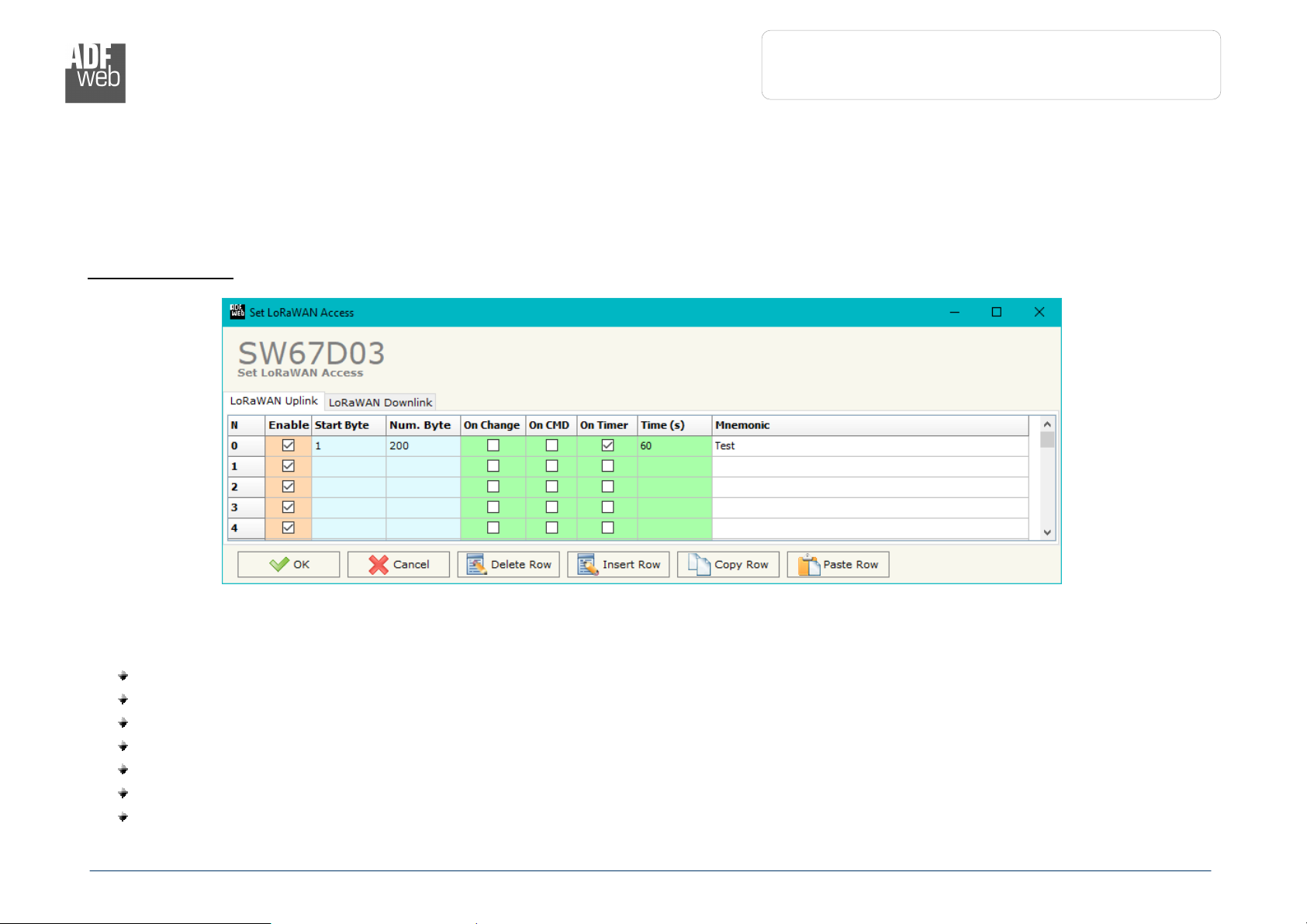

Figure 4a: “LoRAWAN Access  LoRaWAN Uplink” window
LORAWAN ACCESS:
By ressing the “LoRaWAN Access” button from the main window for SW67D03 (Fig. 2) the window “Set LoRaWAN Access” appears (Fig.
4).
This section is used to define the LoRAWAN messages where the converter will place the data read from Modbus TC (Uplink) and the
LoRAWAN messages that the converter will take (Downlink) for writing the data to Modbus TC .
L O R A WAN U PLINK
The means of the fields are:
If the field “Enab e” is checked, the LoRaWAN message is enabled;
In the field “Start Byte” the starting byte of the internal memory array where taking the data is defined;
In the field “Num. Byte” the number of consecutive bytes to take from the internal array starting from “Start Byte” is defined;
If the field “On Change” is checked, the LoRaWAN message is sent only when the data from Modbus TC change;
If the field “On CMD” is checked, the LoRaWAN message is sent when a Modbus TC request is received;
If the field “On Timer” is checked, the LoRaWAN message is sent cyclically with the delay defined in “Time (s)” field;
In the field “Mnemonic” a description of the message is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 19 of 29
Figure 4b: “LoRAWAN Access  LoRaWAN Downlink” window
L O R A WAN D OWNLINK
The means of the fields are:
If the field “Enab e” is checked, the LoRaWAN message is enabled;
In the field “Start Byte” the starting byte of the internal memory array where placing the data is defined;
In the field “Num. Byte” the number of consecutive bytes to write to the internal array starting from “Start Byte” is defined;
In the field “Mnemonic” a description of the message is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000 age 20 of 29
MODBUS SET ACCESS:
By pressing the “Modbus Set Access” button from the main window for SW67D03 (Fig. 2) the window “Set Modbus TC Master Access”
appears.
This window is divided in two parts, the "Modbus Read" (Fig. 5a) and the "Modbus Write " (Fig. 5b).
The first part "Modbus Read" is used to read the data from the Modbus slaves and make them available on LoRaWAN side.
The second part "Modbus Write " is used to write the data that arrives from LoRaWAN side to the Modbus slaves.
M ODBUS R EAD
The means of the fields are:
If the field “Enab e” is checked, the
Modbus request is enabled;
In the field “S ave IP Address” the I
address of the Modbus TC device to
read is defined;
In the field “Port” the TC port used
for the communication is defined;
In the field “S ave ID” the address of
the Modbus TC device to read is defined;
In the field “Type” the data type of the register to read is defined. It is possible to choose between the following:
oCoil Status;
oInput Status
oHolding Register;
oInput Register.
In the field “Address” the starting address of the register to be read is defined;
In the field “NPoint” the number of consecutive registers to be read is defined;
In the field “Po Time” the delay time to make the request is defined;
In the field “Max Error” the number of consecutive errors that the converter waits before suspending the request is defined;
Figure
5a
:
“Set Access

Modbus Read” window
