ADF Web HD67938-IP-B2 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 1 of 34
User Manual
Revision 1 000
English
BACnet slave / MQTT - Converter
(Order Code: HD67938-IP-B2, HD67938-MSTP-B2)
For Website information:
www adfweb com?Product=HD67938-B2
For Price information:
www adfweb com?Price=HD67938-IP-B2
www adfweb com?Price=HD67938-MSTP-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others MQTT products, see also the following links:
Converter MQTT to
www adfweb com?Product=HD67930 (Ethernet)
www adfweb com?Product=HD67931 (M-Bus)
www adfweb com?Product=HD67932 (Serial)
www adfweb com?Product=HD67933 (Modbus Master)
www adfweb com?Product=HD67934 (Modbus Slave)
www adfweb com?Product=HD67935 (Modbus TCP Master)
www adfweb com?Product=HD67936 (Modbus TCP Slave)
www adfweb com?Product=HD67937 (BACnet Master)
www adfweb com?Product=HD67939 (CA )
www adfweb com?Product=HD67940 (CA open)
www adfweb com?Product=HD67941 (DALI)
www adfweb com?Product=HD67942 (Device et Master)
www adfweb com?Product=HD67943 (Device et Slave)
www adfweb com?Product=HD67944 (DMX)
www adfweb com?Product=HD67945 (Ether et/IP)
www adfweb com?Product=HD67946 (J1939)
www adfweb com?Product=HD67947 (K X)
www adfweb com?Product=HD67948 ( MEA 0183)
www adfweb com?Product=HD67949 ( MEA 2000)
www adfweb com?Product=HD67950 (PROFIBUS Master)
www adfweb com?Product=HD67951 (PROFIBUS Slave)
www adfweb com?Product=HD67952 (PROFI ET)
www adfweb com?Product=HD67953 (S MP Manager)
www adfweb com?Product=HD67954 (S MP Agent)
Do you have an your customer protocol?
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 2 of 34
I DEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 10
RS485 11
ETHERNET 12
USE OF COMPOSITOR SW67938 13
NEW CONFIGURATION / OPEN CONFIGURATION 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17
MQTT SET TOPIC 24
SET BACNET ACCESS 26
BACNET EDE FILE 27
UPDATE DEVICE 28
TEMPLATE STRING: DEFINITION OF MQTT
PAYLOAD 30
MECHANICAL DIMENSIONS 31
ORDERING INFORMATIONS 32
ACCESSORIES 32
DISCLAIMER 33
OTHER REGULATIONS AND STANDARDS 33
WARRANTIES AND TECHNICAL SUPPORT 34
RETURN POLICY 34
UPDATED DOCUME TATIO :
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISIO LIST:
WAR I G:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Chapter Description
1 000 05/12/2017 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 3 of 34
SECURITY ALERT:
G E ERAL I FORMATIO
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I TE DED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSO EL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CO FORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 4 of 34

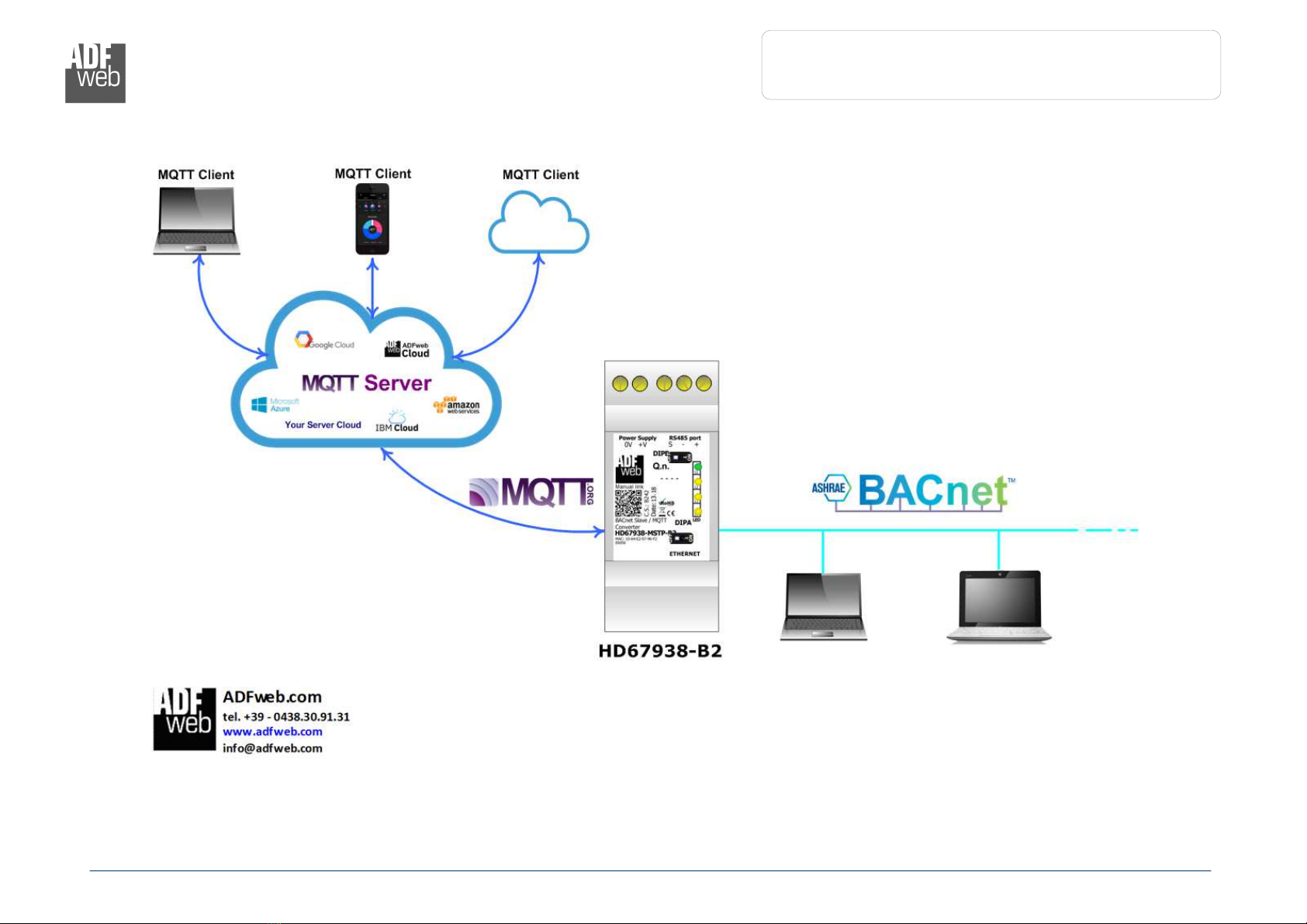

EXAMPLE OF CO ECTIO :

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 5 of 34

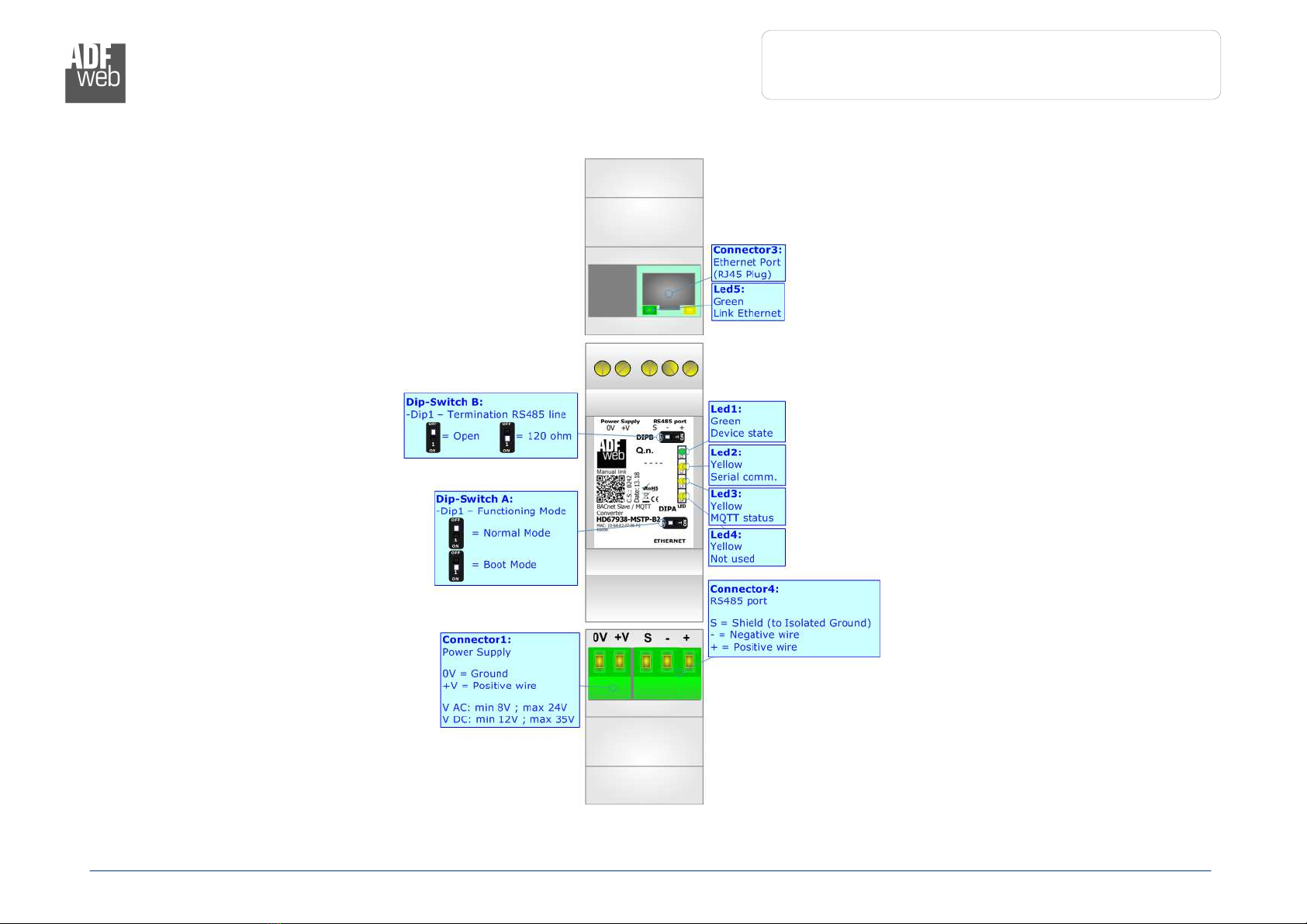

CO ECTIO SCHEME:
Figure 1a: Connection scheme for HD6793 -IP-B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 6 of 34
Figure 1b: Connection scheme for HD6793 -MSTP-B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 7 of 34
CHARACTERISTICS:
The HD67938-B2 is a BACnet slave / MQTT Converter
It allows the following characteristics:
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CO FIGURATIO :
You need Compositor SW67938 software on your PC in order to perform the following:
Define the parameter of MQTT;
Define the parameter of BACnet line;
Define the MQTT topics to be published/subscribed in the MQTT Server;
Define the list of BACnet objects accessible on BACnet side;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 8 of 34
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67938-IP-B2 3 5
HD67938-MSTP-B2 3 5
HD67938-B2
Caution: ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 9 of 34
FU CTIO MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 10 of 34

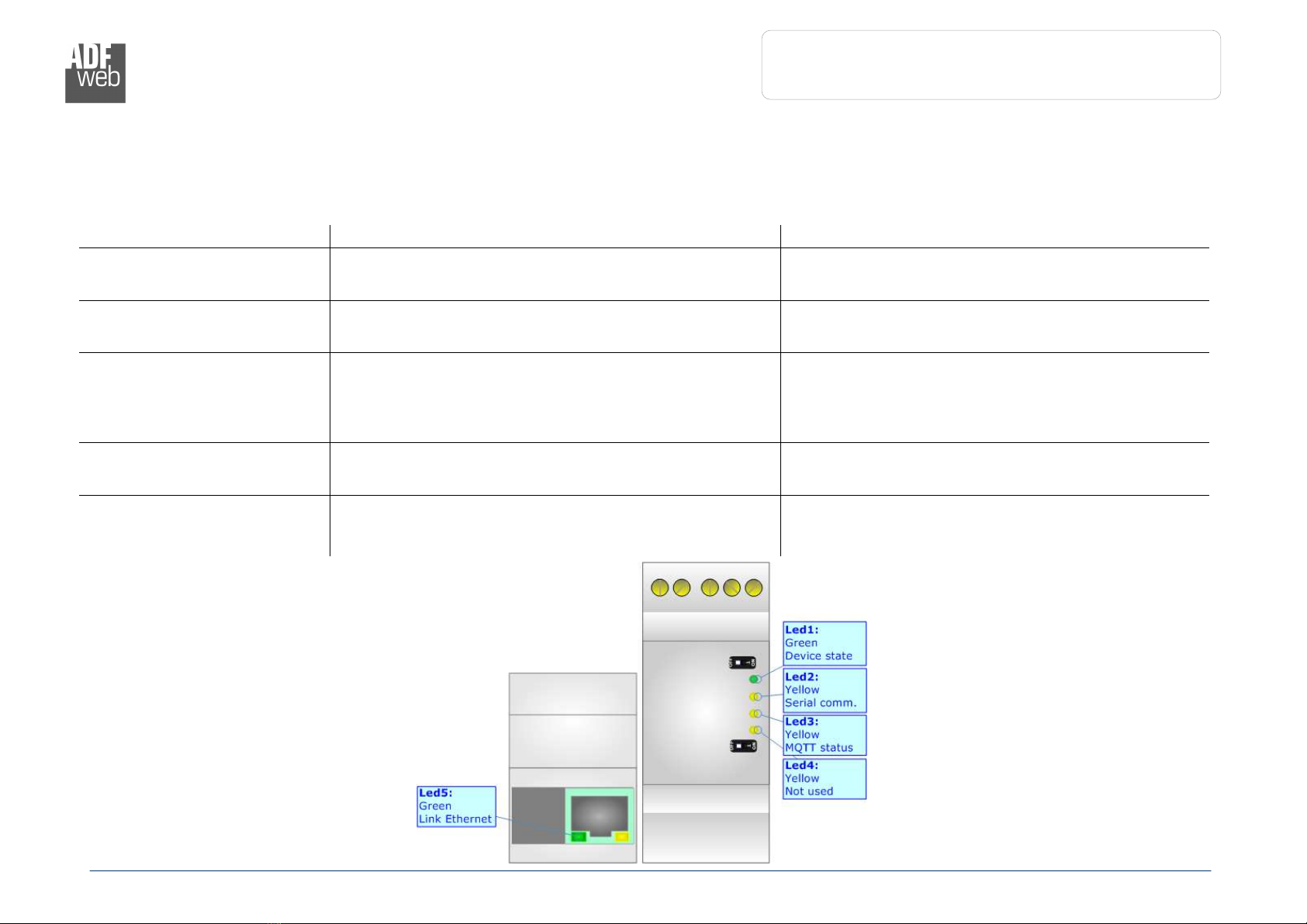

LEDS:
The device has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED ormal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: BACnet communication
(yellow) Blinks when BACnet communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: MQTT status (yellow)
O : MQTT not connected
OFF: MQTT connected
Blinking: MQTT communication
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Not used (yellow) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) O : Ethernet cable connected
OFF: Ethernet cable disconnected
O : Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 11 of 34
RS485 (for BACnet MS/TP):
For terminating the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 12 of 34

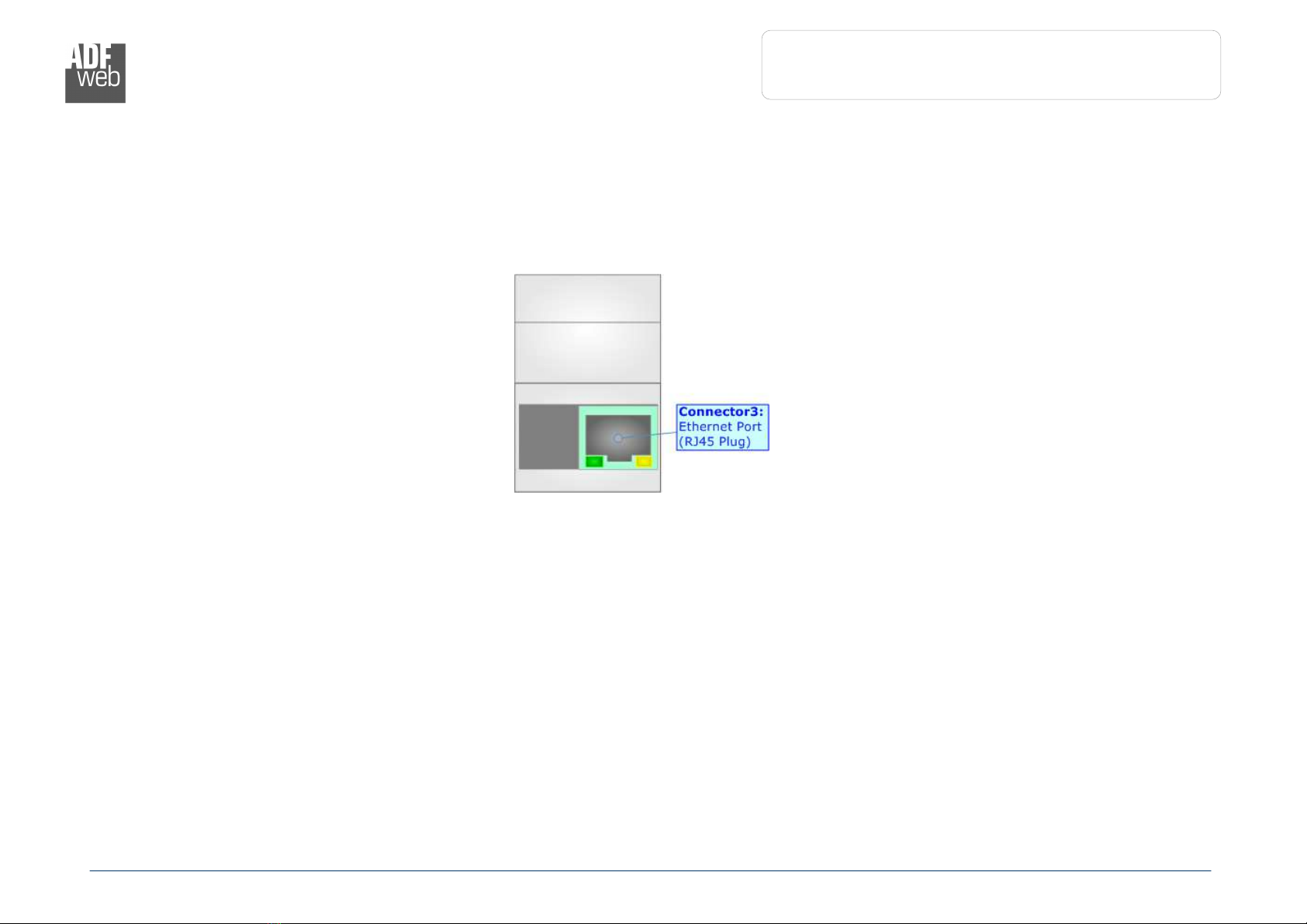

ETHER ET:
The Ethernet port is used for programming the device and for MQTT and BACnet/IP communication
The Ethernet connection must be made using Connector2 of HD67938-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 13 of 34
USE OF COMPOSITOR SW67938:
To configure the Converter, use the available software that runs with Windows called SW67938 It is downloadable on the site
www adfweb com and its operation is described in this document The software works with MS Windows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67938, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2
: Main window for SW679
3

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 14 of 34
EW CO FIGURATIO / OPE CO FIGURATIO :
The “ ew Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “BACnet Slave / MQTT - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 15 of 34
SOFTWARE OPTIO S:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67938 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 16 of 34
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 17 of 34

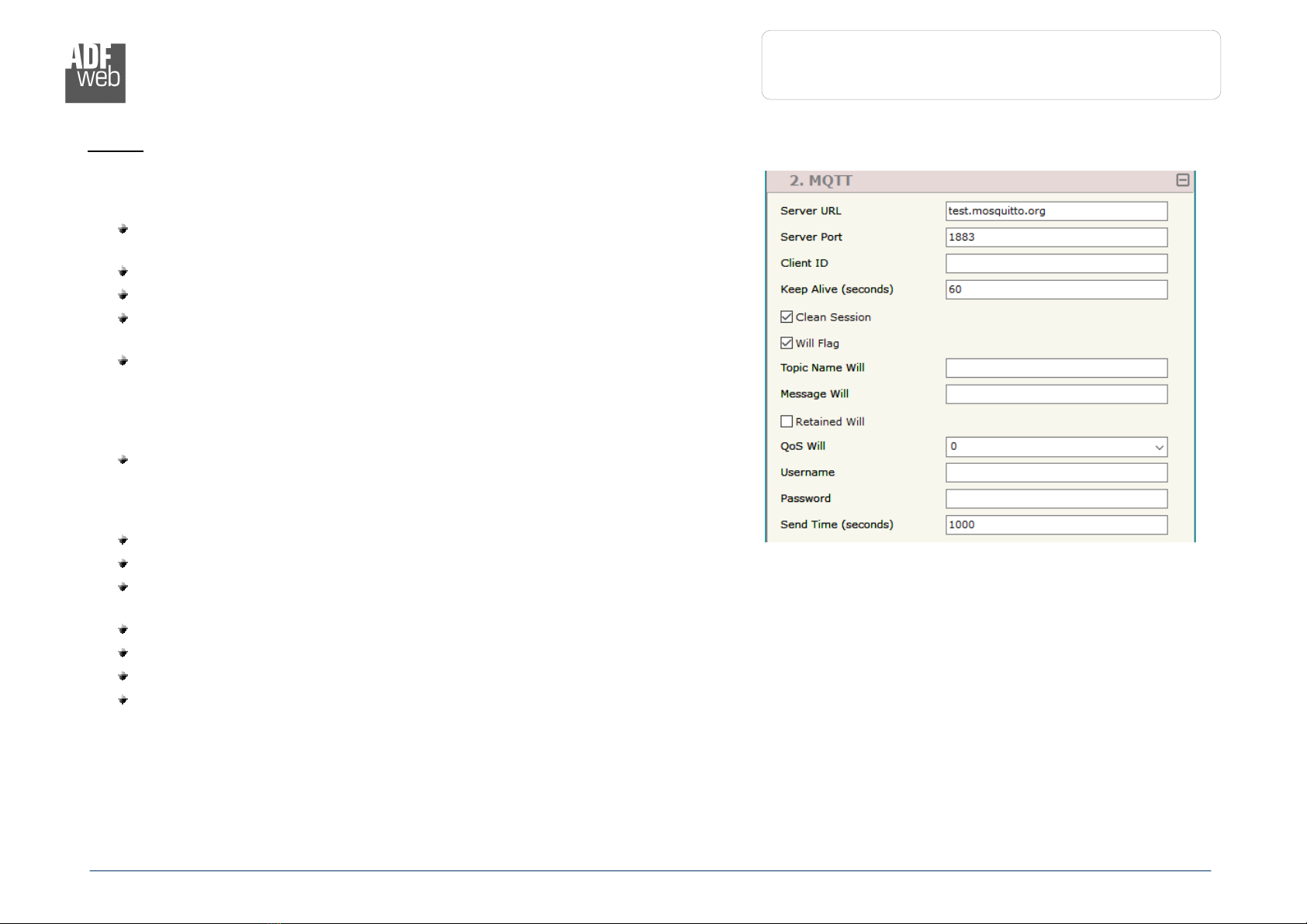

SET COMMU ICATIO :
By Pressing the “Set Communication” button from the main window for SW67938
(Fig 2) the window “Set Communication” appears (Fig 3)
The window is divided in different sections in order to define the different
parameters of the converter:
BACnet Slave
MQTT
Ethernet
Wi-Fi
TLS (Transport Layer Security)
NTP (Network Time Protocol)
Figure 3a: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 18 of 34
Figure 3b: “Set Communication  BACnet Slave”
window
BAC ET S LAVE ( FOR BAC ET /IP):
This section is used to define the main parameters of BACnet/IP line The means of
the fields are:
In the fields “IP ADDRESS” the IP address of BACnet/IP side of the
converter is defined;
In the fields “SUB ET Mask” the SubNet Mask of BACnet/IP side of the
converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined This
feature can be enabled or disabled pressing the Check Box field This feature
is used for going out of the net;
In the field “Port” the port used for BACnet communication is defined The
default port used for BACnet communication is 47808, but is possible to
insert any value;
In the field "BACnet Device ame" the name of BACnet/IP side of the
converter is defined;
In the field “Device Identifier” the ID of BACnet/IP side of the converter is
defined;
If the field “BACnet description up to 32 chars” is checked, the description of the BACnet objects can be up to 32 chars

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 19 of 34
Figure 3c: “Set Communication  BACnet Slave”
window
BAC ET S LAVE ( FOR BAC ET MS/TP):
This section is used to define the main parameters of BACnet MS/TP line The
means of the fields are:
In the field “Baudrate” the data rate of the BACnet line is defined;
In the field “Parity” the parity of the line is defined;
In the field “BACnet Device ame” the name to give to the BACnet node is
defined;
In the field “MAC Address” the MAC of BACnet node (from 0 to 254) is
defined;
The field “Max Master” specifies the highest allowable address for master
nodes The value shall be less than or equal to 127;
The field “Max Info Frames” specifies the maximum number of information
frames the node may send before it must pass the token;
In the field “Device Instance” the of the BACnet MS/TP side of the
converter is defined;
In the field “ etwork” the BACnet MS/TP network number is defined;
If the field “BACnet description up to 32 chars” is checked, the
description of the BACnet objects can be up to 32 chars

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1 000 Page 20 of 34
Figure 3
d
: “Set Communication

MQTT” window
MQTT:
This section is used to define the main parameters of MQTT line The means of the
fields are:
In the field “Server URL” the URL or the IP Address of the MQTT Server is
defined;
In the field “Server Port” the port used for MQTT communication is defined;
In the field “Client ID” the Client ID of the converter is defined (if ned);
In the field “Keep Alive (seconds)” the delay with which the Keep Alive
message is sent on MQTT is defined;
If the field “Clean Session” is checked, the last MQTT messages are deleted
by the Server and the Client in case of missing ACK If unchecked, the
Server and the Client hold the last MQTT messages and, in case of incorrect
disconnection or missing ACK, they try to send again them since all the ACK
messages are exchanged correctly (valid only for QoS 1 and QoS 2);
If the field “Will Flag” is checked, the converter will publish the Will topic at
the connection to the Server With this feature, in case of incorrect
disconnection, the Server will publish this topic to all the MQTT Clients that
subscribed it;
In the field “Topic ame Will” the topic used for Will message is defined;
In the field “Message Will” the payload of the Will message is defined;
In the field “Retained Will” the converter will send the Will message with
Retain flag enabled In this way, the Server will hold the last Will message;
In the field “QoS Will” the QoS type for Will message is defined;
Im the field “Username” the username for the connection to the MQTT server is defined;
In the field “Password” the password for the connection to the MQTT server is defined;
In the field “Send Time (seconds)” the delay with which the MQTT messages are published is defined
