ADF Web HD67911-A1 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 1 of 31
User Manual
Revision 1.000
English
PROFIBUS / HART Master - Converter
(Order Code: HD67911-A1)
For Website information:
www.adfweb.com? roduct=HD67911
For rice information:
www.adfweb.com? rice=HD67911-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
For other HART products see also the following link:
Converter HART Master to
www.adfweb.com? roduct=HD67900 (Serial
www.adfweb.com? roduct=HD67901 (BACnet Slave
www.adfweb.com? roduct=HD67902 (CAN
www.adfweb.com? roduct=HD67903 (CANopen
www.adfweb.com? roduct=HD67904 (DeviceNet Slave
www.adfweb.com? roduct=HD67905 (Ethernet
www.adfweb.com? roduct=HD67906 (EtherNet/IP Slave
www.adfweb.com? roduct=HD67907 (J1939
www.adfweb.com? roduct=HD67908 (Modbus Slave
www.adfweb.com? roduct=HD67909 (Modbus TCP Slave
www.adfweb.com? roduct=HD67910 (MQTT
www.adfweb.com? roduct=HD67912 (PROFINET Slave
www.adfweb.com? roduct=HD67913 (SNMP Agent
Do you have your customer protocol? Then go to:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 2 of 31
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
HART 10
ROFIBUS 11
ETHERNET 12
USE OF COM OSITOR SW67911 13
NEW CONFIGURATION / O EN CONFIGURATION 14
SOFTWARE O TIONS 15
SET COMMUNICATION 17
HART VARIABLES 18
ROFIBUS GSD 19
U DATE DEVICE 20
MECHANICAL DIMENSIONS 22
SCAN FUNCTION 23
WEBSERVER INTERFACE 25
ORDERING INFORMATION 29
ACCESSORIES 29
DISCLAIMER 30
OTHER REGULATIONS AND STANDARDS 30
WARRANTIES AND TECHNICAL SU ORT 31
RETURN OLICY 31
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 18/06/2021 Ff All First Release

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 3 of 31
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 4 of 31
EXAMPLES OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 5 of 31
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67911-A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 6 of 31
CHARACTERISTICS:
The HD67911-A1 are ROFIBUS / HART Master - Converters.
It allows for the following characteristics:
Triple isolation between ROFIBUS - ower Supply, ROFIBUS - HART, HART - ower Supply;
Two-directional information between Ethernet bus and HART bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67912 software on your C in order to perform the following:
Define the parameters of ROFINET line;
Define the parameters of HART line;
Define HART variables in read/write;
Define HART rules for gateway functions;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 7 of 31

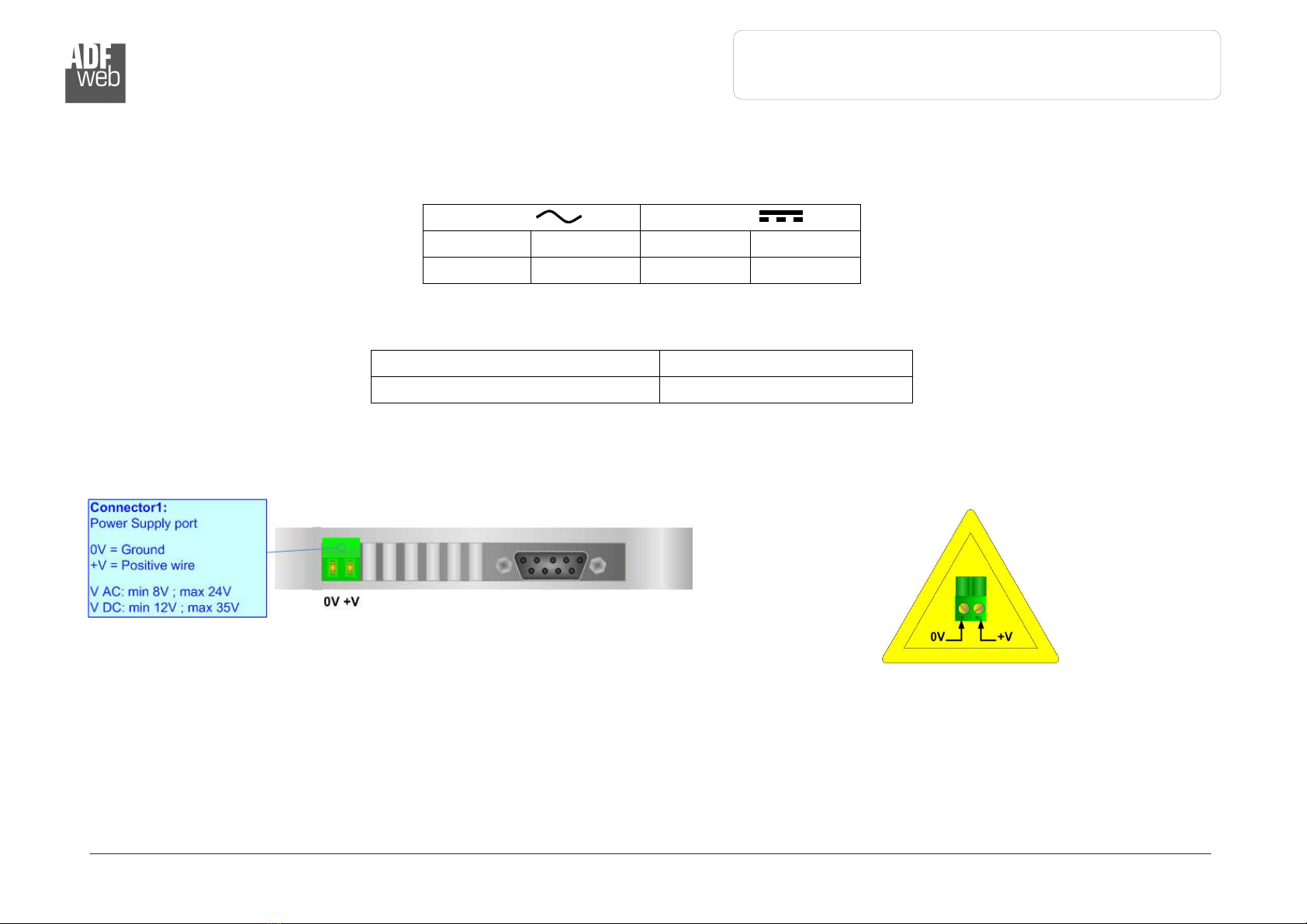

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67911-A1 3.5
HD67911-A1
Caution:
Do n
ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 8 of 31
FUNCTION MODES:
The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 9 of 31
LEDS:
The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State
(green) Blinks slowly (~1Hz)
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in
progress
2: ROFIBUS communication
(green) It blinks when ROFIBUS communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
3: Not used (green) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
4: Ethernet link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
5: HART communication
(green) It blinks when HART communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 10 of 31
HART:
“HART” is an acronym for Highway Addressable Remote Transducer. The HART rotocol makes uses Frequency Shift Keying (FSK) standard
to superimpose digital communication signals at a low level on top of the 4-20mA. This enables two-way field communication to take place
and makes it possible for additional information beyond just the normal process variable to be communicated to/from a smart field
instrument.

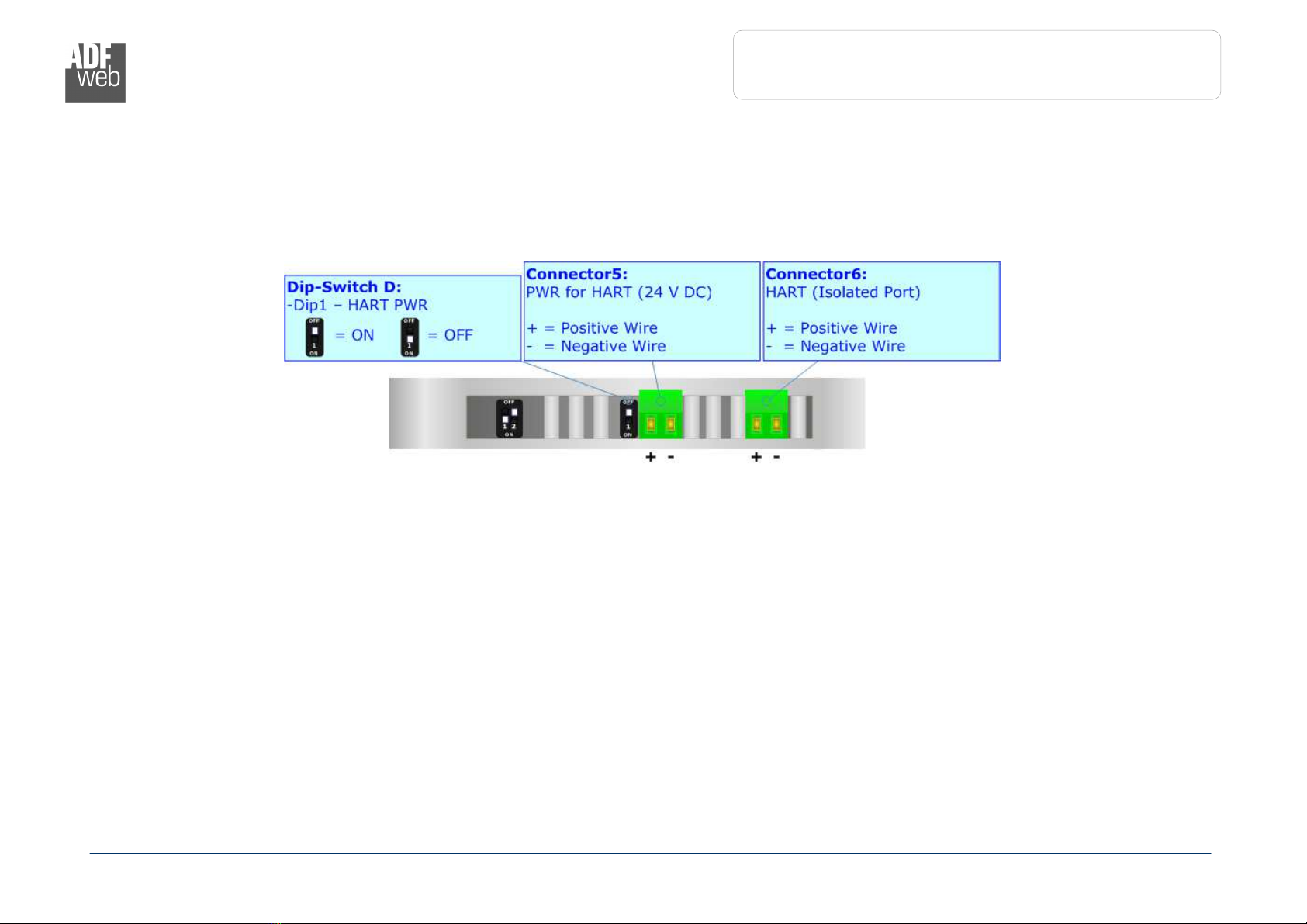

It is possible to provide the current loop for HART communication and an additional low power supply @ 24 V DC for feeding HART devices
by setting Dip-Switch D at ON position.
Current loop for HART is required when there is not an external device in the bus that provides it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 11 of 31
PROFIBUS:
The ROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/S -50 ROFIBUS Cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 12 of 31
ETHERNET:
The updating of the converters and Ethernet communication must be made using Connector4 of the HD67911-A1 with at least a Category 5E
cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in
cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a
C/ LC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 13 of 31
USE OF COMPOSITOR SW67911:
To configure the Converter, use the available software that runs with Windows called SW67911. It is downloadable on the site
www.adfweb.com and its operation is described in this document. ( his manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67911, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Mai
n window for SW67911

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 14 of 31

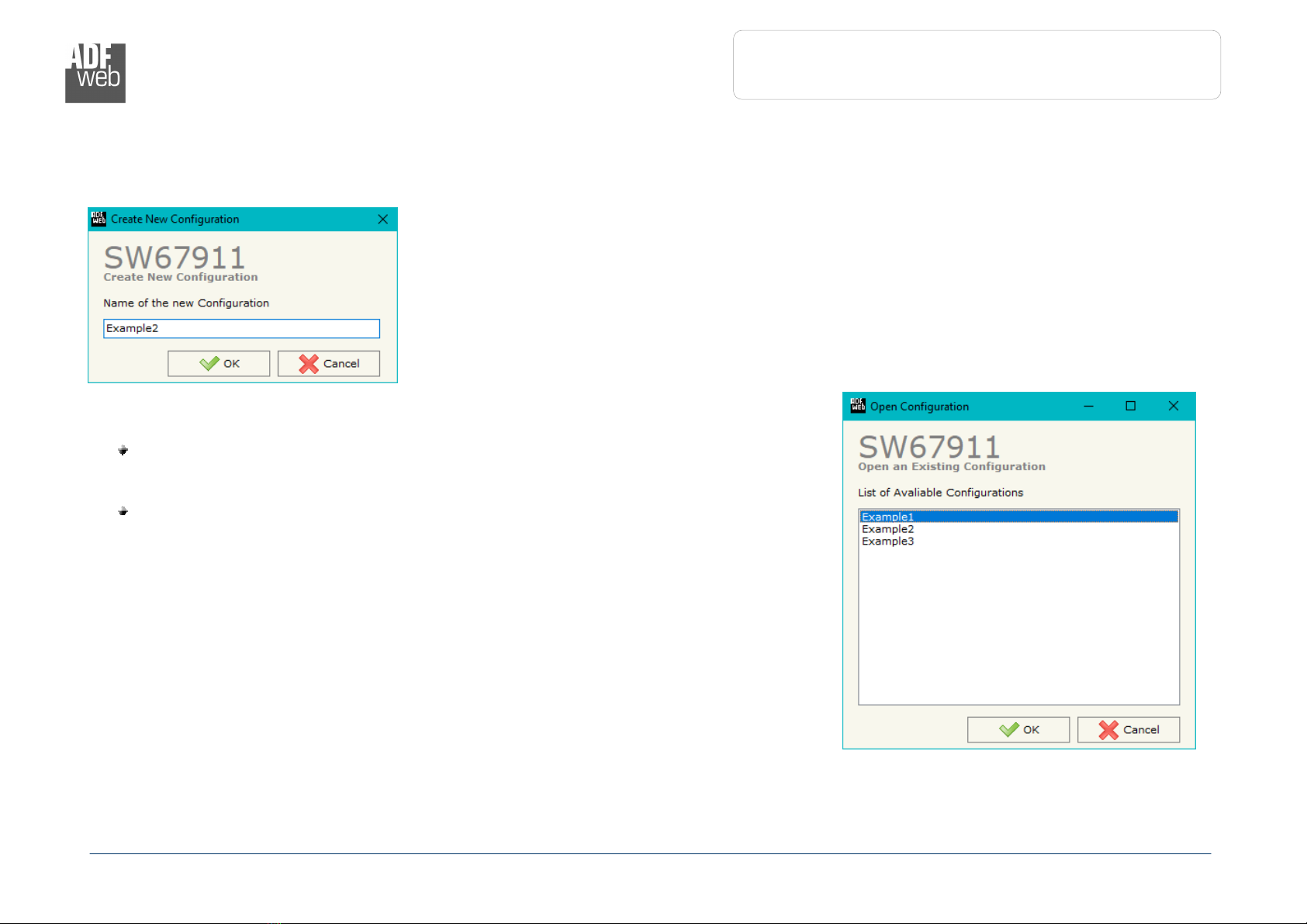

NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “ ROFIBUS / HART Master” in order to
configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 15 of 31

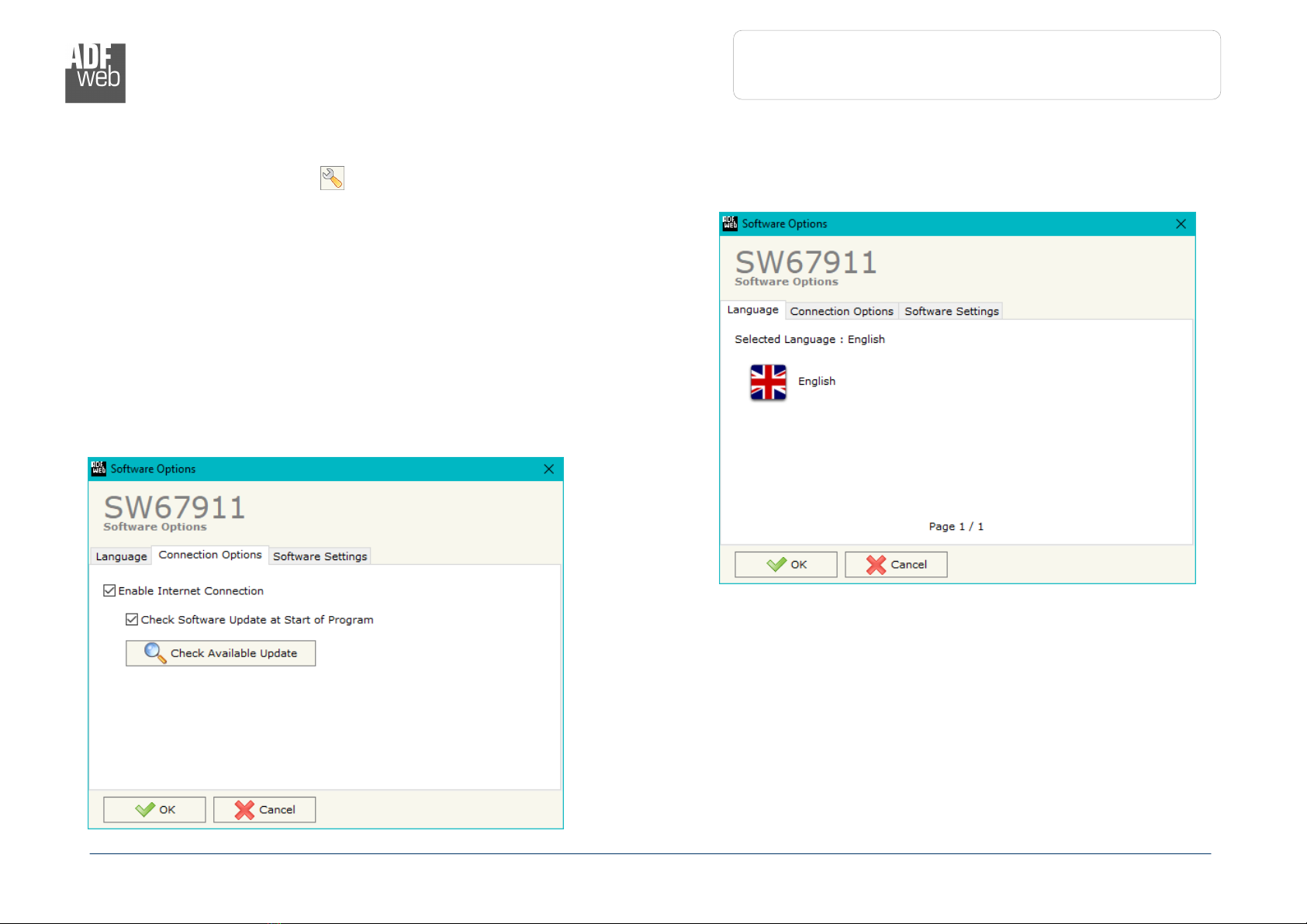

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67911 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 16 of 31

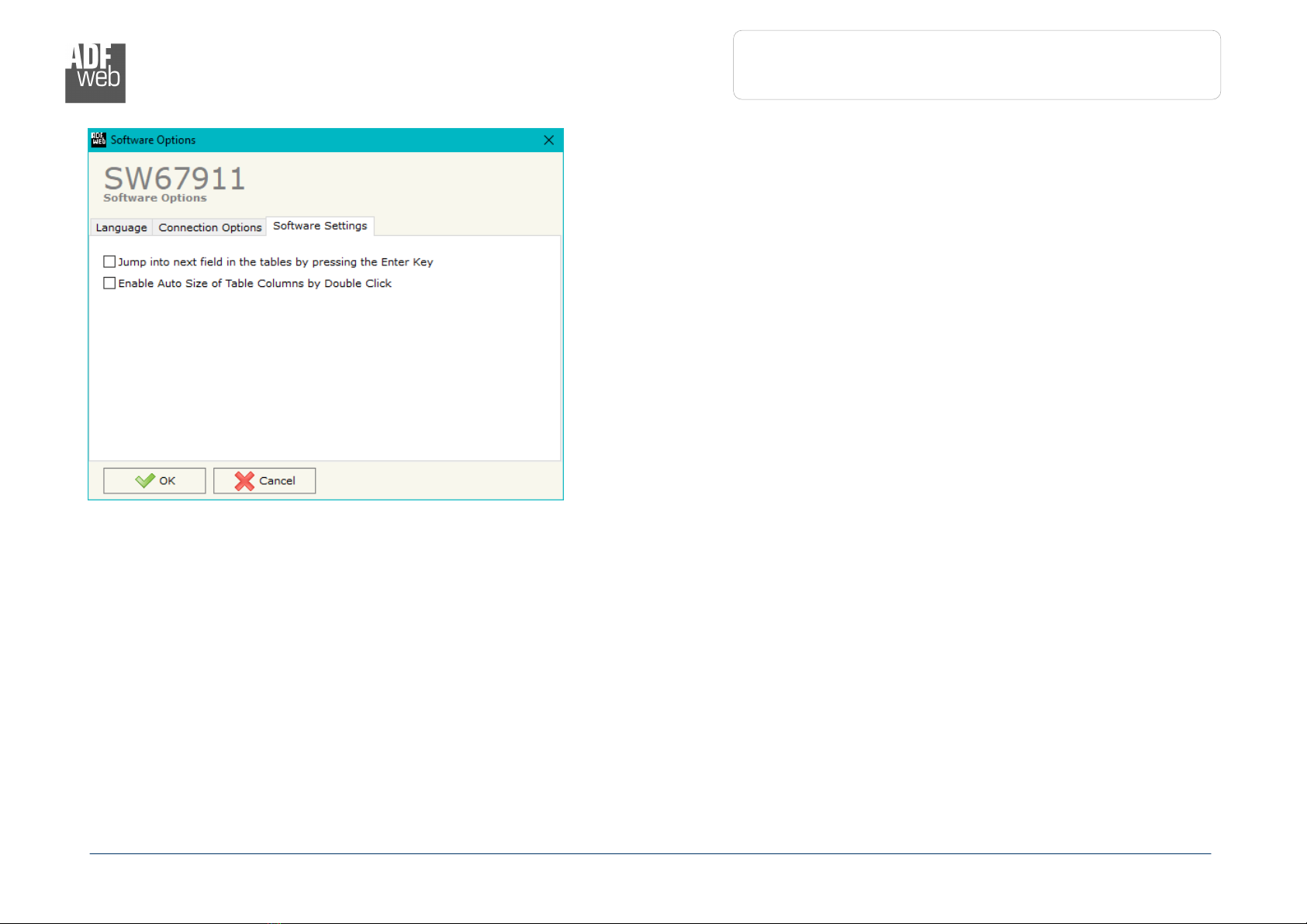

In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 17 of 31
SET COMMUNICATION:
This section define the fundamental communication parameters of HART and ROFIBUS
buses.
By ressing the “Set Communication” button from the main window for SW67911 (Fig.
2) the window “Set Communication” appears (Fig. 3).
The means of the fields for the “HART Master” section are:
In the field “Address” the type of Master is defined;
In the field “Retry Limit” the maximum number of retries in case of missing
response from HART device is defined.
The meaning of the fields of “ ROFIBUS” are:
In the “ID Device” field the ROFIBUS Slave ID is defined;
In the “Baudrate” field the ROFIBUS Slave baudrate is defined (fixed to Auto
Baudrate);
In the field “Number Byte IN” the number input bytes of ROFIBUS Slave is
defined (max 244 bytes);
In the field “Number Byte OUT” the number output bytes of ROFIBUS Slave is
defined (max 244 bytes).
The meaning of the fields of “Ethernet” are:
In the field “IP ADDRESS” the I address to assign to the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of the converter is defined;
In the field “GATEWAY” the default gateway of the network is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net.
The means of the fields for the “Web ages” section are:
In the field “User” the user name for webserver’s authentication is defined;
In the field “Password” the password for webserver’s authentication is defined.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 18 of 31
Figure 4: “HAR Variables” window
HART VARIABLES:
By ressing the “HART Variables” button from the main window for SW67911 (Fig. 2) the window “Definition of HART Variables List”
appears (Fig. 4).
This section is used to define the HART variables to read/write with the ROFIBUS Master.
The means of the fields are:
If the field “Enable” is checked, the HART variable is enabled;
In the field “Device Address” the address of HART device is defined;
In the field “Preamble Count” the number of bytes for the synchronization is defined;
If the field “Type” the type of HART parameter is defined;
In the field “Var/Cmd Number” the identification of variable/command to read/write is defined. From HART standard, the most used
numbers are:
o246: rimary Variable;
o247: Secondary Variable;
o248: Tertiary Variable;
o249: Quaternary Variable.
In the field “Params” the parameters for the commands are defined;
In the field “Position” the starting byte of the internal array where mapping the HART data is defined;

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 19 of 31
In the field “Swap” the bytes’ order is reversed;
In the field “Conv Int” the data from HART device is converted in Integer format;
In the field “Operations” a post-operation on the data read is defined;
In the field “Mnemonic” a description of the variable is defined.
Note:
In order to configure the HART devices and their variables, it is possible to scan the HART network and get the data automatically. It
is enough to click on “Scan” button. See page 23 for more info.
PROFIBUS GSD:
By pressing the “PROFIBUS GSD” button it is possible to save the GSD file for the ROFIBUS side.
With this feature you can save the configuration of the converter of the ROFIBUS side.
Note:
When you import the .gsd file on your Master ROFIBUS you have to add all the modules that are present inside it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFIBUS / HART Master
Document code: MN67911_ENG Revision 1.000 age 20 of 31
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary. This by using the
Ethernet port.
If you don’t know the actual I address of the device you have to use this procedure:
Turn OFF the Device;
ut Dip2 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the I “192.168.2.205”;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
ut Dip2 of ‘Dip-Switch A’ in OFF position;
Turn ON the device.
If you know the actual I address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual I of the Converter;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure 5: “Update device” windows
