ADF Web HD67C61-B2 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 1 of 26
User Manual
Revision 1.000
English
EnOcean / DeviceNet Slave - Converter
(Order Code: HD67C61-B2)
For Website information:
www.adfweb.com? roduct=HD67C61-B2
For rice information:
www.adfweb.com? rice=HD67C61-B2
Benefits and Main Features:
Very easy to configure
ower Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others EnOcean products, see also the following links:
Converter EnOcean to
www.adfweb.com? roduct=HD67C50 (Serial)
www.adfweb.com? roduct=HD67C52 (Modbus Slave)
www.adfweb.com? roduct=HD67C54 (Modbus TC Slave)
www.adfweb.com? roduct=HD67C56 (BACnet Slave)
www.adfweb.com? roduct=HD67C57 (CAN)
www.adfweb.com? roduct=HD67C58 (CANopen)
www.adfweb.com? roduct=HD67C63 (EtherNet/I Slave)
www.adfweb.com? roduct=HD67C65 (IEC61850 Server)
www.adfweb.com? roduct=HD67C66 (J1939)
www.adfweb.com? roduct=HD67C67 (KNX)
www.adfweb.com? roduct=HD67C70 (MQTT)
www.adfweb.com? roduct=HD67C72 (NMEA 0183)
www.adfweb.com? roduct=HD67C73 (NMEA 2000)
www.adfweb.com? roduct=HD67C75 ( ROFIBUS Slave)
www.adfweb.com? roduct=HD67C77 ( ROFINET Slave)
www.adfweb.com? roduct=HD67C79 (SNM Agent)
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 2 of 26
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
CAN 11
ENOCEAN 12
USE OF COM OSITOR SW67C61 13
NEW CONFIGURATION / O EN CONFIGURATION 14
SOFTWARE O TIONS 15
SET COMMUNICATION 17
ENOCEAN ACCESS 18
U DATE DEVICE 21
MECHANICAL DIMENSIONS 23
ORDERING INFORMATIONS 24
ACCESSORIES 24
DISCLAIMER 25
OTHER REGULATIONS AND STANDARDS 25
WARRANTIES AND TECHNICAL SU ORT 26
RETURN OLICY 26
U DATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 05/12/2019 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 3 of 26
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 4 of 26

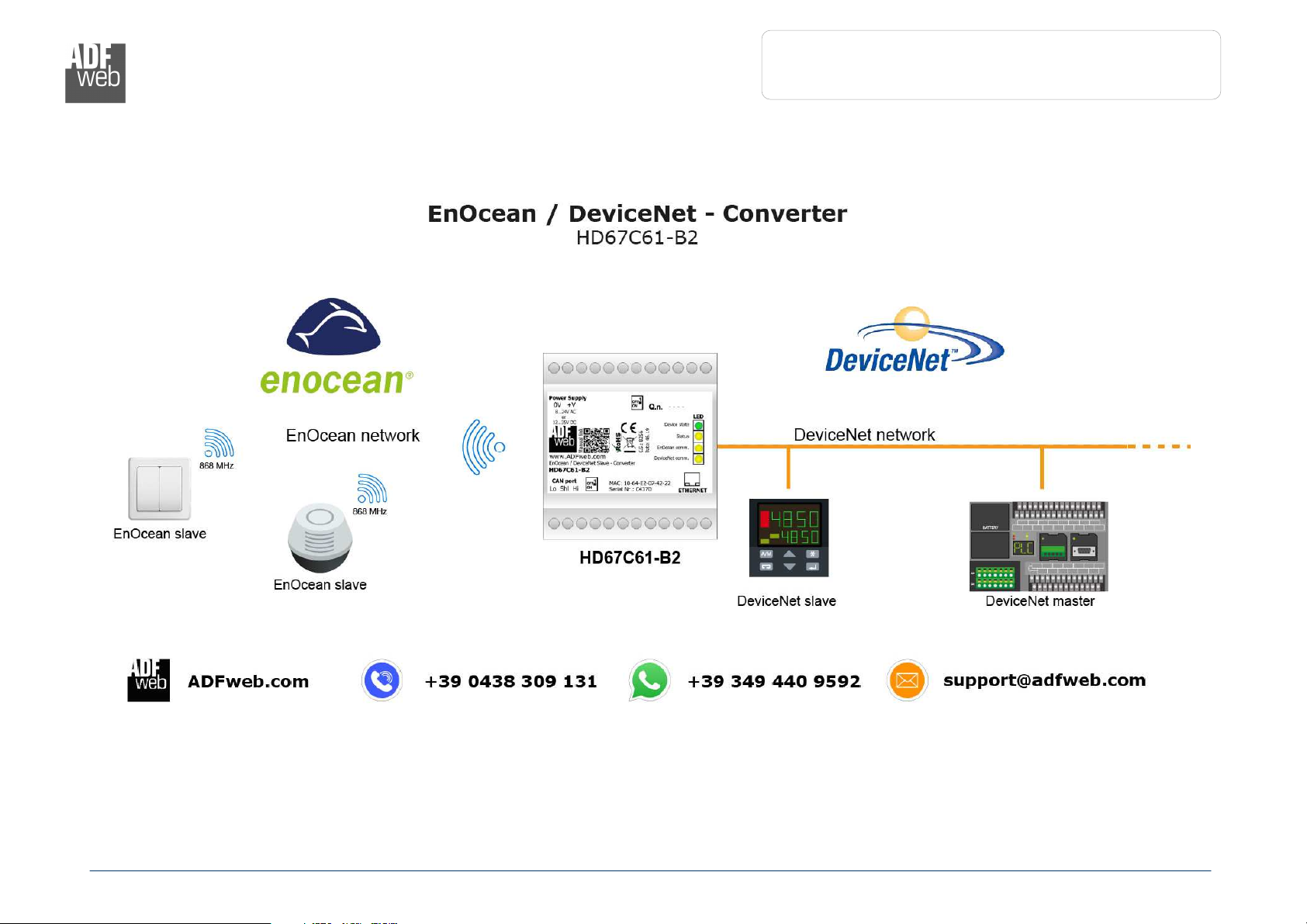

EXAM LE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 5 of 26

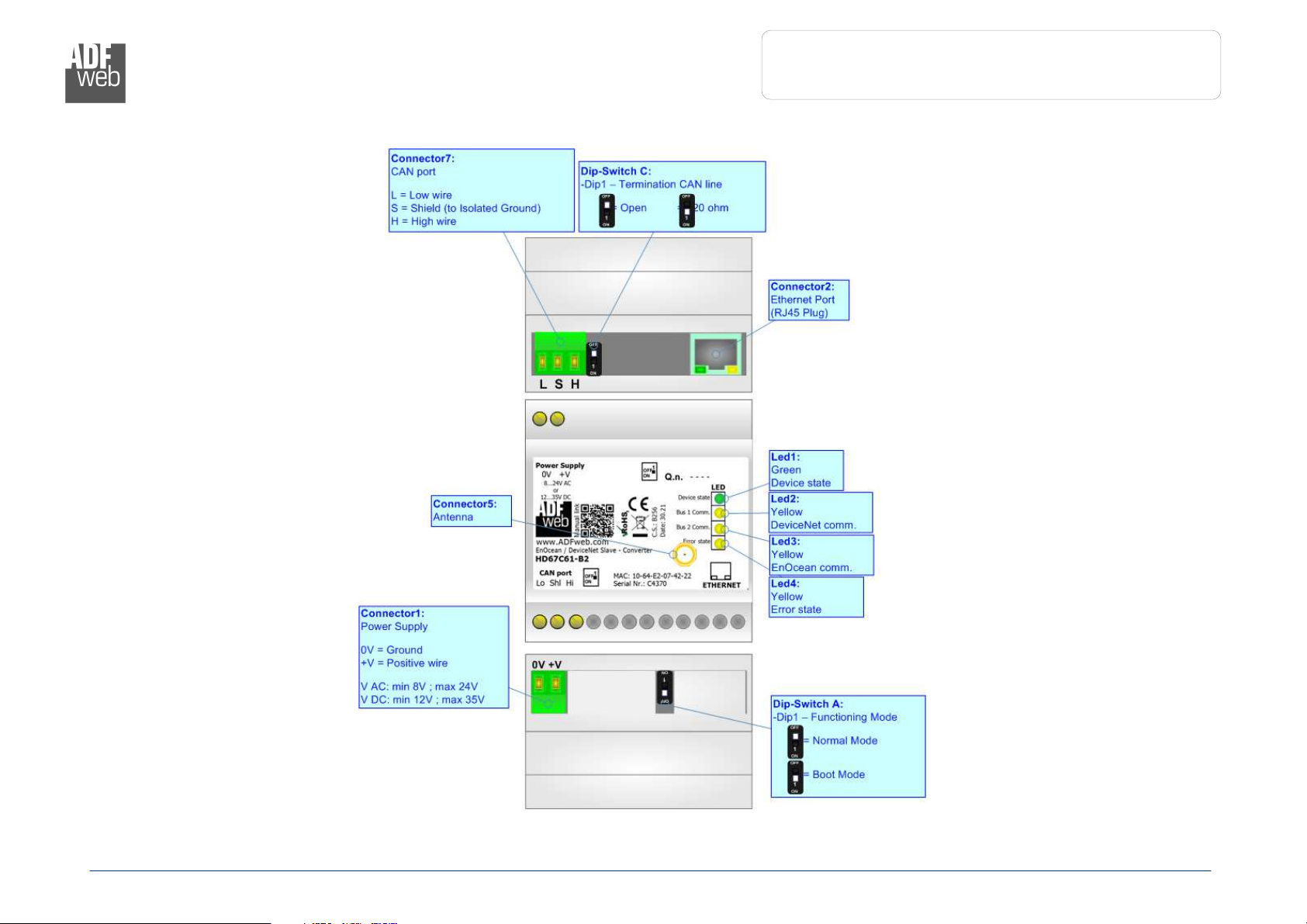

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67C61-B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 6 of 26
CHARACTERISTICS:
The HD67C61-B2 is a EnOcean / DeviceNet Converter.
It allows the following characteristics:
Electrical isolation between EnOcean and ower Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67C61 software on your C in order to perform the following:
Define the parameter of DeviceNet line;
Define the parameter of EnOcean line;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 7 of 26

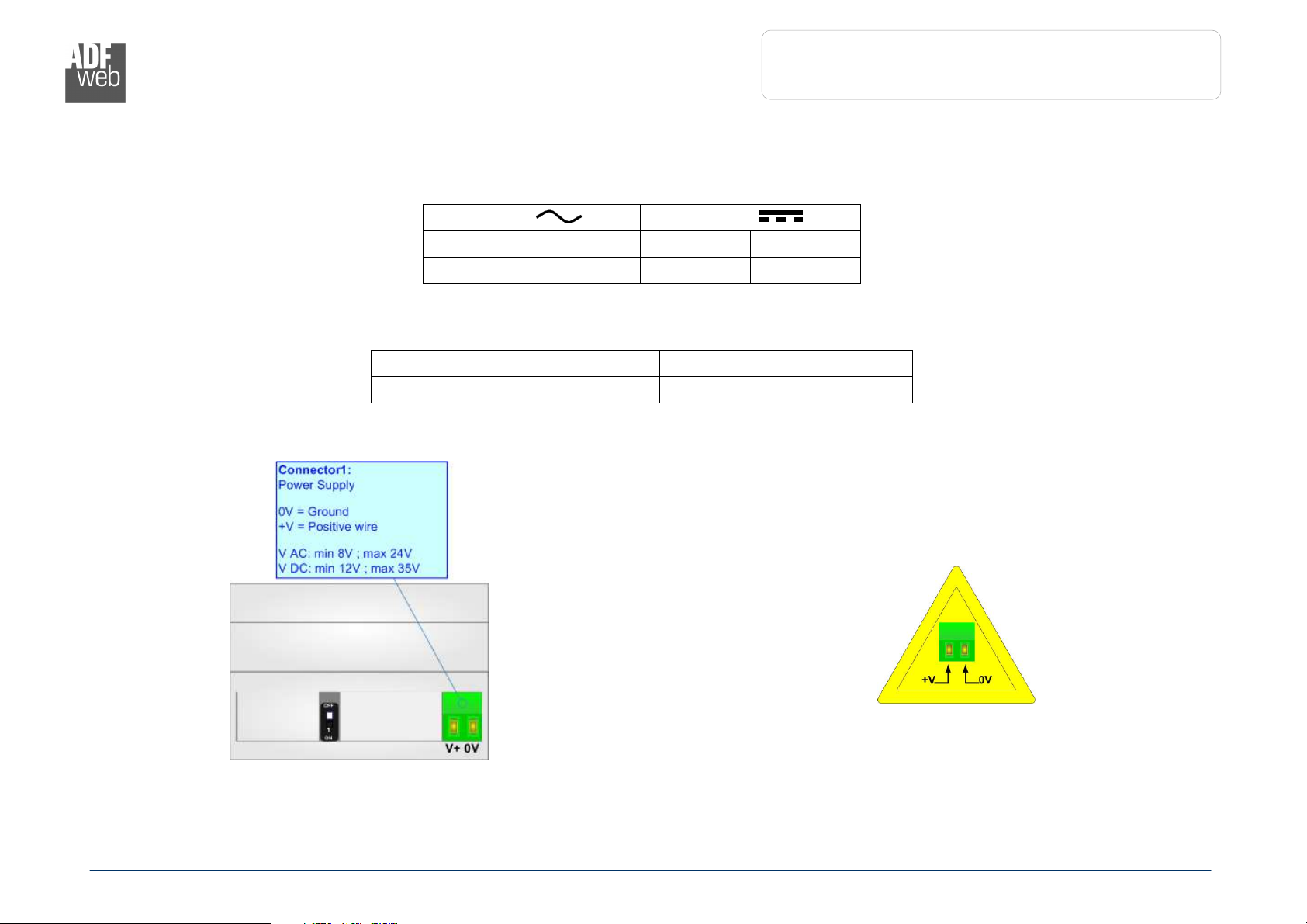

OWER SU LY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67C61-B2 3.5
HD67C61-B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 8 of 26
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 9 of 26

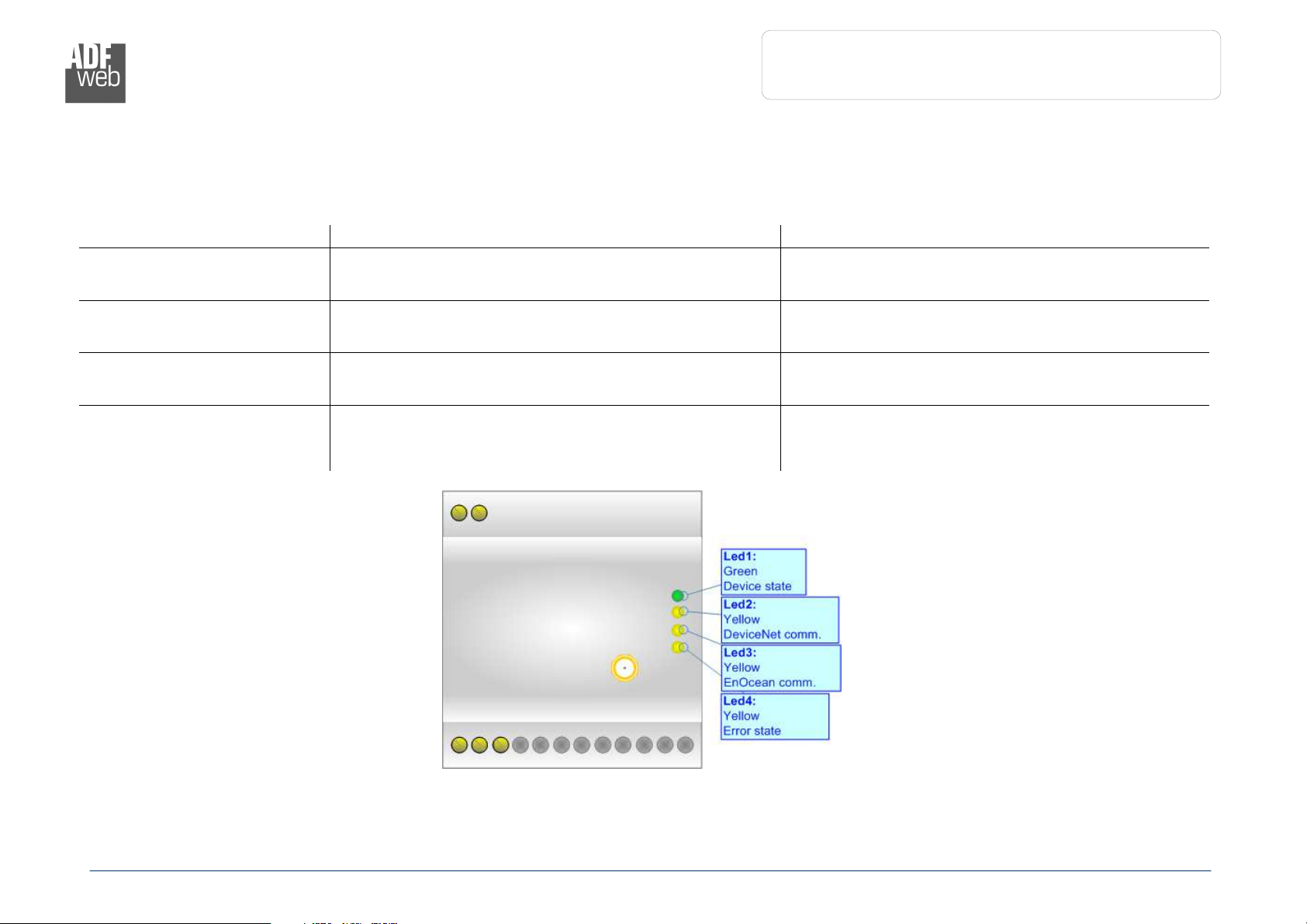

LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: DeviceNet communication
(yellow) Blinks when a DeviceNet message is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: EnOcean communication
(yellow) Blinks when EnOcean data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 10 of 26

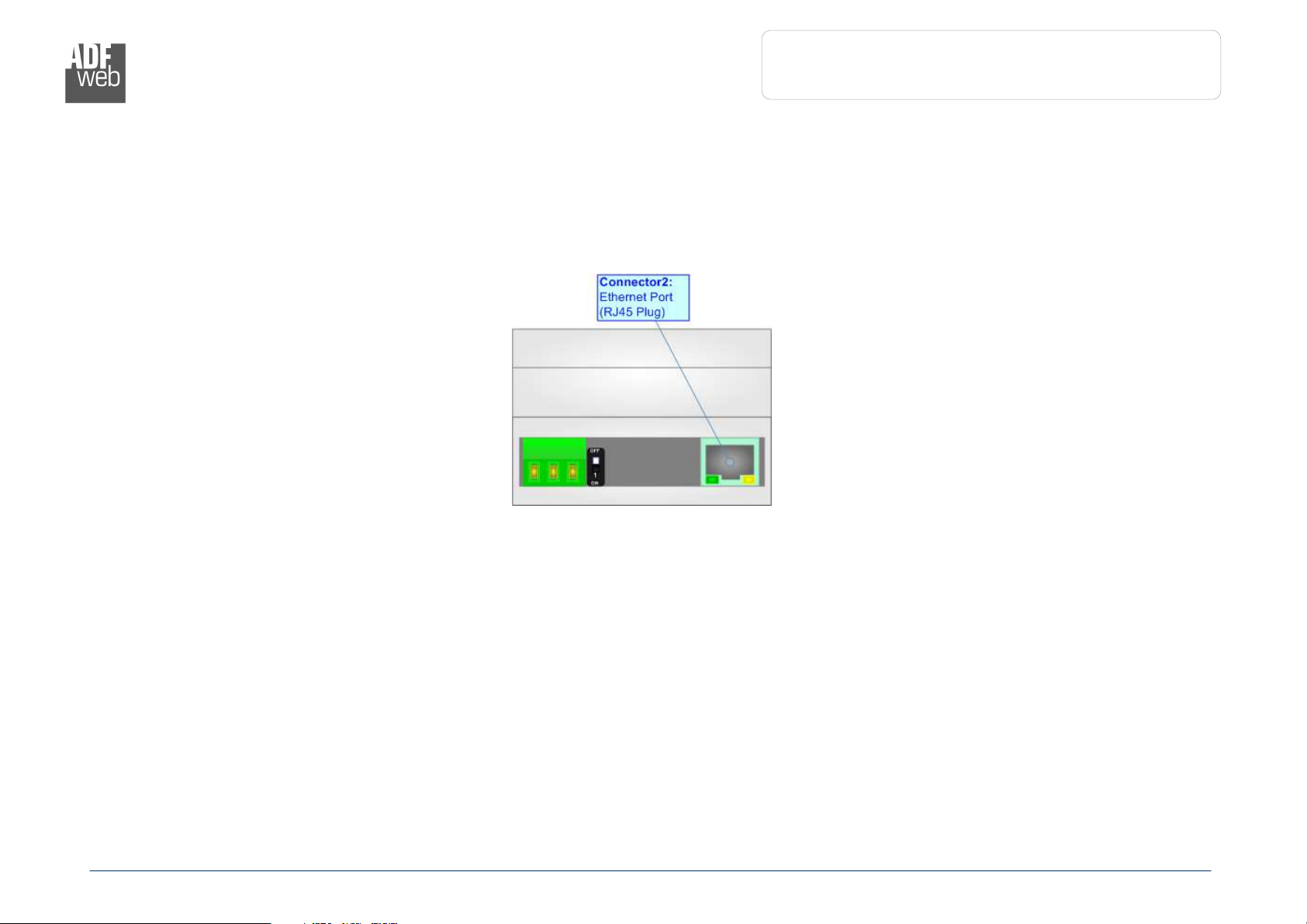

ETHERNET:
The Ethernet port is used for programming the device.
The Ethernet connection must be made using Connector2 of HD67C61-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 11 of 26
CAN:
For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position.
Cable characteristics:
DC parameter: Impedance 70 Ohm/m
AC parameters: Impedance 120 Ohm/m
Delay 5 ns/m
Length Baud Rate [bps] Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 12 of 26
ENOCEAN:
EnOcean is a protocol designed for energy harvesting devices communication. The main
fields of application are building automation and domotics, but it can also be potentially
used in the industrial field.
EnOcean products include solutions for environment monitoring, smart metering and
lighting. Each device uses a unique ID for identification and one of the standardized profiles
(EE s) for data transmission. Communication process may be secure or unsecure and may
be unidirectional or bidirectional (for devices that support Smart Acknowledge operating
mode).
EnOcean is based on wireless communication on 868.3 MHz ASK.
It is possible to connect up to 100 EnOcean devices to a single converter, where up to 32
can be in Secure Mode and up to 19 with Smart Acknowledge.
The Antenna connector is a SMA Female (‘Female Outer Shell’ and ‘Female Receptacle’) so
the Antenna must have a SMA Male connector.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 13 of 26
USE OF COM OSITOR SW67C61:
To configure the Converter, use the available software that runs with Windows called SW67C61. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (X , Vista, Seven, 8, 10; 32/64bit).

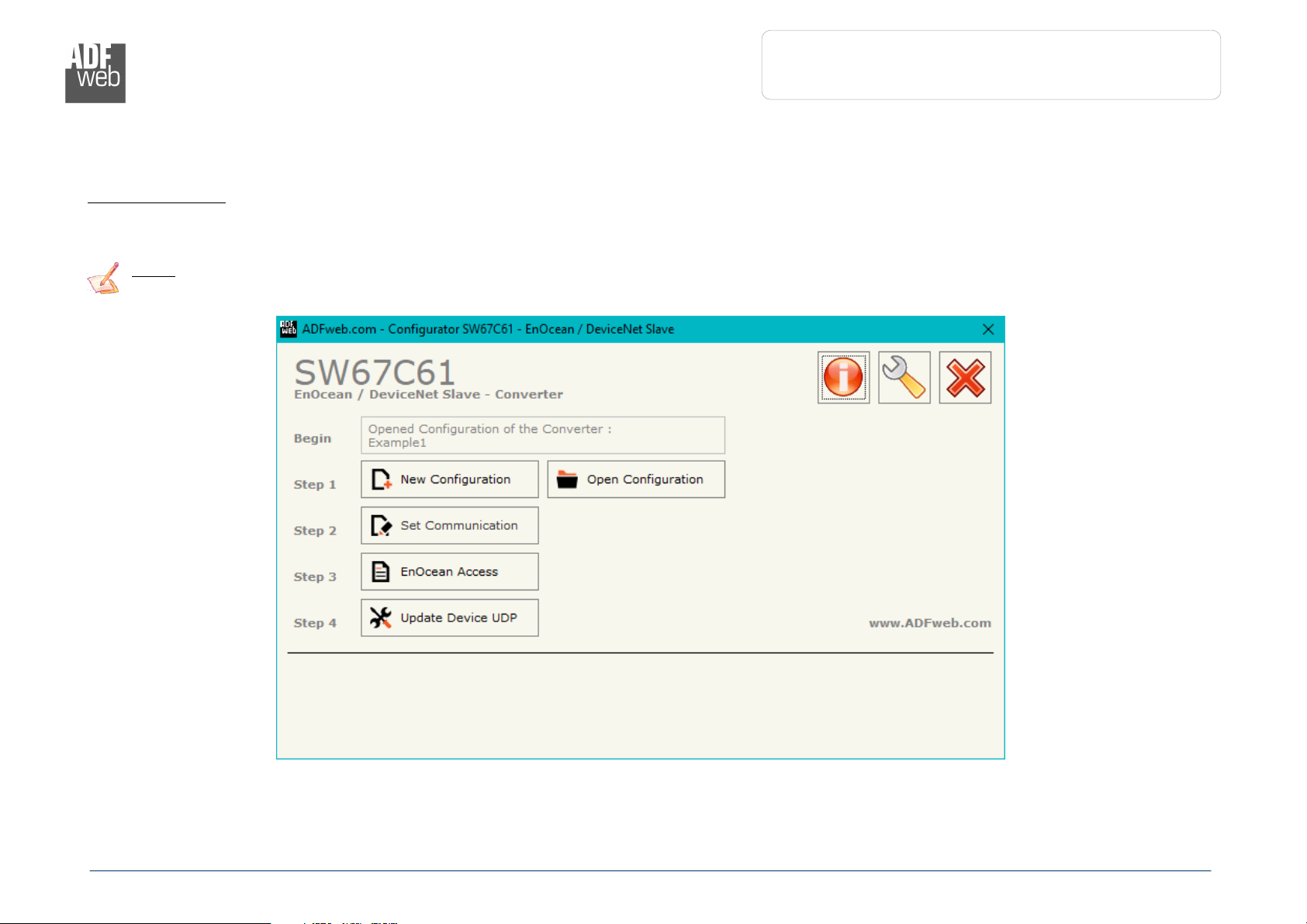

When launching the SW67C61, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: ain window for SW67
C61

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 14 of 26

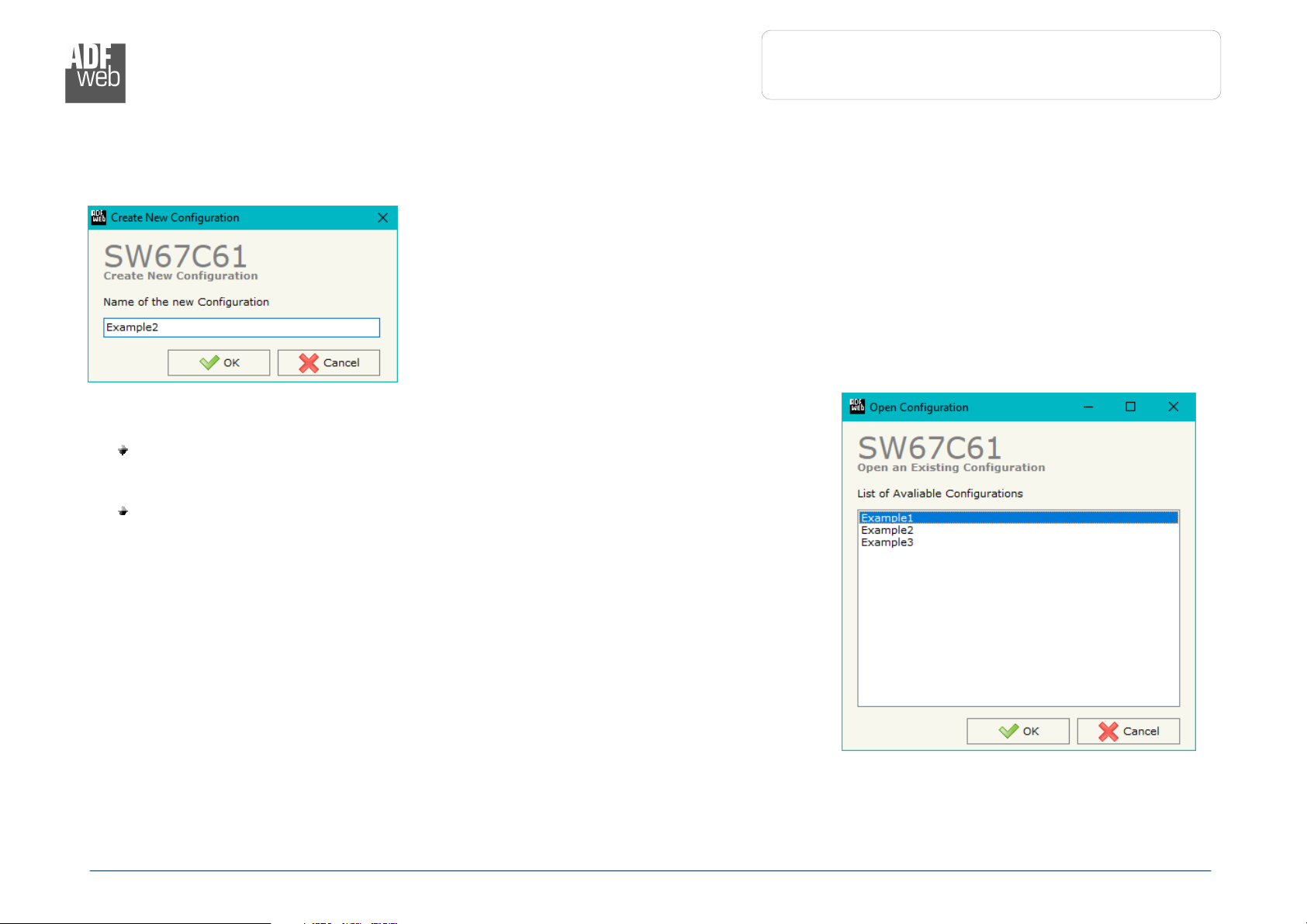

NEW CONFIGURATION / O EN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “EnOcean / DeviceNet Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 15 of 26

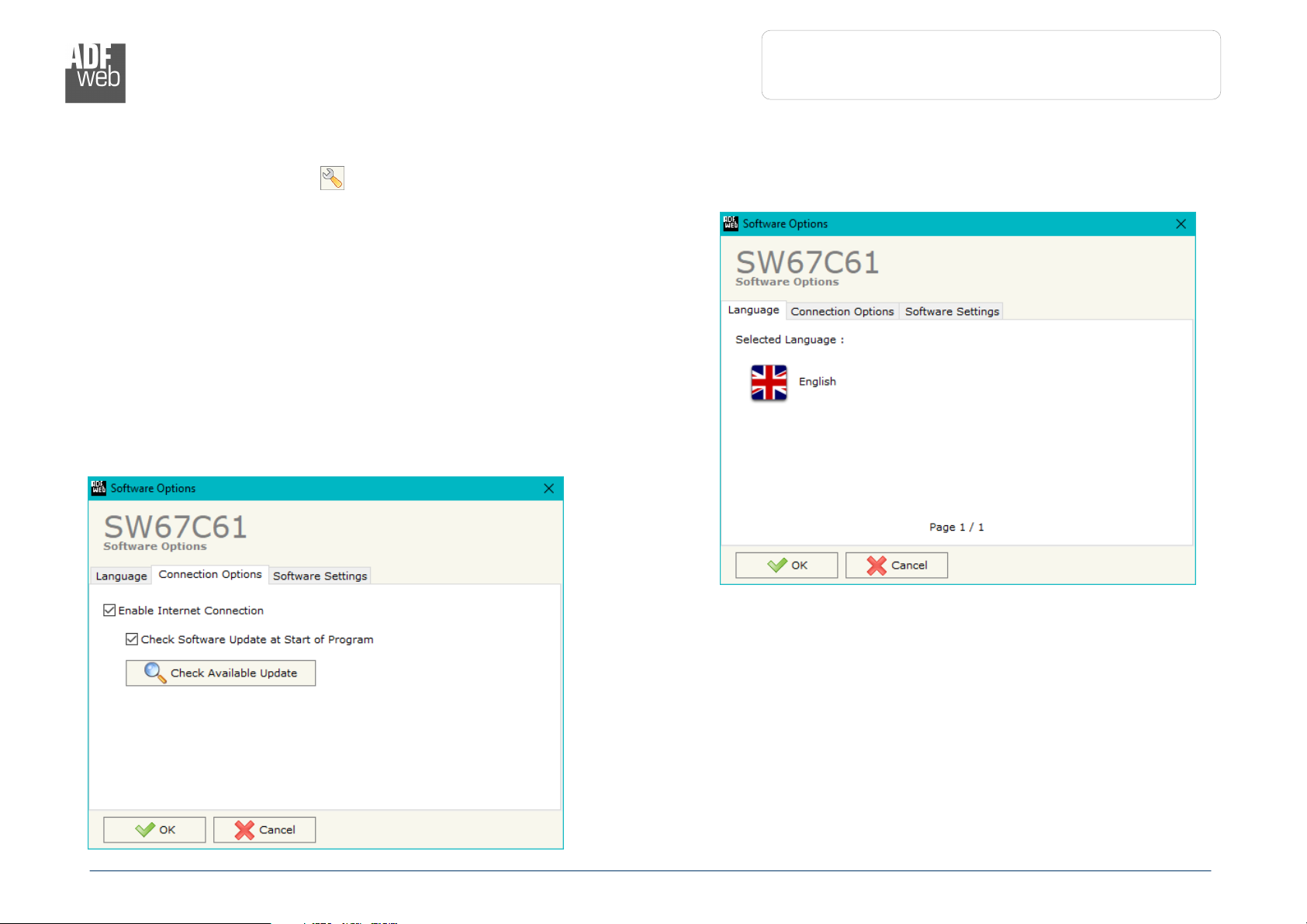

SOFTWARE O TIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of rogram”, the
SW67C61 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 16 of 26
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 17 of 26
SET COMMUNICATION:
By ressing the “Set Communication” button from the main window for SW67C61
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The means of the fields for the “DeviceNet Slave” section are:
In the field “ID Device” the address for the DeviceNet Slave is defined;
In the field “Baudrate” the velocity of the DeviceNet Slave bus is defined:
In the field “Number Byte IN” the number input bytes of DeviceNet Slave is
defined (max 455 bytes);
In the field “Number Byte OUT” the number output bytes of DeviceNet Slave is
defined (max 455 bytes).
The means of the fields for “Ethernet” are:
In the fields “I Address” the I address for Ethernet side of the converter is
defined;
In the fields “SubNet Mask” the SubNet Mask for Ethernet side of the converter
is defined;
In the fields “Gateway” the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 18 of 26

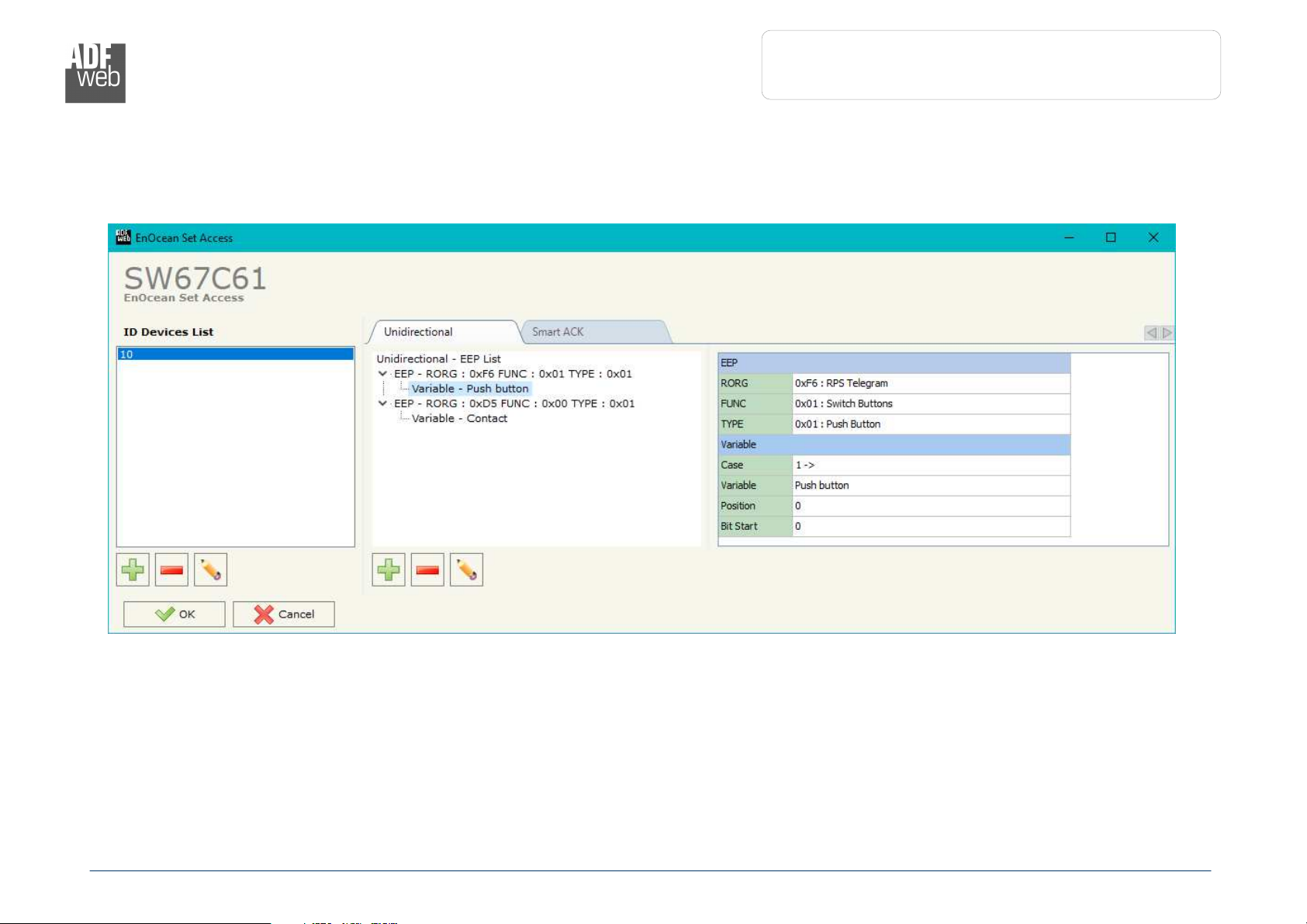

Figure 4: “
EnOcean
Access
” window
ENOCEAN ACCESS:
By ressing the “EnOcean Set Access” button from the main window for SW67C61 (Fig. 2) the window “EnOcean Set Access” appears (Fig.
4). This section is used to define the list of the EnOcean devices to read/write.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 19 of 26
Figure 5: “Add/ odify EnOcean device”
window
By clicking on “+” or “Modify” under “ID Devices List”, it is possible to add/modify a new EnOcean device inserting its characteristics. The
window “Add/Modify EnOcean device” appears (Fig. 5).
The means of the fields are:
In the field “Device ID” the ID of the EnOcean device is defined;
In the field “Secure Type ” the type of EnOcean communication is defined;
In the field “Key” the key used for encryption of frames in Secure Mode is defined;
In the field “Rolling Code” the Rolling Code for the EnOcean communication is
defined;
In the field “Rolling Code Algorithm” the type of Rolling Code is defined;
In the field “Rolling Code Tx” the transmission of the Rolling Code is
enabled/disabled;
In the field “CMAC Algorithm” the MAC field at the end of the EnOcean frame is
defined;
In the field “Data Encrypted” the encryption of the data is enabled/disabled;
In the field “ TM” the type of EnOcean device is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
DeviceNet Slave
Document code: MN67C61_ENG Revision 1.000 age 20 of 26

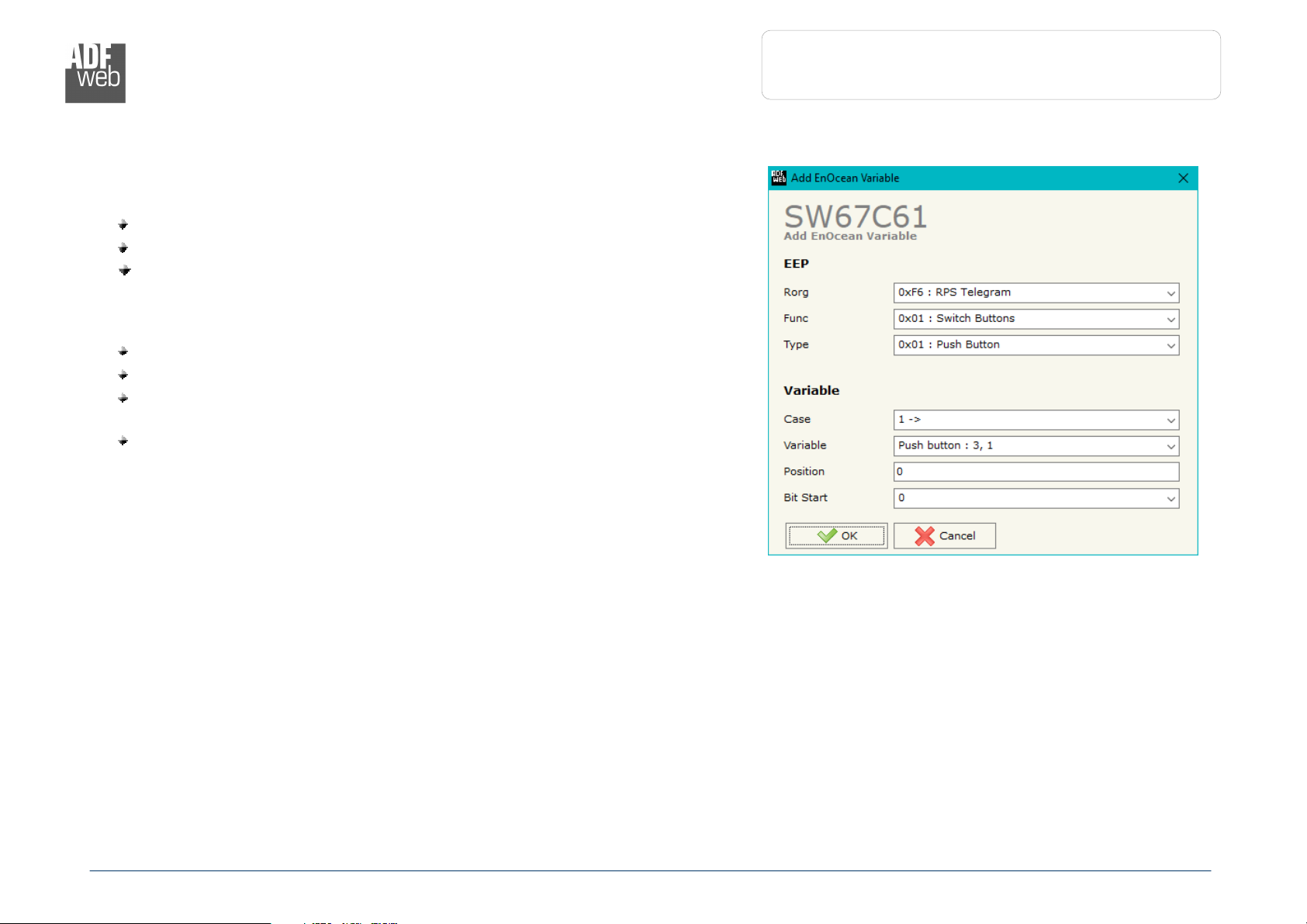

Figure 6: “Add/ odify EnOcean variable”
window
By clicking on “+” or “Modify”, it is possible to add/modify a new variable for the selected ID. The window “Add/Modify EnOcean variable”
appears (Fig. 6).
The means of the EE fields are:
In the field “Rorg” the type of EnOcean telegram is defined;
In the field “Func” the type of EnOcean instance is defined;
In the field “Type” the type of event is defined.
The means of the Variable fields are:
In the field “Case” the format of the EnOcean telegram is defined;
In the field “Variable” the variable to read/write is defined;
In the field “ osition” the starting byte of the internal array where
mapping/taking the variable is defined;
In the field “Bit Start” the starting bit of the defined osition where
mapping/taking the variable is defined.
