CONTENTS
1. Description of the coffee machine
2. Description of the control panel: touch control
3. Safety instructions
4. Instructions for the first use of the machine
5. Accessories
6. Drawer
7. Making Coffee
8. Hot water
9. Steam
10. Programming the quantity of ground coffee
11. Programming the quantity of coffee poured in the cup
12. Programming the quantity of hot water
13. Coffee menus
14. Cleaning
15. Installation
16. What to do if …
17. Technical specifications
18. After-sales Service, spare parts and guarantee
ENGLISH

45
/209
1. DESCRIPTION OF THE COFFEE MACHINE
1. Filter holder ring nut
2. Steam/water nozzle
3. Coffee press
4. Coffee Grinder button
5. Coffee measuring device
6. Grinding regolation knob
7. Coffee beans container
8. Water reservoir
9. Drip tray
10. Brita filter
11. scoop
12. Two way nozzle /2cups
13. Filter holder
14. One-way nozzle/1cup
15. Rack for espresso making
16. Two-cup filter
17. One-cup filter

46
/209
2. DESCRIPTION OF THE CONTROL PANEL:
TOUCH CONTROLS
1. Water temperature indicator
2. ON/stand-by indicator
3. Coffee indicator
4. Water indicator
5. Steam indicator
6. Light indicator
7. LEDs of coffee measures (Small coffee, large coffee, 2 small cups of strong
coffee, 2 large cups of weak coffee)
8. Water refill indicator
9. Steam/water knob
10. ON-OFF/stand-by control
11. Coffee control
12. Hot water control
13. Steam control
14. Light control
15. Coffee programme selector knob
TOUCH CONTROLS: Instructions of use
Touch controls are the exclusive characteristic of this model. In fact pressing lightly on
the respective symbol will enable the corresponding function of the machine. However
these touch keys must be pressed, although lightly, just in the case of a common
pushbutton, to prevent functions from being enabled accidentally.

47
/209
3. SAFETY
Please read this instruction book before using thè appliance and retain for
future reference. These warnings are provided in the interests of your safety,
ensure you understand them fully before using the appliance.
Intended use
• The appliance is intended for use in the home. If the appliance is used for
purposes other than those intended or used incorrectiy, no liability can be
accepted by thè manufacturer for any damage that may be caused.
• Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to initial start-up
•Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please con-
tact your retailer.
Safety of children
•Keep packaging material away from children.
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, and cut off the mains cable.
DURING THE OPERATION
CAUTION:
The filtering unit will always be kept very hot to obtain an excellent coffee.
Therefore please use this machine with extreme care to avoid being scalded.
This machine must be used only by adults. Make sure that children
cannot touch the controls nor play with the machine.
Modifying or merely trying to modify the characteristics of this product is very
dangerous, and will invalidate your guarantee.
Always keep this machine clean.
The external parts of this machine become very hot while it is operating
and they will not cool down immediately after the machine is switched
off. Keep children out of reach until the machine has cooled down
completely.
Before cleaning or servicing the machine, make sure that it is
disconnected from the power supply.
In case of malfunction, never try to repair the machine yourself. Consult this
manual and if the necessary information cannot be found, please contact the
nearest Service Force Center. This machine must be serviced exclusively by an
authorised Service Force Center. Always ensure the use of genuine spare parts.

48
/209
FOR INSTALLATION AND SERVICING
Keep this instruction manual together with the machine for any future
reference. If the machine is sold or transferred to another person, make
sure that this instruction manual is given to the new user, so that he/she
can become familiar with the machine’s functions and with the
recommendations given.
This machine must be installed and connected to the mains by a
COMPETENT PERSON. Make sure that the machine is DISCONNECTED
from the power supply before any servicing operation.
After unpacking the machine make sure that the product has not suffered any
damage and that the power cord is in perfect condition. In case of damage, please
contact your retailer or our customer service dept.
The Manufacturer declines all responsibility if the safety rules are not
complied with.
SOME HINTS OF ENVIRONMENTAL PROTECTION
PACKAGE
All the packing materials are environmentally friendly and they can be recycled.
Please help in preserving the environment, by using the proper channels of
separate collection of rubbish.
DISPOSAL
Appliance Packaging Information
Ali materiais are environmentally sound.
The plastics can be recycled and are identifìed as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. thè pads, which are ali free of chiorofluorocarbon.
The carton parts are made from recycled paper and shouid be disposed ofat a waste-
paper recycling collection location.
Diposal of Old Appliances
• Use an authorised disposalsite.
Contact your Locai Council or Environmental Health Office to see if there
are facilities in your area to recycle the appliance.
CE This machine complies with the directive BT 73/23
Electrical safety rules EN 60335-1 (August 1995 -Safety for electrical household and
similar appliances –General Standard) and EN 60335-2-15 (April 1996 –Specific Rules
concerning the equipment for heating liquids).
Directive EMC 89/336 in conformity with the following standards:
-55014-1; 55014-2; 61000-3-2; 61000-3-3

49
/209
4. INSTRUCTIONS FOR THE FIRST USE OF THE MACHINE
FILLING UP THE WATER RESERVOIR
Squeeze together the
unlocking levers available
under the drip tray and pull
the machine as it is shown in
the figure.
Gently pull the coffee
machine forward from the
housing by sliding it along
the telescopic runners.

51
/209
Hardness of water:
Before filling up the water reservoir,
make sure that the decalcifying Brita filter
has been soaked in cold water for at least
30 min. Follow the instructions printed on
the filter package. After this operation
insert the filter into position inside the
water reservoir as it is shown in the
figure.
If the machine will not be used for long
periods, change the water in the tank
and drain the boiler: the machine will
hold and dispense about half a litre of
water (refer to the chapter”Hot water”).
Brita filters are available from most
supermarkets and domestic goods outlets, at
our After-Sales Service Centres or at the
Shops of Authorised Spare Parts.
Remove the reservoir and fill it with
approximately 2.5 litres of water as shown.
Replace the water reservoir in its own
housing taking care to fully engage the
water valve on the base.

52
/209
Ensure the mains ON/OFF switch(at rear) is
ON
Push the machine back into the housing
until a “CLICK” can be heard. This indicates
that the machine has been locked in
position.
FILLING UP THE CONTAINER WITH COFFEE BEANS
Press the unlocking levers
available under the drip tray
and pull the machine as it is
shown in the figure.
Pull the coffee machine forward
from the housing along the
telescopicrunners .

53
/209
Pour approximately 200 g of coffee
beans into the container on the top as
shown in the figure.
Push the machine back into the housing
until a “CLICK” can be heard. This
indicatesthat the machine has been
locked in position.
WATER REFILL INDICATOR CONTROL PANEL-8
This machine has a sensor which detects when the water reservoir is empty
the reservoir empty led will illuminate. the machine will not operate until the water
reservoir is re filled. Manually re start the programme.

54
/209
INITIAL START-UP
Ensuring the water reservoir is full, turn the steam/water knob anti clockwise
as shown above.
Switch the coffee machine on by pressing the on-off/stand-by control pressed
until the red LED stops flashing and remains lit. This indicates the operating
condition of the machine (flashing: STAND-BY; lit ON; out OFF).
At the same time the water temperature indicator will be on; this LED
indicates the heating phase of the water inside the boiler.Place a container
below the steam spout and press the hot water control as above.
CAUTION! Hot air and steam may precede the hot water.

55
/209
When the water is flowing close the steam/water knob by turning clockwise.
(if necessary, repeat theprocess several times)
When the water temperature light goes out, the machine has reached the correct
temperature and it is ready to make coffee. Only the on-off indicator is now lit.
RESETTING STANDARD VALUES
This coffee machine is calibrated in the factory to make the optimum Italian
espresso, as approved by the coffee University of Naples and complying with ILLY
standards.The values set for large coffee comply with German standards.
If the standard values have to be reset, from the stand-by switch the machine on
by pressing both the on/off and hot-water buttons at the same time.

56
/209

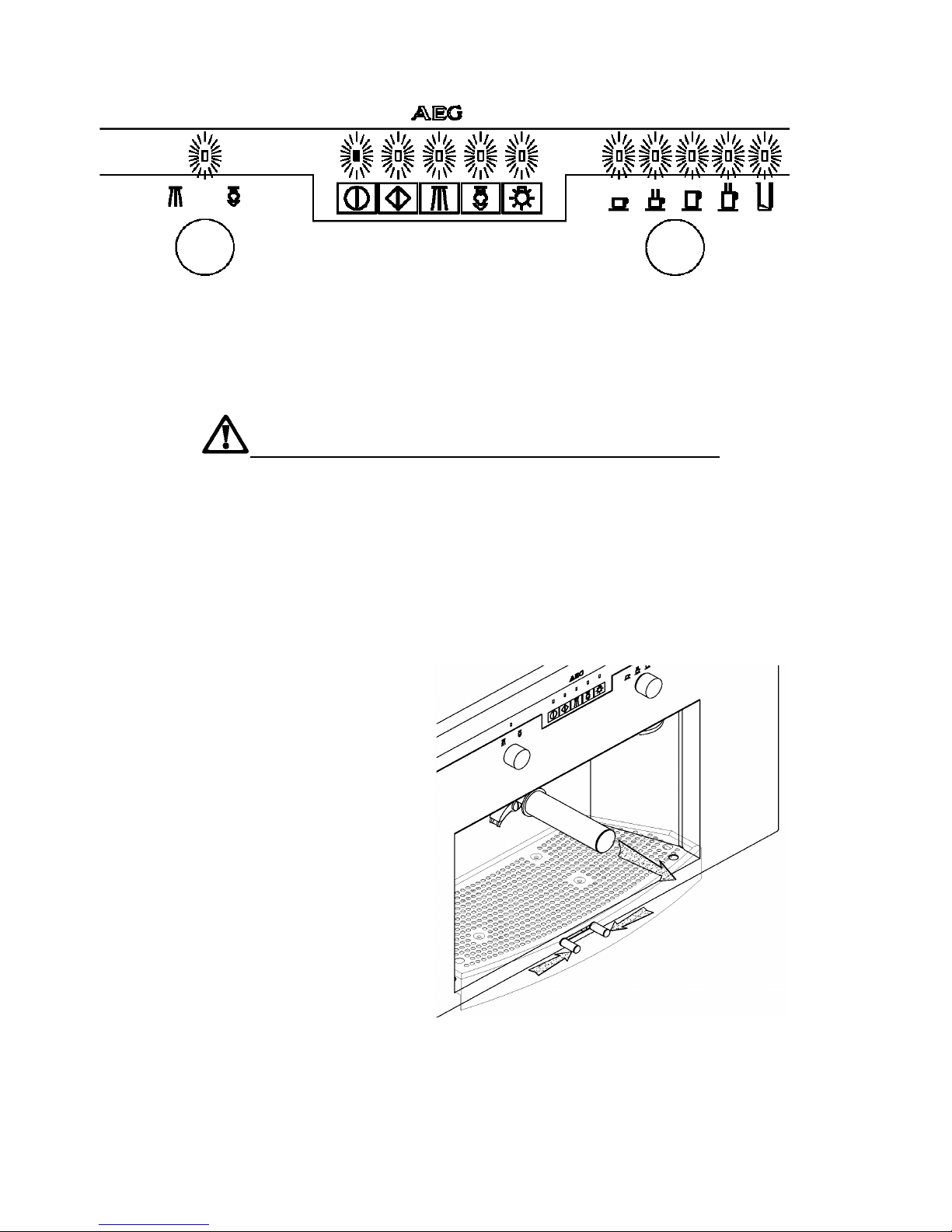

All the LEDs will briefly illuminate to indicate the factory values have been reset.
N.B.: The standard values only concern the quantity of water required for
each cup of coffee. Then the measures of ground coffee will not vary.
CAUTION –ADJUSTING THE GROUND COFFEE
This machine is calibrated in the factory for an optimum level of ground
coffee. Too “coarse” ground coffee will result in ver weak coffee. Too “fine”
ground coffee will result in very strong coffee, delivered by “drops” and
tasting “bitter". The time required for an espresso will range from 15-25 seconds.
Press the unlocking levers
available under the drip tray and
pull the machine as it is shown in
the figure.

57
/209
Pull the coffeee machine forward
from it’s housing by sliding it
along it’s telescopic runners .
Turning the proper adjusting
knob (A-10) will adjust the coffee
texture. Turning the knob in
clockwise direction will lead to a
fine texture for a stronger coffee.
Turning the knob anti-clockwise
will lead to a coarse texture for a
weaker coffee. The set grinding
level can be read on the lid of the
coffee case: bigger circles mean
“coarse” grinding level (fast-
flowing weak coffee), whereas
smaller circles mean “fine”
grinding level (slow-flowing
strong coffee).
Push the machine back into the housing
until a “click” can be heard.This
indicates that the machine is locked in
position.

58
/209
STAND-BY MODE

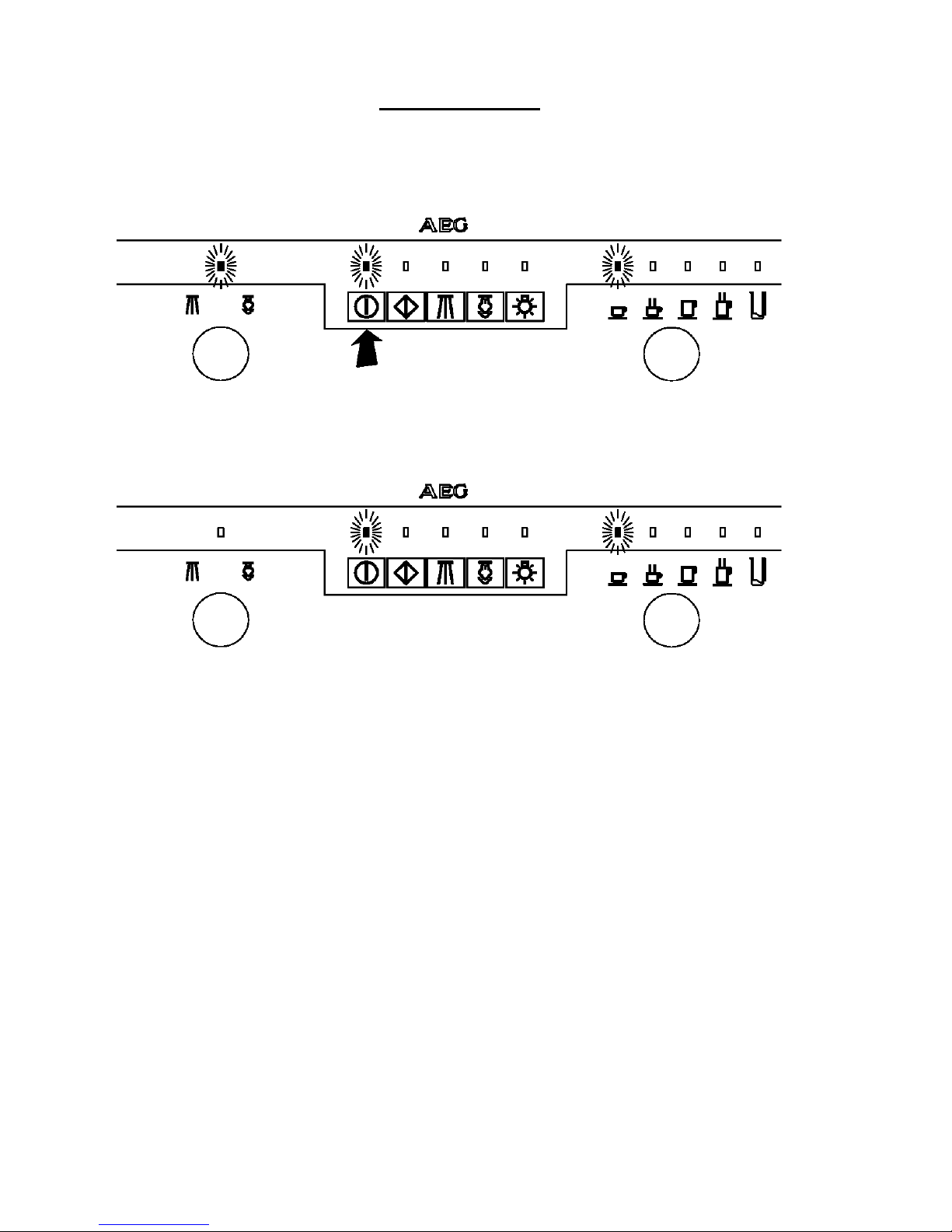

Once powered and inserted into the cabinet, the machine is in stand-by mode: this
will be signalled by the on/off LED blinking.
Keep the on/off button pressed as it is shown in the figure.
As soon as the machine is ready to operate, the LED will be kept on as it is shown
in the figure. Repeat the operation to enable the STAND-BY mode again.
5. ACCESSORIES
This coffee machine is equipped with a filter holder that can receive two filters,
that is:
-for one cup
-for two cups.
When using a paper pod, put it in the filter for one cup.
There is also a measuring spoon that can determine the right quantity of ground
coffee exactly (approximately 7.2 g).
This machine is also equipped with two nozzles: a single nozzle is used to deliver
one cup of coffee, whereas the other nozzle can serve two cups of coffee and it
is provided with an adjusting screw; these nozzles will alternately be screwed
onto the filter holder according to the needs.

59
/209
6. DRAWER
This machine is be provided with a well-equipped drawer PES 8038-m, This
drawer has a lot of useful compartments:
-a large compartment for cups and saucers
-a basin for coffee grounds
-a compartment for all accessories (filters, measuring spoon)
-preparation stand.
7. COFFEE
USING COFFEE BEANS
Turn the knob (B-19) to the desired coffee measure.
Turning in a clockwise direction will select the programme immediately on the right
of that previously selected chosen before; on the contrary turning anticlockwise
will select the programme immediately on the left.

60
/209
Insert the filter holder under the
coffee measuring device by pressing
the button briefly. The programmed
quantity of ground coffee will
automatically be dispended into the
filter.
When the filter has been filled with
the desired quantity, press the
ground coffee firmly against the
press as shown.
Insert the filter holder into the filter
holder ring nut.

61
/209
Lock the filter holder firmly
turning the handle from left to
right.
If preparing espresso use the
special cup rack inserting it’s feet
into the four holes in the drip
tray.
Ensure this is stable
Position the cup/s under the
nozzle and make sure that the
red LED of water temperature is
out, or wait until it goes out
before proceeding.
Alternatively, place larger
cups directly on the drip tray.
Position the cups under the
nozzle and make sure that the
hot water indicator is out, or
wait until it goes out before
proceeding.

62
/209
Press the coffee control as shown.Coffee will be dispensed into the cup(s).Remove
the filter holder from the ring nut and dispose of the used coffee taking care as
the filter will be hot.
When the two-cup nozzle is used,
the two cups od coffee are not
always filled tothe same level.
Adjust the screw as shown in a
clockwise direction for more coffee
in the right hand cup and
anticlockwise for more coffee in
the left hand.
USING COFFEE PODS (E.S.E. SYSTEM)
E.S.E. (Easy Serving Espresso) international standard for brewing coffee using a
coffee pod (i.e.: a single portion of
roasted coffee) E.S.E. system is
easy, practical and environmentally
friendly.It’s individual packaging
makes this a very clean and easy
way of making fresh coffee

63
/209
This machine is also designed to operate with coffee pods, these are single
portions of roasted coffee
Proceed as with ground coffee. After coffee has been made, remove the filter
holder from the locking nut and dispose of the used pod.
HOW TO PREPARE AN EXCELLENT ESPRESSO
A clean machine and the right temperature are the most important elements for
preparing a good espresso.
Make sure that filter, filter-holder and locking nut are always clean.
Unless the machine is not used for very long periods, it should be kept on with the
filter-holder inserted into the locking nut to keep it warm.
Warm the cups with some hot water by pressing the coffee button. This drains the
boiler of any water from previous coffee making and the filter holder will be heated.
After making the last cup of coffee, clean the filter holder by pressing the coffee
button again. Thus any ground coffee remaining that can alter the taste of the
next coffee, will be washed out.
The brewing time for an excellent espresso will be about 15 -25 seconds.
Elements affecting this brewing time are the grinding level of the coffee, the
quantity of ground coffee and how much the coffee has been pressed. The
machine is calibrated to serve a good-quality coffee. If necessary, the grinding
level, as well as the quanity of ground coffee can be modified (refer to Chapter 4.
Instructions for the first use of the machine).
Useful advice:coffee is a hygroscopic element, that is its quality and
characteristics strictly depend on weather (humidity). Coffee should be ground
coarser if humidity in the air is very high, otherwise it will become thick and not
flow freely ; on the contrary, the coffee should be ground finer in dry conditions.

64
/209
8. HOT WATER
The steam/water pipe can be moved to
the back of the cabinet when not in use
to allow easy access to the filter holder
ring nut. Pull forward when required.
Do not touch when not
To dispense hot water Place a container around the steam/water nozzle; then turn
the steam/water knob in an anticlockwise direction,as shown.
Press the button of hot water and the nozzle will spray the quantity of water
stored before; if necessary, press the button of water again to stop its spraying.
