AEG PROTECT B. 2000 User manual

1
OPERATING INSTRUCTIONS UPS
PROTECT B.
PROTECT B.
750
PROTECT B. 1000
PROTECT B. 1500
PROTECT B. 2000
PROTECT B. 3000

2
Thank you for purchasing a PROTECT B. UPS from
AEG Power Solutions.
The following security advices are an important
component of the manual and will prevent any operation
errors and protect you against possible dangers. Read
the manual thoroughly before you first use the appliance.

3
1 Notes on these Operating
Instructions
Duty to Provide Information
These operating instructions will help you to install
and operate the Uninterruptible Power Supply (UPS),
PROTECT B. 750, PROTECT B. 1000, PROTECT B. 1500,
PROTECT B. 2000 or PROTECT B. 3000 as well as the
associated external battery units PROTECT B. 1500 BP,
PROTECT B. 2000 BP or PROTECT B. 3000 BP – all referred
to as PROTECT B. in this document – safely and properly,
and for its intended purpose. These operating instructions
contain important information necessary to avoid dangers
during operation.
Please read these instructions carefully prior to
commissioning!
These operating instructions are a composite part of
PROTECT B.
The operator of this unit is obliged to communicate these
operating instructions to all personnel transporting or starting
up PROTECT B. or performing maintenance or any other
work on the unit.
Validity
These operating instructions comply with the current technical
specifications of PROTECT B. at the time of publication. The
contents do not constitute a subject matter of the contract, but
serve for information purposes only.
Warranty and Liability
Our goods and services are subject to the general conditions
of supply for products of the electrical industry, and our
general sales conditions. We reserve the right to alter any
specifications given in these operating instructions, especially
with regard to technical data and operation.

4
Claims in connection with supplied goods must be submitted
within eight days of receipt, along with the packing slip.
Subsequent claims cannot be considered.
The warranty does not apply for damage caused by non-
compliance with these instructions (such damage also includes
damaging the warranty seal). AEG will accept no liability for
consequential damage. AEG will rescind all obligations such
as warranty agreements, service contracts, etc. entered into
by AEG and its representatives without prior notification in the
event of maintenance and repair work being carried out with
anything other than original AEG spare parts or spare parts
purchased by AEG.
Handling
PROTECT B. is designed and constructed so that all
necessary steps for start-up and operation can be performed
without any internal manipulation of the unit. Maintenance and
repair work may only be performed by trained and qualified
personnel.
Illustrations are provided to clarify and facilitate certain steps.
If danger to personnel and the unit cannot be ruled out in the
case of certain work, it is highlighted accordingly by
pictograms explained in Chapter 3.
Hotline
If you still have questions after having read these operating
instructions, please contact your dealer or our "Hotline":
Tel.: [phone]
Fax: [phone]
Internet: www.AEGpartnernet.com
Copyright
No part of these operating instructions may be transmitted,
reproduced and/or copied by any electronic or mechanical
means without the express prior written permission of AEG.
© Copyright AEG 2009. All rights reserved.

5
Table of Contents
1 Notes on these Operating Instructions.............................3
2 System Description ..........................................................7
2.1 Overview ...................................................................7
2.2 Functionality..............................................................8
3 Safety .............................................................................10
3.1 General Safety Instructions.....................................10
3.2 Safety Instructions for PROTECT B........................10
3.3 Certification .............................................................14
3.4 Technical Data ........................................................15
4 Set-Up and Operation ....................................................20
4.1 Unpacking and Inspection.......................................20
4.2 Point of installation..................................................21
4.3 Connections, Operation / Display Elements............22
4.3.1 Front view:........................................................22
4.3.2 Operating panel ...............................................23
4.3.3 Rear view (connections): .................................24
5 Commissioning...............................................................26
5.1 Deployment.............................................................26
5.1.1 Tower (Stand alone deployment).....................26
5.1.2 19” Rack Mount Setup.....................................28
5.2 Additional battery installation setup.........................32
5.3 Emergency Power Off (EPO) set up.......................33
5.4 Electric start-up.......................................................34
5.4.1 Connection.......................................................34
5.4.2 Configuration....................................................35
5.5 Operation.................................................................36
5.5.1 Normal Operation.............................................36
5.5.2 Battery Operation / Autonomous Operation.....36
5.5.3 Unit Overload...................................................37
5.5.4 System Diagnosis / Battery Test......................38

6
5.6 Interfaces and communication................................39
5.6.1 Data line protection RJ11 and RJ45
(modem / telephone / fax / network).................39
5.6.2 Computer interfaces RS232 and USB.............40
5.6.3 Communication slot
(PROTECT B.1500 / B.2000 / B.3000):............40
5.6.4 Shutdown and UPS management software.....40
6 Signalling and failure solution.........................................42
6.1 LED display.............................................................42
6.2 Audible Alarm Trouble Shooting: ............................44
6.3 General Fault Diagnosis and Fault Rectification.....44
7 Maintenance...................................................................46
7.1 Battery replacement................................................47
8 Storage, Dismantling and Disposal................................52
9 Glossary.........................................................................53
9.1 Technical terms.......................................................53

7
2 System Description
i
PROTECT B. is an Uninterruptible Power Supply
(UPS) for essential loads such as PCs,
workstations, servers, network components,
telecommunication equipment and similar devices.
The PROTECT B. series is a compact, interactive, sinusoidaly
operating USP, available with an output power rate of 750,
1000, 1500, 2000 and 3000 VA.
The design of the USP allows horizontal / lying operation
(Rack/19" with 2U) and vertical / standing operation (Tower).
2.1 Overview
The front of the UPS provides several LEDs and four push
buttons for easy configuration, control and management. The
panel also informs about the state of the power in the
alternating current (AC) branch, indications on net failures and
the charging state of the Output of the UPS. You will find two
LED bars for output load and battery capacity, two state
indicators (net available, battery active) and four alarm
indicators (power failure, failure, battery discharged, overload).
With the push button the acoustic alarm can be deactivated
and the self test of the UPS will be started.
Power connectors, communication interfaces and connections
for telephone and network are located on the rear of the
PROTECT B. Important UPS parameters and data are
constantly monitored and are transmitted via USB or serial
RS232 to the “CompuWatch” Software on the management
computer. The optional SNMP adapter allows remote
monitoring via SNMP connector and multi server shutdown
(starting with B.1500).
The main features of the PROTECT B. are:
♦VI (Line Interactive) protection technology
with sinusoidal output voltage
♦AVR control system
(automatic voltage regulation with mains operation)

8
♦Micro processor control for high availability,
suited for generator mode
♦Easy extension of battery capacity using external
batteries (starting with B.1500)
♦Advanced battery management with integrated
protection against extreme discharge and overcharge
♦Overload and short circuit proof
♦Maintenance free, sealed lead batteries,
hot swappable (starting with B.1500)
♦User friendly display
for optimal readability / configuration
♦Intelligent monitoring system
with USB and RS232 interface
♦Surge protection (RJ11 / RJ45)
for phone, fax, modem and network (10/100MBit/s)
♦Expansion slot for extension cards, i.e. SNMP
(starting with B.1500)
♦“CompuWatch” software for shutdown, state report
and measurement for all popular operating systems
(among others Windows, Mac, Linux)
♦Compact design / variable deployment
due to combination design as tower / rack
(19” kit available optionally for all models)
2.2 Functionality
The UPS is connected to a shockproof socket between the
public utility's mains and the loads to be protected.
Under normal operating conditions, i.e. if PROTECT B. is
supplied with mains voltage, the battery charger will ensure
that the battery is always completely charged.
During this operating status, the loads connected to
PROTECT B. are supplied with voltage via mains filters which
provide effective protection against mains voltage peaks and
high-frequency faults.
In case of sustained mains undervoltage or overvoltage within
defined ranges, the automatic voltage regulator (AVR) further

9
stabilizes the load voltage. As a result, voltage fluctuations in
the public utility's mains are reduced to a level which is
acceptable for the loads. This is performed without recourse
to the internal energy storage, something which in turn has a
positive effect on battery availability.
UPS block diagram PROTECT B.
The static bypass switch is activated in the event of a mains
failure. The inverter then takes over the voltage supply of the
connected loads, in order to prevent the risk of data loss or
damage to the loads. PROTECT B. supplies voltage until the
battery is discharged, allowing you to shut down your IT
system properly and switch it off. The standby time mainly
depends on the connected loads. If the mains power supply is
back to normal values, the UPS will switch back the loads to
mains supply. The battery charger will then recharge the
battery.
For safety reasons (as required by German standards, VDE),
the mains input in the unit will be disconnected by a two-pole
switch in the event of a mains failure. Energy backfeed to the
mains and voltage supply to the pins of the mains connector
are thus reliably avoided.
Furthermore, additional protective measures ensure effective
protection for the data/network interface.

10
3 Safety
3.1 General Safety Instructions
Read these operating instructions carefully prior to
commissioning of the PROTECT B. UPS and observe the
safety instructions!
Only use the unit if it is in a technically perfect condition and
always in accordance with its intended purpose, while being
aware of safety and danger aspects, and in accordance with
the operating instructions! Immediately eliminate any faults
which could be detrimental to safety.
The following pictograms are used in these operating
instructions to identify dangers and important information:
Danger!
Identifies risk of fatal injury to the operator.
Attention!
Identifies risk of injury and risk of damage to the
unit and parts of the unit.
i
Information!
Useful and important information for operating
the UPS.
3.2 Safety Instructions for PROTECT B.
This chapter contains important instructions for the
PROTECT B. UPS. These must be followed during assembly,
operation and maintenance of the uninterruptible power supply
and the batteries.
The UPS carries high voltage. Danger!
The unit
may only be opened by trained and qualified
personnel.
Repairs may only be carried out by
qualified customer service staff!

11
The output may be live, even if the UPS is not
connected to the mains supply,
as the UPS has
its own internal power supply (battery)!
For health and safety reasons, the unit must be
earthed correctly!
PROTECT B. may only be operated with or connected to a
230 Vac mains with protective grounding using a mains
connection cable with PE conductor (included in the delivery)
that has been tested in accordance with German standards
(VDE).
Danger! Risk of burning!
The battery has powerful short-
circuit currents.
Incorrect connection or isolation faults can lead
to melting of the plug
connections, sparking
potential and severe burns!
The unit has a warning signal that sounds when
the battery voltage of PROTECT B. is exhausted
or when the UPS is not working in its normal
mode.
Observe the following safety instructions to
ensure per
manent operational safety of and safe
work with the UPS:
♦Do not dismantle the UPS! (The UPS does not contain
any parts which require regular maintenance. Bear in
mind that the warranty will be invalidated if the unit is
opened!)
♦Do not install the unit in direct sunshine or in close
proximity of heaters!
♦The unit is designed to be installed inside in heated
rooms. Never install the UPS in the vicinity of water or in
an excessively damp environment!
♦Condensation may occur if the UPS is brought from a cold
environment into the room where it is to be installed. The
UPS must be absolutely dry prior to start-up. As a result,
leave it to acclimatize for at least two hours.

12
♦Never connect the mains input to the UPS output.
♦Ensure that no fluids or foreign bodies can penetrate the
UPS!
♦Do not block the air vents of the unit! Keep children away
from the unit and ensure that objects are never inserted
through the air vents!
♦Do not connect household appliances such as hairdryers
to the UPS!
♦The mains connection should be near the unit and easily
accessible to facilitate disconnecting the AC input or
pulling out the plug!
♦During operation, do not disconnect the mains connection
cable from the UPS or from the socket outlet in the
building (shockproof socket), otherwise the protective
grounding of the UPS and all the loads connected to it will
be cancelled.
Danger! Electric shocks!
Even after the mains voltage has been
disconnected, the components within the UPS
remain connected to the battery and can thus
cause electric s
hocks. It is therefore imperative
to disconnect the battery circuit before carrying
out any maintenance or repair work!
If it is necessary to replace the battery or carry
out maintenance work, this must be done by or
under the supervision of a specialis
t familiar with
batteries and the necessary safety precautions!
Only authorised persons are allowed in the
vicinity of the batteries!
When replacing the battery/batteries, the following must be
observed: Only ever use identical maintenance-free sealed
lead batteries with the same data as the original battery/
batteries.

13
Danger! Explosive!
Never throw batteries into open fire.
Never open
or damage batteries. (Electrolyte may leak out
and damage skin and eyes. It may be toxic!)
Batteries can cause e
lectric shocks and high
short-circuit currents.
Therefore, take the following safety precautions
when working with batteries:
♦Take off watches, rings and other metallic
objects!
♦Only use tools with insulated handles!
For personal safety reasons, never switch on the
main switch when the mains connector of
PROTECT B. is disconnected!

14

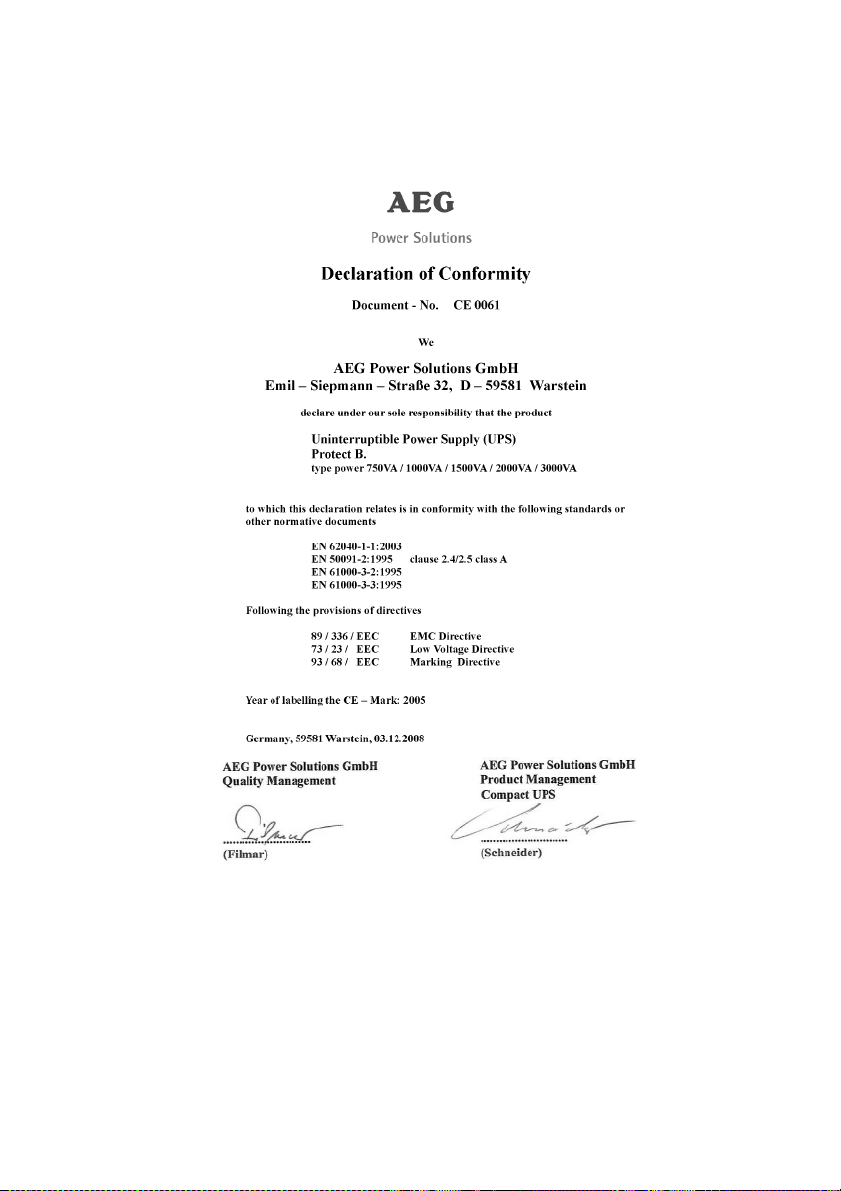

3.3 Certification

15
3.4 Technical Data
Model power
PROTECT B. 750 750 VA / 500 W
PROTECT B. 1000 1000 VA / 700 W
PROTECT B. 1500 1500 VA / 1050 W
PROTECT B. 2000 2000 VA / 1340 W
PROTECT B. 3000 3000 VA / 2100 W
UPS Input
Rated output voltage 220 / 230 / 240 Vac
Input voltage range 154 / 161 / 168 Vac ± 4%
(wide)
176 / 184 / 192 Vac ± 4%
(standard) until
264 / 276 / 288 Vac ± 4%
Frequency (autom. detection) 50 / 60 Hz ± 5 Hz
> 40 Hz (generator mode)
Curr. consumption (full-load)
PROTECT B. 750 5 A
PROTECT B. 1000 8 A
PROTECT B. 1500 10 A
PROTECT B. 2000 10 A
PROTECT B. 3000 16 A
Connection IEC power connector
(IEC 320)
USP output
Rated output voltage / 220 / 230 / 240 Vac
AVR-technology
Rated output voltage in ± 5 %
battery mode
Frequency in battery mode 50 Hz / 60 Hz ± 0.1 Hz

16
Output current power (at 230 Vac)
PROTECT B. 750 3.2 A
PROTECT B. 1000 4.3 A
PROTECT B. 1500 6.5 A
PROTECT B. 2000 8.7 A
PROTECT B. 3000 13 A
Transfer time at mains outage 2-4 ms (typical),
6 ms max.
13 ms max.
in generator operation
Voltage waveform sinusoidal
Outlets Non-heating appliance
connectors acc. to IEC 320
Overload response 110% for 3 min. /
at mains operation 150% for 200 ms
Overload response 110% for 30 s /
at battery operation 120% for 100ms
Overheat and short circuit protection Yes
Battery
Autonomy time at rated load 5 min.
Extendable from B.1500
Rated time with external battery packs
Number of
connected
battery
packs
Autonomy time at rated load
1500 VA
Tower 1500 VA
Rack 2000 VA Tower 2000 VA Rack 3000 VA Tower/Rack
1 15 min. - - - 15 min. - - - 24 min.
2 30 min. 30 min. 27 min. 27 min. 45 min.
3 50 min. - - - 40 min. - - - 55 min.
4 65 min. 65 min. 50 min. 50 min. 75 min.
Deep discharge protection / yes
Overload protection

17
Recharge time 3 h (UPS in
(to 90 % of rated capacity) standard configuration)
7 h (UPS with 1 add. battery
pack)
12 h (UPS with 2 add.
battery packs)
18 h (UPS with 3 add.
battery packs)
24 h (UPS with 4 add.
battery packs)
Type Sealed, maintenance free,
hot swappable (from B.1500)
PROTECT B. 750 12 V / 7 Ah x 2
PROTECT B. 1000 12 V / 9 Ah x 2
PROTECT B. 1500 / B. 1500BP 12 V / 7 Ah x 4
PROTECT B. 2000 / B. 2000BP 12 V / 9 Ah x 4
PROTECT B. 3000 12 V / 5 Ah x 8
PROTECT B. 3000 BP 12 V / 5 Ah x 8 x 2
Communication
Interfaces USB and RS232
Additionally from
PROTECT B.1500:
Communication slot
for i.e. SNMP as well as
input contact for
emergency shutdown
Shutdown-Software on CD For all typical operating
systems, e.g. Windows,
Linux, Mac, Unix, FreeBSD,
Novell, Sun
Physical data
Noise (1 m distance) < 45 dB(A)
Operation temperature range 0°C - 40°C
Humidity 0 - 90% (without condens.)
Installation height up to 1000 m at rated power

18
Number of outlets
PROTECT B. 750 4 x IEC 320
PROTECT B. 1000 6 x IEC 320
PROTECT B. 1500 6 x IEC 320 (sep. module)
PROTECT B. 2000 6 x IEC 320 (sep. module)
PROTECT B. 3000 8 x IEC 320-10 A
1 x IEC 320-16 A
Equipment colour Black line
Size W x H x D (mm) Standard model
(Size in horizontal / lying view)
PROTECT B. 750 235 x 88 x 383
PROTECT B. 1000 235 x 88 x 383
PROTECT B. 1500 + B.1500BP (2 x 217) x 88 x 414
PROTECT B. 2000 + B.2000BP (2 x 217) x 88 x 414
PROTECT B. 3000 438 x 88 x 582
PROTECT B. 1500BP 217 x 88 x 414
PROTECT B. 2000BP 217 x 88 x 414
PROTECT B. 3000BP 438 x 88 x 582
Weight (kg)
PROTECT B. 750 8.6 kg
PROTECT B. 1000 9.6 kg
PROTECT B. 1500 + B.1500BP 18.5 kg
PROTECT B. 2000 + B.2000BP 18.5 kg
PROTECT B. 3000 31.5 kg
PROTECT B. 1500BP 12.0 kg
PROTECT B. 2000BP 12.0 kg
PROTECT B. 3000BP 40.5 kg
Cooling boosted self cooling
Store temperature range -15°C - +50°C
(UPS electronic)
Battery / UPS with integr. battery 0°C - +35°C
Certification CE

19
Guidelines
The PROTECT B. complies with the product norm EN 50091.
The CE symbol on the unit certifies the compliance to the EG
guidelines for 73/23 EEC low voltage and for 89/336 EEC
electromagnetic compatibility (EMC), when following the
installation instructions in the manual.
For the 73/23 EEC low voltage guidelines
Reference number EN 62040-1-1 : 2003
For the 89/336 EMC guidelines
Reference number EN 50091-2 : 1995
EN 61000-3-2 : 1995
EN 61000-3-3 : 1995
i
Warning:
This is a class A – UPS product. In a domestic
environment, this product may cause radio
interference, in which case, the user may be
required to take additional measures.

20
4 Set-Up and Operation
4.1 Unpacking and Inspection
The unit has been fully tested and inspected. Although the unit
has been packed and shipped with the usual degree of care,
damage during transport cannot be ruled out completely.
i
Claims for damage during transport must always
be made with the transport company!
Check the shipping container for damage on arrival. If
necessary, ask the transport company to check the goods and
make a record of the damage in the presence of the member
of staff from the transport company and register the damage
with the AEG representative or dealer within eight days of
delivery.
Check the delivery is complete:
♦PROTECT B. with 700, 1000, 1500, 2000 or 3000 VA
♦Two plastic feet plus two fixing bras (for B.3000)
♦Mains connection cable with shockproof plug
♦Two load connection cables
♦USB / RS232 communication cable
♦CD with "CompuWatch" shutdown software
♦Operating instructions
Check for complete delivery of ordered options like additional
battery modules, 19” mounting kits or communication options
like a SNMP card etc.
Please contact our hotline (see page 4) in case of any
discrepancy.
The original packaging provides effective protection against
mechanical shocks and should be retained so the unit can be
transported safely later on.
