Afag CS 6/20-ED User manual

Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0 1–48
Assembly and operating instructions

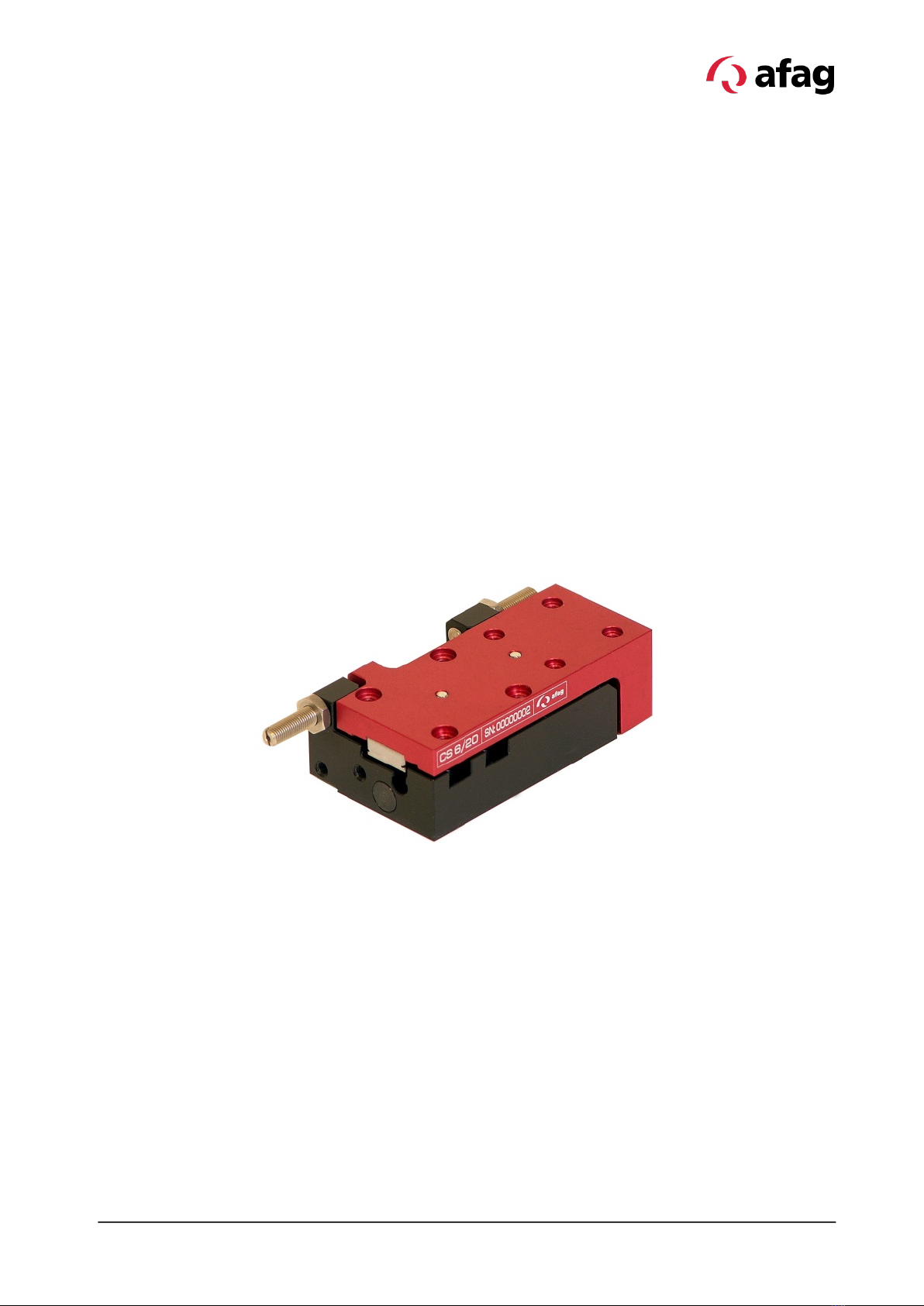

Compact Slide
CS 6
Translation of the Original Assembly Instructions EN
CS 6/20-ED Order no.: 50386049
CS 6/40-ED Order no.: 50386050

2 – 48 Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0
Dear Customer,
Thank you for choosing our products and placing your trust and confidence in
our company!
These assembly and operating instructions contain all essential information you
need about your product. Our aim is to provide the required information as
concisely and clearly as possible. If, however, you still have any questions on
the contents or suggestions, please do not hesitate to contact us. We are always
grateful for any feedback.
Our team will also be glad to answer any further question you may have
regarding the compact slide CS 6 or other options.
We wish you every success with our products!
With kind regards
Your Afag team
© Subject to modifications
The compact slides CS 6 have been designed by Afag Automation AG
according to the state of the art. Due to the constant technical development and
improvement of our products, we reserve the right to make technical changes
at any time.
Updates of our documentations
Unlike the printed documents, our digital instructions manuals, product data
sheets and catalogues are being continuously updated on our website.
Please keep in mind that the digital documents on our website are always the
latest versions.
© Copyright 2021 Afag Automation AG
All contents of the present assembly and operating instructions, in particular the
texts, photographs and graphics, are protected by copyright. All rights reserved.
No part of these assembly and operating instructions may be reproduced,
distributed (made available to third parties), or transmitted in any form or by any
means, including photocopying, recording, or other electronic or mechanical
methods, without the prior written permission of Afag Automation AG.
Afag Automation AG
Luzernstrasse 32
CH-6144 Zell (Switzerland)
Tel.: [phone]
e-mail: [e-mail]
Internet: www.afag.com

Table of contents
Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0 3–48
Table of contents
1General .................................................................................................................... 5
1.1 Contents and purpose of these assembly instructions................................. 5
1.2 Explanation of symbols................................................................................. 5
1.3 Additional symbols........................................................................................ 6
1.4 Applicable documents .................................................................................. 7
1.5 Warranty ....................................................................................................... 7
1.6 Liability.......................................................................................................... 7
2Safety instructions................................................................................................. 8
2.1 General ......................................................................................................... 8
2.2 Intended use ................................................................................................. 8
2.3 Foreseeable misuse ..................................................................................... 8
2.4 Obligations of the operator and the personnel ............................................. 9
2.4.1 Observe the assembly instructions ........................................................ 9
2.4.2 Obligations of the operating company.................................................... 9
2.4.3 Obligations of the personnel ................................................................ 10
2.5 Personnel requirements ............................................................................. 10
2.5.1 Personnel qualification ......................................................................... 10
2.6 Personal protective equipment (PPE) ........................................................ 11
2.7 Changes and modifications ........................................................................ 11
2.8 General hazards / residual risks................................................................. 12
2.8.1 General hazards at the workplace ....................................................... 12
2.8.2 Danger due to electricity ...................................................................... 13
2.8.3 Mechanical hazards ............................................................................. 13
2.8.4 Danger due to pneumatics ................................................................... 14
2.8.5 Danger caused by omitting maintenance work .................................... 14
3Technical data ...................................................................................................... 15
3.1 Dimensional drawing CS 6 ......................................................................... 15

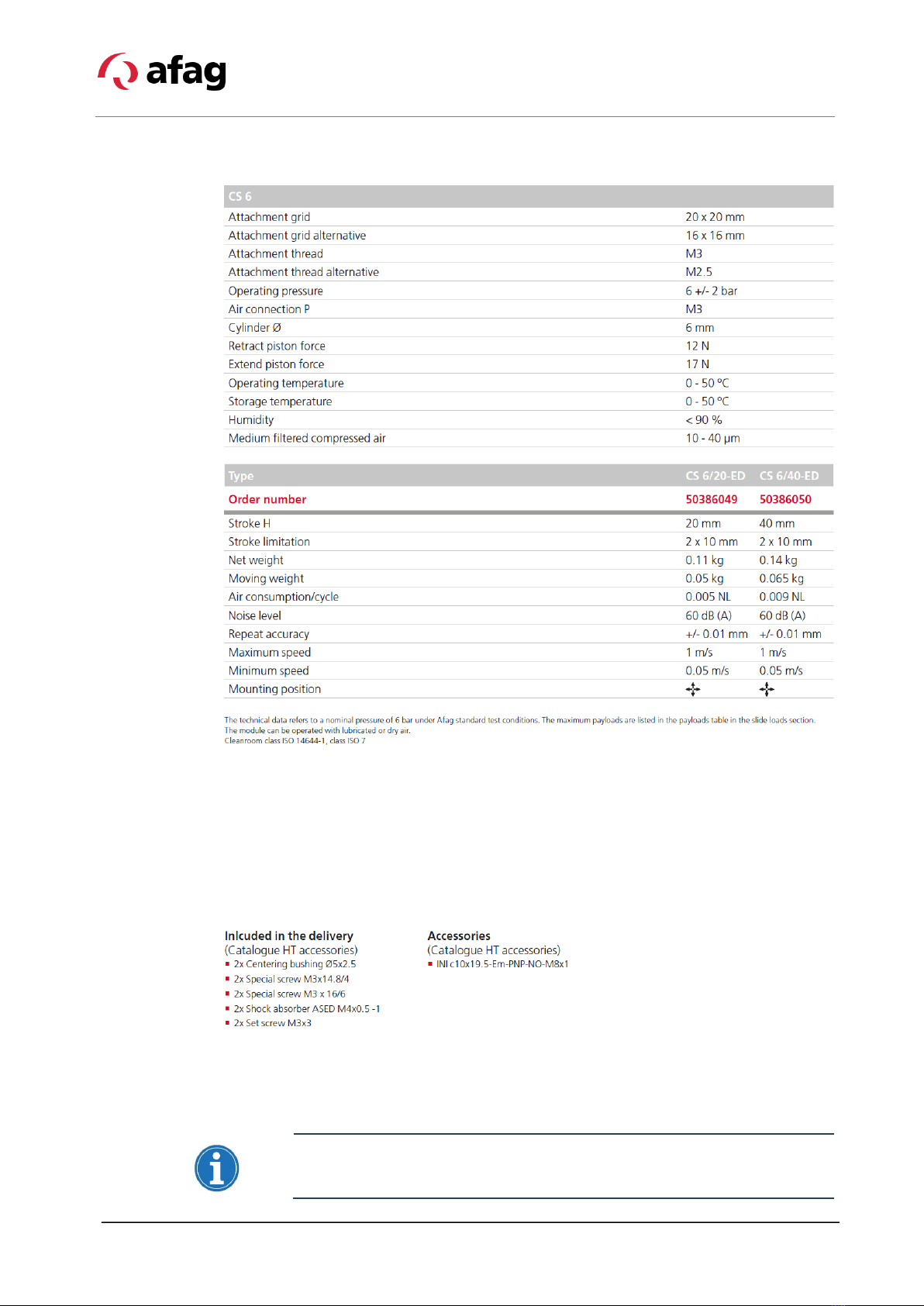

3.2 Technical data CS 6 ................................................................................... 16
3.3 Preferred combinations CS 6 ..................................................................... 17
3.4 Slide loads CS 6 ......................................................................................... 18
4Transport, packaging and storage ..................................................................... 19
4.1 Safety instructions for transport.................................................................. 19
4.2 Scope of supply .......................................................................................... 20
4.3 Transport .................................................................................................... 20
4.4 Packaging ................................................................................................... 21
4.5 Storage ....................................................................................................... 21
5Design and description ....................................................................................... 22
5.1 Design Compact Slide ................................................................................ 22
5.2 Product description..................................................................................... 22

Table of contents
4 – 48 Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0
5.3 Accessories CS 6 ....................................................................................... 23
6Installation, assembly & setting ......................................................................... 24
6.1 Safety Instructions for installation and assembly ....................................... 24
6.2 Installation and assembly ........................................................................... 24
6.2.1 Assembly and attachment.................................................................... 24
6.2.2Tightening torques for screws .............................................................. 26
6.2.3 Connection to the pneumatic system ................................................... 26
6.2.4 Installation and adjustment of the proximity switch.............................. 28
6.3 Adjustment of the elastomer shock absorber............................................. 30
6.3.1 Safety notes for settings....................................................................... 30
6.3.2 Adjustment of the elastomer shock absorber....................................... 31
7Commissioning .................................................................................................... 32
7.1 Safety instructions for commissioning ........................................................ 32
7.2 Commissioning of the modules .................................................................. 33
8Fault elimination................................................................................................... 34
8.1 General notes ............................................................................................. 34
8.2 Safety instructions for troubleshooting ....................................................... 34
8.3 Table fault causes and remedy .................................................................. 34
9Maintenance and repair ....................................................................................... 35
9.1 General notes ............................................................................................. 35
9.2 Safety instructions for maintenance and repair .......................................... 35
9.3 Maintenance activities and maintenance intervals..................................... 36
9.3.1 Overview of the maintenance points .................................................... 36
9.3.2 Compressed air specifications ............................................................. 37
9.3.3 Further maintenance ............................................................................ 38
9.4 Spare and wear parts lists, repairs............................................................. 38
9.4.1 General notes....................................................................................... 38
9.4.2 Safety instructions ................................................................................ 38
9.4.3 Wear parts for elastomer shock absorbers .......................................... 39
10 Decommissioning, disassembly, disposal........................................................ 40
10.1 Safety instructions for decommissioning, disassembling and disposal...... 40
10.2 Decommissioning ....................................................................................... 40
10.3 Disassembly ............................................................................................... 40
10.4 Disposal...................................................................................................... 41
11 Declaration of incorporation............................................................................... 42

General
Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0 5–48
1 General
1.1 Contents and purpose of these assembly instructions
These assembly instructions contain important information on assembly,
commissioning, functioning and maintenance of the compact slides CS 6 to
ensure safe and efficient handling and operation.
Consistent compliance with these assembly instructions will ensure:
permanent operational reliability of the compact slide,
optimal functioning of the compact slide,
timely detection and elimination of defects (thereby reducing maintenance
and repair costs),
extension of the service life of the compact slide.
The illustrations in this manual shall provide you with a basic understanding of
the module and may vary from the actual design of your module.
1.2 Explanation of symbols
The safety notes are marked by a pictogram and a signal word. The safety notes
describe the extent of the hazard.
This note contains important additional information as well as useful tips for
safe, efficient and trouble-free operation of the compact slide.
DANGER
Danger!
This safety note indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Warning!
This safety note points out a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Caution!
This safety note points out a potentially dangerous situation which, if not
avoided, can result in minor or slight injuries.
NOTICE
This safety note points out a potentially dangerous situation which, if not
avoided, can cause substantial damage to property and the environment.

General
6 – 48 Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0
Further warning signs:
Where applicable, the following standardised symbols are used in this manual
to point out the various potential health risks.
Warning
- Dangerous electrical voltage.
Warning
- Risk of injury from contact with hot surfaces.
Warning
- Risk of hand and finger injury due
to uncontrolled
movements of components.
Warning
- Risk of injury as a result of parts being flung out!
Warning
- high noise levels.
1.3 Additional symbols
In these assembly instructions the following symbols are used to highlight
instructions, results, references, etc..
Symbol Description
1.
Instructions (steps ...)
 Results of actions
 References to sections
 Enumerations not ordered

General
Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0 7–48
1.4 Applicable documents
In addition to the assembly instructions, the following documents must be
observed:
Safety data sheets etc.
Instructions for integrated components (supplier documentation)
Each compact slide is accompanied by a safety information sheet. This
information sheet must be read carefully by every person who carries out work
on and with the compact slide.
1.5 Warranty
The warranty terms for Afag handling components and handling systems are
the following:
24 months from initial operation and up to a maximum of 27 months from
delivery.
Wear parts (e.g. shock absorbers) are excluded from the warranty.*
The warranty covers the replacement or repair of defective Afag parts. Further
claims are excluded.
* However, a customer has a right to a defect-free product. This does also
apply to defective accessories and wear parts. Normal wear and tear is
excluded from the warranty.
The warranty shall expire in the following cases:
Improper use of the module.
Non-observance of the instructions regarding assembly, commissioning,
operation and maintenance of the module.
Improper assembly, commissioning, operation and maintenance.
Repairs and design changes carried out without prior technical instructions of
Afag Automation AG.
Removing the serial number from the product.
Using the compact slide without shock absorbers or with defective shock
absorbers.
Inadequate checking of wear parts.
Non-observance of the EC Machinery Directive, the Accident Prevention
Regulations, the Standards of the German Electrotechnology Association
(VDE) and these safety and assembly instructions.
1.6 Liability
No changes shall be made to the compact slide CS 6 unless described in this
instructions manual or approved in writing by Afag Automation AG.
Afag Automation AG accepts no liability for unauthorized changes or improper
assembly, installation, commissioning, operation, maintenance or repair work.

Safety instructions
8 – 48 Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0
2 Safety instructions
2.1 General
This chapter provides an overview of all-important safety aspects to ensure safe
and proper use of the compact slide and optimal protection of personnel.
Failure to follow the directions and safety instructions given in this instructions
manual may result in serious hazards.
2.2 Intended use
The compact slide CS is used for shock-free linear movement of fixed loads in
the ambient and operating conditions defined for this module.
The CS compact slides are designed exclusively for linear movement in any
position on the slide for load capacities up to a maximum of (CS 6/20 = 0.1 kg),
(CS 6/40 = 0.1 kg). Load capacities at the front of the modules (CS 6/20 = 0.08
kg) (CS 6/40 = 0.08 kg).
The CS compact slides can be used in combination with other modules as a
pick-and-place station, whereby the permissible load capacity must not be
exceeded.
Any use of the compact slide beyond the described purpose is considered to be
not in accordance with the intended use.
The intended use of the module also includes:
observance of all instructions given in this instructions manual.

compliance with the inspection and maintenance work and the
specifications in the data sheets,
using only original spare parts.
2.3 Foreseeable misuse
Any use other than or beyond the intended use described above is considered
a misuse of the compact slide.
Especially the following use is considered a misuse:
Use in potentially explosive atmospheres.

Safety instructions
Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0 9–48
Risks can occur if the module is not used as intended. In the event of
damages caused by improper use the following shall apply:
the operating company shall be solely responsible for such damage, and
AFAG does not accept any liability for damage caused by improper use.
2.4 Obligations of the operator and the personnel
2.4.1 Observe the assembly instructions
A basic prerequisite for safe and proper handling of the compact slide is a good
knowledge of the basic safety instructions.
These assembly instructions, in particular the safety instructions contained
therein, must be observed by all persons working with the compact slide.
2.4.2 Obligations of the operating company
In addition to the safety instructions given in this manual, the operating company
must comply with the safety, accident prevention and environmental protection
regulations valid for the field of application of the compact slide.
The operating company is required to use only personnel who:
have the necessary professional qualifications and experience,
are familiar with the basic rules regarding occupational safety and accident
prevention,
have been instructed in the correct handling of the compact slide,
have read and understood these assembly instructions.
The operating company is also required to:
monitor on an ongoing basis that the personnel work safely considering any
potential hazard involved and the assembly instructions are observed,
ensure that the assembly instructions are always kept at hand at the
installation in which the modules are mounted,
observe and communicate universally applicable laws and regulations
regarding accident prevention and environmental protection,
provide the necessary personal protective equipment (e.g. protective gloves)
and instruct the personnel to wear it,
update the related safety data sheets.
WARNING
Risk of injury if the module is not used as intended!
The improper use of the compact slide poses a potential hazard to the
personnel.
The compact slide may only be used in a technically perfect condition in
accordance with its intended use and the instructions in this manual as well
as in compliance with the safety requirements!

Any malfunctions, particularly those that could impair safety, must be
eliminated immediately!

Safety instructions
10 – 48 Assembly instructions EN CS 6/20 - CS 6/40 Date 01.06.2021 Version 2.0
2.4.3 Obligations of the personnel
All personnel working with the CS modules are required to:
read and observe these assembly instructions, especially the chapter on
safety,
observe the occupational safety and accident prevention regulations,
observe all safety and warning signs on the compact slide,
refrain from any activity that might compromise safety and health.
In addition, the personnel must wear the personal protective equipment
required for carrying out their work. (Chapter 2.6).
2.5 Personnel requirements
2.5.1 Personnel qualification
The activities described in the assembly instructions require specific requisites
at the level of professional qualifications of the personnel.
Personnel not having the required qualification will not be able to asses the risks
that may arise from the use of the compact slide thus exposing himself and
others to the risk of serious injury. Therefore, only qualified personnel may be
permitted to carry out the described activities on the compact slide.
Persons whose ability to react is restricted due to the intake of medication or the
like must not interact with the compact slide.
These installation instructions are intended for skilled personnel (installers,
system integrators, maintenance personnel, technicians), electricians and
operating personnel.
The following is a description of the professional skills (qualifications) required
for carrying out the different activities:
Qualified personnel:
Qualified personnel with appropriate training who are qualified due to their
special know-how and fully familiar with the machine and who have been given
instructions on how to carry out the task entrusted to them safely.
Operator (trained personnel):
Authorized persons
who due to their specialized professional training,
expertise and experience can identify
risks and preventing possible hazards
arising from the use of the machine.
