Afag UG 20 Series User manual

Universal Gripper
UG 20, UG 25
- Declaration of Incorporation
- Module Information
- Montage Instructions
- Maintenance Instructions
„Translation“ of the Original Montage Instructions
© copyright by Afag Automation AG

2 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
These Montage Instructions apply to:
Type
Order No. Type Order No.
UG 20 NN
50032661 UG 25 NN 50030771
UG 20 NC
50032663 UG 25 NC 50030772
UG 20 NO
50032664 UG 25 NO 50030773
Version of this documentation: UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
Symbols:
Assembly and initial start-up must be
carried out by qualified personnel only
and according to these Montage
Instructions.
DANGER
Indicates an immediate threatening danger.
Non-compliance with this information can result in death or
serious personal injuries (invalidity).
WARNING
Indicates a possible dangerous situation.
Non-compliance with this information can result in death or
serious personal injuries (invalidity).
CAUTION
Indicates a possibly dangerous situation.
Non-compliance with this information can result in damage to
property or light to medium personal injuries.
NOTE
Indicates general notes, useful operator tips and operating
recommendations which don't affect safety and health of the
personnel.

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 3
Table of Contents:
1.0.0 Declaration of Incorporation Page 4
1.1.0 Declaration of Incorporation according to the Machinery Directive 2006/42/EG
2.0.0 Module Information Page 5
2.1.0 Transport and storage (packing and unpacking) Page 5
2.1.1 Assembly for the gripper Page 6
2.1.2 Mounting for the gripper fingers Page 6
2.1.3 Hole matrix and centering bushings Page 7
2.1.4 Tightening torques for bolts Page 8
3.0.0 Montage Instructions Page 9
3.1.0 Manufacturer address Page 9
3.1.1 Symbols Page 10
3.1.2 General description Page 10
3.1.3 General description for the module Page 11
3.1.4 Scope of supply Page 12
3.1.5 Intended use Page 12
3.1.6 Guarantee Page 13
3.1.7 Areas of application Page 13
3.1.8 Dimensions drawing UG 20 Page 14
3.1.9 Technical data of the UG 20 Page 15

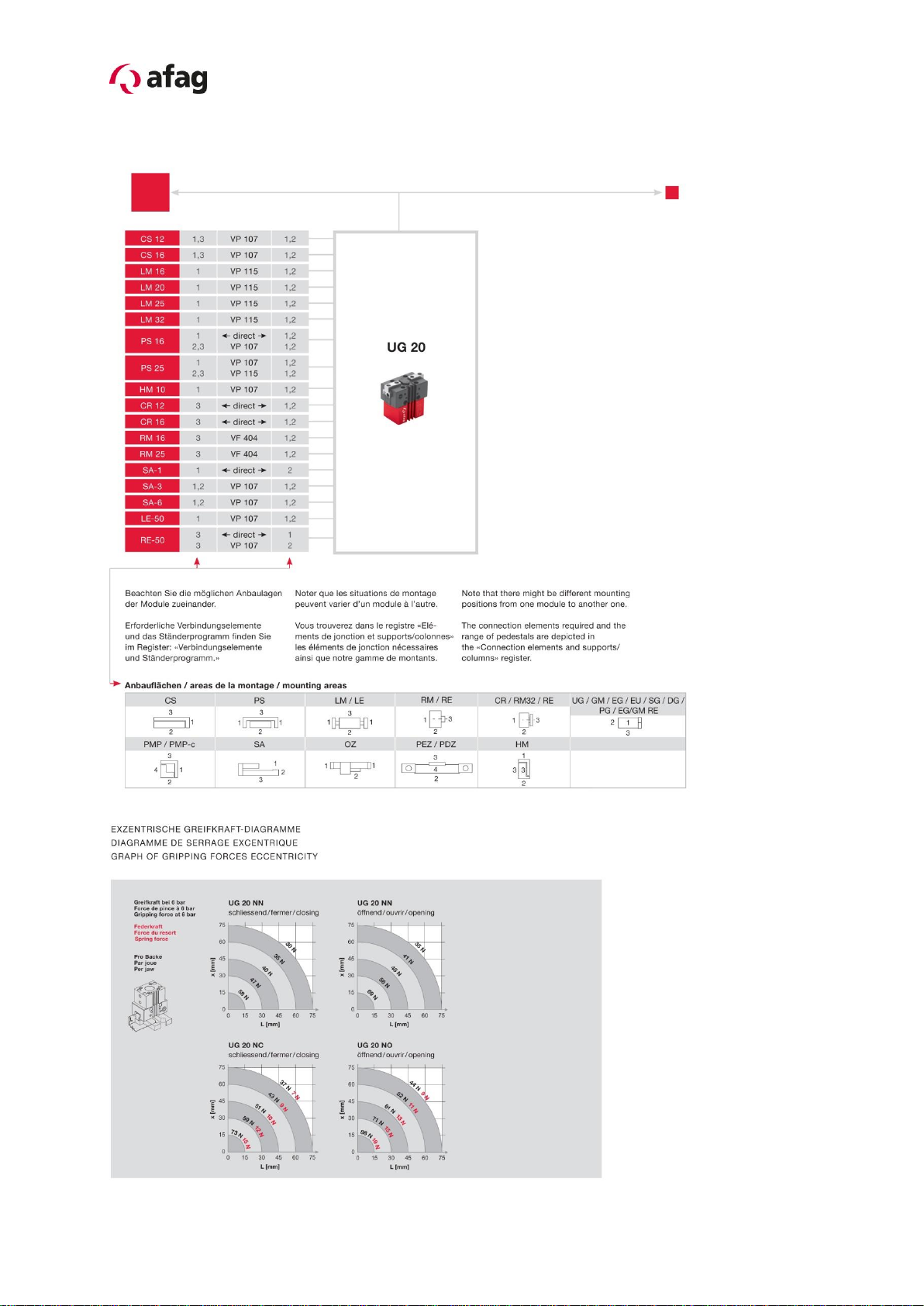

3.2.0 Preferred combinations UG 20 Page 16
3.2.1 Dimensions drawing UG 25 Page 17

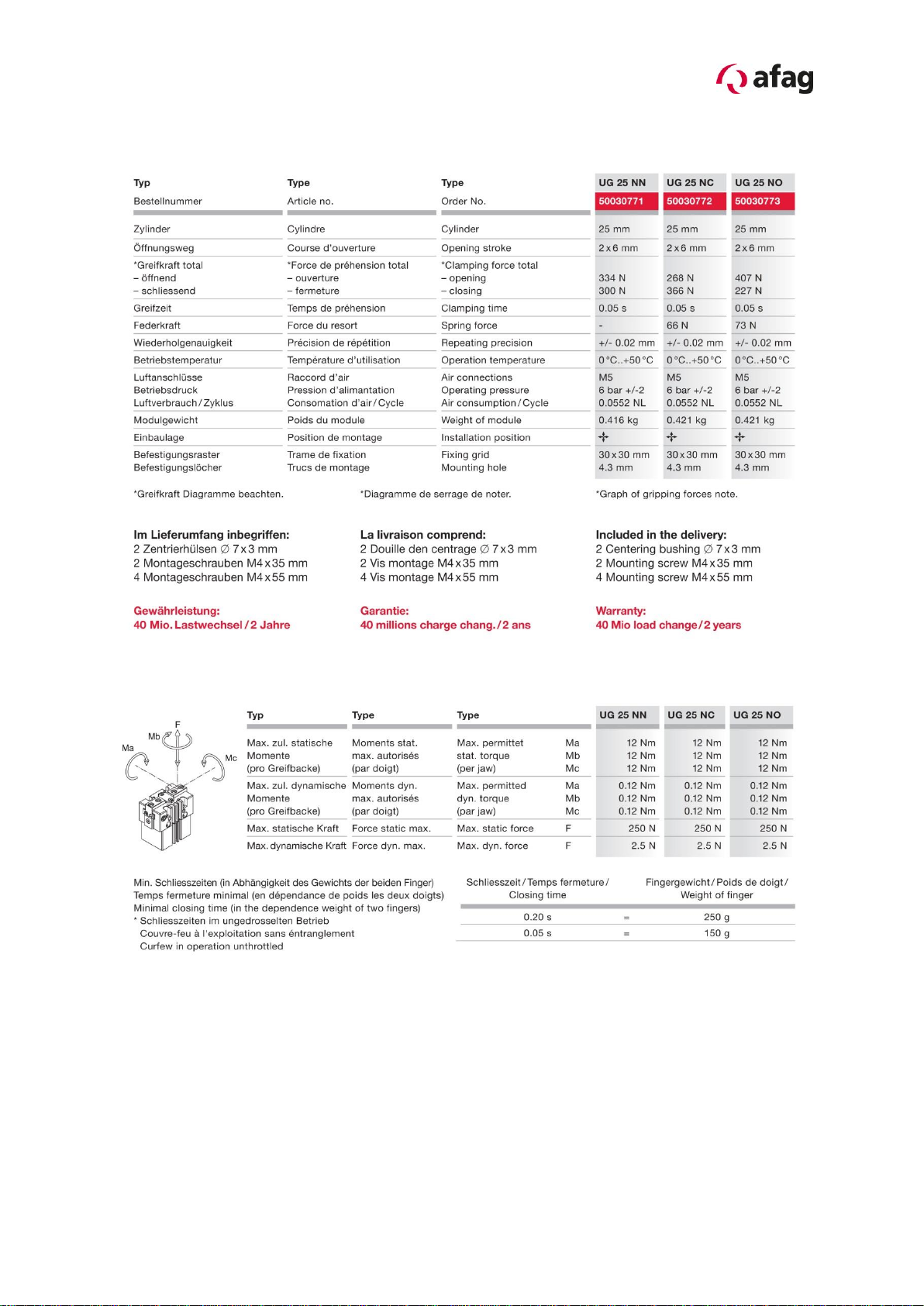

3.2.2 Technical data of the UG 25 Page 18

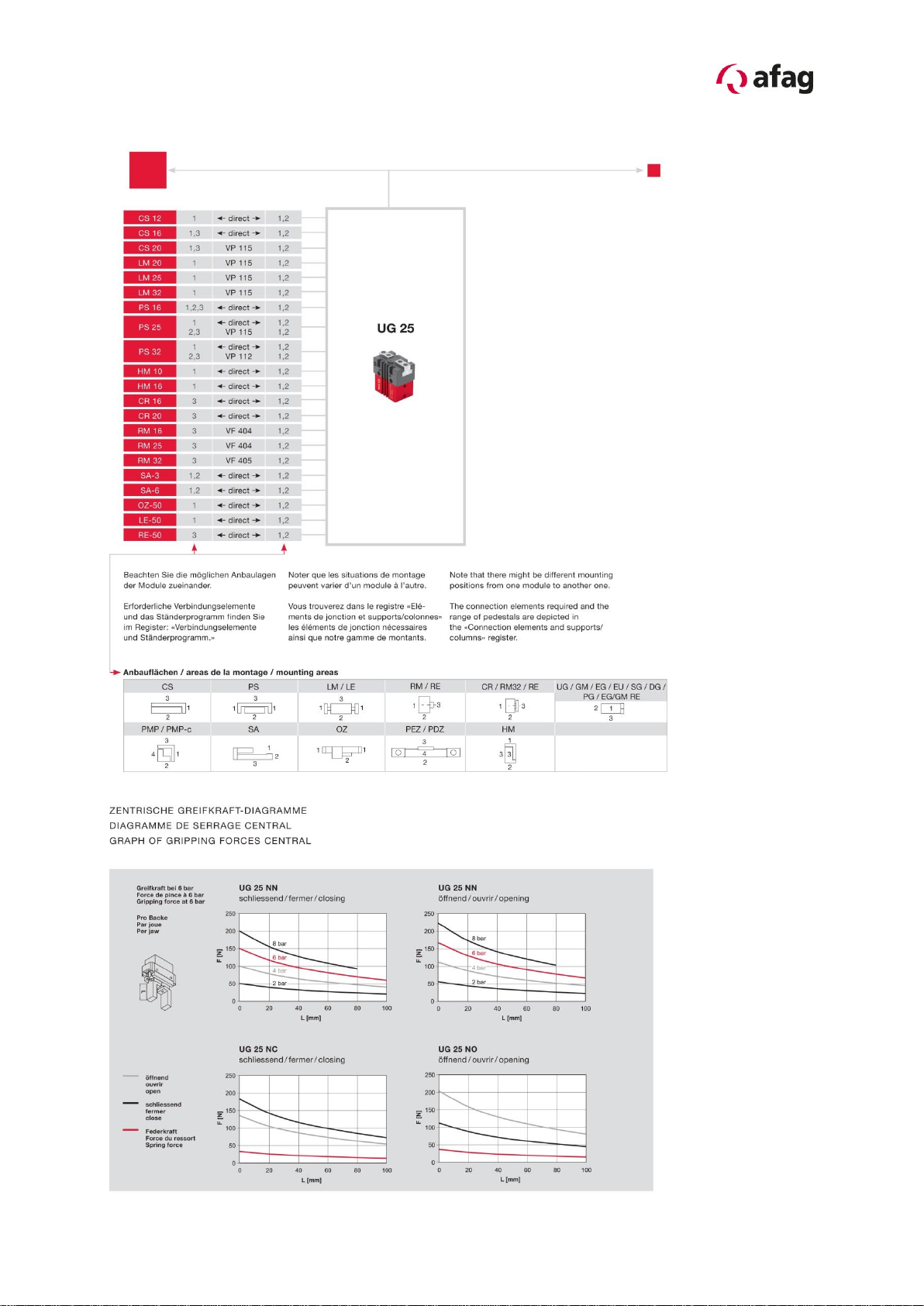

3.2.3 Preferred combinations UG 25 Page 19
3.2.4 Pneumatic connection UG Page 20
3.2.5 Preparation for commissioning Page 21
3.2.6 Preparation for Start-up Page 21
3.2.7 Fitting the proximity switch in the module groove Page 22
3.2.8 Example of application of sensor technology combined with Page 23
4.0.0 Maintenance Instruction Page 24
4.1.0 Maintenance and servicing of the UG 20 / UG 25 Page 24
4.1.1 Servicing Page 25
4.1.2 Accessories for the UG 20 / UG 25 Page 26
4.1.3 Trouble-shooting Page 26
4.1.4 Disassembly and repair Page 27
5.0.0 Disposal Page 27

4 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
1.0.0 EC Declaration for Incorporation
1.1.0 According to 2006/42/EC dated 09. June 2006, Appendix II B VI for
Incorporation of partly completed machinery.
The manufacturer: Afag Automation AG, Fiechtenstrasse 32, CH-4950 Huttwil
Tel. [phone], www.afag.com
As manufacturer of the partly completed machine we declare that:
-The specified machine corresponds to the listed essential requirements of the
directive 2006/42/EG, wehere applicable the other directives and standards
listed below.
Producte name: Universal gripper (pneumatic)
Types: UG 20 / UG 25
Sequential series No. 50xxxxxx
Machinery Directive 2006/42/EG
-The relevant technical documentation is compiled in accordance with part B of
Annex VI
-The relevant technical documentation in accordance with part B of Annex VI
will be transmitted in response to a reasonable request by the national
authorities in printed from or in electronic from (pdf).
Notes to the Declaration of Incorporation according to the Machinery
Directive 2006/42//EC, Annex IIB, section 4.
(Checklist on accurate and basic health and safety requirements).
-1.1; 1.1.1; 1.1.2; 1.2.3; 1.2.4.4; 1.3; 1.3.5; 1.3.6; 1.3.7; 1.3.9; 1.4.1; 1.5; 1.5.3;
1.6; 1.6.1; 1.6.3; 1.6.4; 1.7; 1.7.4; 1.7.4.1; 1.7.4.2
-Increase of the harmonized standards applied:
-EN ISO 12100-1; EN 12100-2 partly fulfilled
This partly completed machinery must not be put into service until the final machinery
into which it is to be incorporated has been declared in conformity with the provisions
of this Directive 2006/42/EC, where appropriate.
Name and address of the person authorised to compile the relevant technical documentation:
Lanz Beat, PM & Marketing-Services, Afag Automation AG
Place, Date: Huttwil, 06.02.2013
Siegfried Egli Markus Werro
Operator Managing Director
Afag Automation AG

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 5
2.0.0 Module Information
2.1.0 Transport and storage (packing and unpacking)
CAUTION
The UG Universal gripper is packed in the original cardboard
box; if the module is not handled properly it may fall out of the
box when unpacking and cause injuries to limbs or squeeze
your fingers.
NOTE
Technical specification the safety information.
This information sheet must be read and applied by any person
change of carring out work with and on this module
pneumatic/electrical.

6 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc

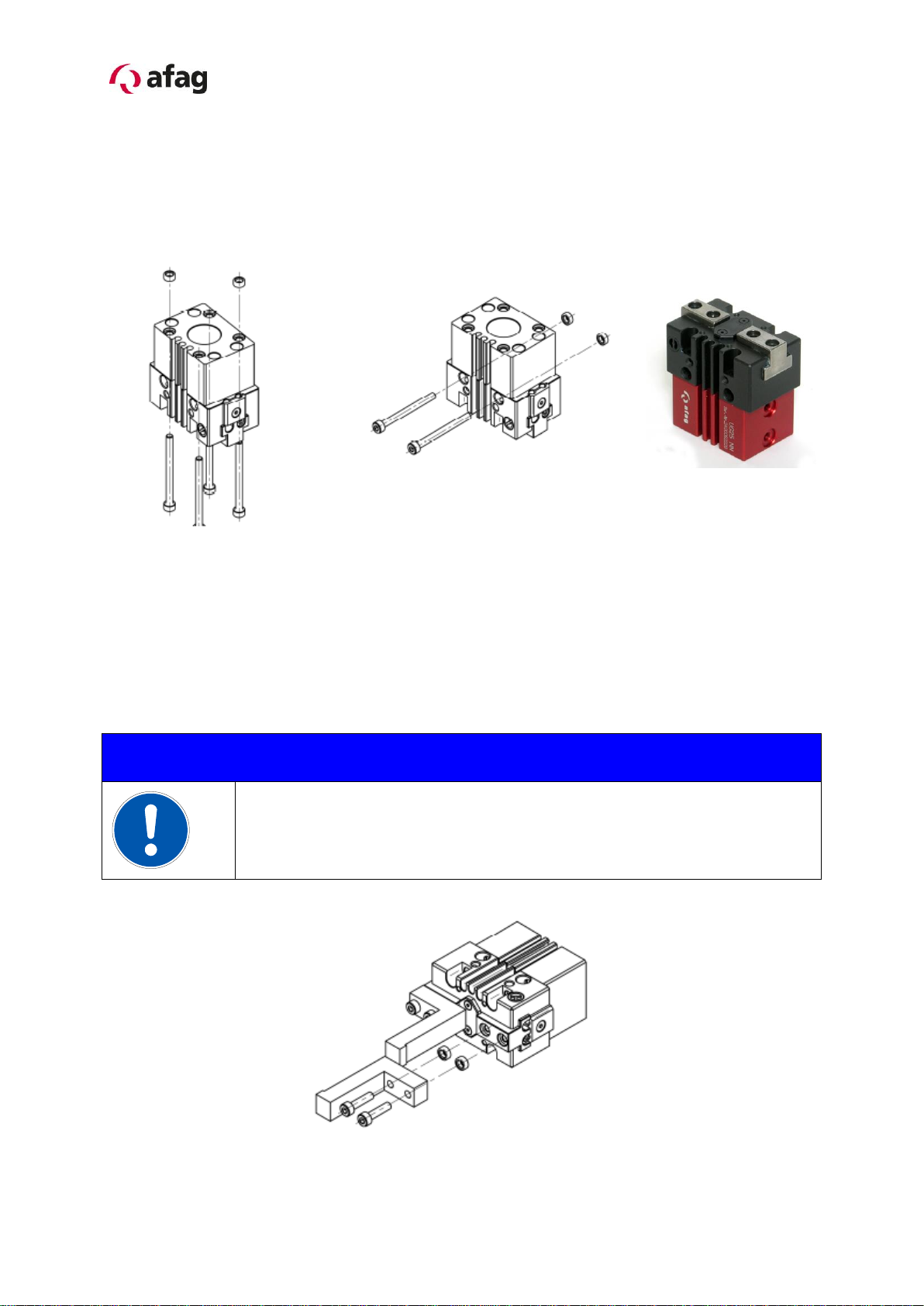

2.1.1 Assembly for the gripper
Depending on the application the gripper can be attached from the side or from
below:
Use the centering bushings included in the scope of supply to determine the position.
2.1.2 Mounting for the gripper finger
NOTE
Further elements to be mounted can be attached to the fastening
threads for the holding-down device.
(see chapter Description)
Installation from below Installation from the side
Fitting of grip fingers

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 7
2.1.3 Hole matrix and centering bushings
Hole matrix at the UG 20 / UG 25 Universal gripper
UG 20
UG 25
Hole matrix
20x20mm
Hole matrix
30x30mm
Thread / bore hole
M3
Thread/bore
hole
M4
Centering
bushings (H7)
Ø 5x2.5mm
Centering
bushings
Ø 7x3mm
Use the centering bushings included in the scope of supply for positioning and insert
these sleeves in the diagonally opposite bore holes of the mounting grid.

8 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
2.1.4 Tightening torques for bolts
The screws to be used for assembly must at least satisfy the following conditions:
Standard: VDI 2230
Strength: class 8.8
Surface: galvanized blue, oiled or greased
Thread
Tightening moments
M3
1,1 … 1,4 Nm
M4
2,6 … 3,3 Nm
M5
5,2 … 6,5 Nm
M6
9,0 ... 11,3 Nm
M8
21,6 … 27,3 Nm
This is an incomplete machine
Assembly of the UG Universal gripper in a system
The series of the UG Universal gripper is used for the linear, smooth movement of
rigidly mounted loads under the ambient and Installation conditions defined for this
module, see Technical data. The UG Universal gripper can be installed in the
horizontal or vertical position.
NOTE
These Montage Instructions should be read carefully before carrying
out any activity on or with the UG Universal gripper. The UG
Universal gripper may only be deployed in accordance with the
intended use.
NOTE
Safety instructions
Modifications on the UG Universal gripper that are not described in
these Montage Instructions or have not been approved in writing by
Afag Automation AG are not permitted. In case of improper changes
or assembly, installation, operation and maintenance or repairs Afag
rejects all liability.

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 9
3.0.0 Montage Instructions
3.1.0 These Montage Instructions are valid for:
Producte name: UG –Universal gripper (pneumatic)
Types: UG 20 and UG 25
Sequential series: No. 50xxxxxx
This is an incomplete machine
This partly completed machinery must not be put into service until the final machinery
into which it ist o be incorporated has been declared in conformity with the provisions
of this Directive 206/42/EG, where appropriate.
Name and address of the person authorised to compile the relevant technical
documentation: Lanz Beat, PM & Marketing-Services, Afag Automation AG

10 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
3.1.1 Symbols
Assembly and initial start-up must be carried out by qualified personnel only and
according to these instructions.
CAUTION
Indicates a possibly dangerous situation.
Non-compliance with this information can result in damage to
property or light to medium personal injuries.
NOTE
Indicates general notes, useful operator tips and Installation
recommendations which don't affect safety and health of the
personnel.
3.1.2 General description
This is an incomplete machine
The series of the UG 20/25 Universal gripper is used for the linear, smooth
movement of rigidly mounted loads under the ambient and Installation conditions
defined, see Technical data.
The UG 20/25 Universal gripper can be installed in the horizontal or vertical position.
Modifications on the UG 20/25 Universal gripper that are not described in these
Montage Instructions or have not been approved in writing by Afag Automation AG
are not permitted. In case of improper changes or assembly, installation, operation,
maintenance or repairs, Afag Automation AG rejects all liability.

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 11
3.1.3 General description for the module UG 20 / UG 25
1
Cylinder casing
7
Cover of fastening screws
2
Jaw casing
8
Side mounting holes
3
Grip jaws
9
Top Mounting holes
4
C-grooves for magnetic sensors
10
Fastening thread of holding-down
device
5
Holder for inductive sensors
11
Cover plate of grip mechanism
6
Set screws of stroke detection
12
Pneumatic connections
The grippers UG 20 and UG 25 consist of the cylinder casing (1) and the jaw casing
(2). The two casings are firmly connected with each other and cannot be separated.
The pneumatic cylinder (1) which transmits its movements to the grip jaws (3) via two
reversing levers operates in the pneumatic cylinder. The grip jaws (3) move parallel
with each other. The grip mechanism is protected from dirt and dust by the cover
plate (11).
The grippers are available as type NN (without spring preload), NC (pressureless,
closed) and NO (pressureless, open). They change of design is not possible.
To query the gripping positions and depending on the requirement up to three
magnetic sensors (accessories) as well as up to two inductive sensors (accessories)
can be installed either in the C-grooves (4) or in the holder (5). Thus the gripper can
check up to 5 positions.
One possible application is the query „Gripper open“, „Gripper closed“ and „Part
gripped“. When positive grip fingers and asymmetric parts are used it is also possible
to check whether the part is held in the correct position in the gripper.
The inductive sensors are covered by the set screws (6). Loosen the fastening
screws under the cover (7) to adjust the set screws (6) and then retighten the
fastening screws.
The 4 threads (10) can be used to install holding-down devices or similar add-on
parts.
2
1
5
12
4
3
7
8
6
9
7
10
11

12 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
3.1.4 Scope of supply
Quantity
Description
1
Module
2
Centering bushings Ø 5x2.5 mm (UG 20)
2
2
4
2
Centering bushings Ø 7x3 mm (UG 25)
Mounting screw M3x30 mm (UG 20)
Mounting screw M3x50 mm (UG 20)
Mounting screw M4x35 mm (UG 25)
4
Mounting screw M4x55 mm (UG 25)
3.1.5 Intended use
The series of the UG Universal gripper is used for the linear movement of rigidly
mounted loads under the ambient and Installation conditions defined for this module;
see Technical catalogue.
NOTE
These Montage Instructions should be read carefully before carrying
out any activity on or with the module.
The module may only be deployed in accordance with the intended
use.
Modifications on the module that are not described in these Montage
Instructions or have not been approved in writing by Afag are not
permitted. In case of improper changes or assembly, installation,
operation, maintenance or repairs, Afag rejects all liability.
CAUTION
Connection of compressed air and operation of pneumatic
systems may cause unpredictable movements which may result
in personal injury or damage to property.
When connecting compressed air for the first time make sure that all air throttles are
closed. Aerate the system slowly.

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 13
3.1.6 Guarantee
The module is designed for 40 million/ 2 years load alternations* under the ambient
conditions and conditions of use defined for this module, see catalogue. Wearing
parts (shock absorbers and stop screws) are excluded from the guarantee. The
guarantee includes repair or replacement of faulty Afag parts.
*whichever comes first
When repairs are carried out by the customer without prior training or instruction by
Afag automation AG the warranty will become void. Any additional claims are
excluded.
3.1.7 Areas of application
The UG 20/25 are exclusively designed for the gripper movement of load capacities
of up to UG 20 gripping forces open178 N (closed 150 N); UG 25 gripping forces
open 334 N, (closed 300 N).They can also be used in combination with other
modules than Pick &Place machines, and allowed gripping forces may not become
exceeded.
Any other use is regarded as inadequate.
NOTE
The manufacturer does not accept any liability for damage
resulting from such use. The risk is that of the user alone.
Intended use also includes paying attention to the Montage Instructions and
observing the maintenance and repair instructions specified by the manufacturer.
The UG Universal gripper may only be operated and serviced by correspondingly
trained personnel who have also profound knowledge of the dangers.
CAUTION
The applicable regulations for prevention of accidents and the
other generally accepted safety-relevant and occupational
safety and health regulations are to be followed.

14 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
3.1.8 Dimensions drawing UG 20

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 15
3.1.9 Technical data of the UG 20

16 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
3.2.0 Preferred combinations UG 20

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 17

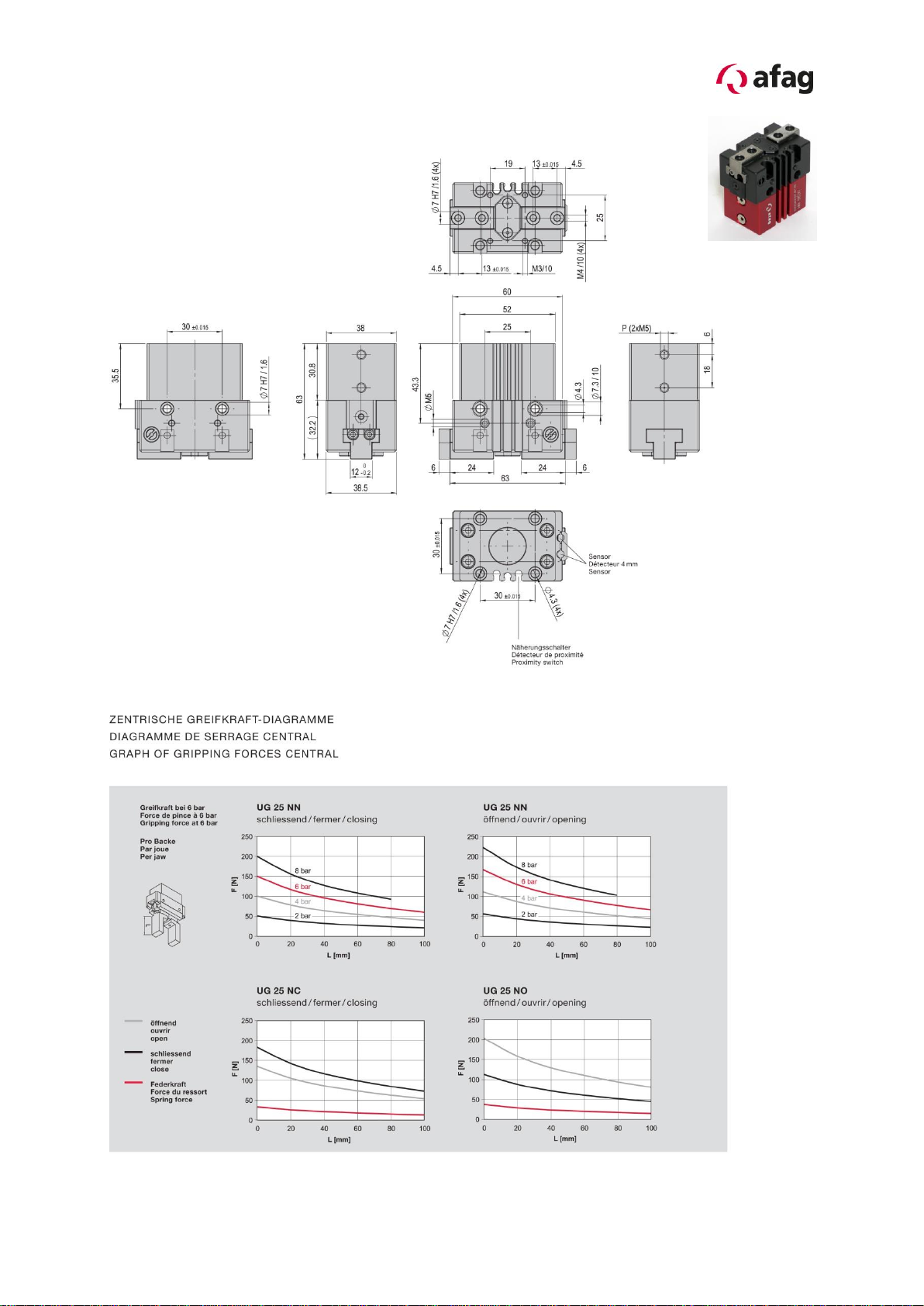

3.2.1 Dimensions drawing UG 25

18 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
3.2.2 Technical data of the UG 25

UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc 19
3.2.3 Preferred combinations UG 25

20 UG 20-UG 25-OI-vers. 3.2 gb. 06.08.14.doc
3.2.4 Pneumatic connection for the UG-Universal gripper
NOTE
Minimal compressed air quality according to
ISO 8573-1; 2010 (7-4-4)
P1
“Close” connection
P2
“Open” connection
1
Compressed air connection
4
One-way restrictor
2
Maintenance unit
5
Gripper (UG 20 /UG 25)
3
5-2 port directional control valve
P1/P2
Prise d’air
1
2
4
5
3
P1
P2
