TS600/300 Exhaust Silencer Kit
Agilent offers an exhaust silencer kit for TriScroll pumps that reduces the total sound
pressure level due to exhaust pulsation, mitigates audible noise in the most sensitive
frequencies, and collects tip-seal dust using a five-micron filter element*.
Figure 3 on page 10 shows the kit mounted at the exhaust of a TS600 in the rear position.
Given that the connector pipe underneath the pump's head can pivot 360°, the kit can be
positioned in front, on the side, or at the rear of the pump, and secured with a tie-wrap
(included but not pictured).
*Replacement polyester filter element rated 99% efficient at the 5-micron particle size, P/N:
REPLSLR FILTER.
Table 1 breaks down the kit parts and quantities.
Table 1 Exhaust Silencer Kit for TriScroll, P/N: EXSLRTRISCROLL
Part Name Qty
Exhaust Silencer TriScroll 1
Barb Fitting 3/8" NPT x 1/2" hose 1
Barb Fitting 1/4" NPT x 1/2" hose 1
Barb Fitting 3/4" NPT x 1/2" hose 1
Coupling, Reducing, 1"NPT x ¾" NPT 1
Tygon hose black .75" OD x .125" w x 12" long 1
Exhaust Silencer/Resonator Assembly 1
Hose Clamp 4
Mount, Adhesive Backed 2
Tie Wrap 2

TriScroll Exhaust Silencer Kit
8
DRAFT
Installation
NOTE To ensure proper operation, and to prevent damage, the kit
must be installed and operated only as specified.
To install:
1. Unscrew the exhaust extension, shipped with the standard pump.
This step is only for pumps with the extension mounted on the pump. If exhaust
extension is not mounted, go to step 2.
2. Screw the hose barb fitting into exhaust fitting underneath the pump:
❑½" hose x ¼" NPT for TS300
❑½" hose x 3/8" NPT for TS600
Refer to Figure 2 for reference on barb-to-hose insertions.
3. Cut the Tygon tubing in two pieces. Suggested lengths are: 7¼" and 4¾".
4. Connect the longer piece of Tygon tubing into (Figure 1 on page 9):
a. The ½" hose end of the 3/8" NPT barb, coming from underneath the pump and
secure it with a hose clamp.
b. Connect the silencer/resonator chamber equipped with the ½" hose end 3/8"
NPT barb to the other side of the longer Tygon tubing and secure with a hose
clamp.
Refer to Figure 1 for reference on hose connections.
5. Connect the shorter piece of Tygon tubing by (Figure 1 on page 9):
a. Connecting the resonator using the another ½" hose on the silencer/resonator
and secure with a hose clamp.
b. Attaching the reducer coupling to the muffler-filter and then the ¾" NPT x ½"
hose barb fitting to the coupling.
c. Connecting the muffler-filter to the 2nd piece of Tygon tubing and secure with a
hose clamp.

TriScroll Exhaust Silencer Kit
DRAFT
9
Figure 1 Hose Connections
Figure 2 Exhaust Silencer Kit: Connection with TS600 - Left and TS 300 - Right
Tygon hose cut 2
pieces
Silencer assembly Muffler-Filter 1" NPT
3/4" NPT to 1" NPT
coupling
3/4" NPT barb fitting to
1/2" NPT hose (not
visible)
Hose clamps (4)
included but not
shown
1/2" Barb X
3/8" NPT Male Adapter
1/2" Barb X
1/4" NPT Male Adapter
Revolving
connector-pipe TS300:
underneath pump head
Revolving
connector-pipe TS600:
underneath pump head

TriScroll Exhaust Silencer Kit
10
DRAFT
Figure 3 and Figure 4 show the units installed in front and back positions.

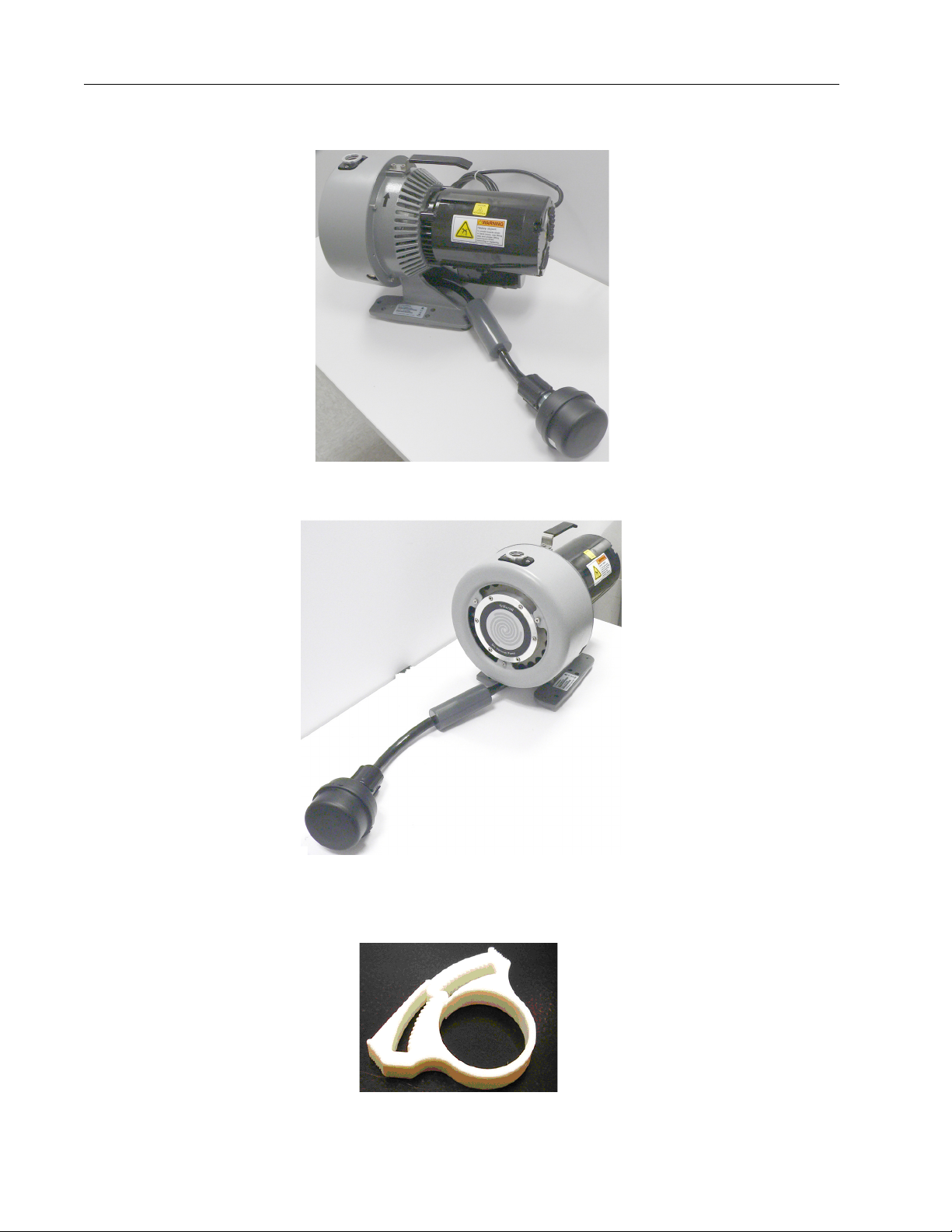

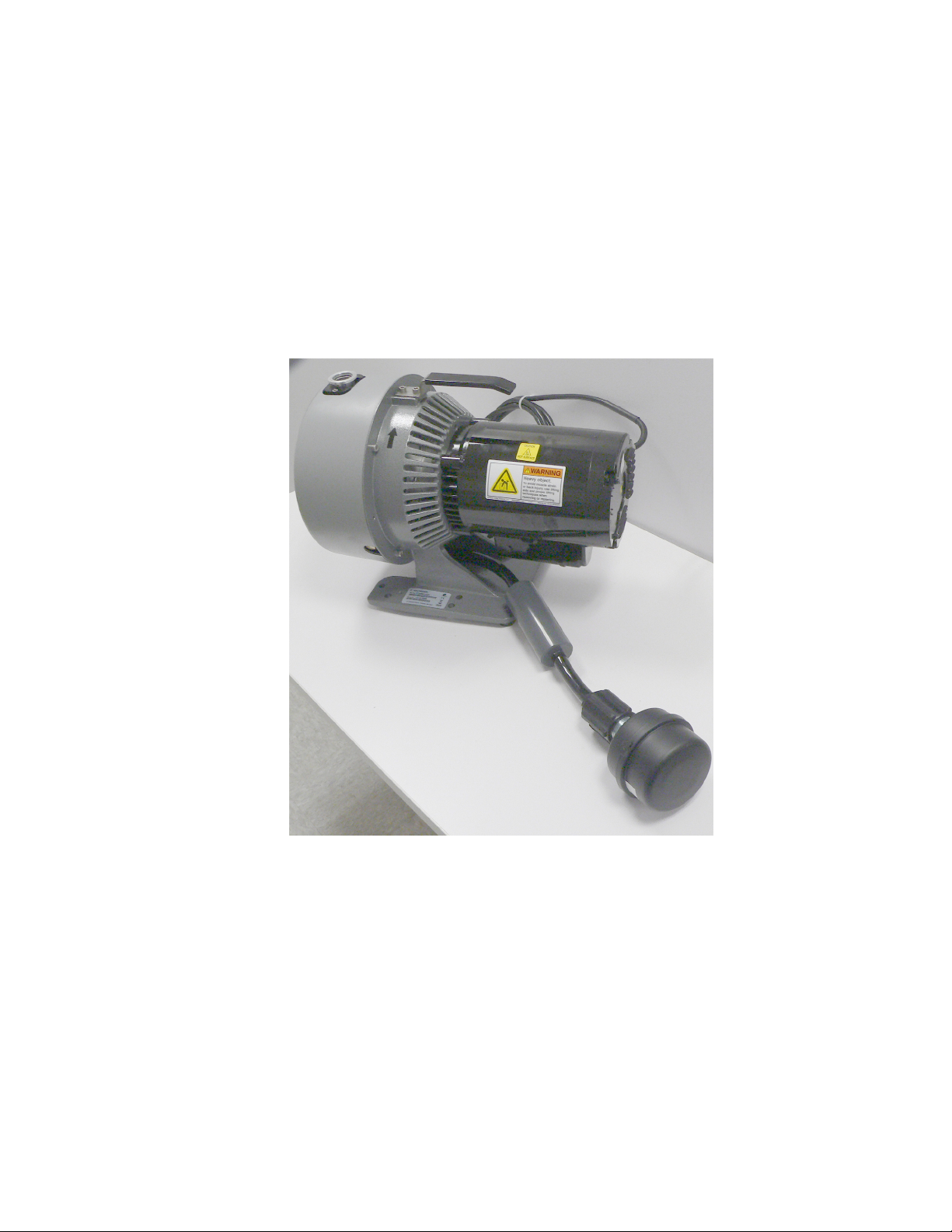

Figure 3 TS300 with Exhaust Silencer Kit Installed in Rear Position
Figure 4 TS300 with Exhaust Silencer Kit Installed in Front Position
Figure 5 shows the clamps included with the kit.
Figure 5 ½" Hose Clamp

TriScroll Exhaust Silencer Kit
DRAFT
11
Figure 6 shows the mounting nut dimensions.

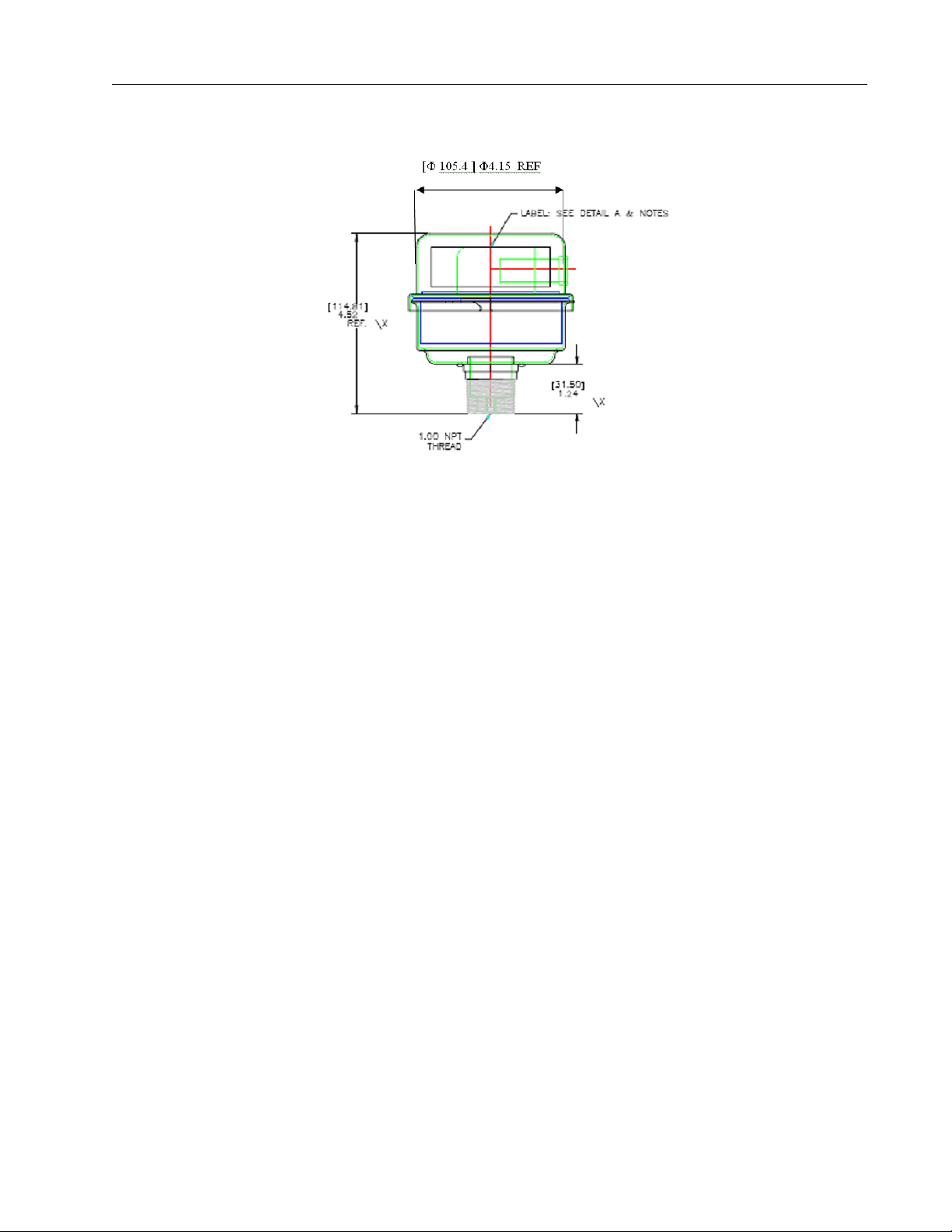

Figure 6 Exhaust/Resonator Dimensions
Performance
Typical reductions are 6 dBA for TriScroll 600 pumps and 1 dBA for Triscroll 300. In
addition, the silencer/resonator assembly mitigates exhaust pulsation noise in the most
sensitive frequencies.
Maintenance
Replace the five-micron filter element after every tip-seal or module change.
