aidapt VG705BL User manual

Rise and Recline Chair
Cansfield Range
Fixing and Maintenance Instructions
This is not a medical device.
This file is available to view and download as a PDF at
www.aidapt.co.uk. Sight impaired customers can use a
free PDF Reader (such as adobe.com/reader) to zoom in
and increase the text size for improved readability.
VG705OAT
Oat
VG705M
Mink
VG705BL
Blue
Maximum Load - 135kg

Fixing and Maintenance Instructions 2
INTRODUCTION
This Rise and Recline chair is designed to assist people easily from the chair
using electrically operated motors.
Please read the instruction manual thoroughly for the correct usage of the
chair, especially the safety information.
Ensure you keep this manual readily available for future reference after you have
read it through.
SAFETY INFORMATION
WARNING: The chair must be assembled correctly
according to the assembly instructions enclosed.
The manufacturers of the chair, their agents and
distributors are not liable for any damages caused by
improper assembly of the chair.
WARNING: Please ensure you take care when adjusting chair
positions to avoid trapping or pinching of body parts.
WARNING: Please lower the chair with caution as there is a risk of
entrapment. Ensure there are no children or pets underneath the
chair when lowering. Also carers should stand clear of the chair
when lowering.
WARNING: This chair is not suitable for use by children.
Any children or animals within the vicinity must be
supervised by an adult at all times and should never be allowed to
play with the chair.
WARNING: Do not sit on footrest.
WARNING: Exercise care when lowering into the chair as shock
loads can severely damage the chair and the mechanism.
WARNING: This is an electrical item and should be treated with
caution.

Fixing and Maintenance Instructions 3
•Ensure the chair is placed on a flat, level floor.
•Do not use your chair in an excessively humid or dusty environment, as it may cause
electrical shock or mechanical problems. The chair must be kept in a dry room.
•Do not use your chair in room temperatures exceeding 40 degrees.
•Do not expose your chair to heaters, stoves or direct sunlight to protect the upholstery.
•Do not use your chair outdoors.
•Ensure the voltage corresponds with the specifications indicated for the chair.
•When the chair is not in use for long periods of time, disconnect the power cord from the
main supply.
•Do not sit, rest or place any heavy objects on the armrest, footrest or back of the chair.
•Do not jump or play on the chair, as this is not a toy.
•To prevent any unauthorised use, Aidapt Bathrooms Ltd recommends that the plug is
removed from the socket when the product is not in use.
•Do not disconnect the plug from the electrical outlet roughly or unplug by pulling the cord.
•Do not connect or disconnect the plug from the electrical outlet with wet hands. It may result
in electrical
When the chair is not in use it should be returned to the seated
position.
Motion Lockout Control = Remote Control
The remote control is easily removed and locks the chair in position. The
position cannot be moved without re-plugging in the remote control.

Fixing and Maintenance Instructions 4
shock or mechanical breakdown.
• Do not place the AC/DC adaptor cord under the chair as it may cause damage to the cord and result
in electrical shock.
• Do not let the AC/DC adaptor cord hang down from the chair.
• Do not use the chair if the AC/DC cord or plug is damaged, or if the electrical outlet is excessively
loose. Contact a professional for inspection.
• If necessary, the power cable may be replaced with an identical one, but it must only be replaced by
a qualied technician.
• Do not touch the surface of the plug immediately after use, as it can be hot.
• Do not operate the remote control with wet hands, sharp or heavy objects.
• Avoid dropping the remote control.
• Do not step or place heavy objects on the remote control wire.
• Do not put your ngers and hands in between the seat and the footrest when the chair is
reclining or when the chair is returning back from the recline position to sitting position. You
may hurt your ngers/hands badly.
• This chair must be used in accordance with the instructions provided.
• The chair is not for professional use.
• The manufacturers of this chair, their agents and distributors are not liable for any damages to person(s)
or property(s) resulting from improper use of the chair.
• Use caution when using the lift feature if the chair back is reclined. The back should be in the upright
position when entering and leaving the chair unless a side transfer is being done using a vertical lift.
• Ensure the chair castors are braked when transferring.
CAUTION: A sudden change in temperature from cold to warm can cause condensation on electrical
and mechanical parts. It is recommended that the chair be allowed to warm up for a minimum of an hour
before using to ensure proper operation and reduce the chances of mechanical breakdown.
Do not use the lift chair if any of the following events occur:
• Water is accidentally spilled on the chair. This may result in electric shock.
• The upholstery is torn and the inside mechanism is exposed.
• You detect any malfunction or another abnormal condition during operation.
Use Caution if there is a power failure. Injury may occur when power is restored unexpectantly if the
operation buttons are depressed. Avoid using the chair during severe lightning storms.
Please switch the power OFF immediately and disconnect the AC power cord from the electrical outlet
in the event of accidental damage or malfunction. Contact a professional for servicing.
SPECIFICATIONS:
WEIGHT - the weight of the chair is 50kgs (110lbs)
- the maximum weight capacity of the chair is 135kgs (297lbs)
Power Requirements – 100~240 V 50Hz 70W
Note motor operation: 2 minutes is available for continual use, allow 15 to 30 seconds between
cycling the motor.
CASTORS:
Your lift chair is supplied with four castors for easy movement of chair and transferring of the
user. Ensure the rear castors are locked before using any of the positioning functions to prevent
movement and possible injury or damage.
SAFETY INFORMATION (CONTINUED)

Fixing and Maintenance Instructions 5
ASSEMBLY:
Some models of chairs are packaged in two pieces consisting of the back and the base to make transport
and delivery easier. Assemble the chair as per the assembly instructions below.
DIRECTIONS:

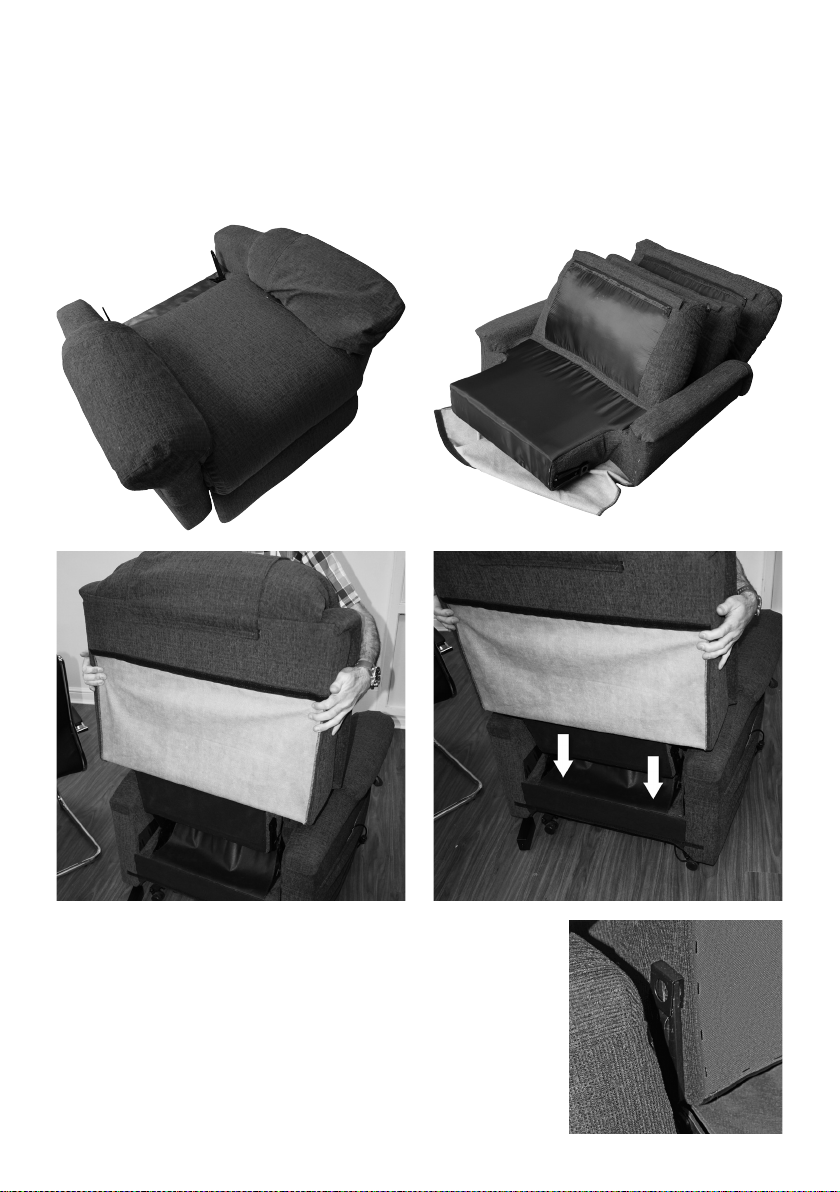

1) Remove seat (g. 1) and back (g. 2) from packing bags.
2) Hold back the upholstery ap with both hands and line up brackets.(g. 3)
3) Apply downward pressure (g.4) and ensure both sides snap into locked position. (g. 5)
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5

Fixing and Maintenance Instructions 6
Note: Both back receivers need to be lowered onto the at bars at the same time and evenly to prevent
binding.
Note: Do not assemble the chair if the upholstery or any of the parts of the chairs are damaged.
Check all parts carefully before assembling the chair. If any problem is apparent contact the vendor.
ELECTRICAL CONNECTIONS:
Note: Make sure all the wires are properly connected to
ensure proper function.
1. Connector for the motor and wiring (g. 6)
2. Connector for wiring and adaptor (g. 7)
3. Connector for adaptor wiring and plug wiring (g. 8)
4. Hand control connection (g. 9)
CHAIR PLACEMENT:
• Allow sufcient space in front of and behind the
chair for reclining purpose.
• To allow for unimpeded reclining make sure there
is a minimum of 65 cm behind the chair.(Fig. 10)
• Ensure there is at least 40 cm in front of the chair.
(g. 10)
• Place the chair on a at surface/oor in a dry
room.
65CM
40CM
ASSEMBLY (CONTINUED)
Fig. 6
Fig. 7 Fig. 8 Fig. 9
Fig. 10

7
CHAIR PLACEMENT (CONTINUED):
Caution:
Make sure there is no obstruction behind or in front of the chair for a safe recline and lift during operation.
The area between the seat and the footrest should be kept clear to avoid a pinching hazard while the
chair is operating.
PRODUCT CARE & STORAGE:
1. How to store
• Wipe the dust and dirt off. Keep the chair clean and away from places of high humidity.
• If the chair is not in use for a long period of time, cover it with a piece of clean cloth to protect it from
dust. Store in a dry room.
• Do not store the chair under direct sunlight or in places of high temperatures. This may result in the
fading of fabric colour.
2. Self-maintenance
• Before cleaning, ensure that the Main Switch is turned off and AC plug is removed for the electrical
outlet.
3. Main Body
• Very mild soap can be used to clean the plastic, pipe and upholstery of the chair. Carefully wipe away
all traces of the soap with dry cloth.
• To clean a dry spot, dip a piece of soft cloth into some warm soap water, wring the cloth dry, and apply
to the spot.
• Do not use cleaning agents like benzene or thinner, or any other cleaners which may result in fading
of fabric colour and scratching of upholstery.
• Do not remove the upholstery for washing. Ironing of upholstery is strictly prohibited.
BATTERY BACK UP SYSTEM:

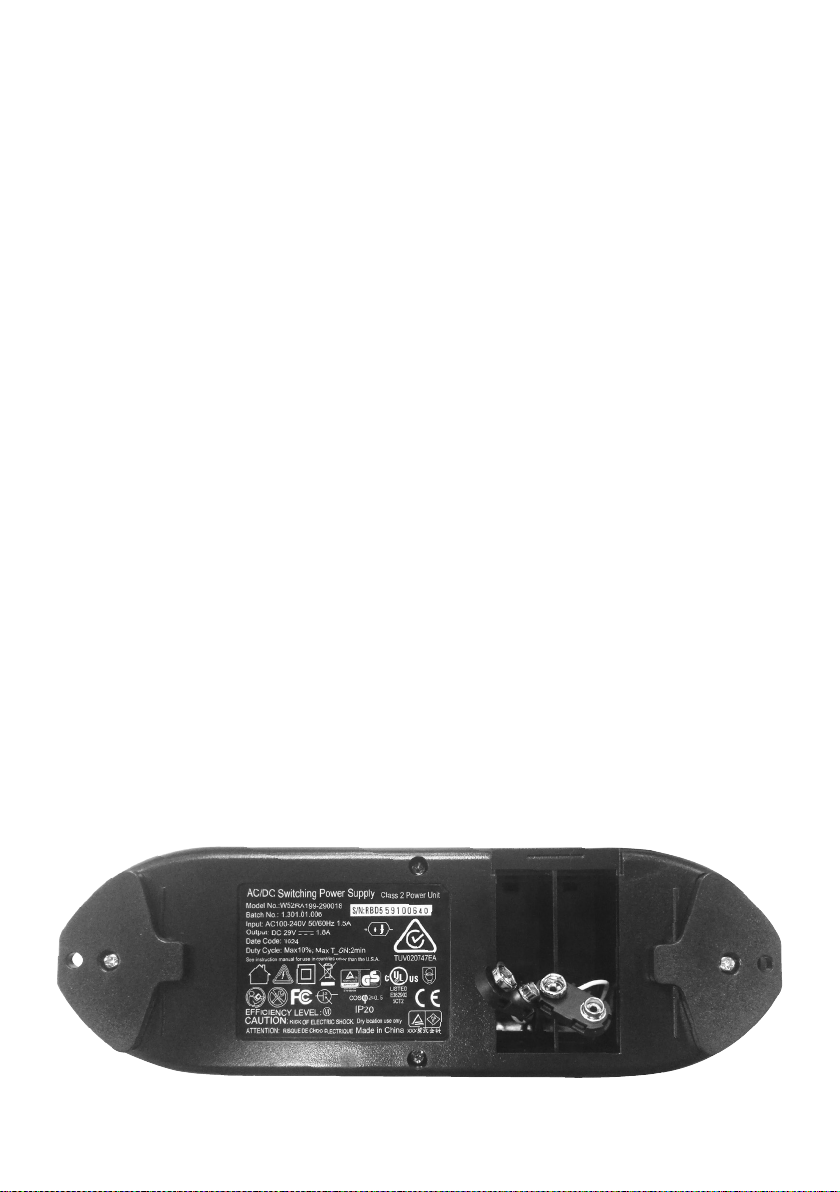

These chairs are supplied with a battery back-up system to allow exiting the chair during a power failure.
Two 9 volt batteries are required and not supplied with the chair.
In the event of a power failure the chair will automatically switch over to battery power but only run for
one cycle before the batteries are discharged. It is recommended that the batteries are replaced after
each emergency use, and also checked periodically.

Fixing and Maintenance Instructions 8
ADJUSTING THE CHAIR
This chair has a range of electrically operated adjustments that can be applied using the remote control
handset, specically:
Standard Sit
Position
Seat Lift
Position
Recline
Position

9
ADJUSTING THE CHAIR (CONTINUED)
WARNING: Please ensure you take care when adjusting chair positions to avoid trapping or
pinching of body parts.
Only the occupant or a reasonable person should operate the chair adjustments.
Chair should be returned to the seated position when not in use.
CAUTIONS:
• If the chair does not work properly, please contact the supplier.
• Only trained technicians should attempt repairs.
• There are no user serviceable parts inside.
REMOTE POSITION CONTROLLER UNIT:
• Ensure you do not overstretch the handset cable and that
the remote controller unit is not left on the oor.
• When the handset is not in use, this should be stored in the
pocket located on the side of the chair.
• Use only dry cloth for cleaning of the unit. Excess moisture
may damage the controller.
• Avoid damaging the handset as this will result in loss of
operation of the chair.
ELEVATING THE LEG REST
By pushing the ‘RECLINE’ button, the leg rest will elevate.
Please note movement can be stopped at the desired height
by releasing the pressure on the button.
By continuing to push the ‘RECLINE’ button it will recline the
backrest
WARNING: Do not sit on the leg rest. It cannot support weight
of an adult.
The leg rest is folded away when being used to aid standing.
LOWERING THE LEG REST
By pushing the ‘RISE’ button, the leg rest will lower. Once
again the movement can be stopped by releasing the
pressure button.
From the sitting position, if you continue to push the ‘RISE’
button, the chair will slowly begin to rise to enable the user
to stand.
SITTING-DOWN AND OR LOWERING THE CHAIR
From the standing position, by pushing ‘RECLINE’ the chair
will begin to lower back to sitting positon.
WARNING Please lower the chair with caution as there is
a risk of entrapment. Ensure there are no children or pets
underneath the chair when lowering. Also carers should
stand clear of the chair when lowering.
BUTTON A
Rise
BUTTON B
Recline

Fixing and Maintenance Instructions 10
RE-USE
Please ensure if this chair is being re-used by another user other than the person originally using it, the
new user must ensure the chair is suitable for his/her weight limit.
WARNING: Please ensure the chair is fully cleaned and disinfected before re-use to prevent the risk of
transmitting infections if being used in a healthcare setting.
DISASSEMBLY
In order to detach the backrest from the chair both locking pins need to be released at the same time so
we would suggest 2 able bodied people.
• Insert a at head screwdriver or other at instrument (do not use a knife or sharp object) underneath
the locking pins. (g. 11 & g. 12)
• Apply steady outward pressure (g. 12) to the pins on either side and apply gentle upwards pressure to the
backrest (g. 13 & g. 14). This will release the locking mechanism.
Fig. 11
Fig. 13
Fig. 14
Fig. 12

11
LIMITED WARRANTY INFORMATION
Adiapt Bathrooms Ltd, through its authorised distributor/service organisation, Rise and Recline chair
line to the original consumer only, be free from mate workmanship problems as follows:
1. One-year warranty on chair lift mechanism
2. One-year warranty on parts and labour
WARRANTY EXEMPTIONS:
• Any alterations, misuse or abuse
• Exceeding the weight capacity (297lb/135kg)
• Accidental damage
• Commercial use
• Battery leakage or spillage damage
• Upholstery damage, other than manufacturing defect.
Aidapt Bathrooms Ltd, at its sole discretion, reserves the right to replace or repair any part that has
become defective.
The warranty does not exceed to consequential costs resulting from the fault or defect of the product:
freight and travel costs, loss of earnings, or other expenses that one may incur.
Warranty is valid for the original purchaser only and the original receipt must be presented before any
warranty options are considered. Please also be prepared to provide the date of purchase and serial
number.
IMPLIED WARRANTIES:
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to
one (1) year form the date of purchase and to the extent permitted by law. Any and all implied warranties
are excluded. His is the exclusive remedy. Liabilities for consequential damages under any and all
warranties are excluded.
TECHNICAL SPECIFICATION
Seat width - 50cm
Seat depth - 51cm
Seat height - 43.5cm
Chair width - 72cm
Backrest height - 71cm
Chair height (sitting) - 109.5cm Chair
height (lifted) - 147cm Armrest
height (sitting) - 63cm Chair length
(reclined) - 171.50cm Footrest
maximum height - 57cm Chair
maximum rise - 59cm
Gross weight- 55kg
Net weight - 50kg
Fixing and Maintenance Instructions
