ALIGATOR RX800 Duo 4-core IPS User manual

RX800 Duo 4-core IPS
Quick Guide

Contents
Before you start............................................................2
DUAL SIM function.......................................................2
Important instructions..................................................2
Mobile phone controls.................................................6
Insert SIM card..............................................................8
S itch On / Off.............................................................9
The first start................................................................9
Activation and screen unlock....................................10
Android operating system..........................................10
Basic control...............................................................11
Finger print scanner....................................................14
Making calls................................................................15
SMS Messages............................................................17
Selection of net ork..................................................18
Photography...............................................................18
PC connection.............................................................19
Selection of SIM card for calling, SMS, internet.........20
PTT button..................................................................20
Safety and ecology......................................................20
Declaration of conformity..........................................21
2

Before you start
We thank you for buying of this resistant mobile phone
ALIGATO . Before you start, please read this quick guide
ith important instructions.
DUAL SIM function
Your mobile phone can operate on 1 or 2 „Nano SIM“ cards.
If you insert only 1 SIM card, your mobile phone orks like a
standard mobile phone.
If you insert 2 SIM cards, both are orking on line at the
same time and it is possible to make a call on either card.
Important instructions
Do not s itch on and do not use the mobile phone in
the prohibited areas
Do not use the mobile phone hile driving the car
Do not use the mobile phone near the sensitive
medical device unless you are sure that the radio
3

transmission of the mobile phone does not influence
its functions
Mobile phone can influence the function of the
electronic cardiac pacemaker or other implanted
apparatus - please consult your medical doctor
Turn off the mobile phone in the aircraft
D o not use the mobile phone near the filling petrol
station, turn off the mobile phone al ays near
explosives
Use al ays original batteries supplied by the producer
(danger of damage or explosion of the mobile phone)
Do not put the battery at the fire and do not expose it
to the temperature over +60°C (danger of explosion or
fire)
SAR – mobile phone meets the prescriptions for
maximal emission of the electromagnetic radiation
4

Please keep the mobile phone, hile making a call, at
least 2,5 cm a ay from the body to minimalise the
quantity of the el. magnetic radiation absorbed by
your body
Handle the device ith care, protect it against the fall
on the ground, mechanical damage, contamination or
extreme high temperatures. Never put the mobile
phone into parts.
Do not place the mobile phone or its holder in the car
at the place over the airbag
Keep it out of reach of the children and do not allo
them to play ith. It contains small parts that they can
suffocate or can hurt !
Soft are and hard are of the mobile phone are
continuously updated. The importer reserves the right
to alter the instruction manual or mobile phone
functions ithout a prior notice
5

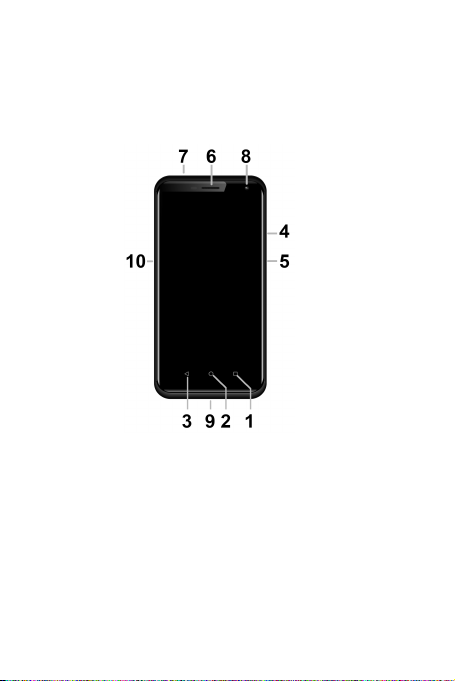

Mobile phone controls
1. Virtual button APK
2. Virtual button „Main Screen“
3. Virtual button „Back ards“
4. Volume
6

5. Button „S itch On / Off“
6. Earphone
7. Earphone connector
8. Front camera
9. Micro USB connector
10. Button „PTT“
7

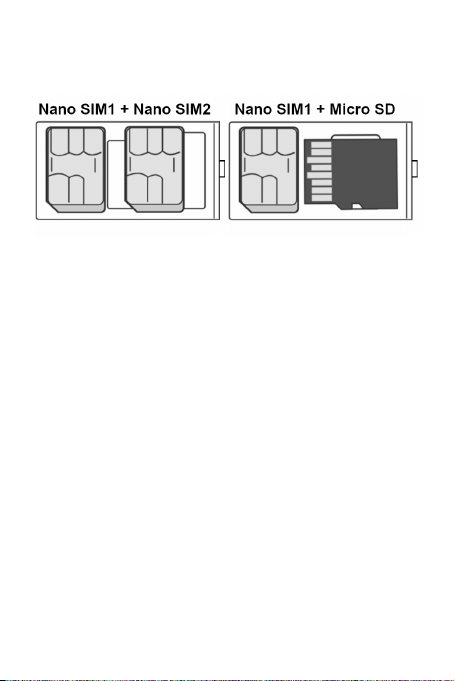

Insert SIM cards
Open the cover on the left side of the phone and gently pull
out the SIM card slot using the tool supplied by pushing the
tool tip into the hole next to the slot.
lnsert one or t o Nano SIM cards into the free positions.
You can also insert one Nano SIM and Micro SD memory
card.
Only one Nano SIM card can be inserted hen using the
Micro SD card.
8

Finally, carefully pull the card holder back.
Switch On / Switch Off
To Turn On – press the button On/Off (5) and ait for a
hile till the mobile phone is on.
To Turn off - press and hold the phone button (5) until the
display sho s the indo asking to shut do n. Then
confirm it and the mobile phone s itches off.
The first start
The first time you turn on your phone, a izard ill start,
allo ing you to make basic set up of the phone, net ork,
user account settings, etc. Select required language and
follo the on-screen instructions.
9

Activation and screen unlock
The screen ill be S itched Off after a certain time of
inactivity. You can S itch On/Off the screen by a short press
of the button (5).
Generally it is necessary to unlock the screen after the
activation. Put the finger on symbol „Lock“ on the screen
and move it Up ards. The screen ill be unlocked. You can
also unlock the screen by attaching your finger to the
fingerprint reader on the back of your phone.
Android operating system
Your mobile phone is equipped ith the Android operating
system. The mobile phone is in fact a small personal
computer hich can be connected to internet and in hich
you can install a lot of various applications free of charge
(via Google Play™ store).
10

Basic control
Meaning of virtual touch buttons (1) to (3)
(1) Launched applications /APK – serves to display a list
of recently opened applications.
(2) Main screen - short press for return to the main
screen, long press helps to display the Google search
(3) Backwards – serves to move back by one step/level
(or to go to the preceding screen, to close the options,
dialog indo s on the screen etc.)
System control
Your mobile phone can be controlled by the above
mentioned buttons but mainly ith the use of the touch
screen.
Just click on the selected item to confirm the item on the
screen, to confirm the dialog indo s or graphic buttons on
the screen.
11

Main screen
The main screen is divided into multiple pages that you can
display by scrolling to the sides.
You can place applications and link shortcut icons or so-
called idgets on the main screen area. Widgets are mini-
applications that allo you to display some data or controls -
such as clocks, eather, po er control, etc.
Applications
To vie the menu of apps installed on your phone, s ipe up
at the bottom center of the main screen.
The basic equipment of the phone includes applications for
telephoning, sending SMS, e-mail, as ell as many other
useful and entertaining applications.
There are thousands of applications for your operating
system, but not all of them must ork properly on your
phone. Before you buy an app, al ays try the free version to
see if it orks properly ith your phone.
12

Information and status display
So called „status bar“ is placed in the upper part of the
screen. You may find here the information about time,
battery level and signal strength but also other useful
information. For example the information about ne SMS,
system or applications. Status bar can be moved do n by
your finger and rolled. You ill get a detailed overvie about
all announcements and information including the possibility
of a quick control of some mobile functions.
User account
A Google Account must be set up for proper use of the
system. Set up your account in the setup izard that starts
hen the phone is s itched on for the first time. You can
also set it later:
1. Open the application menu on the main screen by
moving the arro up ards
2. Click on the icon Settings.
3. Select Accounts in the settings and choose Add
account
13

4. Follo the instructions on the screen.
Mobile phone set up
All individual items of the telephone set up are clearly
arranged at the settings menu.
Press the button Menu - select Set up and make the
required changes.
Other information and guides
You can find more information here:
https://support.google.com/android
Fingerprint scanner
A fingerprint reader is located on the back of the phone
under the camera lenses. You can unlock the phone and
control some safety features by attaching your finger to the
sensor
The sensor behavior and fingerprints that the phone
recognizes can be set in the izard for the first time you
14

launch the phone or at any time in the Settings menu in the
Security section.
Making call
Dialling
Click on the earphone icon on the main screen. A screen
ith keypad for number dialling ill be displayed.
You can enter the tel.number ith the use of the keypad
buttons. Similarly as on the common telephone there are
the letters displayed on the buttons so you can enter also
the name.
The dialled number and all corresponding items of the
telephone directory ill be displayed after entering of the
letters on keys of the screen.
At the bottom part of the screen you can find the calling
button ith a symbol of the head-phone. You can dial the
number by its pressing and make your call.
15

Answer and eject the call
When there is an incoming call, information on the called
number (if available) and a button ith the handset are
displayed on the screen.
to answer the call : move the button up ards
to reject the call : move the button do n ards
Call flow / Finish of the call
The Screen shuts do n automatically hen you hold the
mobile near the ear. The screen is activated in a fe
moments after delaying the phone a ay from the ear.
Press the red button on the screen to finish the call .
Set up the Volume of the call
During a call, you can control the volume by using the (4)
button on the side of the phone.
ATTENTION! The handset can e very loud. Therefore, do
not set the volume unnecessarily to the highest level to
avoid hearing damage. In addition, when the headset is set
16

to high, the other party can hear the echo of his voice. In
this case, lower the volume to the level at which this
phenomenon disappears.
SMS messages
1. Click on the icon of Messages on the lo er part of the
main screen or open the screen ith applications and
select the item Messages
2. A list of conversations containing received and sent
SMS and MMS messages ill be displayed.
3. Select the button on the right bottom part of the
screen
4. No you can insert the receiver and the text of the
message
5. To send the message – press the arro button placed
on the right side of the text
17

Selection of network
You can choose hether your phone ill use 2G, 3G or 4G
net ork.
Go to Settings and select Network and Internet. Next step,
select Mobile networks and select Preferred network type
for each SIM card. No select item 2G, 3G or 4G.
Photography
Start the camera by tapping on the camera icon or by
pressing of the camera button (10) on the side of the mobile
phone.
Point the camera to the scene you are shooting and tap your
finger on the screen to the point you ant to focus on, or
ait a hile and the camera focuses automatically to the
center. After focusing, you can take a picture of the scene by
pressing the shutter button on the display. Every once in a
fe seconds, if the scene is changed, the camera
automatically focuses on the center of the image. To speed
up the focus or focus on another part of the image, tap the
desired position on the display.
18

Attention! Always focus first or wait for focus, then press
the shutter button, otherwise the images can become
blurred.
PC connection
You do not need any special drivers for connection to the
common PC (valid for OS Windo s Vista, 7, event. ne er).
Follo these steps :
1. Connect the mobile phone ith PC ith the enclosed
cabel
2. Drag the status bar and tap the line at the bottom of
the displayed menu.
3. The connection mode menu opens. We recommend to
use File Transfer mode.
4. The phone connects to the PC as a „Media device“
After that the phone's Internal storage and an inserted
MicroSD card are connected ith your computer in the
section Computer - Portable Devices, under the name
RX800. The connection can be cancelled by disconnecting of
the cable.
19

Selection of SIM card for calls, SMS and
internet
Go to Settings and select Network and Internet. Next, select
the SIM card. No you can set hich SIM card to be used for
calls, SMS and for internet
PTT Button
The PTT button is intended for use ith the Zello application,
hich can be do nloaded for free from the Google Play
store. After installing Zello, the button can be used in a
similar ay to a classic radio - press to speak into the
microphone and other users you add to the group ill
immediately hear your voice.
Safety and ecology
Used electric device
Used electric device
Mobile phone is an electronic appliance. It
means it must not be manipulated as a common residential
aste.
20
