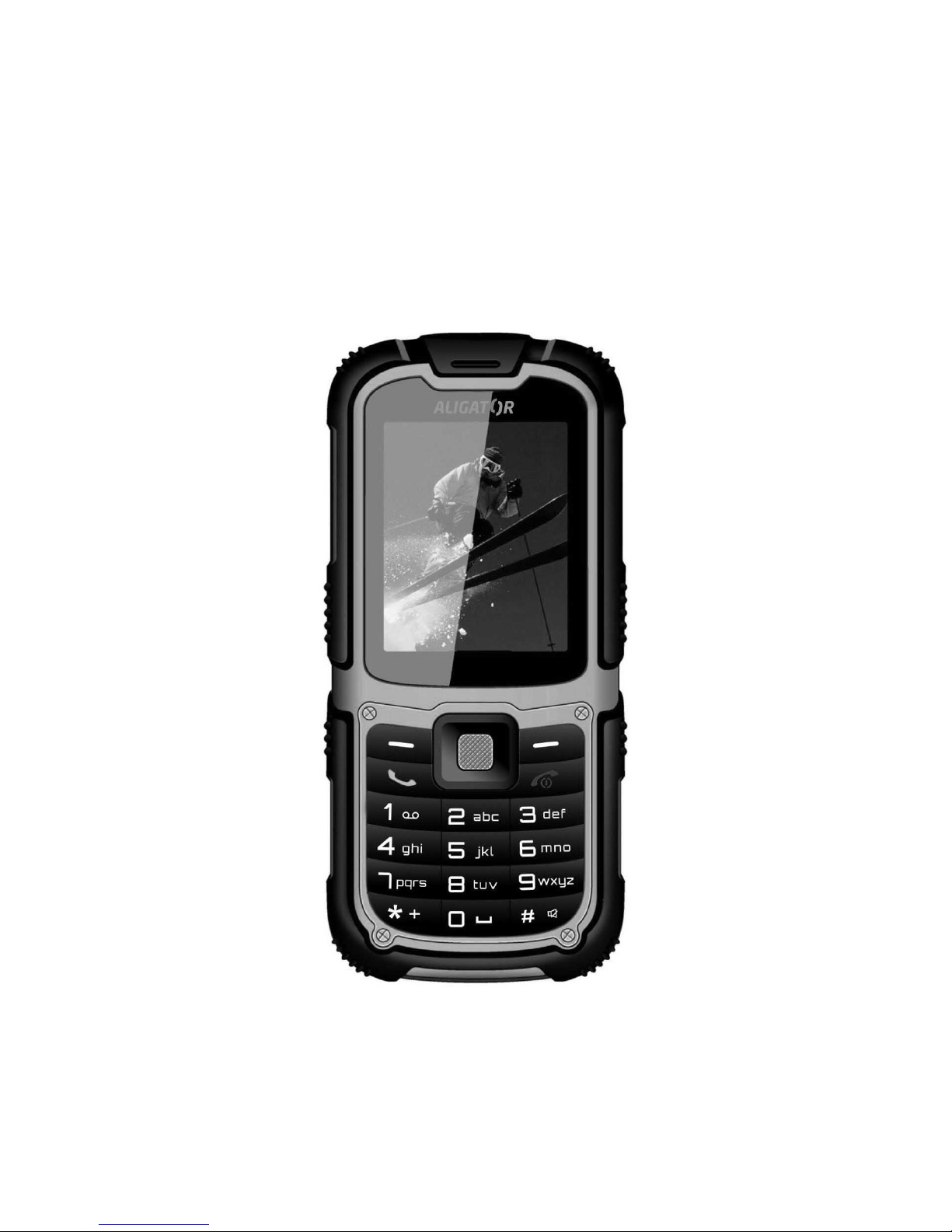

ALIGATOR R11 eXtremo User manual

R11 eXtremo
Resistant mobile phone for 2 SIM cards
Quick guide

Contents
Water and Dust Resistance IP67 3
Important Instructions 3
Your Mobile Phone 5
Insert SIM ,Memory Card and Battery 6
Battery Charging 6
Switch On / Off 7
Making Calls 7
Keypad Lock 8
Volume 8
Position of Antennas 8
Insert of Texts 9
Telephone Directory 9
Torchlight 10
Abbreviations 10
SOS Call and SMS 11
Safety and Ecology 14
Declaration of conformity 14
R11 eXtremo
We thank you for buying of this resistant mobile phone
ALIGATOR.
Before you start please read this quick guide with important
instructions
2

Water an Dust Resistance IP67
Your mobile phone is resistant against water and dust (Norm
IP67) It means that it can be merged into the water upto 1m
of depth and can be kept there upto max 30 minutes without
any leakage in the inside
Important instructions
Protect microphone, earphone and loud-speaker
openings from the dust of sharp objects
Do not switch on and do not use the mobile phone in the
prohibited areas
Do not use the mobile phone while driving the car
Do not use the mobile phone near the filling petrol station
Turn off the mobile phone always near explosives
Use always original batteries supplied by the producer
(danger of damage or explosion of the mobile phone)
SAR – mobile phone meets the prescription for maximal
emission of the electromagnetic radiation
While making a call please keep the mobile phone at
least 2-3 cm away from the body to minimalise the
quantity of the el magnetic radiation absorbed by your
body
Handle your cell phone and accessories with care ,
protect it from mechanical damage and impurity
Protect the mobile phone and accessories from the
extremely high temperatures
Do not put the battery at the fire and do not expose it to
the temperature over +60°C (danger of explosion or fire)
Protect the mobile phone and accessories from the fall to
the ground
3

Never put the mobile phone into parts !
Turn off the mobile phone near the sensitive medical
devices unless you are sure that the radio transmission
of the mobile phone does not influence its functions
Mobile phone can influence the function of the electronic
cardiac pacemaker or other implanted apparatus –
please consult your medical doctor
While making calls please place the cell phone on the
other side of the body different from the place of
implanted pacemaker or other cardiac device Check
with your doctor any risk of interference In case of
suspicion of interference please turn off the cell phone
immediatelly
Switch off the cell phone always in the aircraft
Turn off the mobile phone always near explosives
Do not place the mobile phone or its holder in the car at
the place over the airbag
Keep it out of reach of the children and do not allow them
to play with It contains small parts that can be
suffocated or may hurt !
Software and hardware of the mobile phone are
continuously updated The importer reserves the right to
alter the instruction manual or mobile phone functions
without a prior notice
4

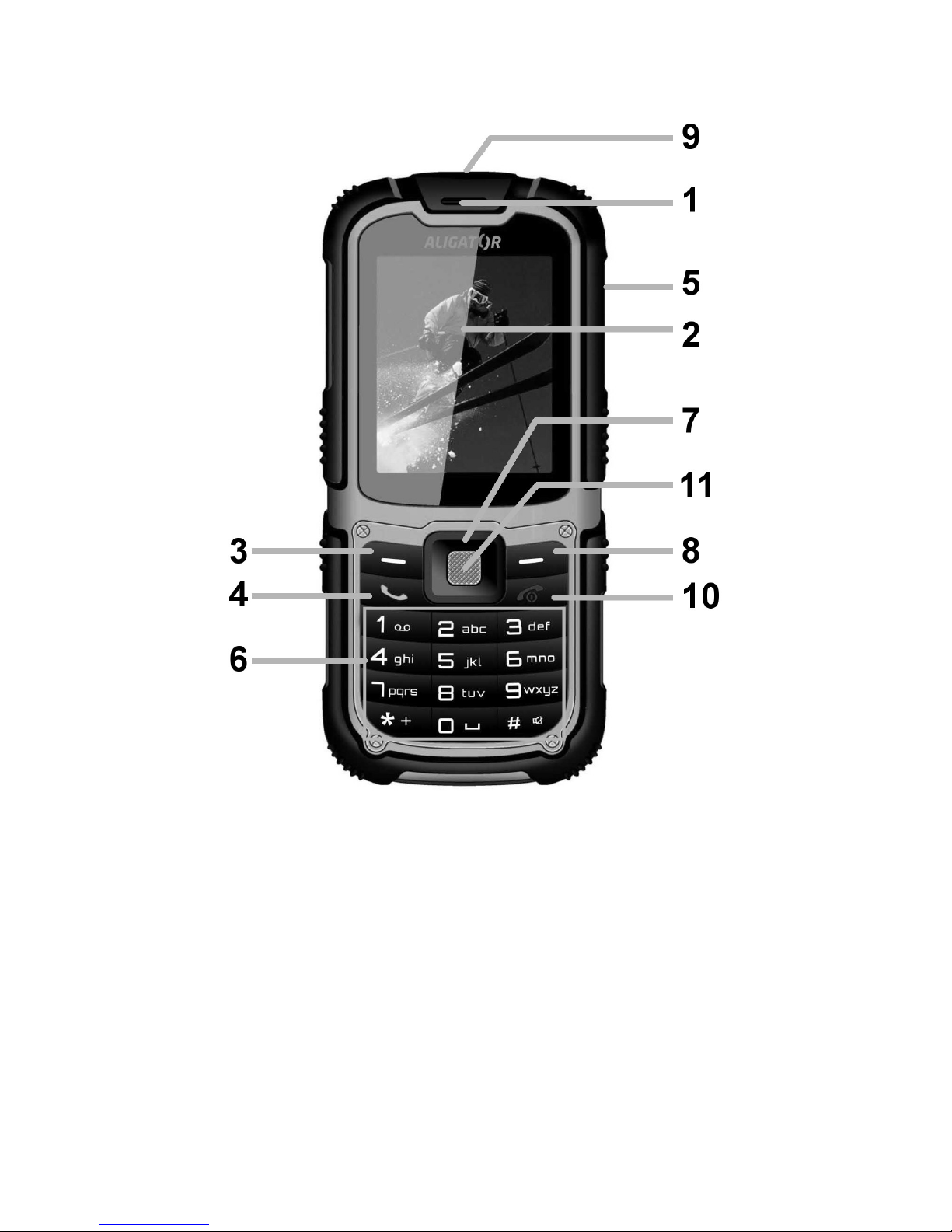

Your mobile phone
1 Earphone
2 Screen
3 Left functional button
4 Button for Calling
5 Charger connector
6 Numeric keypad
7 Navigational button
8 Right functional
button / contacts
9 Torchlight
10 Button to End
call / Switch on
11 Button OK
5

Insert SIM, Memory Car an Battery
1 Remove the battery cover on the back side of the phone
2 Insert gently one or two SIM cards into the holder under
the battery compartment Make sure that the SIM card is
positioned correctly with the contacts facing down The
battery must be removed when inserting the SIM card
3 Insert the microSD card into the holder
4 Insert the battery
5 Insert the battery cover and secure it with two screws
The screws should be tightened, but be careful not to
damage the threads with excessive force If the
screwdriver is supplied (not included in standard
delivery), use it
Battery charging
The indicator of charging level is placed at the upper part of
the screen In case the battery is discharged proceed as
follows :
1 Connect the charger with the electrical network
2 Open the cap of the connector at the side part of the cell
phone
3 Connect the charger with the mobile phone
6

4 When the battery is fully charged please disconnect the
charger from the mobile phone and from the electrical
network
5 Very carefully close the cap of the connector and press it
on its place In case you do not press it carefully and
control it - the water can penetrate inside of the mobile
phone !
The mobile phone can be charged both at the switch on and
at switch off mode.
In case the battery is totally discharged (after a long time of
non-using), it can take even tens of minutes till the indicator of
charging level appears and till the mobile phone can be
switched on and started to be used.
Switch On / Off
Press and hold the button (10) to switch on / off the mobile
phone or to finish a call
You can en the call or application event you can return to
the main screen by a short press of this button In case the
lock of the cell phone is activated please insert the password
The efault passwor is 1122.
It is necessary to set the actual time and date after the first
switch on
Making Calls
Enter the tel number with the use of the keypad buttons and
press the button (4) In case 2 SIM cards are inserted you will
be asked to choose which one will be used for calling
7

Keypa lock
Choose in menu to set up the keypad lock :
Settings > Set up the phone > Display > Automatic
isplay lock
You can lock the keypad by pressing of the central button (11)
followed by the button *
To unlock the keypad – press the central button (11) followed
by the button *
Volume
Volume level of the headphone can be adjusted during the
call by pressing up and down of the navigational button (7), by
audio listening with the buttons * and #
For handsfree activation – during the call please enter the
right functional button (8)
Warning : E posing to an e cessive noise can damage your
hearing. Listen to the music with reasonable volume level and
do not hold the device close to the ear, especially by using of
a loud-speaker !
Position of Antennas
Device is provided with internal antennas for reception and
transmission Antennas are placed at the upper and bottom
back part Do not cover the places where the antennas are
placed
8

While making a call please keep the mobile phone at least 2-3
cm away from the body to minimalise the quantity of the
el magnetic radiation absorbed by your body Covered
antennas may influence the intensity of transmission and also
the battery life
Insert of Texts
Keypad of the cell phone enables to enter not only the digits
but also the letters/characters In case of inserting of the
characters each button offers to write several letters For
example the button „2“ can write the letters A, B and C A gap
can be written with a button „0“
You can insert the letter by repeated presses of a button,
everal times in quick succession till the correct letter on the
screen displays For example : letter A is the first in line it
means you press only once the button 2 Letter C is the third
in line it means you press quickly the button 3 times
With the button # you can switch (when you write text)
between the writing, small and capital letters and digit
mode
With the button * you can enter the special characters
Telephone Directory
Numbers of your telephone contacts can be stored both at the
SIM card memory and at the memory of the cell phone
9

Dialling from the contact list
The simplest way to display the list, press the right soft key
"Names" (8) Now you can enter the name you're looking for
After that the list of matching contacts displays immediatelly
Use the up and down to select the contact you want to call
and press the green button (4)
When viewing the list the phone icon appears for each
contact when the contact is stored in the phone's memory If it
is stored on the SIM card, the icon of the card displays
Torchlight
Turn on / off the torchlight (9) placed on the top of the phone
by a long press of the digit "0"
Abbreviations
Favourite functions can be assigned to one press of the one
of the 4 directional sides of the navigation button (7) Such a
function will start after the press of one of the direction
For example : a camera is started after pressing of the
directional button „up“ (set up from the production)
To change the settings, go to the menu:
Setting Telephone Setup navigation key
10

SOS Call an SMS
Start of emergency call an SMS
Press and hold the button “*” on the keypad of the phone A
sound alarm will start and the mobile phone will start step by
step to dial the pre-set numbers from the list, until someone
answers the call
Mobile phone repeats dialling on all tel numbers max 4 times
Mobile phone sends also SMS message with a pre-set text on
pre-set numbers
For setting pls select menu : Organizer – SOS Setting –
SOS SMS)
If you need to eactivate the SOS call and alarm (after press
of the SOS button) – just press the button Off (8)
SOS function is available only if it is activated in setting and if
the mobile numbers (which mobile phone should call and
send SMS to) are pre-set
Select in menu to setup status (On/Off/SOS Locator):
Organizer -> SOS Setting -> Status
To set the number on the phone (after pressing the SOS
button the phone calls and sends SMS messages) select the
menu:
Organizer -> SOS setting -> SOS number.
Important! If you want to get all features fully enabled, you
must enter tel numbers at the international format
11

SOS Locator - function or positioning
your mobile phone is provided with a special function that
enables to determine the location of the mobile phone after
pressing of the SOS button and enables to send this position
to the recipients through SMS with a link to view the map - in
case the recipient uses the standard mobile phone with
internet browser it is sufficient to „click“ on this link and the
map with a phone position is displayed
The position determined by measurements of the operator,
the accuracy is dependent on density of the network in the
current position, for example in the city the position can be
determined with accuracy of tens to hundreds metres, out of
density the accuracy of the measurement diminishes
This servis is provi e fully without a guarantee, on the
own risk of the user an the accuracy of results or
service availability is not guarantee by the mobile phone
supplier, operator nor by the provi er of map ata an
the provision of services can be terminate anytime
without prior notice.
Setting of the service
It is necessary to activate the function „SOS Locator“ in the
setting of the SOS calls
Select the menu:
Organizer -> SOS Setting → Status -> SOS Locator
Another SMS message with location will be sent after the
message with a predefined text has been sent
12

According to the situation in the network of your operator the
delivery of the SMS with position may take up to several
minutes
Demand remote location
Your position can be determined with a special control SMS
It is sufficient that someone sends to your Aligator mobile
phone a SMS order with the text SOSLOCATOR. Your
mobile phone replies by sen ing of SMS (will send a
mobile phone position)
IMPORTANT: Your phone will respond and send location
only to SMS messages being sent from numbers that are
stored for emergency calls and only if the tel.numbers are
stored at international format
SOS setting
Select in menu: Organizer -> SOS setting
Enables to set up and to switch on/off the SOS function of the
mobile phone:
1 Status - Enables / disables the SOS function or sets the
SOS locator mode (SOS function augmented by sending
of the phone's location)
2 SOS numbers - sets up to five numbers which the
phone (after activating the SOS button) sends an
emergency SMS to and will try to call these numbers
3 SOS SMS – setting of the text of the emergency SMS
13

Safety an ecology
Use electric evice
Mobile phone is an electronic appliance It means
it must not be manipulated as a common
residential waste! Never throw the use electric
evice away at the common municipal waste!!!
Hand over the used electric device to the respective collection
point which provides the ecological liquidation Please contact
your dealer to get more information how to deal with the used
products
Battery liqui ation
Use /ol batteries an accumulators o not
belong to the common resi ential waste !!! They
may contain the substances dangerous to the
environment Hand over the battery to the respective
collection point which provides the ecological liquidation
Please contact your dealer to get more information how to
deal with the used products
Han ling with the use batteries in contra iction with
given instructions is illegal!
Declaration of conformity No. 30/09/2015
Issued in accordance with the prescriptions EU R&TTE
Directive 1999/5/EC
14

Product: Mobile phone for GSM network
Model : ALIGATOR R11
Importer: ADART COMPUTERS s r o ,
Sokolovská 161, 180 00 Praha 8,
Reg No 25074547
Evaluated product is a mobile phone intended for the mobile
network of GSM standard and is planned to be used and
stored in standard conditions The importer declares, that the
product is for its use safe and during the production there are
taken control and other measurements securing the
conformity of the product with the basic requirements and
technical documentation Relevant harmonized norms have
been applied to evaluate the conformity
The tests were carried out and the protocol was made by
authorised person :
PHOENIX TESTLAB GmbH, Königswinkel 10, D-32825
Blomberg, Germany
Product bears the European conformity mark CE 0700 in
accordance with the EU prescriptions
Issued in Prague, on 30 09 2015:
………………………………………
ADART COMPUTERS s r o
15
