Alliance Laundry Systems H2641 Guide

Installation/Operation
www.comlaundry.com
Frontload Washers
Metered Commercial
H264I
NOTA: El manual en
españolaparecedespués
del manual en inglés.
Part No. 800536R3
October 2002
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
800536 1
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense, caution, and
carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by the
person(s) installing, maintaining, or operating the washer.
Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not
understand.
Failure to install, maintain, and/or operate this machine according to the manufacturer’s
instructions may result in conditions which can produce bodily injury and/or property
damage.
W030
WARNING

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
2800536
Notes

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
© Copyright 2002, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
800536 3
Table of
Contents
Replacement Parts.............................................................................. 5
Important Safety Instructions ........................................................... 7
Installation........................................................................................... 9
Dimensions and Specifications............................................................. 9
Meter Case............................................................................................ 10
Before You Start................................................................................... 10
Tools ................................................................................................ 10
Electrical .......................................................................................... 10
Water................................................................................................ 10
Installing the Washer ............................................................................ 11
Step 1: Position Washer Near Installation Area .............................. 11
Step 2: Connect Water Inlet Hoses .................................................. 11
Step 3: Connect Drain Hose to Drain Receptacle............................ 12
Step 4: Position and Level the Washer ............................................ 13
Step 5: Remove the Shock Sleeves and Shipping Brace ................. 14
Step 6: Wipe Out Inside of Wash Drum .......................................... 14
Step 7: Plug In the Washer............................................................... 14
Step 8: Check Installation ................................................................ 14
Moving Washer to a New Location ................................................. 15
Electrical Requirements........................................................................ 16
Grounding Instructions .................................................................... 16
Water Supply Requirements................................................................. 18
Water Temperature .......................................................................... 18
Water Pressure ................................................................................. 18
Risers................................................................................................ 19
Operation............................................................................................. 21
Operation Instructions for Electromechanical Washers ....................... 21
Step 1: Load Laundry....................................................................... 21
Step 2: Close Loading Door............................................................. 21
Step 3: Add Laundry Supplies ......................................................... 21
Step 4: Set Fabric Selector............................................................... 22
Step 5: Set WASH/RINSE Temperatures........................................ 22
Step 6: Insert Money........................................................................ 22
Indicator Lights................................................................................ 22
Operation Instructions for MDC Washers............................................ 23
Step 1: Set Fabric Selector and Wash Temperature......................... 23
Step 2: Add Laundry Supplies ......................................................... 23
Step 3: Load Laundry....................................................................... 24
Step 4: Close Loading Door............................................................. 24
Step 5: Insert Coin(s) or Card .......................................................... 24
Step 6: Start Washer......................................................................... 25
Indicator Lights................................................................................ 25

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
4800536
Operation Instructions for NetMaster Washers .................................... 26
Step 1: Load Laundry....................................................................... 26
Step 2: Close Loading Door............................................................. 26
Step 3: Add Laundry Supplies ......................................................... 26
Step 4: Set Fabric Selector............................................................... 27
Step 5: Set Wash Temperature......................................................... 27
Step 6: Insert Coin(s) or Card .......................................................... 27
Step 7: Start Washer......................................................................... 28
Indicator Lights................................................................................ 28
Maintenance ........................................................................................ 29
User-Maintenance Instructions............................................................. 29
Cold Weather Care........................................................................... 29
Care of Your Washer ....................................................................... 29
Vacations and Extended Non-Use ................................................... 29
Before You Call for Service ................................................................. 30
If Service Is Required........................................................................... 31
Information for Handy Reference......................................................... 32
Installer Checklist............................................................... Back Cover

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 5
800536
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your washer, or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 800536
6
Notes

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 7
800536
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use your washer only for its intended purpose,
washing clothes.
14. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
16. To reduce the risk of fire, clothes which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
18. Keep your washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have your washer checked by a
qualified service person.
19. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
20. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023E
WARNING

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Important Safety Instructions
800536
8
21. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
22. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
23. Always follow the fabric care instructions
supplied by the garment manufacturer.
24. Never operate the washer with any guards
and/or panels removed.
25. DO NOT operate the washer with missing or
broken parts.
26. DO NOT bypass any safety devices.
27. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 9
800536
Installation
Dimensions and Specifications
H270I
H270I
43"(109.2 cm)
29.6"(75.1 cm)
28" (71.1 cm)
17.5"
(44.8 cm)
26.9"(68.3 cm)
14.3"
(36.3 cm)
2"
(5.1 cm)
31.1"(79 cm)

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
800536
10
Meter Case
The factory mounted coin meter case does not include
the service door lock, slide, coin drawer, coin drawer
lock or keys. These parts must be ordered (at extra
cost) according to the purchaser’s requirements, direct
from the manufacturer of your choice.
NOTE: You have the option of using a screw type
lock or a 1/4 turn lock on the meter case service
door. If you choose to use a screw lock, then the
special bracket (located inside the meter case) must
be used. DO NOT use the special bracket if a
1/4 turn lock is used.
Coin Drawer Security –For additional security, drill
out the two pilot holes on each front side of the meter
case to 1/4 turn or 5/16 inch (6.4 or 7.9 mm) holes, and
install a bicycle lock through these holes.
Before You Start

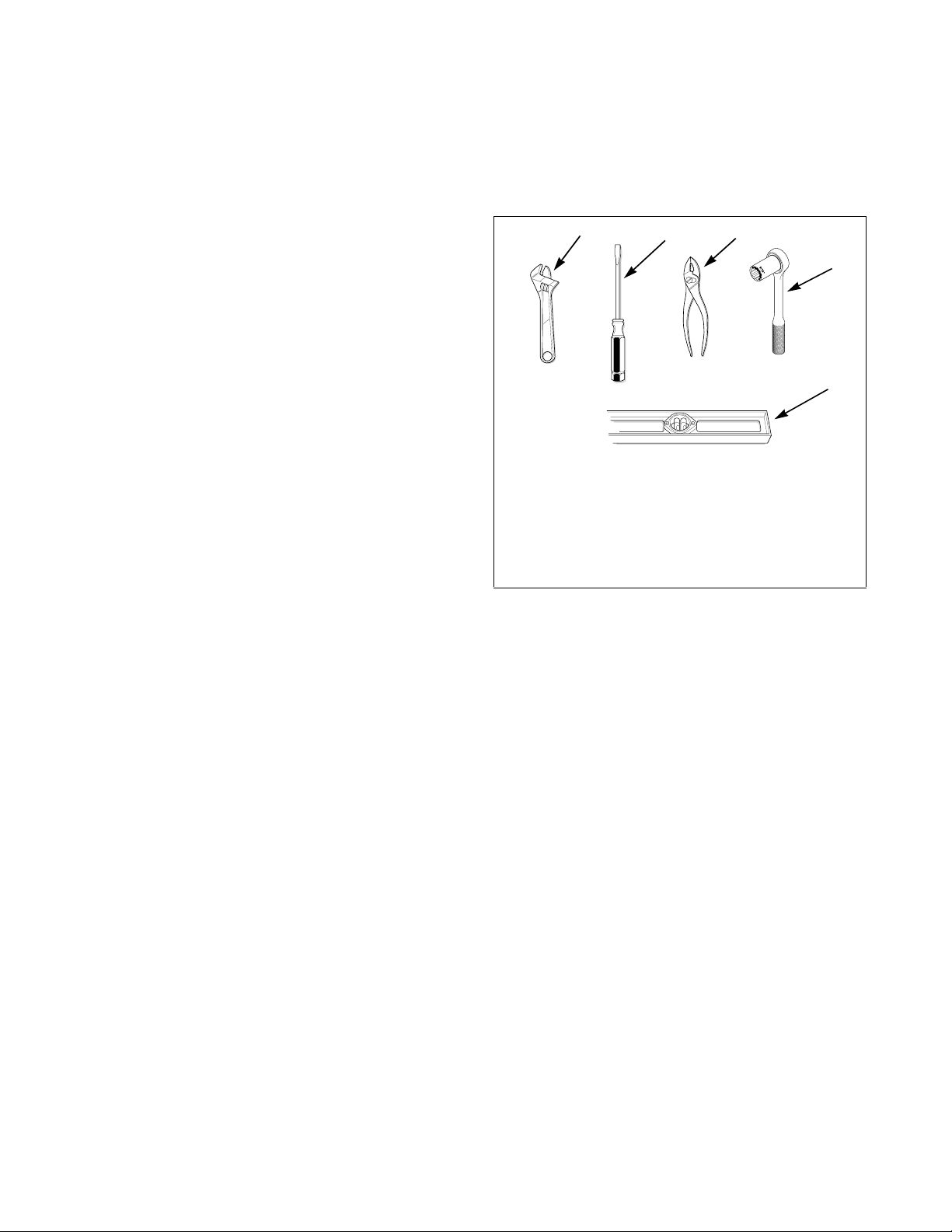

Tools
For most installations, the basic tools you will need
are:
Figure 1
Electrical
Refer to serial plate for specific electrical
requirements. For more detailed information, refer to
section on Electrical Requirements.
Water
Washer needs two standard 3/4 inch (19.1 mm) water
supply faucets with a pressure between 20 and
120 pounds per square inch (138 to 827 kPa). For
more detailed information refer to section on Water
Supply Requirements.
D820I
1Wrench
2Screwdriver
3Pliers
4Socket Wrench
5Level
1
23
5
4

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
11
800536
Installing the Washer
Step 1: Position Washer Near Installation
Area
Move washer so that it is within four feet of the
desired area of installation.
Figure 2
Step 2: Connect Water Inlet Hoses
NOTE: Refer to section on Water Supply
Requirements before connecting water inlet hoses.
Remove the four plain rubber washers from accessories
bag, and install them according to Figure 3.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
IMPORTANT: Thread hose couplings onto valve
connections finger-tight, then approximately
1/4 turn with pliers. DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
Figure 3
Figure 4
H135I
H135I
H091I
1Rubber Washer (Plain)
2Inlet Hose
H137I
1Water Supply Faucets
2Hot Water Connection
3Cold Water Connection
4Water Inlet Hoses
2
1
1
H137I
2
1
3
4
WATER
MIXING
VALVE

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
800536
12
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp or by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-3/8 inch (3.5 cm) outside
diameter drain hose.
Figure 5
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.
Figure 6
H139I
1Retainer Clamp
H139I
1
H138I
1Standpipe 2" (5.08 cm) or 1-1/2" (4 cm)
H138I
1
RECOMMENDED
HEIGHT
24" TO 36"
(61 TO 91.44 cm)

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
13
800536

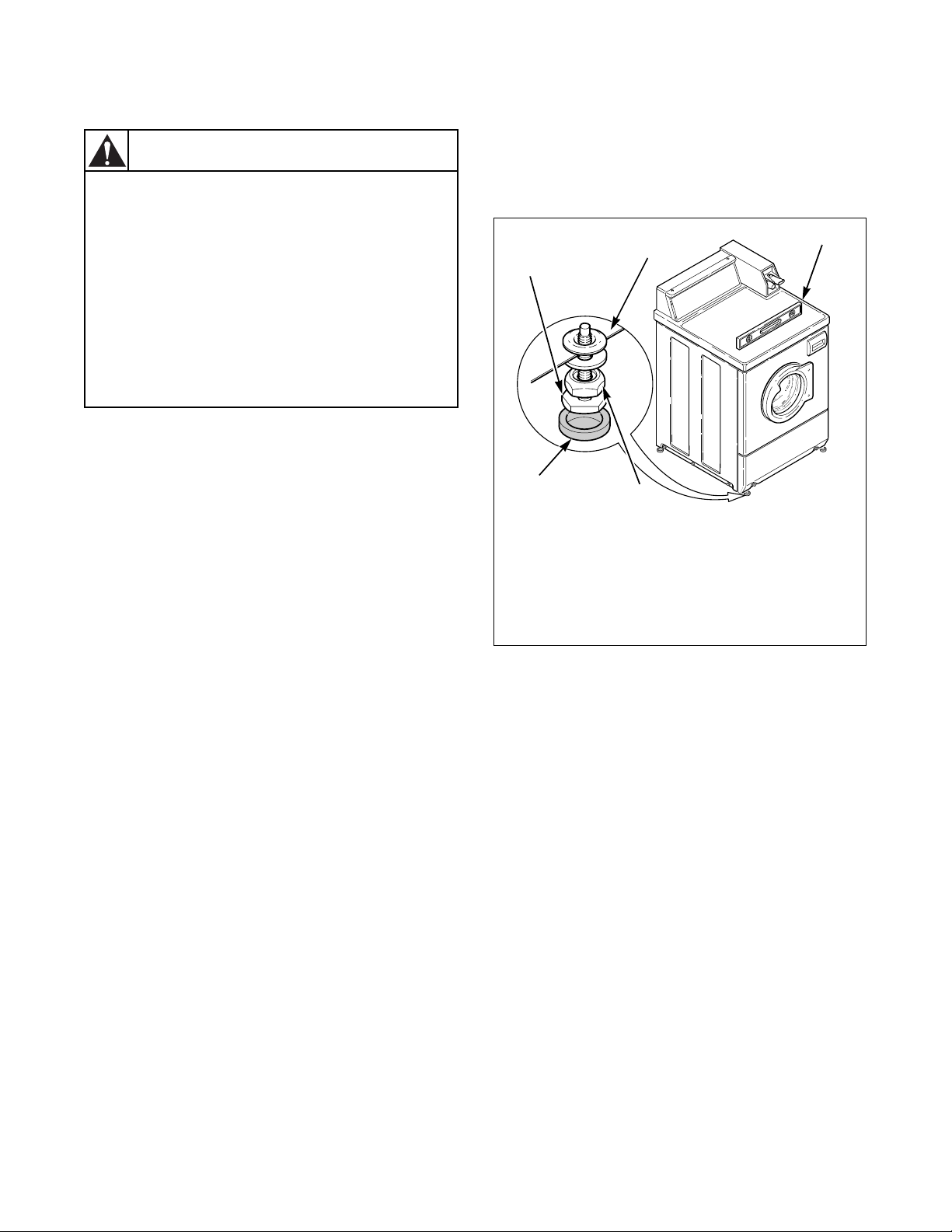

Step 4: Position and Level the Washer
Place washer in position on a clean, firm and
reasonably level floor. Installing the washer on any
type of carpeting is not recommended.
Loosen 7/8" locknut and adjust the front and rear
leveling legs until the washer is level from side to side
and front to back (using a level). Washer should not
rock.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 7.
Tighten the locknuts securely against the washer
base using the 7/8" wrench. If the locknuts are not
tight, washer will move out of position during
operation.
NOTE: DO NOT slide washer across floor if the
leveling legs have been extended, as legs and base
could become damaged.
NOTE: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
Remove rubber feet from accessories bag and place on
all four leveling legs.
Figure 7
Washers elevated above floor level must
be anchored to that elevated surface,
base or platform. The material used to
elevate the washer should also be
anchored to the floor to ensure that the
washer will not walk or that the washer
can not be physically pulled, tipped or
slid from its installed position. Failure to
do so may result in conditions which can
produce serious injury, death and/or
property damage.
W306
WARNING
H360I
1Leveling Leg
2Washer Base
3Level
4Locknut
5Rubber Foot
2
1
3
4
5

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
800536
14
Step 5: Remove the Shock Sleeves and
Shipping Brace
Remove front access panel by removing the two
screws.
Remove bolts and lockwashers from shipping brace
with 9/16" wrench and remove brace. Remove shock
sleeves by pulling on the yellow rope. Remove label
from front side of front access panel and place on
backside of front access panel.
NOTE: The shipping brace, bolts, washers and
shock sleeves should be saved and MUST be
reinstalled whenever the washer is moved more
than four feet. Do not lift or transport washer from
front or without shipping materials installed.
Store the shipping materials in the bag provided in the
accessories bag. Save materials for use whenever the
washer is moved.
Reinstall front access panel.
Figure 8
NOTE: The shipping materials MUST be
reinstalled whenever the washer is moved. Refer to
section on Moving Washer to a New Location for
instructions.
Step 6: Wipe Out Inside of Wash Drum
Before using washer for the first time, use an all-
purpose cleaner, or a detergent and water solution, and
a damp cloth to remove shipping dust from inside
wash drum.
Figure 9
Step 7: Plug In the Washer
Refer to section on Electrical Requirements and plug
the washer in.
Figure 10
Step 8: Check Installation
Refer to Installer Checklist on the back cover and
make sure that washer is installed correctly.
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
4
3
H227I
D254I
H227I
D254I

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
15
800536
Moving Washer to a New Location
To prevent damage while moving the washer, the
shipping materials MUST be reinstalled.
Reinstallation of Shipping Materials
Remove front access panel by removing two screws.
Place the shock sleeves on all four shock absorbers.
Refer to Figure 11.
Insert hooked end of shipping brace into the open slot
of the motor mount. Attach with bolts and lockwashers.
Refer to Figure 11.
Reinstall front access panel.
Figure 11
Refer to step 5 for proper procedures whenever the
washer is moved.
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
4
3

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
800536
16
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding Plug)
NOTE: The wiring diagram is located in the
control cabinet.
Figure 12
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current) circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 13
to determine correct polarity of the wall receptacle.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT. DO NOT OVERLOAD
CIRCUITS!
Grounding Instructions
The washer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The washer is equipped
with a cord having an equipment-grounding conductor
and a 3-prong grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
D009I
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring and fuses checked by a qualified
electrician to make sure the laundry room
has adequate electrical power to operate
the washer.
W227
WARNING
DO NOT OVERLOAD
CIRCUITS
DO NOT USE
ADAPTER
DO NOT USE AN
EXTENSION CORD
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or serviceman if you are in
doubt as to whether the washer is
properly grounded.
W216
WARNING

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
17
800536
Do not modify the plug provided with the washer –if
it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the
qualified electrician should correct the problem.
Figure 13
D799I
1L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
123
4
5
STANDARD 120 VOLT, 60 HERTZ,
3-WIRE EFFECTIVELY GROUNDED CIRCUIT
120 ± 12
V.A.C.
120 ± 12
V.A.C.
0
V.A.C.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
800536
18
Water Supply Requirements
NOTE: Water supply faucets must fit standard
3/4 inch (19.1 mm) female garden hose couplings.
DO NOT USE SLIP-ON OR CLAMP-ON
CONNECTIONS.
NOTE: Water supply faucets should be readily
accessible to permit turning them off when washer
is not being used.
Water Temperature
Cold:
Recommended cold water temperature is 60°to
80°Fahrenheit (16°to 27°Celsius).
Hot:
Recommended hot water temperature is 120°to
140°Fahrenheit (49°to 60°Celsius).
Warm:
Mixture of hot and cold water. (Warm water
temperature is dependent upon the water temperature
and the pressure of both the hot and cold water supply
lines.)
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer inlet hoses are available (as
optional equipment at extra cost) if the hoses
supplied with the washer are not long enough for
the installation. Order hoses as follows:
No. 20617 Inlet Hose (8 feet) (2.44 m)
No. 20618 Inlet Hose (10 feet) (3.05 m)
Figure 14
Water Pressure
Pressure must be a minimum of 20 to a maximum of
120 pounds per square inch (138 to 827 kPa) static
pressure measured at the faucet.
NOTE: Water pressure under 20 pounds per
square inch (138 kPa) will cause an extended fill
time in the washer and may not properly flush out
the detergent dispenser.
Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used
for such a period and before using the
washer, turn on all hot water faucets and
let the water flow from each for several
minutes. This will release any
accumulated hydrogen gas. The gas is
flammable. Do not smoke or use an open
flame during this time.
W029
WARNING
H137I
1Water Supply Faucets
2Hot Water Connection
3Cold Water Connection
4Water Inlet Hoses
H137I
2
1
3
4
WATER
MIXING
VALVE
