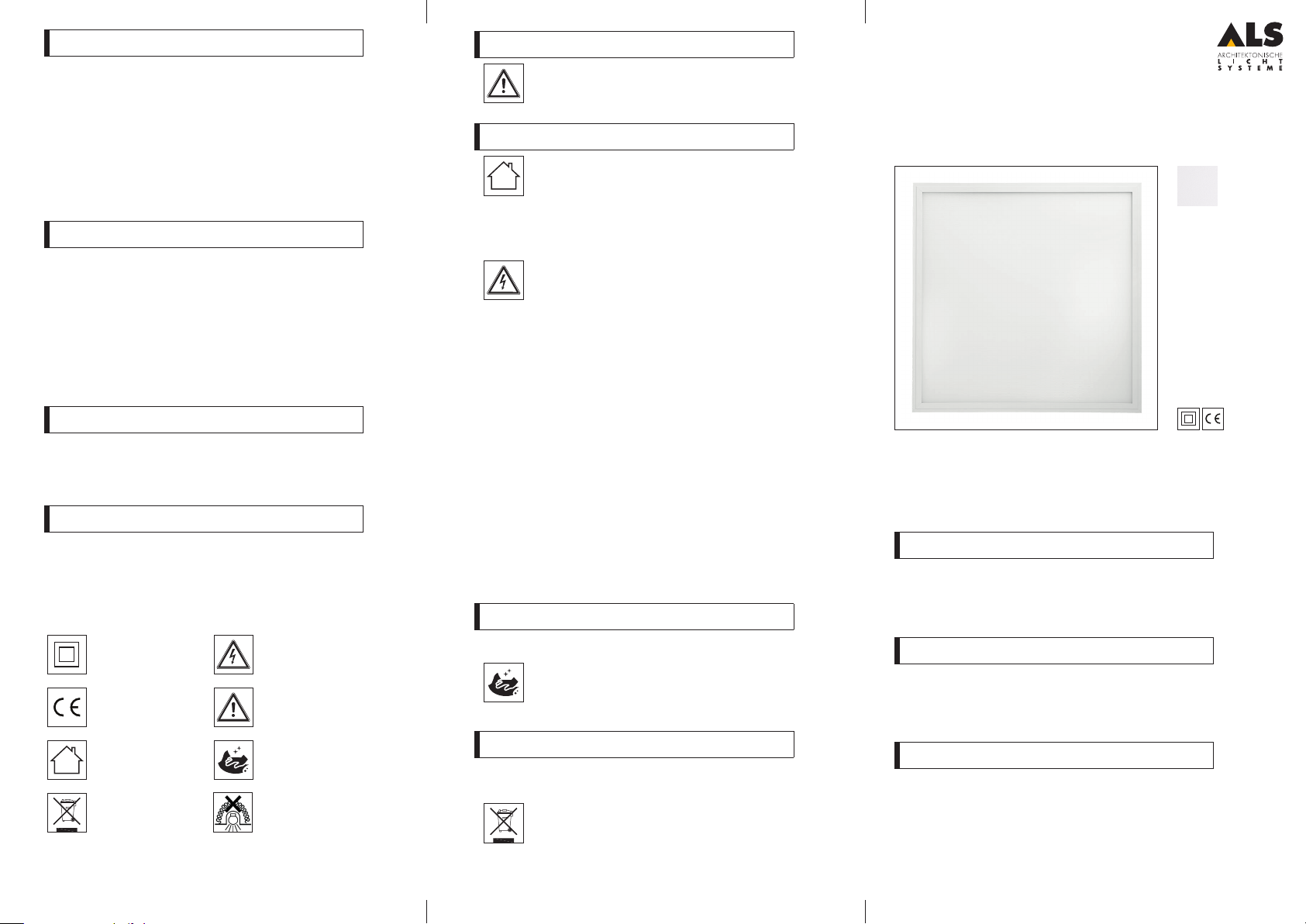

ALS ELEDN Tunable White User manual

ELEDN Tunable White
Version: 2019-06-03 EN
Mounted luminaire/Recessed ceiling luminaire
Protection class II Notication of Risks
CE label Safety Instructions
The product is only
for use in interiors.
Cleaning Instructions
The product may not
be disposed of in the
household garbage.
It is not allowed to
cover luminaires
with heatinsulating
cover sheet or similar
materials!
INTENDED USAGE
This product will only serve the purpose of illumination.
The light is only suitable for use in interiors, in dry, enclosed rooms.
SCOPE OF DELIVERY
1 x LED light
1 x converter with LED plug-connection.
1 x set of instructions for assembly, operation and safety
SAFETY INFORMATION
• The light is only suitable for use in interiors, in dry,
enclosed rooms.
• The light is not suitable for attaching on uneven
surface. The light may otherwise fall.This can result
in product damage and / or injuries.
• Don’t install under power.
• Follow the instruction manual for installation.
• Installation only by qualied and authorised
persons.
• Do not use the product when it has been damaged
(defective covers) or there are operational faults
such as ickering, smoking, steaming, crackling
noises or the smell of smoke.
• A damaged or defective product must be changed
or repaired by the manufacturer, a service person
or a comparable qualied person.
• Installation only under observance of the valid
guidelines specic to application and country
among others VDE 0.100.
• Never open one of the electrical operating agents
or plug any objects into them. Such procedures
signify a danger to life through electrical shock.
• Absolutely avoid contact between the product
and water or other liquids. For reasons of electrical
safety, the light may not be placed in contact with
water or other liquids or submerged in water.
• The product may not be changed or modied.
SAFETY
READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.
DESCRIPTION OF PARTS
LED panel 620 x 620 x 8,8 mm recessed ceiling luminaire UGR <19
Painted aluminium frame RAL 9003
Seamless corner, no light leak
Operating range (*remote control RF-2,4G) in closed rooms max.
maximum reach of 20 m.
Each light can be linked with up to 5 remote controls.
The operating range depends on structural factors, like metal
walls, iron reinforcement in walls and ceilings.
For other functions of the remote control see manual Z-FBELEDN.
Optional mounting frame
Order number: ELEDN-AUR626
TECHNICAL DATA
LED incl. driver
220-240V~ 50/60 Hz
Total power consumption: 40,5 W
Dimmable (only with remote control RF-2,4G, accessory:
Z-FBELEDN, not included, has to be ordered separately)
Light color: Tunable White 3000-6000K, fully adjustable only by
remote control (accessory: Z-FBELEDN, not included, has to be
ordered separately)
IP class 20
Protection class: II
Flickerfree
EEC/A+
LAMP
LED
Mitsubishi prismatic cover with PMMA reector
Lamp cannot be replaced.
LED DRIVER
nominal voltage,
primary: 220-240V~ ( 50/60 Hz )
950 mA
DISPOSAL
The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household gar-
bage when it has reached the end of its lifecycle, but
rather take it to a disposal center.Your local ofcials
will provide you with information about collection
ofces and their business hours.
MAINTENANCE AND CLEANING
The LED light agent cannot be replaced.
• Do not use solvents, such as benzene and similar
agents.The light would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the
product.
*REQUIRED ACCESSORIES
1 x Remote control, order-no.: Z-FBELEDN
address | contact
A.L.S. GmbH & Co. KG
Mastorter Str. 31 | 88069 Tettnang (Germany)
Tel.: [phone] | Fax.: [phone]
E-Mail: [email protected] | Web: www.als.de
White
ELEDN-40WW/SCW11

Assembly instructions for LED panel
Carefully remove the LED panel from its packaging.
Over the corner edge of the light carefully put it into the ceiling section.
Avoid mechanical tensions on panel, the light should have some space.
Turn Off power supply before starting any installation.
Do not connect the device under power.
Connect the supply cables according to the electrical regulations to the
primary connection 230V AC to LED converter.
The electrical connection from LED panel to the converter is connected with
a plug-in connector. Do not unplug before switching on, also not during
operating the lamp.
Only use the supplied LED converter! Other converters or transformers may
destroy the light.
In case of ceiling installation place LED converter sideways to the light.
Insert the connector and tighten.
It is not allowed to cover LED panel and LED converter with heatinsu-
lating cover sheet or similar materials!
Additional drillings in the LED luminaire are not allowed!
Do not place the LED converter on the LED pendant luminaire to avoid
unnecessary transfer of heat.
Another installation / assembly / materials / types than provided in the
manual sheets, release us from any electrotechnical and electrostatic
responsibility.
Fixing materials:
Pendant mounting order number: Z-ELEDN
Assembly frame order number: ELED2-AUR42
The warranty is void if the buyer or a third party repairs or modies the
luminaire.
For further information please check out remote control manual
Z-FBELEDN.
