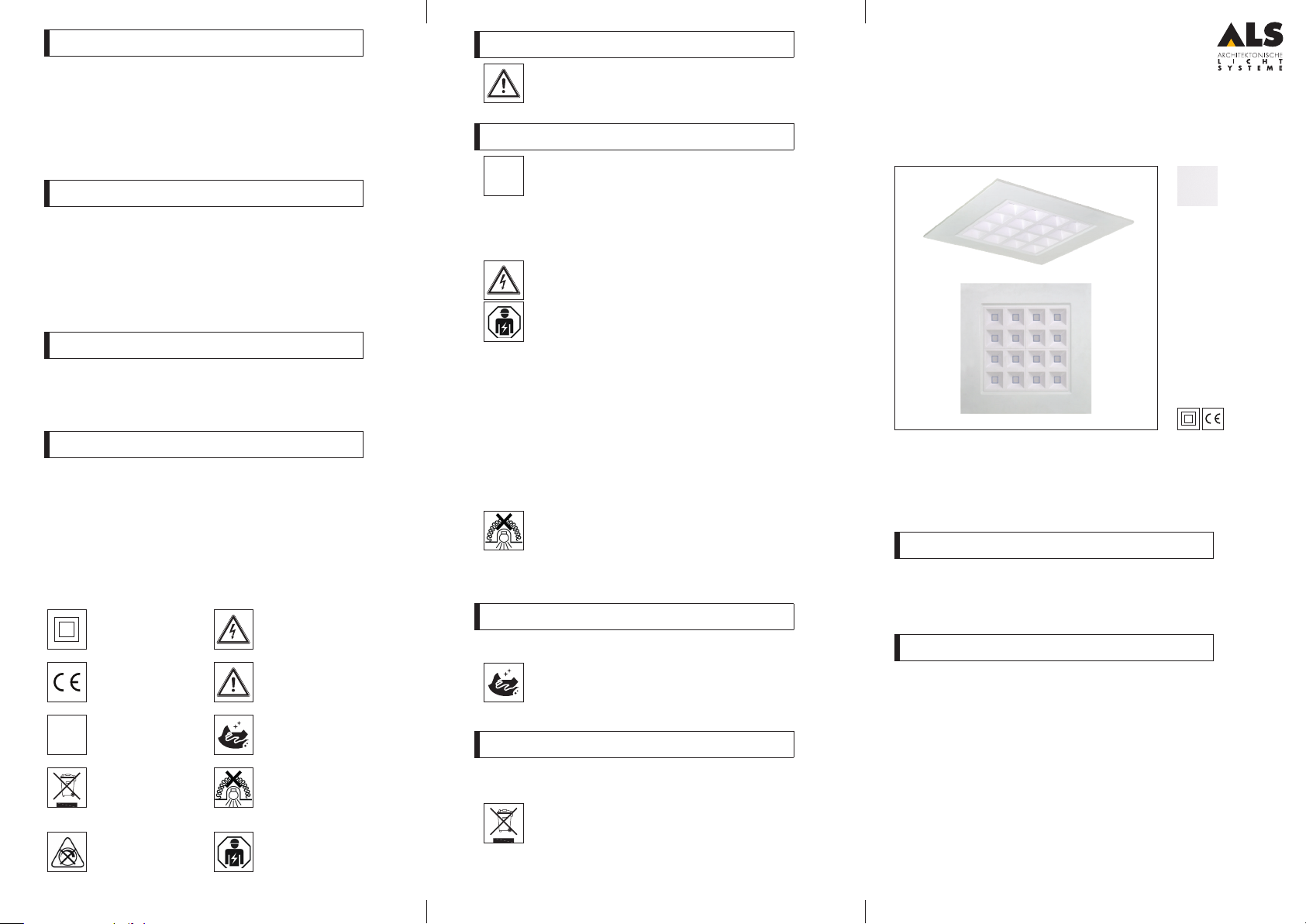

ALS ELEDQ User manual

ELEDQ
Version: 2019-08-23 EN
Recessed ceiling luminaire / Ceiling luminaire
Protection class II Notication of Risks
CE label Safety Instructions
IP40
Splashproof (only in
covered areas)
Cleaning Instructions
The product may not
be disposed of in the
household garbage.
It is not allowed to
cover luminaires
with heatinsulating
cover sheet or similar
materials!
The LED light is not
dimmable with phase
and section dimmer
Installation may only
be carried out by
qualied personnel.
INTENDED USAGE
This product will only serve the purpose of illumination.
Splashproof (only in covered areas).
SCOPE OF DELIVERY
1 x LED luminaire
1 x LED converter
1 x Set of instructions for assembly, operation and safety
SAFETY INFORMATION
IP40
• Splashproof (only in covered areas).
• The luminaire is suitable for mounting only on
load-bearing grid ceilings L620xW620 mm and
surfaces. The light may otherwise fall.This can result
in product damage and / or injuries.
• Don’t install under power.
• Follow the instruction manual for installation.
• Installation only by qualied and authorised
persons.
• Do not use the product when it has been damaged
(defective covers) or there are operational faults
such as ickering, smoking, steaming, crackling
noises or the smell of smoke.
• A damaged or defective product must be changed
or repaired by the manufacturer, a service person
or a comparable qualied person.
• Installation only under observance of the valid
guidelines specic to application and country
among others VDE 0.100.
• Never open one of the electrical operating agents
or plug any objects into them. Such procedures
signify a danger to life through electrical shock.
• Absolutely avoid contact between the product
and water or other liquids. For reasons of electrical
safety, the light may not be placed in contact with
water or other liquids or submerged in water.
• The product may not be changed or modied.
• Make sure that the luminair is never covered by
heat insulating mats or thin materials. Make sure
that the product has enough space for heat
dissipation.
SAFETY
READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.
DESCRIPTION OF PARTS
LED panel recessed luminaire, UGR <19
Housing metal, painted white, RAL 9003
Optional
Mounting frame 625x625x51 mm, order number: ELEDN-AUR626
Mounting kit, order number: Z-ELDN
Ceiling mounting kit for ceiling cutout, order number: Z-BELEDQ
TECHNICAL DATA
LED luminaires with integrated converter
220-240V~ 50/60 Hz
Total power consumption: 32 W
Light color: ELEDQ-32NW11T = 4000K
ELEDQ-32WW11T = 3000K
IP class 40
Protection class: II
Dimension: L620xW620xH45 mm
EEC/A+
LAMP
Light module replaceable (in case of repair on request).
LED elements in the light module can not be replaced.
LED DRIVER
Primary voltage: 220-240V~ ( 50/60 Hz )
DISPOSAL
The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household gar-
bage when it has reached the end of its lifecycle, but
rather take it to a disposal center.Your local ofcials
will provide you with information about collection
ofces and their business hours.
MAINTENANCE AND CLEANING
The LED light agent cannot be replaced.
• Do not use solvents, such as benzene and similar
agents.The light would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the
product.
address | contact
A.L.S. GmbH
Mastorter Str. 31 | 88069 Tettnang (Germany)
Tel.: [phone] | Fax.: [phone]
E-Mail: [email protected] | Web: www.als.de
White
ELEDQ-32NW11T
ELEDQ-32WW11T

Assembly instructions for LED panel
Carefully remove the LED panel from its packaging.
01 Turn Off power supply before starting any installation.
Do not connect the device under power.
Connect the supply cables according to the electrical regulations to the
primary connection 230V AC to LED converter.
02 The electrical connection from LED panel to the converter is connected
with a plug-in connector. Do not unplug before switching on,also not during
operating the lamp.
Only use the supplied LED converter! Other converters or transformers may
destroy the light.
03 Over the corner edge of the light carefully put it into the ceiling section.
Avoid mechanical tensions on panel, the light should have some space.
04 After installation and connection, switch on the mains voltage all-pole.
Switch on the associated circuit breaker or turn the fuse on.
It is not allowed to cover LED panel and LED converter with heatinsula-
ting cover sheet or similar materials!
Additional drillings in the LED luminaire are not allowed!
Do not place the LED converter on the LED pendant luminaire to avoid
unnecessary transfer of heat.
Another installation / assembly / materials / types than provided in the
manual sheets, release us from any electrotechnical and electrostatic
responsibility.
Fixing materials:
The warranty is void if the buyer or a third party repairs or modies the
luminaire.
Please check that the lamp has an electronic ballast with connection for
functional earth. If so, please connect the functional earth according to
the valid standards and guidelines!
In case of ceiling installation
place LED converter side-
ways in the luminaire.
Plug-in and lock after half rotation.
AC~
AC~
AC
~
AC~
AC~
AC~
AC~
AC~
02
03
OFF
01
ON
04
Pendulum mounting with
mounting frame
Art.-Nr. ELEDN-AUR626
and steel cable suspension set
Art.-NR. Z-ELEDN
Grub screw for frame
protection
Z-BELEDQ
07b
A B1
B2 C1B3
C2
4x 4x
4x
4x
4x
4x
Surface mounting with ceiling cutout. Accessory Z-BELEDQ required.
Required ceiling cutout: 608x608 mm.
