ALS HBA-60NW2 User manual

Version: 2018-09-05 EN
INTENDED USAGE
This product will only serve the purpose of illumination.
The light can be used in interiors.
SCOPE OF DELIVERY
1 x LED High bay light
2 x Chain
2 x Carbine
1 x Prewired cable L150 cm
1 x set of instructions for assembly, operation and safety
SAFETY INFORMATION
IP20
• The light can be used in interiors.
• The light is not suitable for attaching on uneven surface.The light
may otherwise fall.This can result in product damage and / or
injuries.
• Before installing the LED light, please check capacity of ceiling/
beams, only use mounting material that is suitable for installation.
After installation, check that the LED luminaire is rmly in position.
The light may otherwise fall down.This can result in product
damage and / or injuries.
• Don’t install under power.
• Follow the instruction manual for installation.
• Installation only by qualied and authorised persons.
• Do not use the product when it has been damaged (defective
covers) or there are operational faults such as ickering, smoking,
steaming, crackling noises or the smell of smoke.
• A damaged or defective product must be changed or repaired
by the manufacturer, a service person or a comparable qualied
person.
• Installation only under observance of the valid guidelines specic
to application and country among others VDE 0.100.
• Never open one of the electrical operating agents or plug any
objects into them. Such procedures signify a danger to life
through electrical shock.
• Absolutely avoid contact between the product and water or
other liquids. For reasons of electrical safety, the light may not be
placed in contact with water or other liquids or submerged in
water.
• The product may not be changed or modied.
• In operation or after extended periods of operation, avoid
touching the external surface of the LED luminaire, there is a
danger of high temperatures that can cause burns.
• Do not use the LED luminaire in areas with explosive or chemical
aggressive atmosphere or reduced ventilation.
• The warranty claim and guarantee is rendered invalid in the
event of damage to the product, which is caused by not
following the operating instructions.We are not liable for the
consequent damage. Because of specic characteristics of LED‘s
(life, deviation in colour etc.) we formulated special terms for
planing and installing our LED products.They are part of these
installation manual! Should they not be available, request them
please!
• Don’t look directly into the LED! The LED is that bright that it might
damage your eyes!
SAFETY
READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.
DISPOSAL
The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household garbage when it has
reached the end of its lifecycle, but rather take it to a disposal center.
Your local ofcials will provide you with information about collection
ofces and their business hours.
MAINTENANCE AND CLEANING
The LED light agent cannot be replaced.
• Do not use solvents, such as benzene and similar
agents.The light would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the
product.
HBA
LED HIGH BAY LIGHT
HBA-60NW2
HBA-120NW2
Black/blue
Protection class I Notication of Risks
CE label Safety Instructions
The light can be used
in interiors.
Cleaning Instructions
The product may not
be disposed of in the
household garbage.
It is not allowed to cover
luminaires with heatin-
sulating cover sheet or
similar materials!
Don’t look directly into
the LED! The LED is that
bright that it might
damage your eyes!
Danger of explosion
in a chemically ag-
gressive or explosive
atmosphere
LED luminaire gets
very warm during ope-
ration. Be careful when
touching the body.
Not dimmable

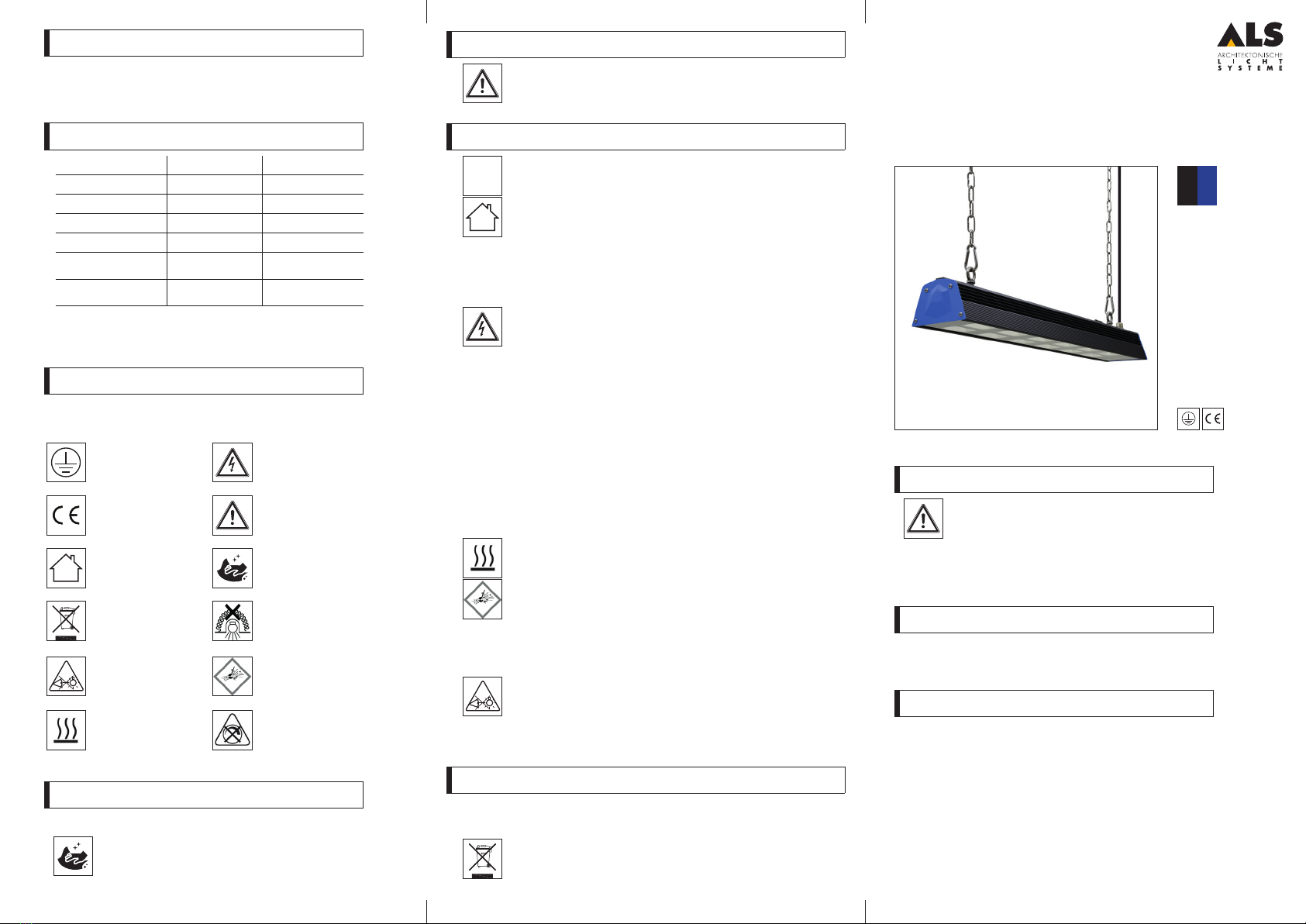

DESCRIPTION OF PARTS
LED High Bay Light with chain suspension
Metal housing black, end cap blue
Clear glass cover
Integrated electronic power supply
TECHNICAL DATA
Article number HBA-60NW2 HBA-120NW2
Connected load 58W 112W
Dimensions (LxWxH) 415x106x100 mm 665x106x100 mm
Suspension distance 250 mm 500 mm
Weight 2 kg 3 kg
Circuit breaker 16A
type B 230V~ 12 pcs. 9 pcs.
Circuit breaker 16A
type C 230V~ 18 pcs. 16 pcs.
• Voltage 220-240V, 50 Hz
• Chain length 150 cm
• Light color 4000K
• Protection class: I
• Protection type: IP20
• Ambient temperature -40 to
+45°C
• Not dimmable
LAMP
SMD--LED
TECHNICAL NOTE
Luminaires which are divided on 3 phases and opera-
ted in higher number have an accordingly high inrush
current!
To protect switching actuators KNX etc., we recom-
mend using current limiters or auxiliary relays on site.
See inrush current table.
address | contact
A.L.S. GmbH & Co. KG
Mastorter Str. 29 | 88069 Tettnang (Germany)
Tel.: [phone] | Fax.: [phone]
E-Mail: [email protected] | Web: www.als.de

Assembly instructions
Fixing materials:
The warranty is void if the buyer or a third party repairs or modies the
luminaire.
01 Switch off before installation. Switch on only after complete installation
and examination of the circuit. Professional electrician for installation and
maintenance only. Turn Off power supply before starting any installation.
Read instructions & check you have all the tools and accessories to com-
plete the installation correctly.
02 Carefully remove the luminaire from its packaging.
Caution!
Note cold start and switch-on current for multiple parallel connected
lamps. Consider the max. swichting load for autmatic circuit breaker and
switching elements
01 0402 03
OFF
ON
A
B
03 Suspend the luminaire at the prepared mounting points with the sup-
plied chains and carabiners.To assemble a spirit level (A) is attached to the
upper metal housing.
Connect power cable B(L150 cm) according to the electrical DIN VDE 0100
regulations at the cable connection of the luminaire L, N, PE.
Another installation / assembly / materials / types than provided in the manu-
al sheets, release us from any electrotechnical and electrostatic responsibility.
Looking into the light exit for too long can damage your eyes!
04 Turn on the power.
Model 16A type B 16A type C
58W 12 pcs. 18 pcs.
112W 9 pcs. 16 pcs.
L N PE
