Amana ACE156E User manual

Room Air Conditioners Owner's Manual
Manuel du proprietaire
Manual del propietario
Room Air Conditioner
Climatiseur domestique
Aire acondicionado para habitaci6n
Keep manual for future reference. Be sure manual stays with air conditioner.
Conserver ce manuel pour r6f6rence ult6rieure. S'assurer que le manuel
accompagne toujours le climatiseur.
Conserve este manual para referencia futura. Asegfirese de que el manual
permanezca con el aire acondicionado.
I. Description
This room air conditioner cools,
dehumidifies and filters the
air inside your home.
I. Description
Ce climatiseur domestique
rafrafchit, d6shumidifie et filtre
rair a I'int6rieur de la maison.
I. Descripcibn
Este aire acondicionado para
habitaci6n enfria, deshumidifica
y filtra el aire interior de su casa.
A RECOGNIZE THIS SYMBOL
AS A SAFETY PRECAUTION
A APPRENEZ ARECONNAffRE
CE SYMBOLE CONSTITUANT
UNE MESURE DE SECURITE
A RECONOZCA ESTE SiMBOLO
COMO UNA PRECAUCION
DE SEGURIDAD
Important:It is important, both for
your personal safety and to avoid
possible damage to your appliance
or your home, that you observe the
safety instructions that are given
following this symbol.
Important :il est important, autant
pour la s6curit6 que pour 6viter
d'endommager I'appareil ou la
r6sidence, de respecter les
consignes des6curit6 suivant ce
symbole.
Importante: Esimportantetanto para
suseguridad personal como para
evitar posibles dafios al aparato o a
su hogar,que observe las
instrucciones de seguridad que se
proporcionan despu6s de este
simbolo.
0010554476

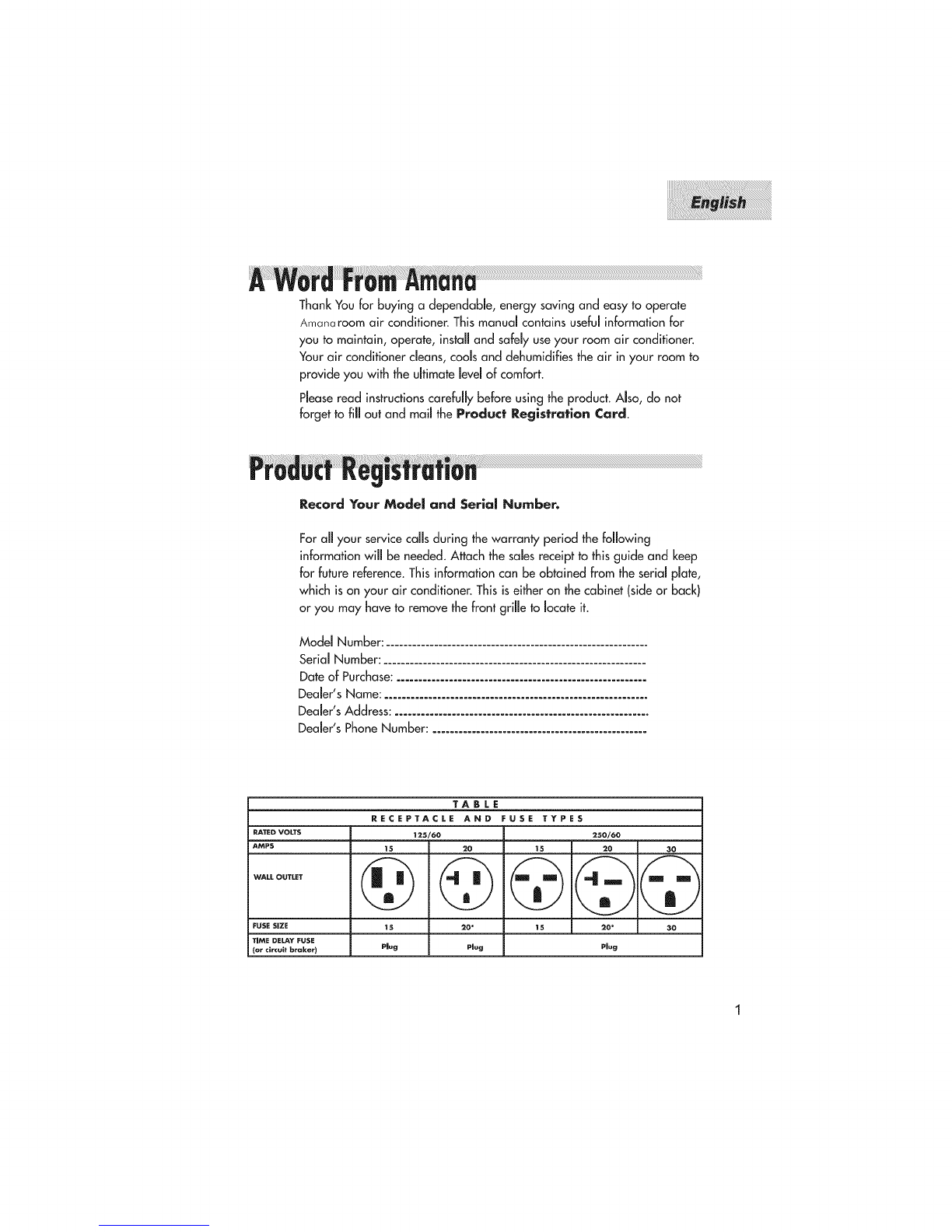

Thank You for buying a dependable, energy saving and easy to operate
Arnanaroom air conditioner. This manuaJ contains useful information for
you to maintain, operate, install and safely use your room air conditioner.
Your air conditioner cleans, cools and dehumidifies the air in your room to
provide yau with the ultimate bvel of comfort.
Please read instructions carefully before using the product. Also, do not
forget to fill out and mail the Product Registration Cord.
Record Your Model and Serial Number.
Far all your service calls during the warranty period the fallowing
information will be needed. Attach the sales receipt to this guide and keep
far future reference. This information can be obtained from the serial plate,
which is on your air conditioner. This is either on the cabinet (side or back)
ar you may have to remove the front grilb to locate it.
Model Number:
Serial Number:
Date of Purchase: .........................................................
DeaJer's Name: ............................................................
Deabr's Address: ..........................................................
Deabr's Phone Number: .................................................
TABLE
RECEPTACLE AND FUSE TYPES
PJ_.TE D VOLTS 125/60 250/60
AMPS 15 20 15 20 30
FUSE SiZE 15 20* 15 20* 30
TiME DELAY FUSE
(or circuit braker) P|ug Plug Plug

ETY
WARNING: Following these basic precautions will reduce the
risk of fire, electrical shock, injury or death
when using your air conditioner.
,_ 1) Air conditioner must be connected to proper electrical outlet with the
correct ebctricaJ supply. (see table)
2) Proper grounding must be ensured to reduce the risk of shock and fire.
DO NOT CUT OR REMOVETHE GROUNDING PRONG. if you do
not have a three-prong electric receptacle outlet in the wall, have a certified
electrician install the proper receptacle. The waJJreceptacle MUST be
properly grounded.
3) Do not use if power cord is frayed or otherwise damaged. Also avoid
using it if there are cracks or abrasion damage along the length, plug or
connector.
,_k 4) DO NOT USEAN ADAPTEROR AN EXTENSION CORD.
5) When installing your air conditioner in a window, make sure the window
isstrong enough to hold the weight of the air conditioner. Youalso want to
secure and correctly install your air conditioner properly to prevent it from
falling. Extra brackets and or support may be required depending
on your window.
6) Do not block airflow inside or outside the air conditioner with blinds,
drapes, protective covers, shrubs or bushes.
7) Be careful of sharp edges on the front and rear fins of the unit that could
cut and cause serious injury.
8) Be careful when Jiltingthe air conditioner to install or remove the unit.
Always usetwo or more peopb for this.
9) Always unplug the air conditioner before servicing it or moving it.

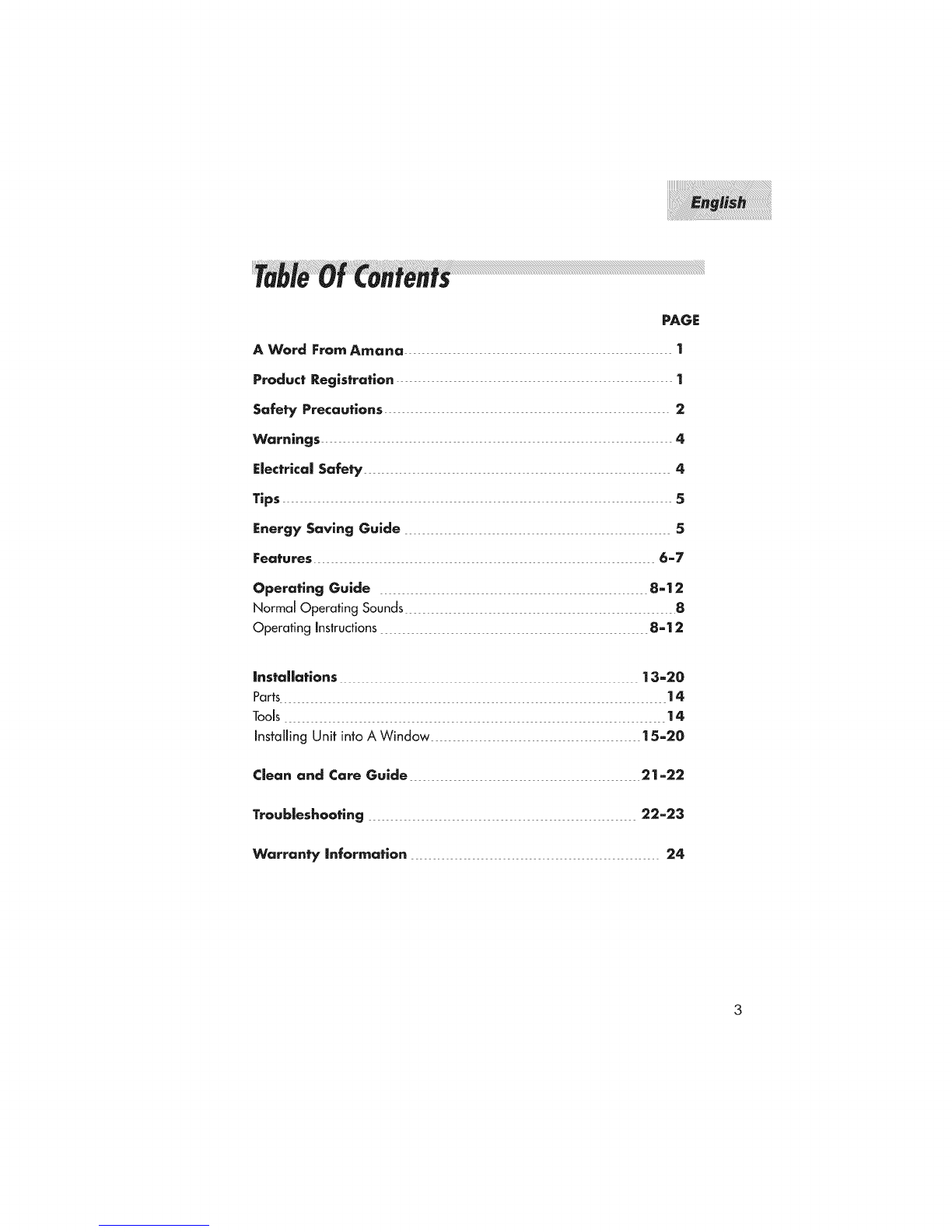

PAGE
A Word From A.nana 1
Product Registration 1
Safety Precautions 2
Warnings 4
Electrica| Safety 4
Tips 5
Energy Saving Guide 5
Features 6-7
Operating Guide 8-12
Normal Operating Sounds 8
Operating instructions 8-12
|nstollations 13-20
Parts 14
Tools 14
Installing Unit intoA Window 15-20
Clean and Care Guide 21-22
Troub|eshoating 22-23
Warranty information 24

Following the safety messages is very important.
These messages can save you from being injured or kilbd.
Warning symbols alert you to be careful and means Danger. Always
follow instructions to be safe and reduce chances of injury or death.
Warning and Danger signs will precede safety messages.
Grounding: This room air conditioner must be grounded.
Grounding reduces the risk of electric shock by
providing an escape wire for the electric current.
The power cord has a grounding wire with a
grounding pbg. Plug it into an outbt thatis
properly instalbd and grounded.
WARNING:
Adapter P|ug:
improperuse of the grounding
plug can result in a risk of ebctric shock.
Call a qualified electrician if you don't understand
the grounding instructions or if you are not
sure if the air conditioner is properly grounded.
if thewall outlet is not grounded, please contact an
electrician to have it replaced with a properly
grounded outlet.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
We strongly advise against using an adapter plug.
|mporlant: Test power plug before each use:
1. Press"reset "button.
2 . Press"test "button, unit should trip.
3. Press"reset" button again for use.
Do not use if above test fail.
In the event this device trips, the cause of the malfunction is to
be corrected before further use of the device .

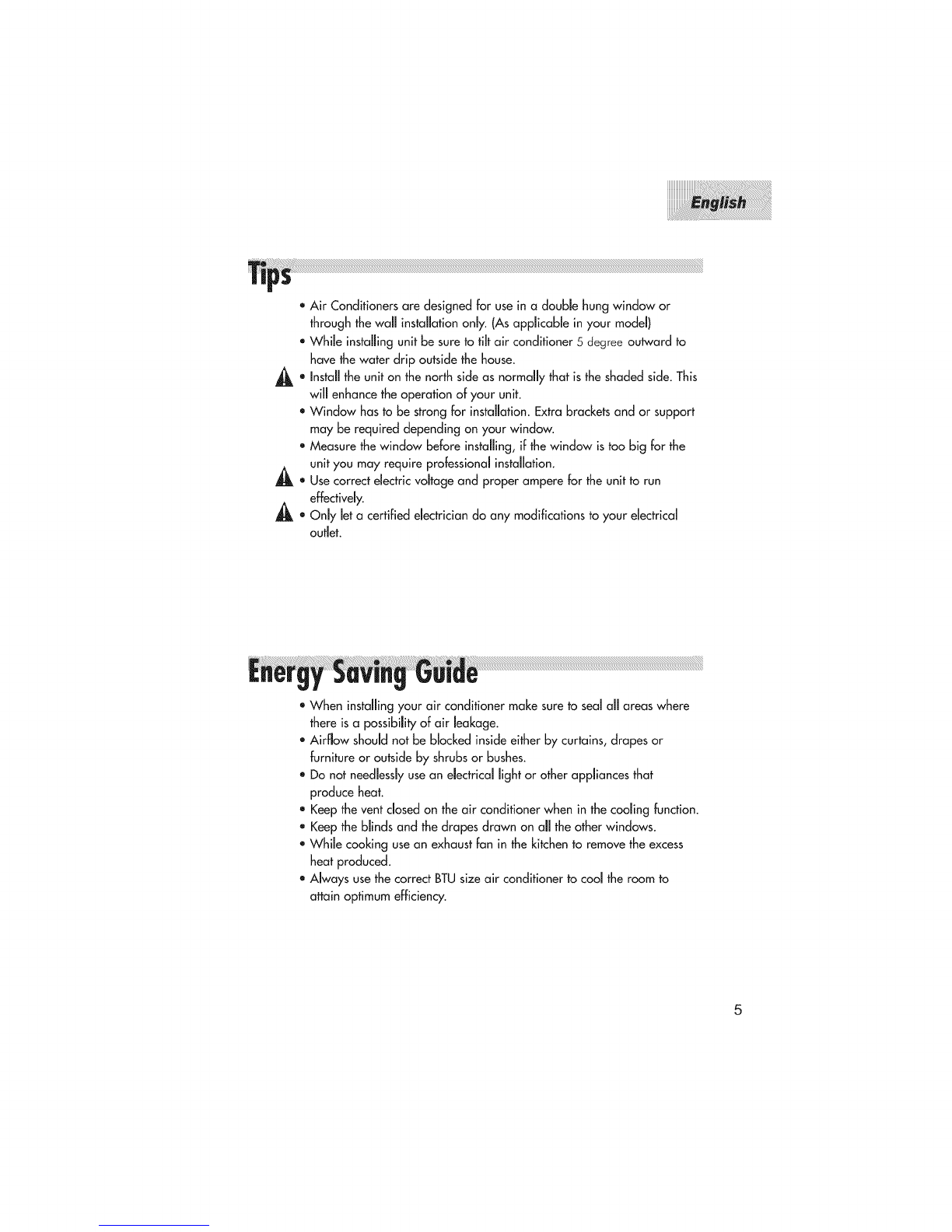

o Air Conditioners are designed for use in a double hung window or
through the wall installation only. (As applicable in your model)
• While installing unit be sure to tilt air conditioner 5 degree outward to
have the water drip outside the house.
• Install the unit on the north side as normally that is the shaded side. This
will enhance the operation of your unit.
• Window has to be strong for installation. Extra brackets and or support
may be required depending on your window.
o Measure the window before installing, if the window is too big for the
unit you may require professional installation.
_ Use correct ebctric voltage and proper ampere for the unit to run
effectively.
_o Only bt a certified electrician do any modifications to your ebctrical
outbt.
• When installing your air conditioner make sure to seal all areas where
there is a possibility of air bakage.
Airflow should not be blocked inside either by curtains, drapes or
furniture or outside by shrubs or bushes.
• Do not needlessly use an electrical light or other appliances that
produce heat.
• Keep the vent closed on the air conditioner when in the cooling function.
• Keep the blinds and the drapes drawn on all the other windows.
• While cooking use an exhaust fan in the kitchen to remove the excess
heat produced.
• Always use the correct BTU size air conditioner to cool the room to
attain optimum efficiency.

vent
controller
side vent
louvers
easy-access
filters
-_. electronic
touch pad
ACE185R,ACE245R,ACE156E,ACE185E,ACE245E,ACEX186E
]. Thermostat
This allows you to adjust the temperature of the air.
The lower the setting the cooler the air temperature.
with this you can set the temperature to your
desired comfort level. You can set the temperature
behveen 61 ° F and 86 ° F
2. Fan Speed
with this you can control the fan speed as wellas
the A/C (cooling} speed.
You hove 3 levels of A/C Speed for you to set at
your desired level LO wilm circulate air of the
_owest velocity, MED at medium vemocity and HIGH
will circulate at the maximum.
You have 3 levels of Fan Speed to set at your
desired comfort level. HIGH, MED and LOW.
3. Function,
Your air conditioner has 3 Functions.
a) A/C.
Here the air conditioner wilmoperate the compressor
and the desired fan speed set to give you chilled
cold air for your comfort.
b) Dehumid.
This enabbs your air conditioner to operate as a
dehumidifier as well. it will remove the excess
moisture from the air to keep your room at a
comfortable dry stage. You can usethis feature
alone in case you do not desire to use the air
conditioner,
c)Fan Only
You can run thefen only on not so hot days. The
fan can be setto run at 3 speeds (HIGHfen, MED
fan, LOW fan)as desired by you.
4. Energy Saver
When this feature is "On" the fan will shut
off three minutes after the compressor cycles
off. This will reduce energy consumption and
noise. When the compressor turn back on
the fan will turn on at the same time. In the
"OFF" position the fan will not shut off when
the compressor cycles off.
5. Timer
Your air conditioner can be set to go on or off at
your desire, This can Be done up to 24 hours in
advance.
6. 4Way Air Flow
These air directional louvers let you control the
direction of the airflow in your required direction.
The airflow can be directed
up - down - right side - left side.

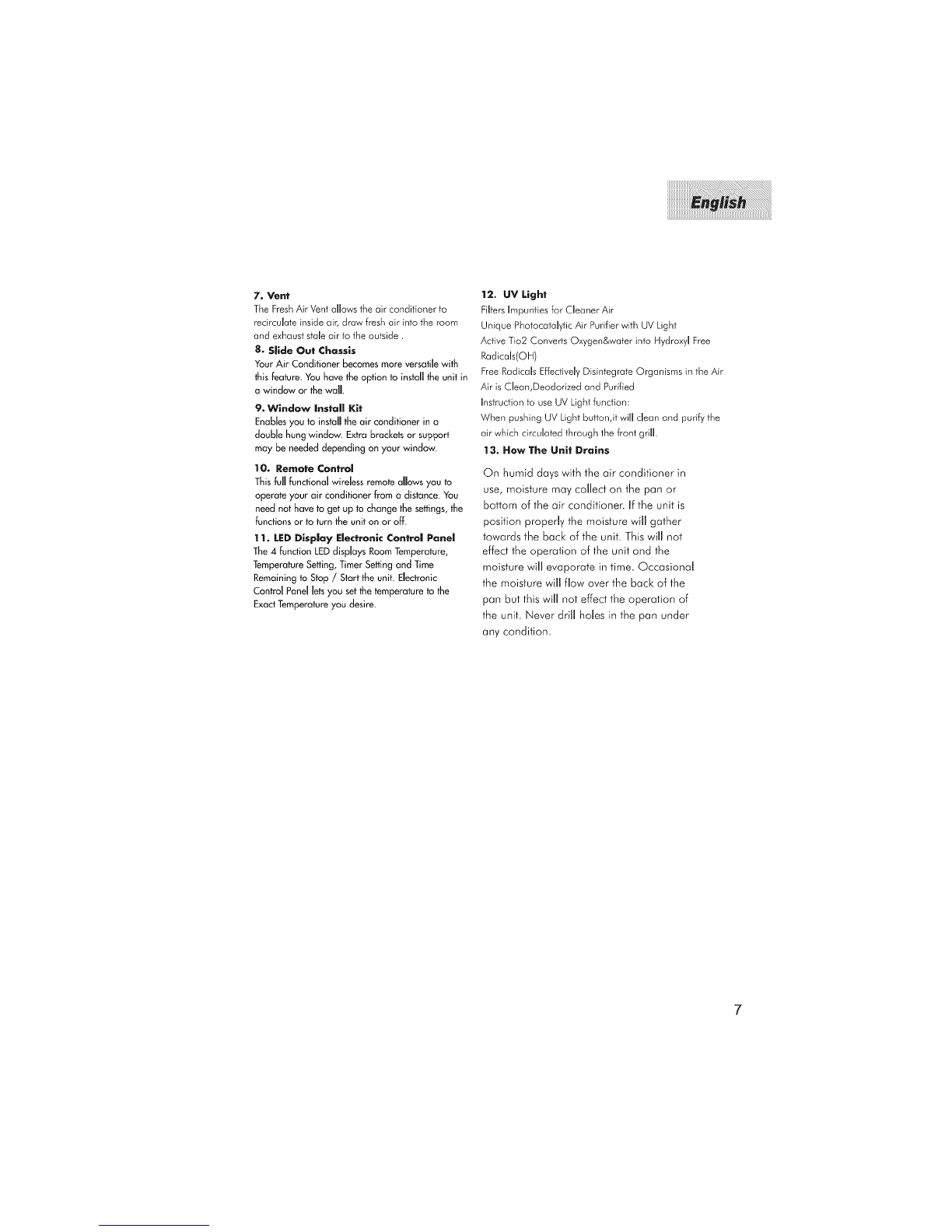

7. Vent
The Fresh Air Vent allows the air conditioner to
recirculate inside air, draw fresh air into the room
and exhaust stale air to the outside.
8. Slide Out Chassis
Your Air Conditioner becomes more versatile with
this feature. You have the option to install the unit in
a window or the wd[
9. Window Install Kit
Enables you to install the air conditioner in a
double hung window. Extra brackets or su99ort
may Be needed depending on your window.
|0. Remote Control
This full functional wireless remote allows you to
operate your air conditioner from a distance. You
need not have to get up to change the settings, the
functions or to turn the unit on or ate
! |. LED Display Electronic Control Panel
The 4 function LED displays Room Temperature,
Temperature Setting, Timer Setting and Time
Remaining to Stop /Start the unit. Electronic
Control Panel Jetsyou set the temperature to the
Exact Temperature you desire.
12. UV Light
Filters Impurities for Cleaner Air
Unique Photocatdylic Air Purifier with UV Light
Active Tio2 Converts Oxygen&wafer into Hydroxyl Free
Radicals(OH)
Free Radicals Effectively Disintegrate Organisms in the Air
Air is Clean,Deodorized and Purified
Insfrudion to use UV Light function:
When pushing UV Light button,it will clean and purify the
air which circuleled through Ihe fronl grill.
13. Haw The Unlf Drains
On humid days with the air conditioner in
use, moisture may collect on the pan or
bottom of the air condifionen If the unit is
position properly the moisture will gather
towards the back of the unit. This will not
effect the operation of the unit and the
moisture will evaporate in time. Occasional
the moisture will flow over the back of the
pan but this will not effect the operation of
the unit. Never drill holes in the pan under
any condition.

Normal Operating Saunds
Thefollowing soundsare normally heard during the operation of an air conditioner.
*Coolairflow movementas dictated by the setfan speed.
° Water sounds.Thisis normal asyour air conditioner actsas a
dehumidifier also.Thusyou will hear water soundsfrom water drops
falling on the condenser.
As the refrigerant flows through the inner sealedtubing a rushing noise
may be heard.
*Rattlingor vibrating noisesmay be hearddue to poor wall
or window installation.
*High pitchcompressorsound may be heard.
Operating Jn,structions
Fallowingare the operatinginstructionsofyour ebctronic air conditioner.
Remote contro| and contro| panel operations
After installingyour air conditioner plug it in to the proper electricaloutlet
in the wall. Keepthe vent inthe dosed position. Now setthe air
conditioner at your comfort level.Thisfull functionalwirelessremoteallows
you to operate your air conditioner without havingto get up and go to the
unit.Thefuji function featureallows you to change the settingsand turn the
uniton or off from the remoteitself.Thiscontrol pad works the sameas
the control pad on the air conditioner.
(SeeFig. # 1)
Fig.# 1
Remote ControJ orb/or _
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!@i¸IIIII¸III¸IIIII¸III¸IIIII¸III¸IIIII¸III¸II¸
8

After you plug in the unit it will perform a selftest. AJJthe dispJay lights
will turn on for 3 seconds.TheLEDdisplay wiJJread "88". If any display
light fails to turn on you may need serviceon the unit. After the 3 seconds
self testthe unit wiJJautomatically go to the standby mode. Now aJJlights
wiJlbe off and you wiJJhaveto turn "ON" by pressing the On/Off key.
After pressing "On/Off", the unit starts to work and entersthe statusof
"Fan" with low setting.
You wiJJhaveto pressthe (A)or (T)key on the Temp/Time to setthe
temperature at your desiredcomfort. Youcan choose between 61°F
and 86°F.Once the temperature is setyou can raise or lower it by pressing
the (A)or (T)keys.(Only when the unit iscooling, energy saver or
dehumidifying, can the temperature settingbe adjusted.) (SeeFig. # 2)
Having set the temperature you will set the function of the air conditioner.
Panel
/iz Z kz ;zF)ziz z zz z z F /zzFz
MODE SPEED TIMER TEMP lTIME
Every time you press the MODE bulton, it wiJJ change between FAN, COOL, ENERGY
SAVER and DEHUM. (See Fig. # 3)

Fig.#3
Control Panel I
Once the function mode is decided you will have to set the fan speed.(See fig. #4)
Every time you press the SPEED button, fan speed will change between LOW,
HIGH,MED.
1) If you choose the COOL mode you can run the fan in one of the 3 speeds HIGH,
MED, LOW.
2) For cool days you may want to run the '_FAN'_function. The fan can be set to run at
3 speeds (HIGH fan, MED fan, LOW fan)as desired by you.
3) If you choose to use the Dehumid function. This will remove excess moisture
from the air on excessively humid days.
Tr: temperature inside the room.
Ts: the set temperature.
1 ) When Tr>Ts+3 °F, the compressor will run continuously the fan at the
selected speed.
2)When Ts-1 °F_Tr_Ts+3 °F the compressor will cycle for 10 minutes on
and 6 minutes off.
3)When Tr<Ts-1 °F, the compressor will shut off.
The dehumidification process takes place between the set temperature -1
and 3 °F above the set temperature.
4)Energy Saver : The unit runs the same as COOL setting in the ENERGY SAVER
mode. But the fan will be off 3 minutes after the compressor cycle off.
10

Fig. # 4
Control Panel.
m
iiiiiii
iiiiiii¸
Timer on or Timer off mode is used to pre-start or shut off your unit in
advance. You can program this up to 24 hours in advance. You can use
the Timer in 4 functions i.e. COOL, Energy saver, Dehumid or Fan .
® Timer on (See Fig. # .5)
Unit must be on to set the timer. Unit will shut down automatically after it
accepts the settings in 5seconds. Use this mode to pre-set the start time of
the unit 24 hours in advance.
a) Press TIMER ON, LED display will show "XX'' (time set last time) when power
is connected first time, LED display will show "01 ".
b) Set desired number of hours by pressing the (A) pad of the Temp/Time
buttons, one for each hour. If you passed the desired time use the (T) pad
key to lower the selection.
c) After set TIMER ON, LED display will show the time. This time displayed:
unit will starts after X hours.
Timer off (See Fig. # .5)
Unit must be running to set the timer off. Use this to preset the time you
would like the unit to shut off.
a) Press TIMER OFF, LED display will show II_J (time set last time) when power
is connected first time, LED display will show "01 ".
b) Set desired number by pressing the (A) pad of the TempMime buttons.
One for each hour. If you passed the desired time, use the (T) pad key to
lower the selection.
c) After set TIMER OFF, LED display will show the room temperature about .5seconds
later.
When using the timer the unit will use/revert fo the last COOL and fan
seliings when activated. The timer must be reset every time you choose to
use it. II

Fig. #5
Control Panel.
Adjusting the Air Flow Direction
Airflow can be adjusted by changing the direction of the air conditioner's louvers.
This can also increase the cooling efficiency of the air conditioner.
Adiusting Horizontal Air Flow
Direction
Adjusting the vertical louvers left and
right will change horizontal airflow.
Adjusting Vertical Air Flow Direction
Adjusting the Horizontal vane up and down will
change vertical airflow. The vane can be adjusted
by nudging the back or up and down of the vane.
Adiusting Horizontal Air Flow Adiusting Vertical Air Flow
Recommended orientation of louvers
Adjust louvers to face upwards when cooling to maximize cooling efficiency.
12

Before you install your air conditioner check the following:
1}Theunit is freeof all obstructionsinsideand outsidethe room e.g. drapes,
curtains, furniture,plants,shrubs,bushes,trees,other structureslike building,
garage etc. Air conditioner musthave clear unobstructedairflow throughthe
condenserto removethe heat.
2) Thewindow isstrongenough to hold theweight of the air conditioner.
Extrabracketsor supportsmay be neededdepending on your windows.
3) Thewindow sill and trackare strongenoughto hold theweight of the
air conditioner.
4) Thewall isstrong enoughto hold the uniL Extrabracketsor supportsmay be
neededdependingon the wall.
5}
kzl
kgl
There is adequate and proper power supply near the air conditioner.
DO NOT use adapter pbgs.
DO NOT use extension cords.
DO NOT cut or remove the ground prong.
DO NOT modify the plug or the electrical wall outbt in any way.
if plug does not fit the ebctrical outlet have a certified ebctrician do the
necessary change.
_10) DO NOT connect electrical power to the unit before installation.
_11 ) DO NOT useif power cord isworn out, frayed or otherwisedamaged.
Avoid using if there arecracksor abrasion damage along the length,
plug or connection.
12) Be careful of exposed sharp edges of the cabinet and sharp coils (fins) on
the back of the unit that could cut and cause serious injury.
13

Parts
Pa4s Supplied
wood screws 31/32'
window seal
gasket
curtain
a_achment
screws 13/32 '
19/32 _long
screw ad
basepan angle Iocknut Iocknul
insqallafion bracket Remote _i-_ left and right
(left and right) control "CR2025" baHery side curtains
Model: ACE 185R,ACE245R,ACE 156E,ACE185E,ACE245E,ACEX 186E
Youwill need to havethe following tools to help you in the installationof
your air conditioner.
,Scissors
•PhiJlipsScrewdriver
oStandardScrewdriver
PJiers
oWrench
eDriJJand Drill Bits
•TapeMeasure
eGJoves
•Level
oSockets
14

installing Unit into A Window
Window Opening Requirements
The air conditioner is designed to fit into double or single hung sash type windows. Each of the
units comes with an installation kit that provides adjustable mounting louvers, to fill the gaps
between the sides of the unit, and the window frame. The chart below reflects the dimensions of
the units with, and without installation kits. Measure your window opening width and compare
itto the chart below to ensure that it meets the minimum and maximum window width requirements.
/ i
I. " .I
ACE185R,ACE245R,ACE 156E,ACE 185E,ACE245E,ACEX186E
1 ACE 8SR,ACE24SR,ACES6E,ACEmSE,ACE24SE,ACEX_86E
A(inch)
B(inch)
C(inch) 20_'
D(inch) Max
D(inch) Min
Case High 18_"
Case Width 2619'
Case Depth 25_ _'
IREPAREUNiT
FOR
INSTALLATION
Unpack unit on fJoor next to installation
location
Remove _vo front attachment screws.
Separate the outer case from the front
with a putly knife at the catch points
designated by the arrows
Remove the two screws on lop of lhe
outer case.
Using the basepan handle, slowly and
evenly puJl chassis out from outer case_
Note: Cover putty knife blade with
masking tape 1o guard against damage
of the unit finish_
Caution: Never expose plastic
front or grille to extreme
ternperatures.
15

ASSEMBLE
CURTAINS/TOP
RAIL
Install lop rail with four 13/32" screws.
Slide left-hand curtain assembly
into left end of top and bottom
rails. Repeat for right-hand curiain
assembly, Fasten curtain retainer
strips to sides of outer case wit_
six13/32' screws.
PREPARE
WINDOW FOR
INSTALLATION
Inspect window track, sash, and sill
for its ability to support the weight of
air conditioner.
Measure width between window
moldings to ensure Instant Mount
will fit window frame. Instant Mount
models are designed for windows
wide (the detail see page 15)
InstantMount kit supplied with unit
is designed for mounting in most
double-hung windows wilhout
storm windows.For inslallafion in
window frame with storm window,
Storm window installation
Ifslorm window frame does not allow
adequate clearance below sill (1/2"
required), remove storm window
frame or create clearance by adding a
wood strip (at least 1 1/2" wide) along
entire width of sill, Fasten wood strip
to sill with at least three countersunk
wood screws (no_supplied wiih kit).
This _rovides a smooth surface for
mounting air conditionen
1/2"
Dm
modify sill by adding wood strips(nol
included) to inner and outer sills. This SforrnWlndow R
raises unit and eliminates interference Frame
of storm window frame.
Mobile home window installation
Add wood srip (at leasi 1 1/2" wide)
along entire width of window sill,
Thickness of wood strip should match
height of front lip on window frame.
Fasten wood strip to sill with a
minimum of three countersunk wood
screws (not supplied with kit), This
provides a smooth surface for
mounting air conditioner.
Must be a minimum
M1 1/2' _:_,. Window
i Wood
i _tri
i iv°
o_..... ....... o°
16

iNSTALL OUTER
CASE IN WINDOW
Place outer case in window. Lowe_
sash until it rests behind _ront flange
of top rail. Boffom rail must rest
behind window sill
rail
Use _wowood screws 31/32' to fix 1hecase _o
windows sash.Install left & right installation bracket
and as shown in fig. Install bolt(2 1/2" long flat head
bolt and Iocknut) 1o_heinstallation bracket and adiust
them to proper length ,then use 4 (I 9/32 )screwsto fix
the bracket on the case. Y
Expand
window Jrame. install four wood
screws 31/32" Two in each upper right and
left of he curtains.
InstalJthree wood screws 31/32" top mounting rail
screws.
NOTE: To make screws easier to
drive, drilJa pilot hole into sash
through clearance hale in curtains.
17

iNSTALL SASH B_CKET
&SEAL GASKET
Installsash bracket on top of indoor window sash
with one wood screw 3 ]/32" to prevent raising of
window from the outside. Screw anchor d recfly into
side of window frame. For hard wood or metal window
frames, drill a pilot hole to start screw,
Imporlant:Be careful not to drill pilot hole too deep
Add a piece of tape to the drill bit as a depth gauge.
Also stayclear of glass. Be careful not to damage the
function of he window.
Cut window seal gasket to width of window Stuffwindow
seal strip be ween outdoor window glass and top of
indoor sash. This will stop air leakage which reduces
efficiency.
RETURN
CHASSISTO
OUTERCASE
Find someone to help you
replace chassis in outer case.
Replace front panel, and grille.
Cautlon:
For security purpose, reinstall
screws at cabinet's sides.
Where possible insqalllwo screws
on op of the outer case, removed
in slep one
IMPORTANT: Because window
sash helps keep unit in window,
make certain window sash contacts
outer case before reinstalling
chassis.
18

WoB |nstoNotions: slide-out chassis only
Note: Remove the 2 shipping screws on the top of the air conditioner
that hdd the chassis to the outer shd[ casing. Once removed,
these do not have to be re-instdbd. To ensure that your air
conditioner is properly installed in the wall, it is recommended
that it be installed by a certified technician who is familiar with
through the wall installations.
1) Using wood, 1" or more in thickness, build a wooden frame to fit the
casing/cabinet dimensions of the unit which you have purchased.
2) Measure theoutsidewidth and the heightof the frame todeterminethe
cutoutdimensionsnecessaryfor theopening in thewall. Thedepth of the
framewi[[ dependon the depth of thewall. Thefinishedframe mustbe set
in the insidewall. Theframe has to be squaredand bvded. Rememberthe
frame hasto be nailed securelytothe wail studs. (SeeFig. # 19)
Fig. # 19
3) Now to install, insertthe casing into thewall opening. (Removethe
chassisout first following steps1- 6 in Slide-outchassissection).
Make surethatthe cabinetis at least 1/2" inch insidethe room.Also the
sidelouversshouldnot be blocked.Thisis to haveproper air circulation in
and around the compressor.(SeeFig, # 20)
lg
