Amana VTC Series Quick start guide

December 1999 20292301
S P V U
Single Package Vertical
Air Conditioner/Heat Pump
Installation Instructions
and Owner’s Manual
VTC/VTH Series
The Single Package Vertical Unit is a compact, through the wall pack-
aged HVAC system that can be ducted to individual rooms. It’s slim 20” wide
designusesminimalfloorspaceandinstallsinaclosethavinganexteriorwall.
Conditioned air from a single unit can be ducted to multiple rooms. Each unit
is controlled by a standard wall thermostat.
These instructions give information relative to the SPVU unit only. Refer
to Wall Sleeve and Grille installation instructions for those components. The
manufacturer assumes no responsibility for equipment installed in violation of
any code requirements. For other related equipment refer to the proper
instructions.

2
IMPORTANT NOTE TO THE OWNER
Thisequipmentistobeservicedbyprofessionallytrainedpersonnelonly.Ifthisequipmentisimproperlyinstalled,adjusted
or altered by an unqualified person, a safety hazard may result.
IMPORTANT NOTE TO THE SERVICER
Read this manual and familiarize yourself with the specific items which must be adhered to before attempting to service
this unit. The precautions listed in this manual should not supersede existing practices but should be considered as
supplemental information.
Yourwarranty certificateis alsosupplied withthe unit.Read thewarranty carefullyand notewhat is
covered. Keep the warranty certificate in a safe place, so you can find it, if necessary.
Before using this manual, check the serial plate for proper model identification.
THE INSTALLATION AND SERVICING OF THIS EQUIPMENT MUST BE PERFORMED BY
QUALIFIED, EXPERIENCED TECHNICIANS ONLY.
Due to policy of continual product improvement, the right is reserved to change specifications and
design without notice.
!RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION.
Contents
Unit Features ............................................................... 3
Unit Location ............................................................... 3
Transportation Damage .............................................. 3
Unit Accessories ......................................................... 3
Installation Instructions .............................................. 4
Wiring ........................................................................... 5
Operating Instructions ................................................ 6
System Checks ............................................................ 7
Care and Cleaning ....................................................... 8
Obtaining Service ........................................................ 8

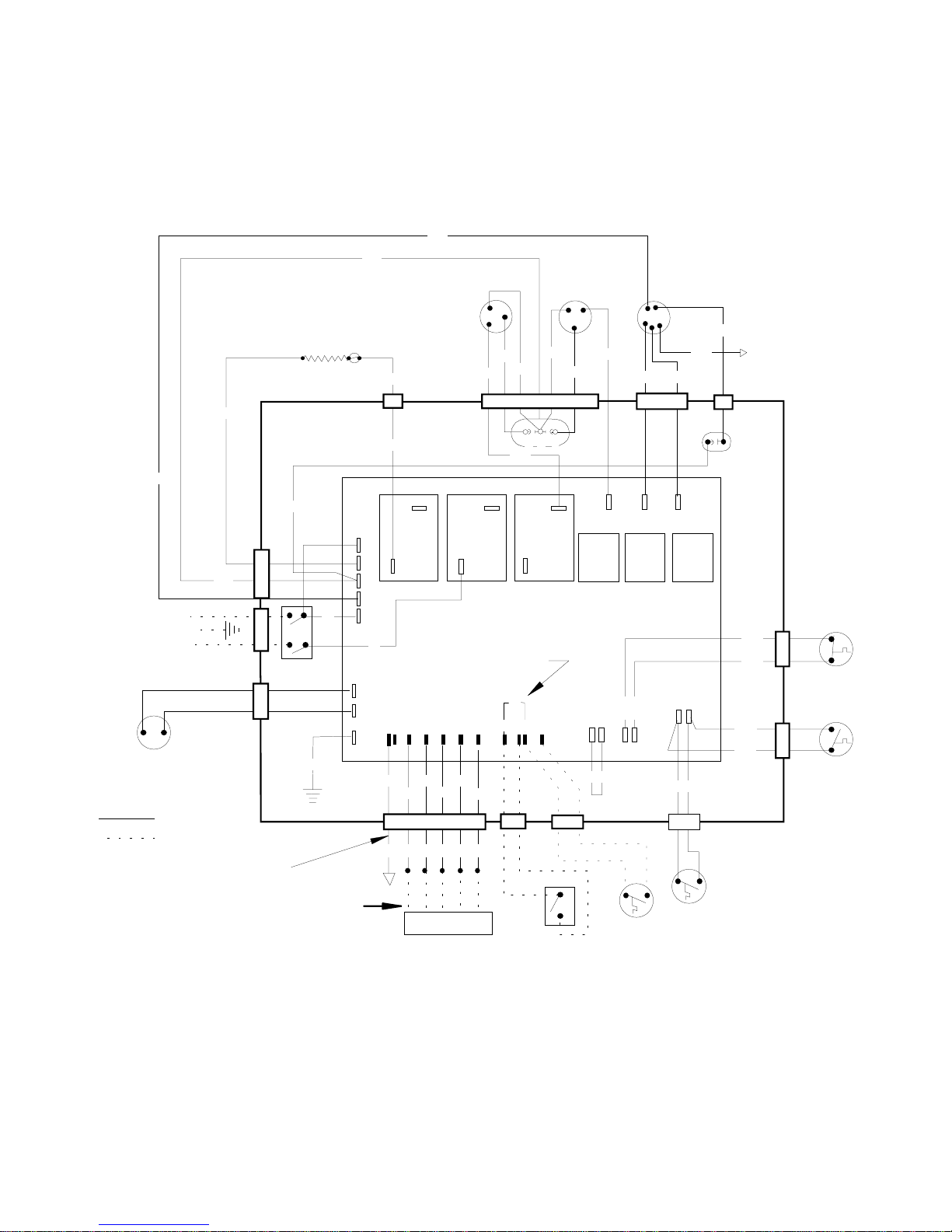

Wiring Diagram ............................................................ 9

3
Unit Features
This unit has many features which are different than those
found on conventional units. The servicer must be familiar
with these features in order to properly service the unit.
• Random restart delay - The SPVU employs a random
resettimerwhichdelaysunitoperationupto3minutes
following initial power application. Electronic thermo-
statsmay alsoemploy internalresettimerswhichmay
further delay any changes which are made to the
operation of the unit.
• Automatic 3-minute compressor lockout - After the
compressor cycles off, it will not restart for three min-
utes.Additionaldelaysmaybeexperiencedifusingan
electronic digital thermostat.
• Low ambient compressor lockout - When the outdoor
ambient temperature is below 40 degrees F, the low
ambientcompressorlockout switchwill keepthe com-
pressorfrom energizingin eithercoolingorheatpump
mode.
• Direct drive, multi-speed blower - The proper speeds
havebeenpresetatthefactoryforheatingandcooling.
Refer to wiring diagram for recommended blower
speeds for specific models.
• Condensate Drain - This unit comes with a factory
installeddraintubinginstalledonthebottomoftheunit.
This tubing drains from a trap at the bottom of the
condenser section.

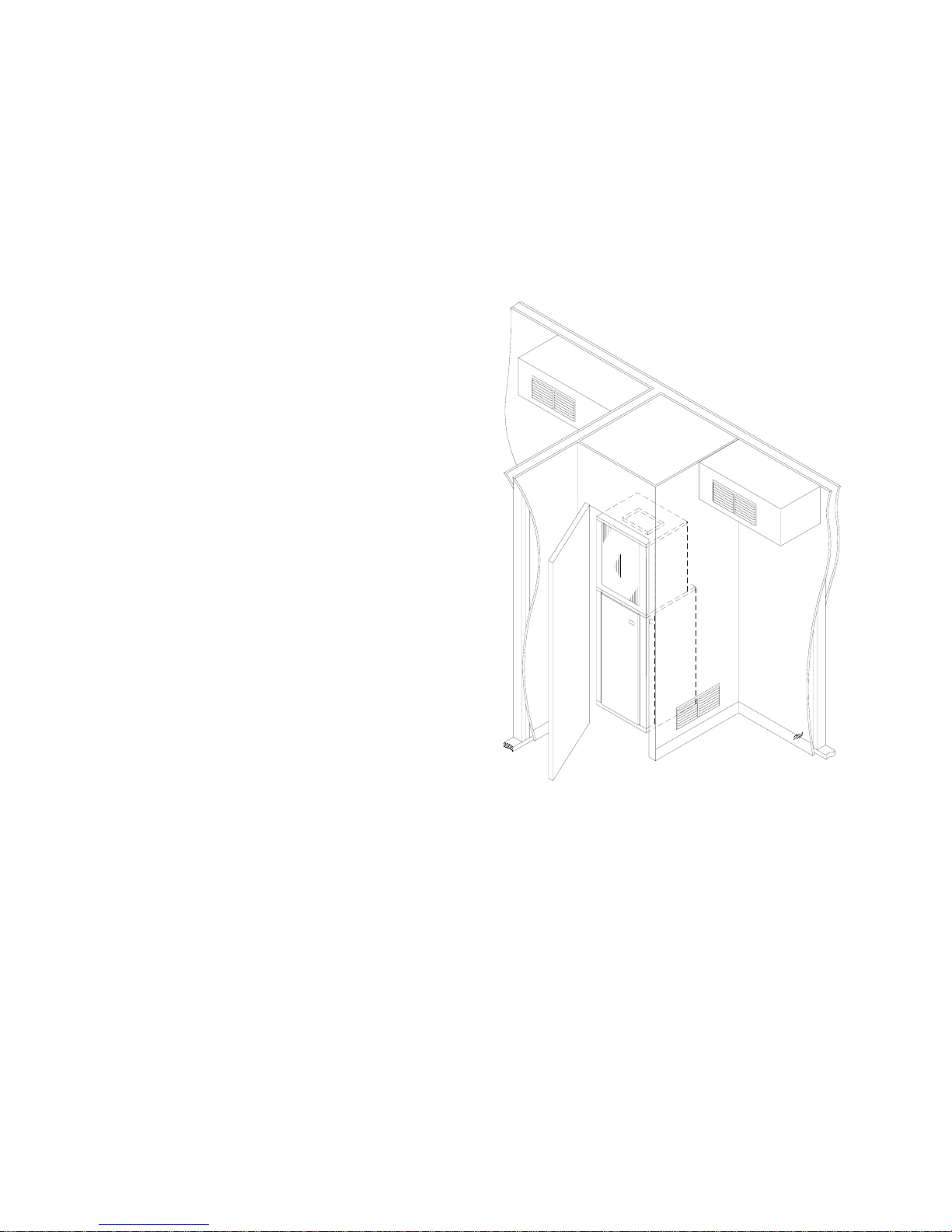

Unit Location
Provisions should be made to allow access to the indoor
sideof theunit forinstallation andinspection. The closetor
access panel opening must be centered with the exterior
wall opening and at least 24” wide by 84” tall. Three (3)
inches of unobstructed space is required on all sides of the
SPVU to allow for adequate air flow. At least 27 inches of
unobstructedspaceshould beprovidedinfrontof theaccess
door to permit removal of the unit should repair and
inspection be required.
Transportation Damage
The SPVU is shipped in one package, completely as-
sembled. Material in this shipment has been inspected at
the factory and released to the transportation agency in
good condition. When received, a visual inspection of all
cartons should be made immediately. Any evidence of
roughhandlingorapparentdamageshouldbenotedonthe
deliveryreceiptandthematerialinspected inthe presence
of the carrier’s representative. If damage is found a claim
should be filed against the carrier immediately.
In the event of damage, the consignee should:
1. Make notation on delivery receipt of any visible dam-
age to shipment or container.
2. Notify carrier promptly and request an inspection.
3. Incase ofconcealeddamage,carriermust benotified
as soon as possible—preferably within 5 days.
4. Filetheclaimwiththefollowingsupportingdocuments
within the 6 month statute of limitations.
a. Original Bill of Lading, certified copy, or indemnity
bond.
b. Original paid freight bill or indemnity in lieu thereof.
c. Original invoice or certified copy thereof, showing
trade and other discounts or reductions.
d. Copy of the inspection report issued by carrier’s
representativeatthetimedamageis reportedtothe
carrier
The carrier is responsible for making prompt inspection of
damage and for a thorough investigation of each claim.
Thedistributorormanufacturerwillnot acceptclaims from
dealers for transportation damage.
Unit Accessories
Thisunitisdesignedforthrough-the-wallinstallationinnew
or existing buildings. To complete the installation of this
unit,awall sleeve,anarchitecturalgrille,thermostat anda
filter are required.
The unit is shipped in one carton. Optional accessories to
complete a particular installation are the following:
OptionalAccessories
Louvered Grille Freeze Sensor
Non-LouveredGrille Access Return Air Grille
60° Room Temperature Limiter
NOTE: Consultsalesliteraturefortheappropriatevoltage
and amperage selections, if applicable.

4
• Ensureaminimumclearanceofthree(3)inchesaround
the unit for adequate airflow.
• Ensurethecondensatedrainisunobstructedandleak-
free.
NOTE: Thewallsleevehasa3/4NPTnipplelocatedinthe
bottom for connection to the drain. A trap may be required
in the condensate drain line to prevent sewer gas from
escaping into the room.
SLEEVE INSTALLATION
Referto installationinstructions packedwithwallsleeveto
assembleandmountitinthewall. Ensurethattheconstruc-
tiondebrisguardisremovedandthatthebottomofthewall
sleeve is pitched 1/2 bubble toward the outside of the
building. This angle forces any rain water that might enter
to drain to the outside. Also inspect the bottom of the wall
sleeve pan and drain. They should be clear of obstruction
andoperational.
Figure 2
ARCHITECTURAL GRILLE
This model requires an Architectural Grille. It must be
installed before installing the unit.
Thearchitecturalgrilledirectsairflowforproperunitopera-
tion and protects the outdoor coil. Refer to the Installation
Instructionssuppliedwiththearchitecturaloutdoorgrillekit
for a complete description of the installation procedure.
Installation Instructions
To ensure that the unit operates safely and efficiently, it
must be installed, operated and maintained according to
these installation and operating instructions and all local
codes and ordinances or, in their absence, with the latest
editionoftheNationalElectricCode.Theproperinstallation
ofthis unitis describedin thefollowing sections.Following
the steps in the order presented should ensure proper
installation.
PRE-INSTALLATION CONSIDERATIONS
• Ensurethatproperlysizedductworkisinplacetomate
to the supply connection on the SPVU.
• Remove the two clips holding the unit to the shipping
pallet and remove unit from the shipping pallet.
• Before setting unit into closet, remove upper side
access panels and inspect the evaporator blower to
ensure that the wheel turns freely without rubbing on
the housing.
•Remove the styrofoam shipping block supporting the
blowerassemblyandreplacetheupperaccesspanels.
• Remove front access panel and remove packing and
quick disconnect plug.
• Check all electrical connections and ensure the con-
denser fan turns freely. Note nameplate voltage,
amperage and fuse size for proper power supply.
• If ducted return air is required, bend out the intake air
flanges 90° away from the unit.
• Aoutdoorairventpanelislocatedonthelowerleftside
unit. Removeonescrewandrotatetheplatetoexpose
the desired amount of vent opening. Tighten the
remainingscrew. Placetheremovedscrewintheopen
screw hole on the unit.
Figure 1
• Ensure that the wall sleeve is installed squarely and is
secure before installing the unit.
• Ensure the sleeve seal on the wall sleeve is properly
secured and aligned.
• Ensure the architectural or outdoor grille is installed.
Ducted Return
Air Flanges
Outdoor Air
Vent
1/2 Bubble Tilt

5
UNIT INSTALLATION
1. Lifttheunitontothebaseofthesleeveandslidetheunit
forwarduntil itis 1/2” awayfrom thetopinsideedgeof
the sleeve to engage the seal. Ensure the unit is
completely seated on all four sides against the wall
sleeve seals.
Figure 3
2. Connect properly sized electrical service to the quick
disconnect.
3. Seal any openings that may exist. If the unit is not
completely sealed, water and/or outside air could infil-
trate the closet and cause the unit to malfunction.
4. Installductworkontounitdischargeandensurethatthe
connectionisleakfree. Aflexiblebootconnectionmay
bedesirabletoprovideformoreconvenientinstallation
and removal from the unit.
IMPORTANT NOTE: Check the indoor and outdoor
grillesforobstructions toairflow. Theunitmust belocated
where curtains, furniture, trees, or other objects cannot
blocktheairflowtoandfromtheunit.Ifairisobstructedand/
or deflected back into the unit, the air conditioner’s com-
pressor may cycle on and off rapidly. This could damage
the compressor.
INTAKE AIR FILTER INSTALLATION
Anintakeairfilterisrequired forthisunit. Donotusepleated
or media filters. Do not operate the unit without one. An
intake air filter, filter bracket and clip are shipped with the
unit to complete this installation.
1. Before installing the intake air filter, insert the filter
bracket into the slots below the evaporator. Install the
filter clip into the slots above the evaporator.
2. Place a 20” x 24” x 1” filter into the filter bracket and tilt
outwards.
3. At the same time, tilt up the filter clip, place the filter
against the unit and then lower the filter clip. It should
hook over the filter.
Figure 4
Wiring
WARNING
To avoid the risk of electrical shock, personal injury
or death, do not service this unit without first opening
all disconnects.
CAUTION
To avoid the risk of fire, property damage or
personal injury use only copper conductors.
WARNING
This air conditioner is not meant to provide unattended
cooling or life support for persons or animals who are
unable to react to the failure of this product.
The failure of an unattended air conditioner may result
in extreme heat in the conditioned space causing
overheating or death of persons or animals.
Precautions must be taken to warn of or guard
against such an occurrence.
Allwiringmustcomplywithlocalandnationalcoderequire-
ments. Any alteration of the internal wiring will void UL
certification and manufacturer’s warranty.
Nameplate data indicates the operating voltage, phase,
ampacity, maximum over current protection and minimum
voltage. Units must never be installed or operated where
voltageexceedsthenameplatevoltagebymorethan10%.
Failure of the compressor as a result of operation with
improper voltage voids the compressor replacement war-
ranty.

6
The unit comes with a factory-supplied quick disconnect,
however, the contractor is responsible for providing over
current protection on the branch circuit. Refer to the unit
wiring diagram for single point electrical connection.
These units are provided with a Class 2 transformer for 24
volt control circuits. Should any add-on equipment also
have a Class 2 transformer furnished, care must be taken
to prevent interconnecting outputs of the two transformers
by using a thermostat with isolating contacts.
THERMOSTAT INSTALLATION
Installafactoryapprovedorequivalentthermostataccord-
ingtodirectionsfurnishedwiththethermostat. Thethermo-
stat should be located on an inside wall where it cannot be
affected by drafts, sunlight or any other heat producing
appliances.
NOTE: Heat Pump units operate with the reversing valve
energizedintheHEATINGmode. Thethermostatmustbe
wired or configured accordingly or the unit will not operate
properly.
1. Connect thermostat wires to the thermostat following
the wiring diagram attached to the unit.
2. Connect low voltage thermostat wires from remote
thermostat to the unit.
Figure 6
Operating Instructions
Operation of the unit is automatic and will provide heating
and cooling depending on the setting of the thermostat.
This unit must not be operated during building construc-
tions due to excessive airborne dust and debris. The unit
mustnotbe operatedunder anycircumstances without an
air filter in place.
WARNING
To prevent death or personal injury due to electrical
shock, turn off power at the fuse box or circuit
breaker before servicing the unit. Line voltage will be
present at the control board, terminals L1 and L2,
whenever power is applied to the unit.
Low Voltage
Thermostat
Wires

7
System Checks
COOLING/ELECTRIC HEAT UNITS
POINT CHECK ACTION
Set thermostat system switch to OFF position. None. Unit does not come on.
Set fan switch to ON. Indoor blower operates after random reset timer cycle is complete.
Set fan switch to AUTO Indoor blower de-energizes.
Set system switch to COOL and
lower thermostat set point to coldest setting. The compressor, outdoor fan, and indoor blower energizes after a 5- minute startup delay.
Set thermostat set point to a
temperature warmer than current room temperature. The compressor and outdoor fan de-energizes. The indoor blower remains operational for an additional 45 seconds, then de-energizes.
Move system switch to HEAT.
Raise thermostat set point to a temperature warmer than current room
temperature. The indoor blower and electric heating elements energize.
Return system switch to OFF
position. Unit de-energizes. System check is complete.
HEAT PUMP UNITS
POINT CHECK ACTION
Set thermostat system switch to OFF position. None. Unit does not come on.
Set fan switch to ON. Indoor blower operates after random reset timer cycle is complete.
Set fan switch to AUTO Indoor blower de-energizes.
Set system switch to COOL and lower thermostat set point to coldest
setting. The compressor, outdoor fan, and indoor blower energizes.
Set thermostat set point to a temperature warmer than current room
termperature. The compressor and outdoor fan de-energizes. The indoor blower remains operational for an additional 45 seconds, then de-energizes.
Move system switch to HEAT. Raise thermostat set point to a
temperature slightly higher (less than 2 degrees) than current room
temperature.
The compressor, reversing valve, outdoor fan, and indoor blower
energizes.
Raise set point to more than 2 degrees. Electric heaters energize. Determine by attaching an amp meter to
the electric supply and reading the increased amperage.
Lower set point to less than room temperature. Unit de-energizes.
Return system switch to OFF position. Unit de-energizes. System check is complete.
If any of these checks fail, contact an authorized servicer.
Care and Cleaning

8
Care and Cleaning
PERIODIC MAINTENANCE
Cleantheoutdoorcoilofforeign materialsuch aslint,dust,
leaves or other obstructions as necessary.
Checkdrainline andremoving obstructionsas necessary.
If servicing or major repairs are required, the complete unit
can be removed as follows:
1. Disconnect the electrical power circuit supplying the
unit.
2. RemoveQuickDisconnectandlowvoltagethermostat
connection.
3. Remove rear access panel.
4. Remove supply duct from top of unit.
5. Slide unit out of sleeve and closet.
Reverse this procedure to reinstall the unit.
INTAKE AIR FILTER
The intake air filter is disposable. It should be changed
monthly during the heating and cooling seasons or more
frequently if unusual conditions are encountered. To re-
place the filter, check with your local dealer.
To remove the filter:
1. Turn the unit OFF.
2. Lift up the filter clip with one hand and tilt out the filter
with the other.
Reverse this procedure to reinstall the filter.
COMPRESSOR
Thecompressor ishermeticallysealed,permanently lubri-
catedandrequiresnoadditionaloiling. Ifvibrationnoise is
a problem, loosen the compressor mounting nuts until
vibrationstops. Besurenutsstillsecurethecompressorto
the mounting plate.
Obtaining Service
In the unlikely event this unit requires repair or servicing
beyond what is covered in this manual, contact an autho-
rized service organization.
Toobtainan authorizedservicer, contactyour salesrepre-
sentative or agency.

9
Wiring Diagram
H C F
BLK
CAP OFF ANY
UNUSED SPEED TAPS
OUTDOOR COIL
(NC)
INDOOR COIL
(NO)
BRN
BRN
RED
COOLING
LOCKOUT
INDOOR
VIOLET BRN
OUTDOOR
DEFROST
RED
A FACTORY SUPPLIED JUMPER IS
PLACED BETWEEN FD AND RC AND
MUST BE REMOVED WHEN INSTALLING
THE FRONT DESK SWITCH.
BLK
COM R G W2 FD RC RS
BRNRED GRN
BLU
WHTORG
Y
HTR1
HTR2
L1
L1 COMP COND EVAP
LO EVAP HI
L1
L2
L1
DISCONNECT
GRN
208-240V-1PH-60HZ
POWER SUPPLY
L2 L2
L1
GRD
REVERSING
VALVE
SOLENOID
FACTORY WIRING
FIELD WIRING
NOTE: "C" LEAD MAY BE
REQUIRED FOR ELECTRONIC
THERMOSTATS
R G Y W2 *
C R G Y W2 B
24V HEAT PUMP THERMOSTAT
(R.V. ENERGIZED ON CALL
FOR HEAT)
FRONT DESK
SWITCH (OPTIONAL)
(FIELD INSTALLED)
AMBIENT ROOM
SENSOR (OPTIONAL)
(FIELD INSTALLED)
(NO)
LOW TEMP
LOCKOUT (NO)
BLK
BLK BLK
BRN
BRN BLUERED
RED
YEL
YEL
COND.
MOTOR EVAP.
MOTOR
COMPRESSOR
BLK
YEL
YEL
HEATER 1
BLK
YEL
YEL
YEL
*REVERSING VALVE MUST BE
ENERGIZED IN THE HEATING MODE.
CONNECT PER THERMOSTAT INSTRUCTIONS.
24V CLASS 2 WIRING
VTH12
