DOUGH TROUGH HOIST
Vertical or Slant Legs•
Ceiling or Free Standing Support Options•
Variety of Chute and Gate Options•
Custom Design for Special Applications•

04/2010
1-800-BAKERS-1
www.amfbakery.com
FOR MORE INFORMATION PLEASE CALL YOUR ACCOUNT MANAGER OR
AMF’s focus on continuous improvement may result
in changes to machinery specications without notice.
Asia Ofce:
Room 15-2, A-Building
Thunis Dev. Building
No.11 Hui Xin East St.
Chaoyang District
Beijing, China 100029
Tel: [phone]
Fax: [phone]
[e-mail]
Headquarters:
2115 W. Laburnum Ave.
Richmond, Virginia 23227
Tel: [phone]
or 1-804-355-7961
Fax: [phone]
[e-mail]
Europe Ofce:
6 The Sidings
Station Road, Guiseley
Leeds LS20 8BX, England
Tel: [phone]
Fax: [phone]
[e-mail]

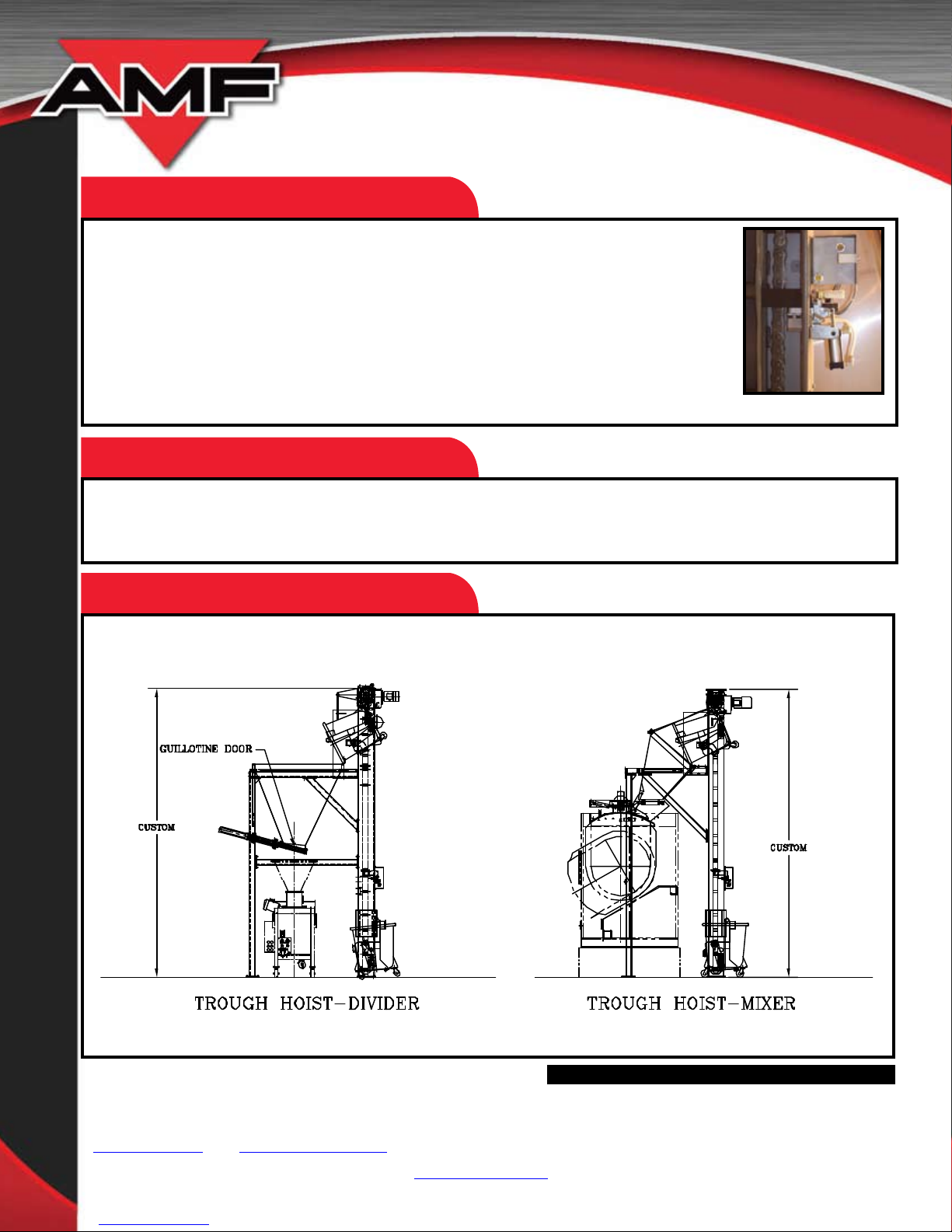

DIMENSIONAL DRAWING
DOUGH TROUGH HOIST
FEATURES & BENEFITS
OPTIONS
The trough hoist is available in either vertical or slant leg•
type. The complete hoist is fabricated from heavy gauge
steel plate. Lift chains are mounted inside the legs and
driven by sprockets welded to the top main shaft and
secured to the hoist legs via special heavy duty roller
bearings.
To ensure adequate static and shock load capacities, uses•
#120 chain having 34,000 pound tensile strength. This
provides the hoist with a 20:1 safety factor.
For added safety and simplicity, the gearbox is mounted•
directly onto the main shaft and is protected by a
torque limiter, which will turn the motor off in case of
overloading.
To provide additional safety, the hoist is equipped•
with special safety latches that prevent the cradle
and trough from falling in the unlikely event of
chain breakage.
The cradle is custom built to suit your specific•
trough requirements.
Hoist is supplied with stationary chute. Chutes are•
designed and built to accommodate all types of
mixers or dividers.
New 3 HP SEW Eurodrive unit (TEFC)•
All electrical wiring is NEMA 12 in waterproof•
conduits with Allen Bradley controls.
Steel-it exterior finish• Safety Latch Engaged
Chute tilting kit•
Stainless steel legs - 5’ (1524 mm) or full length•
Stainless steel cradle in lieu of mild steel•
Free standing structure (mild or stainless steel)•
Water spray manifold•
Special cradle for two different heights of dough trough•
Nord Gear drive unit 3 HP•
Gate options•
Guillotine cutter option•
