Amos AWB 210 User manual

AWB 210
Water bath
Operation Manual
www.amos-scientific.com
AMOS SCIENTIFIC PTY.LTD. ABN37 159 778 140

Fore Word
Thank you for purchasing our
AWB210 Water Bath.This operation
manual introduces product function,
application method and matters need
attention for safety. Please read in
detail before operation to facilitate
your better understanding of product
performance and full utilization of
each function. For any questions,
please contact us and we provide
satisfactory service at any time.
After completion of reading, please
keep the manual properly for later
reference.

Contents
1. Safety Instruction........................................................................................................... 1
1.1 Safety Matters……………………………………………………………………1
1.2 Conditions of installation…………………………………………………………..1
1.3 Delivery Inspection………………………………………………… .....………….1
2. Performance Features & Range of Application............................................................... 2
3. Main structure.................................................................................................................. 2
4. Technical Parameters ..................................................................................................... 3
5. Operation ......................................................................................................................... 3
5.1Keypad Description & Function......................................................................3
5.2Operation...............................................................................................................3
6. Layout Of Components＆Electric Wiring Diagram..............................4
7. Schematic Diagram.......................................................................................................... 5
8. Cleaning ＆Maintenance .............................................................................................. 6
9. Trouble shooting.............................................................................................................6

---1---
AWB210 Water Bath Ver:AMOSAWB210OP20130402
1. Safety Instruction
1.1
Safety Matters
●Please read these concise rules. Any violation against them will affect normal use of equipment or
cause damage to equipment or danger.
Please use 220VAC±10% at50HZ or 110v+10%, 60Hz AC.
Input power supply must be of good earth connection .
Keep away from flammables and explosives.
Don’t open equipment without authorization to avoid high voltage shock.
Only professional maintenance personnel is allowed to repair equipment.
Use fuses with correct capacity
Ensure power socket and circuit be able to bear 2 times of rated current at least.
Keep away from from any interference source.
Caution: Hot.
Electrical Protection Ratings: I class, B type
Shell protection grade: IP53
Harmful liquid Leak-in proof degree: Normal (enclosed equipment without liquid leak-in
proof)
Working system: Continuous operation
1.2 Conditions of installation
●Ensure more than 20cm of space around the equipment for heat dissipation.
●No water drop, steam, dust including oily dust and floating dust.
●No erosive,flammable and explosive gas and liquid.
●Solid and non-vibration.
●No interference from other electromagnetic signals.
●Operating ambient temperature from 5℃to 40℃,relative humidity under 90%
1.3Delivery Inspection
Product has been through strict inspection by quality management before ex-factory. However,
product may be damaged or partially lost due to negligence or severe clash during delivery.
Thus

---2---
AWB210 Water Bath Ver:AMOSAWB210OP20130402
1.Please check the contents inside including equipment, operation manual, packing list and
spare parts after unpacking,
2.Check nameplate to ensure it is your order.
3.Make sure of no damage or loss during delivery.
2. Performance Features & Range ofApplication
The Water bath is made of sheet aluminum and has the advantages of nice appearance, contactless
temperature control, stable performance, program control system and easy and reliable operation. It is
mainly used for flattening and drying of the microtome sections of tissues.

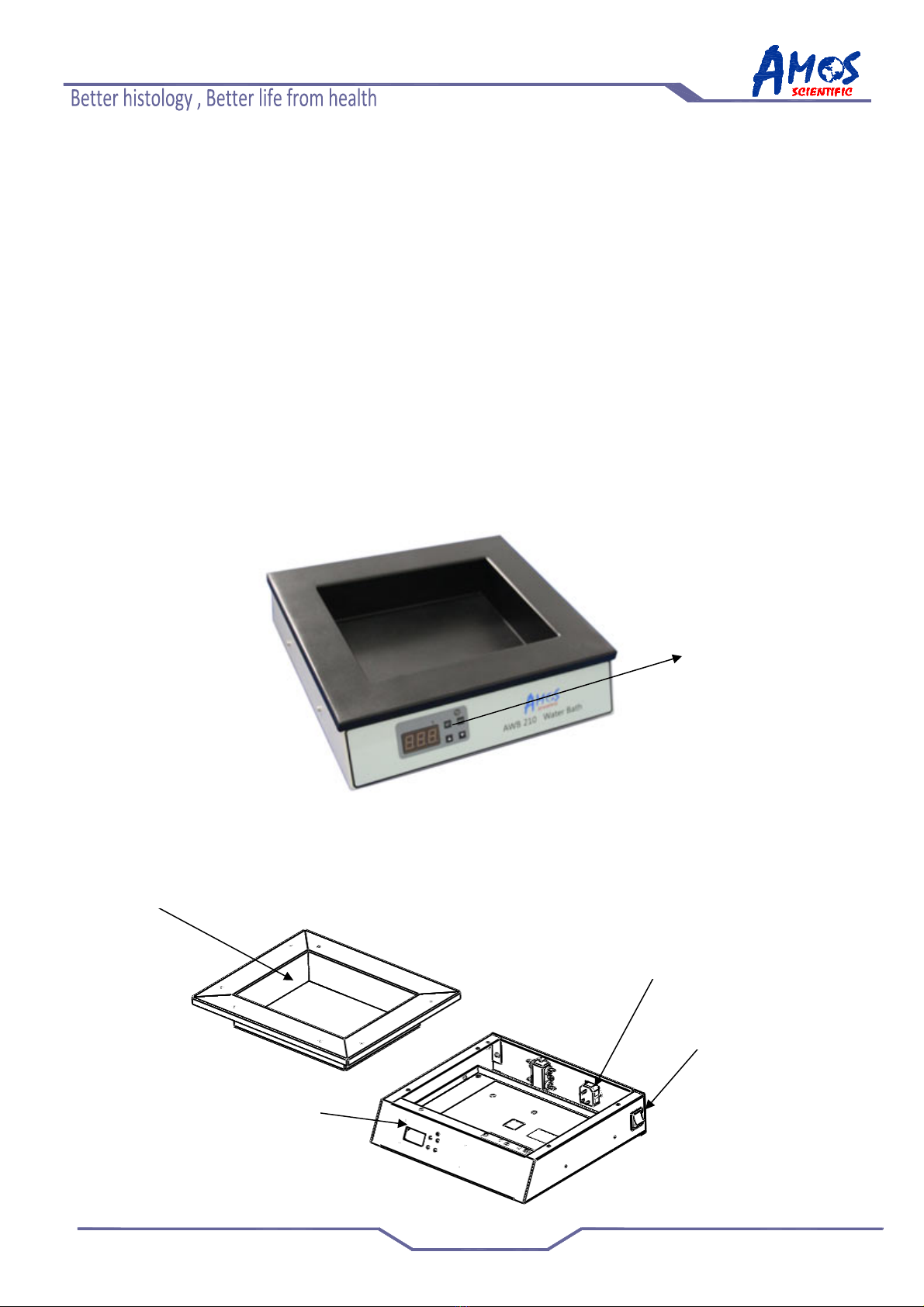

3.Main structure
Water bath
Power switch
Fuse socket
Housing
Key board

---3---
AWB210 Water Bath Ver:AMOSAWB210OP20130402
4. Technical Parameters
●Capacity: 2.3L
●Water trough dimensions(mm): 230*180*56
●Temperature Range: ambient temperature ~75℃
●Temperature Control Accuracy: ±1℃
●Rated Voltage: 220VAC±10% at 50Hz （110V±10％at 60Hz）
●Fuse : 220V/3A（110V/5A）
●Rated Power: 350W
●External Dimensions (mm): 328(W) ×300(D) ×85(H)
●Weight:2.4kg
5. Operation
5.1 Keypad Description & Function
SET For temperature setting, press this button with single buzzing to indicate effective operation.
HEAT- Press this button at red light indicated for heating on, and press again to stops heating.
▲ Set temperature. Press this button to increase temperature degree with single buzzing to indicate
effective operation.
▼ Set temperature. Press this button to decrease temperature degree with single buzzing from
buzzer to indicate effective operation.
5.2 Operation
● Before operation, check if every part of equiment is in good condition.
● Plug in the equipment and turn on the power switch at the back then the buzzer sounds and the
LED display the ambient temperature, which means the machine is in normal working state.
● Press SET to set temperature.▲▼are for adjusting temperature.
● Press HEAT to start heating.
Please turn off the power switch and plug out power after the working finished.

---4---
AWB210 Water Bath Ver:AMOSAWB210OP20130402

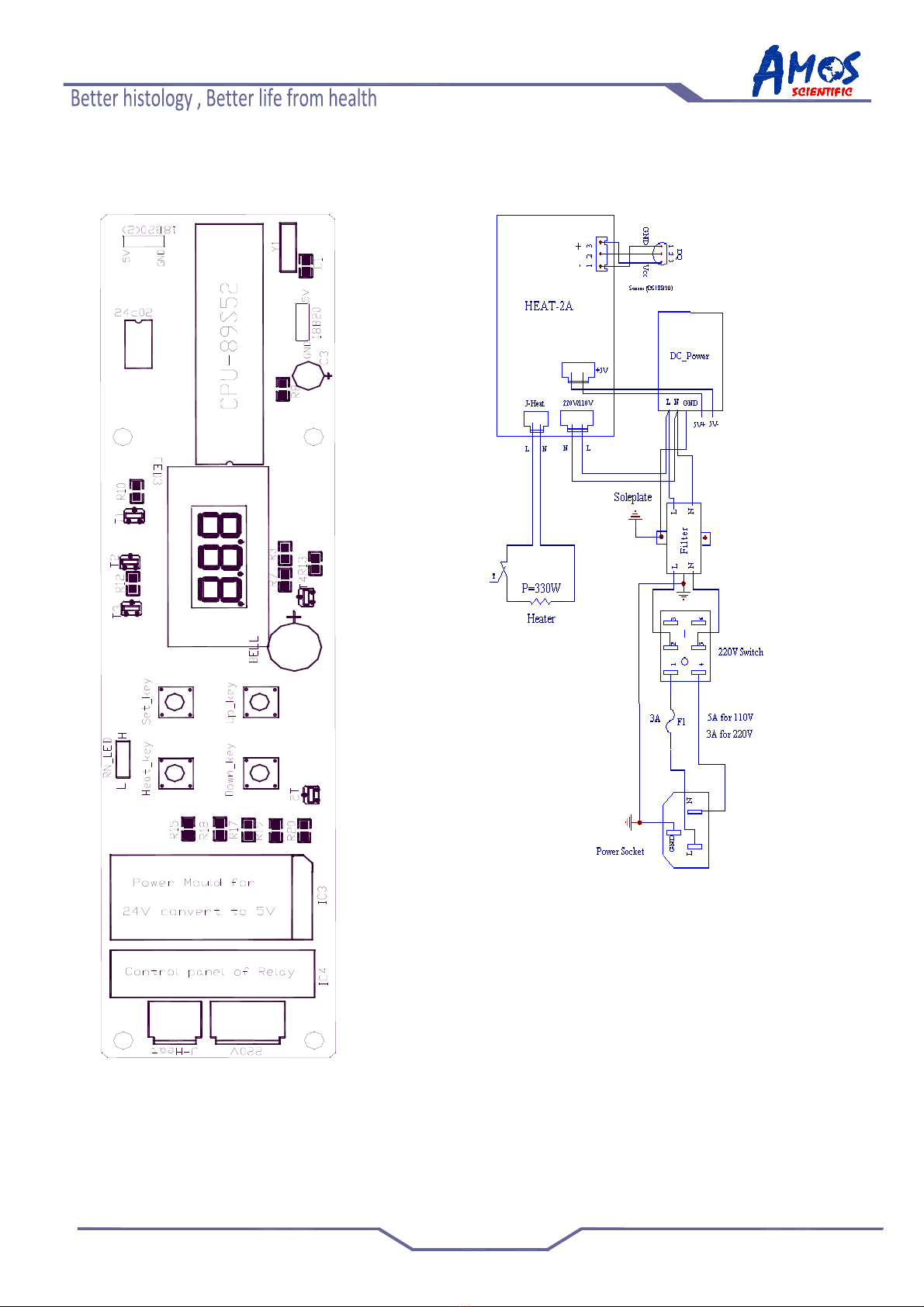

6．Layout Of Components＆Electric Wiring Diagram

Key Board

---5---
AWB210 Water Bath Ver:AMOSAWB210OP20130402

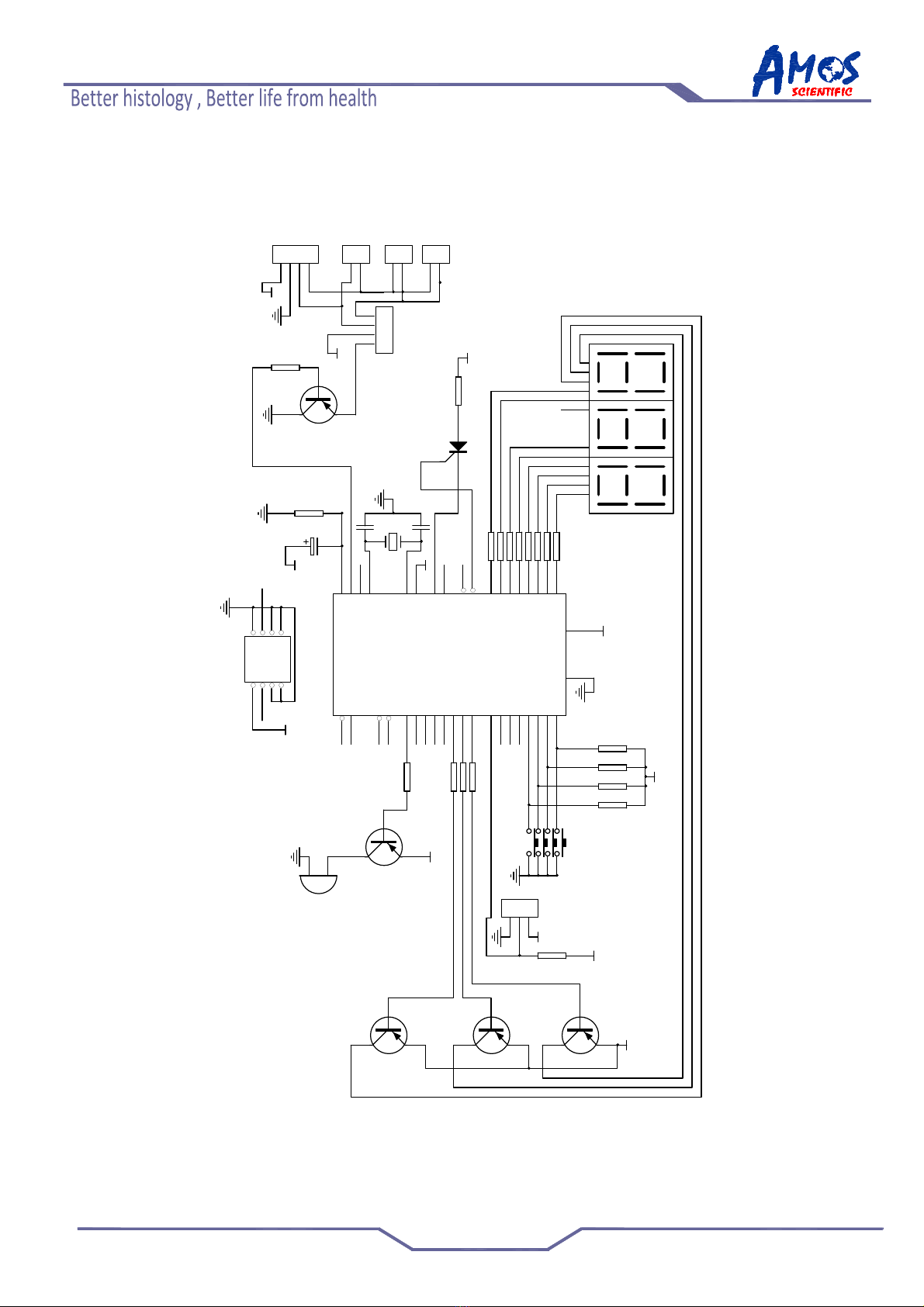

7. Schematic Diagram
EA/VP
31
X1
19
X2
18
RESET
9
RD 17
WR 16
INT0
12 INT1 13
T0
14 T1 15
P10
1
P11
2
P12
3
P13
4
P14
5
P15
6
P16
7
P17
8
P00 39 P01 38 P02 37 P03 36 P04 35 P05 34 P06 33 P07 32 P20 21 P21 22 P22 23 P23 24 P24 25 P25 26 P26 27 P27 28
PSEN 29
ALE/ P 30
TXD
11 RXD 10
VCC 40
GND 20
+5V
C3
89S52
+5V
1
2
3
4
SSR1
+5V
+5V
+5VC1
C2
S1 S2 S3 S4
R19 R20R18R17
+5V
1 2 3
DS18 B2 0
+5V
+5V
+5V
R16
R13
R14
1 2 3 4
IC 1 (DC )
+5V
R10 R11 R12
R4 R3 R7 R2 R1 R6 R5 R8
R9
+5V R15
Y1
1 2
INP UT
1 2
220V
B1
T1
T5
T2 T3
T4
1 2 3 4 5 6 7 8
24c02
+5V
P2.4 P2.5 S-CPU
1 2
FAN LED
8912356 101 42711
LED3

---6---
AWB210 Water Bath Ver:AMOSAWB210OP20130402
8. Cleaning ＆Maintenance
●Before operation, please carefully read product operation manual. Execute according to this manual
requirements.
●Keep equipment clean. Clean the residuals and dirt after finish work
●It is not allowed to use sharp hard object to harm the worktable.
●Installation of fuse as Fig. 4.
Insert fuse(1) into installation part (2) and then insert whole
installation part (2) into socket (3).
●Must plug out power before changing fuse.
Specification of fuse: 3A（220V）,5A(110V).
Fig 4
9. Trouble shooting
Problems Possible Causes Judgment Methods Solutions
No display
Poor connection to power
supply
Ensure connection to
power supply
Ensure connection to
power supply again.
Power switch don’t turned
on.
Turn on power switch Turn on
Fuse blow
Take out the fuse to check its
internal resistance by
multimeter, if the value is
infinite that means the fuse is
broken
Change a new fuse.
Buzzer
Alarm
E01
display
Sensor broken or heating
film, solid state relay is
damaged or disconnected
Change a new one
element.
E02
display
Digital sensor measures
temperature is over 100 ℃
Solid state relay or
sensor broken.
Change a new solid
state reply or fuse.
E03
display
Digital sensor measures
temperature is under -10 ℃
Digital sensor is
damaged
Change a new
temperature sensor.
3
2
1

Standard Accessories List
No Accessory Name Qty Notes
1 Water bath 1 unit
2 Power Cord 1pc
3 Fuse 2pcs
4 Operation Manual 1pc
