Amos TEC 2800 User manual

TEC 2800 （Version：AMOSTEC2800CCOP20150318）
Cryo Console
Operation Manual
www.amos-scientific.com
AMOS SCIENTIFIC PTY.LTD. ABN37 159 778 140

Foreword
Thank you for purchasing our TEC2800 Cryo
console. Presented in this《Operation Manual》are
the functions and operation method support for the
Embedding Center and the matters needing
attention concerning safety. Please carefully read
this manual before use so that you can understand
its performance better and make full use of the
functions. If you have any questions, contact us and
we will provide satisfactory service for you at any
time.
Please keep this Operation Manual
appropriately for later consultation.

Contents
1、Safety Matters.................................................................................................................................1
1.1、SAFETYATTENTIONS ......................................................................................................................1
1.2、CONDITIONS OF INSTALLATION......................................................................................................1
1.3、DELIVERY INSPECTION...................................................................................................................1
2、Characteristics & Application...................................................................................................2
3、Main Structure................................................................................................................................2
4、Technical Parameters ...................................................................................................................3
5、Operation Explanation.................................................................................................................3
6、Trouble shooting.............................................................................................................................5
7、Cleaning ＆Maintenance..........................................................................................................5
8、Wiring Diagram Of ElectricalAppliance............................................................................ 6
9、Schematic Diagram Of Integrated Circuit............................................................................6
10、Distribution Diagram Of Components................................................................................. 7

TEC2800 Cryo Console
AMOSTEC2800CCOP20150318
---- 1 ----

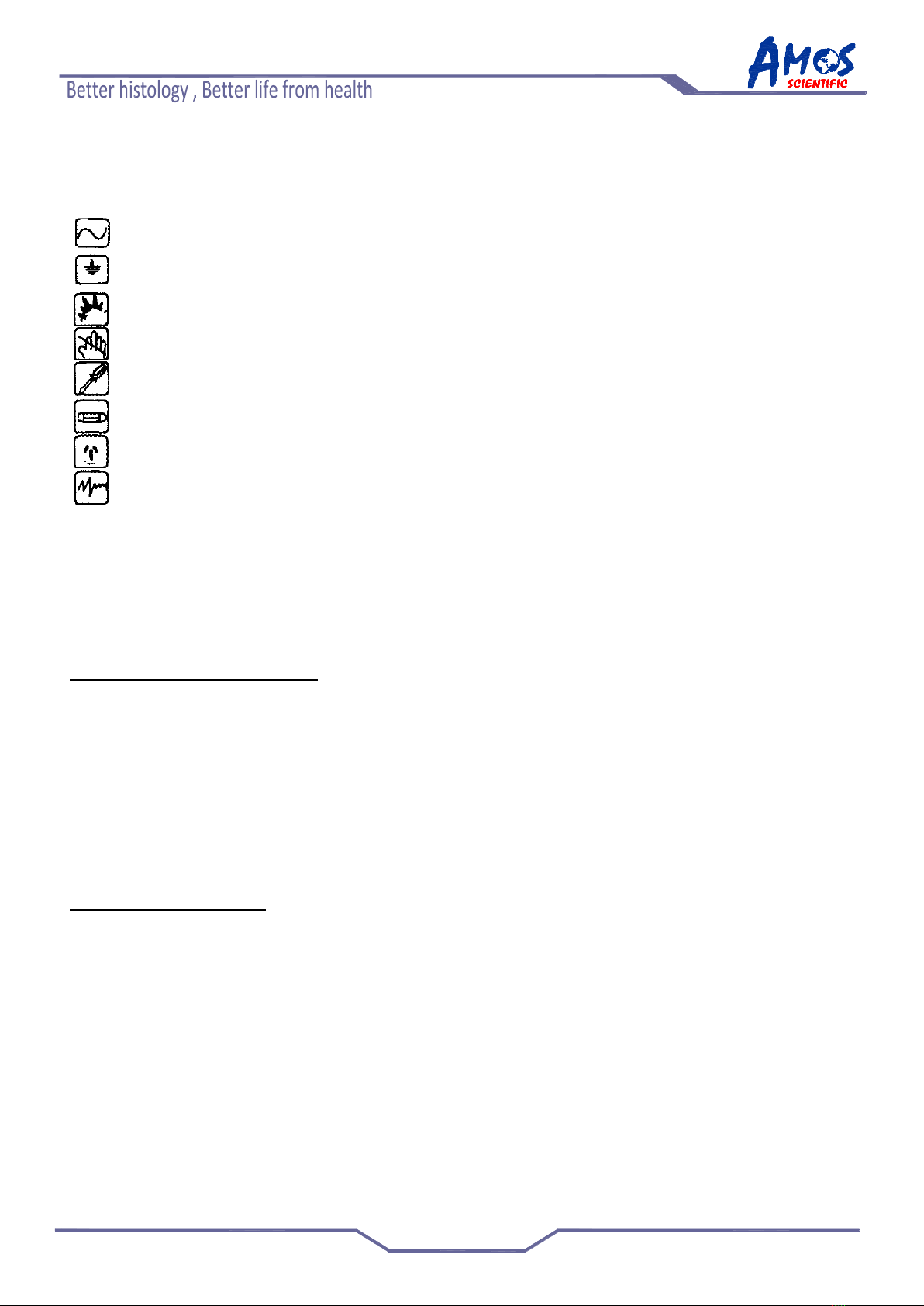

1. Safety Matters
●Please read these explicit rules. Act in violation of them can affect normal operation of the equipment,
cause damage to the equipment or result in danger.
Use 220VAC±10% at 50HZ or 110VAC±10% at 60HZ
The input power supply must have good earthing
The equipment should be installed far away from flammable and explosive objects
Don’t open the equipment without authorization to prevent high voltage shock
Only professional maintenance worker are allowed to repair this product
Use fuses with correct capacity
Ensure that the power socket and circuit are able to bear at least two times of its rated current.
The equipment should be installed far away from any interference source
◼Electrical Protection Ratings: I class, B type
◼Baleful liquid Leak-in proof degree: Normal (enclosed equipment without liquid leak-in
proof)
◼Working system: Continuous running
● Installation environment
(1) More than 20cm of space around the equipment for heat dissipation.
(2) Free of water-drop ,steam, dust(including oily dust and flying dust)
(3) Free of corrosive, flammable and explosive gas and liquid
(4) Firm and without vibration
(5) Free of electromagnetic interference
(6) Ambient temperature and relative humidity at 5℃—+40℃ and less than 90%,respectively
● Delivery inspection
Although the product has already been inspected on quality before leaving the factory, the following
inspection is necessary at delivery because many be damaged and accessories get missing caused by
careless handling during transportation.
(1) Open the packing boxes and check the contents to make sure that there is the product, operation manual,
certificate, packing list and accessories.
(2) Check the nameplate to make sure that the product is the one you ordered.
Make sure that the product and accessories do not get damaged or missing during transportation.

TEC2800 Cryo Console
AMOSTEC2800CCOP20150318
---- 2 ----
2.Characteristics & Application
TEC2800 cryo console is support for Embedding Center.
3.Main Structure
4. Technical Parameters
Working temperature: from +15℃to -15℃ increments 1℃
Rated Power: 330W
Supply voltage: AC 220V±10% 50Hz or AC 110V±10% 60Hz
Fuse: 220V/8A or 110V/8A
Noise: ≤50db
Dimensions:
Width: 390mm
Depth: 560mm
Height: 390mm
Weight: about 24Kg
Display panel
Power switch
Freezing plate

TEC2800 Cryo Console
AMOSTEC2800CCOP20150318
---- 3 ----

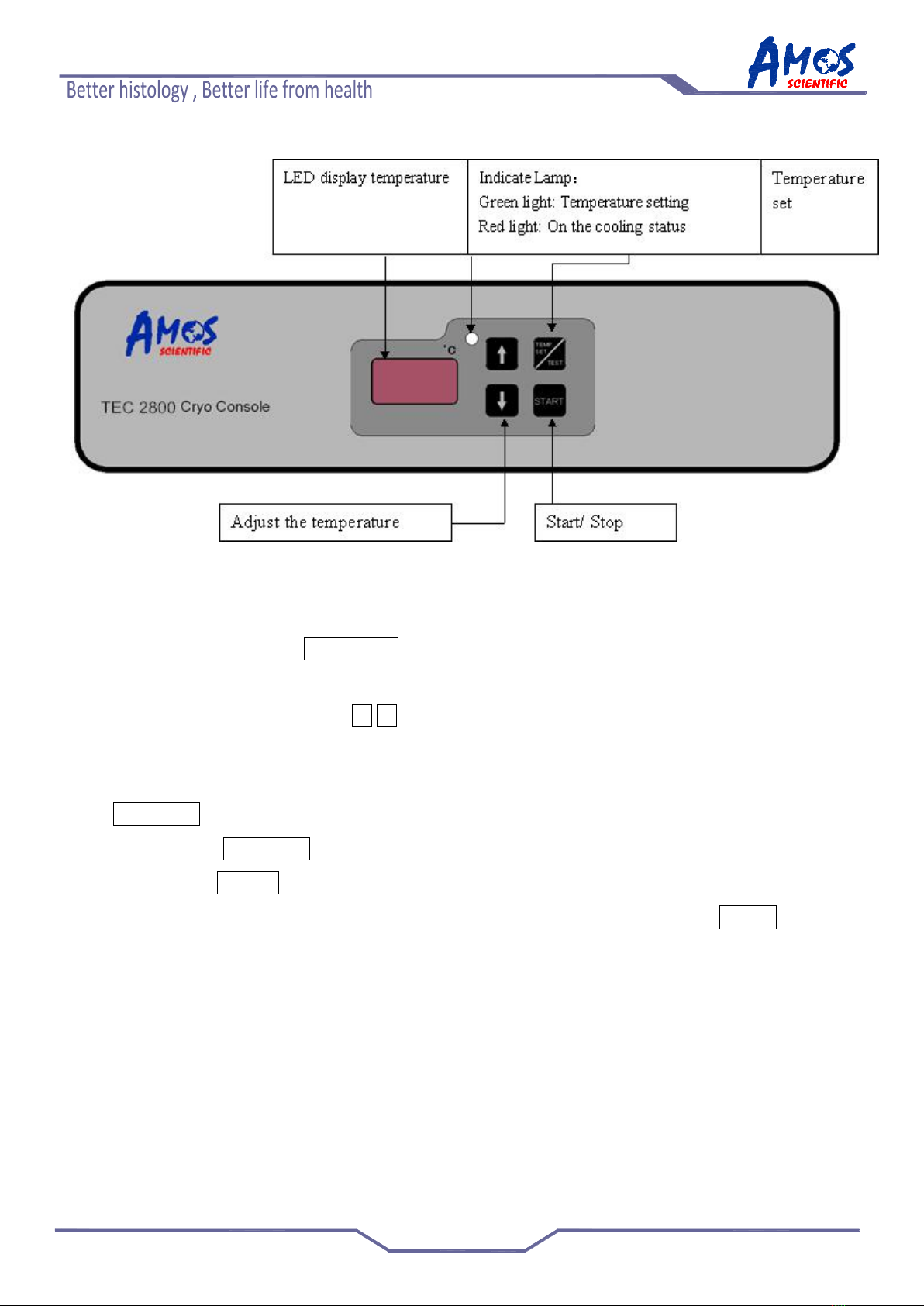

5. Operation Explanation
Please switch on the cryo console ten minutes before embedding.
A. Connect the Cryo Console to the power supply and switch on the power supply
B. And then press key TEMP.SET (the green light is on), while the screen will display the set
temperature.
C. The operator can press key ▲▼to adjust the temperature.
* it will show “OF”or “-OF”to alarm when the temperature exceeds the set temperature. Show
“OF” to indicate set temperature on 15℃ above, show”-OF” to indicate set temperature on -15℃ under.)
Press TEMP.SET to adjust the set temperature.
D. Press key TEMP.SET again (the red light is on), the screen will display the actual temperature.
E. Press key START to refrigerate and the temperature will reach the set temperature after a while.
If you want to stop working, you can stop the machine working by pressing key START again to stop
cooling and then turning off the power supply.
Note: the set temperature of cryo console is from +15℃ to -15℃ available actually.

TEC2800 Cryo Console
AMOSTEC2800CCOP20150318
---- 4 ----
Attention:
--Don’t turn the machine on within five minutes after turning the table off (the effect of refrigeration is
much better when turn the machine on after the temperature of the machine comes back to ambient
--Don’t leave the paraffin piece on the table for long to prevent cracking
--Enough space should be provided at the rear of the table heat dissipating area for quick heat dissipation.
(Enough space 20 cm at least far away from the wall.)
--Water resulted from ice dissolution should be removed timely

TEC2800 Cryo Console
AMOSTEC2800CCOP20150318
---- 5 ----
6、Trouble shooting
7、Cleaning＆Maintenance
●Please read the specification carefully when running the machine ，According to the
requirements of the operation.
●Keep clean of the instrument and After hours please clear surface dirt and mesa ice water.
●Forbid to using sharp hard object to harm the worktable.
●Insert the fuse(1) into the fuse socket (2) as it is showed in the Fig 10
and insert the whole fuse socket into the socket (3).
●Before replacing the fuse must turn off the power switch and disconnect the power.
Specification of fuse: 3A（220V）,5A(110V)
Type
Problem
Possible causes
Judge Method
Corrective action
No display
No display on the
panel
Fuse broken
Take out the fuse to check its internal
resistance by multimeter, if the value is
infinite, the fuse is broken
Replace a new one
Power cord plug poor
Check the connection is good or not
Plug in again
Power switch is open
circuit
Check the switch is open circuit or not
Replace a new one
switch power supply
no output
Replace the power supply
Replace the power
supply
Don't
refrigerate
Don't refrigerate
after the
machine cooling
some time
Fan broken
Check the Fan is working or not
Replace a new one
Compressor is on the protection of overheating, please turn off 5 minutes, and
press to START restart.
Refrigeration
medium empty
Service by qualified person.
Service by qualified
person.
Alarm
No any display
when machine
start and also
with Alarm.
sensor is broken
Replace the sensor to check if
the work well or not
Replace the sensor
If there are any trouble can not be resolved , please contact with the manufacturer .
1
3
2

TEC2800 Cryo Console
AMOSTEC2800CCOP20150318
---- 6 ----

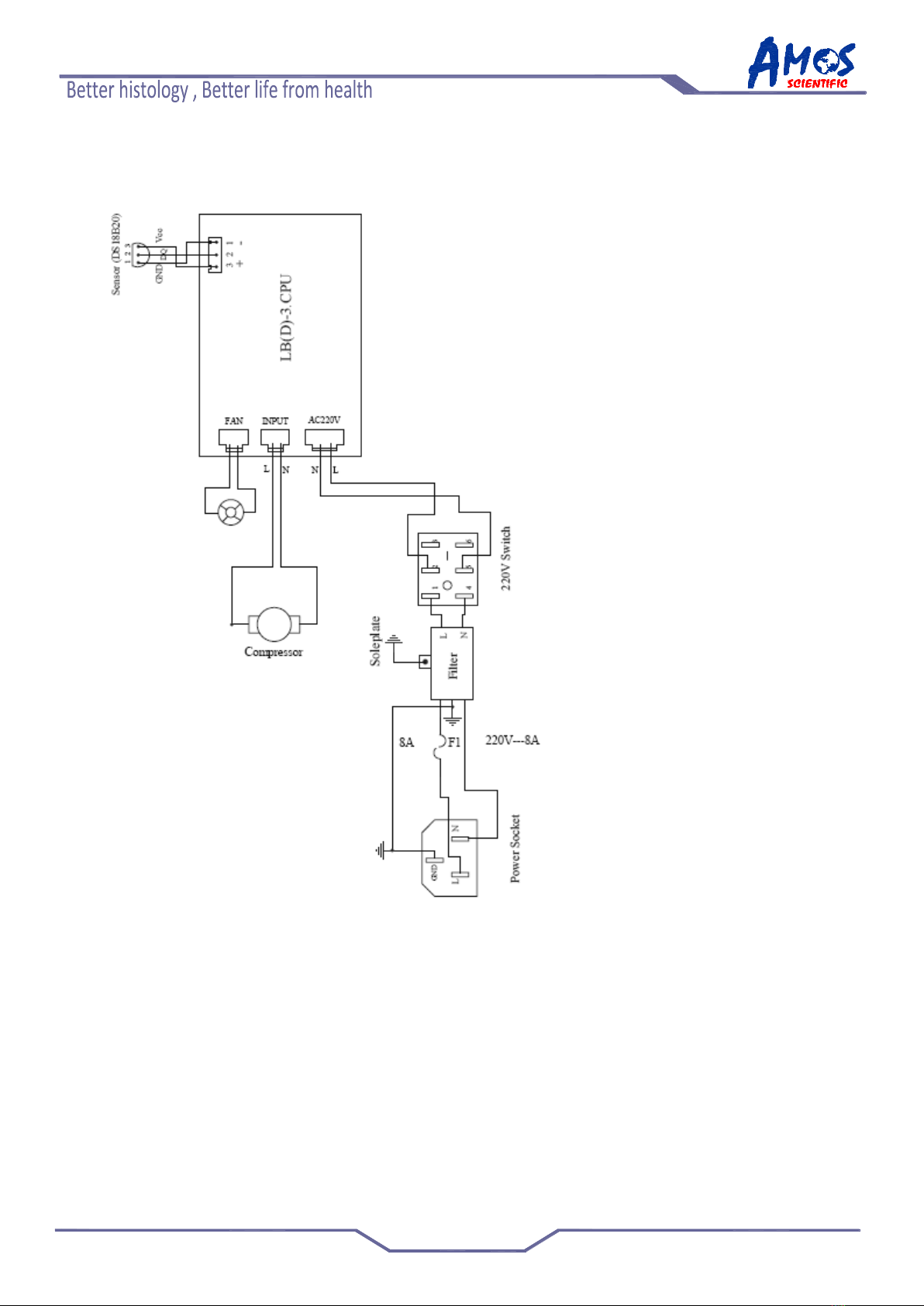

8、Wiring Diagram of Electrical Appliance

TEC2800 Cryo Console
AMOSTEC2800CCOP20150318
---- 7 ----

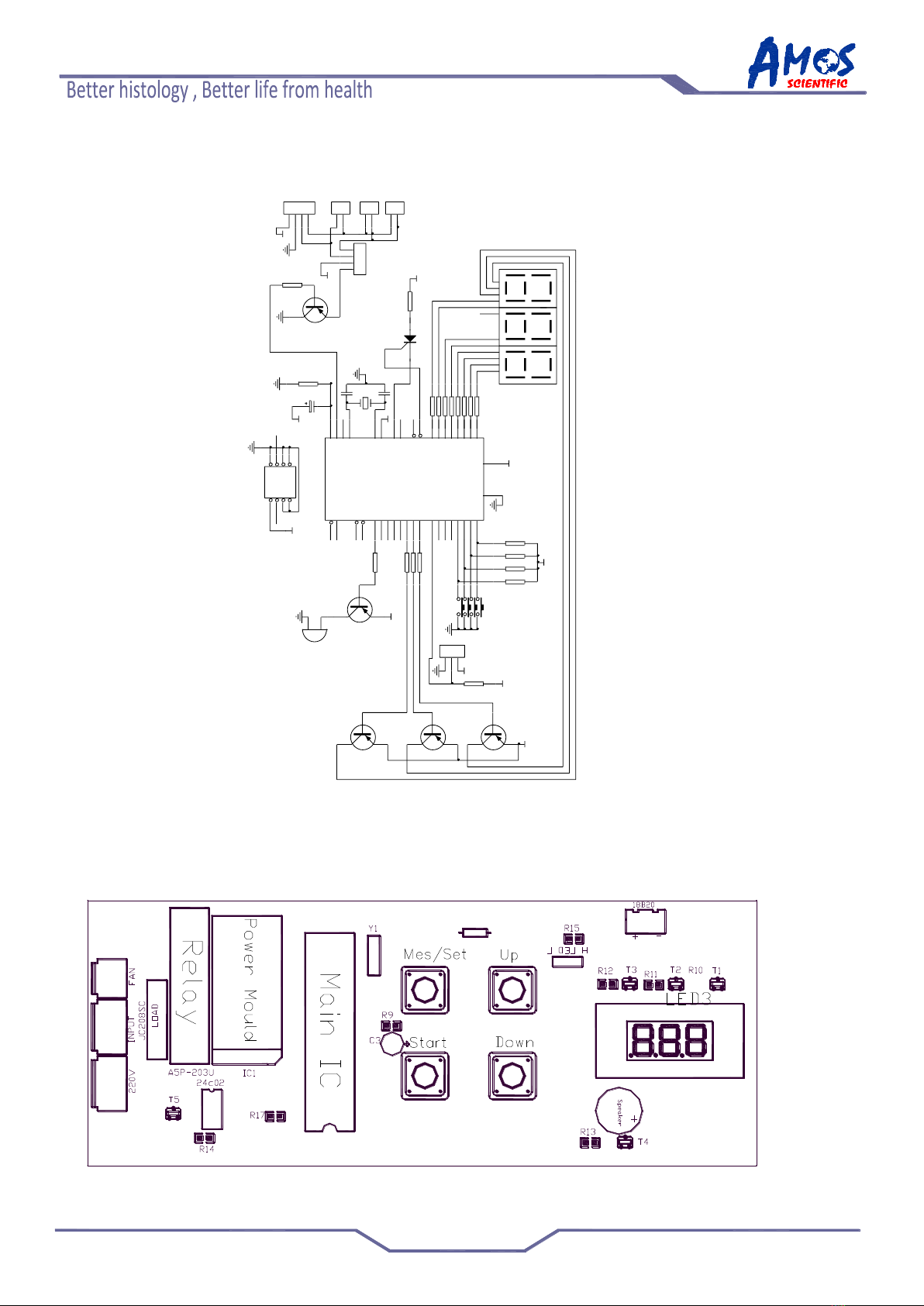

9、Schematic Diagram of Integrated circuit
10、Distribution Diagram Of Component
EA/VP
31
X1
19
X2
18
RESET
9
RD 17
WR 16
INT0
12 INT1 13
T0
14 T1 15
P10
1
P11
2
P12
3
P13
4
P14
5
P15
6
P16
7
P17
8
P00 39 P01 38 P02 37 P03 36 P04 35 P05 34 P06 33 P07 32 P20 21 P21 22 P22 23 P23 24 P24 25 P25 26 P26 27 P27 28
PSEN 29
ALE/P 30
TXD
11 RXD 10
VCC 40
GND 20
+5V
C3
89S52
+5V
1
2
3
4
SSR1
+5V
+5V
+5VC1
C2
S1 S2 S3S4
R19 R20R18R17
+5V
1 2 3
DS18B20
+5V
+5V
+5V
R16
R13
R14
1 2 3 4
IC1(DC)
+5V
R10 R11 R12
R4 R3 R7 R2 R1 R6 R5 R8
R9
+5V R15
Y1
1 2
INPUT
1 2
220V
B1
T1
T5
T2 T3
T4
1 2 3 4 5 6 7 8
24c02
+5V
P2. 4 P2.5 S-CPU
1 2
FAN LED
8 912 3 5 6 10 1 42 711
LED3

Standard accessories list
No
Accessory Name
Qty
Notes
1
Cryo console
1 set
2
Power Cord
1pc
3
Fuse
2pcs
4
Operation Manual
1pc
