TEC 2800 （Version：AMOSTEC2800TCOP20150318）
Thermal Console
Operation Manual
www.amos-scientific.com
AMOS SCIENTIFIC PTY.LTD. ABN37 159 778 140

Foreword
Thank you for purchasing our TEC2800
Thermal console. Presented in this 《Operation
Manual》are the functions and operation method
support for the Embedding Center and the matters
needing attention concerning safety. Please
carefully read this manual before use so that you
can understand its performance better and make
full use of the functions. If you have any questions,
contact us and we will provide satisfactory service
of you at any time.
Please keep this 《Operation Manual 》
appropriately for later consultation.

Contents
1、Safety Matters.................................................................................................................................1
1.1、SAFETYATTENTIONS ......................................................................................................................1
1.2、CONDITIONS OF INSTALLATION......................................................................................................1
1.3、DELIVERY INSPECTION...................................................................................................................1
2、Characteristics & Application...................................................................................................2
3、Main Structure................................................................................................................................2
4、Technical Parameters ...................................................................................................................2
5、Operation Explanation..............................................................................................................3
5.1 EXPLAINATION OF FUNCTIONAL KEYS ............................................................................................3
5.2 INSTRUCTIONS............................................................................................................................... 3-4
6、Trouble shooting.............................................................................................................................5
7、Cleaning ＆Maintenance..........................................................................................................5
8、Schematic Diagram Of Integrated Circuit............................................................................6
9、Distribution Diagram Of Component..................................................................................... 7

TEC2800 Thermal Console
AMOSTEC2800TCOP20150318
---1---
1. Safety Matters
●Please read these explicit rules. Act in violation of them can affect normal operation of the equipment,
cause damage to the equipment or result in danger.
Use 220VAC±10% at 50HZ or 110VAC±10% at 60HZ
The input power supply must have good earthing
The equipment should be installed far away from flammable and explosive objects
Don’t open the equipment without authorization to prevent high voltage shock
Only professional maintenance worker are allowed to repair this product
Use fuses with correct capacity
Ensure that the power supply socket and circuit are able to withstand at least two times
The equipment should be installed far away from any interference source
◼Electrical Protection Ratings: I class, B type
◼Baleful liquid Leak-in proof degree: Normal (enclosed equipment without liquid leak-in
proof)
◼Working system: Continuous running
● Installation environment
(1) More than 20cm of space around the equipment for heat dissipation.
(2) Free of water-drop ,steam, dust(including oily dust and flying dust)
(3) Free of corrosive, flammable and explosive gas and liquid
(4) Firm and without vibration
(5) Free of electromagnetic interference
(6) Ambient temperature and relative humidity at 5℃—+40℃ and less than 90%,respectively
● Delivery inspection
Although the product has already been inspected on quality before leaving the factory, the following
inspection is necessary at delivery because many be damaged and accessories get missing caused by
careless handling during transportation.
(1) Open the packing boxes and check the contents to make sure that there is the product, operation manual,
certificate, packing list and accessories.
(2) Check the nameplate to make sure that the product is the one you ordered.
（3）Make sure that the product and accessories do not get damaged or missing during transportation.

AEC380 Thermal Console
AMOSAEC380TCOP20130318
---2---
2.Characteristics & Application
TEC2800 Thermal console is support for Embedding Center.
3．Main Structure

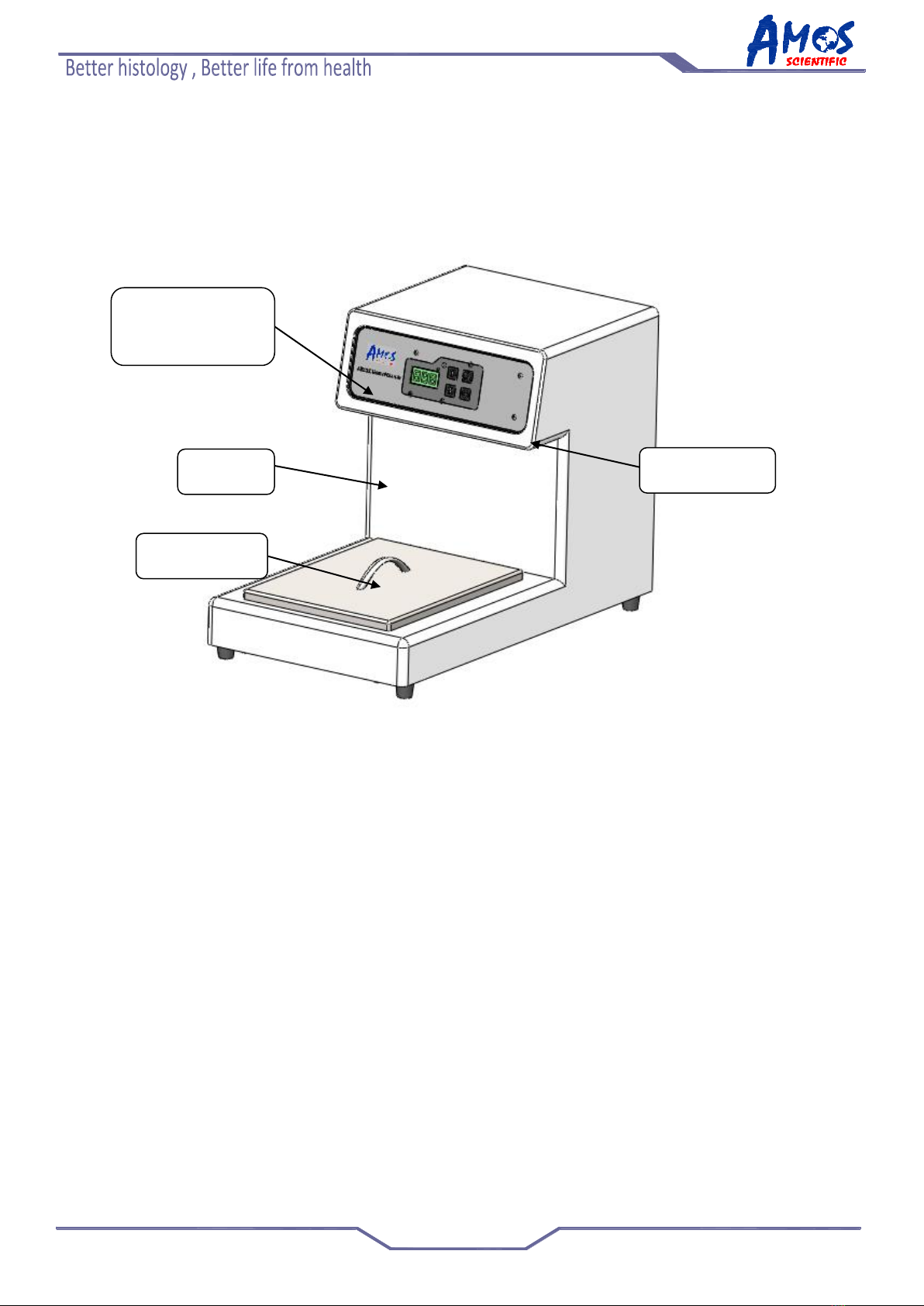

Fig 1
4. Technical Parameters
⊙Capacity ：2.5Lt
⊙Working temperature: from ambient to 75℃ increments 1℃
⊙Rated Power：335W
⊙Supply voltage: AC 220V±10% 50Hz or AC 110V±10% 60Hz
⊙Fuse: 220V/3A or 110V/5A
⊙Dimensions
Width: 300mm
Depth: 540mm
Height: 390mm
Weight: about 7.5Kg
Display panel &
Membrane
Frame
Thermal tank
Power switch

AEC380 Thermal Console
AMOSAEC380TCOP20130318
---3---
5. Operation Explanation
Fig 2
5.2●Operation
●Temperature Set
Connect to power supply and turn on the power switch(see Fig 1).
▲Attention：The Voltage must be same as the remarked on the nameplate, or it will
broken the machine.
Press ，green indicate lamp is light，and then press to set the
temperature as your desired.
●For example 1：current acutal temperature is ambient 25℃，the required
temperature is 70℃。
a. Press and the indicate lamp is on green light
b．Press continuous until the LED display to 70
LED：display the actual
temp.or set temp.
Increase
Decrease
Temp.Set
Start/Standby
Indicate Lamp：
Red----The machine is on the heating
Green----The machine is on the temperature setting status.
No light----The machine is on standby.

AEC380 Thermal Console
AMOSAEC380TCOP20130318
---4---
c. Press again to exit the set status.
d．Press to active the heating while the indicate light is on Red.
After finished the setting, the LED screen will display the temperature degree
increasing from 25℃to 70℃. After reach to 70℃, the indicate lamp will no light, the
machine stop heating and the temperature degree decrease, but the machine will re-start to
heating when the actual temperature is lower than 70℃.（Please note: If press to stop the
heating before the temperate reached to 70℃, the temperature degree will decrease and it also
displayed on the LED screen.)

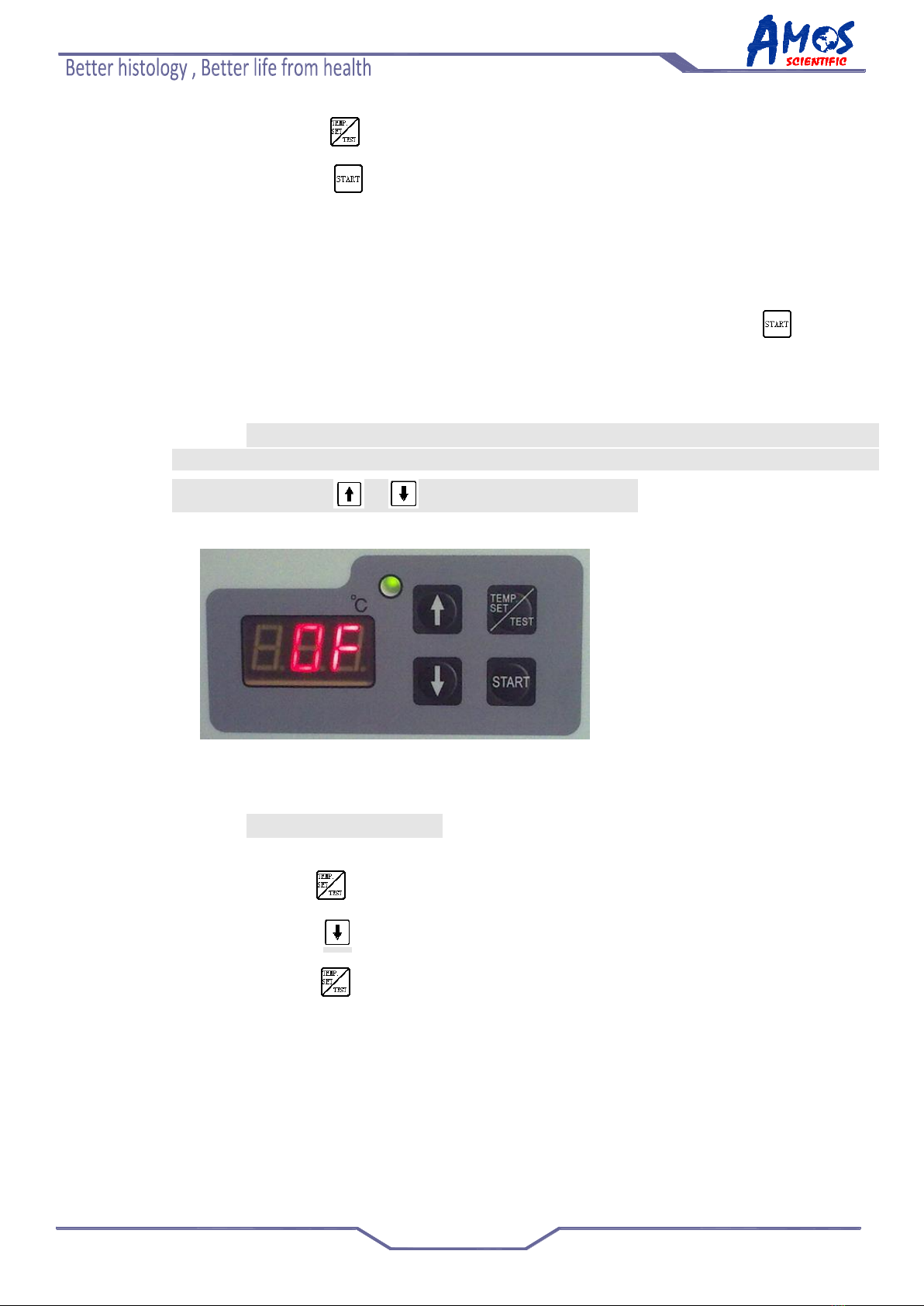

▲Attention：The temperature set range is ambient 0～75℃. If the setting
temperature is over the range, the buzzer could alarm and LED display"OF" to remind the
wrong action.( Press or to cancel the alarm as Fig 3)
Fig 3
●For example 2：If current acutal temperature is ambient 70℃，the required
temperature is 50℃。
a. Press and the indicate lamp is on green light
b．Press continuous until the LED display to 50
c. Press again to exit the set status, and the indicate lamp is no light
After finished the setting, the LED screen will display the temperature degree
increasing from 70℃to decrease while the heating is off. When the temperature reach to
50℃, the indicate lamp will no light. The machine will re-start to heating when the actual
temperature is lower than 50℃while the Red light is on, and when the temperature reach
to 50℃, the heating stop again and Red light is off.

AEC380 Thermal Console
AMOSAEC380TCOP20130318
---5---
6、Trouble shooting
7、Cleaning＆Maintenance
●Please reading the specification carefully when run the machine，According to the requirements
of the operation.
●Keep clean of the instrument and After hours please clear surface dirt and mesa ice water.
●Forbid to using sharp hard object to harm the worktable.
●Insert the fuse(1) into the fuse socket (2) as it is showed in the Fig 10
and insert the whole fuse socket into the socket (3).
●Before replacing the fuse must turn off the power switch and disconnect the power.
Specification of fuse: 3A（220V）,5A(110V)
Type
Problem
Possible causes
Judge method
Corrective action
No display on
the panel
LED screen no
display
Power cord plug
poor
Plug in again
Plug in again
Fuse broken
Take out the fuse to check its internal
resistance by multimeter, if the value is
infinite, the fuse is broken
Replace a new one
switch power
supply no output
Replace the power switch
Replace the power
switch
Don't heating
No heating
The temperature
setting is wrong
Ambient temperature is bigger than set
temperature, the machine is no heating
Reset the
temperature
Single buzzer sound
when start
sensor is broken
Check the sensor by multimeter,
Replace the sensor
If there are any trouble can not be resolved , please contact with the manufacturer .
2
3
1

AEC380 Thermal Console
AMOSAEC380TCOP20130318
---6---
8、Schematic Diagram of Integrated circuit
EA/VP
31
X1
19
X2
18
RESET
9
RD 17
WR 16
INT0
12 INT1 13
T0
14 T1 15
P10
1
P11
2
P12
3
P13
4
P14
5
P15
6
P16
7
P17
8
P00 39 P01 38 P02 37 P03 36 P04 35 P05 34 P06 33 P07 32 P20 21 P21 22 P22 23 P23 24 P24 25 P25 26 P26 27 P27 28
PSEN 29
ALE/P 30
TXD
11 RXD 10
VCC 40
GND 20
+5V
C3
89S52
+5V
1
2
3
4
SSR1
+5V
+5V
+5VC1
C2
S1 S2 S3S4
R19 R20R18R17
+5V
1 2 3
DS18B20
+5V
+5V
+5V
R16
R13
R14
1 2 3 4
IC1(DC)
+5V
R10 R11 R12
R4 R3 R7 R2 R1 R6 R5 R8
R9
+5V R15
Y1
1 2
INPUT
1 2
220V
B1
T1
T5
T2 T3
T4
1 2 3 4 5 6 7 8
24c02
+5V
P2.4 P2.5 S-CPU
1 2
FAN LED
8 912 3 5 6 10 1 42 711
LED3

AEC380 Thermal Console
AMOSAEC380TCOP20130318
---7---
9、Distribution Diagram Of Component

Standard accessories list
No
Accessory Name
Qty
Notes
1
Thermal Console
1 unit
2
Power Cord
1pc
3
Fuse
2pcs
4
Operation Manual
1pc
