Amos TEC 2500 User manual

TEC 2500
Water bath-Slide drier
Operation Manual
www.amos-scientific.com
AMOS SCIENTIFIC PTY.LTD. ABN37 159 778 140

Fore Word
Thank you for purchasing our TEC 2500
Water Bath-Slide Drier. Presented in this
《Operation Manual》are the functions and
operation methods of the TEC2500 Water
Bath-Slide Dryer and the matters needing
attention concerning safety. Please carefully
read this manual before use so that you can
understand its performance better and make
full use of the functions. If you have any
questions, contact us and we will provide
best service for you at any time.
Please keep this 《Operation Manual》
appropriately for later consultation

Contents
1. Safety Instruction........................................................................................................... 1
1.1 Safety Matters……………………………………………………………………1
1.2 Conditions of installation…………………………………………………………..1
1.3 Delivery Inspection………………………………………………… .....………….1
2. Performance Features & Range of Application............................................................... 1
3. Main structure.................................................................................................................. 2
4. Technical Parameters ..................................................................................................... 3
5. Operation ......................................................................................................................... 3
5.1Keypad Description & Function......................................................................3
5.2 Instruction...............................................................................................................4
6. Layout Of Components＆Electric Wiring Diagram..............................5
7. Trouble Shooting ............................................................................................................. 6
8. Layout Of Components In Pcb Circuit Board ................................................................. 7
9.Schematic Diagram of Electric Equipment..............................................................7
10.Wiring Diagram ..............................................................8

TEC 2500 Water Bath-Slide Drier HESTION 201301040001EN
---1---
---1---
TEC2500 Water Bath-Slide drier Ver:AMOSTEC2500OP20161115
Safety Instruction
1.1
Safety Matters
●Please read these concise rules. Any violation against them will affect normal use of equipment or
cause damage to equipment or danger.
Please use 220VAC±10% at50HZ or 110v+10%, 60Hz AC.
Input power supply must be of good earth connection .
Keep away from flammables and explosives.
Don’t open equipment without authorization to avoid high voltage shock.
Only professional maintenance personnel is allowed to repair equipment.
Use fuses with correct capacity
Ensure power socket and circuit be able to bear 2 times of rated current at least.
Keep away from from any interference source.
Caution: Hot.
Electrical Protection Ratings: I class, B type
Shell protection grade: IP53
Harmful liquid Leak-in proof degree: Normal (enclosed equipment without liquid leak-in
proof)
Working system: Continuous operation
1.2 Conditions of installation
●Ensure more than 20cm of space around the equipment for heat dissipation.
●No water drop, steam, dust including oily dust and floating dust.
●No erosive,flammable and explosive gas and liquid.
●Solid and non-vibration.
●No interference from other electromagnetic signals.
●Operating ambient temperature from 5℃to 40℃,relative humidity under 90%
1.3Delivery Inspection
Although the product has already been inspected before leaving the factory, the following
inspection is necessary at delivery because the product may be damaged and accessories get
missing caused by careless handling during transportation.

TEC 2500 Water Bath-Slide Drier HESTION 201301040001EN
---2---
---2---
TEC2500 Water Bath-Slide drier Ver:AMOSTEC2500OP20161115
(1) Open the packing boxes and check the contents to make sure that the product, operation manual,
certificate, packing list and accessories are all presented.
(2) Check the nameplate to make sure that the product is the one you ordered.
(3) Make sure that the product and accessories do not get damaged or missing during transportation.
2. Performance Features & Range ofApplication
TEC 2500 pathologic microtome section rinsing ﹠drying apparatus has the characteristics of
integral design, beautiful appearance, compact structure, digitalization temperature control and
stable performance. The program control system makes operation easier and more reliable.
TEC 2500 pathologic microtome section rinsing and drying apparatus can be widely used in such
institutions as hospitals and scientific and research universities.
3.Main structure
Oven
Bath tank
Warmer
Display panel

TEC 2500 Water Bath-Slide Drier HESTION 201301040001EN
---3---
---3---
TEC2500 Water Bath-Slide drier Ver:AMOSTEC2500OP20161115
4. Technical Parameters
● temperature range
Bath tank: room temperature～90℃, the most favorable temperature is in 45℃
Oven: room temperature～90℃, the most favorable temperature is in 70℃
Warmer: room temperature～90℃, the most favorable temperature is in 70℃
● input voltage:220v±10% at 50Hz or 110v±10% at 60Hz
● Fuse:220V/5A or 110V/8A
● rated power::600W
● outside dimensions(mm):550×340×140
● weight: 9Kg
5. Operation

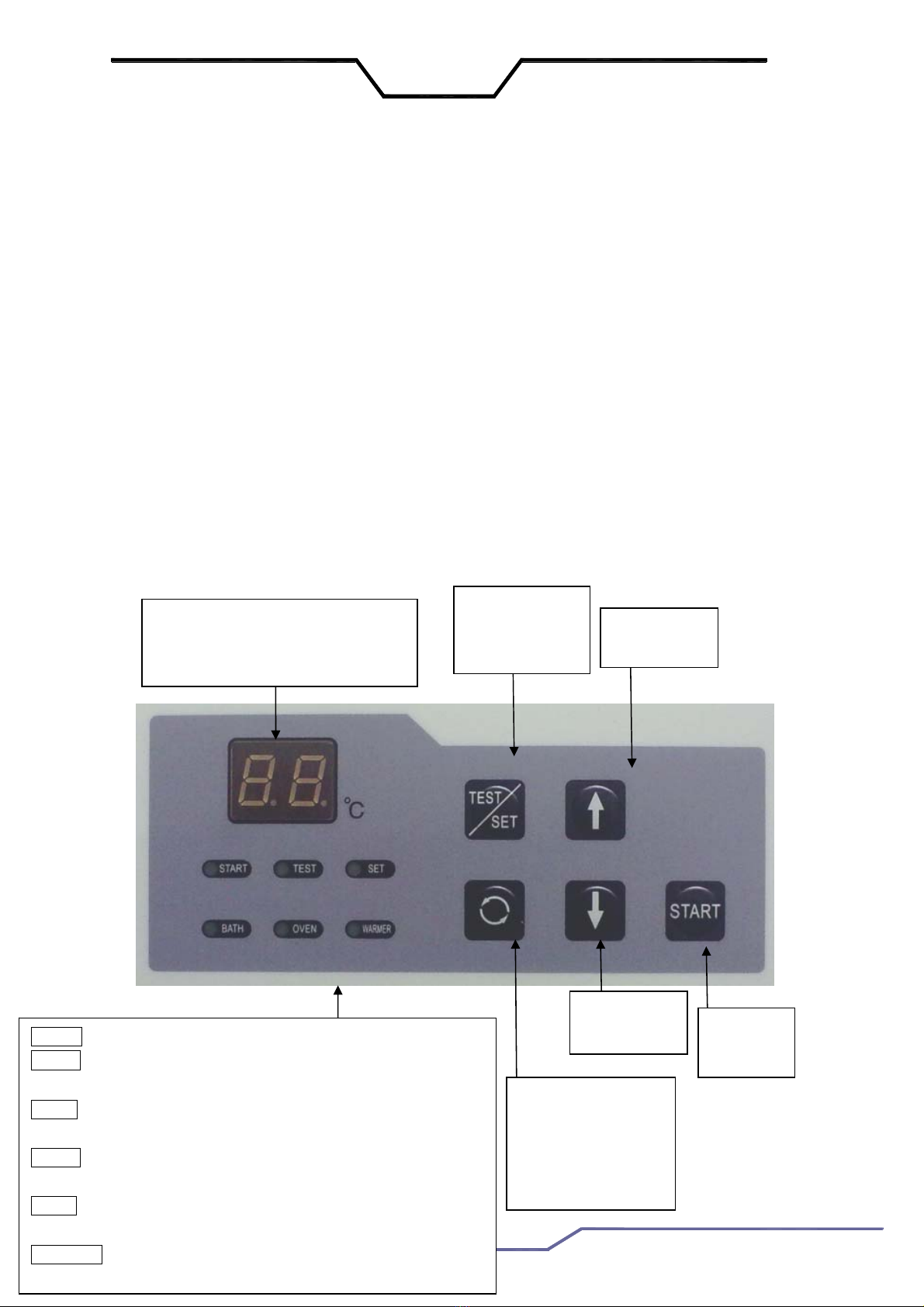

5.1 Explaination Of Functional Keys
Heating/
Standby
Decrease
the value
Cycle button
Press this key to
select one of three
functions:
bath,oven, warmer.
Temp. check/
Temp.Set Increase the
LED screen/
temperature value displayed
START its indicator light that means machine is on heating.
TEST its indicator light that means the screen displayed
the test temperature.
SET its indicator light that means the machine is on set
temperature mode.
BATH its indicator light that means the machine is on water
bath mode.
OVEN its indicator light that means the machine is on oven
mode.
WARMER its indicator light that means the machine is on
drier mode.

TEC 2500 Water Bath-Slide Drier HESTION 201301040001EN
---4---
---4---
TEC2500 Water Bath-Slide drier Ver:AMOSTEC2500OP20161115
● Key and function
Start heating switch；
Test/Set for temperature measurement or temperature setting；
for function change-over. Press this key to select one of the three
functions of oven, bath and warmer；
Press this key to increase the temperature；
Press this key to decrease the temperature
● Indicator lamp and function
℃This lamp indicates the temperature；
Start When this lamp lights ,it means that the apparatus is in heating state；
Test When this lamp lights, the value shown by ℃is the measured temperature;
set When this lamp lights, the value shown by ℃is the set temperature.
At the moment, it is also possible to set the temperature again;
Bath When this lamp lights, it means that the apparatus is in bath state；
Oven When this lamp lights, it means that the apparatus is in oven state；
Warmer When this lamp lights, It means that the apparatus is in warm state；
5.2 Instruction
1. Take out the bath tank and fill it with proper amount of water (The water level in the tank
should be between one third and two thirds of the depth of the tank).Then put the tank back. Please
don’t fiddle with the digital sensor under the tank to avoid affecting temperature control.
2. Connect the equipment to power supply and turn on the switch at the rear of the equipment.
3. Press the key until the indicator lamp Bath lights. Then press Test/set until the lamp set
light. Now press to set ↑、↓the required temperature in the bath tank.
4. Press the key till the lamp Oven lights. Then press Test/set until the lamp set light. Now
press to set ↑、↓the required temperature in the oven.

TEC 2500 Water Bath-Slide Drier HESTION 201301040001EN
---5---
---5---
TEC2500 Water Bath-Slide drier Ver:AMOSTEC2500OP20161115
5. Repeat the above process to set the temperature in the warmer.
6. After setting the temperature in the bath tank, oven and warmer, press Start till the lamp start
lights. At the moment, heating begins. When the set temperature is reached, press Start again to
heating stops and the set temperature is kept constant.
Note: Normally, heating should begin half an hour before operation.
◆How to check the temperature to see if it reaches the set value
Aftertheequipmentisheatedforaperiodof time, press the key Test/set to check the temperature in
the bath tank, oven or warmer as follows:
To check whether the temperature in the bath tank, for example, reaches the set value, press
the key till the lamp Bath lights, and then press the key Test/set till the indicator Test
lights. The value shown by ℃is the current temperature in the bath tank. The current
temperature in the oven and warmer is also checked in the same way.
After using of the equipment, press the key start till the indicator start goes out and then turn off
the power switch at the rear of the equipment.
6．Cleaning＆Maintenance
●The input power supply must have good earth connection
●The bottom of water bath box must keep dry for fear of creep aging or bobbling heating up
piece. Keep the equipment clean for fear of influencing the control of temperature.
●Take care that the outside heating up piece hurt you.

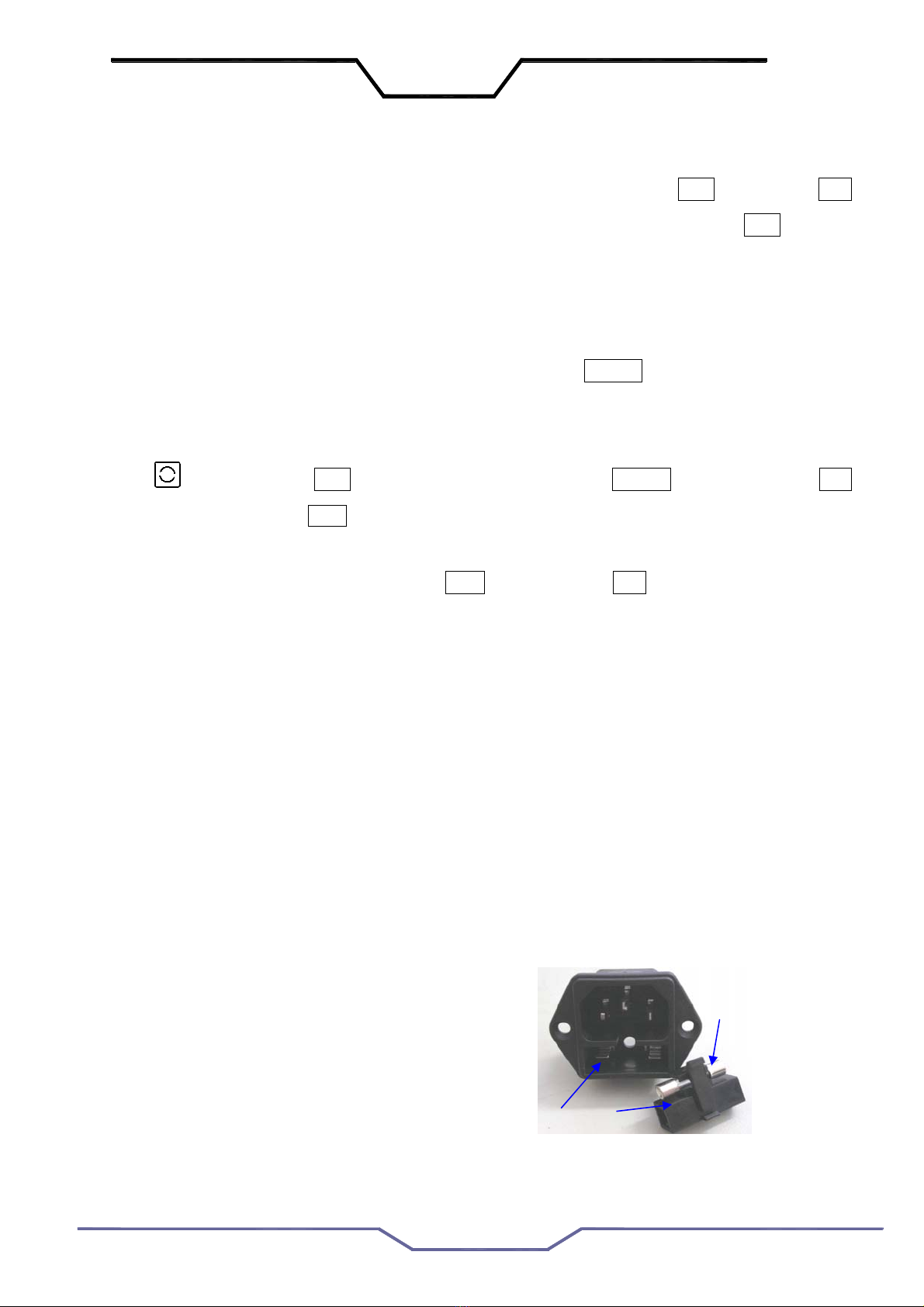

●Install fuse as figure(1) shown then put it into the installation part as figure(2)shown.At last
put the whole installation into the receptacula as figure(3)shown.
●Before replacing the fuse must turn off the power switch and disconnect the power.
Specification of fuse: 5A（220V）,8A(110V).
32
1

TEC 2500 Water Bath-Slide Drier HESTION 201301040001EN
---6---
---6---
TEC2500 Water Bath-Slide drier Ver:AMOSTEC2500OP20161115
7. Trouble Shooting
Symptom Cause Judgment Remedy
Display on the
operation panel does
not work
Poor connection of power supply Connection again Correct it
Switch at the rear of the
equipment not on
Turn on Turn it on
Fuse blow
Take out the fuse to check its internal
resistance by multimeter, if the value
is infinite, the fuse is broken
Replace a new one
Temperature in the
bath tank is not
accurate
dirty substance at the bottom Clean the bottom
Clean the bottom
and put the right
position
Buzzer
sounds
LCD
Shows E1
Sensor in bath tank is damaged
Connect a new sensor to right
terminal to start machine, if all be
okay, it means the sensor is broken
Replace a new
sensor
LCD
Shows E2
Sensor in oven is damaged
LCD
Shows E3
Sensor in warmer is damaged
LCD
Shows E4
Bath tank is overheated (relay
in bath tank is damaged)
Check the relay
Replace a new
relay
LCD
Shows E5
Oven is overheated (relay in
drying oven is damaged)
LCD
Shows E6
Warmer is overheated (relay in
baking trough is damaged)
No heating
Heating film damaged
Check the heating film maybe
broken because the overheated
Replace a new
heating film
Fuse blow
Take out the fuse to check its internal
resistance by multimeter, if the value
is infinite, the fuse is broken
Replace a new
fuse

TEC 2500 Water Bath-Slide Drier HESTION 201301040001EN
---7---
---7---
TEC2500 Water Bath-Slide drier Ver:AMOSTEC2500OP20161115
If other troubles occur or the above troubles can not be eliminated, please contact us.
8. Layout Of Components In Pcb Circuit Board
9. Schematic Diagram of Electric Equipment
EA/VP
31
X1
19
X2
18
RESET
9
RD 17
WR 16
INT0
12 INT1
13
T0
14 T1
15
P10
1
P11
2
P12
3
P13
4
P14
5
P15
6
P16
7
P17
8
P00 39
P01 38
P02 37
P03 36
P04 35
P05 34
P06 33
P07 32
P20 21
P21 22
P22 23
P23 24
P24 25
P25 26
P26 27
P27 28
PSEN 29
ALE/ P 30 TXD
11 RXD
10
VCC 40
GND 20
+5V
C3
89S52
+5V
1 2 3 4
SSR1
+5V
+5V
+5VC1
C2
S1
S2
S3
S4
R14 R15R13R12
+5V
1 2 3
DS18 B 2 0(B )
+5V
+5V
+5V
R16
R8
R19
1
2
3
4
IC 1 (DC)
+5V
R10
R11
R4
R3
R7
R2
R1
R6
R5
R11
Y1
1
2
BATH
1
2
220V B1
T1
T4
T2
T3
1 2
3 4
5 6
7 8
24c02
+5V
P2.4 P2.5
S-CPU
1
2
OVEN
5910 8 3 4167
LED3
S5
R22
1 2 3
DS18 B 2 0(O )
1 2 3
DS18 B 2 0(W )
R17 R18
P0.5
P0.6
P0.7
1 2 3 4
SSR2
+5V
R20
T5
1 2 3 4
SSR3
+5V
R21
T6
1
2
WARMER
P3.2
P3.1
P3.0
R22 R23 R24 R25 R2 6 R27
D1 D2 D3 D4 D5 D6
+5V
P3.3 P3.4 P3.5 P3.6 P3.7 P2.3

TEC 2500 Water Bath-Slide Drier HESTION 201301040001EN
---8---
---8---
TEC2500 Water Bath-Slide drier Ver:AMOSTEC2500OP20161115
10. Wiring Diagram

Standard Accessories List
No Accessory Name Qty Notes
1 Water bath-slide drier 1 unit
2 Power Cord 1pc
3 Fuse 2pcs
4 Operation Manual 1pc

Published by:
AMOSSCIENTIFICPTY.LTD
7 Gabrielle Court,Bayswater North VIC 3153 Melbourne , Australia
Tel: [phone] Fax: [phone]
ABN 37 159 778 140
www.amos-scientific.com
