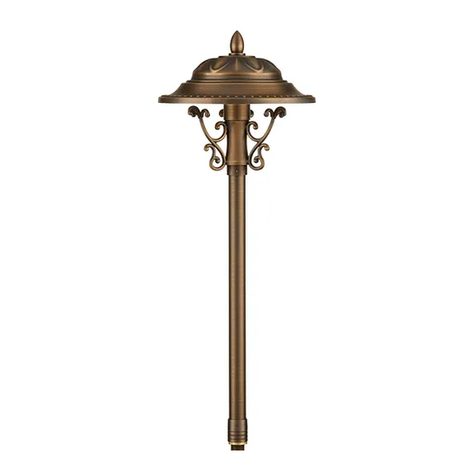

AMP® Solarium Brass LED Flame Path Light
ASPL-3030-B-BZ

AMP® Solarium Brass LED Flame Path Light
ASPL-3030-B-BZ
INSTALLATION & MAINTENANCE GUIDE
www.amplighting.com
–2–
Important Safety Instructions: Read Before Installation
!
Important Safety Instructions
!
This luminaire is intended for installation in accordance with local codes and
the National Electric Code (NEC). Failure to adhere to these codes and in-
structions may result in serious injury, property damage and void the warran-
t y.
These instructions do not intend to cover all variations in installation, opera-
tion maintenance or mounting situations.
Please note that these solar xtures are equipped with built-in photocells, so
they will not turn on until it is dark enough. These xtures will also require
plenty of sunlight to function properly. It’s best to have the xture in an area
where the sun will get to it at all times throughout the day and where no am-
bient lighting will aect the photocell at night. If your xture is not function-
ing at night, be sure that the on/o button has been engaged. See step one
for details.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn o/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly!
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may dam-
age lamp.
6. Do not operate the luminaire tting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS

[email protected] • 813.978.3900
Product Dimensions
–3–
Package Contents
A. (1) Fixture Body
B. (1) Flame LED Lamp
C. (1) 12” Stem
Package Contents
A. Mounting Accessory
6.33”
6.89”

INSTALLATION & MAINTENANCE GUIDE
–4–
www.amplighting.com
–4–
2
1
AMP® Solarium Brass LED Flame Path Light
ASPL-3030-B-BZ
Remove Solar Panel
Install Flame Lamp
Using a screwdriver, loosen the
screws to carefully remove the
solar panel from the xture
body to avoid disconnecting
the wires.
Screw
Solar Panel
Fixture Body
Use ame lamp with correct
wattage and type marked on
xture label.
Align the pins in the bottom
of the ame lamp to holes on
the socket and push the ame
lamp into the socket properly.
CAUTION: Do not exceed
maximum wattage marked on
luminaire label.
Socket
Flame Lamp

[email protected] • 813.978.3900
–5–
3
Install Solar Panel
4
Test Solar Light
Align the switch to the slot on
the solar panel and place the
solar panel back onto the x-
ture body. Secure them togeth-
er with previously removed
screws. Hand tighten until snug
with a screwdriver.
Screw
Solar Panel
Switch
Slot
Fixture Body
Place the solar panel of the x-
ture onto a at opaque working
surface. Push the switch on the
ange “ON” to test the light
source. The lights will turn on
while the switch is on.
Now you can proceed to the next
steps of installation knowing the
xture is in ON mode.
On/Off Switch
ON
Fixture Body
FLAT SURFACE

INSTALLATION & MAINTENANCE GUIDE
–6–
www.amplighting.com
–6–
AMP® Solarium Brass LED Flame Path Light
ASPL-3030-B-BZ
5
Install Stake
Determine the desired location
for mounting the luminaire.
Hammer the stake into the
ground until ange of stake is
ush to grade. To avoid damage
to the stake, place a board on
top of the stake while hammer-
ing.
NOTE: If the ground is hard and
the stake is dicult to install,
make a crosscut in the ground
using a at shovel.
Board
Stake
Soil
Ground
6
Install Fixture Body
Thread the xture body and
the stem onto the stake and
hand tighten until snug.
Ground
Stem
Fixture Body
Soil
Stake

–6––6–
[email protected] • 813.978.3900
–7–
How to Replace Battery
1
Remove Solar Panel
Using a screwdriver, loosen the
screws to carefully remove the
solar panel from the xture
body to avoid disconnecting
the wires.
Screw
Solar Panel
Fixture Body
2
Replace Battery
Remove the battery out of
the battery compartment and
replace it with a new one.
Solar Panel
Battery
Battery
Compartment
3
Install Solar Panel
Align the switch to the slot on
the solar panel and place the
solar panel back onto the x-
ture body. Secure them togeth-
er with previously removed
screws. Hand tighten until snug
with a screwdriver.
Screw
Solar Panel
Switch
Slot
Fixture Body
